Configuring Recurrence (igScheduler)

Purpose

The topics in this section provide information about the recurrence concept of the igScheduler control.

Overview

The activity recurrence is used when you need to have repetitions of an activity following a specific recurrence pattern (for example each day at a specific hour or each month at a specific date).

In order to create recurrence you can follow these steps:

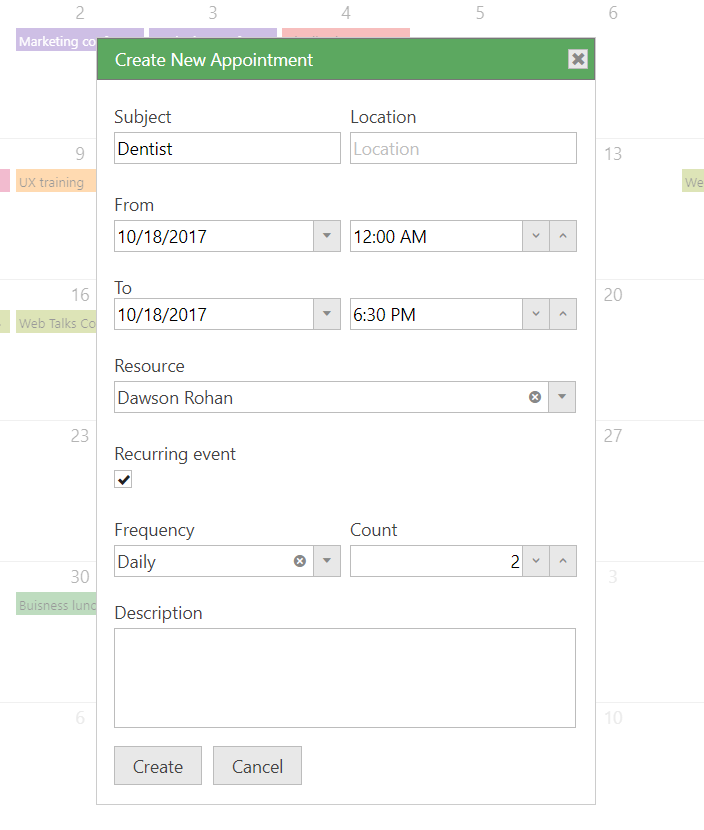

  1. Select the day for your activity (from the scheduler month view for example) and choose Create appointment button after the notifier shows up.
  2. Fill in the required fields from Create New Appointment dialog that will be used for the new appointment instance.
  3. Check Recurring event checkbox and set Frequency and Count.
  4. Press Create button

Recurrence object properties

The following table lists the Recurrence properties and their purpose:

Property Purpose
recurrence Gets/Sets a recurrence pattern for the recurrence root activity. Example FREQ=DAILY;INTERVAL=1;COUNT=2;WKST=MO
isRecurrenceRoot A boolean property indicating if the activity is a recurrence root activity..
recurrenceRoot Returns the root recurrence activity or null if the activity is not associated with a recurrence.
recurrenceId Returns the ID of the root recurrence activity or null if the activity is not associated with a recurrence.

Code example

The following code example demonstrates how to create a recurrent appointment with a monthly recurrence rule and 5 repetitions:

var recurrence = new $.ig.scheduler.DateRecurrence();
    recurrence.frequency($.ig.scheduler.DateRecurrenceFrequency.weekly);
    recurrence.count(5);


var dentistAppointment = {
            "start": new Date(2017, 9, 18, 15, 30),
            "end": new Date(2017, 9, 19, 0, 0),
            "subject": "Dentist appointment",
            "location": "Sofia, Iztok, str. Tintyava 28",
            "description": "Bring all the papers",
            "resourceId": 8,
            "recurrence": recurrence
        };

$("#scheduler").igScheduler("createAppointment", dentistAppointment);

Note: Recurrence field can accept data in format 'FREQ=MONTHLY;INTERVAL=1;COUNT=2;WKST=MO', start and end fields accept a JavaScript date object or a string '18/10/2018'.

Related topics

Topic Purpose
Configuring Appointments (igScheduler) This topic shows how to setup and configure Appointments DataSource for the igScheduler.

Configuring Views (igScheduler): The topics in this section provide information about the different views used by the igScheduler control to present calendar data.
