The igDataSource is a client-side JavaScript data source component that can bind to a variety of formats of data including XML, JSON, Atom, JavaScript arrays, and even HTML tables. You can see the different formats used in the Ignite UI for jQuery samples browser.
The igDataSource is ‘server agnostic’ which means that it takes no dependency on any type of server-side software platform. With that being said, developers using the .NET framework often want to leverage WCF to provide data in their RIA applications. This topic dissects one of the WCF samples from the samples browser and walks you through the process of setting up your own WCF service to deliver XML data to the igDataSource in an ASP.NET application.

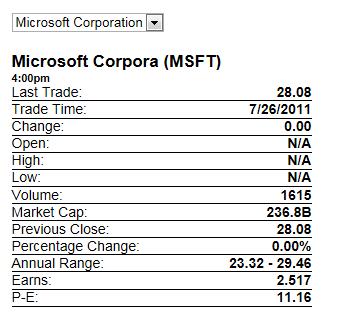

The following is a screenshot of the finished product:
In the sample, users can select a company name from the dropdown to have the application display details about the company’s stock performance. Behind the scenes, the selection in the dropdown triggers an AJAX call to a WCF endpoint on the web server. In the production sample, the web server calls a real stock service to get the latest information about the stock which it then returns to the client. For the purposes of clearly showing how this works and how you can supply your own data, the example in this topic returns an XML string from the web server.
The following steps walk you through building the sample in Microsoft Visual Studio® 2010.

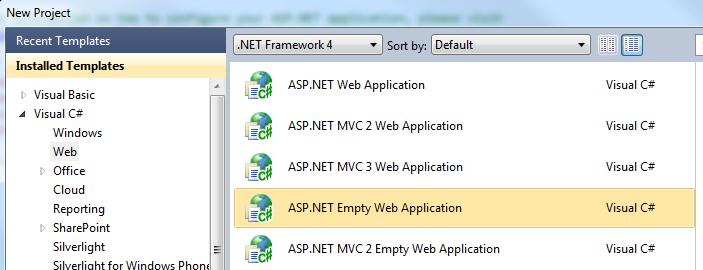

Open Visual Studio and create a new ASP.NET Empty Web Application and name it ‘igDataSourceWCFService’: Note: As stated above, the igDataSource component is server-agnostic. Therefore this exercise demonstrates how you can implement WCF support in ASP.NET WebForms as opposed to ASP.NET MVC which Ignite UI for jQuery supports out-of-the-box.
Add a reference to the Ignite UI for jQuery combined and minified script file, infragistics.core.js, which comes with the product. In addition, you must reference jQuery core, jQuery UI, and jQuery templating scripts to run the sample. This help article discusses referencing the required scripts and where the combined and minified scripts are available to add to your application. Note: You can download the full or trial product here. The jQuery templates script is available here.
Create a “scripts” directory in your project and copy the JavaScript files into this folder.
Next you can setup the sample page. You are going to add a new html page to the application and call it ‘default.htm’. Once that is done your project will look like this:
Open the default.htm file and include script tags for the script files:
In HTML:
<head>
<title>igDataSource Bound to WCF Service</title>
<script src="scripts/jquery.min.js" type="text/javascript"></script>
<script src="scripts/jquery-ui.min.js" type="text/javascript"></script>
<script src="scripts/infragistics.core.js" type="text/javascript"></script>
</head>
Into the body of your default.htm file
In HTML:
<style type="text/css">
#quoteContainer
{
width: 300px;
margin:20px 0;
}
.quote
{
font-weight: bold;
float: right;
}
.quoteTime
{
font-weight: bold;
font-size: 11px;
}
.quoteName
{
font-weight: bold;
font-size: 17px;
}
.quoteContainer
{
border-bottom: 1px solid black;
}
</style>
<script id="quoteTemplate" type="text/x-jquery-tmpl"></script>
<script type="text/javascript">
var ds,
quoteSchema,
render;
$(function () {
var url;
render = function (success, error) {
if (success) {
$("#quoteContainer").empty();
$("#quoteTemplate").tmpl(ds.dataView()).appendTo("#quoteContainer");
} else {
alert(error);
}
};
url= "StockQuoteService.svc/GetStockQuoteGET?symbol=MSFT";
quoteSchema = new $.ig.DataSchema("xml", { fields: [
{ name: "Name", xpath: "Name" },
{ name: "Symbol", xpath: "Symbol" },
{ name: "Last", xpath: "Last" },
{ name: "Date", xpath: "Date" },
{ name: "Time", xpath: "Time" },
{ name: "Change", xpath: "Change" },
{ name: "Open", xpath: "Open" },
{ name: "High", xpath: "High" },
{ name: "Low", xpath: "Low" },
{ name: "Volume", xpath: "Volume" },
{ name: "MktCap", xpath: "MktCap" },
{ name: "PreviousClose", xpath: "PreviousClose" },
{ name: "PercentageChange", xpath: "PercentageChange" },
{ name: "AnnRange", xpath: "AnnRange" },
{ name: "Earns", xpath: "Earns" },
{ name: "PE", xpath: "P-E"}],
searchField: "//StockQuotes/Stock"
});
ds = new $.ig.DataSource({ callback: render, dataSource: url, schema: quoteSchema }).dataBind();
});
function GetQuote(elem) {
var url= "StockQuoteService.svc/GetStockQuoteGET?symbol=" + $(elem).val();
ds = new $.ig.DataSource({ callback: render, dataSource: url, schema: quoteSchema }).dataBind();
}
</script>
<div>
<select id="quotes" onchange="GetQuote(this);">
<option selected="selected" value="MSFT">Microsoft Corporation</option>
<option value="AAPL">Apple Inc.</option>
<option value="GOOG">Google Inc.</option>
<option value="INTC">Intel Corporation</option>
<option value="GE">General Electric Co.</option>
</select>
</div>
<div id="quoteContainer">
</div>
The next step is to setup your web service. Add an assembly reference to the System.ServiceModel.Web assembly. Also, add a new WCF Service to the project called ‘StockQuoteService.svc’. This gives you the .svc file in addition to the interface for setting up the service contract, IStockQuoteService.
Open the IStockQuoteService.cs file and define a method named ‘GetStockQuoteGET’ and decorate it with the WebGet attribute in order to allow GET access.
In C#:
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Xml;
[OperationContract]
[WebGet]
XmlElement GetStockQuoteGET(string symbol);
Next, implement the method on the StockQuoteService to return data. The following code demonstrates to implement GetStockQuoteGET: Note: Only one company’s data is shown here but sample data for all of the companies is in the downloadable sample found at the end of this article.
In C#:
using System.Xml;
public XmlElement GetStockQuoteGET(string symbol)
{
XmlDocument stockQuoteXmlDoc = new XmlDocument();
string stockXmlData = string.Empty;
switch (symbol)
{
case "MSFT":
stockXmlData =
"<StockQuotes>" +
"<Stock>" +
"<Symbol>MSFT</Symbol>" +
"<Last>28.08</Last>" +
"<Date>7/26/2011</Date>" +
"<Time>4:00pm</Time>" +
"<Change>0.00</Change>" +
"<Open>N/A</Open>" +
"<High>N/A</High>" +
"<Low>N/A</Low>" +
"<Volume>500</Volume>" +
"<MktCap>236.8B</MktCap>" +
"<PreviousClose>28.08</PreviousClose>" +
"<PercentageChange>0.00%</PercentageChange>" +
"<AnnRange>23.32 - 29.46</AnnRange>" +
"<Earns>2.517</Earns>" +
"<P-E>11.16</P-E>" +
"<Name>Microsoft Corporation</Name>" +
"</Stock>" +
"</StockQuotes>";
break;
default:
stockXmlData =
"<StockQuotes>" +
"<Stock>" +
"<Symbol>!!!</Symbol>" +
"<Name>No Information Found</Name>" +
"</Stock>" +
"</StockQuotes>";
break;
}
stockQuoteXmlDoc.LoadXml(stockXmlData);
return stockQuoteXmlDoc.DocumentElement;
}
Next, the web.config file needs adjustment to enable the web service to be accessed over http:
In HTML:
<system.serviceModel>
<behaviors>
<serviceBehaviors>
<behavior name="StockQuoteServiceBehavior">
<serviceMetadata httpGetEnabled="true"/>
<serviceDebug includeExceptionDetailInFaults="true"/>
</behavior>
</serviceBehaviors>
<endpointBehaviors>
<behavior name="StockQuoteServiceBehavior">
<webHttp/>
</behavior>
</endpointBehaviors>
</behaviors>
<services >
<service name="igDataSourceWCFService.StockQuoteService" behaviorConfiguration="StockQuoteServiceBehavior">
<endpoint address="" binding="webHttpBinding" contract="igDataSourceWCFService.IStockQuoteService" behaviorConfiguration="StockQuoteServiceBehavior"/>
</service>
</services>
</system.serviceModel>
Run the application and the stock information for Microsoft will appear. At first, this will be the only company that has data available. To see data for all of the companies as well as the sample in its completed form, download the full sample here.
Note: The Ignite UI for jQuery script files are not included with this download. Please use the files installed with your copy of Ignite UI for jQuery or download your copy here.
