ui.igBulletGraph

Overview
Options
Events
Methods
Theming

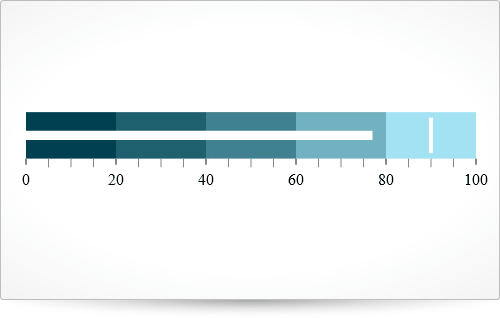

The igBulletGraph control is an Ignite UI control which allows for visualizing data in the form of a bullet graph. Linear by design, it provides a simple and concise view of a primary measure compared against a scale and, optionally, some other measure.

Code Sample


<!DOCTYPE html>
<html>
<head>

    <!-- Ignite UI Required Combined CSS Files -->
    <link href="../../igniteui/css/themes/infragistics/infragistics.theme.css" rel="stylesheet" />
    <link href="../../igniteui/css/structure/infragistics.css" rel="stylesheet" />

    <!-- Used to style the API Viewer and Explorer UI -->
    <link href="../../css/apiviewer.css" rel="stylesheet" type="text/css" />

    <script src="../../js/modernizr.min.js"></script>
    <script src="../../js/jquery.min.js"></script>
    <script src="../../js/jquery-ui.min.js"></script>

    <!-- Ignite UI Required Combined JavaScript Files -->
    <script src="../../igniteui/js/infragistics.core.js"></script>
    <script src="../../igniteui/js/infragistics.dv.js"></script>

</head>
<body>
    <div id="bulletgraph" ></div>

    <script type="text/javascript">
        $(function () {
            $("#bulletgraph").igBulletGraph({
                height: "80px",
                width: "100%",
                minimumValue: 0,
                maximumValue: 30,
                value: 26,
                targetValue: 22,
                ranges: [
                    {
                        name: 'bad',
                        startValue: 0,
                        endValue: 14
                    },
                    {
                        name: 'acceptable',
                        startValue: 14,
                        endValue: 25
                    },
                    {
                        name: 'good',
                        startValue: 25,
                        endValue: 30
                    }],
                transitionDuration: 1000,
                formatLabel: function (evt, ui) {
                        ui.label = ui.label+"K";
                    }
            });
        });
    </script>
</body>
</html>

Related Samples

backingBrush

Type:: string
Default:: null

Gets or sets the brush to use to fill the backing of the bullet graph.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    backingBrush: "#164F6D"
});

// Get
var backingBrush = $(".selector").igBulletGraph("option", "backingBrush");

// Set
$(".selector").igBulletGraph("option", "backingBrush", "#164F6D");

backingInnerExtent

Type:: number
Default:: 0

Gets or sets the inner extent of the bullet graph backing.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    backingInnerExtent: 0.3
});

// Get
var backingInnerExtent = $(".selector").igBulletGraph("option", "backingInnerExtent");

// Set
$(".selector").igBulletGraph("option", "backingInnerExtent", 0.3);

backingOuterExtent

Type:: number
Default:: 1

Gets or sets the outer extent of the bullet graph backing.

Code Sample

// Initialize
$(".selector").igBulletGraph({
    backingOuterExtent: 0.65
});

// Get
var backingOuterExtent = $(".selector").igBulletGraph("option", "backingOuterExtent");

// Set
$(".selector").igBulletGraph("option", "backingOuterExtent", 0.65);

backingOutline

Type:: string
Default:: null

Gets or sets the brush to use for the outline of the backing.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    backingOutline: "#164F6D"
});

// Get
var backingOutline = $(".selector").igBulletGraph("option", "backingOutline");

// Set
$(".selector").igBulletGraph("option", "backingOutline", "#164F6D");

backingStrokeThickness

Type:: number
Default:: 2

Gets or sets the stroke thickness of the backing outline.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    backingStrokeThickness: 3
});

// Get
var backingStrokeThickness = $(".selector").igBulletGraph("option", "backingStrokeThickness");

// Set
$(".selector").igBulletGraph("option", "backingStrokeThickness", 3);

font

Type:: string
Default:: null

Gets or sets the font.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    font: "20px Georgia"
});

// Get
var font = $(".selector").igBulletGraph("option", "font");

// Set
$(".selector").igBulletGraph("option", "font", "20px Georgia");

fontBrush

Type:: string
Default:: null

Gets or sets the brush to use for the label font.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    fontBrush: "#164F6D"
});

// Get
var fontBrush = $(".selector").igBulletGraph("option", "fontBrush");

// Set
$(".selector").igBulletGraph("option", "fontBrush", "#164F6D");

height

Type:: number
Default:: null

The height of the gauge. It can be set as a number in pixels, string (px) or percentage (%).

Code Sample


// Initialize
$(".selector").igBulletGraph({
    height: "150px"
});

// Get
var height = $(".selector").igBulletGraph("option", "height");

// Set
$(".selector").igBulletGraph("option", "height", "150px");

interval

Type:: number
Default:: 0

Gets or sets the interval to use for the scale.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    interval: 15
});

// Get
var interval = $(".selector").igBulletGraph("option", "interval");

// Set
$(".selector").igBulletGraph("option", "interval", 15);

isScaleInverted

Type:: bool
Default:: false

Gets or sets a value indicating whether the scale is inverted.
When the scale is inverted the direction in which the scale values increase is right to left.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    isScaleInverted: true
});

// Get
var isScaleInverted = $(".selector").igBulletGraph("option", "isScaleInverted");

// Set
$(".selector").igBulletGraph("option", "isScaleInverted", true);

labelExtent

Type:

number

Default:

0
Gets or sets the position at which to put the labels as a value from 0 to 1, measured from the bottom of the scale.
Values further from zero than 1 can be used to hide the labels of the bullet graph.
Code Sample
```

// Initialize
$(".selector").igBulletGraph({
    labelExtent: 0.65
});

// Get
var labelExtent = $(".selector").igBulletGraph("option", "labelExtent");

// Set
$(".selector").igBulletGraph("option", "labelExtent", 0.65);

```

labelInterval

Type:: number
Default:: 0

Gets or sets the interval to use for rendering labels. This defaults to be the same interval as the tickmarks on the scale.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    labelInterval: 15
});

// Get
var labelInterval = $(".selector").igBulletGraph("option", "labelInterval");

// Set
$(".selector").igBulletGraph("option", "labelInterval", 15);

labelsPostInitial

Type:: number
Default:: 0

A value to start adding labels, added to the scale's MinimumValue.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    labelsPostInitial: 5000
});

// Get
var labelsPostInitial = $(".selector").igBulletGraph("option", "labelsPostInitial");

// Set
$(".selector").igBulletGraph("option", "labelsPostInitial", 5000);

labelsPreTerminal

Type:: number
Default:: 0

A value to stop adding labels, subtracted from the scale's MaximumValue.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    labelsPreTerminal: 5000
});

// Get
var labelsPreTerminal = $(".selector").igBulletGraph("option", "labelsPreTerminal");

// Set
$(".selector").igBulletGraph("option", "labelsPreTerminal", 5000);

maximumValue

Type:: number
Default:: 100

Gets or sets the maximum value of the scale.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    maximumValue: 5000
});

// Get
var maximumValue = $(".selector").igBulletGraph("option", "maximumValue");

// Set
$(".selector").igBulletGraph("option", "maximumValue", 5000);

minimumValue

Type:: number
Default:: 0

Gets or sets the minimum value of the scale.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    minimumValue: 500
});

// Get
var minimumValue = $(".selector").igBulletGraph("option", "minimumValue");

// Set
$(".selector").igBulletGraph("option", "minimumValue", 500);

minorTickBrush

Type:: string
Default:: null

Gets or sets the brush to use for the minor tickmarks.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    minorTickBrush: "blue"
});

// Get
var minorTickBrush = $(".selector").igBulletGraph("option", "minorTickBrush");

// Set
$(".selector").igBulletGraph("option", "minorTickBrush", "blue");

minorTickCount

Type:: number
Default:: 3

Gets or sets the number of minor tickmarks to place between major tickmarks.

Code Sample

// Initialize
$(".selector").igBulletGraph({
    minorTickCount: 5
});

// Get
var minorTickCount = $(".selector").igBulletGraph("option", "minorTickCount");

// Set
$(".selector").igBulletGraph("option", "minorTickCount", 5);

minorTickEndExtent

Type:

number

Default:

0.2
Gets or sets the position at which to stop rendering the minor tickmarks as a value from 0 to 1, measured from the front/bottom of the bullet graph.
Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.
Code Sample
```
// Initialize
$(".selector").igBulletGraph({
    minorTickEndExtent: .5
});

// Get
var minorTickEndExtent = $(".selector").igBulletGraph("option", "minorTickEndExtent");

// Set
$(".selector").igBulletGraph("option", "minorTickEndExtent", .5);

```
minorTickStartExtent

Type:

number

Default:

0.06
Gets or sets the position at which to start rendering the minor tickmarks as a value from 0 to 1, measured from the front/bottom of the bullet graph.
Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.
Code Sample
```
// Initialize
$(".selector").igBulletGraph({
    minorTickStartExtent: .05
});

// Get
var minorTickStartExtent = $(".selector").igBulletGraph("option", "minorTickStartExtent");

// Set
$(".selector").igBulletGraph("option", "minorTickStartExtent", .05);

```

minorTickStrokeThickness

Type:: number
Default:: 1

Gets or sets the stroke thickness to use when rendering minor ticks.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    minorTickStrokeThickness: 4
});

// Get
var minorTickStrokeThickness = $(".selector").igBulletGraph("option", "minorTickStrokeThickness");

// Set
$(".selector").igBulletGraph("option", "minorTickStrokeThickness", 4);

orientation

Type:: enumeration
Default:: horizontal

Gets or sets the orientation of the scale.

Members

horizontal
Type:string
.
vertical
Type:string

Code Sample


// Initialize
$(".selector").igBulletGraph({
    orientation: "vertical"
});

// Get
var orientation = $(".selector").igBulletGraph("option", "orientation");

// Set
$(".selector").igBulletGraph("option", "orientation", "vertical");

rangeBrushes

Type:

object

Default:

null
Gets or sets a collection of brushes to be used as the palette for bullet graph ranges.
The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.
Code Sample
```

// Initialize
$(".selector").igBulletGraph({
    rangeBrushes: ["#164F6D", "green", "#AF3", "yellow"],
});

// Get
var rangeBrushes = $(".selector").igBulletGraph("option", "rangeBrushes");

// Set
$(".selector").igBulletGraph("option", "rangeBrushes", ["#164F6D", "green", "#AF3", "yellow"]);

```
rangeInnerExtent

Type:

number

Default:

0.2
Gets or sets the position at which to start rendering the ranges, measured from the front/bottom of the control as a value from 0 to 1.
Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.
Code Sample
```

// Initialize
$(".selector").igBulletGraph({
    rangeInnerExtent: 0.4,
});

// Get
var rangeInnerExtent = $(".selector").igBulletGraph("option", "rangeInnerExtent");

// Set
$(".selector").igBulletGraph("option", "rangeInnerExtent", 0.4);

```
rangeOuterExtent

Type:

number

Default:

0.95
Gets or sets the position at which to stop rendering the range as a value from 0 to 1 measured from the front/bottom of the bullet graph.
Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.
Code Sample
```

// Initialize
$(".selector").igBulletGraph({
    rangeOuterExtent: 0.4,
});

// Get
var rangeOuterExtent = $(".selector").igBulletGraph("option", "rangeOuterExtent");

// Set
$(".selector").igBulletGraph("option", "rangeOuterExtent", 0.4);

```
rangeOutlines

Type:

object

Default:

null
Gets or sets a collection of brushes to be used as the palette for bullet graph outlines.
The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.
Code Sample
```
// Initialize
$(".selector").igBulletGraph({
    rangeOutlines: ["#164F6D", "green", "#AF3", "yellow"],
});

// Get
var rangeOutlines = $(".selector").igBulletGraph("option", "rangeOutlines");

// Set
$(".selector").igBulletGraph("option", "rangeOutlines", ["#164F6D", "green", "#AF3", "yellow"]);

```

ranges

Type:: array
Default:: []
Elements Type:: object

Gets or sets the scale ranges to render on the bullet graph.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    ranges: [
                    {
                        name: 'bad',
                        startValue: 0,
                        endValue: 50
                    },
                    {
                        name: 'acceptable',
                        startValue: 50,
                        endValue: 80
                    },
                    {
                        name: 'good',
                        startValue: 80,
                        endValue: 100
                    }
    ]
});

// Get
var ranges = $(".selector").igBulletGraph("option", "ranges");

// Set
$(".selector").igBulletGraph("option", "ranges", [
                    {
                        name: 'bad',
                        startValue: 0,
                        endValue: 50
                    },
                    {
                        name: 'acceptable',
                        startValue: 50,
                        endValue: 80
                    },
                    {
                        name: 'good',
                        startValue: 80,
                        endValue: 100
                    }
]);

brush

Type:: string
Default:: null

Gets or sets the brush to use to fill the range.

Code Sample


//Initialize
$(".selector").igBulletGraph({
    ranges: [
        { name: "range1", brush: "rgba(164, 189, 41, 1)" }
    ]
});

//Get
var ranges = $(".selector").igBulletGraph("option", "ranges");
var brush = ranges[0].brush;

//Set
$(".selector").igBulletGraph("option", "ranges", [{name: "range1", brush:"red" }]);

endValue

Type:: number
Default:: 0

Gets or sets the value at which the range ends along the scale.

Code Sample


//Initialize
$(".selector").igBulletGraph({
    ranges: [
        { name: "range1", endValue: 50 }
    ]
});

//Get
var ranges = $(".selector").igBulletGraph("option", "ranges");
var endValue = ranges[0].endValue;

//Set
$(".selector").igBulletGraph("option", "ranges", [{name: "range1", endValue: 50 }]);

innerEndExtent

Type:: number
Default:: 0

Gets or sets the distance measured from the front/bottom of the bullet graph (from 0 to 1) at which to end rendering the inner edge of the range.
Values further from zero than 1 can be used to make this extend further than the normal width/height of the bullet graph.

Code Sample


//Initialize
$(".selector").igBulletGraph({
    ranges: [
        { name: "range1", innerEndExtent: 0.2 }
    ]
});

//Get
var ranges = $(".selector").igBulletGraph("option", "ranges");
var innerEndExtent = ranges[0].innerEndExtent;

//Set
$(".selector").igBulletGraph("option", "ranges", [{name: "range1", innerEndExtent: 0.2 }]);

innerStartExtent

Type:: number
Default:: 0

Gets or sets the distance measured from the front/bottom of the bullet graph (from 0 to 1) at which to start rendering the inner edge of the range.
Values further from zero than 1 can be used to make this extend further than the normal width/height of the bullet graph.

Code Sample


//Initialize
$(".selector").igBulletGraph({
    ranges: [
        { name: "range1", innerStartExtent: 0.2 }
    ]
});

//Get
var ranges = $(".selector").igBulletGraph("option", "ranges");
var innerStartExtent = ranges[0].innerStartExtent;

//Set
$(".selector").igBulletGraph("option", "ranges", [{name: "range1", innerStartExtent: 0.2 }]);

name

Type:: string
Default:: null

Gets or sets the name of the range.

Code Sample


//Initialize
$(".selector").igBulletGraph({
    ranges: [
        { name: "range1" }
    ]
});

//Get
var ranges = $(".selector").igBulletGraph("option", "ranges");
var name = ranges[0].name;

outerEndExtent

Type:: number
Default:: 0

Gets or sets the distance measured from the front/bottom of the bullet graph (from 0 to 1) at which to end rendering the outer edge of the range.
Values further from zero than 1 can be used to make this extend further than the normal width/height of the bullet graph.

Code Sample


//Initialize
$(".selector").igBulletGraph({
    ranges: [
        { name: "range1", outerEndExtent: 0.8 }
    ]
});

//Get
var ranges = $(".selector").igBulletGraph("option", "ranges");
var outerEndExtent = ranges[0].outerEndExtent;

//Set
$(".selector").igBulletGraph("option", "ranges", [{name: "range1", outerEndExtent: 0.8 }]);

outerStartExtent

Type:: number
Default:: 0

Gets or sets the distance measured from the front/bottom of the bullet graph (from 0 to 1) at which to start rendering the outer edge of the range.
Values further from zero than 1 can be used to make this extend further than the normal width/height of the bullet graph.

Code Sample


//Initialize
$(".selector").igBulletGraph({
    ranges: [
        { name: "range1", outerStartExtent: 0.8 }
    ]
});

//Get
var ranges = $(".selector").igBulletGraph("option", "ranges");
var outerStartExtent = ranges[0].outerStartExtent;

//Set
$(".selector").igBulletGraph("option", "ranges", [{name: "range1", outerStartExtent: 0.8 }]);

outline

Type:: string
Default:: null

Gets or sets the outline to use when rendering the range.

Code Sample


//Initialize
$(".selector").igBulletGraph({
    ranges: [
        { name: "range1", outline: "green" }
    ]
});

//Get
var ranges = $(".selector").igBulletGraph("option", "ranges");
var outline = ranges[0].outline;

//Set
$(".selector").igBulletGraph("option", "ranges", [{ name: "range1", outline: "green" }]);

startValue

Type:: number
Default:: 0

Gets or sets the value at which the range starts along the scale.

Code Sample


//Initialize
$(".selector").igBulletGraph({
    ranges: [
        { name: "range1", startValue: 20 }
    ]
});

//Get
var ranges = $(".selector").igBulletGraph("option", "ranges");
var startValue = ranges[0].startValue;

//Set
$(".selector").igBulletGraph("option", "ranges", [{name: "range1", startValue: 20 }]);

strokeThickness

Type:: number
Default:: 1

Gets or sets the stroke thickness to use when rendering this range's outline.

Code Sample


//Initialize
$(".selector").igBulletGraph({
    ranges: [
        { name: "range1", strokeThickness: 3 }
    ]
});

//Get
var ranges = $(".selector").igBulletGraph("option", "ranges");
var strokeThickness = ranges[0].strokeThickness;

//Set
$(".selector").igBulletGraph("option", "ranges", [{ name: "range1", strokeThickness: 3 }]);

rangeToolTipTemplate

Type:: string
Default:: null

Gets or sets the ranges' tooltip template.

Code Sample


<script id="myRangeToolTipTemplateScript" type="text/x-jquery-tmpl">
	<div class='ui-bulletgraph-range-tooltip'  >
        <font color='${itemBrush}'>
            ${item.name} : ${item.startValue}% - ${item.endValue}%
        </font>
    </div>
</script>

// Initialize
$(".selector").igBulletGraph({
    showToolTip: true,
    rangeTooltipTemplate: "myRangeToolTipTemplateScript"
});

// Get
var rangeToolTipTemplate = $(".selector").igBulletGraph("option", "rangeToolTipTemplate");

// Set
$(".selector").igBulletGraph("option", "rangeToolTipTemplate", "myRangeToolTipTemplateScript");

scaleEndExtent

Type:

number

Default:

0.95
Gets or sets the position at which to stop rendering the scale as a value from 0 to 1, measured from the front/bottom of the bullet graph.
Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.
Code Sample
```

// Initialize
$(".selector").igBulletGraph({
    scaleEndExtent: .7
});

// Get
var scaleEndExtent = $(".selector").igBulletGraph("option", "scaleEndExtent");

// Set
$(".selector").igBulletGraph("option", "scaleEndExtent", .7);

```
scaleStartExtent

Type:

number

Default:

0.05
Gets or sets the position at which to start rendering the scale, measured from the front/bottom of the bullet graph as a value from 0 to 1.
Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.
Code Sample
```

// Initialize
$(".selector").igBulletGraph({
    scaleStartExtent: .1
});

// Get
var scaleStartExtent = $(".selector").igBulletGraph("option", "scaleStartExtent");

// Set
$(".selector").igBulletGraph("option", "scaleStartExtent", .1);

```

showToolTip

Type:: bool
Default:: null

Gets or sets a value indicating whether tooltips are enabled.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    showToolTip: true
});

// Get
var showToolTip = $(".selector").igBulletGraph("option", "showToolTip");

// Set
$(".selector").igBulletGraph("option", "showToolTip", true);

showToolTipTimeout

Type:: number
Default:: 0

Gets or sets the time in milliseconds that tooltip appearance is delayed with.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    showToolTipTimeout: 2000
});

// Get
var showToolTipTimeout = $(".selector").igBulletGraph("option", "showToolTipTimeout");

// Set
$(".selector").igBulletGraph("option", "showToolTipTimeout", 2000);

targetValue

Type:: number
Default:: 0

Gets or sets the value indicated by the target value bar.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    targetValue: 30
});

// Get
var targetValue = $(".selector").igBulletGraph("option", "targetValue");

// Set
$(".selector").igBulletGraph("option", "targetValue", 30);

targetValueBreadth

Type:: number
Default:: 3

Get or sets the breadth of the target value element.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    targetValueBreadth: 5
});

// Get
var targetValueBreadth = $(".selector").igBulletGraph("option", "targetValueBreadth");

// Set
$(".selector").igBulletGraph("option", "targetValueBreadth", 5);

targetValueBrush

Type:: string
Default:: null

Gets or sets the brush to use when rendering the fill of the comparative marker.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    targetValueBrush: "white"
});

// Get
var targetValueBrush = $(".selector").igBulletGraph("option", "targetValueBrush");

// Set
$(".selector").igBulletGraph("option", "targetValueBrush", "white");

targetValueInnerExtent

Type:

number

Default:

0.3
Gets or sets the position at which to start rendering the target value, measured from the front/bottom of the control as a value from 0 to 1.
Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.
Code Sample
```

// Initialize
$(".selector").igBulletGraph({
    targetValueInnerExtent: 0.4
});

// Get
var targetValueInnerExtent = $(".selector").igBulletGraph("option", "targetValueInnerExtent");

// Set
$(".selector").igBulletGraph("option", "targetValueInnerExtent", 0.4);

```

targetValueName

Type:: string
Default:: null

Gets or sets the name used for the target value. The name is displayed in the default target value tooltip.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    targetValueName: "myGoal"
});

// Get
var targetValueName = $(".selector").igBulletGraph("option", "targetValueName");

// Set
$(".selector").igBulletGraph("option", "targetValueName", "myGoal");

targetValueOuterExtent

Type:

number

Default:

0.85
Gets or sets the position at which to start rendering the target value, measured from the front/bottom of the control as a value from 0 to 1.
Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.
Code Sample
```

// Initialize
$(".selector").igBulletGraph({
    targetValueOuterExtent: 0.1
});

// Get
var targetValueOuterExtent = $(".selector").igBulletGraph("option", "targetValueOuterExtent");

// Set
$(".selector").igBulletGraph("option", "targetValueOuterExtent", 0.1);

```

targetValueOutline

Type:: string
Default:: null

Gets or sets the brush to use when rendering the outline of the target value.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    targetValueOutline: "white"
});

// Get
var targetValueOutline = $(".selector").igBulletGraph("option", "targetValueOutline");

// Set
$(".selector").igBulletGraph("option", "targetValueOutline", "white");

targetValueStrokeThickness

Type:: number
Default:: 1

Gets or sets the stroke thickness of the outline of the target value bar.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    targetValueStrokeThickness: 3
});

// Get
var targetValueStrokeThickness = $(".selector").igBulletGraph("option", "targetValueStrokeThickness");

// Set
$(".selector").igBulletGraph("option", "targetValueStrokeThickness", 3);

targetValueToolTipTemplate

Type:: string
Default:: null

Gets or sets the target value's tooltip template.

Code Sample


<script id="myTargetValueToolTipTemplateScript" type="text/x-jquery-tmpl">
    <div class='ui-bulletgraph-targetValue-tooltip'>
        ${item.name}: ${item.value}%
    </div>
</script>
// Initialize
$(".selector").igBulletGraph({
    showToolTip: true,
    targetValueTooltipTemplate: "myTargetValueToolTipTemplateScript"
});
// Get
var targetValueToolTipTemplate = $(".selector").igBulletGraph("option", "targetValueToolTipTemplate");

// Set
$(".selector").igBulletGraph("option", "targetValueToolTipTemplate", "myTargetValueToolTipTemplateScript");

tickBrush

Type:: string
Default:: null

Gets or sets the brush to use for the major tickmarks.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    tickBrush: "blue"
});

// Get
var tickBrush = $(".selector").igBulletGraph("option", "tickBrush");

// Set
$(".selector").igBulletGraph("option", "tickBrush", "blue");

tickEndExtent

Type:

number

Default:

0.2
Gets or sets the position at which to stop rendering the major tickmarks as a value from 0 to 1, measured from the front/bottom of the bullet graph.
Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.
Code Sample
```

// Initialize
$(".selector").igBulletGraph({
    tickEndExtent: .5
});

// Get
var tickEndExtent = $(".selector").igBulletGraph("option", "tickEndExtent");

// Set
$(".selector").igBulletGraph("option", "tickEndExtent", .5);

```

ticksPostInitial

Type:: number
Default:: 0

A value to start adding tickmarks, added to the scale's MinimumValue.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    ticksPostInitial: 50
});

// Get
var ticksPostInitial = $(".selector").igBulletGraph("option", "ticksPostInitial");

// Set
$(".selector").igBulletGraph("option", "ticksPostInitial", 50);

ticksPreTerminal

Type:: number
Default:: 0

A value to stop adding tickmarks, subtracted from the scale's MaximumValue.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    ticksPreTerminal: 50
});

// Get
var ticksPreTerminal = $(".selector").igBulletGraph("option", "ticksPreTerminal");

// Set
$(".selector").igBulletGraph("option", "ticksPreTerminal", 50);

tickStartExtent

Type:

number

Default:

0.1
Gets or sets the position at which to start rendering the major tickmarks as a value from 0 to 1, measured from the front/bottom of the bullet graph.
Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.
Code Sample
```

// Initialize
$(".selector").igBulletGraph({
    tickStartExtent: .05
});

// Get
var tickStartExtent = $(".selector").igBulletGraph("option", "tickStartExtent");

// Set
$(".selector").igBulletGraph("option", "tickStartExtent", .05);
```

tickStrokeThickness

Type:: number
Default:: 2

Gets or sets the stroke thickness to use when rendering ticks.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    tickStrokeThickness: 4
});

// Get
var tickStrokeThickness = $(".selector").igBulletGraph("option", "tickStrokeThickness");

// Set
$(".selector").igBulletGraph("option", "tickStrokeThickness", 4);

transitionDuration

Type:: number
Default:: 0

Gets or sets the number of milliseconds over which changes to the bullet graph should be animated.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    transitionDuration: 2000
});

// Get
var transitionDuration = $(".selector").igBulletGraph("option", "transitionDuration");

// Set
$(".selector").igBulletGraph("option", "transitionDuration", 2000);

value

Type:: number
Default:: 0

Gets or sets the value at which the bar ends.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    value: 50
});

// Get
var value = $(".selector").igBulletGraph("option", "value");

// Set
$(".selector").igBulletGraph("option", "value", 50);

valueBrush

Type:: string
Default:: null

Gets or sets the brush to use for the actual value element.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    valueBrush: "white"
});

// Get
var valueBrush = $(".selector").igBulletGraph("option", "valueBrush");

// Set
$(".selector").igBulletGraph("option", "valueBrush", "white");

valueInnerExtent

Type:

number

Default:

0.5
Gets or sets the position at which to start rendering the actual value geometries, measured from the front/bottom of the bullet graph as a value from 0 to 1.
Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.
Code Sample
```

// Initialize
$(".selector").igBulletGraph({
    valueInnerExtent: .6
});

// Get
var valueInnerExtent = $(".selector").igBulletGraph("option", "valueInnerExtent");

// Set
$(".selector").igBulletGraph("option", "valueInnerExtent", .6);

```

valueName

Type:: string
Default:: null

Gets or sets the name used for actual value.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    valueName: "myProgress"
});

// Get
var valueName = $(".selector").igBulletGraph("option", "valueName");

// Set
$(".selector").igBulletGraph("option", "valueName", "myProgress");

valueOuterExtent

Type:

number

Default:

0.65
Gets or sets the position at which to stop rendering the actual value geometries as a value from 0 to 1 measured from the front/bottom of the bullet graph.
Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.
Code Sample
```

// Initialize
$(".selector").igBulletGraph({
    valueOuterExtent: .6
});

// Get
var valueOuterExtent = $(".selector").igBulletGraph("option", "valueOuterExtent");

// Set
$(".selector").igBulletGraph("option", "valueOuterExtent", .6);

```

valueOutline

Type:: string
Default:: null

Gets or sets the brush to use for the outline of actual value element.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    valueOutline: "white"
});

// Get
var valueOutline = $(".selector").igBulletGraph("option", "valueOutline");

// Set
$(".selector").igBulletGraph("option", "valueOutline", "white");

valueStrokeThickness

Type:: number
Default:: 1

Gets or sets the stroke thickness to use when rendering single actual value element.

Code Sample


// Initialize
$(".selector").igBulletGraph({
    valueStrokeThickness: 3
});

// Get
var valueStrokeThickness = $(".selector").igBulletGraph("option", "valueStrokeThickness");

// Set
$(".selector").igBulletGraph("option", "valueStrokeThickness", 3);

valueToolTipTemplate

Type:: string
Default:: null

Gets or sets the value's tooltip template.

Code Sample


<script id="myValueToolTipTemplateScript" type="text/x-jquery-tmpl">
	<div class='ui-bulletgraph-value-tooltip'>
        ${item.name} : ${item.value}
    </div>
</script>

// Initialize
$(".selector").igBulletGraph({
    showToolTip: true,
    valueTooltipTemplate: "myValueToolTipTemplateScript"
});

// Get
var valueToolTipTemplate = $(".selector").igBulletGraph("option", "valueToolTipTemplate");

// Set
$(".selector").igBulletGraph("option", "valueToolTipTemplate", "myValueToolTipTemplateScript");

width

Type:: number
Default:: null

The width of the gauge. It can be set as a number in pixels, string (px) or percentage (%).

Code Sample


// Initialize
$(".selector").igBulletGraph({
    width: "400px"
});

// Get
var width = $(".selector").igBulletGraph("option", "width");

// Set
$(".selector").igBulletGraph("option", "width", "400px");

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details

alignLabel

Cancellable:: false

Code Sample


//Bind
$(document).delegate(".selector", "igbulletgraphalignlabel", function (evt, ui) {
    // Get reference to igBulletGraph.
    ui.owner;

    // Get the mimimum value of the bullet graph scale
    ui.actualMinimumValue;

    // Get the maximum value of the bullet graph scale
    ui.actualMaximumValue;

    // Get the value on the the bullet graph scale associated with the label.
    ui.value;

    // Get whether the string value of the label.
    ui.label;

    //Get the width of the label.
    ui.width;

    // Get the height of the label.
    ui.height;

    // Get the X offset of the label on the the bullet graph scale.
    ui.offsetX;

    // Get the Y offset of the label on the the bullet graph scale.
    ui.offsetY;
});

// Initialize
$(".selector").igBulletGraph({
    alignLabel: function(evt, ui) {...}
});

formatLabel

Cancellable:: false

Code Sample


//Bind
$(document).delegate(".selector", "igbulletgraphformatlabel", function (evt, ui) {
    // Get reference to igBulletGraph.
    ui.owner;

    // Get the mimimum value of the bullet graph scale
    ui.actualMinimumValue;

    // Get the maximum value of the bullet graph scale
    ui.actualMaximumValue;

    // Get the value on the the bullet graph scale associated with the label.
    ui.value;

    // Get whether the string value of the label.
    ui.label;
});

// Initialize
$(".selector").igBulletGraph({
    formatLabel: function(evt, ui) {...}
});

Show Details

addRange

.igBulletGraph( "addRange", value:object );
Adds a new range to the bullet graph.
- value
- Type:object
- The range object to be added.
Code Sample
```
 $(".selector").igBulletGraph("addRange", { name: "Range1", value: 10, endValue: 40, brush: "red" });
```
destroy

.igBulletGraph( "destroy" );
Destroys widget.
Code Sample
```
 $(".selector").igBulletGraph("destroy");
```
exportVisualData

.igBulletGraph( "exportVisualData" );

Return Type:

object

Return Type Description:

a JavaScript object containing the visual data.
Returns information about how the bullet graph is rendered.
Code Sample
```
 $(".selector").igBulletGraph("exportVisualData");
```
flush

.igBulletGraph( "flush" );
Causes all pending changes of the bullet graph e.g. by changed property values to be rendered immediately.
Code Sample
```
 $(".selector").igBulletGraph("flush");
```
getRangeNames

.igBulletGraph( "getRangeNames" );
Returns a string containing the names of all the ranges delimited with a \n symbol.
Code Sample
```
 $(".selector").igBulletGraph("getRangeNames");
```
removeRange

.igBulletGraph( "removeRange", value:object );
Removes a range from the bullet graph.
- value
- Type:object
- A JS object with properties set as follows: name: nameOfTheRangeToRemove, remove: true.
Code Sample
```
 $(".selector").igBulletGraph("removeRange", { name: 'range1', remove: true });
```
styleUpdated

.igBulletGraph( "styleUpdated" );
Re-polls the css styles for the widget. Use this method when the css styles have been modified.
Code Sample
```
 $(".selector").igBulletGraph("styleUpdated");
```
updateRange

.igBulletGraph( "updateRange", value:object );
Updates the specified range of the bullet graph.
- value
- Type:object
- The range object to be updated.
Code Sample
```
 $(".selector").igBulletGraph("updateRange", "range1");
```

ui-bulletgraph

Class applied to main element: ui-bulletGraph ui-corner-all ui-widget-content.
ui-bulletgraph-backing

Class applying background-color and border-color to the backing element.
ui-bulletgraph-range-fill-palette-n

Class applying background-image to the fill of the n-th range of the bullet graph. Only gradient colors are accepted. As many palettes can be defined as neccessary.
ui-bulletgraph-label

Class applying background-color to the text elements.
ui-bulletgraph-minortick

Class applying background-color to the minor tick elements.
ui-bulletgraph-range-outline-palette-n

Class applying background-image to the outline of the n-th range of the bullet graph. Only gradient colors are accepted. As many palettes can be defined as neccessary.
ui-bulletgraph-range-palette-n

Class applying background-color and border-color to the n-th range of the bullet graph. As many palettes can be defined as neccessary.
ui-bulletgraph-targetvalue

Class applying background-color and border-color to the target value element.
ui-bulletgraph-tick

Class applying background-color to the tick elements.
ui-bulletgraph-value

Class applying background-color and border-color to the value element.
ui-bulletgraph-tooltip ui-corner-all

Class applied to the tooltip element: ui-bulletgraph-tooltip ui-corner-all.
ui-html5-non-html5-supported-message ui-helper-clearfix ui-html5-non-html5

Class applied to main element, shown when the bulletGraph is opened in a non HTML5 compatible browser.

Ignite UI Home

Ignite UI API Reference

ui.igBulletGraph

Code Sample

Related Samples

Related Topics

Dependencies

Inherits

backingBrush

Code Sample

backingInnerExtent

Code Sample

backingOuterExtent

Code Sample

backingOutline

Code Sample

backingStrokeThickness

Code Sample

font

Code Sample

fontBrush

Code Sample

height

Code Sample

interval

Code Sample

isScaleInverted

Code Sample

labelExtent

Code Sample

labelInterval

Code Sample

labelsPostInitial

Code Sample

labelsPreTerminal

Code Sample

maximumValue

Code Sample

minimumValue

Code Sample

minorTickBrush

Code Sample

minorTickCount

Code Sample

minorTickEndExtent

Code Sample

minorTickStartExtent

Code Sample

minorTickStrokeThickness

Code Sample

orientation

Members

Code Sample

rangeBrushes

Code Sample

rangeInnerExtent

Code Sample

rangeOuterExtent

Code Sample

rangeOutlines

Code Sample

ranges

Code Sample

brush

Code Sample

endValue

Code Sample

innerEndExtent

Code Sample

innerStartExtent

Code Sample

name

Code Sample

outerEndExtent

Code Sample

outerStartExtent

Code Sample

outline

Code Sample

startValue
