Ignite UI™ API Documentation

ui.igRadialGauge

Overview
Options
Events
Methods
Theming

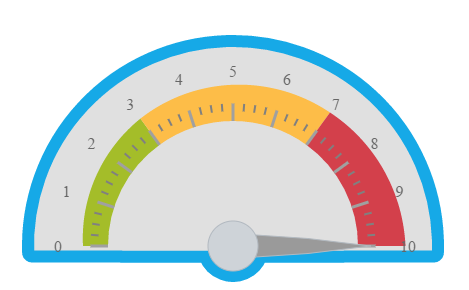

Make your data visualizations and dashboards more engaging with Radial Gauges that show off KPIs with rich style and interactivity. The round and semi-round gauges are powerful, easy to use, and highly configurable to present dashboards capable of displaying clocks, industrial panels, automotive dashboards, and even aircraft cockpits.

The following code snippet demonstrates how to initialize the igRadialGauge.

For details on how to reference the required scripts and themes for the igRadialGauge control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample

<!doctype html>
<html>
<head>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
    <!-- Infragistics Combined Scripts -->
    <script src="js/infragistics.core.js" type="text/javascript"></script>
    <script src="js/infragistics.dv.js" type="text/javascript"></script>
</head>
<body>
	<div id="radialgauge"></div>

    <script>
        $(function () {
            $("#radialgauge").igRadialGauge({
				height: "500px",
				width: "500px",
				minimumValue: "0",
				maximumValue: "10",
				value: "10",

				//Scale Settings
				scaleStartAngle: "180",
				scaleEndAngle: "0",
				scaleBrush: "transparent",

				//Backing Settings
				backingShape: "fitted",
				backingOutline: "rgba(22, 169, 231, 1)",
				backingBrush: "rgba(224, 224, 224, 1)",

				transitionDuration: "3000",

				//Needle Settings
				needleShape: "needle",
				needlePivotShape: "circleOverlay",
				needleEndExtent: "0.55",
				needlePointFeatureExtent: "0.3",
				needlePivotWidthRatio: "0.2",

				//TickMark Settings
				tickBrush: "rgba(160, 160, 160, 1)",
				minorTickBrush: "gray",

				//Label Settings
				labelExtent: "0.7"

			});

			$("#radialgauge").igRadialGauge("option", "ranges", [{ name: "range1", remove: true }]);
			$("#radialgauge").igRadialGauge("option", "ranges", [{ name: "range2", remove: true }]);
			$("#radialgauge").igRadialGauge("option", "ranges", [{ name: "range3", remove: true }]);

			$("#radialgauge").igRadialGauge("option", "ranges", [{
				name: "range1",
				brush: "rgba(164, 189, 41, 1)",
				startValue: "0",
				endValue: "3",
				outerStartExtent: "0.6",
				outerEndExtent: "0.63"
			}, {
				name: "range2",
				brush: "rgba(253, 189, 72, 1)",
				startValue: "3",
				endValue: "7",
				outerStartExtent: "0.63",
				outerEndExtent: "0.66"
			}, {
				name: "range3",
				brush: "rgba(211, 64, 75, 1)",
				startValue: "7",
				endValue: "10",
				outerStartExtent: "0.66",
				outerEndExtent: "0.69"
			}]);
        });
    </script>
</body>
</html>

Related Samples

backingBrush

Type:: string
Default:: null

Gets or sets the brush to use to fill the backing of the gauge.

Code Sample

  //Initialize
        $(".selector").igRadialGauge({
          backingBrush: "rgba(236, 237, 239, 1)"
        });

        //Get
        var backBrush = $(".selector").igRadialGauge("option", "backingBrush");

        //Set
        $(".selector").igRadialGauge("option", "backingBrush", [ "#ff0000", "#ffff00", "#00ffff" ]);

backingCornerRadius

Type:: number
Default:: 4

Gets or sets the corner rounding radius to use for the fitted scale backings.

Code Sample

  //Initialize
        $(".selector").igRadialGauge({
            backingCornerRadius: "0.4"
        });

        //Get
        var backCornerRadius = $(".selector").igRadialGauge("option", "backingCornerRadius");

        //Set
        $(".selector").igRadialGauge("option", "backingCornerRadius", "0.4");

backingInnerExtent

Type:: number
Default:: 0.12

Gets or sets the inner extent of the gauge backing.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            backingInnerExtent: "0.4"
        });

        //Get
        var backInnerExtent = $(".selector").igRadialGauge("option", "backingInnerExtent");

        //Set
        $(".selector").igRadialGauge("option", "backingInnerExtent", "0.4");

backingOuterExtent

Type:: number
Default:: 0.82

Gets or sets the outer extent of the gauge backing.

Code Sample

  //Initialize
        $(".selector").igRadialGauge({
            backingOuterExtent: "0.4"
        });

        //Get
        var backOuterExtent = $(".selector").igRadialGauge("option", "backingOuterExtent");

        //Set
        $(".selector").igRadialGauge("option", "backingOuterExtent", "0.4");

backingOutline

Type:: string
Default:: null

Gets or sets the brush to use for the outline of the backing.

Code Sample

  //Initialize
        $(".selector").igRadialGauge({
            backingOutline: "rgba(236, 237, 239, 1)"
        });

        //Get
        var backOutline = $(".selector").igRadialGauge("option", "backingOutline");

        //Set
        $(".selector").igRadialGauge("option", "backingOutline", [ "#ff0000", "#ffff00", "#00ffff" ]);

backingOversweep

Type:: number
Default:: 3

Gets or sets the over sweep angle to apply to the backing if it is displaying fitted (in degrees). Must be greater or equal to 0.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            backingOversweep: "20"
        });

        //Get
        var backOversweep = $(".selector").igRadialGauge("option", "backingOversweep");

        //Set
        $(".selector").igRadialGauge("option", "backingOversweep", "20");

backingShape

Type:: enumeration
Default:: circular

Gets or sets the type of shape to use for the backing of the gauge.

Members

circular
Type:string
A circular backing shape.
fitted
Type:string
A fitted backing shape.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            backingShape: "fitted"
        });

        //Get
        var backShape = $(".selector").igRadialGauge("option", "backingShape");

        //Set
        $(".selector").igRadialGauge("option", "backingShape", "20");

backingStrokeThickness

Type:: number
Default:: 12

Gets or sets the stroke thickness of the backing outline.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            backingStrokeThickness: "1"
        });

        //Get
        var backStrokeThickness = $(".selector").igRadialGauge("option", "backingStrokeThickness");

        //Set
        $(".selector").igRadialGauge("option", "backingStrokeThickness", "1");

centerX

Type:: number
Default:: 0.5

Gets or sets the x position of the center of the gauge with the value ranging from 0 to 1.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            centerX: "0.5"
        });

        //Get
        var cenX = $(".selector").igRadialGauge("option", "centerX");

        //Set
        $(".selector").igRadialGauge("option", "centerX", "0.5");

centerY

Type:: number
Default:: 0.5

Gets or sets the y position of the center of the gauge with the value ranging from 0 to 1.

Code Sample

//Initialize
        $(".selector").igRadialGauge({
            centerY: "0.8"
        });

        //Get
        var cenY = $(".selector").igRadialGauge("option", "centerY");

        //Set
        $(".selector").igRadialGauge("option", "centerY", "0.8");

duplicateLabelOmissionStrategy

Type:: enumeration
Default:: omitLast

Gets or sets the strategy to use for omitting labels if the first and last label have the same value.

Members

omitLast
Type:string
Omit the last label.
omitFirst
Type:string
Omit the first label.
omitNeither
Type:string
Omit no labels.
omitBoth
Type:string
Omit both labels.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            duplicateLabelOmissionStrategy: "omitLast"
        });

        //Get
        var dupLabelOmissionStrategy = $(".selector").igRadialGauge("option", "duplicateLabelOmissionStrategy");

        //Set
        $(".selector").igRadialGauge("option", "duplicateLabelOmissionStrategy", "omitLast");

font

Type:: string
Default:: null

Gets or sets the font.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            font: "rgba(236, 237, 239, 1)"
        });

        //Get
        var gaugeFont = $(".selector").igRadialGauge("option", "font");

        //Set
        $(".selector").igRadialGauge("option", "font", [ "#ff0000", "#ffff00", "#00ffff" ]);

fontBrush

Type:: string
Default:: null

Gets or sets the brush to use for the label font.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            fontBrush: "rgba(236, 237, 239, 1)"
        });

        //Get
        var gaugeFontBrush = $(".selector").igRadialGauge("option", "fontBrush");

        //Set
        $(".selector").igRadialGauge("option", "fontBrush", [ "#ff0000", "#ffff00", "#00ffff" ]);

height

Type:: enumeration
Default:: null

The height of the gauge. It can be set as a number in pixels, string (px) or percentage (%).

Members

string
The widget height can be set in pixels (px) and percentage (%).
number
The widget height can be set as a number.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            height: 250
        });

        //Get
        var height= $(".selector").igRadialGauge("option", "height");

        //Set
        $(".selector").igRadialGauge("option", "height", 250);

interval

Type:: number
Default:: 0

Gets or sets the interval to use for the scale.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            interval: "1"
        });

        //Get
        var gaugeInterval = $(".selector").igRadialGauge("option", "gaugeInterval");

        //Set
        $(".selector").igRadialGauge("option", "gaugeInterval", "1");

isNeedleDraggingConstrained

Type:: bool
Default:: true

Gets or sets whether the needle is constrained within the minimum and maximum value range during dragging.

Code Sample

 // Initialize
        $(".selector").igRadialGauge({
            isNeedleDraggingConstrained: true
        });

        // Get
        var isDraggingEnabled = $(".selector").igRadialGauge("option", "isNeedleDraggingConstrained");

        // Set
        $(".selector").igRadialGauge("option", "isNeedleDraggingConstrained", true);

isNeedleDraggingEnabled

Type:: bool
Default:: false

Gets or sets whether needle dragging is enabled or not.

Code Sample

 // Initialize
        $(".selector").igRadialGauge({
            isNeedleDraggingEnabled: true
        });

        // Get
        var isDraggingEnabled = $(".selector").igRadialGauge("option", "isNeedleDraggingEnabled");

        // Set
        $(".selector").igRadialGauge("option", "isNeedleDraggingEnabled", true);

labelExtent

Type:: number
Default:: 0.65

Gets or sets the position at which to put the labels as a value from 0 to 1, measured form the center of the gauge.
Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            labelExtent: "0.5"
        });

        //Get
        var gaugeLabelExtent = $(".selector").igRadialGauge("option", "labelExtent");

        //Set
        $(".selector").igRadialGauge("option", "labelExtent", "0.5");

labelInterval

Type:: number
Default:: 0

Gets or sets the interval to use for rendering labels. This defaults to be the same interval as the tickmarks on the scale.

Code Sample

//Initialize
        $(".selector").igRadialGauge({
            labelInterval: "1"
        });

        //Get
        var gaugeLabelInterval = $(".selector").igRadialGauge("option", "labelInterval");

        //Set
        $(".selector").igRadialGauge("option", "backingShape", "20");

language
Inherited

Type:: string
Default:: "en"

Set/Get the locale language setting for the widget.

Code Sample


					//Initialize
				$(".selector").igRadialGauge({
					language: "ja"
				});

				// Get
				var language = $(".selector").igRadialGauge("option", "language");

				// Set
				$(".selector").igRadialGauge("option", "language", "ja");

locale
Inherited

Type:: object
Default:: null

Set/Get the locale setting for the widget.

Code Sample


					//Initialize
				$(".selector").igRadialGauge({
					locale: {}
				});

				// Get
				var locale = $(".selector").igRadialGauge("option", "locale");

				// Set
				$(".selector").igRadialGauge("option", "locale", {});

maximumValue

Type:: number
Default:: 100

Gets or sets the maximum value of the scale.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            maximumValue: "100"
        });

        //Get
        var maxValue = $(".selector").igRadialGauge("option", "maximumValue");

        //Set
        $(".selector").igRadialGauge("option", "maximumValue", "100");

minimumValue

Type:: number
Default:: 0

Gets or sets the minimum value of the scale.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
             minimumValue: "0"
        });

        //Get
        var minValue = $(".selector").igRadialGauge("option", "minimumValue");

        //Set
        $(".selector").igRadialGauge("option", "minimumValue", "0");

minorTickBrush

Type:: string
Default:: null

Gets or sets the brush to use for the minor tickmarks.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            minorTickBrush: "rgba(236, 237, 239, 1)"
        });

        //Get
        var minTickBrush = $(".selector").igRadialGauge("option", "minorTickBrush");

        //Set
        $(".selector").igRadialGauge("option", "minorTickBrush", [ "#ff0000", "#ffff00", "#00ffff" ]);

minorTickCount

Type:: number
Default:: 3

Gets or sets the number of minor tickmarks to place between major tickmarks.

Code Sample

//Initialize
        $(".selector").igRadialGauge({
            minorTickCount: "1"
        });

        //Get
        var minTickCount = $(".selector").igRadialGauge("option", "minorTickCount");

        //Set
        $(".selector").igRadialGauge("option", "minorTickCount", "1");

minorTickEndExtent

Type:: number
Default:: 0.57

Gets or sets the position at which to stop rendering the minor tickmarks as a value from 0 to 1, measured from the center of the gauge.
Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            minorTickEndExtent: "0.5"
        });

        //Get
        var minTickEndExtent = $(".selector").igRadialGauge("option", "minorTickEndExtent");

        //Set
        $(".selector").igRadialGauge("option", "minorTickEndExtent", "0.5");

minorTickStartExtent

Type:: number
Default:: 0.54

Gets or sets the position at which to start rendering the minor tickmarks as a value from 0 to 1, measured from the center of the gauge.
Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            minorTickStartExtent: "0.5"
        });

        //Get
        var minTickStartExtent = $(".selector").igRadialGauge("option", "minorTickStartExtent");

        //Set
        $(".selector").igRadialGauge("option", "minorTickStartExtent", "0.5");

minorTickStrokeThickness

Type:: number
Default:: 2

Gets or sets the stroke thickness to use when rendering minor ticks.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            minorTickStrokeThickness: "1"
        });

        //Get
        var minTickStrokeThickness = $(".selector").igRadialGauge("option", "minorTickStrokeThickness");

        //Set
        $(".selector").igRadialGauge("option", "minorTickStrokeThickness", "1");

needleBaseFeatureExtent

Type:

number

Default:

0
Gets or sets the extent of the feature which is closest to the base (e.g. a bulb) with a value from -1 to 1. Note: Only some needle shapes respect this property, namely: NeedleWithBulb, RectangleWithBulb, TrapezoidWithBulb, and TriangleWithBulb.
Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.
Code Sample
```
 //Initialize
        $(".selector").igRadialGauge({
            needleBaseFeatureExtent: "0.5"
        });

        //Get
        var gaugeNeedleBaseFeatureExtent = $(".selector").igRadialGauge("option", "needleBaseFeatureExtent");

        //Set
        $(".selector").igRadialGauge("option", "needleBaseFeatureExtent", "0.5");
```
needleBaseFeatureWidthRatio

Type:

number

Default:

0
Gets or sets the width of the needle at its feature which is closest to the base (e.g. a bulb) with a value from 0 to 1. Note: Only some needle shapes respect this property, namely: NeedleWithBulb, RectangleWithBulb, TrapezoidWithBulb, and TriangleWithBulb.
Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.
Code Sample
```
 //Initialize
        $(".selector").igRadialGauge({
            needleBaseFeatureWidthRatio: "0.5"
        });

        //Get
        var gaugeNeedleBaseFeatureWidthRatio = $(".selector").igRadialGauge("option", "needleBaseFeatureWidthRatio");

        //Set
        $(".selector").igRadialGauge("option", "needleBaseFeatureWidthRatio", "0.5");
```

needleBrush

Type:: string
Default:: null

Gets or sets the brush to use when rendering the fill of the needle.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            needleBrush: "rgba(236, 237, 239, 1)"
        });

        //Get
        var gaugeNeedleBrush = $(".selector").igRadialGauge("option", "needleBrush");

        //Set
        $(".selector").igRadialGauge("option", "needleBrush", [ "#ff0000", "#ffff00", "#00ffff" ]);

needleEndExtent

Type:: number
Default:: 0

Gets or sets the extent (from -1 to 1) at which to end rendering the needle, measured from the center of the gauge.
Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            needleEndExtent: "0.5"
        });

        //Get
        var gaugeNeedleEndExtent = $(".selector").igRadialGauge("option", "needleEndExtent");

        //Set
        $(".selector").igRadialGauge("option", "needleEndExtent", "0.5");

needleEndWidthRatio

Type:: number
Default:: 0

Gets or sets the width of the needle at its point using a value from (0 to 1). Note: Only some needle shapes respect this property.
Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            needleEndWidthRatio: "0.5"
        });

        //Get
        var gaugeNeedleEndWidthRatio = $(".selector").igRadialGauge("option", "needleEndWidthRatio");

        //Set
        $(".selector").igRadialGauge("option", "needleEndWidthRatio", "0.5");

needleOutline

Type:: string
Default:: null

Gets or sets the brush to use when rendering the outline of the needle.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            needleOutline: "rgba(236, 237, 239, 1)"
        });

        //Get
        var gaugeNeedleOutline = $(".selector").igRadialGauge("option", "needleOutline");

        //Set
        $(".selector").igRadialGauge("option", "needleOutline", [ "#ff0000", "#ffff00", "#00ffff" ]);

needlePivotBrush

Type:: string
Default:: null

Gets or sets the brush to use for filling the needle cap. Note: this only applies to certain cap shapes.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            needlePivotBrush: "rgba(236, 237, 239, 1)"
        });

        //Get
        var gaugeNeedlePivotBrush = $(".selector").igRadialGauge("option", "needlePivotBrush");

        //Set
        $(".selector").igRadialGauge("option", "needlePivotBrush", [ "#ff0000", "#ffff00", "#00ffff" ]);

needlePivotInnerWidthRatio

Type:: number
Default:: 0

Gets or sets the width of the inner cutout section of the needle cap with a value from 0 to 1. Note: Will only take effect if you have a cap set on the needle that has a cutout section.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            needlePivotInnerWidthRatio: "0.5"
        });

        //Get
        var gaugeNeedlePivotInnerWidthRatio = $(".selector").igRadialGauge("option", "needlePivotInnerWidthRatio");

        //Set
        $(".selector").igRadialGauge("option", "needlePivotInnerWidthRatio", "0.5");

needlePivotOutline

Type:: string
Default:: null

Gets or sets the brush to use for the outlines of the needle cap.

Code Sample

  //Initialize
        $(".selector").igRadialGauge({
            needlePivotOutline: "rgba(236, 237, 239, 1)"
        });

        //Get
        var gaugeNeedlePivotOutline = $(".selector").igRadialGauge("option", "needlePivotOutline");

        //Set
        $(".selector").igRadialGauge("option", "needlePivotOutline", [ "#ff0000", "#ffff00", "#00ffff" ]);

needlePivotShape

Type:

enumeration

Default:

circleOverlay
Gets or sets the shape to use for the needle cap.
Members
- none
- Type:string
- No pivot shape.
- circle
- Type:string
- A circle shaped pivot.
- circleWithHole
- Type:string
- A circle pivot with a hole in it.
- circleOverlay
- Type:string
- A circle pivot overlayed on top of the needle.
- circleOverlayWithHole
- Type:string
- A circle pivot with a hole in it overlayed on top of the needle.
- circleUnderlay
- Type:string
- A circle pivot rendered underneath the needle.
- circleUnderlayWithHole
- Type:string
- A circle pivot with a hold in it rendered underneath the needle.
Code Sample
```
 //Initialize
        $(".selector").igRadialGauge({
            needlePivotShape: "circle"
        });

        //Get
        var gaugeNeedlePivotShape = $(".selector").igRadialGauge("option", "needlePivotShape");

        //Set
        $(".selector").igRadialGauge("option", "needlePivotShape", "circle");
```

needlePivotStrokeThickness

Type:: number
Default:: 1

Gets or sets the stroke thickness to use for the outline of the needle cap.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            needlePivotStrokeThickness: "2"
        });

        //Get
        var gaugeNeedlePivotStrokeThicknesso = $(".selector").igRadialGauge("option", "needlePivotStrokeThickness");

        //Set
        $(".selector").igRadialGauge("option", "needlePivotStrokeThickness", "2");

needlePivotWidthRatio

Type:: number
Default:: 0

Gets or sets the width of the cap of the needle with a value from 0 to 1. Note: Will only take effect if you have a cap set on the needle.
Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

Code Sample

//Initialize
        $(".selector").igRadialGauge({
            needlePivotWidthRatio: "0.5"
        });

        //Get
        var gaugeNeedlePivotWidthRatio = $(".selector").igRadialGauge("option", "needlePivotWidthRatio");

        //Set
        $(".selector").igRadialGauge("option", "needlePivotWidthRatio", "0.5");

needlePointFeatureExtent

Type:

number

Default:

0
Gets or sets the extent of the feature which is closest to the point (e.g. the tapering point of a needle) with a value from -1 to 1. Note: Only some needle shapes respect this property.
Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.
Code Sample
```
 //Initialize
        $(".selector").igRadialGauge({
            needlePointFeatureExtent: "0.5"
        });

        //Get
        var gaugeNeedlePointFeatureExtent = $(".selector").igRadialGauge("option", "needlePointFeatureExtent");

        //Set
        $(".selector").igRadialGauge("option", "needlePointFeatureExtent", "0.5");
```
needlePointFeatureWidthRatio

Type:

number

Default:

0
Gets or sets the width of the needle at its feature which is closest to the point (e.g. the tapering point of a needle) with a value from 0 to 1. Note: Only some needle shapes respect this property.
Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.
Code Sample
```
 //Initialize
        $(".selector").igRadialGauge({
            needlePointFeatureWidthRatio: "0.5"
        });

        //Get
        var gaugeNeedlePointFeatureWidthRatio = $(".selector").igRadialGauge("option", "needlePointFeatureWidthRatio");

        //Set
        $(".selector").igRadialGauge("option", "needlePointFeatureWidthRatio", "0.5");
```
needleShape

Type:

enumeration

Default:

trapezoid
Gets or sets the shape to use when rendering the needle from a number of options.
Members
- none
- Type:string
- No shape.
- rectangle
- Type:string
- A rectangle shape.
- triangle
- Type:string
- A triangle shape.
- needle
- Type:string
- A needle shape.
- trapezoid
- Type:string
- A trapezoid shape.
- rectangleWithBulb
- Type:string
- A rectangle shape with a bulb at the end.
- triangleWithBulb
- Type:string
- A triangle shape with a bulb at the end.
- needleWithBulb
- Type:string
- A needle shape with a bulb at the end.
- trapezoidWithBulb
- Type:string
- A trapezoid shape with a bulb at the end.
Code Sample
```
 //Initialize
        $(".selector").igRadialGauge({
            needleShape: "trapezoidWithBulb"
        });

        //Get
        var gaugeNeedleShape = $(".selector").igRadialGauge("option", "needleShape");

        //Set
        $(".selector").igRadialGauge("option", "needleShape", "trapezoidWithBulb");
```

needleStartExtent

Type:: number
Default:: 0

Gets or sets the extent (from -1 to 1) at which to start rendering the needle, measured from the center of the gauge.
Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            needleStartExtent: "0.5"
        });

        //Get
        var gaugeNeedleStartExtent = $(".selector").igRadialGauge("option", "needleStartExtent");

        //Set
        $(".selector").igRadialGauge("option", "needleStartExtent", "0.5");

needleStartWidthRatio

Type:: number
Default:: 0

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            needleStartWidthRatio: "0.5"
        });

        //Get
        var gaugeNeedleStartWidthRatio = $(".selector").igRadialGauge("option", "needleStartWidthRatio");

        //Set
        $(".selector").igRadialGauge("option", "needleStartWidthRatio", "0.5");

needleStrokeThickness

Type:: number
Default:: 1

Gets or sets the stroke thickness of the needle outline.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            needleStrokeThickness: "2"
        });

        //Get
        var gaugeNeedleStrokeThickness = $(".selector").igRadialGauge("option", "needleStrokeThickness");

        //Set
        $(".selector").igRadialGauge("option", "needleStrokeThickness", "2");

pixelScalingRatio

Type:

number

Default:

0
Gets or sets the scaling value used to affect the pixel density of the control.
A higher scaling ratio will produce crisper visuals at the expense of memory. Lower values will cause the control
to appear blurry.
Code Sample
```

// Initialize
$(".selector").igRadialGauge({
    pixelScalingRatio: 2
});

// Get
var pixelScalingRatio = $(".selector").igRadialGauge("option", "pixelScalingRatio");

// Set
$(".selector").igRadialGauge("option", "pixelScalingRatio", 2);

```

radiusMultiplier

Type:: number
Default:: 1

Gets or sets the multiplying factor to apply to the normal radius of the gauge.
The radius of the gauge is defined by the minimum of the width and height of the control divided by 2.0.
This introduces a multiplicative factor to that value.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            radiusMultiplier: "0.5"
        });

        //Get
        var gaugeRadiusMultiplier = $(".selector").igRadialGauge("option", "radiusMultiplier");

        //Set
        $(".selector").igRadialGauge("option", "radiusMultiplier", "0.5");

rangeBrushes

Type:: object
Default:: null

Gets or sets a collection of brushes to be used as the palette for gauge ranges.
The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

Code Sample


     // Initialize
     $(".selector").igRadialGauge({
        rangeBrushes: ["#164F6D", "green", "#AF3", "yellow"],
     });

     // Get
     var rangeBrushes = $(".selector").igRadialGauge("option", "rangeBrushes");

     // Set
     $(".selector").igRadialGauge("option", "rangeBrushes", ["#164F6D", "green", "#AF3", "yellow"]);

rangeOutlines

Type:: object
Default:: null

Gets or sets a collection of brushes to be used as the palette for gauge outlines.
The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

Code Sample


      // Initialize
      $(".selector").igRadialGauge({
         rangeOutlines: ["#164F6D", "green", "#AF3", "yellow"],
      });

      // Get
      var rangeOutlines = $(".selector").igRadialGauge("option", "rangeOutlines");

      // Set
     $(".selector").igRadialGauge("option", "rangeOutlines", ["#164F6D", "green", "#AF3", "yellow"]);

ranges

Type:: array
Default:: []
Elements Type:: object

Gets or sets the scale ranges to render on the linear gauge.

Code Sample

//Initialize
        $(".selector").igRadialGauge({
            ranges: [
              { name: "range1", brush: "rgba(164, 189, 41, 1)", startValue: "0", endValue: "3", outerStartExtent: "0.6", outerEndExtent: "0.63" },
              { name: "range2", brush: "rgba(253, 189, 72, 1)", startValue: "3", endValue: "7", outerStartExtent: "0.63", outerEndExtent: "0.66" },
              { name: "range3", brush: "rgba(211, 64, 75, 1)",  startValue: "7", endValue: "10", outerStartExtent: "0.66", outerEndExtent: "0.69" }
          ]
      });

      //Get
      var gaugeRanges = $(".selector").igRadialGauge("option", "ranges");

      //Set
      $(".selector").igRadialGauge("option", "ranges", [{ name: "range1", startValue: "0" }]);

brush

Type:: string
Default:: null

Gets or sets the brush for the entire range.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            ranges: [
              { name: "range1", brush: "rgba(164, 189, 41, 1)"},
              { name: "range3", brush: "rgba(211, 64, 75, 1)" }
          ]
      });

      //Get
      var gaugeRanges = $(".selector").igRadialGauge("option", "ranges");
      var rangeBrush = gaugeRanges[0].brush;

endValue

Type:: number
Default:: 0

Gets or sets the ending value of the range.

Code Sample

 //Initialize
              $(".selector").igRadialGauge({
                ranges: [
                  { name: "range1", brush: "rgba(164, 189, 41, 1)", startValue: "0", endValue: "3", outerStartExtent: "0.6", outerEndExtent: "0.63" },
                  { name: "range2", brush: "rgba(253, 189, 72, 1)", startValue: "3", endValue: "7", outerStartExtent: "0.63", outerEndExtent: "0.66" },
                  { name: "range3", brush: "rgba(211, 64, 75, 1)",  startValue: "7", endValue: "10", outerStartExtent: "0.66", outerEndExtent: "0.69" }
                ]
              });

              //Get
              var gaugeRanges = $(".selector").igRadialGauge("option", "ranges");
              var rangeEndValue = gaugeRanges[0].endValue;

innerEndExtent

Type:: number
Default:: 0

Gets or sets the ending value of the inner extent of the range.

Code Sample

 //Initialize
              $(".selector").igRadialGauge({
                ranges: [
                  { name: "range1", brush: "rgba(164, 189, 41, 1)", startValue: "0", endValue: "3", innerStartExtent: "0.6", innerEndExtent: "0.63" },
                  { name: "range2", brush: "rgba(253, 189, 72, 1)", startValue: "3", endValue: "7", innerStartExtent: "0.63", innerEndExtent: "0.66" },
                  { name: "range3", brush: "rgba(211, 64, 75, 1)",  startValue: "7", endValue: "10", innerStartExtent: "0.66", innerEndExtent: "0.69" }
                ]
              });

              //Get
              var gaugeRanges = $(".selector").igRadialGauge("option", "ranges");
              var rangeInnerEndExtent = gaugeRanges[0].innerEndExtent;

innerStartExtent

Type:: number
Default:: 0

Gets or sets the starting value of the inner extent of the range.

Code Sample

 //Initialize
              $(".selector").igRadialGauge({
                ranges: [
                  { name: "range1", brush: "rgba(164, 189, 41, 1)", startValue: "0", endValue: "3", innerStartExtent: "0.6", innerEndExtent: "0.63" },
                  { name: "range2", brush: "rgba(253, 189, 72, 1)", startValue: "3", endValue: "7", innerStartExtent: "0.63", innerEndExtent: "0.66" },
                  { name: "range3", brush: "rgba(211, 64, 75, 1)",  startValue: "7", endValue: "10", innerStartExtent: "0.66", innerEndExtent: "0.69" }
                ]
              });

              //Get
              var gaugeRanges = $(".selector").igRadialGauge("option", "ranges");
              var rangeInnerStartExtent = gaugeRanges[0].innerStartExtent;

name

Type:: string
Default:: null

Gets or sets the name of the range.

Code Sample

 //Initialize
              $(".selector").igRadialGauge({
                ranges: [
                  { name: "range1", brush: "rgba(164, 189, 41, 1)", startValue: "0", endValue: "3", innerStartExtent: "0.6", innerEndExtent: "0.63" },
                  { name: "range2", brush: "rgba(253, 189, 72, 1)", startValue: "3", endValue: "7", innerStartExtent: "0.63", innerEndExtent: "0.66" },
                  { name: "range3", brush: "rgba(211, 64, 75, 1)",  startValue: "7", endValue: "10", innerStartExtent: "0.66", innerEndExtent: "0.69" }
                ]
              });

              //Get
              var gaugeRanges = $(".selector").igRadialGauge("option", "ranges");
              var rangeName = gaugeRanges[0].name;

outerEndExtent

Type:: number
Default:: 0

Gets or sets the ending value of the outer extent of the range.

Code Sample

 //Initialize
              $(".selector").igRadialGauge({
                ranges: [
                  { name: "range1", brush: "rgba(164, 189, 41, 1)", startValue: "0", endValue: "3", outerStartExtent: "0.6", outerEndExtent: "0.63" },
                  { name: "range2", brush: "rgba(253, 189, 72, 1)", startValue: "3", endValue: "7", outerStartExtent: "0.63", outerEndExtent: "0.66" },
                  { name: "range3", brush: "rgba(211, 64, 75, 1)",  startValue: "7", endValue: "10", outerStartExtent: "0.66", outerEndExtent: "0.69" }
                ]
              });

              //Get
              var gaugeRanges = $(".selector").igRadialGauge("option", "ranges");
              var rangeOuterEndExtent = gaugeRanges[0].outerEndExtent;

outerStartExtent

Type:: number
Default:: 0

Gets or sets the starting value of the outer extent of the range.

Code Sample

  //Initialize
              $(".selector").igRadialGauge({
                ranges: [
                  { name: "range1", brush: "rgba(164, 189, 41, 1)", startValue: "0", endValue: "3", outerStartExtent: "0.6", outerEndExtent: "0.63" },
                  { name: "range2", brush: "rgba(253, 189, 72, 1)", startValue: "3", endValue: "7", outerStartExtent: "0.63", outerEndExtent: "0.66" },
                  { name: "range3", brush: "rgba(211, 64, 75, 1)",  startValue: "7", endValue: "10", outerStartExtent: "0.66", outerEndExtent: "0.69" }
                ]
              });

              //Get
              var gaugeRanges = $(".selector").igRadialGauge("option", "ranges");
              var rangeOuterStartExtent = gaugeRanges[0].outerStartExtent;

outline

Type:: string
Default:: null

Gets or sets the brush for the outline of the range.

Code Sample

 //Initialize
              $(".selector").igRadialGauge({
                ranges: [
                  { name: "range1", brush: "rgba(164, 189, 41, 1)", outline: "rgba(164, 189, 41, 1)",  startValue: "0", endValue: "3", outerStartExtent: "0.6", outerEndExtent: "0.63" },
                  { name: "range2", brush: "rgba(253, 189, 72, 1)", outline: "rgba(164, 189, 41, 1)", startValue: "3", endValue: "7", outerStartExtent: "0.63", outerEndExtent: "0.66" },
                  { name: "range3", brush: "rgba(211, 64, 75, 1)",  outline: "rgba(164, 189, 41, 1)", startValue: "7", endValue: "10", outerStartExtent: "0.66", outerEndExtent: "0.69" }
                ]
              });

              //Get
              var gaugeRanges = $(".selector").igRadialGauge("option", "ranges");
              var rangeOutline = gaugeRanges[0].outline;

remove

Type:

bool

Default:

false
Gets or sets the flag used to determine if the range should be removed. If set to true, the range (if existing) is removed.
Code Sample
```

              $("#radialgauge").igRadialGauge("option", "ranges", [{ name: "range1", remove: true }]);

```

startValue

Type:: number
Default:: 0

Gets or sets the starting value of the range.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            needlePivotInnerWidthRatio: "0.5"
        });

        //Get
        var gaugeNeedlePivotInnerWidthRatio = $(".selector").igRadialGauge("option", "needlePivotInnerWidthRatio");

        //Set
        $(".selector").igRadialGauge("option", "needlePivotInnerWidthRatio", "0.5");

strokeThickness

Type:: number
Default:: 0

Gets or sets the thickness of the range outline.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            needlePivotInnerWidthRatio: "0.5"
        });

        //Get
        var gaugeNeedlePivotInnerWidthRatio = $(".selector").igRadialGauge("option", "needlePivotInnerWidthRatio");

        //Set
        $(".selector").igRadialGauge("option", "needlePivotInnerWidthRatio", "0.5");

regional
Inherited

Type:: enumeration
Default:: en-US

Set/Get the regional setting for the widget.

Code Sample


				//Initialize
				$(".selector").igRadialGauge({
					regional: "ja"
				});
				// Get
				var regional = $(".selector").igRadialGauge("option", "regional");
				// Set
				$(".selector").igRadialGauge("option", "regional", "ja");

scaleBrush

Type:: string
Default:: null

Gets or sets the brush to use to fill the background of the scale.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            scaleBrush: "rgba(236, 237, 239, 1)"
        });

        //Get
        var rangeScaleBrush = $(".selector").igRadialGauge("option", "scaleBrush");

        //Set
        $(".selector").igRadialGauge("option", "scaleBrush", [ "#ff0000", "#ffff00", "#00ffff" ]);

scaleEndAngle

Type:: number
Default:: 45

Gets or sets the end angle for the scale in degrees.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            scaleEndAngle: "75"
        });

        //Get
        var gaugeScaleEndAngle = $(".selector").igRadialGauge("option", "scaleEndAngle");

        //Set
        $(".selector").igRadialGauge("option", "scaleEndAngle", "75");

scaleEndExtent

Type:: number
Default:: 0.57

Gets or sets the position at which to stop rendering the scale as a value from 0 to 1 measured from the center of the gauge.
Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            scaleEndExtent: "0.5"
        });

        //Get
        var gaugeScaleEndExtent = $(".selector").igRadialGauge("option", "scaleEndExtent");

        //Set
        $(".selector").igRadialGauge("option", "scaleEndExtent", "0.5");

scaleOversweep

Type:: number
Default:: 2.8

Gets or sets the extra degrees of sweep to apply to the scale background. Must be greater or equal to 0.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            scaleOversweep: "75"
        });

        //Get
        var gaugeScaleOversweep = $(".selector").igRadialGauge("option", "scaleOversweep");

        //Set
        $(".selector").igRadialGauge("option", "scaleOversweep", "75");

scaleOversweepShape

Type:: enumeration
Default:: auto

Gets or sets the oversweep shape to use for the excess fill area for the scale.

Members

auto
Type:string
A default oversweep shape.
circular
Type:string
A circular oversweep shape.
fitted
Type:string
A fitted oversweep shape.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            scaleOversweepShape: "circular"
        });

        //Get
        var gaugeScaleOversweepShape = $(".selector").igRadialGauge("option", "scaleOversweepShape");

        //Set
        $(".selector").igRadialGauge("option", "scaleOversweepShape", "circular");

scaleStartAngle

Type:: number
Default:: 135

Gets or sets the start angle for the scale in degrees.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            scaleStartAngle: "75"
        });

        //Get
        var gaugeScaleStartAngle = $(".selector").igRadialGauge("option", "scaleStartAngle");

        //Set
        $(".selector").igRadialGauge("option", "scaleStartAngle", "75");

scaleStartExtent

Type:: number
Default:: 0.5

Gets or sets the position at which to start rendering the scale, measured from the center of the gauge as a value from 0 to 1.
Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

Code Sample

  //Initialize
        $(".selector").igRadialGauge({
            scaleStartExtent: "0.5"
        });

        //Get
        var gaugeScaleStartExtent = $(".selector").igRadialGauge("option", "scaleStartExtent");

        //Set
        $(".selector").igRadialGauge("option", "scaleStartExtent", "0.5");

scaleSweepDirection

Type:

enumeration

Default:

clockwise
Gets or sets the direction in which the scale sweeps around the center from the start angle to end angle.
Members
- counterclockwise
- Type:string
- In a direction opposite the typical forward movement of the hands of a clock.
- clockwise
- Type:string
- In a direction corresponding to the typical forward movement of the hands of a clock.
Code Sample
```
 //Initialize
        $(".selector").igRadialGauge({
            scaleSweepDirection: "counterclockwise"
        });

        //Get
        var gaugeScaleSweepDirection = $(".selector").igRadialGauge("option", "scaleSweepDirection");

        //Set
        $(".selector").igRadialGauge("option", "scaleSweepDirection", "counterclockwise");
```

tickBrush

Type:: string
Default:: null

Gets or sets the brush to use for the major tickmarks.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            tickBrush: "rgba(236, 237, 239, 1)"
        });

        //Get
        var gaugeTickBrush = $(".selector").igRadialGauge("option", "tickBrush");

        //Set
        $(".selector").igRadialGauge("option", "tickBrush", [ "#ff0000", "#ffff00", "#00ffff" ]);

tickEndExtent

Type:: number
Default:: 0.57

Gets or sets the position at which to stop rendering the major tickmarks as a value from 0 to 1, measured from the center of the gauge.
Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            tickEndExtent: "0.5"
        });

        //Get
        var gaugeTickEndExtent = $(".selector").igRadialGauge("option", "tickEndExtent");

        //Set
        $(".selector").igRadialGauge("option", "tickEndExtent", "0.5");

tickStartExtent

Type:: number
Default:: 0.5

Gets or sets the position at which to start rendering the major tickmarks as a value from 0 to 1, measured from the center of the gauge.
Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

Code Sample

//Initialize
        $(".selector").igRadialGauge({
            tickStartExtent: "0.5"
        });

        //Get
        var gaugeTickStartExtent = $(".selector").igRadialGauge("option", "tickStartExtent");

        //Set
        $(".selector").igRadialGauge("option", "tickStartExtent", "0.5");

tickStrokeThickness

Type:: number
Default:: 3

Gets or sets the stroke thickness to use when rendering ticks.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            tickStrokeThickness: "2"
        });

        //Get
        var gaugeTickStrokeThickness = $(".selector").igRadialGauge("option", "tickStrokeThickness");

        //Set
        $(".selector").igRadialGauge("option", "tickStrokeThickness", "2");

transitionDuration

Type:: number
Default:: 0

Gets or sets the number of milliseconds over which changes to the gauge should be animated.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            transitionDuration: "3000"
        });

        //Get
        var gaugeTransitionDuration: "3000" = $(".selector").igRadialGauge("option", "transitionDuration");

        //Set
        $(".selector").igRadialGauge("option", "transitionDuration", "3000");

transitionEasingFunction

Type:: object
Default:: null

Gets or sets the easing function used to morph the current series.

Code Sample

  //Initialize
        $(".selector").igRadialGauge({
            transitionEasingFunction: "cubic"
        });

        //Get
        var gaugeTransitionEasingFunction = $(".selector").igRadialGauge("option", "transitionEasingFunction");

        //Set
        $(".selector").igRadialGauge("option", "transitionEasingFunction", "cubic");

transitionProgress

Type:: number
Default:: 0

Gets the transition progress of the animation when the control is animating.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            transitionProgress: "0.5"
        });

        //Get
        var gaugeTransitionProgress = $(".selector").igRadialGauge("option", "transitionProgress");

        //Set
        $(".selector").igRadialGauge("option", "transitionProgress", "0.5");

value

Type:: number
Default:: 0

Gets or sets the value at which to point the needle of the gauge.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            value: "10"
        });

        //Get
        var gaugeValue = $(".selector").igRadialGauge("option", "value");

        //Set
        $(".selector").igRadialGauge("option", "value", "10");

width

Type:: enumeration
Default:: null

The width of the gauge. It can be set as a number in pixels, string (px) or percentage (%).

Members

string
The widget width can be set in pixels (px) and percentage (%).
number
The widget width can be set as a number.

Code Sample

 //Initialize
        $(".selector").igRadialGauge({
            width: 250
        });

        //Get
        var width= $(".selector").igRadialGauge("option", "width");

        //Set
        $(".selector").igRadialGauge("option", "width", 250);

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details

alignLabel

Cancellable:: false

Event which is raised when a label of the gauge is aligned along the scale.
Function takes first argument null and second argument ui.
Use ui.owner to obtain reference to gauge widget.
Use ui.actualMinimumValue to obtain the minimum value of gauge scale.
Use ui.actualMaximumValue to obtain the maximum value of gauge scale.
Use ui.startAngle to obtain the starting angle of gauge scale.
Use ui.endAngle to obtain the ending angle of gauge scale.
Use ui.angle to obtain the angle on the gauge scale at which the label will be located.
Use ui.value to obtain the value on the gauge scale associated with the label.
Use ui.label to obtain the string value of the label.
Use ui.width to obtain the width of the label.
Use ui.height to obtain the height of the label.
Use ui.offsetX to obtain the X offset of the label on the gauge scale.
Use ui.offsetY to obtain the Y offset of the label on the gauge scale.

Code Sample


//Bind
$(document).delegate(".selector", "igradialgaugealignlabel", function (evt, ui) {
    // Get reference to igRadialGauge.
    ui.owner;

    // Get the mimimum value of gauge scale
    ui.actualMinimumValue;

    // Get the maximum value of gauge scale
    ui.actualMaximumValue;

    // Get the startAngle of gauge scale
    ui.startAngle;

    // Get the the ending angle of gauge scale.
    ui.endAngle;

    // Get the angle on the gauge scale at which the label will be located
    ui.angle;

    // Get the value on the gauge scale associated with the label.
    ui.value;

    // Get whether the string value of the label.
    ui.label;

    //Get the width of the label.
    ui.width;

    // Get the height of the label.
    ui.height;

    // Get the X offset of the label on the gauge scale.
    ui.offsetX;

    // Get the Y offset of the label on the gauge scale.
    ui.offsetY;
});

// Initialize
$(".selector").igRadialGauge({
    alignLabel: function(evt, ui) {...}
});

formatLabel

Cancellable:: false

Event which is raised when a label of the gauge is formatted.
Function takes first argument null and second argument ui.
Use ui.owner to obtain reference to gauge widget.
Use ui.actualMinimumValue to obtain the minimum value of gauge scale.
Use ui.actualMaximumValue to obtain the maximum value of gauge scale.
Use ui.startAngle to obtain the starting angle of gauge scale.
Use ui.endAngle to obtain the ending angle of gauge scale.
Use ui.angle to obtain the angle on the gauge scale at which the label will be located.
Use ui.value to obtain the value on the gauge scale associated with the label.
Use ui.label to obtain the string value of the label.

Code Sample


//Bind
$(document).delegate(".selector", "igradialgaugeformatlabel", function (evt, ui) {
    // Get reference to igRadialGauge.
    ui.owner;

    // Get the mimimum value of gauge scale
    ui.actualMinimumValue;

    // Get the maximum value of gauge scale
    ui.actualMaximumValue;

    // Get the startAngle of gauge scale
    ui.startAngle;

    // Get the the ending angle of gauge scale.
    ui.endAngle;

    // Get the angle on the gauge scale at which the label will be located
    ui.angle;

    // Get the value on the gauge scale associated with the label.
    ui.value;

    // Get whether the string value of the label.
    ui.label;
});

// Initialize
$(".selector").igRadialGauge({
    formatLabel: function(evt, ui) {...}
});

valueChanged

Cancellable:: false

Occurs when the Value property changes.

Code Sample


//Bind
$(document).delegate(".selector", "igradialgaugevaluechanged", function (evt, ui) {
    // Get reference to igRadialGauge.
    ui.owner;

    // Get the previous value before the change.
    ui.oldValue;

    // Get the new value after the change.
    ui.newValue;
});

// Initialize
$(".selector").igRadialGauge({
    valueChanged: function(evt, ui) {...}
});

Show Details

addRange

.igRadialGauge( "addRange", value:object );
Adds a new range to the radial gauge.
- value
- Type:object
Code Sample
```
 $(".selector").igRadialGauge("addRange", {"Range1": 10} );
```
changeGlobalLanguage
Inherited

.igRadialGauge( "changeGlobalLanguage" );
Changes the widget language to global language. Global language is the value in $.ig.util.language.
Code Sample
```

				$(".selector").igRadialGauge("changeGlobalLanguage");

```
changeGlobalRegional
Inherited

.igRadialGauge( "changeGlobalRegional" );
Changes the widget regional settins to global regional settings. Global regional settings are container in $.ig.util.regional.
Code Sample
```

				$(".selector").igRadialGauge("changeGlobalRegional");

```
changeLocale
Inherited

.igRadialGauge( "changeLocale", $container:object );
Changes the all locales contained into a specified container to the language specified in options.language
Note that this method is for rare scenarios, use language or locale option setter.
- $container
- Type:object
- Optional parameter - if not set it would use the element of the widget as $container.
Code Sample
```

				$(".selector").igRadialGauge("changeLocale");

```
clearRanges

.igRadialGauge( "clearRanges" );
Clears the ranges in the radial gauge.
Code Sample
```
 $(".selector").igRadialGauge("clearRanges" );
```
destroy

.igRadialGauge( "destroy" );
Destroys widget.
Code Sample
```
 $(".selector").igRadialGauge("destroy" );
```
exportVisualData

.igRadialGauge( "exportVisualData" );
Exports the visual data for the radial gauge.
Code Sample
```
 $(".selector").igRadialGauge("exportVisualData" );
```
flush

.igRadialGauge( "flush" );
Flushes the gauge.
Code Sample
```
 $(".selector").igRadialGauge("flush" );
```
getPointForValue

.igRadialGauge( "getPointForValue", value:object, extent:object );
Gets the point on the gauge for a given scale value and extent.
- value
- Type:object
- extent
- Type:object
Code Sample
```

var point = $(".selector").igRadialGauge("getPointForValue", 20, 0);

```
getRangeNames

.igRadialGauge( "getRangeNames" );

Return Type:

string

Return Type Description:

.
Returns a string containing the names of all the ranges delimited with a \n symbol.
Code Sample
```
 $(".selector").igRadialGauge("getRangeNames" );
```
getValueForPoint

.igRadialGauge( "getValueForPoint", x:object, y:object );

Return Type:

number

Return Type Description:

The value for the main scale of the gauge.
Gets the value for the main scale of the gauge for a given point within the bounds of the gauge.
- x
- Type:object
- y
- Type:object
Code Sample
```
 $(".selector").igRadialGauge("getValueForPoint", "4", "5" );
```
needleContainsPoint

.igRadialGauge( "needleContainsPoint", x:object, y:object );
Returns true if the main gauge needle bounding box contains the point provided, otherwise false.
- x
- Type:object
- y
- Type:object
Code Sample
```
 $(".selector").igRadialGauge("needleContainsPoint", "4", "5" );
```
removeRange

.igRadialGauge( "removeRange", value:object );
Removes a specified range.
- value
- Type:object
Code Sample
```
 $(".selector").igRadialGauge("removeRange", "range1" );
```
scaleValue

.igRadialGauge( "scaleValue", value:object );
Scales a value on the gauge's main scale to an angle around the center point of the gauge, in radians.
- value
- Type:object
Code Sample
```
 $(".selector").igRadialGauge("scaleValue", "1" );
```
styleUpdated

.igRadialGauge( "styleUpdated" );
Returns true if the style was updated for the radial gauge.
Code Sample
```
 $(".selector").igRadialGauge("styleUpdated");
```
unscaleValue

.igRadialGauge( "unscaleValue", value:object );
Unscales a value from an angle in radians to the represented value along the main scale of the gauge.
- value
- Type:object
Code Sample
```
 $(".selector").igRadialGauge("unscaleValue", "1" );
```
updateRange

.igRadialGauge( "updateRange", value:object );
Updates the range.
- value
- Type:object
Code Sample
```
 $(".selector").igRadialGauge("updateRange", "range1" );
```

ui-radialgauge

Get the class applied to main element: ui-radialGauge ui-corner-all ui-widget-content.
ui-html5-non-html5-supported-message ui-helper-clearfix ui-html5-non-html5

Get the class applied to main element, shown when the radialGauge is opened in a non HTML5 compatible browser.

Ignite UI | Samples

ui.igRadialGauge

Code Sample

Related Samples

Related Topics

Dependencies

Inherits

backingBrush

Code Sample

backingCornerRadius

Code Sample

backingInnerExtent

Code Sample

backingOuterExtent

Code Sample

backingOutline

Code Sample

backingOversweep

Code Sample

backingShape

Members

Code Sample

backingStrokeThickness

Code Sample

centerX

Code Sample

centerY

Code Sample

duplicateLabelOmissionStrategy

Members

Code Sample

font

Code Sample

fontBrush

Code Sample

height

Members

Code Sample

interval

Code Sample

isNeedleDraggingConstrained

Code Sample

isNeedleDraggingEnabled

Code Sample

labelExtent

Code Sample

labelInterval

Code Sample

languageInherited

Code Sample

localeInherited

Code Sample

maximumValue

Code Sample

minimumValue

Code Sample

minorTickBrush

Code Sample

minorTickCount

Code Sample

minorTickEndExtent

Code Sample

minorTickStartExtent

Code Sample

minorTickStrokeThickness

Code Sample

needleBaseFeatureExtent

Code Sample

needleBaseFeatureWidthRatio

Code Sample

needleBrush

Code Sample

needleEndExtent

Code Sample

needleEndWidthRatio

Code Sample

needleOutline

Code Sample

needlePivotBrush

Code Sample

language
Inherited

locale
Inherited

regional
Inherited
