Multi-Column Headers Overview (igGrid)

Topic Overview

Purpose

This topic explains the igGrid™ multi-column headers feature.

Required background

The following topics are prerequisites to understanding this topic:

In this topic

This topic contains the following sections:

Introduction

The multi-column headers feature provides header grouping. To accomplish this in the igGrid.options.columns array, there is a new property off of each column object called group. This property can contain an array of other column definitions. The group property is cascading, which means that you can group multi-column headers together. When defining a grouped column you can set the headerText, key and the rowspan properties (all of the properties are not mandatory). The headerText property is used to set the group caption, key is used to reference the column group when used with other features, and rowspan is used to adjust the span of the group header cell. The multi-column headers API is exposed through the grid’s column objects. As with other features, you must add it to the igGrid.options.features array and also reference in the feature’s JavaScript files.

There are two type of cells in the multi-column headers feature:

  1. Table header cell – this is a header cell which is directly mapped to leaf column in the columns hierarchy. A leaf column is bound to data and its key option is the data source column key. This column cannot have children i.e. does not contain a group option.
  2. Group header cell – this cell is mapped to a parent column which is not data bound. The column key property is automatically generated or manually defined, but should always be unique. This column has a group option defined.

In the DOM, the multi-column headers feature alters the THEAD element. The number of rows (TR) in the THEAD is equal to the number of levels in the column hierarchy. Each table row has a data-mch-level attribute which marks the row level from bottom to top.

Individual column header cells (TH) have the rowspan attribute set by the rowspan property of the column or is automatically calculated by the multi-column header feature.

Data bound column header cells (TH) have the data-isheadercell attribute set to true.

Group columns have the data-mch-id attribute set to the key property of the column or they are automatically generated by the multi-column header feature.

Note: When you try to get the grid columns by using the API $(“.selector”).igGrid(“option”, “columns”) you will get the flat view of the actual data columns. If you want to get the actual column hierarchy of multi-column headers you should use getMultiColumnHeaders method.

Example: var columnDefinitions = $(".selector ").igGridMultiColumnHeaders("getMultiColumnHeaders");

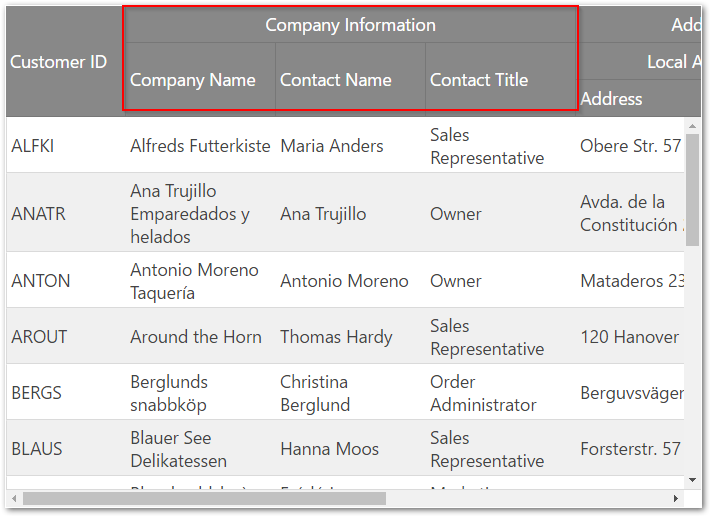

In the following screenshot, you can see a multi-column header configured for the CompanyName, ContactName and ContactTitle columns of the Customers table in the Northwind database.

The following sample demonstrates how to configure Multi-Column Headers:

Multi-Column Headers

Collapsible column groups

Collapsible Column Groups is a part of the multi-column headers feature which provides a way to collapse/expand a column group to a smaller set of data. A column group usually consists of two or more columns. When a column group is collapsed, a subset of the columns will be shown to the end-user. This subset can be one or more of the previously shown columns, or an entirely new set of columns. Each collapsed/expanded column can be bound to the data source of the grid, or it may be unbound, thus calculated.

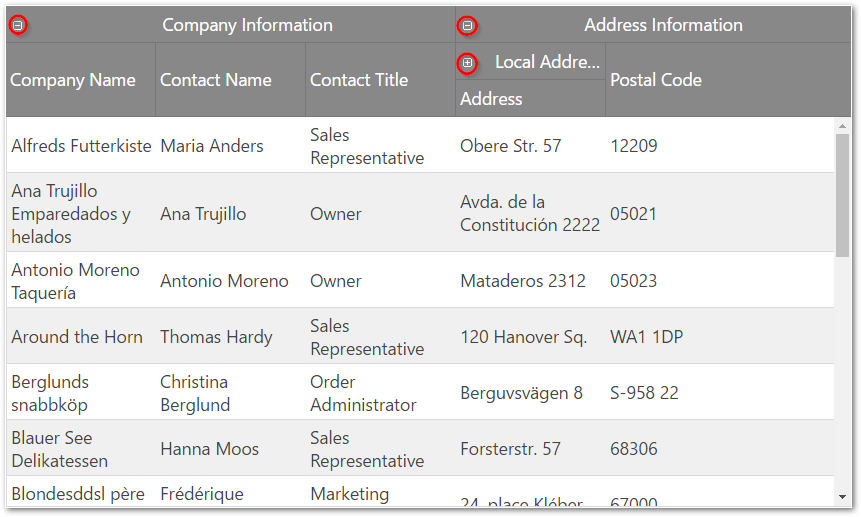

A group can be expanded/collapsed by clicking on its expand/collapse header indicator.

This functionality can be controlled by manipulating the expanded, allowGroupCollapsing and hidden properties of the groupOptions object.

Multi-column headers Property Reference

This section describes the various properties of igGridMultiColumnHeaders feature.

The following table summarizes the purpose and functionality of the igGridMultiColumnHeaders control’s featured properties.

  • group: If a column has a group property this column is a group column and it’s not bound to data from the data source. Parent columns are for display purposes only, i.e. they are rendered only in the THEAD of the grid.

  • groupOptions: The options of the group.

  • groupOptions.expanded: Makes the group expanded or collapsed. This property is applied only if we have allowGroupCollapsing enabled.

  • groupOptions.allowGroupCollapsing: Allows to collapse/expand a group and makes expansion indicators visible in the group header.

  • groupOptions.hidden: Controls when should the group be hidden. This property is applied only if we have allowGroupCollapsing enabled. There are four options for group hiding: never , always, when the parent group is collapsed and when the parent group is expanded.

  • headerText: The caption of the column.

  • key: Group columns accept a key property whose value is used as an identifier when the multi-column headers feature is used in combination with other features. For example, use the key of the group column to initially hide the group. However, the value of the key property should not be a column key from the data source. If the key is not specified, then it is generated automatically. Each key value must be unique in the columns array.

  • rowspan: Allows you to modify the rowspan attribute of the table header cell.

    By default, table header cells have the maximum possible rowspan depending on the level on which they are defined.

    By default, group header cells don’t have a rowspan defined. When you set a custom rowspan for group columns, it is recommended to set the rowspan for all cells in the column where necessary.

    The sum of the rowspan for column cells should not exceed the number of the table rows defined.

    Example:

    In HTML:

      <thead>
      <tr><th rowspan="2">Address Information</th><th>row 1</th></tr>
      <tr><th>row 2</th></tr>
      <tr><th rowspan="2">Local address</th><th>row 3</th></tr>
      <tr><th>row 4</th></tr>
  </thead>

    In the example above there are four table rows. For the first column there are Address Information and Local address cells which have rowspan set to 2. The sum of the rowspan is 4 which is equal to the number of the rows defined in the THEAD element.

    When a rowspan is not specified then the row span is calculated by the multi-column headers automatically to fit the maximum rows from the header depending on the row level.

  • hidden: You can use the hidden property to initially hide a group column.

Multi-column headers Method Reference

You can alter the multi-column headers at runtime by using the method renderMultiColumnHeader. This method accepts an array of columns with the new hierarchy. When renderMultiColumnHeader is executed, the whole grid is rebound and re-rendered. This is the only way to modify the igGrid.options.columns array.

Method reference summary

The following table summarizes the purpose and functionality of the igGridMultiColumnHeaders control’s featured methods.

Method Description Parameters
renderMultiColumnHeader When called the method re-renders the whole grid (also rebinds to the data source) and renders the cols object. - cols - an array of column objects
getMultiColumnHeaders Returns the multi-column headers array. If there are no multi-column headers defined it returns undefined. N/A
expandGroup Expands a group group key, callback
collapseGroup Collapses a group group key, callback
toggleGroup Toggles a group group key, callback

Other features integration reference

This section describes the igGridMultiColumnHeaders integration with other features.

Features integration summary

The following table summarizes the integration between igGridMultiColumnHeaders and other igGrid features.

Feature Description
Hiding Through the API you can hide a column group or individual columns by using the key property.
Hiding indicators are rendered for every header cell (TH) so users can hide column group or single column in one click. However column groups are not displayed in the column chooser, so when users unhide columns they have to click on each data bound column. Nevertheless column grouping is restored correctly.
Note: The hiding feature is not integrated with multi-column headers with enabled collapsible column groups.
Resizing In code you can allow resizing only for table header cells. You cannot disable column groups from the resizing feature’s columnSettings.
Users can resize data bound columns as well as column groups.
When a column group is resized, its child columns are resized accordingly.
Note: Performance of immediate resizing depends on the column hierarchy. You can use deferred resizing when you find such performance degradation.
ColumnMoving In code, you can allow moving of column groups or individual columns by using their key property.
Users can move both column group or individual column, but the moving is only within the same level (user can re-arrange only sibling columns). For example an individual column cannot be moved between column groups or in a parent group.
Moving indicators are rendered for every header cell (TH) so users can move column groups or individual columns in one click. Column groups are displayed in the column dialog and users can move column groups as well as individual columns.
