Getting Started (igShapeChart)

Purpose

This topic explains using a code example how to add the igShapeChart control to your application.

In this topic

This topic contains the following sections:

Introduction

The following procedure demonstrates adding the igShapeChart to your applications.

Preview

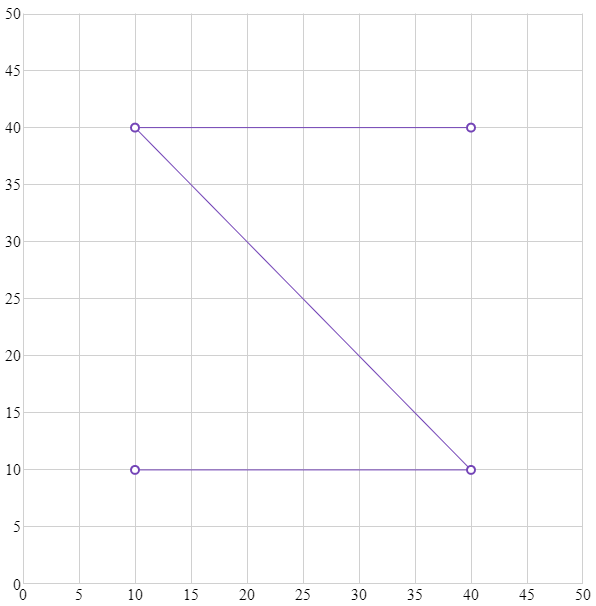

The following is a screenshot of the igShapeChart:

Overview

  1. Create a target element for storing the igShapeChart control.
  2. Add a data source.
  3. Instantiate the igShapeChart and bind the data source.
  4. Verify the result.

Steps

The following procedure takes you through the steps necessary for adding the igShapeChart to a page.

Create a target element for storing the igShapeChart

Create a

element within the HTML body on which to instantiate the igShapeChart control.

In HTML:

<body>
    <div id="shapeChart"></div>
</body>

Add a data source

In order to create an igShapeChart, you must first have data to bind it to. The following code snippet demonstrates how to create a simple data source.

In HTML:

<script>
    var data = [
    { "X": 10, "Y": 10 },
    { "X": 40, "Y": 10 },
    { "X": 10, "Y": 40 },
    { "X": 40, "Y": 40 }];
</script>

Instantiate the igShapeChart and bind the data source

Use the selector of the target

element defined in step 1 to instantiate the igShapeChart control. You can then set the data property to the data source created in step 2. The following code shows this, along with setting the width, height, and x and y axis minimum and maximum values based on the data source.

In HTML:

<script>
    $(function () {
        $("#shapeChart").igShapeChart({
            dataSource: data,
            width: "600px",
            height: "600px",
            xAxisMinimumValue: 0,
            yAxisMinimumValue: 0,
            xAxisMaximumValue: 50,
            yAxisMaximumValue: 50,
        });
    });
</script>

Verify the result

Build and run your project to verify the result. If you have implemented the above steps correctly, the displayed igShapeChart should look like the one in the Preview section above.
