Topic Overview

Purpose

This topic demonstrates how to make load external page into the igDialog™ control.

Required background

The following topics are prerequisites to understanding this topic:

  • igDialog Overview: The topic introduces the user to the igDialog control’s main features.

  • Adding igDialog: This topic demonstrates how to add the igDialog control to a web page.

In this topic

This topic contains the following sections:

Configuring igDialog with External Page

Overview

You can use the igDialog and load not only a bunch of HTML elements, but an entire page. As you know, you can apply the igDialog on a HTML DIV element and the content that is inside that DIV will become the content of the dialog window. It is similar when the igDialog loads an external page – the difference is that the HTML container should be the IFRAME element. The content page of the IFRAME will be the content of the igDialog.

In HTML:

<iframe id="dialog" src="http://www.infragistics.com/” frameborder="0"></iframe>

Property Settings

The code from the previous paragraph is enough to load external page into the igDialog. The next igDialog properties are only recommended, because they will make the window user friendly.

The following table maps the desired property settings.

In order to: Use this property: And set it to:
Show header text – title of the site headerText “Infragistics”
Make the igDialog maximize- able showMaximizeButton true
Set a temporary IFRAME URL source. temporaryUrl “Infragistics.com”

Note: It is not obligatory to use the temporaryUrl property, but using it may prevent exceptions. When the igDialog for the external page is created, the target element is removed from its original container and inserted into dynamically created main element. This may trigger an exception if the IFRAME element does not have some temporary URL as a source. If an error appears while loading external page, you can use the temporaryUrl property, which will set impermanent source of the IFRAME element.

Example

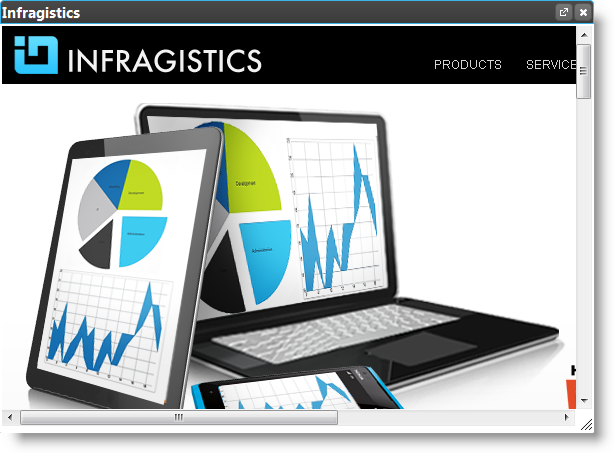

The screenshot below demonstrates how the igDialog load external page, as a result of the settings above:
