Adding igFunnelChart

Topic Overview

Purpose

This topic demonstrates how to add the igFunnelChart™ control to an HTML page and bind it to data.

Required background

The following table lists the concepts and topics required as a prerequisite to understanding this topic.

• Concepts
  • jQuery, jQuery UI
  • ASP.NET MVC
• Topics
  • Using JavaScript Resouces in Ignite UI for jQuery: This topic provides general guidance on adding required JavaScript resources to use controls from the Ignite UI for jQuery® library.
  • igFunnelChart Overview: This topic provides conceptual information about the igFunnelChart control including its main features, minimum requirements, and user functionality.

In this topic

This topic contains the following sections:

• Adding igFunnelChart to an HTML Page – Conceptual Overview
  • Requirements
• Adding an igFunnelChart to an HTML Page in JavaScript
  • Introduction
  • Preview
  • Overview
  • Steps
• Adding an igFunnelChart to an HTML Page in ASP.NET MVC
  • Introduction
  • Preview
  • Requirements
  • Overview
  • Steps
• Related Content
  • Topics
  • Samples

Adding igFunnelChart to an HTML Page – Conceptual Overview

When adding the igFunnelChart to an HTML page, you need to provide a pre-configured data source instance or specify the required options so that one could be created internally. For more details about possible data sources, see the Bind to Data topic.

The data source is specified through the dataSource property of the igFunnelChart. The data source and height settings are the only mandatory options to set when initializing the igFunnelChart.

Requirements

Adding the igFunnelChart control to an HTML page requires referencing the resources listed below. These resources are required for both JavaScript and ASP.NET MVC. (The JavaScript-specific and MVC-specific requirements are listed in the respective sections, Adding an igFunnelChart to an HTML Page in JavaScript and Adding an igFunnelChart to an HTML Page in ASP.NET MVC.)

Note: It is recommended to use the igLoader component to load JavaScript and CSS resources. For information on how to do it, refer to the Using Infragistics Loader topic. In addition to that, in the online Ignite UI for jQuery Samples Browser, you can find some specific examples on how to use the igLoader with the igFunnelChart component.

Adding an igFunnelChart to an HTML Page in JavaScript

Introduction

This procedure guides you through the steps for adding a funnel chart with basic functionality to a web page. The example shows a pure HTML/JavaScript implementation. It includes proper Loader configuration for loading all Ignite UI for jQuery resources needed by the igFunnelChart control.

The procedure instantiates and configures a 325x450-pixel funnel chart with default sort order (highest value on top), weighted slices and straight side lines representing the budget of the departments of a company. The data is supplied to the igFunnelChart control in the form of a JSON array (configured, too, in the procedure). In addition to that basic tuning, the paths, and the visual state of igFunnelChart’s labels are configured in order to have descriptive information about the data that is shown.

Preview

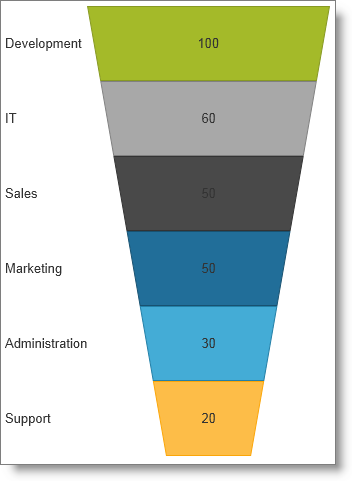

The following screenshot is a preview of the result.

Overview

Following is a conceptual overview of the process:

1. Adding Infragistics Loader

2. Adding the data source

3. Instantiating igFunnelChart

4. (Optional) Verifying the result

Steps

The following steps demonstrate how to add a basic funnel chart control to a web page.

1. Add Infragistics Loader.

   1. Add a reference to the igLoader script file.

      The following is an example <script> tag for loading the igLoader script to your page.

      In HTML:

       <script src="/Scripts/ig/js/infragistics.loader.js"></script>


   2. Add the igLoader configuration for igFunnelChart.

      Add the following code to a <script> element on your page.

      In JavaScript:

       $.ig.loader({
           scriptPath: "/Script/ig/",
           cssPath: "/Content/ig/",
           resources: "igFunnelChart,igChartLegend"
       });


2. Add the data source.

   As a data source, add a JavaScript array in a <script> element on your page.

   In JavaScript:

    var data = [
        { Budget: 30, Department: "Administration" },
        { Budget: 50, Department: "Sales" },
        { Budget: 60, Department: "IT" },
        { Budget: 50, Department: "Marketing" },
        { Budget: 100, Department: "Development" },
        { Budget: 20, Department: "Support" }
    ];


3. Instantiate igFunnelChart.

   1. Adding an HTML element to the funnel chart.

      Add an HTML <div> element which will host the funnel chart on your HTML page.

      In HTML:

       <div id="funnel"></div>


   2. Instantiating the igFunnelChart.

      Add the following initialization code to a <script> element in your page.

      In JavaScript:

       $.ig.loader(function () {
           //  Create a basic funnel chart
           $("#funnel").igFunnelChart({
               width: "325px",
               height: "450px",
               dataSource: data,
               valueMemberPath: "Budget",
               innerLabelMemberPath: "Budget",
               innerLabelVisibility: "visible",
               outerLabelMemberPath: "Department",
               outerLabelVisibility: "visible"
           });
       });


      The code above creates a funnel chart in the <div> element added earlier.

      The width and height options are assigned with the size of the chart on the page and their values can be specified in any unit of measure available in CSS.

      Assign the object that provides data to the chart to the dataSource option. The valueMemberPath option is set with the name of the field in the data source containing the data to be visualized. The innerLabelMemberPath and outerLabelMemberPath options are set with the names of the fields in the data source containing labels or names to be displayed for every slice.

      The innerLabelVisibility and outerLabelVisibility options determine whether inner and outer labels are displayed. The inner label is the text displayed inside a slice and outer label is the text displayed to left or right of the slice.

4. (Optional) Verify the result.

   To verify the result, save the page and view the result in a web browser. If you have done the steps correctly, the map will look like the one shown in the Preview.

Adding an igFunnelChart to an HTML Page in ASP.NET MVC

Introduction

This procedure guides you through the steps for adding a funnel chart with basic functionality to an ASP.NET MVC View.

The procedure instantiates and configures a 325x450-pixel funnel chart with default sort order (highest value on top), weighted slices and straight side lines representing the budget of the departments of a company. The data is supplied to the igFunnelChart control in the form of a JSON array (configured, too, in the procedure). In addition to that basic tuning, the paths, and the visual state of igFunnelChart’s labels are configured in order to have descriptive information about the data that is shown.

The example uses the ASP.NET MVC syntax together with the required Loader configuration, binding to a data model object passed by a controller action method and setting essential options for the operation of the control to accomplish this.

The way to supply data for an ASP.NET MVC View is through a controller method using an appropriate data model definition. The model represents an entry from the budget of a company having a decimal field for the Budget of the specified Department.

The example is shown in the context of the budget an imaginary company.

Preview

The following screenshot is a preview of the final result.

Requirements

Following are the general requirements for adding an igFunnelChart to an HTML page in ASP.NET MVC:

• The Ignite UI for MVC assembly Infragistics.Web.Mvc.dll which contains the Ignite UI for MVC igFunnelChart.

Overview

Following is a conceptual overview of the process:

• 1. Adding the data model
• 2. Adding the controller action method
• 3. Adding a strongly typed ASP.NET MVC View
• 4. Adding Infragistics Loader
• 5. Instantiating igFunnelChart
• 6. (Optional) Verifying the result

Steps

The following steps demonstrate how to add a basic funnel chart control to an ASP.NET MVC application.

1. Add the data model.

   The following code illustrates the data model part.

   1. Navigate to your ASP.NET MVC application’s Models folder.
   2. Add a new empty class and name it BudgetData.

   3. Add the following code, which represents an entry from the budget of a company having a decimal field for the Budget of the specified Department:

      In C#:

      public class BudgetData
      {

          public decimal Budget { get; set; }
          public string Department { get; set; }

      }


2. Add the controller action method.

   Add an empty controller class in the Controllers folder of your ASP.NET MVC application.

   The controller action initializes a list of BudgetData objects with data provided by either a database or an external data service in your application. Then the controller invokes the default View for the controller with the data.

   In C#:

    public ActionResult Index()
    {
        var data = new List<BudgetData>()
        {
            new BudgetData { Budget = 30, Department = "Administration" },
            new BudgetData { Budget = 50, Department = "Sales" },
            new BudgetData { Budget = 60, Department = "IT" },
            new BudgetData { Budget = 50, Department = "Marketing" },
            new BudgetData { Budget = 100, Department = "Development" },
            new BudgetData { Budget = 20, Department = "Support" }
        };
        return View(data.AsQueryable());
    }


3. Add a strongly typed ASP.NET MVC View.

   To add and configure the View:

   ​1. Create the View corresponding to the controller action method.

   ​2. Make the View strongly-typed and point to the data model class created above in step 3.1.

   In ASPX:

    @model IQueryable<MvcApp.Models.BudgetData>


4. Add Infragistics Loader.

   1. Add a reference to the igLoader script file.

      The following an example <script> tag for loading the igLoader script to your page.

      In HTML:

       <script src="/Scripts/ig/js/infragistics.loader.js"></script>


   2. Add the igLoader’s configuration for igFunnelChart.

      The following code, added to the ASP.NET MVC View, configures the igLoader’s wrapper with the paths to the Ignite UI for jQuery resources.

      In ASPX:

       @(Html.Infragistics()
           .Loader()
           .ScriptPath("http://localhost/ig_ui/js/")
           .CssPath("http://localhost/ig_ui/css/")
           .Render()
       )


5. Instantiate igFunnelChart.

   The code below configures Ignite UI for MVC FunnelChart to create a <div> element with id “funnel” where the funnel chart is to be hosted with the ID(“funnel”) call and assigns the data model object declared for the View to the control in the FunnelChart(Model) call. The member of the model which provides the value for every slice is referenced in the ValueMemberPath("Budget") calls.

   In ASPX:

    @(Html.Infragistics().FunnelChart(Model)
        .ID("funnel")
        .Height("450px")
        .Width("325px")
        .ValueMemberPath("Budget")
        .InnerLabelMemberPath("Budget")
        .OuterLabelMemberPath("Department")
        .InnerLabelVisibility(Visibility.Visible)
        .OuterLabelVisibility(Visibility.Visible)
        .DataBind()
        .Render()
    )


   The Width() and Height() calls specify the size of the chart on the page and their values can be specified in any unit of measure available in CSS.

   The InnerLabelMemberPath() and OuterLabelMemberPath() calls configure the names of the fields in the data source which contain labels or names to render for every slice.

   The InnerLabelVisibility() and OuterLabelVisibility() calls determine whether inner and outer labels render. Inner label is the text displayed inside a slice and outer label is the text displayed to left or right of the slice.

6. (Optional) Verifying the result.

   To verify the result, save the page and view the final result in a web browser. If you have done the steps correctly, the map will look like the one shown in the Preview.
