Configuring the Row Edit Dialog (igGrid)

Topic Overview

Purpose

This topic explains how to use the updating feature of the igGrid™ control in combination with the Row Edit Dialog. By design editorsTemplate is executed for each column in the grid`s column collection, while the dialogTemplate is rendered against the currently edited record.

Required background

The following table lists the topics and articles required as a prerequisite to understanding this topic.

• igGrid Overview: The igGrid is a jQuery-based client-side grid that is responsible for presenting and manipulating tabular data. Its whole lifecycle is on the client-side, which makes it independent from server-side technology.

• Updating Overview (igGrid): This topic explains how to use the updating feature of the igGrid™ control.

• igTemplating: This topic explains how to use the Infragistics® Templating Engine.

In this topic

This topic contains the following sections:

• Introduction
• Configuring Row Edit Dialog in JavaScript
  • Overview
  • Steps
• Configuring Row Edit Dialog in ASP.NET MVC
  • Requirements
  • Overview
  • Steps
• Related Content

Introduction

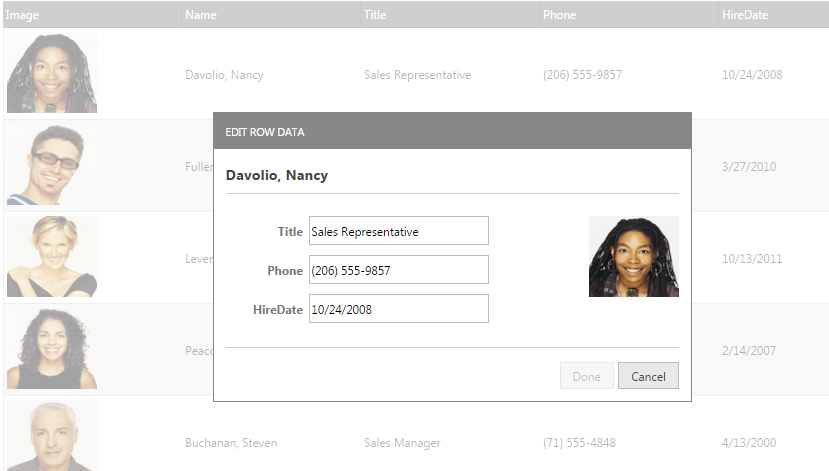

The Row Edit Dialog allows users to edit records in a pop up dialog, as compared to inline editing.

The feature is implemented as part of the igGridUpdating widget. The editMode option has a new value: “dialog”, to enable the row edit dialog. The new dialog uses a different templating structure and allows building complex custom editing dialog.

The row template itself can be defined by setting different properties in the newly added rowEditDialogOptions option. These options are listed in the following table:

Configuring Row Edit Dialog in JavaScript

This procedure guides you through the process of configuring row edit dialog in the igGrid.

Overview

Following is a conceptual overview of the process:

1. Referencing the required JavaScript and CSS files
2. Defining sample data
3. Define a template element for the Row Edit Dialog Row Template.
4. Define the HTML placeholder.
5. Instantiate the igGrid
6. Handle the rowEditDialogBeforeOpen client side event

Steps

The following steps demonstrate how to configure Row Edit Dialog in the igGrid.

1. Reference the required JavaScript and CSS files.

   The following code snippet is using the Infragistics loader to reference the updating feature of igGrid

   In HTML:

    <script src="jquery.min.js" type="text/javascript"></script>
    <script src="jquery-ui.min.js" type="text/javascript"></script>
    <script src="infragistics.loader.js"></script>
    <script type="text/javascript">
        $.ig.loader({
            scriptPath: "http://localhost/ig_ui/js/",
            cssPath: "http://localhost/ig_ui/css/",
            resources: "igGrid.Selection,igGrid.Updating"
        });
    </script>


2. Define the data to bind to.

   The following code defines a JavaScript array of objects.

   This data is used as the igGrid’s data source.

   In JavaScript:

    var namedData = new Array();
    namedData[0] = { "ProductID": 1, "UnitsInStock": 100, "ProductDescription": "Laptop", "UnitPrice": "$1000", "DateCol": "24/7/2012" };
    namedData[1] = { "ProductID": 2, "UnitsInStock": 15, "ProductDescription": "Hamburger" };
    namedData[2] = { "ProductID": 3, "UnitsInStock": 4.356, "ProductDescription": "Beer", "UnitPrice": "$1000" };
    namedData[3] = { "ProductID": 4, "UnitsInStock": null, "ProductDescription": null, "UnitPrice": null };
    namedData[4] = { "ProductID": 5, "UnitsInStock": "65", "ProductDescription": "trainers", "UnitPrice": "$1000", "DateCol": "24/6/2012" };


3. Define a template element for the Row Edit Dialog Template

   The following code defines a template element which is used as a row template for the row edit dialog to specify custom formatting and styling.

   In HTML:

    <script id="dialogTemplate" type="text/html">
    <div style="float: left;">
            <table style="width: 100%;">
                <colgroup>
                    <col style="width: 30%;" />
                    <col style="width: 70%;" />
                </colgroup>
                <tbody data-render-tmpl="true">
                </tbody>
            </table>
        </div>
    <script>
    <script id="editorsTemplate" type="text/html">
        <tr>
           <td style="text-align:right;color:#777;"><strong${headerText}</strong></td>
            <td><input data-editor-for-${key}="true" /></td>
        </tr>
    </script>


4. Define the HTML placeholder.

   In HTML:

    <table id="grid1"></table>


5. Instantiate the igGrid.

   The following code enables the updating feature and editMode is set to be “dialog”.

   As container of the row edit dialog is set as “owner” with the containment property. Thus, the row edit dialog is draggable only in the grid area.

   Column settings are defined and the “ProductID” column is set to be ReadOnly. As the option showReadonlyEditors is false, the disabled columns won’t be rendered as editors in the dialog window (in this case: ProductID).

   The property dialogTemplateSelector points to the of the template defined in Step 3

   In JavaScript:

    $.ig.loader(function () {
    $("#grid1").igGrid({
        height: "300px",
        width: "600px",
        columns: [
                { headerText: "Product ID", key: "ProductID", width: "100px", dataType: "number" },
                { headerText: "Units In Stock", key: "UnitsInStock", width: "100px", dataType: "number", format: 'double' },
                { headerText: "Product Description", key: "ProductDescription", width: "150px", dataType: "string" },
                { headerText: "Date Column", key: "DateCol", width: "100px", dataType: "date" },
                { headerText: "Unit Price", key: "UnitPrice", width: "100px", dataType: "integer" }
                ],
        autoGenerateColumns: false,
        dataSource: namedData,
        primaryKey: "ProductID",
        features: [
          {
                name: "Selection",
                mode: "row",
                multipleSelection: true
          },
          {
                name: 'Updating',
                startEditTriggers: 'enter dblclick',
                editMode: 'dialog',
                rowEditDialogOptions:{
                    dialogTemplateSelector: "#dialogTemplate",
                    editorsTemplateSelector: "#editorsTemplate",
                       containment: "owner",
                    showReadonlyEditors: false,

                }

          }]
    });


6. Handle the rowEditDialogBeforeOpen client side event.

   The following code handles the rowEditDialogBeforeOpen client side event. It provides references to the igGridUpdating widget and to the row edit dialog DOM element. In JavaScript:

     $(document).delegate(".selector", "iggridupdatingroweditdialogbeforeopen", function (evt, ui) {
               var gridUpdating = ui.owner;
               var gridID = ui.owner.element.context.id;
               var dialogWindow = ui.dialogElement;
      });


Configuring a Row Edit Dialog in ASP.NET MVC

This procedure guides you through the process of configuring a Row Edit Dialog in the igGrid.

Requirements

To complete the procedure, you need the following:

• Microsoft ® Visual Studio 2010 or newer installed
• ASP.NET MVC 4 or newer Framework installed
• The AdventureWorks Database installed
• A reference to the Infragistics.Web.Mvc.dll assembly
• Required Ignite UI for jQuery JavaScript and theme resources

Overview

Following is a conceptual overview of the process:

1. Referencing the required JavaScript and CSS files
2. Defining the model
3. Defining a template element for the Row Edit Dialog Row Template.
4. Defining the view
5. Defining the controller
6. Handle the rowEditDialogOpening client side event

Steps

The following steps demonstrate how to configure a Row Edit Dialog in igGrid.

1. Reference the required JavaScript and CSS files

   In the Index.cshtml View, add the required JavaScript references and instantiate the Infragistics loader.

   The following code snippet uses the Infragistics loader to reference igGrid resources

   In HTML:

    <script src="jquery.min.js" type="text/javascript"></script>
    <script src="jquery-ui.min.js" type="text/javascript"></script>
    <script src="infragistics.loader.js"></script>


   In ASPX:

    <%= Html.Infragistics().Loader()
            .ScriptPath("http://localhost/ig_ui/js/")
            .CssPath("http://localhost/ig_ui/css/")
            .Render()
        %>


2. Define the model

   Add an ADO.NET Entity Data Model for the Product table of the AdventureWorks Database.

1. Defining dialogTemplate and editorTemplate for the Row Edit Dialog.

   The following code defines a template for the Row Edit Dialog.You can use it to specify custom formatting and styling.

   In HTML:

     <script id="dialogTemplate" type="text/html">

        <div style="float: left;">
            <table style="width: 100%;">
                <colgroup>
                    <col style="width: 30%;" />
                    <col style="width: 70%;" />
                </colgroup>
                <tbody data-render-tmpl="true">
                </tbody>
            </table>
        </div>
    </script>
    <script id="editorsTemplate" type="text/html">
        <tr>
           <td style="text-align:right;color:#777;"><strong${headerText}</strong></td>
            <td><input data-editor-for-${key}="true" /></td>
        </tr>
    </script>


2. Define the view

   Open the Index.cshtml View and add the code below.

   The following code enables the updating feature and EditMode is set to be “Dialog”.

   The containment option of the row edit dialog is set to be “owner”. Thus the row edit dialog is draggable only in the grid area.

   In the code snippet below, the EditorType of ModifiedDate is specified to be DatePicker and is marked as required. Thus the DatePicker editor will be rendered and a validation error message is shown if no value is entered in the field.

   The “ProductID” column is set to be ReadOnly. As the option showReadonlyEditors is false, the disabled column won’t be rendered as editor in the dialog window.

   The option DialogTemplateSelector points to the ID of the defined x-jquery-tmpl template above.

   In ASPX:

     <%= Html.Infragistics().Grid(Model).ID("grid1")
            .PrimaryKey("ProductID")
            .AutoGenerateColumns(false)
            .AutoGenerateLayouts(false)
            .Virtualization(false)
            .LocalSchemaTransform(true)
            .RenderCheckboxes(true)
            .Columns(column =>
            {
                column.For(x => x.ProductID).HeaderText(“Product ID”).Width("150px");
                column.For(x => x.Name).HeaderText(“Name”).Width("200px");
                column.For(x => x.ModifiedDate).HeaderText(“Modified Date”).Width("200px");
                column.For(x => x.MakeFlag).DataType("bool").HeaderText(“Make Flag”).Width("150px");
                column.For(x => x.ListPrice).HeaderText(“List Price”).Width("150px");
            })
            .Features(features => {
            features.Sorting().Type(OpType.Local);
            features.Paging().PageSize(30).Type(OpType.Local);
            features.Selection().Mode(SelectionMode.Row);
            features.Updating().EnableAddRow(false).EnableDeleteRow(true)
                .EditMode(GridEditMode.Dialog)
                RowEditDialogOptions(opt =>
                {
                    opt.Containment("owner");
                    opt.DialogTemplateSelector("#dialogTemplate");
                    opt.EditorsTemplateSelector("#editorsTemplate");
                    opt.ShowReadonlyEditors(false);
                    opt.Width("300px");
                    opt.Height("400px");
            })
               .ColumnSettings(settings =>
                {
                    settings.ColumnSetting().ColumnKey("ProductID").ReadOnly(true);
                    settings.ColumnSetting().ColumnKey("Name").EditorType(ColumnEditorType.Mask);
                    settings.ColumnSetting().ColumnKey("ModifiedDate").EditorType(ColumnEditorType.DatePicker).EditorOptions("minValue: new Date(1955, 1, 19), maxValue: new Date(), required: true");
                    settings.ColumnSetting().ColumnKey("ListPrice").EditorType(ColumnEditorType.Currency).EditorOptions("button: 'spin', minValue: 0, maxValue: 100000, validatorOptions: {}");
                });
            })
            .DataBind()
            .Height("500px")
            .Width("100%")
            .Render()%>


3. Define the controller

   In the Home controller’s Index action method, extract the Products data from the AdventureWorks database and return it with the view:

   In C#:

      public ActionResult Editing()
            {
                var ctx = new AdventureWorksDataContext(this.DataRepository.GetDataContext().Connection);
                var ds = ctx.ProductAllDatas.Take(40);
                return View("RowEditDialog", ds);
            }


   ​

4. Handle the rowEditDialogOpening client side event

   The following code handles the rowEditDialoBeforeOpen client side event and provides references to the igGridUpdating widget and to the row edit dialog DOM element.

   In JavaScript:

    $("#grid1").live("iggridupdatingroweditdialogbeforeopen ", function (event, ui) {
               var gridUpdating = ui.owner;
               var gridID = ui.owner.element.context.id;
               var dialogWindow = ui.dialogElement;
       });


Related Content

Topics

The following topics provide additional information related to this topic.

• Row Edit Dialog: This document explains the specific properties and methods used with Row Edit Dialog

Samples

The following samples provide additional information related to this topic.

• Row Edit Dialog: This sample shows how to configure a Row Edit Dialog in the igGrid

• HierarchicalGrid Row Edit Dialog: This sample shows how to configure a Row Edit Dialog in the igHierarchicalGrid
