Configuring igLayoutManager

Topic Overview

Purpose

This topic explains how to configure the different layouts supported by the igLayoutManger® control.

Required background

The following topics are prerequisites to understanding this topic:

• igLayoutManager Overview: This topic explains the igLayoutManager control conceptually and provides information on the supported layouts and their uses.

• Adding igLayoutManager: This topic demonstrates, with code examples, how to add the igLayoutManager control to an HTML page using either pure HTML, JavaScript, or ASP.MVC implementations.

In this topic

This topic contains the following sections:

• Specifying a Layout
  • Overview
  • Property settings
• Configuring Individual Layouts
  • Configuring individual layouts summary
  • Configuring individual layouts summary chart
• Configuring the Border Layout
  • Overview
  • Property settings
  • Example
• Configuring the Column Layout
  • Overview
  • Minimum requirements
  • Example
• Configuring the Flow Layout
  • Overview
  • Property settings
  • Example
• Configuring the Grid Layout
  • Overview
  • Property settings
  • Example
• Configuring the Vertical Layout
  • Overview
  • Property settings
  • Example
• Related Content
  • Topics
  • Samples

Specifying a Layout

Overview

The igLayoutManager control supports several layouts. For a conceptual overview of each layout is and information about what it looks like, refer to igLayoutManager layouts summary chart. Layouts are specified by setting the layoutMode property of the igLayoutManager with an exception of the Column layout which is configured from the HTML markup (See Configuring the Column Layout.). For the valid settings of this property, see Property settings.

Property settings

The following table lists the valid settings of the layoutMode property of the igLayoutManager control.

Configuring Individual Layouts

Configuring individual layouts summary

Each layout is customizable to a different degree. Some layouts allow for defining items with different sizes and feature fluid and responsive design. The layouts also differ in the required minimum of configuration settings that are needed to make a layout work properly.

Configuring individual layouts summary chart

The following table explains briefly the configurable layouts of the igLayoutManager control and maps them to the properties that configure them. Further details are available after the table.

Configuring the Border Layout

Overview

The Border layout is configurable through the layoutMode property of the control. The host HTML element of the control is <div> element. Child <div>s can be defined in the HTML markup of the host element, and upon initialization, the control will add the respective HTML elements and CSS classes.

Items are arranged through the respective class for each region. The Tile Manager uses the classes’ names to identify the regions and to position the items. The following table maps the regions to the mandatory class names that implement them.

Note: If there are any children that do not have any of the above classes, they will not be used.

The visibility of the Header, Footer, and Sidebars is configurable, as well as the relative width of the Body and the Left Sidebar and Right Sidebars.

The default settings of the Border layout configure it with all regions visible with the width of the Left Sidebar set at 20% of the total container's width and the width of the Right Sidebar – at 10%. To hide some of the regions, you need to set the respective property (showHeader, showFooter, showLeft, showRight) to false.

Property settings

In order to:	Use this property:		And set it to:	Required?	Default setting
Set the layout as Border layout	layoutMode		border		”column”
Show or hide regions	Display or hide the Header area	showHeader	true or false		true
	Display or hide the Footer area	showFooter	true or false		true
	Display or hide the Left Sidebar area	showLeft	true or false		true
	Display or hide the Right Sidebar area	showRight	true or false		true
Set the relative widths of the Body and Sidebars (The widths of the Sidebars are configured directly; the width of the Body is a resultant value of the width of the container minus the widths of the sidebars.)	Set the width of the Left Sidebar	leftWidth	The desired width in pixels or percentages		“20%”
	Set the width of the Right Sidebar	rightWidth	The desired width in pixels or percentages		“10%”

Example

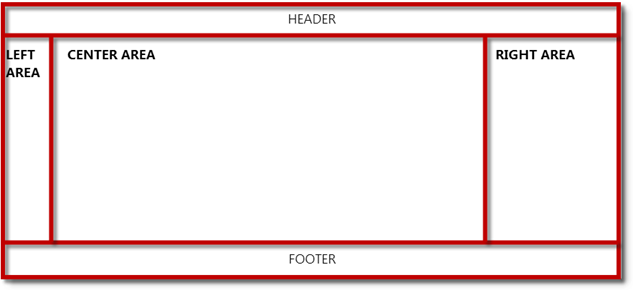

The picture below demonstrates a Border layout with HTML Markup a result of the following settings:

Following is the code that implements this example. In the code, custom-created HTML markup is used.

In HTML:

<div id="layout" style="height: 300px;">
            <div class="left">
                  <h3>LEFT SIDEBAR</h3>
            </div>
            <div class="right">
                  <h3>RIGHT SIDEBAR</h3>
            </div>
            <div class="header">HEADER</div>
            <div class="footer">FOOTER</div>
            <div class="center">
                  <h3>BODY</h3>
            </div>
</div>

In JavaScript:

$("#layout").igLayoutManager({ layoutMode: “border”,
         borderLayout: {
            leftWidth: “10%”,
            rightWidth: “20%”
        }
});

Configuring the Column Layout

Overview

The Column Layout is a based on a 12-column grid system in which columns can be merged to accommodate the width of the items. This layout is implemented entirely in CSS so it doesn’t require the igLayoutManager to be instantiated. Its main advantages compared to the other layouts are:

• Minimum CSS to get it working properly – very few lines of CSS
• Simplest markup structure

When defining CSS classes, make that all their names are prefixed with an ig class on the container, so that that no other rules get overwritten. The items’ placeholders’ widths are defined through merging the desired number of columns on a particular row. A container can merge up to 12 columns, but the total number of columns merged/occupied by containers on an individual row must be 12. The naming convention of the <div> classes that implement the columns is <colN> where N is the number of columns merged for the class, e.g. col4 means that the placeholder merges over 4 columns while col1 means that the column is not merged, i.e. the placeholder occupies only one column of the grid.

Any number of rows can be nested in other containers marked as <colN>. In this case, the parent container that is marked as <colN> will be divided in 12 columns and the nested rows will calculate their widths according to the width of the parent. This means that if the parent container has a class col6 applied, it will merge six columns of the main container's 12 columns. If you place three rows in this container and each of them has a class col4 applied, then each one of them will merge 2 columns of the main container on the page.

Minimum requirements

With the Column layout, there is no need to instantiate the igLayoutManager. You can only assign row class to a <div> element and a <colN> class to its children elements. This way, the layout will use the browser width to calculate the widths of the 12 columns. If you want to define the width of the main container yourself, then you should instantiate the igLayoutManager and set its width property.

Example

The picture below demonstrates a Column layout HTML Markup in which 3 items spread over 4 columns each. The paragraphs are wrapped in a <div> element with class col4.

Following is the code that implements this example.

In HTML:

<div id="layout" class="ig-layout-col">
            <div class="row">
                  <div class="col4">
                        <p style="height: 100px; background-color: gray; color: white">
                              Content 1
                        </p>
                  </div>
                  <div class="col4">
                        <p style="height: 100px; background-color: gray; color: white">
                              Content 2
                        </p>
                  </div>
                  <div class="col4">
                        <p style="height: 100px; background-color: gray; color: white">
                              Content 3
                        </p>
                  </div>
            </div>
</div>

Configuring the Flow Layout

Overview

The host HTML element of the control is unordered list (UL). List items (LI) can be defined in the HTML markup of the host element, and upon initialization, the control will add the respective CSS classes, or they can be defined as an array of item objects in the control options, and the igLayoutManager will generate the corresponding markup. In order to have the markup as semantic as possible, when items are defined in the options, and not from markup, an unordered list (UL) and list items (LI) are used to render the items.

Property settings

The following table maps the desired configuration to its respective property settings.

In order to:		Use this property:	And set it to:	Required?	Default setting
Configure Flow layout without HTML markup	Set the layout as Flow layout	layoutMode	flow		“column”
	Specify the number of items	itemCount	The desired number of items		“null”
		or
	Set the layout as Border layout	layoutMode	flow		“column”
	Arrange items and set their size	items	An array of objects		[ ]
Configure Flow layout with HTML markup	Set the layout as Border layout	layoutMode	flow		“column”

Example

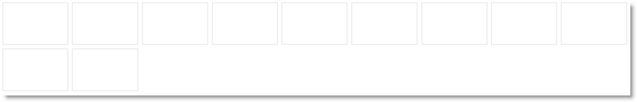

The screenshot below demonstrates layout as flow without HTML Markup a result of the following settings:

Following is the code that implements this example.

In HTML:

<ul id="layout"></ul>

In JavaScript:

$("#layout").igLayoutManager({
     layoutMode: “flow”,
     itemCount: 11
});

Configuring the Grid Layout

Overview

The layout of the igLayoutManager is configured to Grid layout by setting the layoutMode property of the control to “grid”. The Grid layout is a complex of absolutely positioned boxes that allows for merging rows and columns. Initializing this layout from the HTML markup is not supported.

You can specify the number of rows and columns for the grid and the items’ height and width. The latter is configured through the columnHeight and columnWidth properties which serve to set the size of the regular (non-spanning) items (that is, the size of the items that do not span over multiple rows and columns and each of them occupies only one cell in the grid).

When setting columnWidth/columnHeight as *, the width/height will be equally distributed between all of the columns.

When specifying the columnWidth/columnHeight as an array (e.g. ["100px", "20%", "*", "*"]), if you have more than one column set as *, the remaining space will be equally distributed between these columns. If columnWidth is set as an array, its length will override the cols property. And if columnHeight is set as an array, its length will override the rows property.

Custom arrangement of the items is supported through the items property which is set to an array of objects. You can disable the automatic re-arrangement of items upon resizing the container; this gives you some extra control of the user experience.

Property settings

The following table maps the desired configuration to its respective property settings.

In order to:	Use this property:	And set it to:	Required?	Default setting
Set the layout as Grid layout	layoutMode	“grid”		“column”
Number and arrangement of items	items	An array of objects		[ ]
Set the number of columns in the grid	cols	The desired number of columns		“nul”
Set the height of the items	columnHeight	The desired height of the items in pixels, percentages or *, which will distribute the height equally between all the columns. Also, it accepts an array of heights, if you want to specify different height for each column. The value includes the width of the items' top margin.		“null”
Set the width of the items	columnWidth	The desired width of the items in pixels, percentages or *, which will distribute the width equally between all the columns. Also, it accepts an array of widths, if you want to specify different width for each column. The value includes the width of the items' left margin.		“null”
Set the number of rows	rows	The desired number of rows in the grid		“null”
Set the left margin of the items	marginLeft	The desired size in pixels		“0”
Set the top margin of the items	marginTop	The desired size in pixels		“0”
Enable/disable the automatic rearrangement of items upon container resizing	rearrangeItems	true or false		“true”
Set the duration of animations	animationDuration	The desired duration in milliseconds		“500”

Example

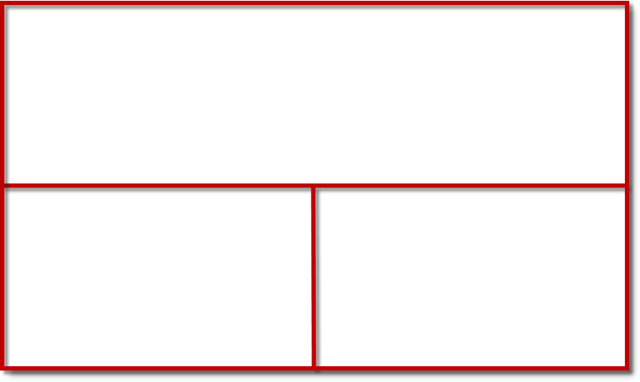

The picture below schematically demonstrates Grid layout configured as a 2x2 grid with an item that spans over two columns on the first row as result of the following settings:

Following is the code that implements this example.

In HTML:

<ul id="layout"></ul>

In JavaScript:

$('#layout').igLayoutManager({
    layoutMode: "grid",
    width: "100%",
    height: "500px",
    gridLayout: {
        cols: 2,
        rows: 2
    },
    items: [
          {
              colIndex: 0,
              rowIndex: 0,
                      colSpan: 2
          }, {
              colIndex: 0,
              rowIndex: 1
          }, {
              colIndex: 1,
              rowIndex: 1
          }
    ]
});

Configuring the Vertical Layout

Overview

The Vertical Layout is configurable through the layoutMode property of the control. The host HTML element of the control is DIV element. Child DIVs can be defined in the HTML markup of the host element, and upon initialization, the control will add the respective CSS classes, or they can be defined as an array of item objects in the control options, and the igLayoutManager will generate the corresponding markup. The number of items is specified through the itemCount property.

Property settings

The following table maps the desired configuration to its respective property settings.

In order to:	Use this property:	And set it to:	Required?	Default setting
Set the layout as vertical without HTML markup	layoutMode	vertical		“column”
	itemCount	Desired count of items		“null”
	or
	layoutMode	vertical		“column”
	items	Array of objects		[ ]
Set the layout as vertical with HTML markup	layoutMode	vertical		“column”

Example

The screenshot below demonstrates layout as vertical without HTML Markup as result of the following settings:

Following is the code that implements this example.

In HTML:

<ul id="layout"></ul>

In JavaScript:

$("#layout").igLayoutManager({
     layoutMode: “vertical”,
     itemCount: 3
});
