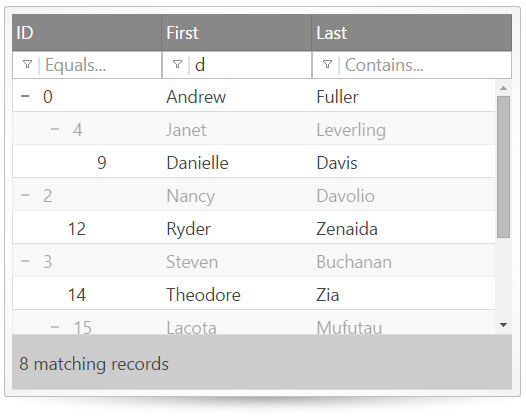

The igTreeGrid features filtering that allows you to see the context of the matching rows. Filtering options include numeric, string and date filters and you can configure the display of results to show matches with or without child rows. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

The following code snippet demonstrates how to initialize the igTreeGrid control.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample


        <!DOCTYPE html>
        <html>
        <head>
            <!-- Infragistics Combined CSS -->
            <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
            <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />

            <!-- jQuery Core -->
            <script src="js/jquery.js" type="text/javascript"></script>

            <!-- jQuery UI -->
            <script src="js/jquery-ui.js" type="text/javascript"></script>

            <!-- Infragistics Combined Scripts -->
            <script src="js/infragistics.core.js" type="text/javascript"></script>
            <script src="js/infragistics.lob.js" type="text/javascript"></script>

            <script type="text/javascript">
                var employees = [
                    { "employeeId": 0, "supervisorId": -1, "firstName": "Andrew", "lastName": "Fuller" },
                    { "employeeId": 1, "supervisorId": -1, "firstName": "Jonathan", "lastName": "Smith" },
                    { "employeeId": 2, "supervisorId": -1, "firstName": "Nancy", "lastName": "Davolio" },
                    { "employeeId": 3, "supervisorId": -1, "firstName": "Steven", "lastName": "Buchanan" },

                    // Andrew Fuller's direct reports
                    { "employeeId": 4, "supervisorId": 0, "firstName": "Janet", "lastName": "Leverling" },
                    { "employeeId": 5, "supervisorId": 0, "firstName": "Laura", "lastName": "Callahan" },
                    { "employeeId": 6, "supervisorId": 0, "firstName": "Margaret", "lastName": "Peacock" },
                    { "employeeId": 7, "supervisorId": 0, "firstName": "Michael", "lastName": "Suyama" },

                    // Janet Leverling's direct reports
                    { "employeeId": 8, "supervisorId": 4, "firstName": "Anne", "lastName": "Dodsworth" },
                    { "employeeId": 9, "supervisorId": 4, "firstName": "Danielle", "lastName": "Davis" },
                    { "employeeId": 10, "supervisorId": 4, "firstName": "Robert", "lastName": "King" },

                    // Nancy Davolio's direct reports
                    { "employeeId": 11, "supervisorId": 2, "firstName": "Peter", "lastName": "Lewis" },
                    { "employeeId": 12, "supervisorId": 2, "firstName": "Ryder", "lastName": "Zenaida" },
                    { "employeeId": 13, "supervisorId": 2, "firstName": "Wang", "lastName": "Mercedes" },

                    // Steve Buchanan's direct reports
                    { "employeeId": 14, "supervisorId": 3, "firstName": "Theodore", "lastName": "Zia" },
                    { "employeeId": 15, "supervisorId": 3, "firstName": "Lacota", "lastName": "Mufutau" },

                    // Lacota Mufutau's direct reports
                    { "employeeId": 16, "supervisorId": 15, "firstName": "Jin", "lastName": "Elliott" },
                    { "employeeId": 17, "supervisorId": 15, "firstName": "Armand", "lastName": "Ross" },
                    { "employeeId": 18, "supervisorId": 15, "firstName": "Dane", "lastName": "Rodriquez" },

                    // Dane Rodriquez's direct reports
                    { "employeeId": 19, "supervisorId": 18, "firstName": "Declan", "lastName": "Lester" },
                    { "employeeId": 20, "supervisorId": 18, "firstName": "Bernard", "lastName": "Jarvis" },

                    // Bernard Jarvis' direct report
                    { "employeeId": 21, "supervisorId": 20, "firstName": "Jeremy", "lastName": "Donaldson" }
                ];

               $(function () {
                   $("#treegrid").igTreeGrid({
                       dataSource: employees,
                       primaryKey: "employeeId",
                       foreignKey: "supervisorId",
                       autoGenerateColumns: false,
                       columns: [
                           { headerText: "ID", key: "employeeId", width: "150px", dataType: "number" },
                           { headerText: "First", key: "firstName", width: "150px", dataType: "string" },
                           { headerText: "Last", key: "lastName", width: "150px", dataType: "string" }
                       ],
                       features: [{
                           name: "Filtering",
                           displayMode: "showWithAncestors"
                           //displayMode: "showWithAncestorsAndDescendants"
                       }]
                   });
               });
            </script>
        </head>
        <body>
            <div id="treegrid"></div>
        </body>
        </html>

Related Samples

&nbspadvancedModeEditorsVisible

Type:: bool
Default:: false

Defines whether to show/hide editors in advanced mode. If false, no editors will be rendered in the advanced mode.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    advancedModeEditorsVisible : true
                }
            ]
        });

        //Get
        var editorsVisible = $(".selector").igTreeGridFiltering("option", "advancedModeEditorsVisible");

        //Set
        $(".selector").igTreeGridFiltering("option", "advancedModeEditorsVisible", true);

&nbspadvancedModeHeaderButtonLocation

Type:: enumeration
Default:: left

location of the advanced filtering button when advancedModeEditorsVisible is false (i.e. when the button is rendered in the header) .

Members

left
Type:string
right
Type:string

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    advancedModeHeaderButtonLocation : "right"
                }
            ]
        });

        //Get
        var location = $(".selector").igTreeGridFiltering("option", "advancedModeHeaderButtonLocation");

        //Set
        $(".selector").igTreeGridFiltering("option", "advancedModeHeaderButtonLocation", "right");

&nbspcaseSensitive

Type:: bool
Default:: false

Enables or disables the filtering case sensitivity. Works only for local filtering.If true, it enables filtering case sensitivity. If false, it disables filtering case sensitivity.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    caseSensitive : true
                }
            ]
        });

        //Get
        var caseSensitive = $(".selector").igTreeGridFiltering("option", "caseSensitive");

        //Set
        $(".selector").igTreeGridFiltering("option", "caseSensitive", true);

&nbspcolumnSettings

Type:: array
Default:: []
Elements Type:: object

A list of column settings that specifies custom filtering options on a per column basis.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    columnSettings : [
				        {
                            columnKey: "ProductDescription",
                            condition: "endsWith"
                        }
			        ]
                }
            ]
        });

        //Get
        var colSettings = $(".selector").igTreeGridFiltering("option", "columnSettings");

        //Set
        $(".selector").igTreeGridFiltering("option", "columnSettings",
            [{columnKey: "ProductDescription",
                condition: "endsWith"
            }]
        );

allowFiltering

Type:: bool
Default:: true

Enables/disables filtering for the column.

Code Sample


            //Initialize
            $(".selector").igTreeGrid({
                features: [
                    {
                        name : "Filtering",
                        columnSettings : [
                            {
                                columnKey: "ProductDescription",
                                allowFiltering: false
                            }
                        ]
                    }
                ]
            });

            //Get
            var colSettings = $(".selector").igTreeGridFiltering("option", "columnSettings");

            //Set
            $(".selector").igTreeGridFiltering("option", "columnSettings",
                [
		            {
			            columnKey: "ProductDescription",
			            allowFiltering: false
		            }
	            ]
            );

columnIndex

Type:: number
Default:: null

Specifies column index. Either key or index must be set in every column setting.

Code Sample


            //Initialize
            $(".selector").igTreeGrid({
                features: [
                    {
                        name : "Filtering",
                        columnSettings : [
                            {
                                columnIndex: 0,
                                allowFiltering: false
                            }
                        ]
                    }
                ]
            });

            //Get
            var colSettings = $(".selector").igTreeGridFiltering("option", "columnSettings");

            //Set
            $(".selector").igTreeGridFiltering("option", "columnSettings",
                [
		            {
			            columnIndex: 0,
			            allowFiltering: false
		            }
	            ]
            );

columnKey

Type:: string
Default:: null

Specifies column key. Either key or index must be set in every column setting.

Code Sample


            //Initialize
            $(".selector").igTreeGrid({
                features: [
                    {
                        name : "Filtering",
                        columnSettings : [
                            {
                                columnKey: "ProductDescription",
                                allowFiltering: false
                            }
                        ]
                    }
                ]
            });

            //Get
            var colSettings = $(".selector").igTreeGridFiltering("option", "columnSettings");

            //Set
            $(".selector").igTreeGridFiltering("option", "columnSettings",
                [
		            {
			            columnKey: "ProductDescription",
			            allowFiltering: false
		            }
	            ]
            );

condition

Type:: enumeration
Default:: null

default filtering condition for the column.

Members

empty
Type:string
notEmpty
Type:string
null
Type:string
notNull
Type:string
equals
Type:string
doesNotEqual
Type:string
startsWith
Type:string
contains
Type:string
doesNotContain
Type:string
endsWith
Type:string
greaterThan
Type:string
lessThan
Type:string
greaterThanOrEqualTo
Type:string
lessThanOrEqualTo
Type:string
true
Type:bool
false
Type:bool
on
Type:string
notOn
Type:string
before
Type:string
after
Type:string
today
Type:string
yesterday
Type:string
thisMonth
Type:string
lastMonth
Type:string
nextMonth
Type:string
thisYear
Type:string
nextYear
Type:string
lastYear
Type:string

Code Sample


            //Initialize
            $(".selector").igTreeGrid({
                features: [
                    {
                        name : "Filtering",
                        columnSettings : [
                            {
                                columnKey: "ProductDescription",
                                condition: "startsWith"
                            }
                        ]
                    }
                ]
            });

            //Get
            var colSettings = $(".selector").igTreeGridFiltering("option", "columnSettings");

            //Set
            $(".selector").igTreeGridFiltering("option", "columnSettings",
                [{columnKey: "ProductDescription",
                    condition: "startsWith"
                }]
            );

defaultExpressions

Type:: object
Default:: []

Initial filtering expressions - if set they will be applied on initialization.

Code Sample


            //Initialize
            $(".selector").igTreeGrid({
                features: [
                    {
                        name : "Filtering",
                        columnSettings : [
                            {
                                columnKey: "Name",
                                defaultExpressions: [
                                    { expr: "B", cond: "startsWith" }
                                ]
                            }
                        ]
                    }
                ]
            });

            //Get
            var defaultExpressions = $(".selector").igTreeGridFiltering("option", "columnSettings")[0].defaultExpressions;

displayMode

Type:

enumeration

Default:

showwithancestors
If displayMode is showWithAncestorsAndDescendants, show all records that match filtering conditions and their child records, even if child records don't match filtering conditions. If displayMode is showWithAncestors show only those records that match filtering conditions and do not show child records(if any) that don't match filtering conditions.
Code Sample
```
 //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    displayMode : "showWithAncestorsAndDescendants"
                }
            ]
        });

        //Get
        var displayMode = $(".selector").igTreeGridFiltering("option", "displayMode");


```

&nbspfeatureChooserText

Type:: string
Default:: ""

Feature chooser text when filter is shown and filter mode is simple.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    featureChooserText : "Hide Filter"
                }
            ]
        });

        //Get
        var text = $(".selector").igTreeGridFiltering("option", "featureChooserText");

        //Set
        $(".selector").igTreeGridFiltering("option", "featureChooserText", "Hide Filter");

&nbspfeatureChooserTextAdvancedFilter

Type:: string
Default:: ""

Feature chooser text when filter mode is advanced.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    featureChooserTextAdvancedFilter : "Advanced Filter"
                }
            ]
        });

        //Get
        var text = $(".selector").igTreeGridFiltering("option", "featureChooserTextAdvancedFilter");

        //Set
        $(".selector").igTreeGridFiltering("option", "featureChooserTextAdvancedFilter", "Advanced Filter");

&nbspfeatureChooserTextHide

Type:: string
Default:: ""

Feature chooser text when filter is hidden and filter mode is simple.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    featureChooserTextHide : "Show Filter"
                }
            ]
        });

        //Get
        var text = $(".selector").igTreeGridFiltering("option", "featureChooserTextHide");

        //Set
        $(".selector").igTreeGridFiltering("option", "featureChooserTextHide", "Show Filter");

&nbspfilterButtonLocation

Type:: enumeration
Default:: left

the filtering button for filter dropdowns can be rendered either on the left of the filter editor or on the right .

Members

left
Type:string
right
Type:string

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    filterButtonLocation : "right"
                }
            ]
        });

        //Get
        var location = $(".selector").igTreeGridFiltering("option", "filterButtonLocation");

        //Set
        $(".selector").igTreeGridFiltering("option", "filterButtonLocation", "right");

&nbspfilterDelay

Type:: number
Default:: 500

Time in milliseconds for which widget will wait for keystrokes before sending filtering request.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    filterDelay : 1000
                }
            ]
        });

        //Get
        var delay = $(".selector").igTreeGridFiltering("option", "filterDelay");

        //Set
        $(".selector").igTreeGridFiltering("option", "filterDelay", 1000);

&nbspfilterDialogAddButtonWidth

Type:: enumeration
Default:: 100

add button width - in the advanced filter dialog .

Members

string
The dialog Add button width in pixels (100px).
number
The dialog Add button width as a number (100).

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    filterDialogAddButtonWidth : 75
                }
            ]
        });

        //Get
        var width = $(".selector").igTreeGridFiltering("option", "filterDialogAddButtonWidth");

        //Set
        $(".selector").igTreeGridFiltering("option", "filterDialogAddButtonWidth", 75);

&nbspfilterDialogAddConditionDropDownTemplate

Type:: string
Default:: null

Custom template for options in dropdown in add condition area in the filter dialog.
The default template is "<option value='${value}'>${text}</option>".

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
			        filterDialogAddConditionDropDownTemplate: "<option value='${text}'>${text}</option>"
                }
            ]
        });

        //Get
        var dropDownTemplate = $(".selector").igTreeGridFiltering("option", "filterDialogAddConditionDropDownTemplate");

        //Set
        $(".selector").igTreeGridFiltering("option", "filterDialogAddConditionDropDownTemplate", "<option value='${text}'>${text}</option>");

&nbspfilterDialogAddConditionTemplate

Type:: string
Default:: null

Custom template for add condition area in the filter dialog.
The default template is "<div><span>${label1}</span><div><select></select></div><span>${label2}</span></div>".

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
			        filterDialogAddConditionTemplate: "<div><div><select></select></div><span>${label1}</span><span>${label2}</span></div>"
                }
            ]
        });

        //Get
        var addConditionTemplate = $(".selector").igTreeGridFiltering("option", "filterDialogAddConditionTemplate");

        //Set
        $(".selector").igTreeGridFiltering("option", "filterDialogAddConditionTemplate", "<div><div><select></select></div><span>${label1}</span><span>${label2}</span></div>");

&nbspfilterDialogColumnDropDownDefaultWidth

Type:: enumeration
Default:: null

Width of the column chooser dropdowns in the advanced filter dialog .

Members

string
The column chooser dropdowns width in pixels (80px).
number
The column chooser dropdowns width as a number (80).

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    filterDialogColumnDropDownDefaultWidth : 100
              }
            ]
        });

        //Get
        var width = $(".selector").igTreeGridFiltering("option", "filterDialogColumnDropDownDefaultWidth");

        //Set
        $(".selector").igTreeGridFiltering("option", "filterDialogColumnDropDownDefaultWidth", 100);

&nbspfilterDialogContainment

Type:: string
Default:: owner

Controls containment behavior.
owner The filter dialog will be draggable only in the grid area
window The filter dialog will be draggable in the whole window area.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    filterDialogContainment : "window"
              }
            ]
        });

        //Get
        var filterDialogContainment = $(".selector").igTreeGridFiltering("option", "filterDialogContainment");

&nbspfilterDialogExprInputDefaultWidth

Type:: enumeration
Default:: 130

width of the filtering expression input boxes in the advanced filter dialog .

Members

string
The filtering expression input boxes width in pixels (80px).
number
The filtering expression input boxes width as a number (80).

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    filterDialogExprInputDefaultWidth : 100
              }
            ]
        });

        //Get
        var width = $(".selector").igTreeGridFiltering("option", "filterDialogExprInputDefaultWidth");

        //Set
        $(".selector").igTreeGridFiltering("option", "filterDialogExprInputDefaultWidth", 100);

&nbspfilterDialogFilterConditionTemplate

Type:: string
Default:: null

Custom template for options in condition list in filter dialog
The default template is "<option value='${conditionName}'>${conditionLabel}</option>".

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
			        filterDialogFilterConditionTemplate: "<option value='${conditionName}'>${conditionLabel}</option>"
                }
            ]
        });

        //Get
        var filterConditionTemplate = $(".selector").igTreeGridFiltering("option", "filterDialogFilterConditionTemplate");

        //Set
        $(".selector").igTreeGridFiltering("option", "filterDialogFilterConditionTemplate", "<option value='${conditionName}'>${conditionLabel}</option>");

&nbspfilterDialogFilterDropDownDefaultWidth

Type:: enumeration
Default:: 80

Width of the filtering condition dropdowns in the advanced filter dialog .

Members

string
The filtering condition dropdowns width in pixels (80px).
number
The filtering condition dropdowns width as a number (80).

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    filterDialogFilterDropDownDefaultWidth : 100
                }
            ]
        });

        //Get
        var width = $(".selector").igTreeGridFiltering("option", "filterDialogFilterDropDownDefaultWidth");

        //Set
        $(".selector").igTreeGridFiltering("option", "filterDialogFilterDropDownDefaultWidth", 100);

&nbspfilterDialogFilterTemplate

Type:: string
Default:: null

Custom template for filter dialog
The default template is "<tr><td><input/></td><td><select></select></td><td><input /> </td><td><span></span></td></tr>".

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
			        filterDialogFilterTemplate: "<tr><td>Choose column<input/></td><td>Condition<select></select></td><td>Search value<input /> </td><td><span></span></td></tr>"
                }
            ]
        });

        //Get
        var dialogFilterTemplate = $(".selector").igTreeGridFiltering("option", "filterDialogFilterTemplate");

        //Set
        $(".selector").igTreeGridFiltering("option", "filterDialogFilterTemplate", "<tr><td>Choose column<input/></td><td>Condition<select></select></td><td>Search value<input /> </td><td><span></span></td></tr>");

&nbspfilterDialogHeight

Type:: enumeration
Default:: ""

default filter dialog height (used for Advanced filtering) .

Members

string
The dialog window height in pixels (350px).
number
The dialog window height as a number (350).

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    filterDialogHeight : 30
                }
            ]
        });

        //Get
        var height = $(".selector").igTreeGridFiltering("option", "filterDialogHeight");

        //Set
        $(".selector").igTreeGridFiltering("option", "filterDialogHeight", 30);

&nbspfilterDialogMaxFilterCount

Type:: number
Default:: 5

Maximum number of filter rows in the advanced filtering dialog. if this number is exceeded, an error message will be rendered.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    filterDialogMaxFilterCount : 3
                }
            ]
        });

        //Get
        var count = $(".selector").igTreeGridFiltering("option", "filterDialogMaxFilterCount");

        //Set
        $(".selector").igTreeGridFiltering("option", "filterDialogMaxFilterCount", 3);

&nbspfilterDialogOkCancelButtonWidth

Type:: enumeration
Default:: 120

Width of the Ok and Cancel buttons in the advanced filtering dialogs .

Members

string
The advanced filter dialog Ok and Cancel buttons width in pixels (120px).
number
The advanced filter dialog Ok and Cancel buttons width as a number (120).

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    filterDialogOkCancelButtonWidth : 120
                }
            ]
        });

        //Get
        var width = $(".selector").igTreeGridFiltering("option", "filterDialogOkCancelButtonWidth");

        //Set
        $(".selector").igTreeGridFiltering("option", "filterDialogOkCancelButtonWidth", 120);

&nbspfilterDialogWidth

Type:: enumeration
Default:: 430

default filter dialog width (used for Advanced filtering) .

Members

string
The dialog window width in pixels (370px).
number
The dialog window width as a number (370).

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    filterDialogWidth : 500
                }
            ]
        });

        //Get
        var width = $(".selector").igTreeGridFiltering("option", "filterDialogWidth");

        //Set
        $(".selector").igTreeGridFiltering("option", "filterDialogWidth", 500);

&nbspfilterDropDownAnimationDuration

Type:: number
Default:: 500

Animation duration in milliseconds for the filter dropdown animations.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    filterDropDownAnimationDuration : 300
                }
            ]
        });

        //Get
        var duration = $(".selector").igTreeGridFiltering("option", "filterDropDownAnimationDuration");

        //Set
        $(".selector").igTreeGridFiltering("option", "filterDropDownAnimationDuration", 300);

&nbspfilterDropDownAnimations

Type:: enumeration
Default:: linear

type of animations for the column filter dropdowns.

Members

linear
Type:string
none
Type:string

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    filterDropDownAnimations : "none"
                }
            ]
        });

        //Get
        var animation = $(".selector").igTreeGridFiltering("option", "filterDropDownAnimations");

        //Set
        $(".selector").igTreeGridFiltering("option", "filterDropDownAnimations", "none");

&nbspfilterDropDownHeight

Type:: object
Default:: 0

Height of the column filter dropdowns
string The height of the column filter dropdowns in pixels (0px).
number The height of the column filter dropdowns as a number (0).

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    filterDropDownHeight : 30
                }
            ]
        });

        //Get
        var height = $(".selector").igTreeGridFiltering("option", "filterDropDownHeight");

        //Set
        $(".selector").igTreeGridFiltering("option", "filterDropDownHeight", 30);

&nbspfilterDropDownItemIcons

Type:: enumeration
Default:: true

Enable/disable filter icons visibility.

Members

true
Type:bool
all predefined filters in the filter dropdowns will have icons rendered in front of the text.
false
Type:bool

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    filterDropDownItemIcons : false
                }
            ]
        });

        //Get
        var showIcons = $(".selector").igTreeGridFiltering("option", "filterDropDownItemIcons");

        //Set
        $(".selector").igTreeGridFiltering("option", "filterDropDownItemIcons", false);

&nbspfilterDropDownWidth

Type:: enumeration
Default:: 0

width of the column filter dropdowns.

Members

string
The width in pixels (0px).
number
The width as a number (0).

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    filterDropDownWidth : 100
                }
            ]
        });

        //Get
        var width = $(".selector").igTreeGridFiltering("option", "filterDropDownWidth");

        //Set
        $(".selector").igTreeGridFiltering("option", "filterDropDownWidth", 100);

&nbspfilterExprUrlKey

Type:: string
Default:: null

URL key name that specifies how the filtering expressions will be encoded for remote requests, e.g. &filter('col') = startsWith. Default is OData.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    filterExprUrlKey : "filter"
                }
            ]
        });

        //Get
        var key = $(".selector").igTreeGridFiltering("option", "filterExprUrlKey");

        //Set
        $(".selector").igTreeGridFiltering("option", "filterExprUrlKey", "filter");

&nbspfilterSummaryAlwaysVisible

Type:: bool
Default:: true

Enable/disable footer visibility with summary info about the filter.
When false, the filter summary row (in the footer) will only be visible when paging is enabled (or some other feature that renders a footer).
When true, the filter summary row will only be visible when a filter is applied i.e. it's not visible by default.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    filterSummaryAlwaysVisible : false
                }
            ]
        });

        //Get
        var showSummary = $(".selector").igTreeGridFiltering("option", "filterSummaryAlwaysVisible");

        //Set
        $(".selector").igTreeGridFiltering("option", "filterSummaryAlwaysVisible", false);

&nbspfilterSummaryTemplate

Type:: string
Default:: ""

Summary template that will appear in the bottom left corner of the footer. Has the format '${matches} matching records'.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
			        filterSummaryTemplate: "${matches} products found"
                }
            ]
        });

        //Get
        var summaryTemplate = $(".selector").igTreeGridFiltering("option", "filterSummaryTemplate");

        //Set
        $(".selector").igTreeGridFiltering("option", "filterSummaryTemplate", "${matches} products found");

fromLevel

Type:: number
Default:: 0

Specifies from which data bound level to be applied filtering - 0 is the first level.

Code Sample

 //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
			              fromLevel: 1
                }
            ]
        });

        //Get
        var fromLevel = $(".selector").igTreeGridFiltering("option", "fromLevel");

&nbspinherit

Type:

bool

Default:

false

Enables/disables feature inheritance for the child layouts. NOTE: It only applies for igHierarchicalGrid.
&nbsplabels

Type:

object

Default:

{}
A list of configurable and localized labels that are used for the predefined filtering conditions in the filter dropdowns.
Code Sample
```

        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
			        labels: {
				        advancedButtonLabel: "Advanced",
				        after: "After",
				        before: "Before",
				        clear: "Clear Filter",
				        contains: "Contains"
				        //...
			        }
                }
            ]
        });

        //Get
        var filteringLabels = $(".selector").igTreeGridFiltering("option", "labels");

        //Set
        $(".selector").igTreeGridFiltering("option", "labels", {
				    advancedButtonLabel: "Advanced",
				    after: "After",
				    before: "Before",
				    clear: "Clear Filter",
				    contains: "Contains"
				    //...
			  });

```
- advancedButtonLabel

  Type:

  string

  Default:

  ""
- after

  Type:

  string

  Default:

  ""
- before

  Type:

  string

  Default:

  ""
- clear

  Type:

  string

  Default:

  ""
- contains

  Type:

  string

  Default:

  ""
- doesNotContain

  Type:

  string

  Default:

  ""
- doesNotEqual

  Type:

  string

  Default:

  ""
- empty

  Type:

  string

  Default:

  ""
- endsWith

  Type:

  string

  Default:

  ""
- equals

  Type:

  string

  Default:

  ""
- false

  Type:

  string

  Default:

  ""
- falseLabel

  Type:

  string

  Default:

  ""
- filterDialogAddLabel

  Type:

  string

  Default:

  ""
- filterDialogAllLabel

  Type:

  string

  Default:

  ""
- filterDialogAnyLabel

  Type:

  string

  Default:

  ""
- filterDialogCancelLabel

  Type:

  string

  Default:

  ""
- filterDialogCaptionLabel

  Type:

  string

  Default:

  ""
- filterDialogClearAllLabel

  Type:

  string

  Default:

  ""
- filterDialogConditionLabel1

  Type:

  string

  Default:

  ""
- filterDialogConditionLabel2

  Type:

  string

  Default:

  ""
- filterDialogErrorLabel

  Type:

  string

  Default:

  ""
- filterDialogOkLabel

  Type:

  string

  Default:

  ""
- filterSummaryTitleLabel

  Type:

  string

  Default:

  ""
- greaterThan

  Type:

  string

  Default:

  ""
- greaterThanOrEqualTo

  Type:

  string

  Default:

  ""
- lastMonth

  Type:

  string

  Default:

  ""
- lastYear

  Type:

  string

  Default:

  ""
- lessThan

  Type:

  string

  Default:

  ""
- lessThanOrEqualTo

  Type:

  string

  Default:

  ""
- nextMonth

  Type:

  string

  Default:

  ""
- nextYear

  Type:

  string

  Default:

  ""
- noFilter

  Type:

  string

  Default:

  ""
- notEmpty

  Type:

  string

  Default:

  ""
- notNull

  Type:

  string

  Default:

  ""
- notOn

  Type:

  string

  Default:

  ""
- nullLabel

  Type:

  string

  Default:

  ""
- on

  Type:

  string

  Default:

  ""
- startsWith

  Type:

  string

  Default:

  ""
- thisMonth

  Type:

  string

  Default:

  ""
- thisYear

  Type:

  string

  Default:

  ""
- today

  Type:

  string

  Default:

  ""
- true

  Type:

  string

  Default:

  ""
- trueLabel

  Type:

  string

  Default:

  ""
- yesterday

  Type:

  string

  Default:

  ""
matchFiltering

Type:

string

Default:

__matchfiltering
Specifies the name of a boolean property in the dataRecord object that indicates whether the dataRow matches the filtering conditions.
When filtering a boolean flag with the specified name is added on each data record object with a value of true if it matches the condition or false if it doesn't.
This is used mainly for internal purposes.
Code Sample
```

        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
			              matchFiltering: "matchFiltering1"
                }
            ]
        });

        //Get
        var matchFiltering = $(".selector").igTreeGridFiltering("option", "matchFiltering");


```

&nbspmode

Type:: enumeration
Default:: null

Default is 'simple' for non-virtualized grids, and 'advanced' when virtualization is enabled .

Members

simple
Type:string
renders just a filter row.
advanced
Type:string
allows to configure multiple filters from a dialog - Excel style.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    mode : "advanced"
                }
            ]
        });

        //Get
        var filterMode = $(".selector").igTreeGridFiltering("option", "mode");

        //Set
        $(".selector").igTreeGridFiltering("option", "mode", "advanced");

&nbspnullTexts

Type:: object
Default:: {}

List of configurable and localized null texts that will be used for the filter editors.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
			              nullTexts: {
				              contains: "Contains...",
				              doesNotContain: "Does not contain...",
				              doesNotEqual: "Does not equal...",
				              empty: "Empty",
				              endsWith: "Ends with..."
				              //...
			              }
                }
            ]
        });

        //Get
        var filteringNullTexts = $(".selector").igTreeGridFiltering("option", "nullTexts");

        //Set
        $(".selector").igTreeGridFiltering("option", "nullTexts", {
				    contains: "Contains...",
				    doesNotContain: "Does not contain...",
				    doesNotEqual: "Does not equal...",
				    empty: "Empty",
				    endsWith: "Ends with..."
				    //...
			  });

after

Type:

string

Default:

""
before

Type:

string

Default:

""
contains

Type:

string

Default:

""
doesNotContain

Type:

string

Default:

""
doesNotEqual

Type:

string

Default:

""
empty

Type:

string

Default:

""
endsWith

Type:

string

Default:

""
equals

Type:

string

Default:

""
greaterThan

Type:

string

Default:

""
greaterThanOrEqualTo

Type:

string

Default:

""
lastMonth

Type:

string

Default:

""
lastYear

Type:

string

Default:

""
lessThan

Type:

string

Default:

""
lessThanOrEqualTo

Type:

string

Default:

""
nextMonth

Type:

string

Default:

""
nextYear

Type:

string

Default:

""
notEmpty

Type:

string

Default:

""
notNull

Type:

string

Default:

""
notOn

Type:

string

Default:

""
null

Type:

string

Default:

""
on

Type:

string

Default:

""
startsWith

Type:

string

Default:

""
thisMonth

Type:

string

Default:

""
thisYear

Type:

string

Default:

""

&nbsppersist

Type:: bool
Default:: true

Enables / disables filtering persistence between states.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features : [
                {
                    name : "Filtering",
                    persist : false
                }
            ]
        });

        //Get
        var persist = $(".selector").igTreeGridFiltering("option", "persist");

        //Set
        $(".selector").igTreeGridFiltering("option", "persist", false);

&nbsprenderFC

Type:: bool
Default:: true

Render in feature chooser. Feature chooser is dialog which lists all the enabled features (like Sorting, Filtering, Hiding etc.) of igGrid.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
			        renderFC: false
                }
            ]
        });

        //Get
        var filteringRenderFC = $(".selector").igTreeGridFiltering("option", "renderFC");

        //Set
        $(".selector").igTreeGridFiltering("option", "renderFC", false);

&nbsprenderFilterButton

Type:: bool
Default:: true

Enable/disable filter button visibility. If false,no filter dropdown buttons will be rendered and predefined list of filters will not be rendered for the columns.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    renderFilterButton : false
                }
            ]
        });

        //Get
        var showButton = $(".selector").igTreeGridFiltering("option", "renderFilterButton");

        //Set
        $(".selector").igTreeGridFiltering("option", "renderFilterButton", false);

&nbspshowEmptyConditions

Type:: bool
Default:: false

Enable/disable empty condition visibility in the filter. If true, shows empty and not empty filtering conditions in the dropdowns.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    showEmptyConditions : true
                }
            ]
        });

        //Get
        var showConditions = $(".selector").igTreeGridFiltering("option", "showEmptyConditions");

        //Set
        $(".selector").igTreeGridFiltering("option", "showEmptyConditions", true);

&nbspshowNullConditions

Type:: bool
Default:: false

Enable/disable visibility of null and not null filtering conditions in the dropdowns. If true, shows null and not null filtering conditions in the dropdowns.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    showNullConditions : true
                }
            ]
        });

        //Get
        var showConditions = $(".selector").igTreeGridFiltering("option", "showNullConditions");

        //Set
        $(".selector").igTreeGridFiltering("option", "showNullConditions", true);

toLevel

Type:: number
Default:: -1

Specifies to which data bound level to be applied filtering - if -1 filtering should be applied to the last data bound level.

Code Sample

 //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
			              toLevel: 0
                }
            ]
        });

        //Get
        var toLevel = $(".selector").igTreeGridFiltering("option", "toLevel");

&nbsptooltipTemplate

Type:: string
Default:: ""

Custom tooltip template for the filter button, when a filter is applied.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
			        tooltipTemplate: "${condition} filter applied"
                }
            ]
        });

        //Get
        var template = $(".selector").igTreeGridFiltering("option", "tooltipTemplate");

        //Set
        $(".selector").igTreeGridFiltering("option", "tooltipTemplate", "${condition} filter applied");

&nbsptype

Type:: enumeration
Default:: null

Type of filtering. Delegates all filtering functionality to the $.ig.DataSource.

Members

remote
Type:string
local
Type:string

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name : "Filtering",
                    type : "local"
                }
            ]
        });

        //Get
        var filterType = $(".selector").igTreeGridFiltering("option", "type");

        //Set
        $(".selector").igTreeGridFiltering("option", "type", "local");

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details

&nbspdataFiltered

Cancellable:: false

Event fired after the filtering has been executed and results are rendered.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGridFiltering.
Use ui.owner.grid to get reference to igGrid.
Use ui.columnIndex to get column index.
Use ui.columnKey to get column key.

Code Sample


		    //Delegate
		    $(document).delegate(".selector", "igtreegridfilteringdatafiltered", function (evt, ui) {
			    //return column key
			    ui.columnKey;
			    //return column index
			    ui.columnIndex;
			    //return reference to igGridFiltering
			    ui.owner;
			    //return reference to igGrid
			    ui.owner.grid;
		    });

		    //Initialize
		    $(".selector").igTreeGrid({
			    features: [
				    {
					    name : "Filtering",
					    dataFiltered: function (evt, ui) {...}
				    }
			    ]
		    });

&nbspdataFiltering

Cancellable:

true

Event fired before a filtering operation is executed (remote request or local).
Return false in order to cancel filtering operation.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGridFiltering.
Use ui.owner.grid to get reference to igGrid.
Use ui.columnIndex to get column index.
Use ui.columnKey to get column key.
Use ui.expressions to get filtering expressions. Filtering expressions could be changed in this event handler and after that data binding is applied. In this way the user could control filtering more easily before applying data-binding.
Code Sample
```

		    //Delegate
		    $(document).delegate(".selector", "igtreegridfilteringdatafiltering", function (evt, ui) {
			    //return column key
			    ui.columnKey;
			    //return column index
			    ui.columnIndex;
			    //return reference to igGridFiltering
			    ui.owner;
			    //return reference to igGrid
			    ui.owner.grid;
		    });

		    //Initialize
		    $(".selector").igTreeGrid({
			    features: [
				    {
					    name : "Filtering",
					    dataFiltering: function (evt, ui) {...}
				    }
			    ]
		    });

```

&nbspdropDownClosed

Cancellable:: false

Event fired after a filter column dropdown is completely closed.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGridFiltering.
Use ui.owner.grid to get reference to igGrid.
Use ui.dropDown to get reference to dropdown DOM element.

Code Sample


		    //Delegate
		    $(document).delegate(".selector", "igtreegridfilteringdropdownclosed", function (evt, ui) {
			    //return reference to igGridFiltering
			    ui.owner;
			    //return reference to igGrid
			    ui.owner.grid;
			    //return dropdown html element in the DOM
			    ui.dropDown;
		    });

		    //Initialize
		    $(".selector").igTreeGrid({
			    features: [
				    {
					    name : "Filtering",
					    dropDownClosed: function (evt, ui) {...}
				    }
			    ]
		    });

&nbspdropDownClosing

Cancellable:: true

Event fired before the filter dropdown starts closing.
Return false in order to cancel dropdown closing.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGridFiltering.
Use ui.owner.grid to get reference to igGrid.
Use ui.dropDown to get reference to dropdown DOM element.

Code Sample


		    //Delegate
		    $(document).delegate(".selector", "igtreegridfilteringdropdownclosing", function (evt, ui) {
			    //return reference to igGridFiltering
			    ui.owner;
			    //return reference to igGrid
			    ui.owner.grid;
			    //return dropdown html element in the DOM
			    ui.dropDown;
		    });

		    //Initialize
		    $(".selector").igTreeGrid({
			    features: [
				    {
					    name : "Filtering",
					    dropDownClosing: function (evt, ui) {...}
				    }
			    ]
		    });

&nbspdropDownOpened

Cancellable:: false

Event fired after the filter dropdown is opened for a specific column.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGridFiltering.
Use ui.owner.grid to get reference to igGrid.
Use ui.dropDown to get reference to dropdown DOM element.

Code Sample


		    //Delegate
		    $(document).delegate(".selector", "igtreegridfilteringdropdownopened", function (evt, ui) {
			    //return reference to igGridFiltering
			    ui.owner;
			    //return reference to igGrid
			    ui.owner.grid;
			    //return dropdown html element in the DOM
			    ui.dropDown;
		    });

		    //Initialize
		    $(".selector").igTreeGrid({
			    features: [
				    {
					    name : "Filtering",
					    dropDownOpened: function (evt, ui) {...}
				    }
			    ]
		    });

&nbspdropDownOpening

Cancellable:: true

Event fired before the filter dropdown is opened for a specific column.
Return false in order to cancel dropdown opening.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGridFiltering.
Use ui.owner.grid to get reference to igGrid.
Use ui.dropDown to get reference to dropdown DOM element.

Code Sample


		    //Delegate
		    $(document).delegate(".selector", "igtreegridfilteringdropdownopening", function (evt, ui) {
			    //return reference to igGridFiltering
			    ui.owner;
			    //return reference to igGrid
			    ui.owner.grid;
			    //return dropdown html element in the DOM
			    ui.dropDown;
		    });

		    //Initialize
		    $(".selector").igTreeGrid({
			    features: [
				    {
					    name : "Filtering",
					    dropDownOpening: function (evt, ui) {...}
				    }
			    ]
		    });

&nbspfilterDialogClosed

Cancellable:: false

Event fired after the advanced filter dialog has been closed.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGridFiltering.
Use ui.owner.grid to get reference to igGrid.

Code Sample


		    //Delegate
		    $(document).delegate(".selector", "igtreegridfilteringfilterdialogclosed", function (evt, ui) {
			    //return reference to igGridFiltering
			    ui.owner;
			    //return reference to igGrid
			    ui.owner.grid;
		    });

		    //Initialize
		    $(".selector").igTreeGrid({
			    features: [
				    {
					    name : "Filtering",
					    filterDialogClosed: function (evt, ui) {...}
				    }
			    ]
		    });

&nbspfilterDialogClosing

Cancellable:: true

Event fired before the advanced filter dialog is closed.
Return false in order to cancel filtering dialog closing.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGridFiltering.
Use ui.owner.grid to get reference to igGrid.

Code Sample


		    //Delegate
		    $(document).delegate(".selector", "igtreegridfilteringfilterdialogclosing", function (evt, ui) {
			    //return reference to igGridFiltering
			    ui.owner;
			    //return reference to igGrid
			    ui.owner.grid;
		    });

		    //Initialize
		    $(".selector").igTreeGrid({
			    features: [
				    {
					    name : "Filtering",
					    filterDialogClosing: function (evt, ui) {...}
				    }
			    ]
		    });

&nbspfilterDialogContentsRendered

Cancellable:: false

Event fired after the contents of the advanced filter dialog are rendered.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGridFiltering.
Use ui.owner.grid to get reference to igGrid.
Use ui.dialogElement to get reference to filtering dialog DOM element.

Code Sample


		    //Delegate
		    $(document).delegate(".selector", "igtreegridfilteringfilterdialogcontentsrendered", function (evt, ui) {
			    //return reference to igGridFiltering
			    ui.owner;
			    //return reference to igGrid
			    ui.owner.grid;
			    //return dialog html element in the DOM
			    ui.dialogElement;
		    });

		    //Initialize
		    $(".selector").igTreeGrid({
			    features: [
				    {
					    name : "Filtering",
					    filterDialogContentsRendered: function (evt, ui) {...}
				    }
			    ]
		    });

&nbspfilterDialogContentsRendering

Cancellable:: true

Event fired before the contents of the advanced filter dialog are rendered.
Return false in order to cancel filtering dialog rendering.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGridFiltering.
Use ui.owner.grid to get reference to igGrid.
Use ui.dialogElement to get reference to filtering dialog DOM element.

Code Sample


		    //Delegate
		    $(document).delegate(".selector", "igtreegridfilteringfilterdialogcontentsrendering", function (evt, ui) {
			    //return reference to igGridFiltering
			    ui.owner;
			    //return reference to igGrid
			    ui.owner.grid;
			    //return dialog html element in the DOM
			    ui.dialogElement;
		    });

		    //Initialize
		    $(".selector").igTreeGrid({
			    features: [
				    {
					    name : "Filtering",
					    filterDialogContentsRendering: function (evt, ui) {...}
				    }
			    ]
		    });

&nbspfilterDialogFilterAdded

Cancellable:: false

Event fired after a filter row is added to the advanced filter dialog.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGridFiltering.
Use ui.owner.grid to get reference to igGrid.
Use ui.filter to get reference to filters table row DOM element.

Code Sample


		    //Delegate
		    $(document).delegate(".selector", "igtreegridfilteringfilterdialogfilteradded", function (evt, ui) {
			    //return reference to igGridFiltering
			    ui.owner;
			    //return reference to igGrid
			    ui.owner.grid;
			    //return filters table row element in the DOM
			    ui.filter;
		    });

		    //Initialize
		    $(".selector").igTreeGrid({
			    features: [
				    {
					    name : "Filtering",
					    filterDialogFilterAdded: function (evt, ui) {...}
				    }
			    ]
		    });

&nbspfilterDialogFilterAdding

Cancellable:: true

Event fired before a filter row is added to the advanced filter dialog.
Return false in order to cancel filter adding to the advanced filtering dialog.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGridFiltering.
Use ui.owner.grid to get reference to igGrid.
Use ui.filtersTableBody to get reference to filters table body DOM element.

Code Sample


		    //Delegate
		    $(document).delegate(".selector", "igtreegridfilteringfilterdialogfilteradding", function (evt, ui) {
			    //return reference to igGridFiltering
			    ui.owner;
			    //return reference to igGrid
			    ui.owner.grid;
			    //return filters table body element in the DOM
			    ui.filtersTableBody;
		    });

		    //Initialize
		    $(".selector").igTreeGrid({
			    features: [
				    {
					    name : "Filtering",
					    filterDialogFilterAdding: function (evt, ui) {...}
				    }
			    ]
		    });

&nbspfilterDialogFiltering

Cancellable:: true

Event fired when the OK button in the advanced filter dialog is pressed.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGridFiltering.
Use ui.owner.grid to get reference to igGrid.
Use ui.dialog to get reference to filtering dialog DOM element.

Code Sample


		    //Delegate
		    $(document).delegate(".selector", "igtreegridfilteringfilterdialogfiltering", function (evt, ui) {
			    //return reference to igGridFiltering
			    ui.owner;
			    //return reference to igGrid
			    ui.owner.grid;
			    //return dialog html element in the DOM
			    ui.dialog;
		    });

		    //Initialize
		    $(".selector").igTreeGrid({
			    features: [
				    {
					    name : "Filtering",
					    filterDialogFiltering: function (evt, ui) {...}
				    }
			    ]
		    });

&nbspfilterDialogMoving

Cancellable:

true

Event fired every time the advanced filter dialog changes its position.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGridFiltering.
Use ui.owner.grid to get reference to igGrid.
Use ui.dialog to get reference to filtering dialog DOM element.
Use ui.originalPosition to get the original position of the groupby dialog div as { top, left } object, relative to the page.
Use ui.position to get the current position of the groupby dialog div as { top, left } object, relative to the page.
Code Sample
```

		    //Delegate
		    $(document).delegate(".selector", "igtreegridfilteringfilterdialogmoving", function (evt, ui) {
			    //return reference to igGridFiltering
			    ui.owner;
			    //return reference to igGrid
			    ui.owner.grid;
			    //return dialog html element in the DOM
			    ui.dialog;
		    });

		    //Initialize
		    $(".selector").igTreeGrid({
			    features: [
				    {
					    name : "Filtering",
					    filterDialogMoving: function (evt, ui) {...}
				    }
			    ]
		    });

```

&nbspfilterDialogOpened

Cancellable:: false

Event fired after the advanced filter dialog is already opened.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGridFiltering.
Use ui.owner.grid to get reference to igGrid.
Use ui.dialog to get reference to filtering dialog DOM element.

Code Sample


		    //Delegate
		    $(document).delegate(".selector", "igtreegridfilteringfilterdialogopened", function (evt, ui) {
			    //return reference to igGridFiltering
			    ui.owner;
			    //return reference to igGrid
			    ui.owner.grid;
			    //return dialog html element in the DOM
			    ui.dialog;
		    });

		    //Initialize
		    $(".selector").igTreeGrid({
			    features: [
				    {
					    name : "Filtering",
					    filterDialogOpened: function (evt, ui) {...}
				    }
			    ]
		    });

&nbspfilterDialogOpening

Cancellable:: true

Event fired before the advanced filtering dialog is opened.
Return false in order to cancel filter dialog opening.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGridFiltering.
Use ui.owner.grid to get reference to igGrid.
Use ui.dialog to get reference to filtering dialog DOM element.

Code Sample


		    //Delegate
		    $(document).delegate(".selector", "igtreegridfilteringfilterdialogopening", function (evt, ui) {
			    //return reference to igGridFiltering
			    ui.owner;
			    //return reference to igGrid
			    ui.owner.grid;
			    //return dialog html element in the DOM
			    ui.dialog;
		    });

		    //Initialize
		    $(".selector").igTreeGrid({
			    features: [
				    {
					    name : "Filtering",
					    filterDialogOpening: function (evt, ui) {...}
				    }
			    ]
		    });

Show Details

destroy

.igTreeGridFiltering( "destroy" );

Code Sample


        $(".selector").igTreeGridFiltering("destroy");

&nbspfilter

.igTreeGridFiltering( "filter", expressions:array, [updateUI:bool] );

Applies filtering programmatically and updates the UI by default.

expressions
Type:array
An array of filtering expressions, each one having the format {fieldName: , expr: , cond: , logic: } where fieldName is the key of the column, expr is the actual expression string with which we would like to filter, logic is 'AND' or 'OR', and cond is one of the following strings: "equals", "doesNotEqual", "contains", "doesNotContain", "greaterThan", "lessThan", "greaterThanOrEqualTo", "lessThanOrEqualTo", "true", "false", "null", "notNull", "empty", "notEmpty", "startsWith", "endsWith", "today", "yesterday", "on", "notOn", "thisMonth", "lastMonth", "nextMonth", "before", "after", "thisYear", "lastYear", "nextYear". The difference between the empty and null filtering conditions is that empty includes null, NaN, and undefined, as well as the empty string.
updateUI
Type:bool
Optional
specifies whether the filter row should be also updated once the grid is filtered .

Code Sample


        /*
        Expressions is an array of individual filtering expressions that the grid uses when filtering.
        If you only want to execute one filter criteria, then you add a single filtering expression to the array,
        otherwise you can add additional constraints to the filter by adding more expressions into the array.

        For example:
              [{ fieldname: "title", expr: "introduction", cond: "contains", logic: "OR" },
              { fieldname: "description", expr: "introduction", cond: "contains", logic: "OR" }]

        Using the expressions above the applied filter returns records in the grid where either
        the "title" or "description" fields have values that contain the string "introduction".
        Note: The available values for the filtering condition are:
            - equals
            - doesNotEqual
            - contains
            - doesNotContain
            - greaterThan
            - lessThan
            - greaterThanOrEqualTo
            - lessThanOrEqualTo
            - true
            - false
            - null
            - notNull
            - empty
            - notEmpty
            - startsWith
            - endsWith
            - today
            - yesterday
            - on
            - notOn
            - thisMonth
            - lastMonth
            - nextMonth
            - before
            - after
            - this year
            - last year
            - nextYear
        The difference between the "empty" and "null" filtering conditions is that "empty" includes
        "null", "NaN", "undefined" and empty strings.

        Note: Available values for "logic" are "OR" and "AND". The default logic is "AND".
        */
        $(".selector").igTreeGridFiltering("filter", ([{fieldName: "Name", expr: "Adjustable Race", cond: "equals", logic: "OR"}]));

getFilteringMatchesCount

.igTreeGridFiltering( "getFilteringMatchesCount" );

Return Type:

number

Return Type Description:

count of filtered records.
Returns the count of data records that match filtering conditions.
Code Sample
```

        $(".selector").igTreeGridFiltering("getFilteringMatchesCount");

```
&nbsptoggleFilterRowByFeatureChooser

.igTreeGridFiltering( "toggleFilterRowByFeatureChooser", event:string );
Toggle filter row when mode is simple or advancedModeEditorsVisible is TRUE. Otherwise show/hide advanced dialog.
- event
- Type:string
- Column key.
Code Sample
```

			  $(".buttonSelector").igButton({ labelText: $(".buttonSelector").val(), click: function (event) {
			    $(".gridSelector").igTreeGridFiltering("toggleFilterRowByFeatureChooser", event);
		    }
	    });

```

ui-widget-overlay ui-iggrid-blockarea

Classes applied to the filtering block area, when the advanced filter dialog is opened and the area behind it is grayed out (that's the block area).
ig-igtreegrid-filter-matching-cell

Classes applied to the cell that matches the filtering condition.
ui-icon ui-iggrid-icon-advanced-filter

Classes applied to the feature chooser icon when filter shows advanced dialog.
ui-iggrid-filterbutton ui-corner-all ui-icon ui-icon-triangle-1-s

Classes applied to every filtering dropdown button.
ui-iggrid-filterbuttonactive ui-state-active

Classes applied to the filter button when it is selected.
ui-iggrid-filterbutton ui-iggrid-filterbuttonadvanced ui-icon ui-icon-search

Classes applied to the button when mode = advanced. This also applies to the button when it's rendered in the header (which is the default behavior).
ui-iggrid-filterbuttonadvancedactive ui-state-active

Classes applied on the advanced button when it is selected.
ui-iggrid-filterbuttonadvanceddisabled ui-state-disabled

Classes applied on the advanced button when it is disabled.
ui-iggrid-filterbuttonadvancedfocus ui-state-focus

Classes applied on the advanced button when it has focus.
ui-iggrid-filterbuttonadvancedhover ui-state-hover

Classes applied on the advanced button when it is hovered.
ui-iggrid-filterbuttonright ui-iggrid-filterbuttonadvanced ui-icon ui-icon-search

Classes applied to the advanced filtering button when it is rendered on the right.
ui-iggrid-filterbuttonbool

Classes applied to the filter button when a boolean filter is applied for the column (default).
ui-iggrid-filterbuttondate

Classes applied to the filter button when a date filter is defined for the column.
ui-iggrid-filterbuttondisabled ui-state-disabled

Classes applied to the filtering button when it is disabled.
ui-iggrid-filterbuttonfocus ui-state-focus

Classes applied to the filter button when it has focus but is not selected.
ui-iggrid-filterbuttonhover ui-state-hover

Classes applied to the filter button when it is hovered.
ui-iggrid-filterbuttonnumber

Classes applied to the filter button when a number filter is applied for the column (default).
ui-iggrid-filterbuttonstring

Classes applied to the filter button when a string filter is applied for the column (default).
ui-iggrid-filtercell

Classes applied to every filter cell TH.
ui-iggrid-filtereditor

Classes applied to every filter editor element (igEditor).
ui-dialog ui-draggable ui-resizable ui-iggrid-dialog ui-widget ui-widget-content ui-corner-all

Classes applied to the filter dialog element.
ui-iggrid-filterdialogaddbuttoncontainer ui-helper-reset

Classes applied to the filter dialog add button.
ui-iggrid-filterdialogaddcondition

Classes applied to the filter dialog add condition area.
ui-iggrid-filterdialogaddconditionlist

Classes applied to the filter dialog add condition SELECT dropdown.
ui-iggrid-filterdialogclearall

Classes applied to the filter dialog "Clear All" button.
ui-icon ui-icon-closethick

Classes applied to the "X" button used to remove filters from the filters table.
ui-iggrid-filtertable ui-helper-reset

Classes applied to the filter dialog filters table.
ui-dialog-titlebar ui-iggrid-filterdialogcaption ui-widget-header ui-corner-all ui-helper-reset ui-helper-clearfix

Classes applied to the filter dialog header caption area.
ui-dialog-title

Class applied to the filter dialog header caption title.
ui-dialog-buttonpane ui-widget-content ui-helper-clearfix ui-iggrid-filterdialogokcancelbuttoncontainer

Classes applied to the filter dialog OK and Cancel buttons.
ui-iggrid-filterdd

Classes applied to the DIV which wraps the dropdown UL.
ui-menu ui-widget ui-widget-content ui-iggrid-filterddlist ui-corner-all

Classes applied to the UL filter dropdown list.
ui-iggrid-filterddlistitem

Classes applied to each filter dropdown list item (LI).
ui-iggrid-filterddlistitemactive ui-state-active

Classes applied to the list item when it is selected.
ui-iggrid-filterddlistitemadvanced

Class applied to the list item that holds the Advanced button, if options are configured such that editors are shown when mode = "advanced".
ui-iggrid-filterddlistitemclear

Classes applied to the "clear" filter list item.
ui-iggrid-filterddlistitemhover ui-state-hover

Classes applied to the list item when it is hovered.
ui-iggrid-filterddlistitemcontainer

Classes applied to the element that holds the text in every filter list item (LI).
ui-iggrid-filterddlistitemicons ui-state-default

Classes applied to the list item when filtering icons are visible for it.
ui-iggrid-filtericon

Classes applied to every filter dropdown list item's image icon area.
ui-iggrid-filtericonafter

Classes applied to the item icon's span when the item holds an after condition.
ui-iggrid-filtericonbefore

Classes applied to the item icon's span when the item holds a before condition.
ui-iggrid-filtericonclear

Classes applied to the item icon's span when the item holds a clear condition.
ui-iggrid-filtericoncontainer

Classes applied to the item icon's container element.
ui-iggrid-filtericoncontains

Classes applied to the item icon's span when the item holds a contains condition.
ui-iggrid-filtericondoesnotcontain

Classes applied to the item icon's span when the item holds a doesNotContain condition.
ui-iggrid-filtericondoesnotequal

Classes applied to the item icon's span when the item holds a doesNotEqual condition.
ui-iggrid-filtericonendswith

Classes applied to the item icon's span when the item holds an endsWith condition.
ui-iggrid-filtericonequals

Classes applied to the item icon's span when the item holds a contains condition.
ui-iggrid-filtericonfalse

Classes applied to the item icon's span when the item holds a false condition.
ui-iggrid-filtericongreaterthan

Classes applied to the item icon's span when the item holds a greaterThan condition.
ui-iggrid-filtericongreaterthanorequalto

Classes applied to the item icon's span when the item holds a greaterThanOrEqualTo condition.
ui-iggrid-filtericonlastmonth

Classes applied to the item icon's span when the item holds a lastMonth condition.
ui-iggrid-filtericonlastyear

Classes applied to the item icon's span when the item holds a lastYear condition.
ui-iggrid-filtericonlessthan

Classes applied to the item icon's span when the item holds a lessThan condition.
ui-iggrid-filtericonlessthanorequalto

Classes applied to the item icon's span when the item holds a lessThanOrEqualTo condition.
ui-iggrid-filtericonnextmonth

Classes applied to the item icon's span when the item holds a nextMonth condition.
ui-iggrid-filtericonnextyear

Classes applied to the item icon's span when the item holds a nextYear condition.
ui-iggrid-filtericonnoton

Classes applied to the item icon's span when the item holds a notOn condition.
ui-iggrid-filtericonon

Classes applied to the item icon's span when the item holds an on condition.
ui-iggrid-filtericonstartswith

Classes applied to the item icon's span when the item holds a startsWith condition.
ui-iggrid-filtericonthismonth

Classes applied to the item icon's span when the item holds a thisMonth condition.
ui-iggrid-filtericonthisyear

Classes applied to the item icon's span when the item holds a thisYear condition.
ui-iggrid-filtericontoday

Classes applied to the item icon's span when the item holds a today condition.
ui-iggrid-filtericontrue

Classes applied to the item icon's span when the item holds a true condition.
ui-iggrid-filtericonyesterday

Classes applied to the item icon's span when the item holds a yesterday condition.
ui-iggrid-filterrow ui-widget

Classes applied to the filter row TR in the headers table.
ig-igtreegrid-filter-matching-row

Classes applied to the row that matches filtering condition.
ui-igtreegrid-record-not-matchfiltering

Classes applied to the row that does not match filtering condition.

Ignite UI Home

Ignite UI API Reference

ui.igTreeGridFiltering

Code Sample

Related Samples

Related Topics

Dependencies

Inherits

&nbspadvancedModeEditorsVisible

Code Sample

&nbspadvancedModeHeaderButtonLocation

Members

Code Sample

&nbspcaseSensitive

Code Sample

&nbspcolumnSettings

Code Sample

allowFiltering

Code Sample

columnIndex

Code Sample

columnKey

Code Sample

condition

Members

Code Sample

defaultExpressions

Code Sample

displayMode

Code Sample

&nbspfeatureChooserText

Code Sample

&nbspfeatureChooserTextAdvancedFilter

Code Sample

&nbspfeatureChooserTextHide

Code Sample

&nbspfilterButtonLocation

Members

Code Sample

&nbspfilterDelay

Code Sample

&nbspfilterDialogAddButtonWidth

Members

Code Sample

&nbspfilterDialogAddConditionDropDownTemplate

Code Sample

&nbspfilterDialogAddConditionTemplate

Code Sample

&nbspfilterDialogColumnDropDownDefaultWidth

Members

Code Sample

&nbspfilterDialogContainment

Code Sample

&nbspfilterDialogExprInputDefaultWidth

Members

Code Sample

&nbspfilterDialogFilterConditionTemplate

Code Sample

&nbspfilterDialogFilterDropDownDefaultWidth

Members

Code Sample

&nbspfilterDialogFilterTemplate

Code Sample

&nbspfilterDialogHeight

Members

Code Sample

&nbspfilterDialogMaxFilterCount

Code Sample

&nbspfilterDialogOkCancelButtonWidth

Members

Code Sample

&nbspfilterDialogWidth

Members

Code Sample

&nbspfilterDropDownAnimationDuration

Code Sample

&nbspfilterDropDownAnimations

Members

Code Sample

&nbspfilterDropDownHeight
