ui.igFinancialChart

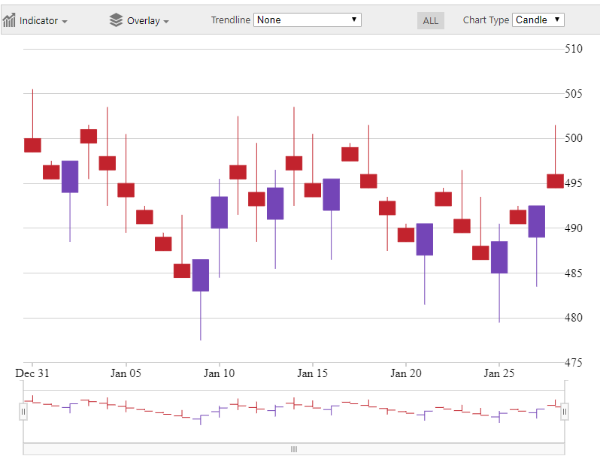

ui.igFinancialChart_image

The igFinancialChart is a lightweight, high-performance chart. This chart can be easily configured to display financial data using an extremely simple and intuitive API. All you need to do is bind your data (a collection or a collection of collections) and the chart takes care of everything else.

The following code snippet demonstrates how to initialize the igFinancialChart control.

For details on how to reference the required scripts and themes for the igFinancialChart control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample


      <!DOCTYPE html>
      <html>
      <head>
        <title>Ignite UI igFinancialChart</title>

        <link href="local/css/themes/infragistics/infragistics.theme.css" rel="stylesheet" />
        <link href="local/css/structure/infragistics.css" rel="stylesheet" />

        <link rel="stylesheet" href="local/css/structure/modules/infragistics.ui.chart.css" />
        <link rel="stylesheet" href="local/css/structure/modules/infragistics.ui.financialchart.css" />

        <script src="https://igniteui.com/js/modernizr.min.js"></script>
        <script src="https://code.jquery.com/jquery-1.9.1.min.js"></script>
        <script src="https://code.jquery.com/ui/1.10.3/jquery-ui.min.js"></script>

        <script src="local/js/infragistics.core.js"></script>
        <script src="local/js/infragistics.dv.js"></script>

      </head>
      <body>

        <div id="chart" style="width:800px;height:600px"></div>

        <script>


            $(function () {
                var data = [];
                var open = 500
                var close = 0;
                var high = 0;
                var low = 0;
                var mod = 0;
                var volume = 10000;
                var total = 30;
                var range = 5;
                var date = new Date(126240840000);

                for(i=1; i<total; i++){
                    low = open - (getRandomBetween(0.1, 0.9) * range);
                    high = open + (getRandomBetween(0.1, 0.9) * range);
                    mod = getRandomBetween(0.1, 0.9) - 0.4;
                    close = open + (mod * range);

                    var item = {"Low": low, "High": high, "Volume": volume, "Date": date, "Open": open, "Close": close};
                    data.push(item);

                    open = open + (mod * range * 2);
                    volume = volume + (mod * range * 100);
                    date = new Date(126240840000 + (86400000 * i));
                }

                $("#chart").igFinancialChart({
                    dataSource: data
                });

            });

            function getRandomBetween(min, max){
                return Math.floor(Math.random() * (max - min + 1)) + min;
            }

        </script>
    </body>
</html>

Related Samples

Related Topics

Dependencies

jquery.js
jquery-ui.js
infragistics.util.js
infragistics.util.jquery.js
infragistics.datasource.js
infragistics.templating.js
infragistics.ext_core.js
infragistics.ext_collections.js
infragistics.ext_ui.js
infragistics.dv_core.js
infragistics.dv_datasource.js
infragistics.dv_dataseriesadapter.js
infragistics.dv_geometry.js
infragistics.dv_jquerydom.js
infragistics.dv_interactivity.js
infragistics.dv_geo.js
infragistics.datachart_core.js
infragistics.datachart_interactivity.js
infragistics.datachart_extendedaxes.js
infragistics.dvcommonwidget.js
infragistics.ui.basechart.js
infragistics.financialchart.js
infragistics.ui.widget.js
infragistics.ui.financialchart.js

Inherits

  • actualRangeSelectorOptions

    Type:
    object
    Default:
    null

    A FinancialChartRangeSelectorOptionCollection containing the available range selector options on the toolbar.
    This will be the intersection of the user-defined range selector options, if any, and the range selector options which are automatically determined based on the range of data.

  • alignsGridLinesToPixels

    Type:
    bool
    Default:
    true

    Gets or sets a value indicating whether grid and tick lines are aligned to device pixels.

  • animateSeriesWhenAxisRangeChanges

    Type:
    bool
    Default:
    false

    Gets or sets whether the series animations should be allowed when a range change has been detected on an axis.

  • autoExpandMarginExtraPadding

    Type:
    number
    Default:
    2

    Gets or sets the extra amount the series viewer should auto expand margins to accommodate the initial horizontal axis labels.

  • autoExpandMarginMaximumValue

    Type:
    number
    Default:
    60

    Gets or sets the maximum amount the series viewer should auto expand margins to accommodate the initial horizontal axis labels.

  • bottomMargin

    Type:
    number
    Default:
    NaN

    Gets or sets the bottom margin around the chart content.

  • brushes

    Type:
    object
    Default:
    null

    Gets or sets the palette of brushes to use for coloring the chart series.
    The value provided should be an array of CSS color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

  • calloutsContentMemberPath

    Type:
    string
    Default:
    null

    Gets or sets the member path of the content data for the callouts.

  • calloutsItemsSource

    Type:
    object
    Default:
    null

    Gets or sets the collection of callout data to be annotated.

  • calloutsLabelMemberPath

    Type:
    string
    Default:
    null

    Gets or sets the member path of the label data for the callouts.

  • calloutStyleUpdatingEventEnabled

    Type:
    bool
    Default:
    false

    Gets or sets if event annotations should be displayed.

  • calloutsVisible

    Type:
    bool
    Default:
    false

    Gets or sets if callouts should be displayed.

  • calloutsXMemberPath

    Type:
    string
    Default:
    null

    Gets or sets the member path of the X data for the callouts.

  • calloutsYMemberPath

    Type:
    string
    Default:
    null

    Gets or sets the member path of the Y data for the callouts.

  • chartType

    Type:
    enumeration
    Default:
    null

    The type of price series to display in the main chart.

    Members

    • auto
    • Type:string
    • Automatically determine the price series type to display in the main chart.
    • bar
    • Type:string
    • Display financial bar series in the main chart.
    • candle
    • Type:string
    • Display candlestick series in the main chart.
    • column
    • Type:string
    • Display column series in the main chart.
    • line
    • Type:string
    • Display line series in the main chart.

  • chartTypePickerTemplate

    Type:
    object
    Default:
    null

  • computedPlotAreaMarginMode

    Type:
    enumeration
    Default:
    auto

    Gets or sets the highlighting mode to use for the series in the component, when supported. This takes precedence over the series level IsHightlightingEnabled.

    Members

    • auto
    • Type:string
    • Computed plot area margin mode is determined by the component.
    • series
    • Type:string
    • The series in the chart are queried for their requested margins to incorporate into the plot area margin.
    • none
    • Type:string
    • There is no automatic determination of the plot area margin.

  • createWrappedTooltip

    Type:
    object
    Default:
    null

    Gets or sets a function for creating wrapped tooltip.

  • crosshairsAnnotationEnabled

    Type:
    bool
    Default:
    false

    Gets or sets whether annotations are shown along the axis for crosshair values.

  • crosshairsDisplayMode

    Type:
    enumeration
    Default:
    null

    Gets or sets the crosshairs to be displayed.

    Members

    • default
    • Type:string
    • Display default number of crosshair lines in the chart.
    • none
    • Type:string
    • Display no crosshair lines in the chart.
    • horizontal
    • Type:string
    • Display horizontal line of crosshairs in the chart.
    • vertical
    • Type:string
    • Display vertical line of crosshairs in the chart.
    • both
    • Type:string
    • Display both horizontal and vertical lines of crosshairs in the chart.

  • crosshairsSnapToData

    Type:
    bool
    Default:
    false

    Gets or sets whether crosshairs will snap to the nearest data point.

  • customIndicatorNames

    Type:
    object
    Default:
    null

    The names of custom indicators to add to the chart.
    When CustomIndicatorNames is set, the ApplyCustomIndicators event will be raised for each custom indicator name.

  • dataSource
    Inherited

    Type:
    object
    Default:
    null

    Gets sets a valid data source.
    That can be instance of array or primitives, array of objects, instance of $.ig.DataSource, or any other data accepted by $.ig.DataSource.
    Note: if it is set to string and "dataSourceType" option is not set, then $.ig.JSONPDataSource is used.

  • dataSourceType
    Inherited

    Type:
    string
    Default:
    null

    Gets sets data source type (such as "json", "xml", etc). Please refer to the documentation of $.ig.DataSource and its type property.

  • dataSourceUrl
    Inherited

    Type:
    string
    Default:
    null

    Gets sets url which is used for sending JSON on request for remote data.

  • excludedProperties

    Type:
    object
    Default:
    null

    Gets or sets a set of property paths that should be excluded from consideration by the category chart.

  • finalValueAnnotationsVisible

    Type:
    bool
    Default:
    false

    Gets or sets whether annotations for the final value of each series is displayed on the axis.

  • financialChartLegend

    Type:
    object
    Default:
    null

    Gets or sets a legend displayed between toolbar and chart's plot area.

  • height
    Inherited

    Type:
    number
    Default:
    null

    The height of the chart.

  • highlightingBehavior

    Type:
    enumeration
    Default:
    auto

    Gets or sets the highlighting Behavior to use for the series in the component, when supported. This takes precedence over the series level IsHightlightingEnabled.

    Members

    • auto
    • Type:string
    • Highlighting behavior is determined by the component.
    • directlyOver
    • Type:string
    • Series are highlighted when the cursor is directly above them.
    • nearestItems
    • Type:string
    • The nearest items to the cursor will be highlighted.
    • nearestItemsRetainMainShapes
    • Type:string
    • The nearest items to the cursor will be highlighted, the main shapes of the series will not be de-emphasized.
    • nearestItemsAndSeries
    • Type:string
    • The nearest items to the cursor will be highlighted, the main shapes of the series closest to the cursor will not be de-emphasized.

  • highlightingMode

    Type:
    enumeration
    Default:
    auto

    Gets or sets the highlighting mode to use for the series in the component, when supported. This takes precedence over the series level IsHightlightingEnabled.

    Members

    • auto
    • Type:string
    • Highlighting mode is determined by the component.
    • none
    • Type:string
    • No highlighting is defined at the chart level. Individual series may have local highlight settings.
    • brightenSpecific
    • Type:string
    • Series will brighten when hovered, and, if applicable brighten indiviudal shapes or markers.
    • brighten
    • Type:string
    • Series will brighten when hovered.
    • fadeOthersSpecific
    • Type:string
    • Series will fade if they aren't the hovered series, and, if applicable other shapes in the hovered series will fade.
    • fadeOthers
    • Type:string
    • Series will fade if they aren't the hovered series, and, if applicable other shapes in the hovered series will fade.

  • includedProperties

    Type:
    object
    Default:
    null

    Gets or sets a set of property paths that should be included for consideration by the category chart, leaving the remainder excluded. If null, all properties will be considered.

  • indicatorBrushes

    Type:
    object
    Default:
    null

    Brushes to use for financial indicators.
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

  • indicatorDisplayTypes

    Type:
    object
    Default:
    null

    The display types of financial indicators.

  • indicatorLongPeriod

    Type:
    number
    Default:
    30

    The long period of financial indicators, where applicable.

  • indicatorMenuTemplate

    Type:
    object
    Default:
    null

  • indicatorMultiplier

    Type:
    number
    Default:
    2

    The multiplier of financial indicators, where applicable.

  • indicatorNegativeBrushes

    Type:
    object
    Default:
    null

    Brushes to use for negative elements in financial indicators.
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

  • indicatorPeriod

    Type:
    number
    Default:
    -2147483648

    The period of financial indicators, where applicable.

  • indicatorShortPeriod

    Type:
    number
    Default:
    10

    The short period of financial indicators, where applicable.

  • indicatorSignalPeriod

    Type:
    number
    Default:
    9

    The signal period of financial indicators, where applicable.

  • indicatorSmoothingPeriod

    Type:
    number
    Default:
    3

    The smoothing period of financial indicators, where applicable.

  • indicatorThickness

    Type:
    number
    Default:
    1

    The outline or stroke thickness of financial indicators.

  • indicatorTypes

    Type:
    object
    Default:
    null

    A collection indicating what financial indicator types to display on the Financial Chart.

  • isHorizontalZoomEnabled

    Type:
    bool
    Default:
    true

    Gets or sets whether the chart can be horizontally zoomed through user interactions.

  • isLegendVisible

    Type:
    bool
    Default:
    false

    Gets or sets weather or not a legend is visible between toolbar and chart's plot area.

  • isSeriesHighlightingEnabled

    Type:
    bool
    Default:
    false

    Gets or sets whether the chart can highlight series through user interactions.
    This property applies to Category Chart and Financial Chart controls.

  • isToolbarVisible

    Type:
    bool
    Default:
    true

    A boolean property controlling the visibility of the toolbar.

  • isVerticalZoomEnabled

    Type:
    bool
    Default:
    false

    Gets or sets whether the chart can be vertically zoomed through user interactions.

  • isWindowSyncedToVisibleRange

    Type:
    bool
    Default:
    false

    A boolean indicating whether the chart should automatically zoom in vertically on the currently visible range of data.
    When this property is set to true, panning and zooming along the X-axis will result in a corresponding zoom on the Y-axis, so that the visible range of data fills the zoom window as fully as possible.

  • itemsSource

    Type:
    object
    Default:
    null

    Gets or sets a collection of data items used to generate the chart.
    The ItemsSource of this chart can be a list of objects containing one or more numeric properties.
    Additionally, if the objects in the list implement the IEnumerable interface,
    the Chart will attempt to delve into the sub-collections when reading through the data source.
    Databinding can be further configured by attributing the data item classes
    with the DataSeriesMemberIntentAttribute.

  • leftMargin

    Type:
    number
    Default:
    30

    Gets or sets the left margin of the chart content.

  • legend

    Type:
    object
    Default:
    null

    Gets or sets the legend to connect this chart to.
    When the legend property is set, the chart will use it to display information about its series. Legends can be shared by multiple chart controls.

  • legendHighlightingMode

    Type:
    enumeration
    Default:
    auto

    Gets or sets the highlighting mode to use for the legend linked to the component, when supported.

    Members

    • auto
    • Type:string
    • Highlighting mode is determined by the component.
    • none
    • Type:string
    • Legend will not attempt to highlight series when rolling over legend items.
    • matchSeries
    • Type:string
    • On rollover of legend, series will highlight matching the highlight configuration of the series.

  • markerBrushes

    Type:
    object
    Default:
    null

    Gets or sets the palette of brushes used for rendering fill area of data point markers.
    This property applies only to these chart types: point, line, spline, bubble, and polygon
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

  • markerFillMode

    Type:
    enumeration
    Default:
    auto

    Gets or sets the MarkerFillMode for all series in this chart.

    Members

    • auto
    • Type:string
    • Outline mode is managed by the series.
    • normal
    • Type:string
    • This series base its marker brush on the marker outlines collection.
    • matchMarkerOutline
    • Type:string
    • The series should match the marker fill to the marker outline.

  • markerFillOpacity

    Type:
    number
    Default:
    NaN

    Gets or sets the MarkerFillOpacity for all series in this chart.

  • markerMaxCount

    Type:
    number
    Default:
    400

    Gets or sets the maximum number of markers displyed in the plot area of the chart.

  • markerOutlineMode

    Type:
    enumeration
    Default:
    auto

    Gets or sets the MarkerOutlineMode for all series in this chart.

    Members

    • auto
    • Type:string
    • Outline mode is managed by the series.
    • normal
    • Type:string
    • This series base its marker brush on the marker outlines collection.
    • matchMarkerBrush
    • Type:string
    • The series should match the marker outline to the marker brush.

  • markerOutlines

    Type:
    object
    Default:
    null

    Gets or sets the palette of brushes used for rendering outlines of data point markers.
    This property applies only to these chart types: point, line, spline, bubble, and polygon
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

  • markerTypes

    Type:
    object
    Default:
    null

    Gets or sets the marker shapes used for indicating location of data points in this chart.
    This property applies only to these chart types: point, line, spline, bubble, and polygon.

  • maxRecCount
    Inherited

    Type:
    number
    Default:
    0

    Gets sets maximum number of displayed records in chart.

  • negativeBrushes

    Type:
    object
    Default:
    null

    Gets or sets the palette used for coloring negative items of Waterfall chart type.
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

  • negativeOutlines

    Type:
    object
    Default:
    null

    Brushes to use for drawing negative elements, when using a chart type with contextual coloring, such as Waterfall.
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

  • outlineMode

    Type:
    enumeration
    Default:
    auto

    Gets or sets the OutlineMode for all series in this chart.

    Members

    • auto
    • Type:string
    • Outline mode is managed by the series.
    • visible
    • Type:string
    • This series should show the outline portion of the visual.
    • collapsed
    • Type:string
    • The series should hide the outline portion of the visual.

  • outlines

    Type:
    object
    Default:
    null

    Gets or sets the palette of brushes to use for outlines on the chart series.
    The value provided should be an array of CSS color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

  • overlayBrushes

    Type:
    object
    Default:
    null

    Brushes to use for filling financial overlays.
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

  • overlayOutlines

    Type:
    object
    Default:
    null

    Brushes to use for outlining financial overlays.
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

  • overlayPickerTemplate

    Type:
    object
    Default:
    null

  • overlayThickness

    Type:
    number
    Default:
    1

    The outline thickness of financial overlays.

  • overlayTypes

    Type:
    object
    Default:
    null

    A collection indicating what financial overlay types to display on the Financial Chart.

  • pixelScalingRatio

    Type:
    number
    Default:
    NaN

    Gets or sets the scaling value used to affect the pixel density of the control.
    A higher scaling ratio will produce crisper visuals at the expense of memory. Lower values will cause the control
    to appear blurry.

  • plotAreaMarginBottom

    Type:
    number
    Default:
    NaN

    Margin applied below the plot area.

  • plotAreaMarginLeft

    Type:
    number
    Default:
    NaN

    Margin applied to the Left of the plot area.

  • plotAreaMarginRight

    Type:
    number
    Default:
    NaN

    Margin applied to the right of the plot area.

  • plotAreaMarginTop

    Type:
    number
    Default:
    NaN

    Margin applied to the Top of the plot area.

  • rangeSelectorOptions

    Type:
    object
    Default:
    null

    A FinancialChartRangeSelectorOptionCollection containing the available range selector options on the toolbar.

  • rangeSelectorTemplate

    Type:
    object
    Default:
    null

  • resolution

    Type:
    number
    Default:
    NaN

    Gets or sets the rendering resolution for all series in this chart.
    Where n = Resolution, for every n horizontal pixels, combine all items into a single data point. When Resolution = 0, all data points will be rendered as graphical objects. Charts with a higher resolution will have faster performance.

  • responseDataKey
    Inherited

    Type:
    string
    Default:
    null

    See $.ig.DataSource. This is basically the property in the responses where data records are held, if the response is wrapped.

  • responseTotalRecCountKey
    Inherited

    Type:
    string
    Default:
    null

    See $.ig.DataSource. property in the response specifying the total number of records on the server.

  • rightMargin

    Type:
    number
    Default:
    NaN

    Gets or sets the right margin of the chart content.

  • shouldAutoExpandMarginForInitialLabels

    Type:
    bool
    Default:
    false

    Gets or sets a whether the series viewer should auto expand margins to accomodate the initial horizontal axis labels.

  • subtitle

    Type:
    string
    Default:
    null

    Gets or sets text to display below the Title, above the plot area.

  • subtitleAlignment

    Type:
    enumeration
    Default:
    center

    Gets or sets horizontal alignment which determines the subtitle position, relative to the left and right edges of the control.

    Members

    • left
    • Type:string
    • Align the item to the left.
    • center
    • Type:string
    • Center the item.
    • right
    • Type:string
    • Align the item to the right.
    • stretch
    • Type:string
    • Stretch the item to the full width.

  • subtitleBottomMargin

    Type:
    number
    Default:
    0

    Gets or sets the bottom margin of chart subtitle.

  • subtitleLeftMargin

    Type:
    number
    Default:
    0

    Gets or sets the left margin of chart subtitle.

  • subtitleRightMargin

    Type:
    number
    Default:
    0

    Gets or sets the right margin of chart subtitle.

  • subtitleTextColor

    Type:
    string
    Default:
    null

    Gets or sets color of chart subtitle.

  • subtitleTextStyle

    Type:
    string
    Default:
    null

    Gets or sets CSS font property for the chart subtitle.

  • subtitleTopMargin

    Type:
    number
    Default:
    0

    Gets or sets the top margin of chart subtitle.

  • thickness

    Type:
    number
    Default:
    NaN

    Gets or sets the thickness for all series in this chart. Depending on the ChartType, this can be the main brush used, or just the outline.

  • title

    Type:
    string
    Default:
    null

    Gets or sets text to display above the plot area.

  • titleAlignment

    Type:
    enumeration
    Default:
    center

    Gets or sets horizontal alignment which determines the title position, relative to the left and right edges of the control.

    Members

    • left
    • Type:string
    • Align the item to the left.
    • center
    • Type:string
    • Center the item.
    • right
    • Type:string
    • Align the item to the right.
    • stretch
    • Type:string
    • Stretch the item to the full width.

  • titleBottomMargin

    Type:
    number
    Default:
    0

    Gets or sets the bottom margin of chart title.

  • titleLeftMargin

    Type:
    number
    Default:
    0

    Gets or sets the left margin of chart title.

  • titleRightMargin

    Type:
    number
    Default:
    0

    Gets or sets the right margin of chart title.

  • titleTextColor

    Type:
    string
    Default:
    null

    Gets or sets color of chart title.

  • titleTextStyle

    Type:
    string
    Default:
    null

    Gets or sets CSS font property for the chart title.

  • titleTopMargin

    Type:
    number
    Default:
    0

    Gets or sets the top margin of chart title.

  • toolbarHeight

    Type:
    number
    Default:
    40

  • toolbarTemplate

    Type:
    object
    Default:
    null

  • tooltipTemplate

    Type:
    object
    Default:
    null

    Gets or sets the id of a template element to use for tooltips, or markup representing the tooltip template.

  • tooltipTemplates

    Type:
    object
    Default:
    null

    Gets or sets the names of tooltip templates.

  • toolTipType

    Type:
    enumeration
    Default:
    null

    Gets or sets the style of tooltip to be displayed.

    Members

    • default
    • Type:string
    • Display default tooltip for each series in the chart.
    • item
    • Type:string
    • Display individual tooltips for all series in the chart.
    • category
    • Type:string
    • Display combined tooltip for all series in the chart.
    • none
    • Type:string
    • Display no tooltips in the chart.

  • topMargin

    Type:
    number
    Default:
    NaN

    Gets or sets the top margin of the chart content.

  • transitionDuration

    Type:
    number
    Default:
    0

    Gets or sets the duration used for animating series plots when the data is changing.

  • transitionEasingFunction

    Type:
    object
    Default:
    null

    Gets or sets the easing function used for animating series plots when the data is changing.
    This can be set to one of the known values "linear" or "cubic," or it can be set to an easing function which takes a single numeric parameter and returns a number.

  • trendLineBrushes

    Type:
    object
    Default:
    null

    Gets or sets the palette of brushes to used for coloring trend lines in this chart.
    The value provided should be an array of CSS color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

  • trendLinePeriod

    Type:
    number
    Default:
    7

  • trendLineThickness

    Type:
    number
    Default:
    1.5

    Gets or sets the thickness of the trend lines in this chart.
    This property applies only to these chart types: point, line, spline, and bubble.

  • trendLineType

    Type:
    enumeration
    Default:
    null

    Gets or sets the formula used for calculating trend lines in this chart. This property applies only to these chart types: point, line, spline, and bubble.

    Members

    • none
    • Type:string
    • No trend line will be displayed.
    • linearFit
    • Type:string
    • Linear fit.
    • quadraticFit
    • Type:string
    • Quadratic polynomial fit.
    • cubicFit
    • Type:string
    • Cubic polynomial fit.
    • quarticFit
    • Type:string
    • Quartic polynomial fit.
    • quinticFit
    • Type:string
    • Quintic polynomial fit.
    • logarithmicFit
    • Type:string
    • Logarithmic fit.
    • exponentialFit
    • Type:string
    • Exponential fit.
    • powerLawFit
    • Type:string
    • Powerlaw fit.
    • simpleAverage
    • Type:string
    • Simple moving average.
    • exponentialAverage
    • Type:string
    • Exponential moving average.
    • modifiedAverage
    • Type:string
    • Modified moving average.
    • cumulativeAverage
    • Type:string
    • Cumulative moving average.
    • weightedAverage
    • Type:string
    • Weighted moving average.

  • trendLineTypePickerTemplate

    Type:
    object
    Default:
    null

  • unknownValuePlotting

    Type:
    enumeration
    Default:
    null

    Gets or sets the behavior that determines how unknown values will be plotted on the chart. Null and Double.NaN are two examples of unknown values.

    Members

    • linearInterpolate
    • Type:string
    • Plot the unknown value as the midpoint between surrounding known values using linear interpolation.
    • dontPlot
    • Type:string
    • Do not plot the unknown value on the chart.

  • volumeBrushes

    Type:
    object
    Default:
    null

    Brushes to use for filling volume series in the volume pane.
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

  • volumeOutlines

    Type:
    object
    Default:
    null

    Brushes to use for outlining volume series in the volume pane.
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

  • volumeThickness

    Type:
    number
    Default:
    1

    The outline thickness of volume series in the volume pane.

  • volumeType

    Type:
    enumeration
    Default:
    null

    The type of series to display in the volume pane.

    Members

    • none
    • Type:string
    • Do not display the volume pane.
    • column
    • Type:string
    • Display column series in the volume pane.
    • line
    • Type:string
    • Display line series in the volume pane.
    • area
    • Type:string
    • Display area series in the volume pane.

  • volumeTypePickerTemplate

    Type:
    object
    Default:
    null

  • widget

    Type:
    object
    Default:
    null

    Gets or sets the widget of this control.

  • width
    Inherited

    Type:
    number
    Default:
    null

    The width of the chart.

  • windowRect

    Type:
    object
    Default:
    null

    Gets or sets the rectangle representing the current scroll and zoom state of the chart.
    WindowRect is expressed as a Rectangle with coordinates and sizes between 0 and 1.
    The provided object should have numeric properties called left, top, width and height.

  • xAxisExtent

    Type:
    number
    Default:
    NaN

    Gets or sets the distance between the X-axis and the bottom of the chart.

  • xAxisFormatLabel

    Type:
    object
    Default:
    null

    Gets or sets function which takes an context object and returns a formatted label for the X-axis.

  • xAxisInverted

    Type:
    bool
    Default:
    false

    Gets or sets whether to invert the direction of the X-axis by placing the first data items on the right side of the chart.

  • xAxisLabel

    Type:
    object
    Default:
    null

    Gets or sets the format for labels along the X-axis.

  • xAxisLabelAngle

    Type:
    number
    Default:
    0

    Gets or sets the angle of rotation for labels along the X-axis.

  • xAxisLabelBottomMargin

    Type:
    number
    Default:
    5

    Gets or sets the bottom margin of labels on the X-axis.

  • xAxisLabelFormat

    Type:
    string
    Default:
    null

    Gets or sets the format string for the X axis label.

  • xAxisLabelFormatSpecifiers

    Type:
    object
    Default:
    null

    Gets or sets the format specifiers to use with the XAxisLabelFormat string.

  • xAxisLabelHorizontalAlignment

    Type:
    enumeration
    Default:
    center

    Gets or sets Horizontal alignment of X-axis labels.

    Members

    • left
    • Type:string
    • Align the item to the left.
    • center
    • Type:string
    • Center the item.
    • right
    • Type:string
    • Align the item to the right.
    • stretch
    • Type:string
    • Stretch the item to the full width.

  • xAxisLabelLeftMargin

    Type:
    number
    Default:
    0

    Gets or sets the left margin of labels on the X-axis.

  • xAxisLabelRightMargin

    Type:
    number
    Default:
    0

    Gets or sets the right margin of labels on the X-axis.

  • xAxisLabelTextColor

    Type:
    string
    Default:
    null

    Gets or sets color of labels on the X-axis.

  • xAxisLabelTextStyle

    Type:
    string
    Default:
    null

    Gets or sets CSS font property for labels on X-axis.

  • xAxisLabelTopMargin

    Type:
    number
    Default:
    5

    Gets or sets the top margin of labels on the X-axis.

  • xAxisLabelVerticalAlignment

    Type:
    enumeration
    Default:
    top

    Gets or sets Vertical alignment of X-axis labels.

    Members

    • top
    • Type:string
    • Align the item to the top.
    • center
    • Type:string
    • Center the item.
    • bottom
    • Type:string
    • Align the item to the bottom.
    • stretch
    • Type:string
    • Stretch the item to the full height.

  • xAxisLabelVisibility

    Type:
    enumeration
    Default:
    null

    Gets or sets Visibility of X-axis labels.

    Members

    • visible
    • Type:string
    • Display the element.
    • collapsed
    • Type:string
    • Do not display the element.

  • xAxisMajorStroke

    Type:
    string
    Default:
    null

    Gets or sets the color to apply to major gridlines along the X-axis.

  • xAxisMajorStrokeThickness

    Type:
    number
    Default:
    1

    Gets or sets the thickness to apply to major gridlines along the X-axis.

  • xAxisMaximumValue

    Type:
    object
    Default:
    null

    Gets or sets maximum value on x-axis.

  • xAxisMinimumValue

    Type:
    object
    Default:
    null

    Gets or sets minimum value on x-axis.

  • xAxisMinorStroke

    Type:
    string
    Default:
    null

    Gets or sets the color to apply to minor gridlines along the X-axis.

  • xAxisMinorStrokeThickness

    Type:
    number
    Default:
    1

    Gets or sets the thickness to apply to minor gridlines along the X-axis.

  • xAxisMode

    Type:
    enumeration
    Default:
    null

    The scaling mode of the X-axis.

    Members

    • ordinal
    • Type:string
    • An ordinal scale with time labels.
    • time
    • Type:string
    • A time scale.

  • xAxisStrip

    Type:
    string
    Default:
    null

    Gets or sets the color to apply to stripes along the X-axis.

  • xAxisStroke

    Type:
    string
    Default:
    null

    Gets or sets the color to apply to the X-axis line.

  • xAxisStrokeThickness

    Type:
    number
    Default:
    1

    Gets or sets the thickness to apply to the X-axis line.

  • xAxisTickLength

    Type:
    number
    Default:
    5

    Gets or sets the length of tickmarks along the X-axis.

  • xAxisTickStroke

    Type:
    string
    Default:
    null

    Gets or sets the color to apply to tickmarks along the X-axis.

  • xAxisTickStrokeThickness

    Type:
    number
    Default:
    2

    Gets or sets the thickness to apply to tickmarks along the X-axis.

  • xAxisTitle

    Type:
    string
    Default:
    null

    Gets or sets the Text to display below the X-axis.

  • xAxisTitleAlignment

    Type:
    enumeration
    Default:
    center

    Gets or sets Horizontal alignment of the X-axis title.

    Members

    • left
    • Type:string
    • Align the item to the left.
    • center
    • Type:string
    • Center the item.
    • right
    • Type:string
    • Align the item to the right.
    • stretch
    • Type:string
    • Stretch the item to the full width.

  • xAxisTitleAngle

    Type:
    number
    Default:
    0

    Gets or sets the angle of rotation for the X-axis title.

  • xAxisTitleBottomMargin

    Type:
    number
    Default:
    NaN

    Gets or sets the bottom margin of a title on the X-axis.

  • xAxisTitleLeftMargin

    Type:
    number
    Default:
    NaN

    Gets or sets the left margin of a title on the X-axis.

  • xAxisTitleMargin

    Type:
    number
    Default:
    0

    Gets or sets the margin around a title on the X-axis.

  • xAxisTitleRightMargin

    Type:
    number
    Default:
    NaN

    Gets or sets the right margin of a title on the X-axis.

  • xAxisTitleTextColor

    Type:
    string
    Default:
    null

    Gets or sets color of title on the X-axis.

  • xAxisTitleTextStyle

    Type:
    string
    Default:
    null

    Gets or sets CSS font property for title on X-axis.

  • xAxisTitleTopMargin

    Type:
    number
    Default:
    NaN

    Gets or sets the top margin of a title on the X-axis.

  • yAxisAbbreviateLargeNumbers

    Type:
    bool
    Default:
    true

    Gets or sets whether the large numbers on the Y-axis labels are abbreviated.

  • yAxisExtent

    Type:
    number
    Default:
    NaN

    Gets or sets the distance between the Y-axis and the left edge of the chart.

  • yAxisFormatLabel

    Type:
    object
    Default:
    null

    Gets or sets function which takes a context object and returns a formatted label for the Y-axis.

  • yAxisInterval

    Type:
    number
    Default:
    NaN

    Gets or sets the distance between each label and grid line along the Y-axis.

  • yAxisInverted

    Type:
    bool
    Default:
    false

    Gets or sets whether to invert the direction of the Y-axis by placing the minimum numeric value at the top of the chart.

  • yAxisIsLogarithmic

    Type:
    bool
    Default:
    false

    Gets or sets whether the Y-axis should use a logarithmic scale instead of a linear one.
    Since log(-1) is imaginary and log(0) is undefined, it is recommended to enable this property only when the Y-axis minimum is greater than zero.

  • yAxisLabel

    Type:
    object
    Default:
    null

    Gets or sets the property or string from which the labels are derived.

  • yAxisLabelAngle

    Type:
    number
    Default:
    0

    Gets or sets the angle of rotation for labels along the Y-axis.

  • yAxisLabelBottomMargin

    Type:
    number
    Default:
    0

    Gets or sets the bottom margin of labels on the Y-axis.

  • yAxisLabelFormat

    Type:
    string
    Default:
    null

    Gets or sets the format string for the Y axis label.

  • yAxisLabelFormatSpecifiers

    Type:
    object
    Default:
    null

    Gets or sets the format specifiers to use with the YAxisLabelFormat string.

  • yAxisLabelHorizontalAlignment

    Type:
    enumeration
    Default:
    left

    Gets or sets Horizontal alignment of Y-axis labels.

    Members

    • left
    • Type:string
    • Align the item to the left.
    • center
    • Type:string
    • Center the item.
    • right
    • Type:string
    • Align the item to the right.
    • stretch
    • Type:string
    • Stretch the item to the full width.

  • yAxisLabelLeftMargin

    Type:
    number
    Default:
    5

    Gets or sets the left margin of labels on the Y-axis.

  • yAxisLabelLocation

    Type:
    enumeration
    Default:
    outsideRight

    The location of Y-axis labels, relative to the plot area.

    Members

    • outsideTop
    • Type:string
    • Places the axis labels at the top, outside of the plotting area.
    • outsideBottom
    • Type:string
    • Places the axis labels at the bottom, outside of the plotting area.
    • outsideLeft
    • Type:string
    • Places the axis labels to the left, outside of the plotting area.
    • outsideRight
    • Type:string
    • Places the axis labels to the right, outside of the plotting area.
    • insideTop
    • Type:string
    • Places the axis labels inside the plotting area above the axis line.
    • insideBottom
    • Type:string
    • Places the axis labels inside the plotting area below the axis line.
    • insideLeft
    • Type:string
    • Places the axis labels inside the plotting area and to the left of the axis line.
    • insideRight
    • Type:string
    • Places the axis labels inside the plotting area and to the right of the axis line.

  • yAxisLabelRightMargin

    Type:
    number
    Default:
    5

    Gets or sets the right margin of labels on the Y-axis.

  • yAxisLabelTextColor

    Type:
    string
    Default:
    null

    Gets or sets color of labels on the Y-axis.

  • yAxisLabelTextStyle

    Type:
    string
    Default:
    null

    Gets or sets CSS font property for labels on Y-axis.

  • yAxisLabelTopMargin

    Type:
    number
    Default:
    0

    Gets or sets the top margin of labels on the Y-axis.

  • yAxisLabelVerticalAlignment

    Type:
    enumeration
    Default:
    center

    Gets or sets Vertical alignment of Y-axis labels.

    Members

    • top
    • Type:string
    • Align the item to the top.
    • center
    • Type:string
    • Center the item.
    • bottom
    • Type:string
    • Align the item to the bottom.
    • stretch
    • Type:string
    • Stretch the item to the full height.

  • yAxisLabelVisibility

    Type:
    enumeration
    Default:
    null

    Gets or sets Visibility of Y-axis labels.

    Members

    • visible
    • Type:string
    • Display the element.
    • collapsed
    • Type:string
    • Do not display the element.

  • yAxisLogarithmBase

    Type:
    number
    Default:
    10

    Gets or sets the base value to use in the log function when mapping the position of data items along the Y-axis.
    This property is effective only when YAxisIsLogarithmic is true.

  • yAxisMajorStroke

    Type:
    string
    Default:
    null

    Gets or sets the color to apply to major gridlines along the Y-axis.

  • yAxisMajorStrokeThickness

    Type:
    number
    Default:
    1

    Gets or sets the thickness to apply to major gridlines along the Y-axis.

  • yAxisMaximumValue

    Type:
    number
    Default:
    NaN

    Gets or sets the data value corresponding to the maximum value of the Y-axis.

  • yAxisMinimumValue

    Type:
    number
    Default:
    NaN

    Gets or sets the data value corresponding to the minimum value of the Y-axis.

  • yAxisMinorInterval

    Type:
    number
    Default:
    0

    Gets or sets the frequency of displayed minor lines along the Y-axis.

  • yAxisMinorStroke

    Type:
    string
    Default:
    null

    Gets or sets the color to apply to minor gridlines along the Y-axis.

  • yAxisMinorStrokeThickness

    Type:
    number
    Default:
    0

    Gets or sets the thickness to apply to minor gridlines along the Y-axis.

  • yAxisMode

    Type:
    enumeration
    Default:
    null

    The scaling mode of the Y-axis.

    Members

    • numeric
    • Type:string
    • A linear or logarithmic numeric scale.
    • percentChange
    • Type:string
    • A numeric scale where all values are scaled proportionally to a reference value.

  • yAxisStrip

    Type:
    string
    Default:
    null

    Gets or sets the color to apply to stripes along the Y-axis.

  • yAxisStroke

    Type:
    string
    Default:
    null

    Gets or sets the color to apply to the Y-axis line.

  • yAxisStrokeThickness

    Type:
    number
    Default:
    1

    Gets or sets the thickness to apply to the Y-axis line.

  • yAxisTickLength

    Type:
    number
    Default:
    0

    Gets or sets the length of tickmarks along the Y-axis.

  • yAxisTickStroke

    Type:
    string
    Default:
    null

    Gets or sets the color to apply to tickmarks along the Y-axis.

  • yAxisTickStrokeThickness

    Type:
    number
    Default:
    2

    Gets or sets the thickness to apply to tickmarks along the Y-axis.

  • yAxisTitle

    Type:
    string
    Default:
    null

    Gets or sets the Text to display to the left of the Y-axis.

  • yAxisTitleAlignment

    Type:
    enumeration
    Default:
    center

    Gets or sets Vertical alignment of the Y-axis title.

    Members

    • top
    • Type:string
    • Align the item to the top.
    • center
    • Type:string
    • Center the item.
    • bottom
    • Type:string
    • Align the item to the bottom.
    • stretch
    • Type:string
    • Stretch the item to the full height.

  • yAxisTitleAngle

    Type:
    number
    Default:
    -90

    Gets or sets the angle of rotation for the Y-axis title.

  • yAxisTitleBottomMargin

    Type:
    number
    Default:
    NaN

    Gets or sets the bottom margin of a title on the Y-axis.

  • yAxisTitleLeftMargin

    Type:
    number
    Default:
    NaN

    Gets or sets the left margin of a title on the Y-axis.

  • yAxisTitleMargin

    Type:
    number
    Default:
    0

    Gets or sets the margin around a title on the Y-axis.

  • yAxisTitleRightMargin

    Type:
    number
    Default:
    NaN

    Gets or sets the right margin of a title on the Y-axis.

  • yAxisTitleTextColor

    Type:
    string
    Default:
    null

    Gets or sets color of title on the Y-axis.

  • yAxisTitleTextStyle

    Type:
    string
    Default:
    null

    Gets or sets CSS font property for title on Y-axis.

  • yAxisTitleTopMargin

    Type:
    number
    Default:
    NaN

    Gets or sets the top margin of a title on the Y-axis.

  • zoomSliderType

    Type:
    enumeration
    Default:
    auto

    Gets or sets type of series to display in the zoom slider pane.

    Members

    • none
    • Type:string
    • Do not display the zoom slider pane.
    • auto
    • Type:string
    • In the zoom slider pane, match the series type in the price pane.
    • bar
    • Type:string
    • Display financial bar series in the zoom slider pane.
    • candle
    • Type:string
    • Display candle series in the zoom slider pane.
    • column
    • Type:string
    • Display column series in the zoom slider pane.
    • line
    • Type:string
    • Display line series in the zoom slider pane.
    • area
    • Type:string
    • Display an area series in the zoom slider pane.

  • zoomSliderXAxisMajorStroke

    Type:
    string
    Default:
    null

    Gets or sets stroke brush of major gridlines on x-axis of the zoom slider pane.

  • zoomSliderXAxisMajorStrokeThickness

    Type:
    number
    Default:
    1

    Gets or sets thickness of major gridlines on x-axis of the zoom slider pane.

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details

  • applyCustomIndicators

    Cancellable:
    false

    Event raised by the chart when custom indicator data is needed from the application.
    During series rendering, event will be raised once for each value in the CustomIndicatorNames collection.

  • calloutStyleUpdating

    Cancellable:
    false

    Occurs when the style of a callout is updated.

  • dataBinding
    Inherited

    Cancellable:
    true

    Event which is raised before data binding.
    Return false in order to cancel data binding.
    Function takes first argument null and second argument ui.
    Use ui.owner to obtain reference to chart widget.
    Use ui.dataSource to obtain reference to instance of $.ig.DataSource.

  • dataBound
    Inherited

    Cancellable:
    false

    Event which is raised after data binding.
    Function takes first argument null and second argument ui.
    Use ui.owner to obtain reference to chart widget.
    Use ui.data to obtain reference to array actual data which is displayed by chart.
    Use ui.dataSource to obtain reference to instance of $.ig.DataSource.

  • hideTooltip
    Inherited

    Cancellable:
    true

    Event which is raised before tooltip is hidden.
    Return false in order to cancel hiding and keep tooltip visible.
    Function takes first argument null and second argument ui.
    Use ui.owner to obtain reference to chart widget.
    Use ui.item to obtain reference to item.
    Use ui.element to obtain reference to jquery object which represents tooltip or value of ui.element from last updateTooltip event. Value of that member can be replaced by custom element.

  • propertyChanged

    Cancellable:
    false

    Event raised when a property value is changed on this chart.

  • seriesAdded

    Cancellable:
    false

    Event raised when a series is initialized and added to this chart.

  • seriesPointerDown

    Cancellable:
    false

    Occurs when the pointer is pressed down over a Series.

  • seriesPointerEnter

    Cancellable:
    false

    Occurs when the pointer enters a Series.

  • seriesPointerLeave

    Cancellable:
    false

    Occurs when the pointer leaves a Series.

  • seriesPointerMove

    Cancellable:
    false

    Occurs when the pointer moves over a Series.

  • seriesPointerUp

    Cancellable:
    false

    Occurs when the pointer is released over a Series.

  • seriesRemoved

    Cancellable:
    false

    Event raised when a series is removed from this chart.

  • updateTooltip
    Inherited

    Cancellable:
    true

    Event which is raised before tooltip is updated.
    Return false in order to cancel updating and hide tooltip.
    Function takes first argument null and second argument ui.
    Use ui.owner to obtain reference to chart widget.
    Use ui.text to obtain html of tooltip. Value of that member can be modified. If modified value is null or empty string, then current content of tooltip keeps old value.
    Use ui.item to obtain reference to item. Value of that member can be modified or replaced by custom item.
    Use ui.x to obtain left position of tooltip in pixels relative to widget. Value of that member can be modified.
    Use ui.y to obtain top position of tooltip in pixels relative to widget. Value of that member can be modified.
    Use ui.element to obtain reference to jquery object which represents tooltip. Value of that member can be replaced by custom element.

  • addItem
    Inherited

    .igFinancialChart( "addItem", item:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Adds a new item to the data source and notifies the chart.

    • item
    • Type:object
    • The item that we want to add to the data source.

  • chart
    Inherited

    .igFinancialChart( "chart" );
    Return Type:
    object
    Return Type Description:
    Returns reference to chart.

    Get reference to chart object.

  • dataBind
    Inherited

    .igFinancialChart( "dataBind" );

    Binds data to the chart.

  • destroy

    .igFinancialChart( "destroy" );

  • exportVisualData

    .igFinancialChart( "exportVisualData" );

  • findIndexOfItem
    Inherited

    .igFinancialChart( "findIndexOfItem", item:object );
    Return Type:
    number
    Return Type Description:
    Returns -1 or index of item.

    Find index of item within actual data used by chart.

    • item
    • Type:object
    • The reference to item.

  • flush
    Inherited

    .igFinancialChart( "flush" );

    Forces any pending deferred work to render on the chart before continuing.

  • getData
    Inherited

    .igFinancialChart( "getData" );
    Return Type:
    array
    Return Type Description:
    Returns null or reference to data.

    Get reference of actual data used by chart.

  • getDataItem
    Inherited

    .igFinancialChart( "getDataItem", index:object );
    Return Type:
    object
    Return Type Description:
    Returns null or reference to data item.

    Get item within actual data used by chart. That is similar to this.getData()[ index ].

    • index
    • Type:object
    • Index of data item.

  • id

    .igFinancialChart( "id" );

  • insertItem
    Inherited

    .igFinancialChart( "insertItem", item:object, index:number );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Inserts a new item to the data source and notifies the chart.

    • item
    • Type:object
    • the new item that we want to insert in the data source.
    • index
    • Type:number
    • The index in the data source where the new item will be inserted.

  • notifyClearItems
    Inherited

    .igFinancialChart( "notifyClearItems", dataSource:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Notifies the chart that the items have been cleared from an associated data source.
    It's not necessary to notify more than one target of a change if they share the same items source.

    • dataSource
    • Type:object
    • The data source in which the change happened.

  • notifyInsertItem
    Inherited

    .igFinancialChart( "notifyInsertItem", dataSource:object, index:number, newItem:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Notifies the target axis or series that an item has been inserted at the specified index in its data source.
    It's not necessary to notify more than one target of a change if they share the same items source.

    • dataSource
    • Type:object
    • The data source in which the change happened.
    • index
    • Type:number
    • The index in the items source where the new item has been inserted.
    • newItem
    • Type:object
    • the new item that has been set in the collection.

  • notifyRemoveItem
    Inherited

    .igFinancialChart( "notifyRemoveItem", dataSource:object, index:number, oldItem:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Notifies the target axis or series that an item has been removed from the specified index in its data source.
    It's not necessary to notify more than one target of a change if they share the same items source.

    • dataSource
    • Type:object
    • The data source in which the change happened.
    • index
    • Type:number
    • The index in the items source from where the old item has been removed.
    • oldItem
    • Type:object
    • the old item that has been removed from the collection.

  • notifySetItem
    Inherited

    .igFinancialChart( "notifySetItem", dataSource:object, index:number, newItem:object, oldItem:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Notifies the chart that an item has been set in an associated data source.

    • dataSource
    • Type:object
    • The data source in which the change happened.
    • index
    • Type:number
    • The index in the items source that has been changed.
    • newItem
    • Type:object
    • the new item that has been set in the collection.
    • oldItem
    • Type:object
    • the old item that has been overwritten in the collection.

  • removeItem
    Inherited

    .igFinancialChart( "removeItem", index:number );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Deletes an item from the data source and notifies the chart.

    • index
    • Type:number
    • The index in the data source from where the item will be been removed.

  • setItem
    Inherited

    .igFinancialChart( "setItem", index:number, item:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Updates an item in the data source and notifies the chart.

    • index
    • Type:number
    • The index of the item in the data source that we want to change.
    • item
    • Type:object
    • The new item object that will be set in the data source.

  • ui-category ui-corner-all ui-widget-content ui-financialchart-container

    Get the class applied to main element: ui-category ui-corner-all ui-widget-content.

  • ui-category-tooltip ui-widget-content ui-corner-all

    Get the class applied to the tooltip element: ui-category-tooltip ui-widget-content ui-corner-all.

  • ui-html5-non-html5-supported-message ui-helper-clearfix ui-html5-non-html5

    Get the class applied to main element, shown when the chart is opened in a non HTML5 compatible browser.

Copyright © 1996 - 2024 Infragistics, Inc. All rights reserved.
