ui.igTreeGridMultiColumnHeaders

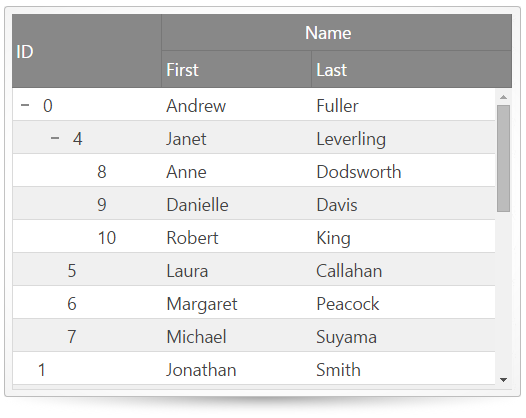

ui.igTreeGridMultiColumnHeaders_image

The igTreeGrid includes the multi-column headers feature which provides header grouping that integrates with the Hiding, Resizing and ColumnMoving features. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample

<!DOCTYPE html>
<html>
<head>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />

    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>

    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>

    <!-- Infragistics Combined Scripts -->
    <script src="js/infragistics.core.js" type="text/javascript"></script>
    <script src="js/infragistics.lob.js" type="text/javascript"></script>

    <script type="text/javascript">
        var employees = [
            { "employeeId": 0, "supervisorId": -1, "firstName": "Andrew", "lastName": "Fuller" },
            { "employeeId": 1, "supervisorId": -1, "firstName": "Jonathan", "lastName": "Smith" },
            { "employeeId": 2, "supervisorId": -1, "firstName": "Nancy", "lastName": "Davolio" },
            { "employeeId": 3, "supervisorId": -1, "firstName": "Steven", "lastName": "Buchanan" },

            // Andrew Fuller's direct reports
            { "employeeId": 4, "supervisorId": 0, "firstName": "Janet", "lastName": "Leverling" },
            { "employeeId": 5, "supervisorId": 0, "firstName": "Laura", "lastName": "Callahan" },
            { "employeeId": 6, "supervisorId": 0, "firstName": "Margaret", "lastName": "Peacock" },
            { "employeeId": 7, "supervisorId": 0, "firstName": "Michael", "lastName": "Suyama" },

            // Janet Leverling's direct reports
            { "employeeId": 8, "supervisorId": 4, "firstName": "Anne", "lastName": "Dodsworth" },
            { "employeeId": 9, "supervisorId": 4, "firstName": "Danielle", "lastName": "Davis" },
            { "employeeId": 10, "supervisorId": 4, "firstName": "Robert", "lastName": "King" },

            // Nancy Davolio's direct reports
            { "employeeId": 11, "supervisorId": 2, "firstName": "Peter", "lastName": "Lewis" },
            { "employeeId": 12, "supervisorId": 2, "firstName": "Ryder", "lastName": "Zenaida" },
            { "employeeId": 13, "supervisorId": 2, "firstName": "Wang", "lastName": "Mercedes" },

            // Steve Buchanan's direct reports
            { "employeeId": 14, "supervisorId": 3, "firstName": "Theodore", "lastName": "Zia" },
            { "employeeId": 15, "supervisorId": 3, "firstName": "Lacota", "lastName": "Mufutau" },

            // Lacota Mufutau's direct reports
            { "employeeId": 16, "supervisorId": 15, "firstName": "Jin", "lastName": "Elliott" },
            { "employeeId": 17, "supervisorId": 15, "firstName": "Armand", "lastName": "Ross" },
            { "employeeId": 18, "supervisorId": 15, "firstName": "Dane", "lastName": "Rodriquez" },

            // Dane Rodriquez's direct reports
            { "employeeId": 19, "supervisorId": 18, "firstName": "Declan", "lastName": "Lester" },
            { "employeeId": 20, "supervisorId": 18, "firstName": "Bernard", "lastName": "Jarvis" },

            // Bernard Jarvis' direct report
            { "employeeId": 21, "supervisorId": 20, "firstName": "Jeremy", "lastName": "Donaldson" }
        ];

       $(function () {
           $("#treegrid").igTreeGrid({
               dataSource: employees,
               primaryKey: "employeeId",
               foreignKey: "supervisorId",
               autoGenerateColumns: false,
               columns: [
                    { headerText: "ID", key: "employeeId", width: "150px", dataType: "number" },
                    {
                        headerText: "Name", key: "fullName", datatype: "string", group: [
                            { headerText: "First", key: "firstName", width: "150px", dataType: "string" },
                            { headerText: "Last", key: "lastName", width: "150px", dataType: "string" }
                        ]
                    }],
               featues: [{
                   name: "MultiColumnHeaders"
               }]
           });
       });
    </script>
</head>
<body>
    <table id="treegrid"></table>
</body>
</html>

Related Topics

Dependencies

jquery-1.9.1.js
jquery.ui.core.js
jquery.ui.widget.js
infragistics.datasource.js
infragistics.ui.shared.js
infragistics.ui.treegrid.js
infragistics.util.js
infragistics.ui.grid.framework.js
infragistics.ui.grid.multicolumnheaders.js
