igDialog Header and Footer

Topic Overview

Purpose

This topic demonstrates how to enable the igDialog™ footer and header and how to customize them.

Required background

The following topics are prerequisites to understanding this topic:

  • igDialog Overview: The topic introduces the user to the igDialog control’s main features.

  • Adding igDialog: This topic demonstrates how to add the igDialog control to a web page.

In this topic

This topic contains the following sections:

Control Configuration Summary

The following table lists the configurable aspects of the igDialog header and footer control modules. Additional details are available after the table.

Configurable aspects Details Properties
Enable and configure igDialog header The properties that need to be configured to enable igDialog and customize its elements.
Enable and configure igDialog footer The properties that need to be configured to enable igDialog and customize its elements.

If you want to see how to enable and disable header buttons please review the Minimize and Maximize and Pin topic.

Enable and Configure igDialog Header

The igDialog API proposes several API properties for modifying its header.

Property Settings

The following table maps the desired header features to property settings:

In order to: Use this property: And set it to:
Show the igDialog header showHeader true
Set the igDialog header title headerText “HEADER”
Set the igDialog header image imageClass “clsImage”
Set the igDialog close button title closeButtonTitle “X”
Set the igDialog minimize button title minimizeButtonTitle “MIN”
Set the igDialog maximize button title maximizeButtonTitle “MAX”
Set the igDialog pin button title pinButtonTitle “PIN”
Set the igDialog unpin button title unpinButtonTitle “UNPIN”
Set the igDialog restore button title restoreButtonTitle “RESTORE”

Example

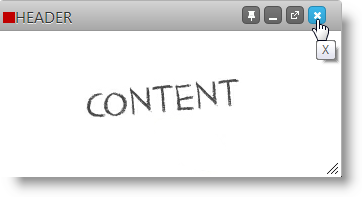

The screenshot below demonstrates how the igDialog looks as a result of the settings above:

Note: The red square at the top is there because of the clsImage defined in CSS: .clsImage { background-color: red; width: 5px; height: 5px; }

Enable and Configure igDialog Footer

The igDialog API proposes two API properties for modifying its footer.

Property Settings

The following table maps the desired header features to property settings:

In order to: Use this property: And set it to:
Show the igDialog footer showFooter true
Set the igDialog footer title footerText “FOOTER”

Example

The screenshot below demonstrates how the igDialog looks as a result of the settings above, plus the header setting from the previous paragraph:

Related Content

Topics

The following topics provide additional information related to this topic:

  • igDialog Overview: The topic introduces the user to the igDialog control’s main features.

  • Adding igDialog: This topic demonstrates how to add the igDialog control to a web page.

Samples

The following samples provide additional information related to this topic:

  • Icons: The sample that shows you how to show igDialog icons.
