Multiple Sorting Dialog (igGrid)

Topic Overview

Purpose

This topic demonstrates how to use the igGrid™ control’s Multiple Sorting Dialog Window.

Required background

The following table lists the topics required as a prerequisite to understanding this topic.

In this topic

This topic contains the following sections:

Introduction

This topic demonstrates how to work with the igGrid control’s Multiple Sorting modal dialog. You can activate the Multiple Sorting Modal Dialog by selecting Sort on Multiple list item from the igGrid Feature Chooser advanced section. Using the Multiple Sorting dialog window and the Sorting API are the two ways to sort multiple columns in igGrid.

The sorting dialog displays the order of the multiple sorted columns in the grid. Additionally you may remove a column from the sort criteria.

Dialog Window States

Modal Window

The following table summarizes the states of the Multiple Sorting Modal Dialog window. The window has two states, defined by the value of the modalDialogSortOnClick property (default false). In the default state the user must make changes in the dialog and then apply the changes. If the property is set to true then the sort takes effect immediately.

Additional details are available after the summary table.

State modalDialogSortOnClick Description
Sort by column on click) true Columns are immediately sorted by selecting a column from the column chooser window.
Sort by multiple columns at once false Multiple columns are selected from the column chooser window and columns are sorted when changes are applied to the window.

Sort by Multiple Columns at Once

By default the modalDialogSortOnClick property is set to false. This means that you must select, which columns to sort by and then apply the changes to the grid.

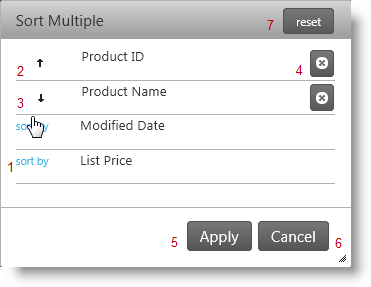

Use the following buttons:

  1. Sort by – to sort by the current column in ascending order (the whole row is clickable)
  2. Up arrow – the columns is sorted ascending. Press the button to sort it descending (the whole row is clickable)
  3. Down arrow – the columns is sorted descending. Press the button to sort it ascending (the whole row is clickable)
  4. Unsort by – to unsort by the current column. You can achieve that outside the Modal Dialog context, by pressing SHIFT and the header of the igGird column you want to ungroup
  5. Apply – to apply the sorted columns, you want to sort by and their order
  6. Cancel – to close the Modal Dialog and don’t apply any changes
  7. Reset – to return the default state of all the columns, like they are defined when the Modal Dialog was opened
  8. ESC (key) - close the modal dialog

Sort by Column on click

When the modalDialogSortOnClick property is set to true, when you click on a column name the sorting executes immediately on the grid.

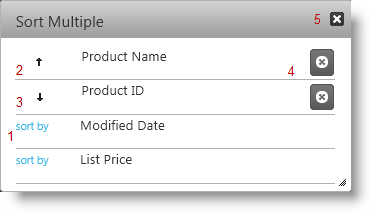

Use the following buttons:

  1. Sort by – to sort by the current column ( the whole row is clickable)
  2. Up arrow – the columns is sorted ascending. Press the button to sort it descending (the whole row is clickable)
  3. Down arrow – the columns is sorted descending. Press the button to sort it ascending (the whole row is clickable)
  4. Unsort by – to unsort by the current column. You can achieve that outside the Modal Dialog context, by pressing SHIFT plus the header of the igGrid control’s column you want to unsort.
  5. Close button - close the modal dialog
  6. ESC (key) - close the modal dialog

Property Reference

This section explains igGrid control’s Sorting properties that affect the Modal Dialog.

The following table shows the igGrid Sorting properties that are responsible for the configuration of the Modal Dialog

Property Description
modalDialogSortOnClick Specifies whether sorting is applied immediately when users click sort/unsort columns in multiple sorting dialog.
featureChooserText Specifies the text in feature chooser.
modalDialogWidth Specifies the width of multiple sorting dialog
modalDialogHeight Specifies the width of the multiple sorting dialog
modalDialogAnimationDuration Specifies the time in milliseconds for the animation duration to show/hide modal dialog
modalDialogSortByButtonText Specifies the Sort By button text for each unsorted column in the multiple sorting dialog window.
modalDialogResetButtonLabel Specifies Sort By button label for each unsorted column in multiple sorting dialog.
modalDialogCaptionButtonDesc Specifies caption for each descending sorted column in multiple sorting dialog.
modalDialogCaptionButtonAsc Specifies the caption for each ascending sorted column in the multiple sorting dialog.
modalDialogCaptionButtonUnsort Specifies caption for unsort button in multiple sorting dialog.
unsortedColumnTooltip Custom unsorted column tooltip in Ignite UI for jQuery templating format.
modalDialogCaptionText Specifies caption text for multiple sorting dialog.
modalDialogButtonApplyText Specifies the text of the button which applies changes in modal dialog.
modalDialogButtonCancelText Specifies the text of the button which cancels changes in modal dialog.

Method Reference

This section explains igGrid Sorting methods that affect modal dialog.

The following table shows the igGrid control’s Sorting methods, which allows using Modal Dialog API.

Method Description
openMultipleSortingDialog Shows the Modal Dialog. If it is visible the method does nothing.
closeMultipleSortingDialog Hides the Modal Dialog. If it is not visible the method does nothing.
renderMultipleSortingDialogContent Renders content of multiple sorting dialog for sorted and unsorted columns
removeDialogClearButton Removes the clear button for the multiple sorting dialog

Event Reference

This section explains igGrid control’s Sorting events, responsible for the Modal Windows.

The following table shows the igGrid Sorting events that are fired during interacting with the Modal Dialog.

Event Description
modalDialogOpening Event fired before the modal dialog is opened
modalDialogOpened Event fired after the modal dialog is opened
modalDialogMoving Event fired every time the modal dialog changes its position
modalDialogClosing Event fired before the modal dialog is closed
modalDialogClosed Event fired after the modal dialog is closed
modalDialogContentsRendering Event fired before the contents of the modal dialog are rendered
modalDialogContentsRendered Event fired after the contents of the modal dialog are rendered
modalDialogSortingChanged Event fired when sorting of column is changed in modal dialog
modalDialogButtonUnsortClick Event fired when button to unsort column is clicked in modal dialog
modalDialogSortClick Event fired when column(which is not sorted) is clicked to be sorted in the modal dialog
modalDialogButtonApplyClick Event fired when Apply button in the modal dialog is clicked
modalDialogButtonResetClick Event fired when the button to reset sorting is clicked
