This topic provides information about the item tooltip layer which is used for hover interactions. It describes the properties of the item tooltip layer and also provides an example of its implementation.
The following topics are prerequisites to understanding this topic:
Adding igDataChart: This topic demonstrates how to add the igDataChart™ control to a page and bind it to data.
Binding igDataChart to Data: This topic explains how to bind the igDataChart™ control to various data sources (JavaScript array, IQueryable<T>, web service).
This topic contains the following sections:
The itemToolTipLayer displays tooltips for all the series on the igDataChart control individually when the mouse hovers over that particular series.
The tooltip style is inherited from the chart; however you can override this default behavior by setting the toolTipStyle property. For more information on this property see the Properties section below.

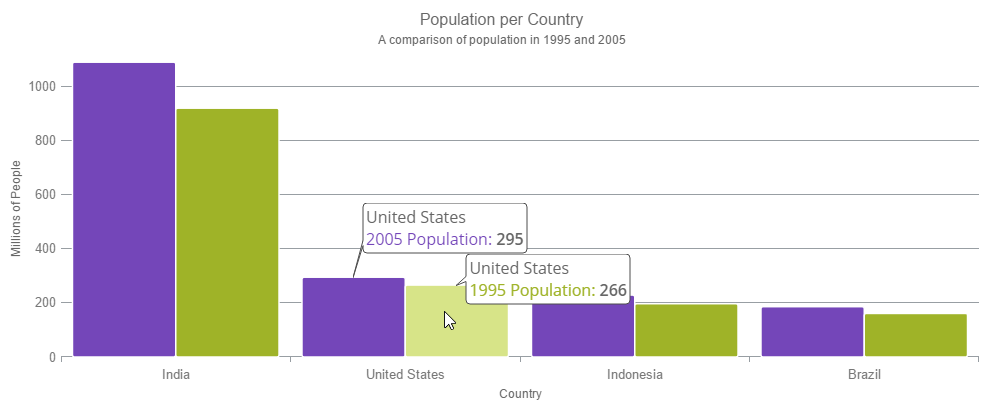

The following image is a preview of the igDataChart control renders with the itemToolTipLayer added.
The following table summarizes the properties of the itemToolTipLayer layer.
| Property Name | Property Type | Description |
|---|---|---|
| targetSeries | series | This property specifies which series should have an enabled item tooltip layer. It is possible to create a separate item tooltip layer for each series and configure them individually. |
| toolTipStyle | style | This property specifies a style to apply to the displayed tooltip. By default, the tooltip inherits its style from the chart, but setting this property will override this default setting. |
| pointerToolTipStyle | style | This property specifies a style to apply to the pointer area of the tooltip. |
| useInterpolation | bool | This property specifies if the tooltip’s x position should be interpolated rather than snapping to the gridlines or the center spaces. |
This sample demonstrates the Item Tooltip Layer that displays tooltips for all target series individually. The sample options pane allows you to edit the properties of the layer, such as changing the transition duration.
