Configuring Column Templates (igGrid, RWD Mode)

Topic Overview

Purpose

This topic explains, with code examples, how to define column templates for the individual Responsive Web Design (RWD) mode configurations of the igGrid™ control and how to configure automatic change of template when switching the active RWD mode configuration.

Required background

The following lists the concepts, topics, and articles required as a prerequisite to understanding this topic.

In this topic

This topic contains the following sections:

Template Configuration Summary

RWD mode templates are igGrid templates configured per profile. For example, using templates, in the Desktop profile, you may have City, Country, and Address as separate columns and, in the Tablet profile, you can merge them into a single column.

The following screenshots demonstrate how the igGrid looks in the different RWD configurations. In the Desktop configuration, the grid has 3 columns: Country, City, and Address. In the Tablet configuration, the Country column is hidden. In the Phone configuration, the Country and City columns are hidden, but their data is appended to the Address column.

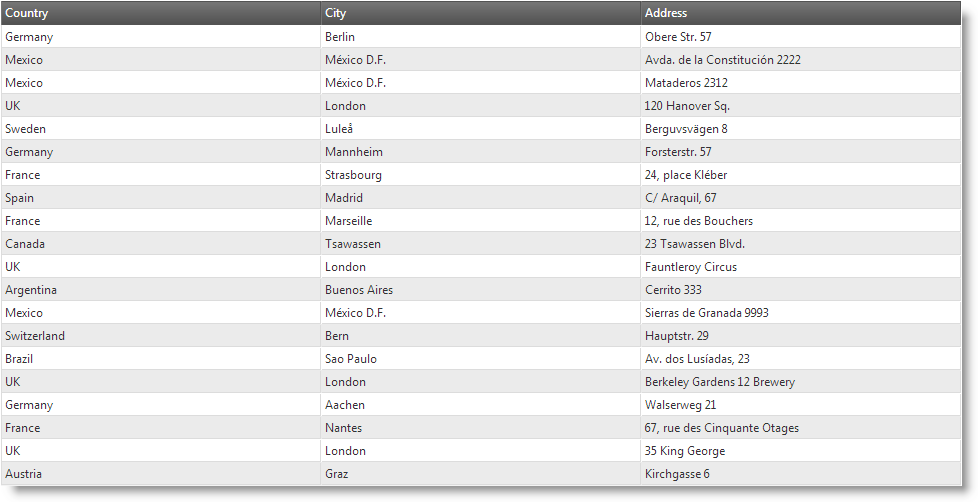

Desktop Configuration (1280 x 1024 px)

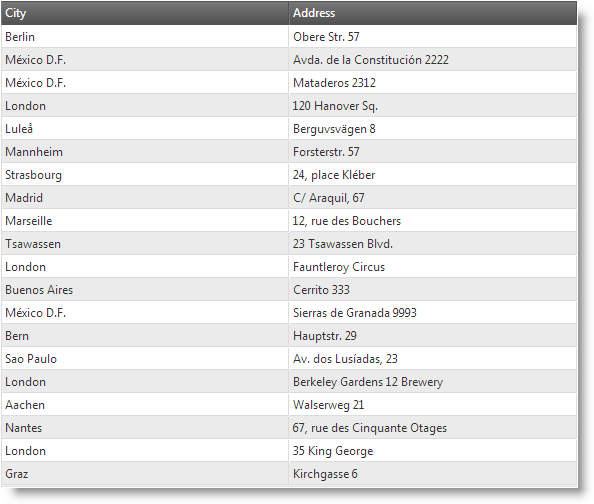

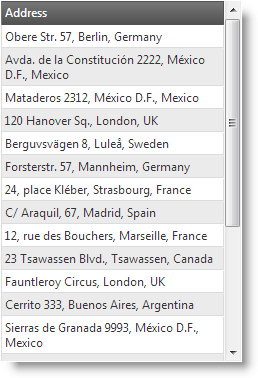

Tablet configuration (768 x 1024 px) Phone configuration (320 x 480 px)

When there RWD configuration templates configured, the templates switch automatically with profile activation.

Template configuration summary chart

The following table lists the configurable aspects of RWD Mode template switching. Additional details are available after the table.

Configurable aspect Details Properties
Column template Column templates are defined individually for each column.

Configuring Column Templates

Column templates are defined on column level, i.e. individually for each column. Column template switching is configured in the RWD Mode columnSettings property of the RWD Mode feature.

Property settings

The following table maps the desired configuration the property settings related to it.

In order to: Use this property: And set it to:
Configure column template for the Desktop RWD profile columnSettings.columnKey the key of the column
columnSettings.configuration.desktop.template a template string
Configure column template for the Tablet RWD profile columnSettings.columnKey the key of the column
columnSettings.configuration.tablet.template a template string
Configure column template switching for the Phone RWD profile columnSettings.columnKey the key of the column
columnSettings.configuration.phone.template a template string

Example

The following code demonstrates how to define a column template for the Name column for each of the RWD mode default profiles. The templates set the font size of the cell.

In JavaScript:

$("#grid1").igGrid({
    height: "100%",
    width: "100%",
    columns: [
        { headerText: "Product ID", key: "ProductID", dataType: "number"},
        { headerText: "Product Name", key: "Name", dataType: "string" },
        { headerText: "Product Number", key: "ProductNumber", dataType: "string" }
    ],
    autoGenerateColumns: false,
    dataSource: adventureWorks,
    responseDataKey: "Records",
    features: [
        {
            name: "Responsive",
            columnSettings: [
                {
                    columnKey: "Name",
                    configuration: {
                        desktop: {
                            template: "<span style='font-weight: bold; font-size: 1.2em;'>${Name}</span>"
                        },
                        tablet: {
                            template: "<span style='font-size: 1.1em;'>${Name}</span>"
                        },
                        phone: {
                            template: "<span style='font-size: 0.8em;'>${Name}</span>"
                        }
                    }
                }
            ]
        }
    ]
});

In ASPX:

@using Infragistics.Web.Mvc
@model IQueryable<GridDataBinding.Models.Product>
@(Html.Infragistics()
    .Grid(Model)
    .ID("grid1")
    .AutoGenerateColumns(false)
    .Columns(col =>
    {
        col.For(c => c.ProductID).HeaderText("Product ID");
        col.For(c => c.Name).HeaderText("Product Name");
        col.For(c => c.ProductNumber).HeaderText("Product Number");
    })
    .Features(feature =>
    {
        feature.Responsive().ColumnSettings(cs =>
        {
            cs.ColumnSetting().ColumnKey("Name").Configuration(conf => {
                conf.AddColumnModeConfiguration("desktop", c => c.Template("<span style='font-weight: bold; font-size: 1.2em;'>${Name}</span>"));
                conf.AddColumnModeConfiguration("tablet", c => c.Template("<span style='font-size: 1.1em;'>${Name}</span>"));
                conf.AddColumnModeConfiguration("phone", c => c.Template("<span style='font-size: 0.8em;'>${Name}</span>"));
            });
        });
    })
    .DataBind()
    .Render())
