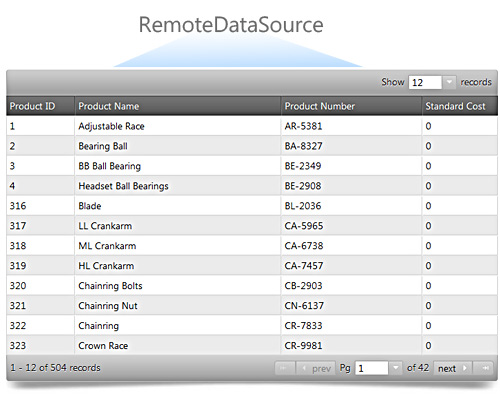

The RemoteDataSource extends the DataSource class and sets the type option to 'remoteUrl' by default. For more details on the RemoteDataSource component’s API, refer to the base DataSource component’s API documentation. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

The following code snippet demonstrates how to initialize the RemoteDataSource control.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the RemoteDataSource control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample


<!doctype html>
<html>
<head>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
    <!-- Infragistics Combined Scripts -->
    <script src="js/infragistics.core.js" type="text/javascript"></script>

    <script type="text/javascript">
    $(function () {
        var remoteDataSource = new $.ig.RemoteDataSource({
            responseDataType: "jsonp",
            dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
            responseDataKey: "d"
        });

        $("#gridRemoteJSON").igHierarchicalGrid({
            odata: false,
            initialDataBindDepth: 1,
            dataSource: remoteDataSource,
            responseDataKey: 'd',

            autoGenerateColumns: false,
            primaryKey: "ID",
            columns: [
				{ headerText: "ID", key: "ID", width: "50px", dataType: "number" },
				{ headerText: "Name", key: "Name", width: "130px", dataType: "string" }
			],
            autoGenerateLayouts: false,
            defaultChildrenDataProperty: "Products",
            columnLayouts: [
				{
				    name: "Products",
				    responseDataKey: 'd',
				    childrenDataProperty: "Products",
				    autoGenerateColumns: false,
				    primaryKey: "ID",
				    columns: [
						{ key: "ID", headerText: "ID", width: "25px" },
						{ key: "Name", headerText: "Product Name", width: "90px" },
						{ key: "Price", headerText: "Price", dataType: "number", width: "55px" }
					]
				}
			]
        });
    });
    </script>
</head>
<body>
    <table id="gridRemoteJSON"></table>
</body>
</html>

Related Samples

OData (Data Source)

 settings

Type:: object
Default:: {}

The Infragistics Data Source client-side component is implemented as a class, and has support for paging, sorting, and filtering
it supports binding to various types of data sources including JSON, XML, HTML Table, WCF/REST services, JSONP, JSONP and OData combined, etc.

Code Sample


var render = function (success, error) {
	if (success) {
    var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
    resultHtml = $.ig.tmpl(template, ds.dataView());
    $("#table").html(resultHtml);

	} else {
		alert(error);
	}
}

$(function () {
	var ds = new $.ig.RemoteDataSource({
		    callback: render,
		    dataSource: "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?",
		    schema: {
			    fields: [{
				    name: "Name"
			    }, {
				    name: "Price"
			    }, {
				    name: "Rating"
			    }],
			    searchField: "d"
		    },
		    responseDataKey: "d",
		    responseDataType: "jsonp",
		    filtering: {
			    type: "remote",
			    filterExprUrlKey: "filter",
			    expressions: [{
				    fieldName: "Name",
				    cond: "Contains",
				    expr: "Cr"
			    }]
		    },
		    paging: {
			    enabled: true,
			    pageSize: 3,
			    type: "local"
		    }
	    });
	ds.dataBind();

});

aggregateTransactions

Type:

bool

Default:

false
If set to true, the following behavior will take place:
if a new row is added, and then deleted, there will be no transaction added to the log
if an edit is made to a row or cell, then the value is brought back to its original value, the transaction should be removed
Note: This option takes effect only when autoCommit is set to false.
Code Sample
```

				var ds = new $.ig.RemoteDataSource({
	              aggregateTransactions: true,
                  dataSource: arrayOfObjects
                });

```
autoCommit

Type:

bool

Default:

false
If auto commit is true, data will be automatically commited to the data source, once a value or a batch of values are updated via saveChanges().
Code Sample
```

var ds = new $.ig.RemoteDataSource({
	autoCommit: true
});

```

callback

Type:: function
Default:: null

Callback function to call when data binding is complete.

Code Sample


var render = function (success, error) {
	if (success) {
		alert("success");
	} else {
		alert(error);
	}
}

$(function () {
	var ds = new $.ig.RemoteDataSource({
		    callback: render,
		    dataSource: "http://odata.netflix.com/Catalog/Titles?$format=json&$callback=?",
		    responseDataKey : "d.results",
		    responseDataType: "jsonp",
	    });
	ds.dataBind();
});

callee

Type:: object
Default:: null

Object on which to invoke the callback function.

Code Sample


var Bob = {
	name: "Bob",
	greet: function () {
		alert("Hi, I'm " + this.name);
	}
};

$(document).ready(function () {
	var ds = new $.ig.RemoteDataSource({
		dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
		responseDataKey : "d.results",
		responseDataType: "jsonp",
        callee: Bob,
		callback: Bob.greet
	});

	ds.dataBind();
});

data

Type:: array
Default:: []
Elements Type:: object

This is the normalized (transformed) resulting data, after it's fetched from the data source.

Code Sample


                        var ds = new $.ig.RemoteDataSource({
		                    data: normalizedArrayOfObjects
                        });

dataBinding

Type:: object
Default:: null

Client-side dataBinding event. Can be a string pointing to a function name, or an object pointing to a function.

Code Sample


var myDataBinding = function () {
    alert("myDataBinding");
},

ds = new $.ig.RemoteDataSource({
	dataBinding: myDataBinding,
	dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	responseDataKey : "d.results",
	responseDataType: "jsonp"
});

dataBound

Type:: object
Default:: null

Client-side dataBound event. Can be a string pointing to a function name, or an object pointing to a function.

Code Sample


var myDataBound = function () {
	alert("myDataBound")
    },
    ds = new $.ig.RemoteDataSource({
	    dataBound: myDataBound
    });
ds.dataBind();
});

dataSource

Type:: object
Default:: null

This is the source of data - non normalized. Can be an array, can be reference to some JSON object, can be a DOM element for a HTML TABLE, or a function.

Code Sample



ds = new $.ig.RemoteDataSource({
	dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	responseDataKey : "d.results",
	responseDataType: "jsonp"
});

fields

Type:: array
Default:: []
Elements Type:: object

A list of field definitions specifying the schema of the data source.
Field objects description: {fieldName, [fieldDataType], [fieldXPath]}.

Code Sample





ds = new $.ig.RemoteDataSource({
	dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	responseDataKey : "d.results",
	responseDataType: "jsonp",
	fields: [{
		name: "ID",
		type: "number"
	}, {
		name: "Name",
		type: "string"
	}, {
		name: "Description",
		type: "string"
	}]
});

filtering

Type:: object
Default:: {}

Settings related to built-in filtering functionality.

Code Sample


var jsonDs = new $.ig.RemoteDataSource({
    filtering: {
        type: "remote"
    },
    dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	responseDataKey : "d.results",
	responseDataType: "jsonp",
}).dataBind();

applyToAllData

Type:: bool
Default:: true

If the type of paging/sorting/filtering is local and applyToAllData is true, filtering will be performed on the whole data source that's present locally, otherwise only on the current dataView. if type is remote, this setting doesn't have any effect.

Code Sample


var jsonDs = new $.ig.RemoteDataSource({
    filtering: {
        type: "remote",
        applyToAllData: true
    },
    dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	responseDataKey : "d.results",
	responseDataType: "jsonp",
}).dataBind();

caseSensitive

Type:: bool
Default:: false

Enables or disables case sensitive filtering on the data. Works only for local filtering.

Code Sample


var jsonDs = new $.ig.RemoteDataSource({
    filtering: {
        type: "remote",
        caseSensitive: true
    },
    dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	responseDataKey : "d.results",
	responseDataType: "jsonp",
}).dataBind();

customFunc

Type:: object
Default:: null

Can point to either a string or a function object. The parameters that are passed are 1) the data array to be filtered, 2) the filtering expression definitions. Should return an array of the filtered data.

Code Sample

 var ds;

                    var render = function (success, error) {
		                    if (success) {
			                    var expr = "Cr";
			                    cond = "startsWith";

			                    ds.filter([{
				                    fieldName: "Name",
				                    expr: expr,
				                    cond: cond
			                    }], true);

                          var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
                          resultHtml = $.ig.tmpl(template, ds.dataView());
                          $("#table").html(resultHtml);
		                    } else {
			                    alert(error);
		                    }
	                    }


                    var myCustomFunc = function (fieldExpression, data) {
		                    var result = [];
		                    result[0] = data[0];
		                    return result;
	                    }

                    $(function () {
	                    var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
	                    ds = new $.ig.RemoteDataSource({
		                    callback: render,
		                    dataSource: url,
		                    schema: {
			                    fields: [{
				                    name: "Name"
			                    }, {
				                    name: "Price"
			                    }, {
				                    name: "Rating"
			                    }],
			                    searchField: "d"
		                    },
		                    responseDataKey: "d",
		                    responseDataType: "jsonp",
		                    filtering: {
			                    type: "remote",
			                    customFunc: myCustomFunc
		                    }
	                    });
	                    ds.dataBind();

                    });

defaultFields

Type:: array
Default:: []
Elements Type:: object

Data will be initially filtered accordingly, directly after dataBind().

Code Sample


          var url = "/demos/server/proxy.php?url=http://services.odata.org/OData/OData.svc/Products?$format=json";
			ds = new $.ig.RemoteDataSource({
                dataSource: url,
			    localSchemaTransform: false,
                responseDataKey: "d",
			    filtering: {
                    defaultFields:[
                        {
                            fieldName: "Price",
                            cond:"GreaterThan",
                            expr: 20
                        }
                    ]
                },
			    schema: {
                    fields: [
                        { name : "Price" },
                        { name : "Name" },
                        { name: "Rating" }
                    ],
                    searchField: "d"
                }
			});

			ds.dataBind();

expressions

Type:: array
Default:: []
Elements Type:: object

A list of expression objects, containing the following key-value pairs: fieldName, expression (search string), condition , and logic (AND/OR).

Code Sample


          var url = "/demos/server/proxy.php?url=http://services.odata.org/OData/OData.svc/Products?$format=json";
			ds = new $.ig.RemoteDataSource({
                dataSource: url,
			    localSchemaTransform: false,
                responseDataKey: "d",
			    filtering: {
                    expressions:[
                        {
                            fieldName: "Price",
                            cond:"GreaterThan",
                            expr: 20
                        }
                    ]
                },
			    schema: {
                    fields: [
                        { name : "Price" },
                        { name : "Name" },
                        { name: "Rating" }
                    ],
                    searchField: "d"
                }
			});

			ds.dataBind();

exprString

Type:: string
Default:: ""

An "SQL-like' encoded expressions string. Takes precedence over "expressions". Example: col2 > 100; col2 LIKE %test%.

Code Sample

 var render = function (success, error) {
		                    if (success) {
                          var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
                          resultHtml = $.ig.tmpl(template, ds.dataView());
                          $("#table").html(resultHtml);

		                    } else {
			                    alert(error);
		                    }
	                    }

                    var ds;

                    $(function () {
	                    ds = new $.ig.RemoteDataSource({
		                    callback: render,
		                    dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                        responseDataKey : "d.results",
	                        responseDataType: "jsonp",
		                    schema: {
			                    fields: [{
				                    name: "Name"
			                    }, {
				                    name: "Price"
			                    }, {
				                    name: "Rating"
			                    }],
			                    searchField: "d"
		                    },
		                    filtering: {
			                    type: "remote",
			                    exprString: "Name LIKE Cr%"
		                    }
	                    });
	                    ds.dataBind();
                    });

filterExprUrlKey

Type:: string
Default:: null

Url key that will be encoded in the request if remote filtering is performed. Default value of null implies OData-style URL encoding. Please see http://www.odata.org/developers/protocols/uri-conventions for details.

Code Sample

 var render = function (success, error) {
		                    if (success) {
                          var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
                          resultHtml = $.ig.tmpl(template, ds.dataView());
                          $("#table").html(resultHtml);

		                    } else {
			                    alert(error);
		                    }
	                    }

                    var ds;

                    $(function () {
	                    var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
	                    ds = new $.ig.RemoteDataSource({
		                    callback: render,
		                    dataSource: url,
		                    schema: {
			                    fields: [{
				                    name: "Name"
			                    }, {
				                    name: "Price"
			                    }, {
				                    name: "Rating"
			                    }],
			                    searchField: "d"
		                    },
		                    responseDataKey: "d",
		                    responseDataType: "jsonp",
		                    filtering: {
			                    type: "remote",
			                    filterExprUrlKey: "filter",
			                    expressions: [{
				                    fieldName: "Name",
				                    cond: "Contains",
				                    expr: "Cr"
			                    }]
		                    }
	                    });
	                    ds.dataBind();
                    });

filterLogicUrlKey

Type:: string
Default:: filterlogic

Url key that will be encoded in the request, specifying if the filtering logic will be AND or OR.

Code Sample

 var render = function (success, error) {
		                    if (success) {
                          var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
                          resultHtml = $.ig.tmpl(template, ds.dataView());
                          $("#table").html(resultHtml);

		                    } else {
			                    alert(error);
		                    }
	                    }

                    var ds;

                    $(function () {
	                    var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
	                    ds = new $.ig.RemoteDataSource({
		                    callback: render,
		                    dataSource: url,
		                    schema: {
			                    fields: [{
				                    name: "Name"
			                    }, {
				                    name: "Price"
			                    }, {
				                    name: "Rating"
			                    }],
			                    searchField: "d"
		                    },
		                    responseDataKey: "d",
		                    responseDataType: "jsonp",
		                    filtering: {
			                    type: "remote",
			                    filterLogicUrlKey: "testFilterLogicUrlKey",
			                    expressions: [{
				                    fieldName: "Name",
				                    cond: "Contains",
				                    expr: "Cr",
				                    logic: "OR"
			                    }]
		                    }
	                    });
	                    ds.dataBind();
                    });

type

Type:: enumeration
Default:: remote

Filtering type.

Members

remote
Type:string
Parameters will be encoded and it's up to the backend to interpred them from the response.
local
Type:string
The data will be filtered automatically client-side.

Code Sample


             jsonDs = new $.ig.RemoteDataSource({
                filtering: {
                    type: "local",
                    caseSensitive: true,
                    applyToAllData: true
                },
                dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	            responseDataKey : "d.results",
	            responseDataType: "jsonp"
			}).dataBind();

id

Type:

string

Default:

ds
Setting this is only necessary when the data source is set to a table in string format. we need to create an invisible dummy data container in the body and append the table data to it.
Code Sample
```
 var ds = $.ig.RemoteDataSource({
	                id: "myId"
                });
```

localSchemaTransform

Type:: bool
Default:: true

If set to false will disable transformations on schema, even if it is defined locally in the javascript code.

Code Sample


            var ds = new $.ig.RemoteDataSource({
                dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	            responseDataKey : "d.results",
	            responseDataType: "jsonp",
			    localSchemaTransform: false,
                responseDataKey: "d"
            });

outputResultsName

Type:: string
Default:: null

This is the property in the dataView where actual resulting records will be put. (So the dataView will not be array but an object if this is defined), after the potential data source transformation.

Code Sample

 var render = function (success, error) {
		                if (success) {
                      var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
                      resultHtml = $.ig.tmpl(template, ds.dataView());
                      $("#table").html(resultHtml);

		                } else {
			                alert(error);
		                }
	                }
                var ds;
                $(function () {
	                var ds = new $.ig.RemoteDataSource({
		                callback: render,
		                dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                    responseDataKey : "d.results",
	                    responseDataType: "jsonp",
		                schema: {
			                fields: [{
				                name: "Name"
			                }, {
				                name: "Price"
			                }, {
				                name: "Rating"
			                }],
			                searchField: "d"
		                },
		                outputResultsName: "myOutputResultsName"
	                });
	                ds.dataBind();
                });

paging

Type:: object
Default:: {}

Settings related to built-in paging functionality.

Code Sample

 $(function () {
					ds = new $.ig.RemoteDataSource({
						dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                    responseDataKey : "d.results",
	                    responseDataType: "jsonp",
						paging: {
							enabled : true,
							pageSize: 5,
							type: "local"
						}
					});

					ds.dataBind();
				});

appendPage

Type:: bool
Default:: false

Whether when a new page of data is requested we should append the new data to the existing data.

Code Sample


               var ds = new $.ig.RemoteDataSource({
						    dataSource: products,
						    paging: {
							    enabled: true,
								appendPage : true
						    }
				        });

enabled

Type:: bool
Default:: false

Paging is not enabled by default.

Code Sample

 ds = new $.ig.RemoteDataSource({
						type: "json",
						dataSource: adventureWorks,
						responseDataKey: "Records",
						paging: {
							enabled : true
						}
					});

pageIndex

Type:: number
Default:: 0

Current page index.

Code Sample


                  ds = new $.ig.RemoteDataSource({
	                dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                responseDataKey : "d.results",
	                responseDataType: "jsonp",
					paging:
                    {
                        enabled : true,
                        pageIndex: 2
                    }
                });

pageIndexUrlKey

Type:: string
Default:: null

Denotes the name of the encoded URL parameter that will state what is the currently requested page index.

Code Sample


                     var ds = new $.ig.RemoteDataSource({
	                    dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                    responseDataKey : "d.results",
	                    responseDataType: "jsonp",
	                    paging: {
		                    enabled: true,
		                    pageIndex: 2,
		                    pageIndexUrlKey: "myPageIndexUrlKey"
	                    }
                    });

pageSize

Type:: number
Default:: 5

Number of records on each page.

Code Sample

 ds = new $.ig.RemoteDataSource({
	                    dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                    responseDataKey : "d.results",
	                    responseDataType: "jsonp",
						paging: {
							enabled : true,
							pageSize: 5
						}
					});

pageSizeUrlKey

Type:: string
Default:: null

Denotes the name of the encoded URL parameter that will state what is the currently requested page size.

Code Sample

 var ds = new $.ig.RemoteDataSource({
	                    dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                    responseDataKey : "d.results",
	                    responseDataType: "jsonp",
 	                    paging: {
 		                    enabled: true,
 		                    pageSize: 5,
 		                    pageSizeUrlKey: "myPageSizeUrlKey",
 	                    }
                     });

type

Type:: enumeration
Default:: remote

Type for the paging operation .

Members

local
Type:string
Data is paged client-side.
remote
Type:string
A remote request is done and URL params encoded.

Code Sample

 ds = new $.ig.RemoteDataSource({
	                    dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                    responseDataKey : "d.results",
	                    responseDataType: "jsonp",
						paging: {
							enabled : true,
							type: "local"
						}
					});

primaryKey

Type:: string
Default:: null

The unique field identifier.

Code Sample

 $(function () {
					ds = new $.ig.RemoteDataSource({
                        primaryKey: "CustomerID",
	                    dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                    responseDataKey : "d.results",
	                    responseDataType: "jsonp"
					});

					ds.dataBind();
			    });

requestType

Type:: string
Default:: get

Specifies the HTTP verb to be used to issue the request.

Code Sample


                    var ds = new $.ig.RemoteDataSource({
	                    dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                    responseDataKey : "d.results",
	                    responseDataType: "jsonp",
                        requestType: "get",
 	                    responseContentType: "text/javascript;charset=utf-8"
                    });

responseContentType

Type:: string
Default:: null

Content type of the response. See http://api.jquery.com/jQuery.ajax/ => contentType.

Code Sample

 var ds = new $.ig.RemoteDataSource({
	                dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                responseDataKey : "d.results",
	                responseDataType: "jsonp",
 	                responseContentType: "text/javascript;charset=utf-8"
                 });

responseDataKey

Type:: string
Default:: null

Property in the response which specifies where the data records array will be held (if the response is wrapped).

Code Sample


                var ds = new $.ig.RemoteDataSource({
	                dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                responseDataKey : "d.results",
	                responseDataType: "jsonp"
                 });

responseDataType

Type:: enumeration
Default:: null

Response type when a URL is set as the data source. See http://api.jquery.com/jQuery.ajax/ => dataType .

Members

json
Type:string
xml
Type:string
html
Type:string
script
Type:string
jsonp
Type:string
text
Type:string

Code Sample


                var ds = new $.ig.RemoteDataSource({
	                dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                responseDataKey : "d.results",
	                responseDataType: "jsonp"
                });

responseTotalRecCountKey

Type:: string
Default:: null

Property in the response which specifies the total number of records in the backend (this is needed for paging).

Code Sample


                var ds = new $.ig.RemoteDataSource({
	                dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                responseDataKey : "d.results",
	                responseDataType: "jsonp",
 	                responseTotalRecCountKey: "9"
                 });

rowAdded

Type:

function

Default:

null
A function to call when row is added.
Function takes first argument item and second argument dataSource.
Use item.row to obtain reference to the added row.
Use item.rowId to get the row ID.
Use dataSource to obtain reference to $.ig.DataSource.
Code Sample
```
 $.ig.RemoteDataSource({
                        rowAdded: function (item, dataSource) {…}
                     });
```
rowDeleted

Type:

function

Default:

null
A function to call when row is deleted.
Use item.row to obtain reference to the deleted row.
Use item.rowId to get the row ID.
Use item.rowIndex to get the row index.
Use dataSource to obtain reference to $.ig.DataSource.
Code Sample
```
  $.ig.RemoteDataSource({
                        rowDeleted: function (item, dataSource) {…}
                     });
```
rowInserted

Type:

function

Default:

null
A function to call when row is inserted.
Function takes first argument item and second argument dataSource.
Use item.row to obtain reference to the inserted row.
Use item.rowId to get the row ID.
Use item.rowIndex to get the row index.
Use dataSource to obtain reference to $.ig.DataSource.
Code Sample
```
 $.ig.RemoteDataSource({
                        rowInserted: function (item, dataSource) {…}
                     });
```
rowUpdated

Type:

function

Default:

null
A function to call when row is updated (edited).
Function takes first argument item and second argument dataSource.
Use item.rowIndex to get the row index.
Use item.newRow to obtain reference to the updated row.
Use item.oldRow to obtain reference to the row that was updated.
Use dataSource to obtain reference to $.ig.DataSource.
Code Sample
```
 $.ig.RemoteDataSource({
                        rowUpdated: function (item, dataSource) {…}
                     });
```

schema

Type:: object
Default:: null

A schema object that defines which fields from the data to bind to.

Code Sample


              var jsonSchema = new $.ig.DataSchema("json", { fields: [
				{ name: "ID", type: "number" },
				{ name: "Name", type: "string" },
				{ name: "Rating", type: "string" }],
				    searchField: "d.results" });

				ds = new $.ig.RemoteDataSource({
                    dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                responseDataType: "jsonp"
                    schema: jsonSchema
                });
				ds.dataBind();

serializeTransactionLog

Type:

bool

Default:

true
If true, will serialize the transaction log of updated values - if any - whenever commit is performed via a remote request.
Code Sample
```
 $.ig.RemoteDataSource({
                        serializeTransactionLog: false
                     });
```

sorting

Type:: object
Default:: {}

Settings related to built-in sorting functionality.

Code Sample

 $(function () {
					ds = new $.ig.RemoteDataSource({
                        dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                    responseDataKey : "d.results",
	                    responseDataType: "jsonp"
                        sorting: {
                            type: "local",
                            caseSensitive: true
                        }
					});

					ds.dataBind();
				});

applyToAllData

Type:: bool
Default:: true

If the sorting type is local and applyToAllData is true, sorting will be performed on the whole data source that's present locally, otherwise only on the current dataView. If sorting type is remote, this setting doesn't have any effect.

Code Sample


                  jsonDs = new $.ig.RemoteDataSource({
                    sorting: {
                        type: "local",
                        applyToAllData: true
                    },
                    dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                responseDataKey : "d.results",
	                responseDataType: "jsonp"
                }).dataBind();

caseSensitive

Type:: bool
Default:: false

Specifies if sorting will be case sensitive or not. Works only for local sorting.

Code Sample


					        ds = new $.ig.RemoteDataSource({
                                sorting: {
                                    type: "local",
                                    caseSensitive: true
                                },
                                dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                            responseDataKey : "d.results",
	                            responseDataType: "jsonp"
					        });

compareFunc

Type:: object
Default:: null

Custom comparison sorting function. Accepts two values and returns a value 0 indicating that values are equal, 1 indicating that val1 > val2 and -1 indicating that val1 < val2.

Code Sample

 var render = function (success, error) {
		                    if (success) {
                          var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
                          resultHtml = $.ig.tmpl(template, ds.dataView());
                          $("#table").html(resultHtml);

		                    } else {
			                    alert(error);
		                    }
	                    }

                    var myCompareFunc = function (fields, schema, reverse, convertf) {
		                    return function (val1, val2) {
			                    if (val1.Price > val2.Price) {
				                    return 1;
			                    }

			                    if (val1.Price < val2.Price) {
				                    return -1;
			                    }

			                    return 0;
		                    }
	                    }

                    var ds;
                    $(function () {
	                    var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
	                    ds = new $.ig.RemoteDataSource({
		                    callback: render,
		                    dataSource: url,
		                    schema: {
			                    fields: [{
				                    name: "Name"
			                    }, {
				                    name: "Price"
			                    }, {
				                    name: "Rating"
			                    }],
			                    searchField: "d"
		                    },
		                    responseDataKey: "d",
		                    responseDataType: "jsonp",
		                    sorting: {
			                    type: "local",
			                    compareFunc: myCompareFunc,
			                    defaultFields: [{
				                    fieldName: "Price"
			                    }]
		                    }
	                    });
	                    ds.dataBind();
                    });

customConvertFunc

Type:: object
Default:: null

Custom data value conversion function. Accepts a value and should return the converted value.

Code Sample


                      var render = function (success, error) {
		                    if (success) {
                          var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
                          resultHtml = $.ig.tmpl(template, ds.dataView());
                          $("#table").html(resultHtml);

		                    } else {
			                    alert(error);
		                    }
	                    }

                    var myCompareFunc = function (fields, schema, reverse, convertf) {
		                    return function (obj1, obj2) {
			                    a = convertf(obj1);
			                    b = convertf(obj2);

			                    if (a > b) {
				                    return 1;
			                    }

			                    if (a < b) {
				                    return -1;
			                    }

			                    return 0;
		                    }
	                    }

                    var myCustomConvertFunc = function (obj) {
		                    return obj.Price;
	                    }

                    var ds;
                    $(function () {
	                    var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
	                    ds = new $.ig.RemoteDataSource({
		                    callback: render,
		                    dataSource: url,
		                    schema: {
			                    fields: [{
				                    name: "Name"
			                    }, {
				                    name: "Price"
			                    }, {
				                    name: "Rating"
			                    }],
			                    searchField: "d"
		                    },
		                    responseDataKey: "d",
		                    responseDataType: "jsonp",
		                    sorting: {
			                    type: "local",
			                    compareFunc: myCompareFunc,
			                    customConvertFunc: myCustomConvertFunc,
			                    defaultFields: [{
				                    fieldName: "Price"
			                    }]
		                    }
	                    });
	                    ds.dataBind();
                    });

customFunc

Type:: object
Default:: null

Custom sorting function that can point to either a string or a function object. When the function is called, the following arguments are passed: data array, fields (array of field definitions) , direction ("asc" or "desc"). The function should return a sorted data array.

Code Sample


                      var render = function (success, error) {
		                    if (success) {
                          var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
                          resultHtml = $.ig.tmpl(template, ds.dataView());
                          $("#table").html(resultHtml);

		                    } else {
			                    alert(error);
		                    }
	                    }

                    var myCustomFunc = function (data, fields, direction) {
		                    function myCompareFunc(obj1, obj2) {
			                    if (direction == "desc") {
				                    return obj2[fields[0].fieldName] - obj1[fields[0].fieldName];
			                    }

			                    return obj1[fields[0].fieldName] - obj2[fields[0].fieldName];
		                    }
		                    var result = data.sort(myCompareFunc);
		                    return result;
	                    }

                    var ds;
                    $(function () {
	                    var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
	                    ds = new $.ig.RemoteDataSource({
		                    callback: render,
		                    dataSource: url,
		                    schema: {
			                    fields: [{
				                    name: "Name"
			                    }, {
				                    name: "Price"
			                    }, {
				                    name: "Rating"
			                    }],
			                    searchField: "d"
		                    },
		                    responseDataKey: "d",
		                    responseDataType: "jsonp",
		                    sorting: {
			                    type: "local",
			                    customFunc: myCustomFunc,
			                    defaultFields: [{
				                    fieldName: "Price"
			                    }],
			                    defaultDirection: "desc"
		                    }
	                    });
	                    ds.dataBind();
                    });

defaultDirection

Type:: enumeration
Default:: none

Sorting direction .

Members

none
Type:string
asc
Type:string
desc
Type:string

Code Sample


                  jsonDs = new $.ig.RemoteDataSource({
                    sorting: {
                        type: "local",
                        defaultDirection: "asc"
                    },
                    dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                responseDataKey : "d.results",
	                responseDataType: "jsonp"
                }).dataBind();

defaultFields

Type:: array
Default:: []
Elements Type:: object

When defaultDirection is different than "none", and defaultFields is specified, data will be initially sorted accordingly, directly after dataBind().

Code Sample

 var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
	                var ds = new $.ig.RemoteDataSource({
		                dataSource: url,
		                schema: {
			                fields: [{
				                name: "Name"
			                }, {
				                name: "Price"
			                }, {
				                name: "Rating"
			                }],
			                searchField: "d"
		                },
		                responseDataKey: "d",
		                responseDataType: "jsonp",
		                sorting: {
			                type: "local",
			                defaultFields: [{
				                fieldName: "Price"
			                }]
		                }
	                });

expressions

Type:: array
Default:: []
Elements Type:: object

A list of sorting expressions , consisting of the following keys (and their respective values): fieldName and direction.

Code Sample


           var ds = new $.ig.RemoteDataSource({
                dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	            responseDataKey : "d.results",
	            responseDataType: "jsonp"
			    localSchemaTransform: false,
			    sorting: {
                    expressions:[
                        {
                            fieldName:"Rating",
                            dir:"asc"},
                        {
                            fieldName:"Price", dir:"asc"
                        }
                    ]},
			});

exprString

Type:: string
Default:: ""

Takes precedence over experssions, an "SQL-like" encoded expressions string : see sort(). Example col2 > 100 ORDER BY asc.

Code Sample


            function sortRemote() {
			    ds.settings.sorting.type = "remote";

			    // remote sort
			    ds.settings.sorting.exprString = "GNP " + dir;
			    ds.dataBind();
		    }

sortUrlAscValueKey

Type:: string
Default:: null

URL param value for ascending type of sorting. Default is null and uses OData conventions.

Code Sample


	                var ds = new $.ig.RemoteDataSource({
		                dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                    responseDataKey : "d.results",
	                    responseDataType: "jsonp",
		                sorting: {
			                type: "local",
			                sortUrlAscValueKey: "mySortUrlAscValueKey"
		                }
	                });

sortUrlDescValueKey

Type:: string
Default:: null

URL param value for descending type of sorting. Default is null and uses OData conventions.

Code Sample


	                var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
	                var ds = new $.ig.RemoteDataSource({
		                callback: render,
		                dataSource: url,
		                schema: {
			                fields: [
				                {name: "Name"},
				                {name: "Price"},
				                {name: "Rating"}
			                ],
			                searchField: "d"
		                },
		                responseDataKey: "d",
		                responseDataType: "jsonp",
		                sorting: {
			                type: "local",
			                sortUrlDescValueKey: "mySortUrlDescValueKey"
		                }
	                });

sortUrlKey

Type:: string
Default:: null

URL param name which specifies how sorting expressions will be encoded in the URL. Default is null and uses OData conventions.

Code Sample

	                var ds = new $.ig.RemoteDataSource({
		                dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                    responseDataKey : "d.results",
	                    responseDataType: "jsonp",
		                sorting: {
			                type: "local",
			                sortUrlDescValueKey: "mySortUrlDescValueKey"
		                }
	                });

type

Type:: enumeration
Default:: remote

Specifies whether sorting will be applied locally or remotely (via a remote request) .

Members

remote
Type:string
local
Type:string

Code Sample


					        ds = new $.ig.RemoteDataSource({
						        dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                            responseDataKey : "d.results",
	                            responseDataType: "jsonp"
                                sorting: {
                                    type: "local",
                                    caseSensitive: true
                                }
					        });

summaries

Type:: object
Default:: {}

Settings related to built-in summaries functionality.

Code Sample


	            var ds = new $.ig.RemoteDataSource({
		            schema: {
			            fields: [{
				            name: "Name"
			            }, {
				            name: "Price"
			            }, {
				            name: "Rating"
			            }],
			            searchField: "d"
		            },
		            summaries: {
			            type: "remote",
			            columnSettings: [{
				            columnKey: "Price",
				            allowSummaries: false,
				            summaryOperands: [{
					            type: "count",
					            active: true,
					            order: 0
				            }]
			            }],
			            summariesResponseKey: "d"
		            },
                    dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                responseDataKey : "d.results",
	                responseDataType: "jsonp"
	            });

columnSettings

Type:: array
Default:: []
Elements Type:: object

A list of column settings that specifies custom summaries options per column basis.

Code Sample


                    var ds = new $.ig.RemoteDataSource({
	                    dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                    responseDataKey : "d.results",
	                    responseDataType: "jsonp"
	                    summaries: {
		                    columnSettings: [{
			                    columnKey: "Price",
			                    allowSummaries: false,
			                    summaryOperands: [{
				                    type: "count",
				                    active: true,
				                    order: 0
			                    }]
		                    }]
	                    }

                    });

summariesResponseKey

Type:: string
Default:: summaries

Key for retrieving data from the summaries response - used only when summaries are remote.

Code Sample


                    var ds = new $.ig.RemoteDataSource({
	                    dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                    responseDataKey : "d.results",
	                    responseDataType: "jsonp"
	                    summaries: {
		                    summariesResponseKey: "d"
	                    }

                    });

summaryExecution

Type:: enumeration
Default:: afterfilteringandpaging

Determines when the summary values are calculated .

Members

priortofilteringandpaging
Type:string
afterfilteringbeforepaging
Type:string
afterfilteringandpaging
Type:string

Code Sample

                    var ds = new $.ig.RemoteDataSource({
	                    dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                    responseDataKey : "d.results",
	                    responseDataType: "jsonp"
	                    summaries: {
		                    summaryExecution: "priortofilteringandpaging"
	                    }

                    });

summaryExprUrlKey

Type:: string
Default:: summaries

Url key for retrieving data from response - used only when summaries are remote.

Code Sample

                    var ds = new $.ig.RemoteDataSource({
	                    dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                    responseDataKey : "d.results",
	                    responseDataType: "jsonp",
	                    summaries: {
		                    summaryExprUrlKey: "mySummaries"
	                    }
                    });

type

Type:: enumeration
Default:: remote

Specifies whether summaries will be applied locally or remotely (via a remote request) .

Members

remote
Type:string
A remote request is done and URL params encoded.
local
Type:string
Data is paged client-side.

Code Sample

 var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
	                var ds = new $.ig.RemoteDataSource({
		                summaries: {
			                type: "remote"
		                },
                        dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                    responseDataKey : "d.results",
	                    responseDataType: "jsonp"
	                });

type

Type:

enumeration

Default:

unknown
Type of the data source .
Members
- json
- Type:string
- Specifies that the data source is an already evaluated JSON (JavaScript object/array) or a string that can be evaluated to JSON.
- xml
- Type:string
- Specifies that the data source is a XML Document object or a string that can be evaluated to XML.
- unknown
- Type:string
- Specifies that the data source is of unknown type. In that case it will be analyzed and automatically detected if possible.
- array
- Type:string
- Specifies that the data source is a simple array of objects.
- htmlTableString
- Type:string
- Specifies that the data source points to a string that represents a HTML table.
- htmlTableId
- Type:string
- Specifies that the data source points to an ID of a HTML Table element that's loaded on the page.
- htmlTableDom
- Type:string
- The data source points to a DOM object that is of TABLE type.
- invalid
- Type:string
- Set whenever data source is analyzed (in case its type is unknown) and the type cannot be detected.
- remoteUrl
- Type:string
- Specifies that the data source points to a remote URL, from which data will be retrieved using an AJAX call ($.ajax).
- empty
- Type:string
Code Sample
```

					ds = new $.ig.RemoteDataSource({
	                    dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                    responseDataKey : "d.results",
	                    responseDataType: "jsonp"
					});

```

updateUrl

Type:: string
Default:: null

Specifies an update remote URL, to which an AJAX request will be made as soon as saveChages() is called.

Code Sample

	            var ds = new $.ig.RemoteDataSource({
		            updateUrl: "http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?",
	            });

urlParamsEncoded

Type:: object
Default:: null

Event that is fired after URL parameters are encoded (When a remote request is done). Can point to a function name or the function object itself.

Code Sample


                  var render = function (success, error) {
		                if (success) {
                      var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
                      resultHtml = $.ig.tmpl(template, ds.dataView());
                      $("#table").html(resultHtml);

		                } else {
			                alert(error);
		                }
	                }

                var myUrlParamsEncoded = function (item, params) {
		                alert("myUrlParamsEncoded");
	                }

                var ds;
                $(function () {
	                var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
	                ds = new $.ig.RemoteDataSource({
		                callback: render,
		                dataSource: url,
		                schema: {
			                fields: [{
				                name: "Name"
			                }, {
				                name: "Price"
			                }, {
				                name: "Rating"
			                }],
			                searchField: "d"
		                },
		                responseDataKey: "d",
		                responseDataType: "jsonp",
		                urlParamsEncoded: myUrlParamsEncoded
	                });
	                ds.dataBind();
                });

urlParamsEncoding

Type:: object
Default:: null

Event that is fired before URL parameters are encoded. Can point to a function name or the function object itself.

Code Sample


                  var render = function (success, error) {
		                if (success) {
                      var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
                      resultHtml = $.ig.tmpl(template, ds.dataView());
                      $("#table").html(resultHtml);

		                } else {
			                alert(error);
		                }
	                }

                var myUrlParamsEncoding = function (item, params) {
		                alert("myUrlParamsEncoding");
	                }

                var ds;
                $(function () {
	                var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
	                ds = new $.ig.RemoteDataSource({
		                callback: render,
		                dataSource: url,
		                schema: {
			                fields: [{
				                name: "Name"
			                }, {
				                name: "Price"
			                }, {
				                name: "Rating"
			                }],
			                searchField: "d"
		                },
		                responseDataKey: "d",
		                responseDataType: "jsonp",
		                urlParamsEncoding: myUrlParamsEncoding
	                });
	                ds.dataBind();
                });

The current widget has no events.

Show Details

 ig.RemoteDataSource

new $.ig.RemoteDataSource( options:object );

options
Type:object

Code Sample

 var remoteDataSource = new $.ig.RemoteDataSource({
	                    responseDataType: "jsonp",
	                    dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                    responseDataKey: "d"
                    });

 addNode

.addNode( data:object );
Adds a new node to the tree data source. Creates a transaction that can be committed / rolled back.
- data
- Type:object
- the transaction data.

 addRow

.addRow( rowId:object, rowObject:object, autoCommit:bool );
Return Type:: object
Return Type Description:: . The transaction object that was created.

Adds a new row to the data source. Creates a transaction that can be committed / rolled back.

rowId
Type:object
the record key - primaryKey (string) or index (number).
rowObject
Type:object
the new record data. .
autoCommit
Type:bool
if autoCommit is true, the datasource will be updated automatically and the transaction is still stored in the accumulated transaction log.

Code Sample

 var ds;

            var render = function (success, error) {
	            if (success) {

		            ds.addRow(123, {Name : "CD Player", Price : "40", Rating : "4"}, true);
                var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
                resultHtml = $.ig.tmpl(template, ds.dataView());
                $("#table").html(resultHtml);
	            } else {
		            alert(error);
	            }
            }



            $(function () {
	            var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
	            ds = new $.ig.RemoteDataSource({
		            callback: render,
		            dataSource: url,
		            schema: {
			            fields: [
				            {name: "Name"},
				            {name: "Price"},
				            {name: "Rating"}
			            ],
			            searchField: "d"
		            },
		            responseDataKey: "d",
		            responseDataType: "jsonp"
	            });
	            ds.dataBind();

            });

 allTransactions

.allTransactions( );
Return Type:: array

Returns a list of all transaction objects that are either pending, or have been committed in the data source.

Code Sample

 var ds;

            var render = function (success, error) {
		            if (success) {

			            ds.addRow(123, {
				            Name: "CD Player",
				            Price: "40",
				            Rating: "4"
			            }, true);
			            console.log(ds.allTransactions());
                  var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
                  resultHtml = $.ig.tmpl(template, ds.dataView());
                  $("#table").html(resultHtml);

		            } else {
			            alert(error);
		            }
	            }



            $(function () {
	            var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
	            ds = new $.ig.RemoteDataSource({
		            callback: render,
		            dataSource: url,
		            schema: {
			            fields: [{
				            name: "Name"
			            }, {
				            name: "Price"
			            }, {
				            name: "Rating"
			            }],
			            searchField: "d"
		            },
		            responseDataKey: "d",
		            responseDataType: "jsonp"
	            });
	            ds.dataBind();

            });

 analyzeDataSource

.analyzeDataSource( );
Return Type:: string

Analyzes the dataSource setting to automatically determine the type of the data source. Returns the data source type. See settings.type.

Code Sample

 var ds;

            var render = function (success, error) {
		            if (success) {

			            console.log(ds.analyzeDataSource());
                  var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
                  resultHtml = $.ig.tmpl(template, ds.dataView());
                  $("#table").html(resultHtml);

		            } else {
			            alert(error);
		            }
	            }

            $(function () {
	            var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
	            ds = new $.ig.RemoteDataSource({
		            callback: render,
		            dataSource: url,
		            schema: {
			            fields: [{
				            name: "Name"
			            }, {
				            name: "Price"
			            }, {
				            name: "Rating"
			            }],
			            searchField: "d"
		            },
		            responseDataKey: "d",
		            responseDataType: "jsonp"
	            });
	            ds.dataBind();
            });

 clearLocalFilter

.clearLocalFilter( );
This clears local filtering applied to the data view by resetting it to the original data and applying any paging.
Code Sample
```

		ds.clearLocalFilter();

```
 clearLocalSorting

.clearLocalSorting( );
This clears local sorting applied to the data view by resetting it to the original data and applying any paging.
Code Sample
```

		ds.clearLocalSorting();

```

 commit

.commit( [id:number] );

Update the data source with every transaction from the log.

id
Type:number
Optional
Id of the transaction to commit. If no id is specified, will commit all transactions to the data source.

Code Sample

 var ds;

            var render = function (success, error) {
		            if (success) {

			            ds.addRow(123, {
				            Name: "CD Player",
				            Price: "40",
				            Rating: "4"
			            });
			            ds.commit();
                  var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
                  resultHtml = $.ig.tmpl(template, ds.dataView());
                  $("#table").html(resultHtml);

		            } else {
			            alert(error);
		            }
	            }

            $(function () {
	            var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
	            ds = new $.ig.RemoteDataSource({
		            callback: render,
		            dataSource: url,
		            schema: {
			            fields: [{
				            name: "Name"
			            }, {
				            name: "Price"
			            }, {
				            name: "Rating"
			            }],
			            searchField: "d"
		            },
		            responseDataKey: "d",
		            responseDataType: "jsonp"
	            });

	            ds.dataBind();
            });

 data

.data( );
Return Type:: object

Returns all of the bound data, without taking into account local paging, sorting, filtering, etc.

Code Sample

          var ds;
            var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
            ds = new $.ig.RemoteDataSource({
	            dataSource: url,
	            schema: {
		            fields: [{
			            name: "Name"
		            }, {
			            name: "Price"
		            }, {
			            name: "Rating"
		            }],
		            searchField: "d"
	            },
	            responseDataKey: "d",
	            responseDataType: "jsonp"
            });

            var data = ds.data();

 dataBind

.dataBind( [callback:string], [callee:object] );
Data binds to the current data source data source
databinding works using the following workflow:
1. fire the databinding event
2. based on the data source type (see analyzeDataSource()), do the following:
3. if type is HtmlTable, parse the table and set the data and dataView respectively.
if the type is Function, call it, apply Paging/Filtering/Sorting, and set this._dataView . If the developer wants to do his own paging, filtering or sorting
in that case, then he should handle the PageIndexChanging and/or DataFiltering, and/or ColumnSorting client-side events, and cancel them.
if no paging/sorting/filtering are enabled, use just this._data to save space
if the data source is of type RemoteUrl, use jQuery's $.ajax API to trigger a remote request to the service. Use the param() API to encode the URL
if the data source is invalid, throw an exception
if the analyzed runtime data source type , that is, the result of analyzeDataSource(), is Unknown, check if
the value of settings.type is set to XML or JSON. If string, eval for JSON, and parse for the XML to build the object ree
4. now normalize/transform the data, if a schema is supplied. This inplies any additional data type conversion
5. next, if OpType is Local, apply paging, sorting, and/or filtering to the data, and store the result in this._dataView
6. fire the databound event
.
- callback
- Type:string
- Optional
- callback function .
- callee
- Type:object
- Optional
- callee object on which the callback will be executed. If none is specified, will assume global execution context.
Code Sample
```
 var remoteDataSource = new $.ig.RemoteDataSource({
	                    responseDataType: "jsonp",
	                    dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                    responseDataKey: "d"
                    });

				    ds.dataBind();
```

 dataSource

.dataSource( [ds:object] );
Return Type:: object

Gets/sets the dataSource setting. If no parameter is specified, returns settings.dataSource.

ds
Type:object
Optional
.

Code Sample


var remoteDataSource = new $.ig.RemoteDataSource({
	responseDataType: "jsonp",
	dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	responseDataKey: "d"
});


// Set
ds.dataSource(url);

// Get
var dataSource = ds.dataSource();

 dataSummaries

.dataSummaries( );
Return Type:: object

Returns summaries data.

Code Sample


            var remoteDataSource = new $.ig.RemoteDataSource({
	            responseDataType: "jsonp",
	            dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	            responseDataKey: "d"
            });

            var dataSummaries = ds.dataSummaries();

 dataView

.dataView( );
Return Type:: object

Returns the current normalized/transformed and paged/filtered/sorted data, i.e. the dataView.

Code Sample

 var remoteDataSource = new $.ig.RemoteDataSource({
	            responseDataType: "jsonp",
	            dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	            responseDataKey: "d"
            });

            var dataSummaries = ds.dataView();

 deleteRow

.deleteRow( rowId:object, autoCommit:bool );
Return Type:: object
Return Type Description:: . The transaction object that was created.

Deletes a row from the data source.

rowId
Type:object
the record key - primaryKey (string) or index (number).
autoCommit
Type:bool
if autoCommit is true, the datasource will be updated automatically and the transaction is still stored in the accumulated transaction log.

Code Sample

 var ds;

            var render = function (success, error) {
		            if (success) {

			            ds.deleteRow(0, true);

                  var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
                  resultHtml = $.ig.tmpl(template, ds.dataView());
                  $("#table").html(resultHtml);

		            } else {
			            alert(error);
		            }
	            }



            $(function () {
	            var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
	            ds = new $.ig.RemoteDataSource({
		            callback: render,
		            dataSource: url,
		            schema: {
			            fields: [{
				            name: "Name"
			            }, {
				            name: "Price"
			            }, {
				            name: "Rating"
			            }],
			            searchField: "d"
		            },
		            responseDataKey: "d",
		            responseDataType: "jsonp"
	            });
	            ds.dataBind();

            });

 fields

.fields( [fields:object] );
Return Type:: object
Return Type Description:: if no parameters are specified, returns the existing list of fields.

Sets a list of fields to the data source. If no parameter is specified, just returns the already existing list of fields.

fields
Type:object
Optional
a field has the following format: {key: 'fieldKey', dataType: 'string/number/date' }.

Code Sample

 var ds;

            var render = function (success, error) {
		            if (success) {
                  var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
                  resultHtml = $.ig.tmpl(template, ds.dataView());
                  $("#table").html(resultHtml);

		            } else {
			            alert(error);
		            }
	            }

            $(function () {
	            var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
	            ds = new $.ig.RemoteDataSource({
		            callback: render,
		            dataSource: url,
		            schema: {
			            fields: [{
				            name: "Name"
			            }, {
				            name: "Price"
			            }, {
				            name: "Rating"
			            }],
			            searchField: "d"
		            },
		            responseDataKey: "d",
		            responseDataType: "jsonp",
		            fields: [{
			            key: "Name",
			            dataType: "string"
		            }, {
			            key: "Price",
			            dataType: "number"
		            }, {
			            key: "Rating",
			            dataType: "number"
		            }]
	            });
	            ds.dataBind();
	            var fields = ds.fields();
            });

 filter

.filter( fieldExpressions:object, boolLogic:object, keepFilterState:bool, fieldExpressionsOnStrings:object );
Filters the data source locally. Remote filtering can be performed by just calling dataBind() and setting the settings.filtering.expressions. The result (filtered data) can be obtained by calling dataView()
example: [{fieldName : "firstName", expr: "abc", cond: "StartsWith"}, {fieldName : "lastName"}]
example 2: [{fieldIndex : 1} , {fieldIndex : 2, expr: "a", cond : "contains"}]
expr is the filter expression text , such as "abc", or a regular expression such as *test*
cond is the filtering condition such as startsWith, endsWith, contains, equals, doesNotEqual, doesNotContain
if expr is detected to be a regular expression, the "cond" part is skipped
.
- fieldExpressions
- Type:object
- a list of field expression definitions.
- boolLogic
- Type:object
- boolean logic. Accepted values are AND and OR. .
- keepFilterState
- Type:bool
- if keepFilterState is set to true, it will not discard previous filtering expressions.
- fieldExpressionsOnStrings
- Type:object
Code Sample
```

var remoteDataSource = new $.ig.RemoteDataSource({
	responseDataType: "jsonp",
	dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	responseDataKey: "d"
});
ds.dataBind();

ds.filter([{fieldName : "Color", expr: "Red", cond: "Equals"}], "AND", true);
```

 filterSettings

.filterSettings( [f:object] );

Gets/sets a list of filtering settings.

f
Type:object
Optional
object holding all filtering settings. See settings.filtering.

Code Sample

 var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
            var ds = new $.ig.RemoteDataSource({
	            dataSource: url,
	            schema: {
		            fields: [
			            {name : "Name"},
			            {name : "Price"},
			            {name: "Rating"}
		            ],
		            searchField: "d"
	            },
	            responseDataKey: "d",
	            responseDataType: "jsonp"
            });

            var myFilterSettings = {
	            type: "remote",
	            expressions: [
		            {
			            fieldName: "Name",
			            cond:"Contains",
			            expr: "Cr",
			            logic: "OR"
		            }
	            ]
            };

            // Set
            ds.filterSettings(myFilterSettings);

            // Get
            var filterSettings= ds.filterSettings();

 findRecordByKey

.findRecordByKey( key:string, ds:object );
Return Type:: object
Return Type Description:: a JavaScript object specifying the found record, or null if no record is found.

Returns a record by a specified key (requires that primaryKey is set in the settings).

key
Type:string
Primary key of the record.
ds
Type:object

Code Sample

 var ds;

            var render = function (success, error) {
		            if (success) {
                  var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
                  resultHtml = $.ig.tmpl(template, ds.dataView());
                  $("#table").html(resultHtml);
			            var myObj = ds.findRecordByKey("Milk");
		            } else {
			            alert(error);
		            }
	            }

            $(function () {
	            var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
	            ds = new $.ig.RemoteDataSource({
		            callback: render,
		            dataSource: url,
		            schema: {
			            fields: [{
				            name: "Name"
			            }, {
				            name: "Price"
			            }, {
				            name: "Rating"
			            }],
			            searchField: "d"
		            },
		            responseDataKey: "d",
		            responseDataType: "jsonp",
		            primaryKey: "Name"
	            });
	            ds.dataBind();
            });

 getDetachedRecord

.getDetachedRecord( t:object );
Return Type:: object
Return Type Description:: a copy of a record from the data source.

Returns a standalone object (copy) that represents the commited transactions, but detached from the data source.

t
Type:object
a transaction object.

Code Sample

 var ds;

            $(function () {
	            ds = new $.ig.RemoteDataSource({
		            schema: {
			            fields: [{
				            name: "Name"
			            }, {
				            name: "Price"
			            }, {
				            name: "Rating"
			            }],
		            }
	            });

	            var transactionObject = ds.addRow(123, {
		            Name: "CD Player",
		            Price: "40",
		            Rating: "4"
	            }, true);
	            var detachedObject = ds.getDetachedRecord(transactionObject);
            });

 hasTotalRecordsCount

.hasTotalRecordsCount( hasCount:bool );

Gets / sets if the response from the server contains a property which specifies the total number of records in the server-side backend.

hasCount
Type:bool
specifies if the data source contains a property that denotes the total number of records in the server-side backend.

Code Sample

 var ds;
            $(function () {
	            var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
	            ds = new $.ig.RemoteDataSource({
		            dataSource: url,
		            schema: {
			            fields: [{
				            name: "Name"
			            }, {
				            name: "Price"
			            }, {
				            name: "Rating"
			            }],
			            searchField: "d"
		            },
		            responseDataKey: "d",
		            responseDataType: "jsonp",
		            primaryKey: "Name"
	            });
	            ds.dataBind();
	            // Get
	            var hasTotalRecords = ds.hasTotalRecordsCount();

	            // Set
	            ds.hasTotalRecordsCount(true);
            });

 insertRow

.insertRow( rowId:object, rowObject:object, rowIndex:bool, autoCommit:object );
Return Type:: object
Return Type Description:: . The transaction object that was created.

Adds a new row to the data source. Creates a transaction that can be committed / rolled back.

rowId
Type:object
the record key - primaryKey (string) or index (number).
rowObject
Type:object
the new record data. .
rowIndex
Type:bool
if autoCommit is true, the datasource will be updated automatically and the transaction is still stored in the accumulated transaction log.
autoCommit
Type:object

Code Sample

 var ds;

            var render = function (success, error) {
		            if (success) {

			            ds.insertRow(123, {
				            Name: "CD Player",
				            Price: "40",
				            Rating: "4"
			            }, 1, true);
                  var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
                  resultHtml = $.ig.tmpl(template, ds.dataView());
                  $("#table").html(resultHtml);

		            } else {
			            alert(error);
		            }
	            }



            $(function () {
	            var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
	            ds = new $.ig.RemoteDataSource({
		            callback: render,
		            dataSource: url,
		            schema: {
			            fields: [{
				            name: "Name"
			            }, {
				            name: "Price"
			            }, {
				            name: "Rating"
			            }],
			            searchField: "d"
		            },
		            responseDataKey: "d",
		            responseDataType: "jsonp"
	            });
	            ds.dataBind();


            });

 metadata

.metadata( key:string );
Return Type:: object
Return Type Description:: metadata object.

Returns metadata object for the specified key.

key
Type:string
Primary key of the record.

Code Sample

 var ds;

            var render = function (success, error) {
		            if (success) {
                  var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
                  resultHtml = $.ig.tmpl(template, ds.dataView());
                  $("#table").html(resultHtml);
		            } else {
			            alert(error);
		            }
	            }

            $(function () {
	            var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
	            ds = new $.ig.RemoteDataSource({
		            callback: render,
		            dataSource: url,
		            schema: {
			            fields: [{
				            name: "Name"
			            }, {
				            name: "Price"
			            }, {
				            name: "Rating"
			            }],
			            searchField: "d"
		            },
		            responseDataKey: "d",
		            responseDataType: "jsonp",
		            primaryKey: "Name"
	            });
	            ds.dataBind();

	            var metadata = ds.metadata();

            });

.nextPage( );

Sets the page index to be equal to the next page index and rebinds the data source.

Code Sample


                var ds = new $.ig.RemoteDataSource({
                    paging: {
                        enabled : true,
                        pageSize: 5,
                        type: "local"
                    },
                    responseDataType: "jsonp",
	                dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                responseDataKey: "d"
                });

                ds.nextPage();

 pageCount

.pageCount( );
Return Type:: number
Return Type Description:: total number fo pages.

Returns the total number of pages.

Code Sample

 ds = new $.ig.RemoteDataSource({
                    paging: {
                        enabled : true,
                        pageSize: 5,
                        type: "local"
                    },
                    responseDataType: "jsonp",
	                dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                responseDataKey: "d"
                });

                var count = ds.pageCount();

 pageIndex

.pageIndex( [index:number] );
Return Type:: number
Return Type Description:: the current page index.

Gets /sets the current page index. If an index is passed as a parameter, the data source is re-bound.

index
Type:number
Optional
the page index. If none is specified, returns the current page index.

Code Sample

 ds = new $.ig.RemoteDataSource({
                    paging: {
                        enabled : true,
                        pageSize: 5,
                        type: "local"
                    },
                    responseDataType: "jsonp",
	                dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                responseDataKey: "d"
                });

                //Get
                var currentIndex = ds.pageIndex();

                //Set
                ds.pageIndex(5);

 pageSize

.pageSize( [s:number] );

Gets /sets the page size and rebinds the data source if a parameter is specified. If no parameter is passed, returns the current page size.

s
Type:number
Optional
the page size.

Code Sample

 ds = new $.ig.RemoteDataSource({
                    paging: {
                        enabled : true,
                        pageSize: 5,
                        type: "local"
                    },
                    responseDataType: "jsonp",
	                dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                responseDataKey: "d"
                });

                //Get
                var size = ds.pageSize();

                //Set
                ds.pageSize(25);

 pageSizeDirty

.pageSizeDirty( );

For internal use.

Code Sample

 var ds = new $.ig.RemoteDataSource({
	            paging: {
		            enabled: true,
		            pageSize: 5,
		            type: "local"
	            },
                responseDataType: "jsonp",
	            dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	            responseDataKey: "d"
            });

            ds.pageSizeDirty();

 pagingSettings

.pagingSettings( [p:object] );

Gets/sets a list of paging settings.

p
Type:object
Optional
object holding all paging settings. See settings.paging.

Code Sample

 var ds = new $.ig.RemoteDataSource({
	            paging: {
		            enabled: true,
		            pageSize: 5,
		            type: "local"
	            },
                responseDataType: "jsonp",
	            dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	            responseDataKey: "d"
            });

            var myPagingSettings = {
	            enabled: true,
	            pageSize: 5,
	            pageIndex: 2,
	            pageIndexUrlKey: "myPageIndexUrlKey",
	            type: "local"
            };

            // Set
            ds.pagingSettings(myPagingSettings);

            // Get
            var pagingSettings = ds.pagingSettings();

 pendingTransactions

.pendingTransactions( );
Return Type:: array

Returns a list of all transaction objects that are pending to be committed or rolled back to the data source.

Code Sample

 var ds = new $.ig.RemoteDataSource({
	            schema: {
		            fields: [{
			            name: "Name"
		            }, {
			            name: "Price"
		            }, {
			            name: "Rating"
		            }],
		            searchField: "d"
	            },
                responseDataType: "jsonp",
	            dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	            responseDataKey: "d"
            });
            ds.addRow(123, {
	            Name: "CD Player",
	            Price: "40",
	            Rating: "4"
            });
            var pendingTransactions = ds.pendingTransactions());

.prevPage( );

Sets the page index to be equal to the previous page index and rebinds the data source.

Code Sample

 ds = new $.ig.RemoteDataSource({
                    paging: {
                        enabled : true,
                        pageSize: 5,
                        type: "local"
                    },
                    responseDataType: "jsonp",
	                dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                responseDataKey: "d"
                });

                ds.prevPage();

 recordsForPage

.recordsForPage( p:number );

Returns a list of records for the specified page. Implies that paging is enabled.

p
Type:number
the page index for which records will be returned.

Code Sample

 var ds = new $.ig.RemoteDataSource({
	            paging: {
		            enabled: true,
		            pageSize: 5,
		            type: "local"
	            },
                responseDataType: "jsonp",
	            dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	            responseDataKey: "d"
            });

            var recordsForPage = ds.recordsForPage(2);

 removeNode

.removeNode( data:object );
Removes a node from the tree data source. Creates a transaction that can be committed / rolled back.
- data
- Type:object
- the transaction data.

 removeRecordByIndex

.removeRecordByIndex( index:number, origDs:object );

Removes a record from the data source at specific index.

index
Type:number
index of record.
origDs
Type:object

Code Sample

 var ds = new $.ig.RemoteDataSource({
	            schema: {
		            fields: [{
			            name: "Name"
		            }, {
			            name: "Price"
		            }, {
			            name: "Rating"
		            }],
		            searchField: "d"
	            },
	            responseDataKey: "d",
	            responseDataType: "jsonp"
            });
            ds.addRow(0, {
	            Name: "CD Player",
	            Price: "40",
	            Rating: "4"
            }, true);
            ds.addRow(1, {
	            Name: "CD Player1",
	            Price: "40",
	            Rating: "4"
            }, true);
            ds.addRow(2, {
	            Name: "CD Player2",
	            Price: "40",
	            Rating: "4"
            }, true);

            ds.removeRecordByIndex(0);

 removeRecordByKey

.removeRecordByKey( key:object, origDs:object );

Removes a specific record denoted by the primaryKey of the passed key parameter from the data source.

key
Type:object
primary key of the record.
origDs
Type:object

Code Sample

 var ds = new $.ig.RemoteDataSource({
	            schema: {
		            fields: [{
			            name: "Name"
		            }, {
			            name: "Price"
		            }, {
			            name: "Rating"
		            }],
		            searchField: "d"
	            },
	            responseDataKey: "d",
	            responseDataType: "jsonp",
	            primaryKey: "Name"
            });
            ds.addRow(0, {
	            Name: "CD Player",
	            Price: "40",
	            Rating: "4"
            }, true);
            ds.addRow(1, {
	            Name: "CD Player1",
	            Price: "40",
	            Rating: "4"
            }, true);
            ds.addRow(2, {
	            Name: "CD Player2",
	            Price: "40",
	            Rating: "4"
            }, true);

            ds.removeRecordByKey("CD Player2");

 rollback

.rollback( [id:object] );

Clears the transaction log without updating anything in the data source.

id
Type:object
Optional
Record Id to find transactions for. If no id is specified, will rollback all transactions to the data source.

Code Sample

 var ds = new $.ig.RemoteDataSource({
	            schema: {
		            fields: [{
			            name: "Name"
		            }, {
			            name: "Price"
		            }, {
			            name: "Rating"
		            }],
		            searchField: "d"
	            },
                responseDataType: "jsonp",
	            dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	            responseDataKey: "d",
	            primaryKey: "Name"
            });
            ds.addRow(0, {
	            Name: "CD Player",
	            Price: "40",
	            Rating: "4"
            });
            ds.addRow(1, {
	            Name: "CD Player1",
	            Price: "40",
	            Rating: "4"
            });
            ds.addRow(2, {
	            Name: "CD Player2",
	            Price: "40",
	            Rating: "4"
            });


            ds.rollback();

 saveChanges

.saveChanges( success:function, error:function );

Posts to the settings.updateUrl using $.ajax, by serializing the changes as url params.

success
Type:function
Specifies a custom function to be called when AJAX request to the updateUrl option succeeds(optional).
error
Type:function
Specifies a custom function to be called when AJAX request to the updateUrl option fails(optional).

Code Sample

 var ds = new $.ig.RemoteDataSource({
	            schema: {
		            fields: [{
			            name: "Name"
		            }, {
			            name: "Price"
		            }, {
			            name: "Rating"
		            }]
	            },
	            updateUrl: "http://example.com/myUpdateUrl/"
            });

            ds.addRow(0, {
	            Name: "CD Player",
	            Price: "40",
	            Rating: "4"
            }, true);
            ds.addRow(1, {
	            Name: "CD Player1",
	            Price: "40",
	            Rating: "4"
            }, true);
            ds.addRow(2, {
	            Name: "CD Player2",
	            Price: "40",
	            Rating: "4"
            }, true);

            ds.saveChanges();

 schema

.schema( [s:object], [t:string] );

Gets/sets the schema definition.

s
Type:object
Optional
a schema object .
t
Type:string
Optional
type of the data source. See settings.type.

Code Sample

 var jsonSchema = new $.ig.DataSchema("json", {
	            fields: [{
		            name: "ProductID",
		            type: "number"
	            }, {
		            name: "Name",
		            type: "string"
	            }, {
		            name: "ProductNumber",
		            type: "string"
	            }, {
		            name: "Color",
		            type: "string"
	            }, {
		            name: "StandardCost",
		            type: "string"
	            }],
	            searchField: "Records"
            });

            ds = new $.ig.RemoteDataSource();

            // Set
            ds.schema(jsonSchema);

            // Get
            var myJsonSchema = ds.schema();

 setCellValue

.setCellValue( rowId:object, colId:object, val:object, autoCommit:bool );
Return Type:: object
Return Type Description:: . The transaction object that was created.

Sets a cell value for the cell denoted by rowId and colId. Creates a transaction for the update operation and returns it.

rowId
Type:object
the rowId - row key (string) or index (number).
colId
Type:object
the column id - column key (string) or index (number).
val
Type:object
The new value .
autoCommit
Type:bool
if autoCommit is true, it updates the datasource automatically and the transaction is still stored in the accumulated transaction log.

Code Sample

 var ds = new $.ig.RemoteDataSource({
	            schema: {
		            fields: [{
			            name: "Name"
		            }, {
			            name: "Price"
		            }, {
			            name: "Rating"
		            }]
	            },
	            updateUrl: "http://example.com/myUpdateUrl/"
            });

            ds.addRow(0, {
	            Name: "CD Player",
	            Price: "40",
	            Rating: "4"
            }, true);
            ds.addRow(1, {
	            Name: "CD Player1",
	            Price: "40",
	            Rating: "4"
            }, true);
            ds.addRow(2, {
	            Name: "CD Player2",
	            Price: "40",
	            Rating: "4"
            }, true);

            ds.setCellValue(1, "Name", "DVD Player", true);

 sort

.sort( fields:object, direction:string, keepSortState:bool );
Sorts the data source locally. The result (filtered data) can be obtained by calling dataView(). Remote filtering can be performed by just calling dataBind() and setting the settings.filtering.expressions
multi-column sorting can be enabled by setting keepSortState to true.
fields => an array of fields object definitions:
example: [{fieldName : "firstName"}, {fieldName : "lastName"}]
example 2: [{fieldIndex : 1} , {fieldIndex : 2}]
.
- fields
- Type:object
- an array of fields object definitions.
- direction
- Type:string
- asc / desc direction.
- keepSortState
- Type:bool
- if set to true, enables multi-column sorting, and the previous sorting state is not cleared.
Code Sample
```
 var ds = new $.ig.RemoteDataSource({
                schema: {
                    fields:[
                        { name : "col1" },
                        {
                            name : "col2",
                            type: "number"
                        }
                    ]
                },
				sorting: { type: "local"},
                dataSource: $("#t1")[0]
			}).dataBind();

			ds.sort([{fieldName : "col2"}], "desc", false);
```

 sortSettings

.sortSettings( [s:object] );

Gets/sets a list of paging settings.

s
Type:object
Optional
object holding all sorting settings. See settings.sorting.

Code Sample

 var ds = new $.ig.RemoteDataSource({
	            schema: {
		            fields: [{
			            name: "col1"
		            }, {
			            name: "col2",
			            type: "number"
		            }]
	            }
            }).dataBind();

            var sortSettings = {
	            type: "local",
	            defaultFields: [{
		            fieldName: "col2"
	            }],
	            defaultDirection: "desc"
            };

            // Set
            ds.sortSettings(sortSettings);

            // Get
            var mySortSettings = ds.sortSettings();

 stringToJSONObject

.stringToJSONObject( s:string );
Parses the string and returns an evaluated JSON object.
- s
- Type:string
- the JSON as string.
Code Sample
```
 ds = new $.ig.RemoteDataSource();
            var jsonObj = ds.stringToJSONObject('[{"Name":"CD Player","Price":10.90,"Rating":3}]');
```

 stringToXmlObject

.stringToXmlObject( s:string );

Parses a string and returns a XML Document.

s
Type:string
the XML represented as a string.

Code Sample


            ds = new $.ig.RemoteDataSource();
            var xmlObj = ds.stringToXmlObject("<Element><Name>CD Player</Name><Price>10.90</Price><Rating>3</Rating></Element>");

 summariesResponse

.summariesResponse( key:object, dsObj:object );
Get summaries calculation data from remote response.
- key
- Type:object
- dsObj
- Type:object
Code Sample
```

            var ds = new $.ig.RemoteDataSource();
            ds.summariesResponse("summaries", data);

```

 summariesSettings

.summariesSettings( [s:object] );

Gets/sets a list of summaries settings.

s
Type:object
Optional
object holding all summaries settings. See settings.summaries.

Code Sample

 var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
            var ds = new $.ig.RemoteDataSource({
	            dataSource: url,
	            schema: {
		            fields: [{
			            name: "Name"
		            }, {
			            name: "Price"
		            }, {
			            name: "Rating"
		            }],
		            searchField: "d"
	            },
	            responseDataType: "jsonp",
	            dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	            responseDataKey: "d"
            });

            var mySummariesSettings = {
	            type: "remote",
	            columnSettings: [{
		            columnKey: "Price",
		            allowSummaries: false,
		            summaryOperands: [{
			            type: "count",
			            active: true,
			            order: 0
		            }]
	            }],
	            summariesResponseKey: "d"
            };

            // Set
            ds.summariesSettings(mySummariesSettings);

            // Get
            var summariesSettings = ds.summariesSettings();

 tableToObject

.tableToObject( tableDOM:domelement );
Return Type:: object

Converts a HTML TABLE dom element to a JavaScript array of objects that contain the records data.

tableDOM
Type:domelement
TABLE dom element to transform.

Code Sample

 ds = new $.ig.RemoteDataSource();
            var tableObj = ds.tableToObject("<table><tr><td>CD Player</td><td>10.90</td><td>3</td></tr><tr><td>CD Player 1</td><td>10.90</td><td>3</td></tr><tr><td>CD Player 2</td><td>10.90</td><td>3</td></tr></table>");

 totalLocalRecordsCount

.totalLocalRecordsCount( );
Return Type:: number
Return Type Description:: the number of records that are bound / exist locally.

Returns the total number of records in the local data source.

Code Sample

 ds = new $.ig.RemoteDataSource({
                    responseDataType: "jsonp",
	                dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                responseDataKey: "d"
			    }).dataBind();

            var count = ds.totalLocalRecordsCount();

 totalRecordsCount

.totalRecordsCount( [count:number], key:object, dsObj:object, context:object );
Applicable only when the data source is bound to remote data. Gets / sets the total number of records in the data source. If data binding is remote, and there's paging or filtering enabled, the actual total number of records may not
match the number of records that exists on the client.
- count
- Type:number
- Optional
- the total number of records.
- key
- Type:object
- dsObj
- Type:object
- context
- Type:object
Code Sample
```
 ds = new $.ig.RemoteDataSource({
                    responseDataType: "jsonp",
	                dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	                responseDataKey: "d"
			    }).dataBind();

            //Get
            var count = ds.totalRecordsCount();

            //Set
            ds.totalRecordsCount(42);
```

 transactionsAsString

.transactionsAsString( );
Return Type:: string

Returns the accumulated transaction log as a string. The purpose of this is to be passed to URLs or used conveniently.

Code Sample

 var ds = new $.ig.RemoteDataSource({
            	schema: {
            		fields: [{
            			name: "Name"
            		}, {
            			name: "Price"
            		}, {
            			name: "Rating"
            		}],
            		searchField: "d"
            	},
            	responseDataType: "jsonp",
	            dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	            responseDataKey: "d"
            });
            ds.addRow(123, {
            	Name: "CD Player",
            	Price: "40",
            	Rating: "4"
            });
            var transactionsAsString = ds.transactionsAsString();

 transformedData

.transformedData( transformedExecution:object );
Return Type:: object

Returns transformed data according to transformed execution:
1. Before paging and filtering
2. After filtering before paging
3. After filtering and paging
.

transformedExecution
Type:object

Code Sample

 var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
            var ds = new $.ig.RemoteDataSource({
	            responseDataType: "jsonp",
	            dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	            responseDataKey: "d"
            });

            ds.transformedData("priortofilteringandpaging");

 type

.type( [t:object] );
Gets/sets the type of the dataSource. If no parameter is specified, returns settings.type
returnType="json|xml|unknown|array|function|htmlTableString|htmlTableId|htmlTableDom|invalid|remoteUrl|empty".
- t
- Type:object
- Optional
- .
Code Sample
```
 ds = new $.ig.RemoteDataSource();

            // Set
            ds.type("json");

            // Get
            var myType = ds.type();
```

 updateRow

.updateRow( rowId:object, rowObject:object, autoCommit:bool );
Return Type:: object
Return Type Description:: . The transaction object that was created.

Updates a record in the datasource. Creates a transaction that can be committed / rolled back.

rowId
Type:object
the record key - primaryKey (string) or index (number).
rowObject
Type:object
the record object containing the key/value pairs we want to update. It doesn't have to include key/value pairs for all fields defined in the schema or in the data source (if no schema is defined).
autoCommit
Type:bool
if autoCommit is true, the datasource will be updated automatically and the transaction is still stored in the accumulated transaction log.

Code Sample

 var ds = new $.ig.RemoteDataSource({
	            responseDataType: "jsonp",
	            dataSource: 'http://services.odata.org/OData/OData.svc/Categories?$expand=Products&$format=json&$callback=?',
	            responseDataKey: "d"
            });
            ds.addRow(0, {
	            Name: "CD Player",
	            Price: "40",
	            Rating: "4"
            }, true);
            ds.addRow(1, {
	            Name: "CD Player1",
	            Price: "40",
	            Rating: "4"
            }, true);
            ds.addRow(2, {
	            Name: "CD Player2",
	            Price: "40",
	            Rating: "4"
            }, true);


            ds.updateRow(1, {
	            Name: "DVD Player1",
	            Price: "10",
	            Rating: "5"
            }, true);

Ignite UI Home

Ignite UI API Reference

ig.RemoteDataSource

Code Sample

Related Samples

Related Topics

Dependencies

&nbsp;settings

Code Sample

aggregateTransactions

Code Sample

autoCommit

Code Sample

callback

Code Sample

callee

Code Sample

data

Code Sample

dataBinding

Code Sample

dataBound

Code Sample

dataSource

Code Sample

fields

Code Sample

filtering

Code Sample

applyToAllData

Code Sample

caseSensitive

Code Sample

customFunc

Code Sample

defaultFields

Code Sample

expressions

Code Sample

exprString

Code Sample

filterExprUrlKey

Code Sample

filterLogicUrlKey

Code Sample

type

Members

Code Sample

id

Code Sample

localSchemaTransform

Code Sample

outputResultsName

Code Sample

paging

Code Sample

appendPage

Code Sample

enabled

Code Sample

pageIndex

Code Sample

pageIndexUrlKey

Code Sample

pageSize

Code Sample

pageSizeUrlKey

Code Sample

type

Members

Code Sample

primaryKey

Code Sample

requestType

Code Sample

responseContentType

Code Sample

responseDataKey

Code Sample

responseDataType

settings

ig.RemoteDataSource
