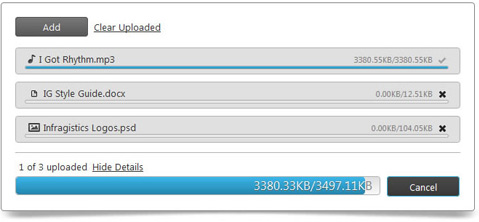

The igUpload control is a jQuery file upload control for ASP.NET and ASP.NET MVC. The control supports multiple file uploads, progress notification, and cancellation. In addition to the client-side jQuery API, refer to the server-side API for information about server-side functionality. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

The following code snippet demonstrates how to initialize the igUpload control.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igUpload control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample

<!doctype html>
<html>
<head>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
    <!-- Infragistics Combined Scripts -->
	<script src="js/infragistics.core.js" type="text/javascript"></script>
	<script src="js/infragistics.lob.js" type="text/javascript"></script>
    <script type="text/javascript" language="javascript">
    $(function () {
        $("#upload").igUpload({
            mode: "single",
            autostartupload: true,
            // to upload a file, you need a server-side handler
            progressUrl: "IGUploadStatusHandler.ashx",
            controlId: "serverID"
        });
    });
    </script>
</head>
<body>
	<div id="upload"></div>
</body>
</html>

Related Samples

allowedExtensions

Type:: string
Default:: []

Get or set file allowed file extensions. When this array is empty - it is not made such validation. Example ["gif", "jpg", "bmp"].

Code Sample


        //Initialize
        $(".selector").igUpload({
            allowedExtensions : ["xls","doc"]
        });

        //Get
        var extensions = $(".selector").igUpload("option", "allowedExtensions");

        //Set
        $(".selector").igUpload("option", "allowedExtensions", ["xls","doc"]);

autostartupload

Type:: bool
Default:: false

Get or set whether the file start upload automatically when it is selected. Default is false.

Code Sample


        //Initialize
        $(".selector").igUpload({
            autostartupload : true
        });

        //Get
        var autoStart = $(".selector").igUpload("option", "autostartupload");

        //Set
        $(".selector").igUpload("option", "autostartupload", true);

controlId

Type:

string

Default:

""
UniqueId of the control - should not be changed by developer. Set from server-side wrapper.
Code Sample
```

        //Initialize
        $(".selector").igUpload({
            controlId: "serverID1"
        });

```

css

Type:: object
Default:: null

Get or set control specific CSS options. For example you can override specific control classes with custom ones.

Code Sample


        //Initialize
        $(".selector").igUpload({
            css: {
                "uploadProgressClass": "customClass"
            }
        });

        //Get
        var css = $(".selector").igUpload("option", "css");

        //Set
        $(".selector").igUpload("option", "css", { "uploadProgressClass": "customClass" });

        <style type="text/css">
           .customHiddenClass { visibility: hidden; }
        </style>

errorMessageAJAXRequestFileSize

Type:: string
Default:: ""

Get or set error message when AJAX Request to get file size throws error.

Code Sample


        //Initialize
        $(".selector").igUpload({
            errorMessageAJAXRequestFileSize : "File must be smaller than 50 mb."
        });

        //Get
        var message = $(".selector").igUpload("option", "errorMessageAJAXRequestFileSize");

        //Set
        $(".selector").igUpload("option", "errorMessageAJAXRequestFileSize", "File must be smaller than 50 mb.");

errorMessageCancelUpload

Type:: string
Default:: ""

Get or set error message when ajax call to send cancel upload command.

Code Sample


        //Initialize
        $(".selector").igUpload({
            errorMessageCancelUpload : "Upload Cancelled"
        });

        //Get
        var message = $(".selector").igUpload("option", "errorMessageCancelUpload");

        //Set
        $(".selector").igUpload("option", "errorMessageCancelUpload", "Upload Cancelled");

errorMessageGetFileStatus

Type:: string
Default:: ""

Get or set error message when ajax call to get file status throws error.

Code Sample


        //Initialize
        $(".selector").igUpload({
            errorMessageGetFileStatus : "Unable to determine upload progress"
        });

        //Get
        var message = $(".selector").igUpload("option", "errorMessageGetFileStatus");

        //Set
        $(".selector").igUpload("option", "errorMessageGetFileStatus", "Unable to determine upload progress");

errorMessageMaxFileSizeExceeded

Type:: string
Default:: ""

Get or set message shown when max file size of the uploaded file exceeds the limit.

Code Sample


        //Initialize
        $(".selector").igUpload({
            errorMessageMaxFileSizeExceeded : "File must be smaller than 50 mb."
        });

        //Get
        var message = $(".selector").igUpload("option", "errorMessageMaxFileSizeExceeded");

        //Set
        $(".selector").igUpload("option", "errorMessageMaxFileSizeExceeded", "File must be smaller than 50 mb.");

errorMessageMaxSimultaneousFiles

Type:: string
Default:: ""

Get or set error message when maximum simultaneous files is less or equal to 0.

Code Sample


        //Initialize
        $(".selector").igUpload({
            errorMessageMaxSimultaneousFiles : "Can only upload 2 files at a time"
        });

        //Get
        var message = $(".selector").igUpload("option", "errorMessageMaxSimultaneousFiles");

        //Set
        $(".selector").igUpload("option", "errorMessageMaxSimultaneousFiles", "Can only upload 2 files at a time");

errorMessageMaxUploadedFiles

Type:: string
Default:: ""

Get or set error message when maximum allowed files exceeded.

Code Sample


        //Initialize
        $(".selector").igUpload({
            errorMessageMaxUploadedFiles : "File upload limit reached"
        });

        //Get
        var message = $(".selector").igUpload("option", "errorMessageMaxUploadedFiles");

        //Set
        $(".selector").igUpload("option", "errorMessageMaxUploadedFiles", "File upload limit reached");

errorMessageNoSuchFile

Type:: string
Default:: ""

Get or set error message when file is not found.

Code Sample


        //Initialize
        $(".selector").igUpload({
            errorMessageNoSuchFile : "File not found"
        });

        //Get
        var message = $(".selector").igUpload("option", "errorMessageNoSuchFile");

        //Set
        $(".selector").igUpload("option", "errorMessageNoSuchFile", "File not found");

errorMessageOther

Type:: string
Default:: ""

Get or set error message different from the other messages.

Code Sample


        //Initialize
        $(".selector").igUpload({
            errorMessageOther : "An error has occurred"
        });

        //Get
        var message = $(".selector").igUpload("option", "errorMessageOther");

        //Set
        $(".selector").igUpload("option", "errorMessageOther", "An error has occurred");

errorMessageTryToRemoveNonExistingFile

Type:: string
Default:: ""

Get or set error message when trying to remove non existing file.

Code Sample


        //Initialize
        $(".selector").igUpload({
            errorMessageTryToRemoveNonExistingFile : "File does not exist"
        });

        //Get
        var message = $(".selector").igUpload("option", "errorMessageTryToRemoveNonExistingFile");

        //Set
        $(".selector").igUpload("option", "errorMessageTryToRemoveNonExistingFile", "File does not exist");

errorMessageTryToStartNonExistingFile

Type:: string
Default:: ""

Get or set error message when trying to start non existing file.

Code Sample


        //Initialize
        $(".selector").igUpload({
            errorMessageTryToStartNonExistingFile : "File does not exist"
        });

        //Get
        var message = $(".selector").igUpload("option", "errorMessageTryToStartNonExistingFile");

        //Set
        $(".selector").igUpload("option", "errorMessageTryToStartNonExistingFile", "File does not exist");

errorMessageValidatingFileExtension

Type:: string
Default:: ""

Get or set error message when file extension validation failed.

Code Sample


        //Initialize
        $(".selector").igUpload({
            errorMessageValidatingFileExtension : "File extension not supported"
        });

        //Get
        var message = $(".selector").igUpload("option", "errorMessageValidatingFileExtension");

        //Set
        $(".selector").igUpload("option", "errorMessageValidatingFileExtension", "File extension not supported");

fileExtensionIcons

Type:: object
Default:: []

Set icon css classes for specified file extension.

Code Sample


        //Initialize
        $(".selector").igUpload({
            fileExtensionIcons: [
                {
                    ext: ["gif", "jpg", "jpeg", "png", "bmp", "yuv", "tif", "thm", "psd"],
                    css: "image-class",
                    def: true
                },
                {
                    ext: ["mp3", "wav", "mp4", "aac", "mid", "wma", "ra", "iff", "aif", "m3u", "mpa"],
                    css: "audio-class",
                    def: false
                }
            ]
        });

        //Get
        var fileExtIcons = $(".selector").igUpload("option", "fileExtensionIcons");

        //Set
        var fileExtIcons = [
            {
                ext: ["gif", "jpg", "jpeg", "png", "bmp", "yuv", "tif", "thm", "psd"],
                css: "image-class",
                def: true
            },
            {
                ext: ["mp3", "wav", "mp4", "aac", "mid", "wma", "ra", "iff", "aif", "m3u", "mpa"],
                css: "audio-class",
                def: false
            }
        ];
        $(".selector").igUpload("option", "fileExtensionIcons", "fileExtIcons");

css

Type:: string
Default:: ""

Css classes which sets icon.

Code Sample

         //Initialize
        $(".selector").igUpload({
            fileExtensionIcons: [
                {
                    ext: ["gif", "jpg", "jpeg", "png", "bmp", "yuv", "tif", "thm", "psd"],
                    css: "image-class",
                    def: true
                },
                {
                    ext: ["mp3", "wav", "mp4", "aac", "mid", "wma", "ra", "iff", "aif", "m3u", "mpa"],
                    css: "audio-class",
                    def: false
                }
            ]
        });

        //Get
        var fileExtIconsCSS = $(".selector").igUpload("option", "fileExtensionIcons")[0].css;

        //Set
        var fileExtIcons = [
            {
                ext: ["gif", "jpg", "jpeg", "png", "bmp", "yuv", "tif", "thm", "psd"],
                css: "image-class",
                def: true
            },
            {
                ext: ["mp3", "wav", "mp4", "aac", "mid", "wma", "ra", "iff", "aif", "m3u", "mpa"],
                css: "audio-class",
                def: false
            }
        ];
        $(".selector").igUpload("option", "fileExtensionIcons", "fileExtIcons");

def

Type:: bool
Default:: false

Default icons when the file extension is not found. It is taken only the first item which have def set to true, other are ignored.

Code Sample


        //Initialize
        $(".selector").igUpload({
            fileExtensionIcons: [
                {
                    ext: ["gif", "jpg", "jpeg", "png", "bmp", "yuv", "tif", "thm", "psd"],
                    css: "image-class",
                    def: true
                },
                {
                    ext: ["mp3", "wav", "mp4", "aac", "mid", "wma", "ra", "iff", "aif", "m3u", "mpa"],
                    css: "audio-class",
                    def: false
                }
            ]
        });

        //Get
        var fileExtIcons = $(".selector").igUpload("option", "fileExtensionIcons")[0].def;

        //Set
        var fileExtIconsIsDef = [
            {
                ext: ["gif", "jpg", "jpeg", "png", "bmp", "yuv", "tif", "thm", "psd"],
                css: "image-class",
                def: true
            },
            {
                ext: ["mp3", "wav", "mp4", "aac", "mid", "wma", "ra", "iff", "aif", "m3u", "mpa"],
                css: "audio-class",
                def: false
            }
        ];
        $(".selector").igUpload("option", "fileExtensionIcons", "fileExtIcons");

ext

Type:: string
Default:: []

Array of string for file extensions.

Code Sample


        //Initialize
        $(".selector").igUpload({
            fileExtensionIcons: [
                {
                    ext: ["gif", "jpg", "jpeg", "png", "bmp", "yuv", "tif", "thm", "psd"],
                    css: "image-class",
                    def: true
                },
                {
                    ext: ["mp3", "wav", "mp4", "aac", "mid", "wma", "ra", "iff", "aif", "m3u", "mpa"],
                    css: "audio-class",
                    def: false
                }
            ]
        });

        //Get
        var fileExtIconsExt = $(".selector").igUpload("option", "fileExtensionIcons")[0].ext;

        //Set
        var fileExtIcons = [
            {
                ext: ["gif", "jpg", "jpeg", "png", "bmp", "yuv", "tif", "thm", "psd"],
                css: "image-class",
                def: true
            },
            {
                ext: ["mp3", "wav", "mp4", "aac", "mid", "wma", "ra", "iff", "aif", "m3u", "mpa"],
                css: "audio-class",
                def: false
            }
        ];
        $(".selector").igUpload("option", "fileExtensionIcons", "fileExtIcons");

fileSizeDecimalDisplay

Type:: number
Default:: 2

The number of digits after the decimal point.

Code Sample


        //Initialize
        $(".selector").igUpload({
            fileSizeDecimalDisplay : 4
        });

        //Get
        var decimalDisplay = $(".selector").igUpload("option", "fileSizeDecimalDisplay");

        //Set
        $(".selector").igUpload("option", "fileSizeDecimalDisplay", 4);

fileSizeMetric

Type:: enumeration
Default:: auto

Get or set file size metrics how to be shown files size.

Code Sample


        //Initialize
        $(".selector").igUpload({
            fileSizeMetric : "mbytes"
        });

        //Get
        var sizeMetric = $(".selector").igUpload("option", "fileSizeMetric");

        //Set
        $(".selector").igUpload("option", "fileSizeMetric", "mbytes");

height

Type:: number
Default:: ""

Get or set height of the main container of the file upload control. Main container contains all buttons, progressbar, etc.

Code Sample


        //Initialize
        $(".selector").igUpload({
            height : 300
        });

        //Get
        var height = $(".selector").igUpload("option", "height");

        //Set
        $(".selector").igUpload("option", "height", 300);

labelAddButton

Type:: string
Default:: ""

Get or set label for browse button in main container.

Code Sample


       //Initialize
        $(".selector").igUpload({
            labelAddButton : "Choose File"
        });

        //Get
        var label = $(".selector").igUpload("option", "labelAddButton");

        //Set
        $(".selector").igUpload("option", "labelAddButton", "Choose File");

labelClearAllButton

Type:: string
Default:: ""

Get or set label for summary Clear all button. It will be shown only in multiple upload mode.

Code Sample


        //Initialize
        $(".selector").igUpload({
            labelClearAllButton : "Clear Uploads"
        });

        //Get
        var label = $(".selector").igUpload("option", "labelClearAllButton");

        //Set
        $(".selector").igUpload("option", "labelClearAllButton", "Clear Uploads");

labelHideDetails

Type:: string
Default:: ""

Get or set label for show/hide details button when main container is shown.

Code Sample


        //Initialize
        $(".selector").igUpload({
            labelHideDetails : "Hide Upload Details"
        });

        //Get
        var label = $(".selector").igUpload("option", "labelHideDetails");

        //Set
        $(".selector").igUpload("option", "labelHideDetails", "Hide Upload Details");

labelProgressBarFileNameContinue

Type:: string
Default:: ""

Get or set filename when it could not be shown the whole file name and should be shorten.

Code Sample


        //Initialize
        $(".selector").igUpload({
            labelProgressBarFileNameContinue : "Continue with upload"
        });

        //Get
        var label = $(".selector").igUpload("option", "labelProgressBarFileNameContinue");

        //Set
        $(".selector").igUpload("option", "labelProgressBarFileNameContinue", "Continue with upload");

labelShowDetails

Type:: string
Default:: ""

Get or set label for show/hide details button when main container is hidden.

Code Sample


        //Initialize
        $(".selector").igUpload({
            labelShowDetails : "More Details"
        });

        //Get
        var label = $(".selector").igUpload("option", "labelShowDetails");

        //Set
        $(".selector").igUpload("option", "labelShowDetails", "More Details");

labelSummaryProgressBarTemplate

Type:: string
Default:: ""

Get or set template for showing uploading information in summary progress bar. It will be shown only in multiple upload mode. {0} uploaded filesize. {1} - total file size.

Code Sample



         //Initialize
        $(".selector").igUpload({
            labelSummaryProgressBarTemplate : "{0} uploaded from {1}, which is {2}%"
        });

        //Get
        var label = $(".selector").igUpload("option", "labelSummaryProgressBarTemplate");

        //Set
        $(".selector").igUpload("option", "labelSummaryProgressBarTemplate", "{0} uploaded from {1}, which is {2}%");

labelSummaryProgressButtonCancel

Type:: string
Default:: ""

Get or set label for button cancelling all files. Shown only in multiple upload mode.

Code Sample


        //Initialize
        $(".selector").igUpload({
            labelSummaryProgressButtonCancel : "Cancel All Uploads"
        });

        //Get
        var label = $(".selector").igUpload("option", "labelSummaryProgressButtonCancel");

        //Set
        $(".selector").igUpload("option", "labelSummaryProgressButtonCancel", "Cancel All Uploads");

labelSummaryProgressButtonContinue

Type:: string
Default:: ""

Get or set label for start upload batch files. Shown only in multiple upload mode and autostartupload is false.

Code Sample


        //Initialize
        $(".selector").igUpload({
            labelSummaryProgressButtonContinue : "Continue Uploading"
        });

        //Get
        var label = $(".selector").igUpload("option", "labelSummaryProgressButtonContinue");

        //Set
        $(".selector").igUpload("option", "labelSummaryProgressButtonContinue", "Continue Uploading");

labelSummaryProgressButtonDone

Type:: string
Default:: ""

Get or set label when upload is finished. Shown only in multiple upload mode.

Code Sample


        //Initialize
        $(".selector").igUpload({
            labelSummaryProgressButtonDone : "File Upload Complete!"
        });

        //Get
        var label = $(".selector").igUpload("option", "labelSummaryProgressButtonDone");

        //Set
        $(".selector").igUpload("option", "labelSummaryProgressButtonDone", "File Upload Complete!");

labelSummaryTemplate

Type:: string
Default:: ""

Get or set template for showing summary template. {0} is count of uploaded files. {1} is total count of file to be uploaded.

Code Sample


        //Initialize
        $(".selector").igUpload({
            labelSummaryTemplate : "{0} uploaded from {1}"
        });

        //Get
        var label = $(".selector").igUpload("option", "labelSummaryTemplate");

        //Set
        $(".selector").igUpload("option", "labelSummaryTemplate", "{0} uploaded from {1}");

labelUploadButton

Type:: string
Default:: ""

Get or set label for the first shown browse button. When file is selected for the first time this button is hidden.

Code Sample


        //Initialize
        $(".selector").igUpload({
            labelUploadButton : "Choose File"
        });

        //Get
        var label = $(".selector").igUpload("option", "labelUploadButton");

        //Set
        $(".selector").igUpload("option", "labelUploadButton", "Choose File");

maxSimultaneousFilesUploads

Type:: number
Default:: 1

Get or set count of files that could be uploaded at the same time.

Code Sample


        //Initialize
        $(".selector").igUpload({
            maxSimultaneousFilesUploads : 5
        });

        //Get
        var maxUploads = $(".selector").igUpload("option", "maxSimultaneousFilesUploads");

        //Set
        $(".selector").igUpload("option", "maxSimultaneousFilesUploads", 5);

maxUploadedFiles

Type:: number
Default:: -1

Get or set the maximum number of allowed files to upload.

Code Sample


        //Initialize
        $(".selector").igUpload({
            maxUploadedFiles : 10
        });

        //Get
        var maxUploads = $(".selector").igUpload("option", "maxUploadedFiles");

        //Set
        $(".selector").igUpload("option", "maxUploadedFiles", 10);

mode

Type:: enumeration
Default:: single

Get or set multiple or single file upload. In single upload it is possible to upload only one file at the same time.

Code Sample


        //Initialize
        $(".selector").igUpload({
            mode : "multiple"
        });

        //Get
        var mode = $(".selector").igUpload("option", "mode");

        //Set
        $(".selector").igUpload("option", "mode", "multiple");

multipleFiles

Type:

bool

Default:

false
Get or set a bool setting that allows user to select(for upload) more than 1 file from the browse dialog at once. HTML 5+ - it is supported by Chrome, MOzilla FF, Safar, Opera latest versions and IE10+.
Code Sample
```

        //Initialize
        $(".selector").igUpload({
            multipleFiles : true
        });

        //Get
        var multipleFiles = $(".selector").igUpload("option", "multipleFiles");

```

progressUrl

Type:: string
Default:: iguploadstatushandler.ashx

Get or set URL of HTTPHandler to get information about file upload, current size and also to get commands.

Code Sample


        //Initialize
        $(".selector").igUpload({
            progressUrl : "IGUploadStatusHandler.ashx"
        });

        //Get
        var progressUrl = $(".selector").igUpload("option", "progressUrl");

        //Set
        $(".selector").igUpload("option", "progressUrl", "IGUploadStatusHandler.ashx");

showFileExtensionIcon

Type:: bool
Default:: true

Get or set whether to show File Extension icon.

Code Sample


        //Initialize
        $(".selector").igUpload({
            showFileExtensionIcon : false
        });

        //Get
        var showIcon = $(".selector").igUpload("option", "showFileExtensionIcon");

        //Set
        $(".selector").igUpload("option", "showFileExtensionIcon", false);

uploadUrl

Type:: string
Default:: ig_fua34sf345sdf13sdf3454erdsf2345asd3425df5235d54df345.aspx

Get or set URL for uploading.

Code Sample


        //Initialize
        $(".selector").igUpload({
            uploadUrl: "ig_fua34sf345sdf13sdf3454erdsf2345asd3425df5235d54df345.aspx",
        });

        //Get
        var fileExt = $(".selector").igUpload("option", "uploadUrl");

        //Set
        $(".selector").igUpload("option", "uploadUrl", "ig_fua34sf345sdf13sdf3454erdsf2345asd3425df5235d54df345.aspx");

width

Type:: number
Default:: ""

Get or set width of the main container of the file upload control. Main container contains all buttons, progressbar, etc.

Code Sample


        //Initialize
        $(".selector").igUpload({
            width : 500
        });

        //Get
        var width = $(".selector").igUpload("option", "width");

        //Set
        $(".selector").igUpload("option", "width", 500);

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details

cancelAllClicked

Cancellable:: false

Defines the name of the cancel all button event click. Fired when cancel all button in summary is clicked. Fired only in multiple upload mode.
Function takes argument evt.

Code Sample

        //Bind after initialization
		$(document).delegate(".selector", "iguploadcancelallclicked", function (evt, ui) {
            //return the triggered event
            evt;

            // the 'ui' object is empty, when 'cancelAllClicked' event is fired
            ui;
        });

        //Initialize
        $(".selector").igUpload({
            cancelAllClicked : function(evt, ui) {...}
		});

fileExtensionsValidating

Cancellable:

true

It is fired when validating file extensions
Function takes arguments evt and ui.
Use ui.fileName to get the full file name
Use ui.fileExtension to get file extension.

fileSelected

Cancellable:: false

Defines the name of the file upload selected event. Fired when file is selected from browse dialog.
Return false in order to cancel uploading file.
Function takes arguments evt and ui.
Use ui.fileId to get unique identifier of the file
Use ui.filePath to get the name of the uploaded file.

Code Sample


        //Bind after initialization
		$(document).delegate(".selector", "iguploadfileselected", function (evt, ui) {
            //return the triggered event
            evt;

            // A consecutive number for every file starting from 0. This useful for multiple upload scenarios, where you can use the ID to identify the different files.
            ui.fileID;

            // Name of the selected file
            ui.filePath;
        });

        //Initialize
        $(".selector").igUpload({
            fileSelected : function(evt, ui) {...}
		});

fileSelecting

Cancellable:: true

Defines the name of the file upload selecting event. Fired when browse button is pressed.
Return false in order to cancel selecting file.
Function takes argument evt.

Code Sample


        //Bind after initialization
		$(document).delegate(".selector", "iguploadfileselecting", function (evt, ui) {
            //return the triggered event
            evt;

            // the 'ui' object is empty, when 'fileSelecting' event is fired
            ui;
        });

        //Initialize
        $(".selector").igUpload({
            fileSelecting : function(evt, ui) {...}
		});

fileUploadAborted

Cancellable:: false

Defines the name of the file upload cancel event. Fired when the server responses that the file is canceled.
Function takes arguments evt and ui.
Use ui.fileId to get unique identifier of the file
Use ui.filePath to get the name of the uploaded file
Use ui.totalSize to get the file size of the uploaded file
Use ui.uploadedBytes to get uploaded bytes
Use ui.fileStatus to get current file status.

Code Sample


        //Bind after initialization
		$(document).delegate(".selector", "iguploadfileuploadaborted", function (evt, ui) {
            //return the triggered event
            evt;

            // A consecutive number for every file starting from 0. This useful for multiple upload scenarios, where you can use the ID to identify the different files.
            ui.fileID;

            // Name of the selected file
            ui.filePath;

            // Integer representing the status of the file. The value is determined by the server, where an enumeration that maps the integer value with the description of the status.
            ui.fileStatus;

            // Returns the file size sum of all selected files to upload. The metric is bytes.
            ui.totalSize;

            // Returns current amount of uploaded bytes when the fileUpload event is fired.
            ui.uploadedBytes;
        });

        //Initialize
        $(".selector").igUpload({
            fileUploadAborted : function(evt, ui) {...}
		});

fileUploaded

Cancellable:: false

Defines the name of the uploaded event. Fired when the file is uploaded
Function takes arguments evt and ui.
Use ui.fileId to get unique identifier of the file
Use ui.filePath to get the name of the uploaded file
Use ui.totalSize to get the file size of the uploaded file.

Code Sample


        //Bind after initialization
		$(document).delegate(".selector", "iguploadfileuploaded", function (evt, ui) {
            //return the triggered event
            evt;

            // A consecutive number for every file starting from 0. This useful for multiple upload scenarios, where you can use the ID to identify the different files.
            ui.fileID;

            // Name of the selected file
            ui.filePath;

            // Returns the file size sum of all selected files to upload. The metric is bytes.
            ui.totalSize;
        });

        //Initialize
        $(".selector").igUpload({
            fileUploaded : function(evt, ui) {...}
		});

fileUploading

Cancellable:: true

Defines the name of the file uploading event. Fired every time when fileuploader get status for the upload.
Return false in order to cancel uploading file.
Function takes arguments evt and ui.
Use ui.fileId to get unique identifier of the file
Use ui.filePath to get the name of the uploaded file
Use ui.totalSize to get the file size of the uploaded file
Use ui.uploadedBytes to get uploaded bytes
Use ui.fileStatus to get current file status.

Code Sample


        //Bind after initialization
		$(document).delegate(".selector", "iguploadfileuploading", function (evt, ui) {
            //return the triggered event
            evt;

            // A consecutive number for every file starting from 0. This useful for multiple upload scenarios, where you can use the ID to identify the different files.
            ui.fileID;

            // Name of the selected file
            ui.filePath;

            // Integer representing the status of the file. The value is determined by the server, where an enumeration that maps the integer value with the description of the status.
            ui.fileStatus;

            // Returns the file size sum of all selected files to upload. The metric is bytes.
            ui.totalSize;

            // Returns current amount of uploaded bytes when the fileUpload event is fired.
            ui.uploadedBytes;
        });

        //Initialize
        $(".selector").igUpload({
            fileUploading : function(evt, ui) {...}
		});

onError

Cancellable:: false

Defines the name of the file upload error event. Fired when error is occurred.
Function takes arguments evt and ui.
Use ui.errorCode to get current errorCode
Use ui.errorMessage to get detailed error description
Use ui.errorType to get error type - it could be clientside or serverside
Use ui.serverMessage to get specific server message returned by server - if errorType is serverside.

Code Sample


        //Bind after initialization
		$(document).delegate(".selector", "iguploadonerror", function (evt, ui) {
            //return the triggered event
            evt;

            // Integer that represents the error code.
            ui.errorCode;

            // Detailed error information.
            ui.errorMessage;

            // Type of error - the values can be either server-side or client-side.
            ui.errorType;

            // This is property is able to be set during the server event UploadStarting. If not set it’s an empty string. (You can use it to display custom error messages.)
            ui.serverMessage;
        });

        //Initialize
        $(".selector").igUpload({
            onError : function(evt, ui) {...}
		});

Show Details

cancelAll

.igUpload( "cancelAll" );
Cancel all uploading and pending files.
Code Sample
```

      $(".selector").igUpload("cancelAll");

```
cancelUpload

.igUpload( "cancelUpload", formNumber:number );
Cancel upload for the specified file id
formNumber - id of the file to be canceled.
- formNumber
- Type:number
- Id of the form which should be cancelled.
Code Sample
```
 $(".selector").igUpload("cancelUpload", 1);
```

clearAll

.igUpload( "clearAll" );

Hide finished files.

Code Sample


      $(".selector").igUpload("clearAll");

container

.igUpload( "container" );
Return jquery object of fileupload container - html DOM element.
Code Sample
```
 $(".selector").igUpload("container");
```

destroy

.igUpload( "destroy" );

Destroy the widget.

Code Sample


      $(".selector").igUpload("destroy");

getFileInfoData

.igUpload( "getFileInfoData" );

Return Type:

object

Return Type Description:

Returns the information about uploading files.
Returns the information about uploading files - all files uploaded/uploading/pending.
Code Sample
```

      var fileInfo = $(".selector").igUpload("getFileInfoData");

```
startUpload

.igUpload( "startUpload", formNumber:number );
Start uploading file as submitting form with the specified formNumber.
- formNumber
- Type:number
- Id of the upload form.
Code Sample
```
 $(".selector").igUpload("startUpload", 1);
```

widget

.igUpload( "widget" );

Returns the current widget element.

Code Sample


      var upload = $(".selector").igUpload("widget");

ui-widget ui-widget ui-widget-content ui-corner-all ui-igupload

Css class for the container.
ui-ie6

Class for IE6.
ui-ie7

Class for IE7.
ui-moz

Class for FF.
ui-opera

Class for Opera.
ui-webkit

Class for Webkit powered browsers.
ui-igupload-basemaincontainer

Css classes applied to main container in single/multiple mode.
ui-igupload-browsebutton

Css classes applied on browse button - button in main container.
ui-helper-clearfix

Clear class.
ui-container-button-cancel-class ui-helper-clearfix

Css classes for container of the cancel/done button near the progress bar.
ui-igupload-container ui-widget-content

Css classes applied to DOM element containing all file upload progress bars.
ui-widget-content ui-igupload-progress-container ui-corner-all ui-helper-clearfix

Css class for container of each individual file - including progress bar, file info, cancel button, etc.
ui-igupload-fimaincontainer

Css class applied on div which contains add button, clear button and progress details of the files.
ui-helper-hidden

Hide element.
ui-iguploadmultiple

Css classes applied to main container when multiple file upload mode is selected.
ui-igupload-progressbar-filename

Css classes applied to file name DOM element in the summary progress bar.
ui-igupload-progressbar-filesize

Css classes applied to file size DOM element in the summary progress bar.
ui-igupload-progressbar-container ui-helper-clearfix

Css classes of the container of the filename DOM element and file size DOM element inside each of the progressbar.
ui-igupload-progressbar-upload ui-igupload-progressbar-upload-single ui-helper-clearfix

Css class applied on single progressbar.
ui-helper-clearfix

Css class container for each file.
ui-iguploadsingle

Css classes applied to main container when multiple file upload mode is selected.
ui-igstartupbrowsebutton

Class for startup browse button.
ui-igupload-summary-button

Css classes which are set to the cancel button.
ui-igupload-summaryinformation-container ui-helper-clearfix

Css classes of container in summary progress area - contains label for summary progress and show/hide details button.
ui-igupload-summaryprogressbar

Css classes applied to summary progressbar.
ui-igupload-summaryprogres_summpbar_progress

Css classes set inside progress div.
ui-igupload-summaryprogress-label

Css classes of label of the summary progress bar.
ui-igupload-summaryprogress-label ui-igupload-summaryprogress-secondary-label

Css class for the second label in summary progress bar.
ui-igupload-summaryprogresscontainer

Css classes applied to container of summary progress bar.
ui-igupload-showhidedetails-button

Css classes of show/hide details button in summary progress area.
ui-igupload-summaryuploadedfiles-label

Css classes applied to DOM element showing status of summary progress.
ui-igupload-uploadprogress

Div containing separate individual file upload.

Ignite UI Home

Ignite UI API Reference

ui.igUpload

Code Sample

Related Samples

Related Topics

Dependencies

Inherits

allowedExtensions

Code Sample

autostartupload

Code Sample

controlId

Code Sample

css

Code Sample

errorMessageAJAXRequestFileSize

Code Sample

errorMessageCancelUpload

Code Sample

errorMessageGetFileStatus

Code Sample

errorMessageMaxFileSizeExceeded

Code Sample

errorMessageMaxSimultaneousFiles

Code Sample

errorMessageMaxUploadedFiles

Code Sample

errorMessageNoSuchFile

Code Sample

errorMessageOther

Code Sample

errorMessageTryToRemoveNonExistingFile

Code Sample

errorMessageTryToStartNonExistingFile

Code Sample

errorMessageValidatingFileExtension

Code Sample

fileExtensionIcons

Code Sample

css

Code Sample

def

Code Sample

ext

Code Sample

fileSizeDecimalDisplay

Code Sample

fileSizeMetric

Code Sample

height

Code Sample

labelAddButton

Code Sample

labelClearAllButton

Code Sample

labelHideDetails

Code Sample

labelProgressBarFileNameContinue

Code Sample

labelShowDetails

Code Sample

labelSummaryProgressBarTemplate

Code Sample

labelSummaryProgressButtonCancel

Code Sample

labelSummaryProgressButtonContinue

Code Sample

labelSummaryProgressButtonDone

Code Sample

labelSummaryTemplate

Code Sample

labelUploadButton

Code Sample

maxSimultaneousFilesUploads

Code Sample

maxUploadedFiles

Code Sample

mode

Code Sample
