ui.igHtmlEditor

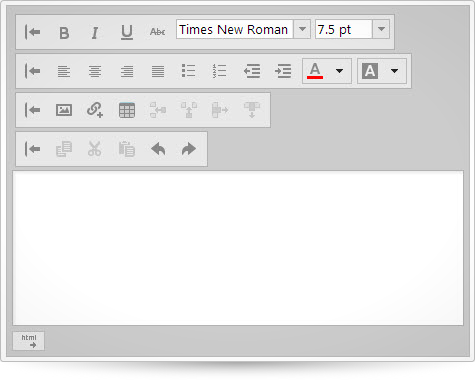

The igHtmlEditor control is a jQuery HTML editor control that features standard HTML editing capabilities. Formatting options include font face, font size, text and image alignment and link and table support. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

The following code snippet demonstrates how to initialize the igHtmlEditor control.

For details on how to reference the required scripts and themes for the igHtmlEditor control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample

<!doctype html>
<html>
<head>
    <!-- Modernizr -->
    <script src="js/modernizr.js"></script>
    <!-- jQuery Core -->
    <script src="js/jquery.js"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js"></script>
    <!-- Infragistics loader -->
    <script src="js/infragistics.loader.js"></script>
    <script>
        $.ig.loader({
            scriptPath: "js",
            cssPath: "css",
            resources: "igHtmlEditor"
        });

        $.ig.loader(function () {
            $("#htmlEditor").igHtmlEditor({
                width: "100%"
            });
        });
    </script>
</head>
<body>
    <div id="htmlEditor"></div>
</body>
</html>

Related Samples

customToolbars

Type:: array
Default:: []
Elements Type:: object

The html editor custom toolbars list.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
    customToolbars: [
    {
        name: "customToolbar",
        collapseButtonIcon: "ui-igbutton-collapse",
        expandButtonIcon: "ui-igbutton-expand",
        items: [{
            //Definition for custom button
            name: "customButton",
            type: "button",
            handler: function() { alert("Custom button clicked!");},
            scope: this,
            props: {
                isImage: {
                    value: false,
                    action: '_isSelectedAction'
                },
                imageButtonTooltip: {
                    value: "Custom button tooltip",
                    action: '_tooltipAction'
                },
                imageButtonIcon: {
                    value: "ui-igbutton-bold",
                    action: '_buttonIconAction'
                }
            }
        },
        {
            //Definition for custom combo
            name: "customCombo",
            type: "combo",
            handler: function(el, obj) {
                alert("Selected item is: " + obj.value);
            },
            scope: this,
            props: {
                customComboWidth: {
                    value: 115,
                    action: "_comboWidthAction"
                },
                customComboHeight: {
                    value: "",
                    action: "_comboHeightAction"
                },
                customComboItemsListWidth: {
                    value: 115,
                    action: "_comboDropDownListWidth"
                },
                customComboSource: {
                    value: [{text: "Item 1", value: "Item 1"}, {text: "Item 2", value: "Item 2"}],
                    action: "_comboDataSourceAction"
                },
                selectedCustomComboItem: {
                    value: "Item 2",
                    action: "_comboSelectedItem"
                }
            }
        }]
    }]
});

// Get
var customToolbar = $(".selector").igHtmlEditor("option", "customToolbars");

height

Type:: enumeration
Default:: 350

The height of the html editor. It can be set as a number in pixels, string (px) or percentage (%).

Members

string
The widget height can be set in pixels (px) and percentage (%).
number
The widget height can be set as a number.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
    height: 100
    // or
    // height: "100%"
});

// Get
var height = $(".selector").igHtmlEditor("option", "height");

// Set
$(".selector").igHtmlEditor("option", "height", 300);

inputName

Type:

string

Default:

"source"

The name attribute of the html editor source view.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
inputName: "blogContent"
});

// Get
var inputName = $(".selector").igHtmlEditor("option", "inputName");

showCopyPasteToolbar

Type:: bool
Default:: true

Shows/hides the "Copy Paste" toolbar.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
    showCopyPasteToolbar: false
});

//Get
var showCopyPasteToolbar = $(".selector").igHtmlEditor("option", "showCopyPasteToolbar");

//Set
$(".selector").igHtmlEditor("option", "showCopyPasteToolbar", true);

showFormattingToolbar

Type:: bool
Default:: true

Shows/hides the "Formatting" toolbar.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
    showFormattingToolbar: false
});

//Get
var showFormattingToolbar = $(".selector").igHtmlEditor("option", "showFormattingToolbar");

//Set
$(".selector").igHtmlEditor("option", "showFormattingToolbar", true);

showInsertObjectToolbar

Type:: bool
Default:: true

Shows/hides the "Insert Object" toolbar.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
    showInsertObjectToolbar: false
});

//Get
var showInsertObjectToolbar = $(".selector").igHtmlEditor("option", "showInsertObjectToolbar");

//Set
$(".selector").igHtmlEditor("option", "showInsertObjectToolbar", true);

showTextToolbar

Type:: bool
Default:: true

Shows/hides the "Text" toolbar.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
    showTextToolbar: false
});

//Get
var showTextToolbar = $(".selector").igHtmlEditor("option", "showTextToolbar");

//Set
$(".selector").igHtmlEditor("option", "showTextToolbar", true);

toolbarSettings

Type:: array
Default:: []
Elements Type:: object

The html editor toolbars list.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
    toolbarSettings: [
    {
        name: "textToolbar",
        isExpanded: false
    }]
});

//Get
var toolbarSettings = $(".selector").igHtmlEditor("option", "toolbarSettings");

value

Type:: string
Default:: ""

Used to render inside the html editor as initial content.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
    value: "Hello World!"
});

//Get
var value = $(".selector").igHtmlEditor("option", "value");

//Set
$(".selector").igHtmlEditor("option", "value", "Hello World!1");

width

Type:: enumeration
Default:: 725

The width of the html editor. It can be set as a number in pixels, string (px) or percentage (%).

Members

string
The widget width can be set in pixels (px) and percentage (%).
number
The widget width can be set as a number.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
    width: 700
    //or
    //width: "100%"
});

// Get
var width = $(".selector").igHtmlEditor("option", "width");

// Set
$(".selector").igHtmlEditor("option", "width", 300);

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details

actionExecuted

Cancellable:: false

Event fired after a toolbar item is clicked.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
    actionExecuted: function (evt, ui) {...}
});

//Delegate
$(document).delegate(".selector", "ightmleditoractionexecuted", function (evt, ui) {
    //return reference to igHtmlEditor object
    ui.owner
    //return toolbar name
    ui.toolbar;
    //return action name
    ui.actionName;
});

actionExecuting

Cancellable:: true

Event fired before a toolbar item is clicked.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
    actionExecuting: function (evt, ui) {...}
});

//Delegate
$(document).delegate(".selector", "ightmleditoractionexecuting", function (evt, ui) {
    //return reference to igHtmlEditor object
    ui.owner
    //return toolbar name
    ui.toolbar;
    //return action name
    ui.actionName;
});

copy

Cancellable:: false

Event is fired on keyboard copy action.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
    copy: function (evt, ui) {...}
});

//Delegate
$(document).delegate(".selector", "ightmleditorcopy", function (evt, ui) {
    //return reference to igHtmlEditor object
    ui.owner
});

cut

Cancellable:: false

Event is fired on keyboard cut action.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
    cut: function (evt, ui) {...}
});

//Delegate
$(document).delegate(".selector", "ightmleditorcut", function (evt, ui) {
    //return reference to igHtmlEditor object
    ui.owner
});

paste

Cancellable:: false

Event is fired on keyboard paste action.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
    paste: function (evt, ui) {...}
});

//Delegate
$(document).delegate(".selector", "ightmleditorpaste", function (evt, ui) {
    //return reference to igHtmlEditor object
    ui.owner
});

redo

Cancellable:: false

Event is fired on keyboard redo action.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
    redo: function (evt, ui) {...}
});

//Delegate
$(document).delegate(".selector", "ightmleditorredo", function (evt, ui) {
    //return reference to igHtmlEditor object
    ui.owner
});

rendered

Cancellable:

false

Event fired after the whole html editor widget has been rendered.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
    rendered: function (evt, ui) {
        //return reference to igHtmlEditor object
        ui.owner
    }
});
rendering

Cancellable:

false

Event fired before the html editor widget has been rendered.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
    rendering: function (evt, ui) {
        //return reference to igHtmlEditor object
        ui.owner
    }
});

toolbarCollapsed

Cancellable:: false

Event fired after a toolbar is collapsed.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
    toolbarCollapsed: function (evt, ui) {...}
});

//Delegate
$(document).delegate(".selector", "ightmleditortoolbarcollapsed", function (evt, ui) {
    //return reference to igHtmlEditor object
    ui.owner
    //return reference to toolbar object
    ui.toolbar
    //return reference to toolbar element object
    ui.toolbarElement
});

toolbarCollapsing

Cancellable:: true

Event fired before a toolbar is collapsed.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
    toolbarCollapsing: function (evt, ui) {...}
});

//Delegate
$(document).delegate(".selector", "ightmleditortoolbarcollapsing", function (evt, ui) {
    //return reference to igHtmlEditor object
    ui.owner
    //return reference to toolbar object
    ui.toolbar
    //return reference to toolbar element object
    ui.toolbarElement
});

toolbarExpanded

Cancellable:: false

Event fired after a toolbar is expanded.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
    toolbarExpanded: function (evt, ui) {...}
});

//Delegate
$(document).delegate(".selector", "ightmleditortoolbarexpanded", function (evt, ui) {
    //return reference to igHtmlEditor object
    ui.owner
    //return reference to toolbar object
    ui.toolbar
    //return reference to toolbar element object
    ui.toolbarElement
});

toolbarExpanding

Cancellable:: true

Event fired before a toolbar is expanded.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
    toolbarExpanding: function (evt, ui) {...}
});

//Delegate
$(document).delegate(".selector", "ightmleditortoolbarexpanding", function (evt, ui) {
    //return reference to igHtmlEditor object
    ui.owner
    //return reference to toolbar object
    ui.toolbar
    //return reference to toolbar element object
    ui.toolbarElement
});

undo

Cancellable:: false

Event is fired on keyboard undo action.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
    undo: function (evt, ui) {...}
});

//Delegate
$(document).delegate(".selector", "ightmleditorundo", function (evt, ui) {
    //return reference to igHtmlEditor object
    ui.owner
});

workspaceResized

Cancellable:: false

Cancel = "false" Event is fired after reziing of workspace.

Code Sample

//Initialize
$(".selector").igHtmlEditor({
    workspaceResized: function (evt, ui) {...}
});

//Delegate
$(document).delegate(".selector", "ightmleditorworkspaceresized", function (evt, ui) {
    //return reference to igHtmlEditor object
    ui.owner
});

Show Details

contentDocument

.igHtmlEditor( "contentDocument" );

Return Type:

object

Return Type Description:

The document object associated with the Html Editor's content editable area.
Returns the document object associated with the Html Editor's content editable area.
Code Sample

var htmlEditorDocument = $(".selector").igHtmlEditor("contentDocument");
contentEditable

.igHtmlEditor( "contentEditable" );

Return Type:

object

Return Type Description:

The content editable associated with this Html Editor.
Returns the content editable associated with this Html Editor.
Code Sample

var htmlEditorContentEditable = $(".selector").igHtmlEditor("contentEditable");
contentWindow

.igHtmlEditor( "contentWindow" );

Return Type:

object

Return Type Description:

The window object associated with the Html Editor's content editable area.
Returns the window object associated with the Html Editor's content editable area.
Code Sample

var htmlEditorContentWindow = $(".selector").igHtmlEditor("contentWindow");
destroy

.igHtmlEditor( "destroy" );
Destroys the widget.
Code Sample

$(".selector").igHtmlEditor("destroy");

executeAction

.igHtmlEditor( "executeAction", actionName:string, [args:object] );

Executes htmleditor commands.

actionName
Type:string
The command name.
args
Type:object
Optional
Additional parameter for the command.

Code Sample

$(".selector").igHtmlEditor("executeAction", "increasefontsize");
$(".selector").igHtmlEditor("executeAction", "bold");
$(".selector").igHtmlEditor("executeAction", "italic");
$(".selector").igHtmlEditor("executeAction", "underline");
$(".selector").igHtmlEditor("executeAction", "strikethrough");
$(".selector").igHtmlEditor("executeAction", "decreasefontsize");
$(".selector").igHtmlEditor("executeAction", "fontname", "Lucida Console");
$(".selector").igHtmlEditor("executeAction", "fontname", "Verdana");
$(".selector").igHtmlEditor("executeAction", "fontsize", "5");
$(".selector").igHtmlEditor("executeAction", "formatBlock", "h6");
$(".selector").igHtmlEditor("executeAction", "forecolor", "blue");
$(".selector").igHtmlEditor("executeAction", "backcolor", "red");
$(".selector").igHtmlEditor("executeAction", "justifyright");
$(".selector").igHtmlEditor("executeAction", "justifycenter");
$(".selector").igHtmlEditor("executeAction", "justifyleft");
$(".selector").igHtmlEditor("executeAction", "justifyfull");
$(".selector").igHtmlEditor("executeAction", "insertunorderedlist");
$(".selector").igHtmlEditor("executeAction", "insertorderedlist");
$(".selector").igHtmlEditor("executeAction", "outdent");
$(".selector").igHtmlEditor("executeAction", "indent");

//Works on Internet Explorer only
$(".selector").igHtmlEditor("executeAction", "cut");
//Works on Internet Explorer only
$(".selector").igHtmlEditor("executeAction", "copy");
//Works on Internet Explorer only
$(".selector").igHtmlEditor("executeAction", "paste");

getContent

.igHtmlEditor( "getContent", format:string );

Return Type:

string

Return Type Description:

The editor content.
Gets the content of the html editor.
- format
- Type:string
- Returns the content as html or plain text. Values can be "text" or "html".
Code Sample

var plainContent = $(".selector").igHtmlEditor("getContent", "text");
var htmlContent = $(".selector").igHtmlEditor("getContent", "html");
insertAtCaret

.igHtmlEditor( "insertAtCaret", element:object );
Inserts the provided content at the position of the caret.
- element
- Type:object
- Accepts html string, DOM element or a jQuery object.
Code Sample

$(".selector").igHtmlEditor("insertAtCaret", "<div />");
isDirty

.igHtmlEditor( "isDirty" );
Returns true/false if the editor contents were modified or not.
Code Sample

var isDirty = $(".selector").igHtmlEditor("isDirty");
range

.igHtmlEditor( "range" );

Return Type:

object

Return Type Description:

Returns Range object that represent the current range in the content editable.
Returns Range object that represent the current range in the content editable.
Code Sample

var range = $(".selector").igHtmlEditor("range");
resizeWorkspace

.igHtmlEditor( "resizeWorkspace" );
Resizes the height of the workspace.
Code Sample

$(".selector").igHtmlEditor("resizeWorkspace");
selection

.igHtmlEditor( "selection" );

Return Type:

object

Return Type Description:

Returns Selection object that represent the current selection in the content editable.
Returns Selection object that represent the current selection in the content editable.
Code Sample

var selection = $(".selector").igHtmlEditor("selection");
setContent

.igHtmlEditor( "setContent", content:string, format:string );
Sets the content of the html editor.
- content
- Type:string
- The content which will be set.
- format
- Type:string
- The content type: "text" or "html".
Code Sample

$(".selector").igHtmlEditor("setContent", "Hello World!", "text");
$(".selector").igHtmlEditor("setContent", "<h1>Hello World!</h1>", "html");
widget

.igHtmlEditor( "widget" );
Returns the element on which the widget was instantiated.
Code Sample

var widget = $(".selector").igHtmlEditor("widget");

ui-widget ui-widget-content ui-corner-all

The widget base class css.
ui-ightmleditor-content

The html editor content styles.
ui-igpathfinder

The html editor dom navigation toolbar css.
ui-igtoolbars-holder

The html editor toolbars style.
ui-widget-content

The workspace css.

Ignite UI Home

ui.igHtmlEditor

Code Sample

Related Samples

Related Topics

Dependencies

Inherits
