Configuring the Performance Bar (igBulletGraph)

Topic Overview

Purpose

This topic explains, with code examples, how to configure the performance bar of the igBulletGraph™ control. This includes the value indicated by the bar, its width, position, and formatting.

Required background

The following topics are prerequisites to understanding this topic:

igBulletGraph Overview: This topic provides conceptual information about the igBulletGraph control including its main features, minimum requirements, and user functionality.
Adding igBulletGraph: This is a group of topics explaining how to add the igBulletGraph control to an HTML page and an ASP.NET MVC application.

In this topic

This topic contains the following sections:

Configuring the Performance Bar

Performance bar appearance configuration summary

The performance bar always starts at the beginning of the scale range. Only his ending position is configurable, which effectively configures the length of the bar. The ending position is managed by the value property.

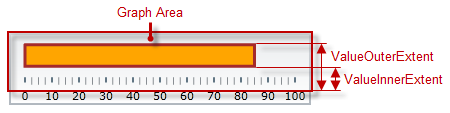

Its position in the across-the-scale dimension is configurable relative to the edges of the Graph area through the valueInnerExtent and valueOuterExtent properties. Configuring the position of the performance bar also defines its width.

The look-and-feel of the bar can be customized in terms of fill color, border color, and border thickness using the respective properties (valueBrush, valueOutline, and valueStrokeThickness).

Performance bar appearance configuration summary chart

The following table explains briefly the configurable aspects of igBulletGraph control’s bar and maps them to properties that configure them.

Configurable aspects		Property	Default value
Name		valueName	Not set
Value to indicate		value	Not set
Width and position (across the scale)		valueInnerExtent	0.5
Width and position (across the scale)		valueOuterExtent	0.65
Look-and-feel	Fill color	valueBrush	Defined in the default theme
	Border thickness	valueStrokeThickness	1.0
	Border color	valueOutline	Defined in the default theme
Tooltip		valueToolTipTemplate	Depends on whether valueName has been initialized

Note: For details in configuring the tooltip, see Configuring a Custom Tooltip for the Performance Bar in the Configuring the Tooltips (igBulletGraph) topic.)

Property settings

The following table maps the desired behavior to its respective property settings.

In order to configure:			Use this property:	And set it to:
Aspect		Details	Use this property:	And set it to:
Name		A name for the performance bar (for displaying in the tooltip)	valueName	A string expressing the name of the performance bar
Value to indicate		The value indicated by the performance bar	value	The desired value in the measures of the scale
Width and position (across the scale)	Bottom / right edge position	The position of lower edge of the performance bar at horizontal orientation or the right edge at vertical orientation.	valueInnerExtent	The desired value as a relative part of the height/width of the Graph area (depending on the orientation) presented as a fraction of 1 (e.g. 0.2)
Width and position (across the scale)	Top / left edge position	The position of top edge of the performance bar at horizontal orientation or the left edge at vertical orientation. (The difference between the starting and the ending points forms the length of the marks’ line segments.)	valueOuterExtent	The desired value as a relative part of the height/width of the Graph area (depending on the orientation) presented as a fraction of 1 (e.g. 0.2)
Look-and-feel	Fill color	Fill color of the bar	valueBrush	The desired color
	Border thickness	Thickness of the performance bar’s border	valueStrokeThickness	The desired value in pixels
	Border color	Color of the performance bar’s border	valueOutline	The desired color
Tooltip		Content of the performance bar’s tooltip	valueToolTipTemplate	The desired template(See Configuring the Tooltips (igBulletGraph).)

Example

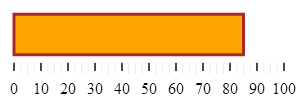

The screenshot below demonstrates how the igBulletGraph looks as a result of the following settings:

Property	Value
value	“85”
valueBrush	'#FFA500'
valueInnerExtent	“0.3”
valueOuterExtent	“0.8”
valueOutline	'#A52A2A'
valueStrokeThickness	“3”

Following is the code that implements this example.

In JavaScript:

 $(function () {
    $("#bulletGraph").igBulletGraph({
        width: "300",
        height: "100",
        value:"85",
        valueBrush: '#FFA500',
        valueInnerExtent:"0.3",
        valueOuterExtent:"0.8",
        valueOutline:'A52A2A',
        valueStrokeThickness:"3"
  });
