igBulletGraph Overview

Topic Overview

Purpose

This topic provides conceptual information about the igBulletGraph™ control including its main features, minimum requirements, and user functionality.

Required background

The following concept is required for understanding this topic.

In this topic

This topic contains the following sections:

Introduction

igBulletGraph summary

The igBulletGraph control is an Ignite UI for jQuery™ control which allows for visualizing data in the form of a bullet graph. Linear by design, it provides a simple and concise view of a primary measure or measures compared against a scale and, optionally, some other measure.

The igBulletGraph control provides you with the ability to create attractive data presentations, replacing meters and gauges that are used on dashboards with simple yet straightforward and clear bar charts. A bullet graph is one of the most effective and efficient ways to present progress towards goals, good/better/best ranges, or compare multiple measurements in as little horizontal or vertical space as possible.

Main Features

The features of igBulletGraph include configurable orientation and direction, configurable visual elements and tooltips, and more. The control has also a built-in support for animated transitions.

Configurable orientation and direction

The igBulletGraph control exposes an API for setting the state of its scale’s orientation and direction, so that the look of the graph can be largely customized. (For details, see the Configuring the Orientation and Direction (igBulletGraph) topic.)

Configurable visual elements

Each of the visual elements of the bullet graph can be configured in several aspects. (For details, see Configurable Visual Elements of igBulletGraph and Related Properties.)

Animated transitions

The igBulletGraph control provides built-in support for animation by its transitionDuration property. The animation effect occurs on loading the control as well as when the value of any of its properties is changed. By default, animated transitions are disabled. Providing a value in milliseconds for the transitionDuration property of the control determines the timeframe for swiping the control into view by smoothly visualizing all its visual elements through a slide effect (from bottom-left to top-right). Setting the value to 0 disables the animated transition. For a sample, demonstrating the animation transition effect, see the Animated Transitions sample.

Support for tooltips

The built-in tooltips of the igBulletGraph control show the values used to create the performance bars, the target value or the values, corresponding to the different ranges respectively. They are initially styled in accordance with the default look of the control, but their look can be customized by templates. By default, tooltips are disabled. (For details, see Configuring the Tooltips (igBulletGraph))

Logical areas and Configurable Visual Elements Summary

Logical areas

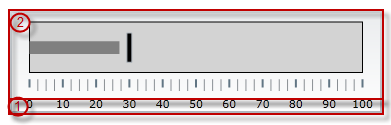

The user-visible area of the igBulletGraph control is logically divided into a Graph area and a Reserved area.

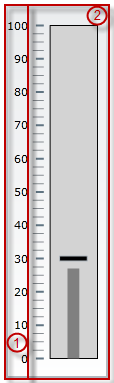

Horizontal orientation Vertical orientation
  • Reserved area (1) – This area spreads:
    • Along the scale – the Reserved area begins either at the edge of the control and ends at the edge of the control.
    • Across the scale:
      • In horizontal orientation: the Reserved area begins at the bottom edge of the control and spreads upward as much as the height of the numbering labels is (depending on the size and the other formatting of the font used in the labels)
      • In vertical orientation: the Reserved area begins at the left edge of the control and spreads to the right as much as the width of the numbering labels is (depending on how large the numbers of the measurements of the scale are and the size and the other formatting of the font used in the labels).

The main purpose of the Reserved area is to provide enough space for the numbering labels of the scale at any orientation – horizontal or vertical (The Reserved area automatically re-sizes when the orientation changes in order to accommodate the specific space requirements for displaying the numbering labels in each of the orientations: in horizontal orientation, the area has to fit the labels’ height and in vertical orientation – their maximum width.) This doesn’t mean that you must necessarily place the numbering labels in the Reserved area: actually, you can position the label row anywhere across-the-scale within the Graph area. However, even if you place the label row outside Reserved area, this will have no bearing on the spread and location of the Reserved area itself – it remains where it is, automatically defined through the height/width (depending on the orientation) of the numbering labels.

Another aspect in which the Reserved area is significant is the fact that its inner edge specifies the beginning edge of the Graph area in the across-the-scale dimension. This is important, because this edge serves as a reference mark for the extent-related properties that position some visual elements across the scale. (Positive values for these properties – the most common case – position the visual elements inside the Graph area and negative values – inside the Reserved area.)

  • Graph area (2) – The area for displaying the performance bars, the tick marks, the ranges, and, optionally, the numbering labels of the bullet graph. All extent-related properties for these visual elements (except for labels) are measured against its edges. The Graph area serves not as a placeholder but as a frame of reference for positioning the scale inside the control (More precisely, for positioning the visual elements of the scale).

Spread of the Graph area:

  • Along the scale – the Graph area begins at the starting edge of the control (the left edge at horizontal orientation or bottom edge at vertical orientation) and ends at its ending edge (the right edge at horizontal orientation or top edge at vertical orientation). Both the starting and ending positions of the scale are measured against the starting edge of the Graph area.
  • Across the scale – the Graph area begins at the edge of the Reserved area (this is the bottom edge of the Graph area at horizontal orientation or its left edge at vertical orientation). The edge of the Graph area that borders with the Reserved area serves as reference point for the extent-related properties of some of the visual elements of the scale (for positioning these elements across the scale).

Configurable visual elements

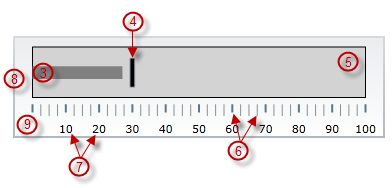

The igBulletGraph control features the following visual elements (See the picture below.):

  • Performance bar (3) – This is the primary measure displayed by the control and is visualized as a bar.
  • Comparative marker (4) – A measure which the performance bar measure compares against. It is visualized as a marker that runs perpendicular to the orientation of the performance bar.
  • Comparative range(s) (5) – The ranges are visual elements that highlight a specified range of values on a scale. Their purpose is to visually communicate the qualitative state of the performance bar measure, illustrating at the same times the degree to which it resides within that state.
  • Tick marks (6) –The tick marks serve as a visual division of the scale into intervals in order to increase the readability of the bullet graph.
    • Major tick marks – The major tick marks are used as primary delimiters on the scale. The frequency they appear at, their extents and style can be controlled by setting the corresponding properties.
    • Minor tick marks – The minor tick marks represent helper tick marks, which might be used to additionally improve the readability of the scale and can be customized in a way similar to the major ones.
  • Scale labels (7) – The labels indicate the measures on the scale.
  • Border (8) – The line visually delimiting the dimensions of the control.
  • Background (9) – The background on which visual elements is placed is configurable in terms of color.

  • Tooltips – show the values used to create the performance bars, the target value or the values, corresponding to the different ranges respectively.

Configurable Visual Elements and Related Properties

Configurable visual elements and related properties summary

There are several specific aspects in which each element can be configured.

The following table provides an overview of the configurable aspects of the visual elements of the igBulletGraph control. Further details about the configurable aspects with illustrations and the properties that configure them are available, for each visual element, in the blocks that follow the table:

Visual element Main configurable aspects
Scale
  • Position
  • Tick marks
  • Labels
Performance bar
  • Value indicated
  • Width and position
  • Look-and-feel
Comparative marker
  • Value indicated
  • Width
  • Look-and-feel
Comparative ranges
  • Number (of ranges in the graph)
  • Length, width, and position
  • Look-and-feel
Background
  • Size and position
  • Look-and-feel
Tooltips
  • Display delay

Scale

The following pictures illustrate the scale-related extents, listed in the table below.

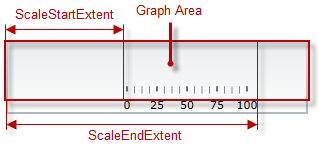

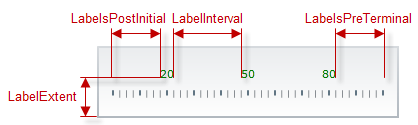

Extent positioning the scale within the Graph area Extents configuring the position of the labels

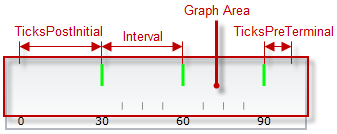

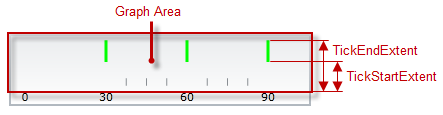

Extents configuring the major tick marks along the scale Extents configuring the major tick marks across the scale

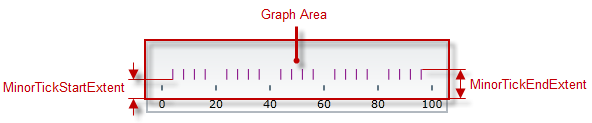

Extents configuring the minor tick marks across the scale

The following table maps the configurable aspects related to the scale of the bullet graph to the igBulletGraph properties that manage them.

Configurable aspects Property Default value
Position scaleStartExtent 0.05
scaleEndExtent 0.95
Range and Values Max value minimumValue 0
Min value maximumValue 100
Tick marks Major tick marks Position (within the scale), spacing, and length interval Not set
ticksPostInitial 0
ticksPreTerminal 0
tickStartExtent 0.02
tickEndExtent 0.2
Look-and-feel Color tickBrush Defined in the default theme
Width tickStrokeThickness 2.0
Minor tick marks Number (between two adjacent major tick marks) minorTickCount 3.0
Position minorTickStartExtent 0.06
minorTickEndExtent 0.2
Look-and-feel Color minorTickBrush Defined in the default theme
Width minorTickStrokeThickness 1.0
Labels Position and spacing labelExtent 0
labelInterval Not set
labelsPostInitial 0
labelsPreTerminal 0
Number format labelFormat Not set
Look-and-feel Color fontBrush Defined in the default theme
Font font Defined in the default theme

Related Topics

Performance bar

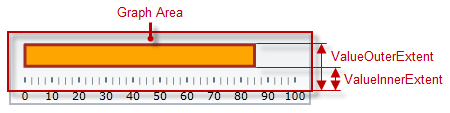

The following picture illustrates the performance-bar-related extents, listed in the table below.

The following table maps the configurable aspects related to the performance bar of the bullet graph to the igBulletGraph properties that manage them.

Configurable aspects Property Default value
Name valueName Not set
Value to indicate value Not set
Breadth and position valueInnerExtent 0.5
valueOuterExtent 0.65
Look-and-feel Fill color valueBrush Defined in the default theme
Border color valueOutline Defined in the default theme
Border thickness valueStrokeThickness 1.0
Tooltip valueToolTip Depends on whether valueName has been initialized

Related Topics

Comparative marker

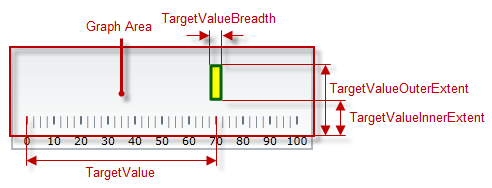

The following picture illustrates the comparative-market-related extents, listed in the table below.

The following table maps the configurable aspects related to the comparative marker of the bullet graph to the igBulletGraph properties that manage them.

Configurable aspects Property Default value
Value indicated targetValue Not set
Breadth targetValueBreadth 3.0
Look-and-feel Fill color targetValueBrush Defined in the default theme
Border color targetValueOutline Defined in the default theme
Border thickness targetValueStrokeThickness 1.0

Related Topics

Comparative ranges

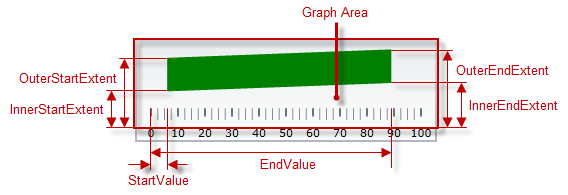

The following picture illustrates the comparative-ranges-related extents, listed in the table below.

The following table maps the configurable aspects related to the comparative ranges of the bullet graph to the igBulletGraph properties that manage them.

Configurable aspects Property Default value
Number (of ranges in the graph) ranges Not set
Length, width, and position startValue Not set
endValue Not set
innerStartExtent Not set
innerEndExtent Not set
outerStartExtent Not set
outerEndExtent Not set
Look-and-feel Fill color brush Defined in the default theme
Border color outline Defined in the default theme
Border thickness strokeThickness 1.0
Tooltip rangeToolTip The start and end values of the range separated by a hyphen (-).

Related Topics

Background

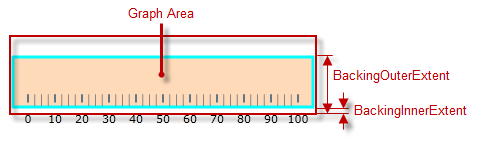

The following picture illustrates the background-related extents, listed in the table below.

The following table maps the configurable aspects related to the background of the bullet graph to the igBulletGraph properties that manage them.

Configurable aspects Property Default value
Spread and position (across the scale) backingInnerExtent 0
backingOuterExtent 1.0
Look-and-feel Color backingBrush Defined in the default theme
Border color backingOutline Defined in the default theme
Border thickness backingStrokeThickness 2.0

Related Topics

Tooltips

The following table maps the configurable aspects of the igBulletGraph control related to tooltips to the properties that manage them.

Configurable aspect Details Properties / Events Default value
Visibility You can enable/disable tooltips for the igBulletGraph control. showToolTip False
Delay The timeout before the tooltip appears upon the visual element at mouse hovering is configurable in milliseconds. showToolTipTimeout 500
Value You can provide a custom value for the respective tooltip property. Performance bar valueToolTip Depends on whether valueName has been initialized (see Configuring the Tooltips (igBulletGraph))
Comparative marker targetValueToolTip The value indicated by the comparative marker
Comparative Range(s) rangeToolTip The start and end values of the range separated by a hyphen.

Related Topics

Default Configuration

By default, the igBulletGraph control is oriented horizontally. It displays with a scale starting at 0 and ending at 100. The major tick marks of the control are located at an interval of 10 and the count of minor tick marks between each pair of major tick marks is 3. There is no title/subtitle displayed, the background color is a variety of light grey. The border is 2 pixels thick colored in dark grey. No comparative marker or ranges are displayed. Animated transitions are disabled.

The following picture demonstrates a igBulletGraph displayed with default settings.

Requirements

The igBulletGraph control is a jQuery UI widget and, therefore, depends on the jQuery and jQuery UI libraries. References to these resources are needed nevertheless, in spite of the use of pure jQuery or Ignite UI for MVC. The Infragistics.Web.Mvc assembly is required when the control is used in the context of ASP.NET MVC.

In order for the bullet graph to display the performance value(s), the targetValue property has to be set.

For the full requirements listing, refer to the Adding igBulletGraph topic.
