Configuring the Scales (igRadialGauge)

Topic Overview

Purpose

This topic provides a conceptual overview of the igRadialGauge™ control’s scale. It describes the properties of the scale and also provides an example of how to implement it.

Required background

The following topics are prerequisites to understanding this topic:

  • igRadialGauge: This section gives you an overview of the igRadialGauge™ control and its main features.

  • Adding igRadialGauge: This topic explains using a code example how to add the igRadialGauge™ control to a page.

In this topic

This topic contains the following sections:

Scale Overview

Scale overview

Used to represent the values of the gauge visually, a scale defines a range of values in the igRadialGauge control. The tick marks and ranges are all the elements that can be added to a scale.

Preview

The following image is a preview of the igRadialGauge control with the scale added.

Scale Properties

Scale properties summary

The following table summarizes the properties of the igRadialGauge control related to the scale:

Property Name Property Type Description
scaleStartExtent double Specifies the starting position of the scale measured from the center of the gauge. The value of this property should be between 0 and 1. Setting this property to a value greater than the scaleEndExtent property will result in the start extent defaulting back to the actual scaleEndExtent value.
scaleEndExtent double Specifies the end position of the scale measured from the center of the gauge. The value of this property should be between 0 and 1. Setting this property to a value less than the scaleStartExtent property will result in the end extent defaulting back to the actual scaleStartExtent value.
scaleStartAngle double Specifies the start angle for the scale in degrees.
scaleEndAngle double Specifies the end angle for the scale in degrees.
scaleOversweep double Specifies the amount of extra space (in degrees) the scale sweeps, in both directions, beyond the start and end values. This value must be greater than 0. The default value is 3.
scaleBrush brush Specifies the brush used to fill the background of the scale.
scaleSweepDirection sweepDirection Specifies whether the scale sweeps clockwise or counterclockwise.
scaleOversweepShape radialGaugeScaleOversweepShape
circular Increases the angle at which the ends of the shape is drawn
fitted Increase the angle of the outer and inner arc, but increases the angle of the inner arc more in order to keep the connecting lines of the scale shape parallel with where they would have been if the scaleOversweep property was set to 0.
auto The property’s default setting, Auto – automatically determines the backing shape and sets the scaleOversweep property accordingly.

If this property is set to Circular and the value of the backingShape property is set to Fitted a visible gap will appear between the scale and the arc of backing shape. To ensure that the scale aligns correctly with the backing area of the gauge, the scaleOversweep property and the backingShape property should be set to the same value.

Configuring the Scale

Example

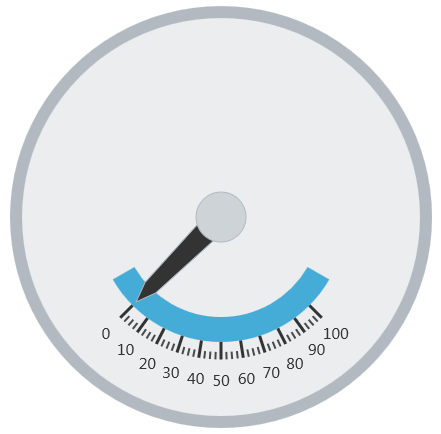

The screenshot below illustrates how the igRadialGauge renders with its scale properties configured as follows:

Property Value
scaleStartExtent 0.5
scaleEndExtent 0.4
scaleOversweep 15
scaleSweepDirection counterclockwise

The following is the code that implements this example:

In JavaScript:

$("#gauge").igRadialGauge({
    width: "400px",
    height: "400px",
    scaleStartExtent: 0.5,
    scaleEndExtent  : 0.4,
    scaleOversweep: 15,
    scaleSweepDirection: "counterclockwise"
});
