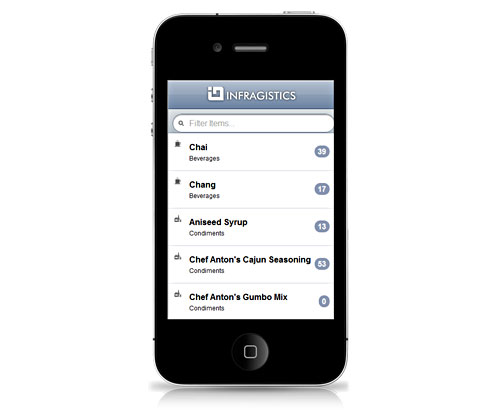

The igListView Filtering feature is intended to provide filtering functionality in the igListView control. Supported in the control are search box and filter presets to achieve filtering in the list. Filtering can be configured for remote or local filtering. The igListView control adheres to the jQuery Mobile approach of using markup-based initialization and configuration along with the standard jQuery initialization. For more information on the igListView control’s HTML data-* attributes see igListView Data Attribute Reference.

The following code snippet demonstrates how to initialize the igListView control with filtering feature enabled.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igList control read, Using JavaScript Resources in IgniteUI and Styling and Theming IgniteUI.

Code Sample


        <!doctype html>
        <html>
        <head>
            <!-- jQuery Mobile Styles -->
            <link rel="stylesheet" href="../content/jqm/jquery.mobile.structure.min.css" />
            <!-- jQuery Core -->
            <script type="text/javascript" src="js/jquery.js"></script>
            <!-- jQuery Mobile Core -->
            <script type="text/javascript" src="js/jquery.mobile.js"><script>
            <!-- Infragistics mobile loader -->
            <script type="text/javascript" src="js/infragistics.mobile.loader.js"></script>
            <script type="text/javascript">
                var northwindEmployees = [
                    { "ID": 1, "Name": "Davolio, Nancy", "Title": "Sales Representative", "ImageUrl": "../content/images/nw/employees/1.png", "Phone": "(206) 555-9857", "PhoneUrl": "tel:(206) 555-9857" },
                    { "ID": 2, "Name": "Fuller, Andrew", "Title": "Vice President, Sales", "ImageUrl": "../content/images/nw/employees/2.png", "Phone": "(206) 555-9482", "PhoneUrl": "tel:(206) 555-9482" },
                    { "ID": 3, "Name": "Leverling, Janet", "Title": "Sales Representative", "ImageUrl": "../content/images/nw/employees/3.png", "Phone": "(206) 555-3412", "PhoneUrl": "tel:(206) 555-3412" },
                    { "ID": 4, "Name": "Peacock, Margaret", "Title": "Sales Representative", "ImageUrl": "../content/images/nw/employees/4.png", "Phone": "(206) 555-8122", "PhoneUrl": "tel:(206) 555-8122" },
                    { "ID": 5, "Name": "Buchanan, Steven", "Title": "Sales Manager", "ImageUrl": "../content/images/nw/employees/5.png", "Phone": "(71) 555-4848", "PhoneUrl": "tel:(71) 555-4848" },
                    { "ID": 6, "Name": "Suyama, Michael", "Title": "Sales Representative", "ImageUrl": "../content/images/nw/employees/6.png", "Phone": "(71) 555-7773", "PhoneUrl": "tel:(71) 555-7773" },
                    { "ID": 7, "Name": "King, Robert", "Title": "Sales Representative", "ImageUrl": "../content/images/nw/employees/7.png", "Phone": "(71) 555-5598", "PhoneUrl": "tel:(71) 555-5598" },
                    { "ID": 8, "Name": "Callahan, Laura", "Title": "Inside Sales Coordinator", "ImageUrl": "../content/images/nw/employees/8.png", "Phone": "(206) 555-1189", "PhoneUrl": "tel:(206) 555-1189" },
                    { "ID": 9, "Name": "Dodsworth, Anne", "Title": "Sales Representative", "ImageUrl": "../content/images/nw/employees/9.png", "Phone": "(71) 555-4444", "PhoneUrl": "tel:(71) 555-4444" }
                ];
            </script>
            <script type="text/javascript">
                $.ig.loader({
                    scriptPath: "js",
                    cssPath: "css",
                    resources: "igmList.Filtering",
                    theme: "ios"
                });
            </script>
        </head>
        <body>
            <ul id="contactsListView"
                data-role="iglistview"
                data-icon-mode="thumbnail"
                data-data-source="northwindEmployees"
                data-bindings-header-key="Name"
                data-bindings-primary-key="ID"
                data-bindings-text-key="Phone"
                data-bindings-image-url-key="ImageUrl"
                data-filtering="true"
                data-filtering-search-bar-place-holder="Filter Contacts...">
            </ul>
        </body>
        </html>

Related Samples

caseSensitive

Type:: enumeration
Default:: false

Enables/disables filtering case sensitivity.

Members

true
Type:bool
Enables filtering case sensitivity .
false
Type:bool
Disables filtering case sensitivity.

Code Sample


            //Initialize
            $(".selector").igListView({
                dataSource: northwindEmployees,
                features: [
                    {
                        name: "Filtering",
                        caseSensitive: true
                    }
                ]
            });

            //Get
            var caseSensitive = $(".selector").igListViewFiltering("option", "caseSensitive");

filteredFields

Type:: array
Default:: []
Elements Type:: object

A list of key/value pairs (fieldName, searchValue, condition, logic) representing the filtered fields.

Code Sample


            //Initialize
            $(".selector").igListView({
                dataSource: northwindEmployees,
                features: [
                    {
                        name: "Filtering",
                        filteredFields: [
                            {
                                fieldName: "Name",
                                searchValue: "Davolio",
                                condition: "contains"
                            }
                        ]
                    }
                ]
            });

            //Get
            var filteredFields = $(".selector").igListViewFiltering("option", "filteredFields");

condition

Type:: enumeration
Default:: ""

The condition to use to filter the given field.

Members

empty
Type:string
notEmpty
Type:string
null
Type:string
notNull
Type:string
equals
Type:string
doesNotEqual
Type:string
startsWith
Type:string
contains
Type:string
doesNotContain
Type:string
endsWith
Type:string
greaterThan
Type:string
lessThan
Type:string
greaterThanOrEqualTo
Type:string
lessThanOrEqualTo
Type:string
true
Type:bool
false
Type:bool
on
Type:string
notOn
Type:string
before
Type:string
after
Type:string
today
Type:string
yesterday
Type:string
thisMonth
Type:string
lastMonth
Type:string
nextMonth
Type:string
thisYear
Type:string
nextYear
Type:string
lastYear
Type:string

Code Sample


            //Initialize
            $(".selector").igListView({
                dataSource: northwindEmployees,
                features: [
                    {
                        name: "Filtering",
                        filteredFields: [
                            {
                                fieldName: "Name",
                                searchValue: "Davolio",
                                condition: "contains"
                            }
                        ]
                    }
                ]
            });

            //Get
            var filteredFields = $(".selector").igListViewFiltering("option", "filteredFields");

fieldName

Type:: string
Default:: ""

The name of the field to filter by.

Code Sample


            //Initialize
            $(".selector").igListView({
                dataSource: northwindEmployees,
                features: [
                    {
                        name: "Filtering",
                        filteredFields: [
                            {
                                fieldName: "Name",
                                searchValue: "Davolio",
                                condition: "contains"
                            }
                        ]
                    }
                ]
            });

            //Get
            var filteredFields = $(".selector").igListViewFiltering("option", "filteredFields");

logic

Type:: enumeration
Default:: and

Whether to use boolean AND or OR if there are multiple fields to filter by .

Members

AND
Type:string
All conditions must be true for a record to be shown.
OR
Type:string
Just one condition must be true for a record to be shown.

Code Sample


            //Initialize
            $(".selector").igListView({
                dataSource: northwindEmployees,
                features: [
                    {
                        name: "Filtering",
                        filteredFields: [
                            {
                                fieldName: "Name",
                                searchValue: "Davolio",
                                condition: "contains"
                                logic: "AND"
                            },
                            {
                                fieldName: "Title",
                                searchValue: "Sales Representative",
                                condition: "equals"
                            }
                        ]
                    }
                ]
            });

            //Get
            var filteredFields = $(".selector").igListViewFiltering("option", "filteredFields");

searchValue

Type:: string
Default:: ""

The value to use for this field's filter (if applicable).

Code Sample


            //Initialize
            $(".selector").igListView({
                dataSource: northwindEmployees,
                features: [
                    {
                        name: "Filtering",
                        filteredFields: [
                            {
                                fieldName: "Name",
                                searchValue: "Davolio",
                                condition: "contains"
                            }
                        ]
                    }
                ]
            });

            //Get
            var filteredFields = $(".selector").igListViewFiltering("option", "filteredFields");

filterExprUrlKey

Type:: string
Default:: null

URL key name that specifies how the filtering expressions will be encoded for remote requests, e.g. &filter('col') = startsWith. Default is OData.

Code Sample


            //Initialize
            $(".selector").igListView({
                features: [
                    {
                        name: "Filtering",
                        filterExprUrlKey : "filter"
                    }
                ]
            });

            //Get
            var filterExpr = $(".selector").igListViewFiltering("option", "filterExprUrlKey");

filterPresetsLabel

Type:: string
Default:: null

The text that is displayed above the filter presets.

Code Sample


            //Initialize
            $(".selector").igListView({
                features: [
                    {
                        name: "Filtering",
                        filterPresetsLabel : "Filter presets:"
                    }
                ]
            });

            //Get
            var presetsLabel = $(".selector").igListViewFiltering("option", "filterPresetsLabel");

filterState

Type:: string
Default:: default

The index of the preset that should be used, 'default' for none.

Code Sample


            //Initialize
            $(".selector").igListView({
                features: [
                    {
                        name: "Filtering",
                        filterState : "default"
                    }
                ]
            });

            //Get
            var filterState = $(".selector").igListViewFiltering("option", "filterState");

presets

Type:: array
Default:: []
Elements Type:: object

A list of preset filtering options.

Code Sample


            //Initialize
            $(".selector").igListView({
                features: [
                    {
                        name: "Filtering",
                        presets : [
                            {
                                text: "Sales",
                                filteredFields: [
                                    {
                                        fieldName: "Title",
                                        searchValue: "Sales Representative",
                                        condition: "equals"
                                    }
                                ]
                            }
                        ]
                    }
                ]
            });

            //Get
            var presets = $(".selector").igListViewFiltering("option", "presets");

filteredFields

Type:

array

Default:

[]

Elements Type:

object
A list of key/value pairs (fieldName, searchValue, condition, logic) representing the filtered fields.
Code Sample
```

            //Initialize
            $(".selector").igListView({
                features: [
                    {
                        name: "Filtering",
                        presets : [
                            {
                                text: "Sales",
                                filteredFields: [
                                    {
                                        fieldName: "Title",
                                        searchValue: "Sales Representative",
                                        condition: "equals"
                                    }
                                ]
                            }
                        ]
                    }
                ]
            });

            //Get
            var presets = $(".selector").igListViewFiltering("option", "presets");

```
- condition

  Type:

  enumeration

  Default:

  ""
  The condition to use to filter the given field in this preset.
  Members

  empty

  Type:string

  notEmpty

  Type:string

  null

  Type:string

  notNull

  Type:string

  equals

  Type:string

  doesNotEqual

  Type:string

  startsWith

  Type:string

  contains

  Type:string

  doesNotContain

  Type:string

  endsWith

  Type:string

  greaterThan

  Type:string

  lessThan

  Type:string

  greaterThanOrEqualTo

  Type:string

  lessThanOrEqualTo

  Type:string

  true

  Type:bool

  false

  Type:bool

  on

  Type:string

  notOn

  Type:string

  before

  Type:string

  after

  Type:string

  today

  Type:string

  yesterday

  Type:string

  thisMonth

  Type:string

  lastMonth

  Type:string

  nextMonth

  Type:string

  thisYear

  Type:string

  nextYear

  Type:string

  lastYear

  Type:string
- fieldName

  Type:

  string

  Default:

  ""

  The name of the field to filter by.
- logic

  Type:

  enumeration

  Default:

  and
  Whether to use boolean AND or OR if there are multiple fields to filter by .
  Members

  AND

  Type:string

  All conditions must be true for a record to be shown.

  OR

  Type:string

  Just one condition must be true for a record to be shown.
- searchValue

  Type:

  string

  Default:

  ""

  The value to use for this field's filter (if applicable).

text

Type:: string
Default:: ""

The text to display in the filter preset.

Code Sample


            //Initialize
            $(".selector").igListView({
                features: [
                    {
                        name: "Filtering",
                        presets : [
                            {
                                text: "Sales",
                                filteredFields: [
                                    {
                                        fieldName: "Title",
                                        searchValue: "Sales Representative",
                                        condition: "equals"
                                    }
                                ]
                            }
                        ]
                    }
                ]
            });

            //Get
            var presets = $(".selector").igListViewFiltering("option", "presets");

searchBarAllFieldsCondition

Type:

enumeration

Default:

contains
The condition to use when switching keyword search back to all fields. Should be a string filter.
Members
- equals
- Type:string
- doesNotEqual
- Type:string
- startsWith
- Type:string
- contains
- Type:string
- doesNotContain
- Type:string
- endsWith
- Type:string
searchBarCondition

Type:

enumeration

Default:

contains
The condition to use for filtering done with the keyword search input.
Members
- empty
- Type:string
- notEmpty
- Type:string
- null
- Type:string
- notNull
- Type:string
- equals
- Type:string
- doesNotEqual
- Type:string
- startsWith
- Type:string
- contains
- Type:string
- doesNotContain
- Type:string
- endsWith
- Type:string
- greaterThan
- Type:string
- lessThan
- Type:string
- greaterThanOrEqualTo
- Type:string
- lessThanOrEqualTo
- Type:string
- true
- Type:bool
- false
- Type:bool
- on
- Type:string
- notOn
- Type:string
- before
- Type:string
- after
- Type:string
- today
- Type:string
- yesterday
- Type:string
- thisMonth
- Type:string
- lastMonth
- Type:string
- nextMonth
- Type:string
- thisYear
- Type:string
- nextYear
- Type:string
- lastYear
- Type:string
Code Sample
```

            //Initialize
            $(".selector").igListView({
                features: [
                    {
                        name: "Filtering",
                        searchBarCondition: "contains"
                    }
                ]
            });

            //Get
            var searchBarCondition = $(".selector").igListViewFiltering("option", "searchBarCondition");

```

searchBarEnabled

Type:: bool
Default:: true

Whether to enable the search bar in the tray.

Code Sample


            //Initialize
            $(".selector").igListView({
                features: [
                    {
                        name: "Filtering",
                        searchBarEnabled: true
                    }
                ]
            });

            //Get
            var searchBarEnabled = $(".selector").igListViewFiltering("option", "searchBarEnabled");

searchBarFieldName

Type:: string
Default:: ""

The field to search through for keyword search. When empty, it will search all the fields.

Code Sample


            //Initialize
            $(".selector").igListView({
                features: [
                    {
                        name: "Filtering",
                        searchBarFieldName: "Name"
                    }
                ]
            });

            //Get
            var searchBarFieldName = $(".selector").igListViewFiltering("option", "searchBarFieldName");

searchBarFields

Type:: array
Default:: []
Elements Type:: object

A list of the fields in the source to allow end user keyword search configuration.

Code Sample


            //Initialize
            $(".selector").igListView({
                features: [
                    {
                        name: "Filtering",
                        searchBarFields: [
                            {
                                text: "Name",
                                fieldName: "Name",
                                condition: "contains"
                            }
                        ]
                    }
                ]
            });

            //Get
            var searchBarFields = $(".selector").igListViewFiltering("option", "searchBarFields");

condition

Type:

enumeration

Default:

""
The filtering condition to use when scoping the keyword search by this field.
Members
- empty
- Type:string
- notEmpty
- Type:string
- null
- Type:string
- notNull
- Type:string
- equals
- Type:string
- doesNotEqual
- Type:string
- startsWith
- Type:string
- contains
- Type:string
- doesNotContain
- Type:string
- endsWith
- Type:string
- greaterThan
- Type:string
- lessThan
- Type:string
- greaterThanOrEqualTo
- Type:string
- lessThanOrEqualTo
- Type:string
- true
- Type:bool
- false
- Type:bool
- on
- Type:string
- notOn
- Type:string
- before
- Type:string
- after
- Type:string
- today
- Type:string
- yesterday
- Type:string
- thisMonth
- Type:string
- lastMonth
- Type:string
- nextMonth
- Type:string
- thisYear
- Type:string
- nextYear
- Type:string
- lastYear
- Type:string
Code Sample
```

            //Initialize
            $(".selector").igListView({
                features: [
                    {
                        name: "Filtering",
                        searchBarFields: [
                            {
                                text: "Name",
                                fieldName: "Name",
                                condition: "contains"
                            }
                        ]
                    }
                ]
            });

            //Get
            var searchBarFields = $(".selector").igListViewFiltering("option", "searchBarFields");

```

fieldName

Type:: string
Default:: ""

The name of the field to filter by.

Code Sample


            //Initialize
            $(".selector").igListView({
                features: [
                    {
                        name: "Filtering",
                        searchBarFields: [
                            {
                                text: "Name",
                                fieldName: "Name",
                                condition: "contains"
                            }
                        ]
                    }
                ]
            });

            //Get
            var searchBarFields = $(".selector").igListViewFiltering("option", "searchBarFields");

text

Type:: string
Default:: ""

The text to show in the scope option.

Code Sample


            //Initialize
            $(".selector").igListView({
                features: [
                    {
                        name: "Filtering",
                        searchBarFields: [
                            {
                                text: "Name",
                                fieldName: "Name",
                                condition: "contains"
                            }
                        ]
                    }
                ]
            });

            //Get
            var searchBarFields = $(".selector").igListViewFiltering("option", "searchBarFields");

searchBarPlaceHolder

Type:: string
Default:: null

The placeholder to display in the search bar when it is empty.

Code Sample


            //Initialize
            $(".selector").igListView({
                features: [
                    {
                        name: "Filtering",
                        searchBarPlaceHolder: "Search contacts..."
                    }
                ]
            });

            //Get
            var searchBarPlaceHolder = $(".selector").igListViewFiltering("option", "searchBarPlaceHolder");

type

Type:: enumeration
Default:: null

Defines local or remote filtering.

Members

remote
Type:string
local
Type:string

Code Sample


            //Initialize
            $(".selector").igListView({
                features: [
                    {
                        name: "Filtering",
                        type: "local"
                    }
                ]
            });

            //Get
            var filterType = $(".selector").igListViewFiltering("option", "type");

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details

keywordChanged

Cancellable:: false

Event fired after the keyword in the search bar has changed.
Function takes arguments evt and ui.
Use ui.owner to get reference to igListViewFiltering.
Use ui.owner.list to get reference to igList.
Use ui.value to get new value of textbox.

Code Sample


        //Delegate
        $(document).delegate(".selector", "iglistviewfilteringkeywordchanged", function (evt, ui) {
            //return the new value of the search box
            ui.value;
            //return reference to igListViewFiltering
            ui.owner;
            //return reference to igList
            ui.owner.list;
        });

        //Initialize
        $(".selector").igListView({
            features: [
                {
                    name: "Filtering",
                    keywordChanged: function(evt, ui) {...}
                }
            ]
        });

keywordChanging

Cancellable:: true

Event fired before the keyword in the search bar has changed.
Return false in order to cancel hanging of filter preset.
Function takes arguments evt and ui.
Use ui.owner to get reference to igListViewFiltering.
Use ui.owner.list to get reference to igList.
Use ui.value to get new value of textbox.

Code Sample


        //Delegate
        $(document).delegate(".selector", "iglistviewfilteringkeywordchanging", function (evt, ui) {
            //return the new value of the search box
            ui.value;
            //return reference to igListViewFiltering
            ui.owner;
            //return reference to igList
            ui.owner.list;
        });

        //Initialize
        $(".selector").igListView({
            features: [
                {
                    name: "Filtering",
                    keywordChanging: function(evt, ui) {...}
                }
            ]
        });

presetChanged

Cancellable:: false

Event fired after the preset has been changed and the data rerendered.
Function takes arguments evt and ui.
Use ui.owner to get reference to igListViewFiltering.
Use ui.owner.list to get reference to igList.
Use ui.state to get new filterState.

Code Sample


        //Delegate
        $(document).delegate(".selector", "iglistviewfilteringpresetchanged", function (evt, ui) {
            //return the new value of filterState option
            ui.state;
            //return reference to igListViewFiltering
            ui.owner;
            //return reference to igList
            ui.owner.list;
        });

        //Initialize
        $(".selector").igListView({
            features: [
                {
                    name: "Filtering",
                    presetChanged: function(evt, ui) {...}
                }
            ]
        });

presetChanging

Cancellable:: true

Event fired before sort preset is changed in the filter.
Return false in order to cancel changing of filter preset.
Function takes arguments evt and ui.
Use ui.owner to get reference to igListViewFiltering.
Use ui.owner.list to get reference to igList.
Use ui.state to get new filterState.

Code Sample


        //Delegate
        $(document).delegate(".selector", "iglistviewfilteringpresetchanging", function (evt, ui) {
            //return the new value of filterState option
            ui.state;
            //return reference to igListViewFiltering
            ui.owner;
            //return reference to igList
            ui.owner.list;
        });

        //Initialize
        $(".selector").igListView({
            features: [
                {
                    name: "Filtering",
                    presetChanging: function(evt, ui) {...}
                }
            ]
        });

scopeChanged

Cancellable:: false

Event fired after the scope preset has been changed and the data (possibly) rerendered.
Function takes arguments evt and ui.
Use ui.owner to get reference to igListViewFiltering.
Use ui.owner.list to get reference to igList.
Use ui.scopeField to get new field name that keyword search will scope by.
Use ui.condition to get the new condition that the keyword search will filter by.

Code Sample


        //Delegate
        $(document).delegate(".selector", "iglistviewfilteringscopechanged", function (evt, ui) {
            //return the new field name that will scope keyword search
            ui.scopeField;
            //return the new condition that the keyword search will filter by
            ui.condition;
            //return reference to igListViewFiltering
            ui.owner;
            //return reference to igList
            ui.owner.list;
        });

        //Initialize
        $(".selector").igListView({
            features: [
                {
                    name: "Filtering",
                    scopeChanged: function(evt, ui) {...}
                }
            ]
        });

scopeChanging

Cancellable:: true

Event fired before scope preset is changed in the filter.
Return false in order to cancel changing of filter preset.
Function takes arguments evt and ui.
Use ui.owner to get reference to igListViewFiltering.
Use ui.owner.list to get reference to igList.
Use ui.scopeField to get new field name that keyword search will scope by.
Use ui.condition to get/set the new condition that the keyword search will filter by.

Code Sample


        //Delegate
        $(document).delegate(".selector", "iglistviewfilteringscopechanging", function (evt, ui) {
            //return the new field name that will scope keyword search
            ui.scopeField;
            //return the new condition that the keyword search will filter by
            ui.condition;
            //return reference to igListViewFiltering
            ui.owner;
            //return reference to igList
            ui.owner.list;
        });

        //Initialize
        $(".selector").igListView({
            features: [
                {
                    name: "Filtering",
                    scopeChanging: function(evt, ui) {...}
                }
            ]
        });

Show Details

destroy

.destroy( );
Destroys the igListViewFiltering feature by removing all elements in the tray.
Code Sample
```

      $(".selector").igListViewFiltering("destroy");

```
filter

.filter( fieldExpressions:array, trayText:string );
Filters the list with the custom list of expressions given. Should have the same properties as defined in filtered fields of presets.
- fieldExpressions
- Type:array
- An array of field expression definitions where each object is key/value pairs expecting keys 'fieldName', 'searchValue', 'condition', and 'logic' (optional).
- trayText
- Type:string
- The text to put in the search tray footer (if it exists).
Code Sample
```

        $(".selector").igListViewFiltering("filter", [{fieldName:"CategoryName", searchValue: "Seafood", condition: "equals"}], "Filtering for category 'Seafood'");

```

ui-igelastic-block ui-iglist-button-cancel-container

The class applied to the container that holds the keyword search text input.
ui-iglist-filter-key-word-area

The classes applied to the element holding the keyword search input.
ui-iglist-filter-presets

The classes applied to the element holding all of the sort preset options.
ui-iglist-keyword-scope-options

The classes applied to the element holding all of the options to scope the keyword search.
ui-iglist-tray-footer-item ig-tray-keyword

The classes applied to the element displaying the text in the keyword search input in the search tray footer.
ui-iglist-input-search-container

The class applied to the container that holds the keyword search text input.
ui-igelastic-block

The class applied to the container that holds the keyword search text input when there is a cancel button.
ui-iglist-search-scope-hidden

The classes applied to the keyword search scope element when it is partially scrolled out of view horizontally.
ui-btn-inline ui-iglist-preset

The classes applied to the element to select a preset in the search area.
ui-iglist-tray-footer-item ig-tray-filter-preset

The classes applied to the element displaying the selected preset's text in the search tray footer.
ui-iglist-preset-hidden

The classes applied to the preset element when it is partially scrolled out of view horizontally.
ui-iglist-preset-selected

The classes applied to the preset element when it is selected and applied.
ui-iglist-tray-footer-sep

The classes applied to the element in the search tray footer holding the bullet (between items) and the 'filtered by' label.

Ignite UI Home

Ignite UI API Reference

mobile.igListViewFiltering

Code Sample

Related Samples

Related Topics

Dependencies

caseSensitive

Members

Code Sample

filteredFields

Code Sample

condition

Members

Code Sample

fieldName

Code Sample

logic

Members

Code Sample

searchValue

Code Sample

filterExprUrlKey

Code Sample

filterPresetsLabel

Code Sample

filterState

Code Sample

presets

Code Sample

filteredFields

Code Sample

condition

Members

fieldName

logic

Members

searchValue

text

Code Sample

searchBarAllFieldsCondition

Members

searchBarCondition

Members

Code Sample

searchBarEnabled

Code Sample

searchBarFieldName

Code Sample

searchBarFields

Code Sample

condition

Members

Code Sample

fieldName

Code Sample

text

Code Sample

searchBarPlaceHolder

Code Sample

type

Members

Code Sample

keywordChanged

Code Sample

keywordChanging

Code Sample

presetChanged

Code Sample

presetChanging

Code Sample

scopeChanged

Code Sample

scopeChanging

Code Sample

destroy

Code Sample

filter

Code Sample

ui-igelastic-block ui-iglist-button-cancel-container
