ui.igLinearGauge

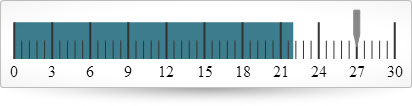

ui.igLinearGauge_image
The igLinearGauge control is an Ignite UI control which allows for visualizing data in the form of a linear gauge. It provides a simple and concise view of a primary value compared against a scale and one or more comparative ranges.

Code Sample


<!DOCTYPE html>
<html>
<head>
    <title></title>

    <!-- Ignite UI Required Combined CSS Files -->
    <link href="../../igniteui/css/themes/infragistics/infragistics.theme.css" rel="stylesheet" />
    <link href="../../igniteui/css/structure/infragistics.css" rel="stylesheet" />

    <!-- Used to style the API Viewer and Explorer UI -->
    <link href="../../css/apiviewer.css" rel="stylesheet" type="text/css" />

    <script src="../../js/modernizr.min.js"></script>
    <script src="../../js/jquery.min.js"></script>
    <script src="../../js/jquery-ui.min.js"></script>

    <!-- Ignite UI Required Combined JavaScript Files -->
    <script src="../../igniteui/js/infragistics.core.js"></script>
    <script src="../../igniteui/js/infragistics.dv.js"></script>

</head>
<body>

    <div id="lineargauge" ></div>

    <script type="text/javascript">
        $(function () {
            $("#lineargauge").igLinearGauge({
                height: "80px",
                width: "100%",
                value: 27,
                maximumValue: 30,
                ranges: [{startValue:0, endValue:22, name:"target"}]
            });
        });
    </script>
</body>
</html>


Related Samples

Related Topics

Dependencies

jquery-1.8.3.js
jquery.ui.core.js
jquery.ui.widget.js
infragistics.util.js
infragistics.dv.simple.core.js
infragistics.gauge_lineargauge.js

Inherits

  • backingBrush

    Type:
    string
    Default:
    null

    Gets or sets the brush to use to fill the backing of the linear gauge.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        backingBrush: "#164F6D"
    });

    // Get
    var backingBrush = $(".selector").igLinearGauge("option", "backingBrush");

    // Set
    $(".selector").igLinearGauge("option", "backingBrush", "#164F6D");

  • backingInnerExtent

    Type:
    number
    Default:
    0

    Gets or sets the inner extent of the linear gauge backing.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        backingInnerExtent: 0.3
    });

    // Get
    var backingInnerExtent = $(".selector").igLinearGauge("option", "backingInnerExtent");

    // Set
    $(".selector").igLinearGauge("option", "backingInnerExtent", 0.3);

  • backingOuterExtent

    Type:
    number
    Default:
    1

    Gets or sets the outer extent of the linear gauge backing.

    Code Sample

    // Initialize
    $(".selector").igLinearGauge({
        backingOuterExtent: 0.65
    });

    // Get
    var backingOuterExtent = $(".selector").igLinearGauge("option", "backingOuterExtent");

    // Set
    $(".selector").igLinearGauge("option", "backingOuterExtent", 0.65);

  • backingOutline

    Type:
    string
    Default:
    null

    Gets or sets the brush to use for the outline of the backing.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        backingOutline: "#164F6D"
    });

    // Get
    var backingOutline = $(".selector").igLinearGauge("option", "backingOutline");

    // Set
    $(".selector").igLinearGauge("option", "backingOutline", "#164F6D");

  • backingStrokeThickness

    Type:
    number
    Default:
    2

    Gets or sets the stroke thickness of the backing outline.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        backingStrokeThickness: 3
    });

    // Get
    var backingStrokeThickness = $(".selector").igLinearGauge("option", "backingStrokeThickness");

    // Set
    $(".selector").igLinearGauge("option", "backingStrokeThickness", 3);

  • font

    Type:
    string
    Default:
    null

    Gets or sets the font.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        font: "20px Georgia"
    });

    // Get
    var font = $(".selector").igLinearGauge("option", "font");

    // Set
    $(".selector").igLinearGauge("option", "font", "20px Georgia");

  • fontBrush

    Type:
    string
    Default:
    null

    Gets or sets the brush to use for the label font.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        fontBrush: "#164F6D"
    });

    // Get
    var fontBrush = $(".selector").igLinearGauge("option", "fontBrush");

    // Set
    $(".selector").igLinearGauge("option", "fontBrush", "#164F6D");

  • interval

    Type:
    number
    Default:
    0

    Gets or sets the interval to use for the scale.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        interval: 15
    });

    // Get
    var interval = $(".selector").igLinearGauge("option", "interval");

    // Set
    $(".selector").igLinearGauge("option", "interval", 15);

  • isScaleInverted

    Type:
    bool
    Default:
    false

    Gets or sets a value indicating whether the scale is inverted.
    When the scale is inverted the direction in which the scale values increase is right to left.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        isScaleInverted: true
    });

    // Get
    var isScaleInverted = $(".selector").igLinearGauge("option", "isScaleInverted");

    // Set
    $(".selector").igLinearGauge("option", "isScaleInverted", true);

  • labelExtent

    Type:
    number
    Default:
    0

    Gets or sets the position at which to put the labels as a value from 0 to 1, measured from the bottom of the scale.
    Values further from zero than 1 can be used to hide the labels of the linear gauge.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        labelExtent: 0.65
    });

    // Get
    var labelExtent = $(".selector").igLinearGauge("option", "labelExtent");

    // Set
    $(".selector").igLinearGauge("option", "labelExtent", 0.65);

  • labelInterval

    Type:
    number
    Default:
    0

    Gets or sets the interval to use for rendering labels. This defaults to be the same interval as the tickmarks on the scale.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        labelInterval: 15
    });

    // Get
    var labelInterval = $(".selector").igLinearGauge("option", "labelInterval");

    // Set
    $(".selector").igLinearGauge("option", "labelInterval", 15);

  • labelsPostInitial

    Type:
    number
    Default:
    0

    A value to start adding labels, added to the scale's MinimumValue.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        labelsPostInitial: 5000
    });

    // Get
    var labelsPostInitial = $(".selector").igLinearGauge("option", "labelsPostInitial");

    // Set
    $(".selector").igLinearGauge("option", "labelsPostInitial", 5000);

  • labelsPreTerminal

    Type:
    number
    Default:
    0

    A value to stop adding labels, subtracted from the scale's MaximumValue.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        labelsPreTerminal: 5000
    });

    // Get
    var labelsPreTerminal = $(".selector").igLinearGauge("option", "labelsPreTerminal");

    // Set
    $(".selector").igLinearGauge("option", "labelsPreTerminal", 5000);

  • maximumValue

    Type:
    number
    Default:
    100

    Gets or sets the maximum value of the scale.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        maximumValue: 5000
    });

    // Get
    var maximumValue = $(".selector").igLinearGauge("option", "maximumValue");

    // Set
    $(".selector").igLinearGauge("option", "maximumValue", 5000);

  • minimumValue

    Type:
    number
    Default:
    0

    Gets or sets the minimum value of the scale.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        minimumValue: 500
    });

    // Get
    var minimumValue = $(".selector").igLinearGauge("option", "minimumValue");

    // Set
    $(".selector").igLinearGauge("option", "minimumValue", 500);

  • minorTickBrush

    Type:
    string
    Default:
    null

    Gets or sets the brush to use for the minor tickmarks.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        minorTickBrush: "blue"
    });

    // Get
    var minorTickBrush = $(".selector").igLinearGauge("option", "minorTickBrush");

    // Set
    $(".selector").igLinearGauge("option", "minorTickBrush", "blue");

  • minorTickCount

    Type:
    number
    Default:
    3

    Gets or sets the number of minor tickmarks to place between major tickmarks.

    Code Sample

    // Initialize
    $(".selector").igLinearGauge({
        minorTickCount: 5
    });

    // Get
    var minorTickCount = $(".selector").igLinearGauge("option", "minorTickCount");

    // Set
    $(".selector").igLinearGauge("option", "minorTickCount", 5);

  • minorTickEndExtent

    Type:
    number
    Default:
    0.35

    Gets or sets the position at which to stop rendering the minor tickmarks as a value from 0 to 1, measured from the front/bottom of the linear gauge.
    Values further from zero than 1 can be used to make this extend further than the normal size of the linear gauge.

    Code Sample

    // Initialize
    $(".selector").igLinearGauge({
        minorTickEndExtent: .5
    });

    // Get
    var minorTickEndExtent = $(".selector").igLinearGauge("option", "minorTickEndExtent");

    // Set
    $(".selector").igLinearGauge("option", "minorTickEndExtent", .5);

  • minorTickStartExtent

    Type:
    number
    Default:
    0.05

    Gets or sets the position at which to start rendering the minor tickmarks as a value from 0 to 1, measured from the front/bottom of the linear gauge.
    Values further from zero than 1 can be used to make this extend further than the normal size of the linear gauge.

    Code Sample

    // Initialize
    $(".selector").igLinearGauge({
        minorTickStartExtent: .05
    });

    // Get
    var minorTickStartExtent = $(".selector").igLinearGauge("option", "minorTickStartExtent");

    // Set
    $(".selector").igLinearGauge("option", "minorTickStartExtent", .05);

  • minorTickStrokeThickness

    Type:
    number
    Default:
    1

    Gets or sets the stroke thickness to use when rendering minor ticks.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        minorTickStrokeThickness: 4
    });

    // Get
    var minorTickStrokeThickness = $(".selector").igLinearGauge("option", "minorTickStrokeThickness");

    // Set
    $(".selector").igLinearGauge("option", "minorTickStrokeThickness", 4);

  • needleBreadth

    Type:
    number
    Default:
    6

    Gets or sets the needle breadth.

    Code Sample


          // Initialize
    $(".selector").igLinearGauge({
        needleBreadth: 4
    });

    // Get
    var needleBreadth = $(".selector").igLinearGauge("option", "needleBreadth");

    // Set
    $(".selector").igLinearGauge("option", "needleBreadth", 4);
  • needleBrush

    Type:
    string
    Default:
    null

    Gets or sets the brush to use for needle element.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        needleBrush: "green"
    });

    // Get
    var needleBrush = $(".selector").igLinearGauge("option", "needleBrush");

    // Set
    $(".selector").igLinearGauge("option", "needleBrush", "green");

  • needleInnerBaseWidth

    Type:
    number
    Default:
    0

    Gets or sets the width of the needle's inner base.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        needleInnerBaseWidth: .5
    });

    // Get
    var needleInnerBaseWidth = $(".selector").igLinearGauge("option", "needleInnerBaseWidth");

    // Set
    $(".selector").igLinearGauge("option", "needleInnerBaseWidth", .5);

  • needleInnerExtent

    Type:
    number
    Default:
    0

    Gets or sets the position at which to start rendering the needle geometry, measured from the front/bottom of the linear gauge as a value from 0 to 1.
    Values further from zero than 1 can be used to make this extend further than the normal size of the linear gauge.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        needleInnerExtent: .5
    });

    // Get
    var needleInnerExtent = $(".selector").igLinearGauge("option", "needleInnerExtent");

    // Set
    $(".selector").igLinearGauge("option", "needleInnerExtent", .5);

  • needleInnerPointExtent

    Type:
    number
    Default:
    0

    Gets or sets the extent of the needle's inner point.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        needleInnerPointExtent: .5
    });

    // Get
    var needleInnerPointExtent = $(".selector").igLinearGauge("option", "needleInnerPointExtent");

    // Set
    $(".selector").igLinearGauge("option", "needleInnerPointExtent", .5);

  • needleInnerPointWidth

    Type:
    number
    Default:
    0

    Gets or sets the width of the needle's inner point.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        needleInnerPointWidth: .5
    });

    // Get
    var needleInnerPointWidth = $(".selector").igLinearGauge("option", "needleInnerPointWidth");

    // Set
    $(".selector").igLinearGauge("option", "needleInnerPointWidth", .5);

  • needleName

    Type:
    string
    Default:
    null

    Gets or sets the name used for needle.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        needleName: "Value: "
    });

    // Get
    var needleName = $(".selector").igLinearGauge("option", "needleName");

    // Set
    $(".selector").igLinearGauge("option", "needleName", "Value: ");

  • needleOuterBaseWidth

    Type:
    number
    Default:
    0

    Gets or sets the width of the needle's outer base.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        needleOuterBaseWidth: .5
    });

    // Get
    var needleOuterBaseWidth = $(".selector").igLinearGauge("option", "needleOuterBaseWidth");

    // Set
    $(".selector").igLinearGauge("option", "needleOuterBaseWidth", .5);

  • needleOuterExtent

    Type:
    number
    Default:
    0

    Gets or sets the position at which to stop rendering the needle geometry as a value from 0 to 1 measured from the front/bottom of the linear gauge.
    Values further from zero than 1 can be used to make this extend further than the normal size of the linear gauge.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        needleOuterExtent: .5
    });

    // Get
    var needleOuterExtent = $(".selector").igLinearGauge("option", "needleOuterExtent");

    // Set
    $(".selector").igLinearGauge("option", "needleOuterExtent", .5);

  • needleOuterPointExtent

    Type:
    number
    Default:
    0

    Gets or sets the extent of the needle's outer point.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        needleOuterPointExtent: .5
    });

    // Get
    var needleOuterPointExtent = $(".selector").igLinearGauge("option", "needleOuterPointExtent");

    // Set
    $(".selector").igLinearGauge("option", "needleOuterPointExtent", .5);

  • needleOuterPointWidth

    Type:
    number
    Default:
    0

    Gets or sets the width of the needle's outer point.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        needleOuterPointWidth: .5
    });

    // Get
    var needleOuterPointWidth = $(".selector").igLinearGauge("option", "needleOuterPointWidth");

    // Set
    $(".selector").igLinearGauge("option", "needleOuterPointWidth", .5);

  • needleOutline

    Type:
    string
    Default:
    null

    Gets or sets the brush to use for the outline of needle element.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        needleOutline: "green"
    });

    // Get
    var needleOutline = $(".selector").igLinearGauge("option", "needleOutline");

    // Set
    $(".selector").igLinearGauge("option", "needleOutline", "green");

  • needleShape

    Type:
    enumeration
    Default:
    null

    Gets or sets the shape to use when rendering the needle from a number of options.

    Members

    • custom
    • Type:string
    • .
    • rectangle
    • Type:string
    • .
    • triangle
    • Type:string
    • .
    • needle
    • Type:string
    • .
    • trapezoid
    • Type:string

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        needleShape: "triangle"
    });

    // Get
    var needleShape = $(".selector").igLinearGauge("option", "needleShape");

    // Set
    $(".selector").igLinearGauge("option", "needleShape", "trapezoid");

  • needleStrokeThickness

    Type:
    number
    Default:
    1

    Gets or sets the stroke thickness to use when rendering single actual value element.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        needleStrokeThickness: .5
    });

    // Get
    var needleStrokeThickness = $(".selector").igLinearGauge("option", "needleStrokeThickness");

    // Set
    $(".selector").igLinearGauge("option", "needleStrokeThickness", .5);

  • needleToolTipTemplate

    Type:
    string
    Default:
    null

    Gets or sets the needle's tooltip template.

    Code Sample


    <script id="myNeedleToolTipTemplateScript" type="text/x-jquery-tmpl">
        <div class='ui-lineargauge-needle-tooltip' style='background-color: ${itemBrush};'>
            <span>${label}</span>
        </div>
    </script>

    // Initialize
    $(".selector").igLinearGauge({
        showToolTip: true,
        needleToolTipTemplate: "myNeedleToolTipTemplateScript"
    });

    // Get
    var needleToolTipTemplate = $(".selector").igLinearGauge("option", "needleToolTipTemplate");

    // Set
    $(".selector").igLinearGauge("option", "needleToolTipTemplate", "myNeedleToolTipTemplateScript");

  • orientation

    Type:
    enumeration
    Default:
    horizontal

    Gets or sets the orientation of the scale.

    Members

    • horizontal
    • Type:string
    • .
    • vertical
    • Type:string

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        orientation: "vertical"
    });

    // Get
    var orientation = $(".selector").igLinearGauge("option", "orientation");

    // Set
    $(".selector").igLinearGauge("option", "orientation", "vertical");

  • rangeBrushes

    Type:
    object
    Default:
    null

    Gets or sets a collection of brushes to be used as the palette for linear gauge ranges.
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        rangeBrushes: ["#164F6D", "green", "#AF3", "yellow"],
    });

    // Get
    var rangeBrushes = $(".selector").igLinearGauge("option", "rangeBrushes");

    // Set
    $(".selector").igLinearGauge("option", "rangeBrushes", ["#164F6D", "green", "#AF3", "yellow"]);

  • rangeInnerExtent

    Type:
    number
    Default:
    0.05

    Gets or sets the position at which to start rendering the ranges, measured from the front/bottom of the control as a value from 0 to 1.
    Values further from zero than 1 can be used to make this extend further than the normal size of the linear gauge.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        rangeInnerExtent: 0.4,
    });

    // Get
    var rangeInnerExtent = $(".selector").igLinearGauge("option", "rangeInnerExtent");

    // Set
    $(".selector").igLinearGauge("option", "rangeInnerExtent", 0.4);

  • rangeOuterExtent

    Type:
    number
    Default:
    0.65

    Gets or sets the position at which to stop rendering the range as a value from 0 to 1 measured from the front/bottom of the linear gauge.
    Values further from zero than 1 can be used to make this extend further than the normal size of the linear gauge.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        rangeOuterExtent: 0.4,
    });

    // Get
    var rangeOuterExtent = $(".selector").igLinearGauge("option", "rangeOuterExtent");

    // Set
    $(".selector").igLinearGauge("option", "rangeOuterExtent", 0.4);

  • rangeOutlines

    Type:
    object
    Default:
    null

    Gets or sets a collection of brushes to be used as the palette for linear gauge outlines.
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

    Code Sample

    // Initialize
    $(".selector").igLinearGauge({
        rangeOutlines: ["#164F6D", "green", "#AF3", "yellow"],
    });

    // Get
    var rangeOutlines = $(".selector").igLinearGauge("option", "rangeOutlines");

    // Set
    $(".selector").igLinearGauge("option", "rangeOutlines", ["#164F6D", "green", "#AF3", "yellow"]);

  • ranges

    Type:
    array
    Default:
    []
    Elements Type:
    object

    Gets or sets the scale ranges to render on the linear gauge.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        ranges: [
                        {
                            name: 'bad',
                            startValue: 0,
                            endValue: 50
                        },
                        {
                            name: 'acceptable',
                            startValue: 50,
                            endValue: 80
                        },
                        {
                            name: 'good',
                            startValue: 80,
                            endValue: 100
                        }
        ]
    });

    // Get
    var ranges = $(".selector").igLinearGauge("option", "ranges");

    // Set
    $(".selector").igLinearGauge("option", "ranges", [
                        {
                            name: 'bad',
                            startValue: 0,
                            endValue: 50
                        },
                        {
                            name: 'acceptable',
                            startValue: 50,
                            endValue: 80
                        },
                        {
                            name: 'good',
                            startValue: 80,
                            endValue: 100
                        }
    ]);

    • brush

      Type:
      string
      Default:
      null

      Gets or sets the brush for the entire range.

      Code Sample


      //Initialize
      $(".selector").igLinearGauge({
          ranges: [
              { name: "range1", brush: "rgba(164, 189, 41, 1)" }
          ]
      });

      //Get
      var ranges = $(".selector").igLinearGauge("option", "ranges");
      var brush = ranges[0].brush;

      //Set
      $(".selector").igLinearGauge("option", "ranges", [{name: "range1", brush:"red" }]);

    • endExtent

      Type:
      number
      Default:
      0

      Gets or sets the ending value of the extent of the range.

      Code Sample


      //Initialize
      $(".selector").igLinearGauge({
          ranges: [
              { name: "range1", endExtent: .03 }
          ]
      });

      //Get
      var ranges = $(".selector").igLinearGauge("option", "ranges");
      var endExtent = ranges[0].endExtent;

      //Set
      $(".selector").igLinearGauge("option", "ranges", [{ name: "range1", endExtent: .03 }]);

    • name

      Type:
      string
      Default:
      null

      Gets or sets the name of the range.

      Code Sample


      //Initialize
      $(".selector").igLinearGauge({
          ranges: [
              { name: "range1" }
          ]
      });

      //Get
      var ranges = $(".selector").igLinearGauge("option", "ranges");
      var name = ranges[0].name;

    • outline

      Type:
      string
      Default:
      null

      Gets or sets the brush for the outline of the range.

      Code Sample


      //Initialize
      $(".selector").igLinearGauge({
          ranges: [
              { name: "range1", outline: "green" }
          ]
      });

      //Get
      var ranges = $(".selector").igLinearGauge("option", "ranges");
      var outline = ranges[0].outline;

      //Set
      $(".selector").igLinearGauge("option", "ranges", [{ name: "range1", outline: "green" }]);

    • remove

      Type:
      bool
      Default:
      false

      Gets or sets the flag used to determine if the range should be removed. If set to true, the range (if existing) is removed.

      Code Sample


      //Initialize
      $(".selector").igLinearGauge({
          ranges: [
              { name: "range1", remove: true }
          ]
      });

      //Get
      var ranges = $(".selector").igLinearGauge("option", "ranges");
      var remove = ranges[0].remove;

      //Set
      $(".selector").igLinearGauge("option", "ranges", [{ name: "range1", remove: true }]);

    • startExtent

      Type:
      number
      Default:
      0

      Gets or sets the starting value of the extent of the range.

      Code Sample


      //Initialize
      $(".selector").igLinearGauge({
          ranges: [
              { name: "range1", startExtent: .03 }
          ]
      });

      //Get
      var ranges = $(".selector").igLinearGauge("option", "ranges");
      var startExtent = ranges[0].startExtent;

      //Set
      $(".selector").igLinearGauge("option", "ranges", [{ name: "range1", startExtent: .03 }]);

    • strokeThickness

      Type:
      number
      Default:
      0

      Gets or sets the thickness of the range outline.

      Code Sample


      //Initialize
      $(".selector").igLinearGauge({
          ranges: [
              { name: "range1", strokeThickness: 3 }
          ]
      });

      //Get
      var ranges = $(".selector").igLinearGauge("option", "ranges");
      var strokeThickness = ranges[0].strokeThickness;

      //Set
      $(".selector").igLinearGauge("option", "ranges", [{ name: "range1", strokeThickness: 3 }]);

    • value

      Type:
      number
      Default:
      0

      Gets or sets the starting value of the range.

      Code Sample


      //Initialize
      $(".selector").igLinearGauge({
          ranges: [
              { name: "range1", value: 30 }
          ]
      });

      //Get
      var ranges = $(".selector").igLinearGauge("option", "ranges");
      var value = ranges[0].value;

      //Set
      $(".selector").igLinearGauge("option", "ranges", [{ name: "range1", value: 30 }]);

  • rangeToolTipTemplate

    Type:
    string
    Default:
    null

    Gets or sets the ranges' tooltip template.

    Code Sample


    <script id="myRangeToolTipTemplateScript" type="text/x-jquery-tmpl">
    	<div class='ui-lineargauge-range-tooltip'  >
            <font color='${itemBrush}'>
                ${item.name} : ${item.startValue}% - ${item.endValue}%
            </font>
        </div>
    </script>

    // Initialize
    $(".selector").igLinearGauge({
        showToolTip: true,
        rangeTooltipTemplate: "myRangeToolTipTemplateScript"
    });

    // Get
    var rangeToolTipTemplate = $(".selector").igLinearGauge("option", "rangeToolTipTemplate");

    // Set
    $(".selector").igLinearGauge("option", "rangeToolTipTemplate", "myRangeToolTipTemplateScript");

  • scaleBrush

    Type:
    string
    Default:
    null

    Gets or sets the brush to use to fill the scale of the linear gauge.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        scaleBrush: "green"
    });

    // Get
    var scaleBrush = $(".selector").igLinearGauge("option", "scaleBrush");

    // Set
    $(".selector").igLinearGauge("option", "scaleBrush", "green");

  • scaleEndExtent

    Type:
    number
    Default:
    0.95

    Gets or sets the position at which to stop rendering the scale as a value from 0 to 1, measured from the front/bottom of the linear gauge.
    Values further from zero than 1 can be used to make this extend further than the normal size of the linear gauge.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        scaleEndExtent: .7
    });

    // Get
    var scaleEndExtent = $(".selector").igLinearGauge("option", "scaleEndExtent");

    // Set
    $(".selector").igLinearGauge("option", "scaleEndExtent", .7);

  • scaleInnerExtent

    Type:
    number
    Default:
    0

    Gets or sets the position at which to start rendering the scale, measured from the bottom/front (when orientation is horizontal/vertical) of the control as a value from 0 to 1.
    Values further from zero than 1 can be used to make this extend further than the normal size of the linear gauge.

    Code Sample


          // Initialize
    $(".selector").igLinearGauge({
        scaleInnerExtent: .7
    });

    // Get
    var scaleInnerExtent = $(".selector").igLinearGauge("option", "scaleInnerExtent");

    // Set
    $(".selector").igLinearGauge("option", "scaleInnerExtent", .7);

  • scaleOuterExtent

    Type:
    number
    Default:
    0

    Gets or sets the position at which to stop rendering the scale as a value from 0 to 1 measured from the bottom/front (when orientation is horizontal/vertical) of the linear gauge.
    Values further from zero than 1 can be used to make this extend further than the normal size of the linear gauge.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        scaleOuterExtent: .7
    });

    // Get
    var scaleOuterExtent = $(".selector").igLinearGauge("option", "scaleOuterExtent");

    // Set
    $(".selector").igLinearGauge("option", "scaleOuterExtent", .7);

  • scaleOutline

    Type:
    string
    Default:
    null

    Gets or sets the brush to use for the outline of the scale.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        scaleOutline: "green"
    });

    // Get
    var scaleOutline = $(".selector").igLinearGauge("option", "scaleOutline");

    // Set
    $(".selector").igLinearGauge("option", "scaleOutline", "green");

  • scaleStartExtent

    Type:
    number
    Default:
    0.05

    Gets or sets the position at which to start rendering the scale, measured from the front/bottom of the linear gauge as a value from 0 to 1.
    Values further from zero than 1 can be used to make this extend further than the normal size of the linear gauge.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        scaleStartExtent: .1
    });

    // Get
    var scaleStartExtent = $(".selector").igLinearGauge("option", "scaleStartExtent");

    // Set
    $(".selector").igLinearGauge("option", "scaleStartExtent", .1);

  • scaleStrokeThickness

    Type:
    number
    Default:
    0

    Gets or sets the stroke thickness of the scale outline.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        scaleStrokeThickness: .3
    });

    // Get
    var scaleStrokeThickness = $(".selector").igLinearGauge("option", "scaleStrokeThickness");

    // Set
    $(".selector").igLinearGauge("option", "scaleStrokeThickness", .3);
  • showToolTip

    Type:
    bool
    Default:
    null

    Gets or sets a value indicating whether tooltips are enabled.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        showToolTip: true
    });

    // Get
    var showToolTip = $(".selector").igLinearGauge("option", "showToolTip");

    // Set
    $(".selector").igLinearGauge("option", "showToolTip", true);

  • showToolTipTimeout

    Type:
    number
    Default:
    0

    Gets or sets the time in milliseconds that tooltip appearance is delayed with.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        showToolTipTimeout: 2000
    });

    // Get
    var showToolTipTimeout = $(".selector").igLinearGauge("option", "showToolTipTimeout");

    // Set
    $(".selector").igLinearGauge("option", "showToolTipTimeout", 2000);

  • tickBrush

    Type:
    string
    Default:
    null

    Gets or sets the brush to use for the major tickmarks.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        tickBrush: "blue"
    });

    // Get
    var tickBrush = $(".selector").igLinearGauge("option", "tickBrush");

    // Set
    $(".selector").igLinearGauge("option", "tickBrush", "blue");

  • tickEndExtent

    Type:
    number
    Default:
    0.65

    Gets or sets the position at which to stop rendering the major tickmarks as a value from 0 to 1, measured from the front/bottom of the linear gauge.
    Values further from zero than 1 can be used to make this extend further than the normal size of the linear gauge.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        tickEndExtent: .5
    });

    // Get
    var tickEndExtent = $(".selector").igLinearGauge("option", "tickEndExtent");

    // Set
    $(".selector").igLinearGauge("option", "tickEndExtent", .5);

  • ticksPostInitial

    Type:
    number
    Default:
    0

    A value to start adding tickmarks, added to the scale's MinimumValue.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        ticksPostInitial: 50
    });

    // Get
    var ticksPostInitial = $(".selector").igLinearGauge("option", "ticksPostInitial");

    // Set
    $(".selector").igLinearGauge("option", "ticksPostInitial", 50);

  • ticksPreTerminal

    Type:
    number
    Default:
    0

    A value to stop adding tickmarks, subtracted from the scale's MaximumValue.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        ticksPreTerminal: 50
    });

    // Get
    var ticksPreTerminal = $(".selector").igLinearGauge("option", "ticksPreTerminal");

    // Set
    $(".selector").igLinearGauge("option", "ticksPreTerminal", 50);

  • tickStartExtent

    Type:
    number
    Default:
    0.05

    Gets or sets the position at which to start rendering the major tickmarks as a value from 0 to 1, measured from the front/bottom of the linear gauge.
    Values further from zero than 1 can be used to make this extend further than the normal size of the linear gauge.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        tickStartExtent: .05
    });

    // Get
    var tickStartExtent = $(".selector").igLinearGauge("option", "tickStartExtent");

    // Set
    $(".selector").igLinearGauge("option", "tickStartExtent", .05);
  • tickStrokeThickness

    Type:
    number
    Default:
    2

    Gets or sets the stroke thickness to use when rendering ticks.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        tickStrokeThickness: 4
    });

    // Get
    var tickStrokeThickness = $(".selector").igLinearGauge("option", "tickStrokeThickness");

    // Set
    $(".selector").igLinearGauge("option", "tickStrokeThickness", 4);

  • transitionDuration

    Type:
    number
    Default:
    0

    Gets or sets the number of milliseconds over which changes to the linear gauge should be animated.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        transitionDuration: 2000
    });

    // Get
    var transitionDuration = $(".selector").igLinearGauge("option", "transitionDuration");

    // Set
    $(".selector").igLinearGauge("option", "transitionDuration", 2000);

  • value

    Type:
    number
    Default:
    0

    Gets or sets the value at which the needle is positioned.

    Code Sample


    // Initialize
    $(".selector").igLinearGauge({
        value: 50
    });

    // Get
    var value = $(".selector").igLinearGauge("option", "value");

    // Set
    $(".selector").igLinearGauge("option", "value", 50);


For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • alignLabel

    Cancellable:
    false

    Code Sample


    //Bind
    $(document).delegate(".selector", "iglineargaugealignlabel", function (evt, ui) {
        // Get reference to igLinearGauge.
        ui.owner;

        // Get the mimimum value of the gauge scale
        ui.actualMinimumValue;

        // Get the maximum value of the gauge scale
        ui.actualMaximumValue;

        // Get the value on the gauge scale associated with the label.
        ui.value;

        // Get whether the string value of the label.
        ui.label;

        //Get the width of the label.
        ui.width;

        // Get the height of the label.
        ui.height;

        // Get the X offset of the label on the gauge scale.
        ui.offsetX;

        // Get the Y offset of the label on the gauge scale.
        ui.offsetY;
    });

    // Initialize
    $(".selector").igLinearGauge({
        alignLabel: function(evt, ui) {...}
    });

  • formatLabel

    Cancellable:
    false

    Code Sample


    //Bind
    $(document).delegate(".selector", "iglineargaugeformatlabel", function (evt, ui) {
        // Get reference to igLinearGauge.
        ui.owner;

        // Get the mimimum value of gauge scale
        ui.actualMinimumValue;

        // Get the maximum value of gauge scale
        ui.actualMaximumValue;

        // Get the value on the gauge scale associated with the label.
        ui.value;

        // Get whether the string value of the label.
        ui.label;
    });

    // Initialize
    $(".selector").igLinearGauge({
        formatLabel: function(evt, ui) {...}
    });

  • addRange

    .igLinearGauge( "addRange", value:object );

    Adds a new range to the linear gauge.

    • value
    • Type:object
    • The range object to be added.

    Code Sample

     $(".selector").igLinearGauge("addRange", { name: "Range1", value: 10, endValue: 40, brush: "red" });
  • destroy

    .igLinearGauge( "destroy" );

    Destroys widget.

    Code Sample

     $(".selector").igLinearGauge("destroy");
  • exportVisualData

    .igLinearGauge( "exportVisualData" );
    Return Type:
    object
    Return Type Description:
    a JavaScript object containing the visual data.

    Returns information about how the linear gauge is rendered.

    Code Sample

     $(".selector").igLinearGauge("exportVisualData");
  • flush

    .igLinearGauge( "flush" );

    Causes all pending changes of the linear gauge e.g. by changed property values to be rendered immediately.

    Code Sample

     $(".selector").igLinearGauge("flush");
  • getRangeNames

    .igLinearGauge( "getRangeNames" );

    Returns a string containing the names of all the ranges delimited with a \n symbol.

    Code Sample

     $(".selector").igLinearGauge("getRangeNames");
  • getValueForPoint

    .igLinearGauge( "getValueForPoint", x:object, y:object );

    Gets the value for the main scale of the gauge for a given point within the bounds of the gauge.

    • x
    • Type:object
    • y
    • Type:object

    Code Sample

     $(".selector").igLinearGauge("getValueForPoint", "4", "5");
  • needleContainsPoint

    .igLinearGauge( "needleContainsPoint", x:number, y:number );

    Returns true if the main gauge needle bounding box contains the point provided, otherwise false.

    • x
    • Type:number
    • The x coordinate of the point.
    • y
    • Type:number
    • The y coordinate of the point.

    Code Sample

     $(".selector").igLinearGauge("needleContainsPoint", "4", "5");
  • removeRange

    .igLinearGauge( "removeRange", value:object );

    Removes a range from the linear gauge.

    • value
    • Type:object
    • A JS object with properties set as follows: name: nameOfTheRangeToRemove, remove: true.

    Code Sample

     $(".selector").igLinearGauge("removeRange", { name: 'range1', remove: true });
  • styleUpdated

    .igLinearGauge( "styleUpdated" );

    Re-polls the css styles for the widget. Use this method when the css styles have been modified.

    Code Sample

     $(".selector").igLinearGauge("styleUpdated");
  • updateRange

    .igLinearGauge( "updateRange", value:object );

    Updates the specified range of the linear gauge.

    • value
    • Type:object
    • The range object to be updated.

    Code Sample

     $(".selector").igLinearGauge("updateRange", "range1");
  • ui-lineargauge

    Class applied to main element: ui-linearGauge ui-corner-all ui-widget-content.
  • ui-lineargauge-backing

    Class applying background-color and border-color to the backing element.
  • ui-lineargauge-range-fill-palette-n

    Class applying background-image to the fill of the n-th range of the linear gauge. Only gradient colors are accepted. As many palettes can be defined as neccessary.
  • ui-lineargauge-label

    Class applying background-color to the text elements.
  • ui-lineargauge-minortick

    Class applying background-color to the minor tick elements.
  • ui-lineargauge-needle

    Class applying background-color and border-color to the needle element.
  • ui-lineargauge-range-outline-palette-n

    Class applying background-image to the outline of the n-th range of the linear gauge. Only gradient colors are accepted. As many palettes can be defined as neccessary.
  • ui-lineargauge-range-palette-n

    Class applying background-color and border-color to the n-th range of the linear gauge. As many palettes can be defined as neccessary.
  • ui-lineargauge-tick

    Class applying background-color to the tick elements.
  • ui-lineargauge-tooltip ui-corner-all

    Class applied to the tooltip element: ui-lineargauge-tooltip ui-corner-all.
  • ui-html5-non-html5-supported-message ui-helper-clearfix ui-html5-non-html5

    Class applied to main element, shown when the linearGauge is opened in a non HTML5 compatible browser.

Copyright © 1996 - 2024 Infragistics, Inc. All rights reserved.

#
