ui.igSparkline

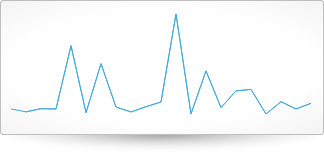

The Sparkline control is a data-intense, design-simple graphic that allows end users to spot trends, variations and patterns in data in a clear and compact representation. It supports the following chart types: line, column, area, and win-loss, and displays more details using markers, tooltips, normal ranges, and trend lines.
Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.
The following code snippet demonstrates how to initialize the igSparkline control.
For details on how to reference the required scripts and themes for the igSparkline control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.
Code Sample
<!DOCTYPE html> <html> <head> <title></title> <!-- Ignite UI Required Combined CSS Files --> <link href="/infragistics/css/themes/infragistics/infragistics.theme.css" rel="stylesheet" /> <link href="/infragistics/css/structure/infragistics.css" rel="stylesheet" /> <script src="/js/modernizr.min.js"></script> <script src="/js/jquery.min.js"></script> <script src="/js/jquery-ui.min.js"></script> <!-- Ignite UI Required Combined JavaScript Files --> <script src="/infragistics/js/infragistics.core.js"></script> <script src="/infragistics/js/infragistics.dv.js"></script> </head> <body> <!-- Target element for the igSparkline --> <div id="sparkline"></div> <script> $(function () { var invoiceData = [ { "OrderDate": "\/Date(836452800000)\/", "ExtendedPrice": 168.0000, "Freight": 32.3800 }, { "OrderDate": "\/Date(836452800000)\/", "ExtendedPrice": 98.0000, "Freight": 32.3800 }, { "OrderDate": "\/Date(836452800000)\/", "ExtendedPrice": 174.0000, "Freight": 32.3800 }, { "OrderDate": "\/Date(836539200000)\/", "ExtendedPrice": 167.4000, "Freight": 11.6100 }, { "OrderDate": "\/Date(836539200000)\/", "ExtendedPrice": 1696.0000, "Freight": 11.6100 }, { "OrderDate": "\/Date(836798400000)\/", "ExtendedPrice": 77.0000, "Freight": 65.8300 }, { "OrderDate": "\/Date(836798400000)\/", "ExtendedPrice": 1261.4000, "Freight": 65.8300 }, { "OrderDate": "\/Date(836798400000)\/", "ExtendedPrice": 214.2000, "Freight": 65.8300 }, { "OrderDate": "\/Date(836798400000)\/", "ExtendedPrice": 95.7600, "Freight": 41.3400 }, { "OrderDate": "\/Date(836798400000)\/", "ExtendedPrice": 222.3000, "Freight": 41.3400 }, { "OrderDate": "\/Date(836798400000)\/", "ExtendedPrice": 336.0000, "Freight": 41.3400 }, { "OrderDate": "\/Date(836884800000)\/", "ExtendedPrice": 2462.4000, "Freight": 51.3000 }, { "OrderDate": "\/Date(836884800000)\/", "ExtendedPrice": 47.5000, "Freight": 51.3000 }, { "OrderDate": "\/Date(836884800000)\/", "ExtendedPrice": 1088.0000, "Freight": 51.3000 }, { "OrderDate": "\/Date(836971200000)\/", "ExtendedPrice": 200.0000, "Freight": 58.1700 }, { "OrderDate": "\/Date(836971200000)\/", "ExtendedPrice": 604.8000, "Freight": 58.1700 }, { "OrderDate": "\/Date(836971200000)\/", "ExtendedPrice": 640.0000, "Freight": 58.1700 }, { "OrderDate": "\/Date(837057600000)\/", "ExtendedPrice": 45.9000, "Freight": 22.9800 }, { "OrderDate": "\/Date(837057600000)\/", "ExtendedPrice": 342.7200, "Freight": 22.9800 }, { "OrderDate": "\/Date(837057600000)\/", "ExtendedPrice": 168.0000, "Freight": 22.9800 }, { "OrderDate": "\/Date(837144000000)\/", "ExtendedPrice": 304.0000, "Freight": 148.3300 }, ]; $("#sparkline").igSparkline({ dataSource: invoiceData, height: "100px", width: "300px", valueMemberPath: 'ExtendedPrice', labelMemberPath: 'OrderDate' }); }); </script> </body> </html>
Related Samples
Related Topics
Dependencies
Inherits
-
brush
- Type:
- string
- Default:
- null
Gets or sets the sparkline brush.
Code Sample
// Initialize $(".selector").igSparkline({ brush : "#00FF00" }); // Get var brush = $(".selector").igSparkline("option", "brush"); // Set $(".selector").igSparkline("option", "brush", "#00FF00");
-
displayNormalRangeInFront
- Type:
- bool
- Default:
- collapsed
Gets or sets the position of the normal range on the sparkline.
Code Sample
// Initialize $(".selector").igSparkline({ displayNormalRangeInFront : true }); // Get var display = $(".selector").igSparkline("option", "displayNormalRangeInFront"); // Set $(".selector").igSparkline("option", "displayNormalRangeInFront", true);
-
displayType
- Type:
- enumeration
- Default:
- line
Gets or sets the display type of the sparkline.
Members
- line
- Type:string
- Display the sparkline as a line.
- area
- Type:string
- Display the sparkline as a filled polygon.
- column
- Type:string
- Display the sparkline as a set of columns.
- winLoss
- Type:string
- Display the sparkline as a set of columns on a boolean scale.
Code Sample
// Initialize $(".selector").igSparkline({ displayType : "area" }); // Get var type = $(".selector").igSparkline("option", "displayType"); // Set $(".selector").igSparkline("option", "displayType", "area");
-
firstMarkerBrush
- Type:
- string
- Default:
- null
Gets or sets the first marker brush of the sparkline.
Code Sample
// Initialize $(".selector").igSparkline({ firstMarkerBrush : "#00FF00" }); // Get var brush = $(".selector").igSparkline("option", "firstMarkerBrush"); // Set $(".selector").igSparkline("option", "firstMarkerBrush", "#00FF00");
-
firstMarkerSize
- Type:
- number
- Default:
- -1
Gets or sets the first marker size of the sparkline.
Code Sample
// Initialize $(".selector").igSparkline({ firstMarkerSize : 1 }); // Get var size = $(".selector").igSparkline("option", "firstMarkerSize"); // Set $(".selector").igSparkline("option", "firstMarkerSize", 1);
-
firstMarkerVisibility
- Type:
- enumeration
- Default:
- collapsed
Gets or sets the first marker visibility of the sparkline.
Members
- visible
- Type:string
- .
- collapsed
- Type:string
Code Sample
// Initialize $(".selector").igSparkline({ firstMarkerVisibility : "visible" }); // Get var visibility = $(".selector").igSparkline("option", "firstMarkerVisibility"); // Set $(".selector").igSparkline("option", "firstMarkerVisibility", "visible");
-
formatLabel
- Type:
- object
- Default:
- null
Sets or gets a function which takes an object that produces a formatted label for displaying in the chart.
Code Sample
function formatFunction(val) { return "Label: " + val; }; // Initialize $(".selector").igSparkline({ formatLabel : formatFunction }); // Get var func = $(".selector").igSparkline("option", "formatLabel"); // Set $(".selector").igSparkline("option", "formatLabel", formatFunction);
-
highMarkerBrush
- Type:
- string
- Default:
- null
Gets or sets the high marker brush of the sparkline.
Code Sample
// Initialize $(".selector").igSparkline({ highMarkerBrush : "#00FF00" }); // Get var brush = $(".selector").igSparkline("option", "highMarkerBrush"); // Set $(".selector").igSparkline("option", "highMarkerBrush", "#00FF00");
-
highMarkerSize
- Type:
- number
- Default:
- -1
Gets or sets the high marker size of the sparkline.
Code Sample
// Initialize $(".selector").igSparkline({ highMarkerSize : 1 }); // Get var size = $(".selector").igSparkline("option", "highMarkerSize"); // Set $(".selector").igSparkline("option", "highMarkerSize", 1);
-
highMarkerVisibility
- Type:
- enumeration
- Default:
- collapsed
Gets or sets the high marker visibility of the sparkline.
Members
- visible
- Type:string
- .
- collapsed
- Type:string
Code Sample
// Initialize $(".selector").igSparkline({ highMarkerVisibility : "visible" }); // Get var visibility = $(".selector").igSparkline("option", "highMarkerVisibility"); // Set $(".selector").igSparkline("option", "highMarkerVisibility", "visible");
-
horizontalAxisBrush
- Type:
- string
- Default:
- null
Gets or sets the horizontal axis line brush of the sparkline.
Code Sample
// Initialize $(".selector").igSparkline({ horizontalAxisBrush : "#00FF00" }); // Get var brush = $(".selector").igSparkline("option", "horizontalAxisBrush"); // Set $(".selector").igSparkline("option", "horizontalAxisBrush", "#00FF00");
-
horizontalAxisLabel
- Type:
- object
- Default:
- null
The value or content to display on the horizontal axis.
This can be set to a formatted string, such as "{0}", or it can be set to a DataTemplate.Code Sample
// Initialize $(".selector").igSparkline({ horizontalAxisLabel : "Label" }); // Get var label = $(".selector").igSparkline("option", "horizontalAxisLabel"); // Set $(".selector").igSparkline("option", "horizontalAxisLabel", "Label");
-
horizontalAxisVisibility
- Type:
- enumeration
- Default:
- collapsed
Gets or sets the display state of the horizontal axis.
Members
- visible
- Type:string
- .
- collapsed
- Type:string
Code Sample
// Initialize $(".selector").igSparkline({ horizontalAxisVisibility : "visible" }); // Get var visibility = $(".selector").igSparkline("option", "horizontalAxisVisibility"); // Set $(".selector").igSparkline("option", "horizontalAxisVisibility", "visible");
-
labelMemberPath
- Type:
- string
- Default:
- null
String identifier of a column or property name to get labels from on each item in the data source. These labels will be retrieved from the first and last item, and displayed by the horizontal axis.
Code Sample
// Initialize $(".selector").igSparkline({ labelMemberPath : "label" }); // Get var path = $(".selector").igSparkline("option", "labelMemberPath"); // Set $(".selector").igSparkline("option", "labelMemberPath", "label");
-
lastMarkerBrush
- Type:
- string
- Default:
- null
Gets or sets the last marker brush of the sparkline.
Code Sample
// Initialize $(".selector").igSparkline({ lastMarkerBrush : "#00FF00" }); // Get var brush = $(".selector").igSparkline("option", "lastMarkerBrush"); // Set $(".selector").igSparkline("option", "lastMarkerBrush", "#00FF00");
-
lastMarkerSize
- Type:
- number
- Default:
- -1
Gets or sets the last marker size of the sparkline.
Code Sample
// Initialize $(".selector").igSparkline({ lastMarkerSize : 1 }); // Get var size = $(".selector").igSparkline("option", "lastMarkerSize"); // Set $(".selector").igSparkline("option", "lastMarkerSize", 1);
-
lastMarkerVisibility
- Type:
- enumeration
- Default:
- collapsed
Gets or sets the last marker visibility of the sparkline.
Members
- visible
- Type:string
- .
- collapsed
- Type:string
Code Sample
// Initialize $(".selector").igSparkline({ lastMarkerVisibility : "visible" }); // Get var visibility = $(".selector").igSparkline("option", "lastMarkerVisibility"); // Set $(".selector").igSparkline("option", "lastMarkerVisibility", "visible");
-
lineThickness
- Type:
- number
- Default:
- -1
Gets or sets the line thickness of the sparkline.
Code Sample
// Initialize $(".selector").igSparkline({ lineThickness : 1 }); // Get var size = $(".selector").igSparkline("option", "lineThickness"); // Set $(".selector").igSparkline("option", "lineThickness", 1);
-
lowMarkerBrush
- Type:
- string
- Default:
- null
Gets or sets the low marker brush of the sparkline.
Code Sample
// Initialize $(".selector").igSparkline({ lowMarkerBrush : "#00FF00" }); // Get var brush = $(".selector").igSparkline("option", "lowMarkerBrush"); // Set $(".selector").igSparkline("option", "lowMarkerBrush", "#00FF00");
-
lowMarkerSize
- Type:
- number
- Default:
- -1
Gets or sets the low marker size of the sparkline.
Code Sample
// Initialize $(".selector").igSparkline({ lowMarkerSize : 1 }); // Get var size = $(".selector").igSparkline("option", "lowMarkerSize"); // Set $(".selector").igSparkline("option", "lowMarkerSize", 1);
-
lowMarkerVisibility
- Type:
- enumeration
- Default:
- collapsed
Gets or sets the low marker visibility of the sparkline.
Members
- visible
- Type:string
- .
- collapsed
- Type:string
Code Sample
// Initialize $(".selector").igSparkline({ lowMarkerVisibility : "visible" }); // Get var visibility = $(".selector").igSparkline("option", "lowMarkerVisibility"); // Set $(".selector").igSparkline("option", "lowMarkerVisibility", "visible");
-
markerBrush
- Type:
- string
- Default:
- null
Gets or sets the marker brush of the sparkline.
Code Sample
// Initialize $(".selector").igSparkline({ markerBrush : "#00FF00" }); // Get var brush = $(".selector").igSparkline("option", "markerBrush"); // Set $(".selector").igSparkline("option", "markerBrush", "#00FF00");
-
markerSize
- Type:
- number
- Default:
- -1
Gets or sets the marker size of the sparkline.
Code Sample
// Initialize $(".selector").igSparkline({ markerSize : 1 }); // Get var size = $(".selector").igSparkline("option", "markerSize"); // Set $(".selector").igSparkline("option", "markerSize", 1);
-
markerVisibility
- Type:
- enumeration
- Default:
- collapsed
Gets or sets the marker visibility of the sparkline.
Members
- visible
- Type:string
- .
- collapsed
- Type:string
Code Sample
// Initialize $(".selector").igSparkline({ markerVisibility : "visible" }); // Get var visibility = $(".selector").igSparkline("option", "markerVisibility"); // Set $(".selector").igSparkline("option", "markerVisibility", "visible");
-
negativeBrush
- Type:
- string
- Default:
- null
Gets or sets the negative brush of the sparkline.
Code Sample
// Initialize $(".selector").igSparkline({ negativeBrush : "#00FF00" }); // Get var brush = $(".selector").igSparkline("option", "negativeBrush"); // Set $(".selector").igSparkline("option", "negativeBrush", "#00FF00");
-
negativeMarkerBrush
- Type:
- string
- Default:
- null
Gets or sets the negative marker brush of the sparkline.
Code Sample
// Initialize $(".selector").igSparkline({ negativeMarkerBrush : "#00FF00" }); // Get var brush = $(".selector").igSparkline("option", "negativeMarkerBrush"); // Set $(".selector").igSparkline("option", "negativeMarkerBrush", "#00FF00");
-
negativeMarkerSize
- Type:
- number
- Default:
- -1
Gets or sets the negative marker size of the sparkline.
Code Sample
// Initialize $(".selector").igSparkline({ negativeMarkerSize : 1 }); // Get var size = $(".selector").igSparkline("option", "negativeMarkerSize"); // Set $(".selector").igSparkline("option", "negativeMarkerSize", 1);
-
negativeMarkerVisibility
- Type:
- enumeration
- Default:
- collapsed
Gets or sets the negative marker visibility of the sparkline.
Members
- visible
- Type:string
- .
- collapsed
- Type:string
Code Sample
// Initialize $(".selector").igSparkline({ negativeMarkerVisibility : "visible" }); // Get var visibility = $(".selector").igSparkline("option", "negativeMarkerVisibility"); // Set $(".selector").igSparkline("option", "negativeMarkerVisibility", "visible");
-
normalRangeFill
- Type:
- string
- Default:
- null
Gets or sets the normal range brush of the sparkline.
Code Sample
// Initialize $(".selector").igSparkline({ normalRangeFill : "#00FF00" }); // Get var brush = $(".selector").igSparkline("option", "normalRangeFill"); // Set $(".selector").igSparkline("option", "normalRangeFill", "#00FF00");
-
normalRangeMaximum
- Type:
- number
- Default:
- 0
Gets or sets the maximum value of the normal range.
Code Sample
// Initialize $(".selector").igSparkline({ normalRangeMaximum : 100 }); // Get var max = $(".selector").igSparkline("option", "normalRangeMaximum"); // Set $(".selector").igSparkline("option", "normalRangeMaximum", 100);
-
normalRangeMinimum
- Type:
- number
- Default:
- 0
Gets or sets the minimum value of the normal range.
Code Sample
// Initialize $(".selector").igSparkline({ normalRangeMinimum : 10 }); // Get var min = $(".selector").igSparkline("option", "normalRangeMinimum"); // Set $(".selector").igSparkline("option", "normalRangeMinimum", 10);
-
normalRangeVisibility
- Type:
- enumeration
- Default:
- collapsed
Gets or sets the normal range visibility of the sparkline.
Members
- visible
- Type:string
- .
- collapsed
- Type:string
Code Sample
// Initialize $(".selector").igSparkline({ normalRangeVisibility : "visible" }); // Get var visibility = $(".selector").igSparkline("option", "normalRangeVisibility"); // Set $(".selector").igSparkline("option", "normalRangeVisibility", "visible");
-
trendLineBrush
- Type:
- string
- Default:
- null
Gets or sets the trendline brush of the sparkline.
Code Sample
// Initialize $(".selector").igSparkline({ trendLineBrush : "#00FF00" }); // Get var brush = $(".selector").igSparkline("option", "trendLineBrush"); // Set $(".selector").igSparkline("option", "trendLineBrush", "#00FF00");
-
trendLinePeriod
- Type:
- number
- Default:
- 7
Gets or sets the trendline period used by the sparkline.
Code Sample
// Initialize $(".selector").igSparkline({ trendLinePeriod : 10 }); // Get var period = $(".selector").igSparkline("option", "trendLinePeriod"); // Set $(".selector").igSparkline("option", "trendLinePeriod", 10);
-
trendLineThickness
- Type:
- number
- Default:
- -1
Gets or sets the thickness of the sparkline's trendline.
Code Sample
// Initialize $(".selector").igSparkline({ trendLineThickness : 1 }); // Get var size = $(".selector").igSparkline("option", "trendLineThickness"); // Set $(".selector").igSparkline("option", "trendLineThickness", 1);
-
trendLineType
- Type:
- enumeration
- Default:
- none
Gets or sets the type of trendline used by the sparkline.
Members
- none
- Type:string
- .
- linearFit
- Type:string
- .
- quadraticFit
- Type:string
- .
- cubicFit
- Type:string
- .
- quarticFit
- Type:string
- .
- quinticFit
- Type:string
- .
- logarithmicFit
- Type:string
- .
- exponentialFit
- Type:string
- .
- powerLawFit
- Type:string
- .
- simpleAverage
- Type:string
- .
- exponentialAverage
- Type:string
- .
- modifiedAverage
- Type:string
- .
- cumulativeAverage
- Type:string
- .
- weightedAverage
- Type:string
Code Sample
// Initialize $(".selector").igSparkline({ trendLineType : "linearFit" }); // Get var type = $(".selector").igSparkline("option", "trendLineType"); // Set $(".selector").igSparkline("option", "trendLineType", "linearFit");
-
unknownValuePlotting
- Type:
- enumeration
- Default:
- dontplot
Gets or sets the way null values are interpreted.
Members
- linearInterpolate
- Type:string
- .
- dontPlot
- Type:string
Code Sample
// Initialize $(".selector").igSparkline({ unknownValuePlotting : "linearInterpolate" }); // Get var type = $(".selector").igSparkline("option", "unknownValuePlotting"); // Set $(".selector").igSparkline("option", "unknownValuePlotting", "linearInterpolate");
-
valueMemberPath
- Type:
- string
- Default:
- null
Gets or sets the string path to the value column.
Code Sample
// Initialize $(".selector").igSparkline({ valueMemberPath : "value" }); // Get var path = $(".selector").igSparkline("option", "valueMemberPath"); // Set $(".selector").igSparkline("option", "valueMemberPath", "value");
-
verticalAxisBrush
- Type:
- string
- Default:
- null
Gets or sets the vertical axis line brush of the sparkline.
Code Sample
// Initialize $(".selector").igSparkline({ verticalAxisBrush : "#00FF00" }); // Get var brush = $(".selector").igSparkline("option", "verticalAxisBrush"); // Set $(".selector").igSparkline("option", "verticalAxisBrush", "#00FF00");
-
verticalAxisLabel
- Type:
- object
- Default:
- null
The value or content to display on the vertical axis.
This can be set to a formatted string, such as "{0:n}", or it can be set to a DataTemplate.Code Sample
// Initialize $(".selector").igSparkline({ verticalAxisLabel : "Label" }); // Get var label = $(".selector").igSparkline("option", "verticalAxisLabel"); // Set $(".selector").igSparkline("option", "verticalAxisLabel", "Label");
-
verticalAxisVisibility
- Type:
- enumeration
- Default:
- collapsed
Gets or sets the display state of the vertical axis.
Members
- visible
- Type:string
- .
- collapsed
- Type:string
Code Sample
// Initialize $(".selector").igSparkline({ verticalAxisVisibility : "visible" }); // Get var visibility = $(".selector").igSparkline("option", "verticalAxisVisibility"); // Set $(".selector").igSparkline("option", "verticalAxisVisibility", "visible");
For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.
-
dataBinding
- Cancellable:
- true
Event which is raised before data binding.
Function takes first argument null and second argument ui.
Use ui.owner to obtain reference to igSparkline.
Use ui.dataSource to obtain reference to instance of $.ig.DataSource.Code Sample
//Delegate $(document).delegate(".selector", "igsparklinedatabinding", function (evt, ui) { // Get reference to igSparkline. ui.owner; // Get reference to instance of $.ig.DataSource. ui.dataSource; }); // Initialize $(".selector").igSparkline({ dataBinding: function(evt, ui) {...} });
-
dataBound
- Cancellable:
- false
Event which is raised after data binding.
Function takes first argument null and second argument ui.
Use ui.owner to obtain reference to igSparkline.
Use ui.data to obtain reference to array actual data which is displayed by chart.
Use ui.dataSource to obtain reference to instance of $.ig.DataSource.Code Sample
//Delegate $(document).delegate(".selector", "igsparklinedatabound", function (evt, ui) { // Get reference to igBaseChart. ui.owner; // Get reference to igSparkline's array data. ui.data; // Get reference to instance of $.ig.DataSource. ui.dataSource; }); // Initialize $(".selector").igSparkline({ dataBound: function(evt, ui) {...} });
-
destroy
- .igSparkline( "destroy" );
Code Sample
$(".selector").igSparkline("destroy");
-
ui-sparkline ui-corner-all ui-widget-content
- Get the class applied to main element: ui-sparkline ui-corner-all ui-widget-content.
-
ui-sparkline-tooltip ui-widget-content ui-corner-all
- Get the class applied to the tooltip element: ui-sparkline-tooltip ui-widget-content ui-corner-all.
