Ignite UI API Reference

ui.igGridGroupBy

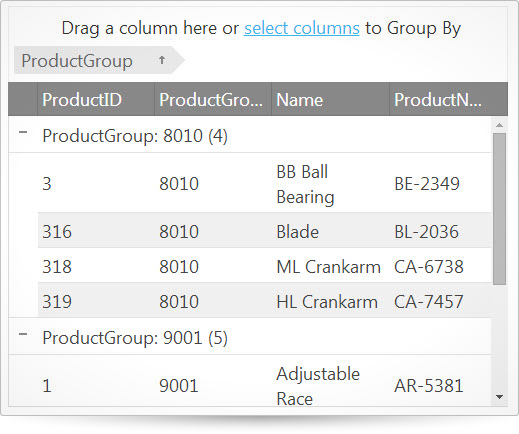

ui.igGridGroupBy_image

Both the igGrid and igHierarchicalGrid controls feature column grouping in the grid. The grouping feature allows users to group rows of data in the grid by common column values. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

The following code snippet demonstrates how to initialize the igGrid control.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample

<!doctype html>
<html>
<head>
    <title>Ignite UI igGridGroupBy</title>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
	  <script src="js/infragistics.core.js" type="text/javascript"></script>
	  <script src="js/infragistics.lob.js" type="text/javascript"></script>
    <script type="text/javascript">
        $(function () {
            var products = [
                      { "ProductID": 1, "ProductGroup": "9001", "Name": "Adjustable Race", "ProductNumber": "AR-5381" },
                      { "ProductID": 2, "ProductGroup": "9001", "Name": "Bearing Ball", "ProductNumber": "BA-8327" },
                      { "ProductID": 3, "ProductGroup": "8010", "Name": "BB Ball Bearing", "ProductNumber": "BE-2349" },
                      { "ProductID": 4, "ProductGroup": "9001", "Name": "Headset Ball Bearings", "ProductNumber": "BE-2908" },
                      { "ProductID": 316, "ProductGroup": "8010", "Name": "Blade", "ProductNumber": "BL-2036" },
                      { "ProductID": 317, "ProductGroup": "9001", "Name": "LL Crankarm", "ProductNumber": "CA-5965" },
                      { "ProductID": 318, "ProductGroup": "8010", "Name": "ML Crankarm", "ProductNumber": "CA-6738" },
                      { "ProductID": 319, "ProductGroup": "8010", "Name": "HL Crankarm", "ProductNumber": "CA-7457" },
                      { "ProductID": 320, "ProductGroup": "9001", "Name": "Chainring Bolts", "ProductNumber": "CB-2903" }
                  ];

            $("#grid").igGrid({
                autoGenerateColumns: true,
                dataSource: products,
                height: "400px",
                features: [{
                    name: "GroupBy",
                    type: "local",
                    columnSettings: [{
                        columnKey: "ProductGroup",
                        isGroupBy: true
                    }, {
                        columnKey: "ProductID",
                        allowGrouping: false
                    }]
                }]
            });
            $("#grid").igGrid("dataBind");
        });
      </script>
</head>
<body>
    <table id="grid">
    </table>
</body>
</html>


Related Samples

Related Topics

Dependencies

jquery-1.4.4.js
jquery.ui.core.js
jquery.ui.widget.js
infragistics.ui.grid.framework.js
modernizr.js

Inherits

  • collapseTooltip

    Type:
    string
    Default:
    ""

    Specifies the collapse indicator tooltip for grouped rows.

    Code Sample

            //Initialize
            $(".selector").igGrid({
                features: [
                    {
                        name: "GroupBy",
                        collapseTooltip: "Collapse group"
                    }
                ]
            });

            //Get
            var opValue = $(".selector").igGridGroupBy("option", "collapseTooltip");

            //Set
            $(".selector").igGridGroupBy("option", "collapseTooltip", "Collapse group");

  • columnSettings

    Type:
    object
    Default:
    []

    Get sets settings for individual columns such as whether the grid is grouped by that column or grouping is allowed for that column.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features: [
                    {
                        name: "GroupBy",
                        columnSettings: [
                            { columnKey: "Name", isGroupBy: true },
    						{ columnKey: "BoxArt", allowGrouping: false }
                        ]
                    }
                ]
            });

            //Get
            var arrayOfColumnSettings = $(".selector").igGridGroupBy("option", "columnSettings");

            //Set
            $(".selector").igGridGroupBy("option", "columnSettings", arrayOfColumnSettings);

    • allowGrouping

      Type:
      bool
      Default:
      true

      Enables/disables a column to participate in grouping. By default all columns can be grouped.

      Code Sample


                  //Initialize
                  $(".selector").igGrid({
                      features: [
                          {
                              name: "GroupBy",
                              columnSettings: [
      						    { columnKey: "Name", allowGrouping: false }
                              ]
                          }
                      ]
                  });

                 	//Get
      			      var groupBySettings = $(".selector").igGridGroupBy("option", "columnSettings");
      			      var allowGroupingFirstColumn = groupBySettings[0].allowGrouping;

      			      //Set
      			      //get the array of column settings
      			      var groupBySettings = $(".selector").igGridGroupBy("option", "columnSettings");
      			      //set new value for the first column
      			      groupBySettings[0].allowGrouping = false;
      			      $(".selector").igGridGroupBy("option", "columnSettings", groupBySettings);

    • groupComparerFunction

      Type:
      function
      Default:
      null

      Specifies a custom group by function, which accepts the column setting, the first and the second value to compare and returns bool.

      Code Sample


                //Initialize
      			    $(".selector").igGrid({
      				    features: [
      					    {
      						    name: "GroupBy",
      						    columnSettings: [{
      							    columnKey: "Name",
      							    groupComparerFunction: function (columnSetting, val1, val2) {
      								    return (val1 === val2);
      							    }
      						    }]
      					    }
      				    ]
      			    });

    • groupLabelFormatter

      Type:
      function
      Default:
      null

      Reference to a function which will be used for formatting the cell values. The function should accept a value from the grouped column and return the new formatted value in the label of the row.

      Code Sample


                //Initialize
      			    $(".selector").igGrid({
      				    features: [
      					    {
      						    name: "GroupBy",
      						    columnSettings: [{
      							    columnKey: "Name",
      							    groupLabelFormatter: function(val) {return (val === 1)? "Yes" : "No";}
      						    }]
      					    }
      				    ]
      			    });

                //Get
      			    var groupBySettings = $(".selector").igGridGroupBy("option", "columnSettings");
      			    var labelFormatterFirstColumn = groupBySettings[0].groupLabelFormatter;

    • isGroupBy

      Type:
      bool
      Default:
      false

      Specifies if a column should be grouped by default.

      Code Sample


                  //Initialize
      			      $(".selector").igGrid({
      				      features: [
      					      {
      						      name: "GroupBy",
      						      columnSettings: [
      							      { columnKey: "Name", isGroupBy: true }
      						      ]
      					      }
      				      ]
      			      });

    • summaries

      Type:
      object
      Default:
      []

      A list of aggregation functions to calculate on the column values for each group.

      Code Sample


                  //Initialize
      			      $(".selector").igGrid({
      				      features: [
      					      {
      						      name: "GroupBy",
      						      columnSettings: [
      							      //	The code in this example specifies that data must be grouped by
      							      //	the Color column and the average, the minimum and the maximum of
      							      //	the ListPrice column must be calculated and displayed for each group.
      							      {
      								      columnKey: "Color",
      								      isGroupBy: true
      							      },
      							      {
      								      columnKey: "ListPrice",
      								      allowGrouping: false,
      								      summaries: [
      									      {
      										      summaryFunction: "avg", text: " average:"
      									      },
      									      {
      										      summaryFunction: "min", text: " minimal:"
      									      },
      									      {
      										      summaryFunction: "max", text: " maximal:"
      									      }
      								      ]
      							      }
      						      ]
      					      }
      				      ]
      			      });

      • customSummary

        Type:
        object
        Default:
        null

        Specifies a custom summary function, which is called for each group, accepts an array of cell values for the specific column and returns the custom summary result.

        Code Sample

        				//Initialize
        				$(".selector").igGrid({
        					features: [
        						{
        							name: "GroupBy",
        							columnSettings: [
        								{
        									columnKey: "Color",
        									isGroupBy: true
        								},
        								{
        									columnKey: "ListPrice",
        									allowGrouping: false,
        									summaries: [
        										{
        											//	Set average price summary value
        											summaryFunction: "avg", text: " average:"
        										},
        										{
        											//	Set a custom function to calculate the difference between
        											//	the minimum and the maximum values in the group
        											summaryFunction: "custom",
        											text: " delta:",
        											customSummary: function(valuesList) {
        												//	Initialize minmum and maximum values with the first element
        												var min = valuesList[1], max = valuesList[1];
        												//	Iterate all values in the list and find minimum and maximum
        												for(i = 1; i < valuesList.length; i++) {
        													if(valuesList[i] < min)	min = valuesList[i];
        													if(valuesList[i] > max)	max = valuesList[i];
        												}
        												//	Return difference between minimum and maximum
        												return (max - min);
        											}
        										}
        									]
        								}
        							]
        						}
        					]
        				});

      • summaryFunction

        Type:
        enumeration
        Default:
        avg

        the summary function .

        Members

        • avg
        • Type:string
        • average.
        • min
        • Type:string
        • minimal.
        • max
        • Type:string
        • maximal.
        • sum
        • Type:string
        • sum.
        • count
        • Type:string
        • count.
        • custom
        • Type:string
        • custom summary.

        Code Sample


                        //Initialize
                        $(".selector").igGrid({
                            features: [{
                                name: "GroupBy",
                                columnSettings: [{
                                    columnKey: "Name",
                                    summaries: [{
                                        summaryFunction: "Avg"
                                    }]
                                }]
                            }]
                        });

      • text

        Type:
        object
        Default:
        null

        Specifies the Summary text that will be shown before the value.

        Code Sample


                      //Initialize
                      $(".selector").igGrid({
                          features: [{
                              name: "GroupBy",
                              columnSettings: [{
                                  columnKey: "Name",
                                  summaries: [{
                                      summaryFunction: "Avg",
                                      text: "Average:"
                                  }]
                              }]
                          }]
                      });

  • defaultSortingDirection

    Type:
    enumeration
    Default:
    asc

    default sort order - asc or desc.

    Code Sample

            //Initialize
                $(".selector").igGrid({
                    features: [
                        {
                            name: "GroupBy",
                            defaultSortingDirection: "desc"
                        }
                    ]
                });

                //	Get
                var defaultDireciton = $(".selector").igGridGroupBy("option", "defaultSortingDirection");

                //	Set
                $(".selector").igGridGroupBy("option", "defaultSortingDirection", "desc");

  • emptyGroupByAreaContent

    Type:
    string
    Default:
    ""

    Text that will be shown in the GroupBy area when there are no grouped columns.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    emptyGroupByAreaContent: "Put here columns to group by"
                }]
            });

            //	Get
            var opValue = $(".selector").igGridGroupBy("option", "emptyGroupByAreaContent");

            //	Set
            $(".selector").igGridGroupBy("option", "emptyGroupByAreaContent", "Put here columns to group by");

  • emptyGroupByAreaContentSelectColumns

    Type:
    string
    Default:
    ""

    Text of link(on click shows modal dialog with columns which could be group/ungroup by) that will be shown in the GroupBy area when there are no grouped columns.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    emptyGroupByAreaContentSelectColumns: "Select Columns to Group By"
                }]
            });

            //	Get
            var text = $(".selector").igGridGroupBy("option", "emptyGroupByAreaContentSelectColumns");

            //	Set
            $(".selector").igGridGroupBy("option", "emptyGroupByAreaContentSelectColumns", "Select Columns to Group By");

  • emptyGroupByAreaContentSelectColumnsCaption

    Type:
    string
    Default:
    ""

    Specifies caption for button which opens groupby dialog.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    emptyGroupByAreaContentSelectColumnsCaption: "Select Columns to Group By"
                }]
            });

            //	Get
            var text = $(".selector").igGridGroupBy("option", "emptyGroupByAreaContentSelectColumnsCaption");

            //	Set
            $(".selector").igGridGroupBy("option", "emptyGroupByAreaContentSelectColumnsCaption", "Select Columns to Group By");

  • expandTooltip

    Type:
    string
    Default:
    ""

    Specifies the expand indicator tooltip for grouped rows.

    Code Sample

            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    expandTooltip: "Custom expand tooltip"
                }]
            });

            //	Get
            var opValue = $(".selector").igGridGroupBy("option", "expandTooltip");

            //	Set
            $(".selector").igGridGroupBy("option", "expandTooltip", "Custom expand tooltip");

  • expansionIndicatorVisibility

    Type:
    bool
    Default:
    true

    Specifies if grouped rows will have an expander image that will allow end users to expand and collapse them. This option can be set only at initialization.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    expansionIndicatorVisibility: true
                }]
            });

            //	Get
            var opValue = $(".selector").igGridGroupBy("option", "expansionIndicatorVisibility");

  • featureChooserText

    Type:
    string
    Default:
    ""

    Specifies the text in feature chooser.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    featureChooserText: "Text"
                }]
            });

            //	Get
            var text = $(".selector").igGridGroupBy("option", "featureChooserText");

            //	Set
            $(".selector").igGridGroupBy("option", "featureChooserText", "Text");

  • featureChooserTextHide

    Type:
    string
    Default:
    ""

    Specifies hide text in feature chooser.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    featureChooserTextHide: "Hide"
                }]
            });

            //	Get
            var text = $(".selector").igGridGroupBy("option", "featureChooserTextHide");

            //	Set
            $(".selector").igGridGroupBy("option", "featureChooserTextHide", "Hide");
  • groupByAreaVisibility

    Type:
    enumeration
    Default:
    top

    Sets the place in the grid where the groupBy area will be .

    Members

    • top
    • Type:string
    • the GroupBy area will be rendered above the grid headers .
    • hidden
    • Type:string
    • the GroupBy area will not be rendered.
    • bottom
    • Type:string
    • the GroupBy area will be rendered below the grid footer (and above the pager, if any).

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    groupByAreaVisibility: "bottom"
                }]
            });

            //	Get
            var opValue = $(".selector").igGridGroupBy("option", "groupByAreaVisibility");

  • groupByLabelWidth

    Type:
    number
    Default:
    null

    By default, the column width for the header is taken. If this is specified it's used for all headers.

    Code Sample

            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    groupByLabelWidth: 100
                }]
            });

            //	Get
            var opValue = $(".selector").igGridGroupBy("option", "groupByLabelWidth");

            //	Set
            $(".selector").igGridGroupBy("option", "groupByLabelWidth", 100);

  • groupByUrlKey

    Type:
    string
    Default:
    null

    URL param name which specifies how groupBy expressions will be encoded in the URL. The OData conventions for sorting params are used if the grid is bound to an OData service. ex: ?groupby(col1)=asc.

    Code Sample


          //Initialize
          $(".selector").igGrid({
              features : [
                  {
                      name : "GroupBy",
                      groupByUrlKey: "myCustomGroupBy"
                  }
              ]
          });

          //Get
          var groupByUrlKey = $(".selector").igGridGroupBy("option", "groupByUrlKey");

          //Set
          $(".selector").igGridGroupBy("option", "groupByUrlKey", "myGroupBy");

  • groupByUrlKeyAscValue

    Type:
    string
    Default:
    null

    URL param value for ascending type of grouping. The OData conventions for sorting params are used if the grid is bound to an OData service. Example: ?groupBy(col1)=asc.

    Code Sample


          //Initialize
          $(".selector").igGrid({
              features : [
                  {
                      name : "GroupBy",
                      groupByUrlKey: "myCustomGroupBy",
                      groupByUrlKeyAscValue : "myAsc"
                  }
              ]
          });

          //Get
          var groupByAsc = $(".selector").igGridGroupBy("option", "groupByUrlKeyAscValue");

          //Set
          $(".selector").igGridGroupBy("option", "groupByUrlKeyAscValue", "myAsc");

  • groupByUrlKeyDescValue

    Type:
    string
    Default:
    null

    URL param value for descending type of grouping. The OData conventions for sorting params are used if the grid is bound to an OData service. Example: ?groupBy(col1)=desc.

    Code Sample


           //Initialize
          $(".selector").igGrid({
              features : [
                  {
                      name : "GroupBy",
                      groupByUrlKey: "myCustomGroupBy",
                      groupByUrlKeyDescValue : "myDesc"
                  }
              ]
          });

          //Get
          var groupByDesc = $(".selector").igGridGroupBy("option", "groupByUrlKeyDescValue");

          //Set
          $(".selector").igGridGroupBy("option", "groupByUrlKeyDescValue", "myDesc");

  • groupedColumns

    Type:
    object
    Default:
    []

    Returns the list of currently grouped columns. The option is read-only and cannot be set at initialization or at runtime.

    Code Sample

    		    //	Get
    		    var groupedColumns = $(".selector").igGridGroupBy("option", "groupedColumns");

    		    //	Enumerates all grouped columns
    		    for(i = 0; i < groupedColumns.length; i++) {
    			    //	Get column object
    			    groupedColumns.col

    			    //	Get the sort order for this column
    			    groupedColumns.dir

    			    //	Get the key of the grouped column
    			    groupedColumns.key

    			    //	Get the key of the columnLayour if this is hierarchical view
    			    groupedColumns.layout
    		    }

    • col

      Type:
      object
      Default:
      null

      Column object for the column that is grouped.

      Code Sample

      			      //	Get
      			      var groupedColumns = $(".selector").igGridGroupBy("option", "groupedColumns");

      			      //	Enumerates all grouped columns
      			      for(i = 0; i < groupedColumns.length; i++) {
      				      //	Get column object
      				      groupedColumns.col
      			      }

    • dir

      Type:
      enumeration
      Default:
      asc

      sort order - ascending or descending.

      Code Sample


      			      //	Get
      			      var groupedColumns = $(".selector").igGridGroupBy("option", "groupedColumns");

      			      //	Enumerates all grouped columns
      			      for(i = 0; i < groupedColumns.length; i++) {
      				      //	Get the sort order for this column
      				      groupedColumns.dir
      			      }

    • key

      Type:
      string
      Default:
      null

      Key of the column that's grouped.

      Code Sample

      			      //	Get
      			      var groupedColumns = $(".selector").igGridGroupBy("option", "groupedColumns");

      			      //	Enumerates all grouped columns
      			      for(i = 0; i < groupedColumns.length; i++) {
      				      //	Get the key of the grouped column
      				      groupedColumns.key
      			      }

    • layout

      Type:
      string
      Default:
      null

      Key of the columnLayout, if the grid is hierarchical.

      Code Sample

      			      //	Get
      			      var groupedColumns = $(".selector").igGridGroupBy("option", "groupedColumns");

      			      //	Enumerates all grouped columns
      			      for(i = 0; i < groupedColumns.length; i++) {
      				      //	Get the key of the columnLayour if this is hierarchical view
      				      groupedColumns.layout
      			      }

  • groupedRowTextTemplate

    Type:
    string
    Default:
    ${key}: ${val} (${count})

    Template for the grouped row's text, follows jQuery's templating guidelines. Variables available for the template are ${key}, ${val} and ${count}.

    Code Sample


            //Initialize
    		    $(".selector").igGrid({
    			    features: [
    				    {
    					    name: "GroupBy",
    					    groupedRowTextTemplate: "Cost $ ${val} (Count: ${count})"
    				    }
    			    ]
    		    });

    		    //	Get
    		    var opValue = $(".selector").igGridGroupBy("option", "groupedRowTextTemplate");

    		    //	Set
    		    $(".selector").igGridGroupBy("option", "groupedRowTextTemplate", "Cost $ ${val} (Count: ${count})");

  • indentation

    Type:
    number
    Default:
    30

    Specifies the indentation for a grouped row. If several columns are grouped, the total indentation will grow.

    Code Sample


                //Initialize
                $(".selector").igGrid({
                    features: [
                        {
                            name: "GroupBy",
                            indentation: 50
                        }
                    ]
                });

                //	Get
                var opValue = $(".selector").igGridGroupBy("option", "indentation");

                //	Set
                $(".selector").igGridGroupBy("option", "indentation", 50);

  • initialExpand

    Type:
    bool
    Default:
    true

    Specifies if after grouping, the grouped rows will be initially expanded or collapsed. This option can be set only at initialization.

    Code Sample


    		    //Initialize
    		    $(".selector").igGrid({
    			    features: [
    				    {
    					    name: "GroupBy",
    					    initialExpand: false
    				    }
    			    ]
    		    });

    		    //	Get
    		    var opValue = $(".selector").igGridGroupBy("option", "initialExpand");

    		    //	Set
    		    $(".selector").igGridGroupBy("option", "initialExpand", false);

  • labelDragHelperOpacity

    Type:
    number
    Default:
    0.5

    Specifies the opacity of the drag markup, while a column header is being dragged. The value must be between 0 and 1.

    Code Sample


            //Initialize
    		    $(".selector").igGrid({
    			    features: [
    				    {
    					    name: "GroupBy",
    					    labelDragHelperOpacity: 0.75
    				    }
    			    ]
    		    });

    		    //	Get
    		    var opValue = $(".selector").igGridGroupBy("option", "labelDragHelperOpacity");

    		    //	Set
    		    $(".selector").igGridGroupBy("option", "labelDragHelperOpacity", 0.75);

  • modalDialogAnimationDuration

    Type:
    number
    Default:
    200

    Specifies time in milliseconds for animation duration to show/hide modal dialog.

    Code Sample


                //Initialize
    		    $(".selector").igGrid({
    			    features: [
    				    {
    					    name: "GroupBy",
    					    modalDialogAnimationDuration: 300
    				    }
    			    ]
    		    });

    		    //	Get
    		    var duration = $(".selector").igGridGroupBy("option", "modalDialogAnimationDuration");

    		    //	Set
    		    $(".selector").igGridGroupBy("option", "modalDialogAnimationDuration", 200);

  • modalDialogButtonApplyText

    Type:
    string
    Default:
    ""

    Specifies text of button which apply changes in modal dialog.

    Code Sample


                //Initialize
    		    $(".selector").igGrid({
    			    features: [
    				    {
    					    name: "GroupBy",
    					    modalDialogButtonApplyText: "Apply"
    				    }
    			    ]
    		    });

    		    //	Get
    		    var text = $(".selector").igGridGroupBy("option", "modalDialogButtonApplyText");

    		    //	Set
    		    $(".selector").igGridGroupBy("option", "modalDialogButtonApplyText", "Apply");

  • modalDialogButtonCancelText

    Type:
    string
    Default:
    ""

    Specifies text of button which cancel changes in modal dialog.

    Code Sample


                //Initialize
    		    $(".selector").igGrid({
    			    features: [
    				    {
    					    name: "GroupBy",
    					    modalDialogButtonCancelText: "Cancel"
    				    }
    			    ]
    		    });

    		    //	Get
    		    var text = $(".selector").igGridGroupBy("option", "modalDialogButtonCancelText");

    		    //	Set
    		    $(".selector").igGridGroupBy("option", "modalDialogButtonCancelText", "Cancel");

  • modalDialogCaptionButtonAsc

    Type:
    string
    Default:
    ""

    Specifies caption for each ascending sorted column in groupby dialog.

    Code Sample


                //Initialize
    		    $(".selector").igGrid({
    			    features: [
    				    {
    					    name: "GroupBy",
    					    modalDialogCaptionButtonAsc: "Acsending"
    				    }
    			    ]
    		    });

    		    //	Get
    		    var text = $(".selector").igGridGroupBy("option", "modalDialogCaptionButtonAsc");

    		    //	Set
    		    $(".selector").igGridGroupBy("option", "modalDialogCaptionButtonAsc", "Acsending");

  • modalDialogCaptionButtonDesc

    Type:
    string
    Default:
    ""

    Specifies caption for each descending sorted column in groupby dialog.

    Code Sample


                //Initialize
    		    $(".selector").igGrid({
    			    features: [
    				    {
    					    name: "GroupBy",
    					    modalDialogCaptionButtonDesc: "Descending"
    				    }
    			    ]
    		    });

    		    //	Get
    		    var text = $(".selector").igGridGroupBy("option", "modalDialogCaptionButtonDesc");

    		    //	Set
    		    $(".selector").igGridGroupBy("option", "modalDialogCaptionButtonDesc", "Descending");

  • modalDialogCaptionButtonUngroup

    Type:
    string
    Default:
    ""

    Specifies caption button ungroup in groupby dialog.

    Code Sample


                //Initialize
    		    $(".selector").igGrid({
    			    features: [
    				    {
    					    name: "GroupBy",
    					    modalDialogCaptionButtonUngroup: "Ungroup"
    				    }
    			    ]
    		    });

    		    //	Get
    		    var text = $(".selector").igGridGroupBy("option", "modalDialogCaptionButtonUngroup");

    		    //	Set
    		    $(".selector").igGridGroupBy("option", "modalDialogCaptionButtonUngroup", "Ungroup");

  • modalDialogCaptionText

    Type:
    string
    Default:
    ""

    Specifies caption text for groupby dialog.

    Code Sample


                //Initialize
    		    $(".selector").igGrid({
    			    features: [
    				    {
    					    name: "GroupBy",
    					    modalDialogCaptionText: "Modal Dialog"
    				    }
    			    ]
    		    });

    		    //	Get
    		    var text = $(".selector").igGridGroupBy("option", "modalDialogCaptionText");

    		    //	Set
    		    $(".selector").igGridGroupBy("option", "modalDialogCaptionText", "Modal Dialog");

  • modalDialogClearAllButtonLabel

    Type:
    string
    Default:
    ""

    Specifies label for clear all button in groupby dialog.

    Code Sample


                //Initialize
    		    $(".selector").igGrid({
    			    features: [
    				    {
    					    name: "GroupBy",
    					    modalDialogClearAllButtonLabel: "Clear All"
    				    }
    			    ]
    		    });

    		    //	Get
    		    var text = $(".selector").igGridGroupBy("option", "modalDialogClearAllButtonLabel");

    		    //	Set
    		    $(".selector").igGridGroupBy("option", "modalDialogClearAllButtonLabel", "Clear All");

  • modalDialogDropDownAreaWidth

    Type:
    number
    Default:
    null

    Specifies height of layouts dropdown in groupby dialog.

    Code Sample


                //Initialize
    		    $(".selector").igGrid({
    			    features: [
    				    {
    					    name: "GroupBy",
    					    modalDialogDropDownAreaWidth: 300
    				    }
    			    ]
    		    });

    		    //	Get
    		    var width = $(".selector").igGridGroupBy("option", "modalDialogDropDownAreaWidth");

    		    //	Set
    		    $(".selector").igGridGroupBy("option", "modalDialogDropDownAreaWidth", 300);

  • modalDialogDropDownButtonCaption

    Type:
    string
    Default:
    ""

    Specifies caption of layouts dropdown button in groupby dialog.

    Code Sample


                //Initialize
    		    $(".selector").igGrid({
    			    features: [
    				    {
    					    name: "GroupBy",
    					    modalDialogDropDownButtonCaption: "Layouts"
    				    }
    			    ]
    		    });

    		    //	Get
    		    var text = $(".selector").igGridGroupBy("option", "modalDialogDropDownButtonCaption");

    		    //	Set
    		    $(".selector").igGridGroupBy("option", "modalDialogDropDownButtonCaption", "Layouts");

  • modalDialogDropDownLabel

    Type:
    string
    Default:
    ""

    Specifies label for layouts dropdown in groupby dialog.

    Code Sample


                //Initialize
    		    $(".selector").igGrid({
    			    features: [
    				    {
    					    name: "GroupBy",
    					    modalDialogDropDownLabel: "Layouts"
    				    }
    			    ]
    		    });

    		    //	Get
    		    var text = $(".selector").igGridGroupBy("option", "modalDialogDropDownLabel");

    		    //	Set
    		    $(".selector").igGridGroupBy("option", "modalDialogDropDownLabel", "Layouts");

  • modalDialogDropDownWidth

    Type:
    number
    Default:
    200

    Specifies width of layouts dropdown in groupby dialog.

    Code Sample


                //Initialize
    		    $(".selector").igGrid({
    			    features: [
    				    {
    					    name: "GroupBy",
    					    modalDialogDropDownWidth: 300
    				    }
    			    ]
    		    });

    		    //	Get
    		    var width = $(".selector").igGridGroupBy("option", "modalDialogDropDownWidth");

    		    //	Set
    		    $(".selector").igGridGroupBy("option", "modalDialogDropDownWidth", 300);

  • modalDialogGroupByButtonText

    Type:
    string
    Default:
    ""

    Specifies the text of GroupBy button in the groupby dialog.

    Code Sample


                //Initialize
    		    $(".selector").igGrid({
    			    features: [
    				    {
    					    name: "GroupBy",
    					    modalDialogGroupByButtonText: "Group"
    				    }
    			    ]
    		    });

    		    //	Get
    		    var text = $(".selector").igGridGroupBy("option", "modalDialogGroupByButtonText");

    		    //	Set
    		    $(".selector").igGridGroupBy("option", "modalDialogGroupByButtonText", "Group");

  • modalDialogGroupByOnClick

    Type:
    bool
    Default:
    false

    Specifies whether on click in groupby dialog to be immediately grouped/ungrouped columns. When it is false then it is shown Apply button in the groupby dialog.

    Code Sample


                //Initialize
    		    $(".selector").igGrid({
    			    features: [
    				    {
    					    name: "GroupBy",
    					    modalDialogGroupByOnClick: true
    				    }
    			    ]
    		    });

    		    //	Get
    		    var onClick = $(".selector").igGridGroupBy("option", "modalDialogGroupByOnClick");

    		    //	Set
    		    $(".selector").igGridGroupBy("option", "modalDialogGroupByOnClick", true);

  • modalDialogHeight

    Type:
    number
    Default:
    ""

    Specifies height of groupby dialog.

    Code Sample


                //Initialize
    		    $(".selector").igGrid({
    			    features: [
    				    {
    					    name: "GroupBy",
    					    modalDialogHeight: 500
    				    }
    			    ]
    		    });

    		    //	Get
    		    var height = $(".selector").igGridGroupBy("option", "modalDialogHeight");

    		    //	Set
    		    $(".selector").igGridGroupBy("option", "modalDialogHeight", 500);

  • modalDialogRootLevelHierarchicalGrid

    Type:
    string
    Default:
    ""

    Specifies name of the root layout which is shown layouts tree dialog.

    Code Sample


                //Initialize
    		    $(".selector").igGrid({
    			    features: [
    				    {
    					    name: "GroupBy",
    					    modalDialogRootLevelHierarchicalGrid: "Root Layout"
    				    }
    			    ]
    		    });

    		    //	Get
    		    var rootLabel = $(".selector").igGridGroupBy("option", "modalDialogRootLevelHierarchicalGrid");

    		    //	Set
    		    $(".selector").igGridGroupBy("option", "modalDialogRootLevelHierarchicalGrid", "Root Layout");
  • modalDialogWidth

    Type:
    number
    Default:
    400

    Specifies width of groupby dialog.

    Code Sample


                //Initialize
    		    $(".selector").igGrid({
    			    features: [
    				    {
    					    name: "GroupBy",
    					    modalDialogWidth: 300
    				    }
    			    ]
    		    });

    		    //	Get
    		    var width = $(".selector").igGridGroupBy("option", "modalDialogWidth");

    		    //	Set
    		    $(".selector").igGridGroupBy("option", "modalDialogWidth", 300);

  • persist

    Type:
    bool
    Default:
    true

    Enables / disables groupby persistence between states.

    Code Sample

        //Initialize
        $(".selector").igGrid({
            features : [
                {
                    name : "GroupBy",
                    persist : false
                }
            ]
        });

        //Get
        var persist = $(".selector").igGridGroupBy("option", "persist");

        //Set
        $(".selector").igGridGroupBy("option", "persist", false);

  • removeButtonTooltip

    Type:
    string
    Default:
    ""

    Specifies the tooltip for the remove button.

    Code Sample

                //Initialize
                $(".selector").igGrid({
                    features: [
                        {
                            name: "GroupBy",
                            removeButtonTooltip: "Do not group by this column"
                        }
                    ]
                });

                //	Get
                var opValue = $(".selector").igGridGroupBy("option", "removeButtonTooltip");

                //	Set
                $(".selector").igGridGroupBy("option", "removeButtonTooltip", "Do not group by this column");

  • resultResponseKey

    Type:
    string
    Default:
    null

    Specifies a key to get group by data from the response. This option can be set only at initialization.

    Code Sample

    		    //	Get
    		    var opValue = $(".selector").igGridGroupBy("option", "resultResponseKey");

    		    //	Set
    		    $(".selector").igGridGroupBy("option", "resultResponseKey", "Cost");

  • summarySettings

    Type:
    object
    Default:
    {}

    Specifies the settings for GroupBy summaries.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    summarySettings: {
                        multiSummaryDelimiter: " | ",
                        summaryFormat: "#0.00"
                    }
                }]
            });

            //	Get
            var opValue = $(".selector").igGridGroupBy("option", "summarySettings");

            //	Set
            $(".selector").igGridGroupBy("option", "summarySettings", {
                multiSummaryDelimiter: " | ",
                summaryFormat: "#0.00"
            });

    • multiSummaryDelimiter

      Type:
      string
      Default:
      ,

      Specifies the delimiter for multiple summaries, in case they are rendered inline in the grouped row.

      Code Sample


                  //Initialize
                  $(".selector").igGrid({
                      features: [{
                          name: "GroupBy",
                          summarySettings: {
                              multiSummaryDelimiter: " | "
                          }
                      }]
                  });

                  //	Get
                  var summarySettings = $(".selector").igGridGroupBy("option", "summarySettings");
                  //	Get the value of multiSummaryDelimiter
                  summarySettings.multiSummaryDelimiter

                  //	Set
                   //	Get current summary settings and set a new value to multiSummaryDelimiter
                  var summarySettings = $(".selector").igGridGroupBy("option", "summarySettings");
                  summarySettings.multiSummaryDelimiter = " | ";
                  //	Set the new value to the widget
                  $(".selector").igGridGroupBy("option", "summarySettings", summarySettings);

    • summaryFormat

      Type:
      string
      Default:
      #.00

      By default, two digits are shown after the decimal place.

      Code Sample

                  //Initialize
                  $(".selector").igGrid({
                      features: [{
                          name: "GroupBy",
                          summarySettings: {
                              summaryFormat: "#0.00"
                          }
                      }]

                      //	Get
                      var summarySettings = $(".selector").igGridGroupBy("option", "summarySettings");
                      //	Get the value of summaryFormat
                      summarySettings.summaryFormat

                      //	Set
                      //	Get current summary settings and set a new value to summaryFormat
                      var summarySettings = $(".selector").igGridGroupBy("option", "summarySettings");
                      summarySettings.summaryFormat = "#0.00";
                      //	Set the new value to the widget
                      $(".selector").igGridGroupBy("option", "summarySettings", summarySettings);
                  });

  • type

    Type:
    enumeration
    Default:
    null

    Specifies whether the groupBy operation takes place locally on client-side or remotely on server-side.

    Members

    • local
    • Type:string
    • Execute the groupBy operation locally on client-side.
    • remote
    • Type:string
    • Execute the groupBy operation by a request to the server.

    Code Sample

            //Initialize
    		    $(".selector").igGrid({
    			    features: [
    				    {
    					    name: "GroupBy",
    					    type: "local"
    				    }
    			    ]
    		    });

    		    //	Get
    		    var opValue = $(".selector").igGridGroupBy("option", "type");

    		    //	Set
    		    $(".selector").igGridGroupBy("option", "type", "local");

  • useGridColumnFormatter

    Type:
    bool
    Default:
    true

    Format grouped column using the formatter set in igGrid.columns[i].formatter or igGrid format.

    Code Sample

           //Initialize
    		    $(".selector").igGrid({
    			    features: [
    				    {
    					    name: "GroupBy",
    					    useGridColumnFormatter: false
    				    }
    			    ]
    		    });

    		    //	Get
    		    var useGridColumnFormatter = $(".selector").igGridGroupBy("option", "useGridColumnFormatter");

    		    //	Set
    		    $(".selector").igGridGroupBy("option", "useGridColumnFormatter", false);


For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • groupedColumnsChanged

    Cancellable:
    false

    Event which is fired when the groupedColumns collection has changed. This event is fired also when group/ungroup from groupby modal dialog but key, layout and grid are not set
    use args.owner in order to access the groupby widget object
    use args.owner.grid to access the grid widget option
    use args.groupedColumns to get a reference to the current groupedColumns
    use args.key to get a reference to the current column's key that's being grouped
    use args.layout to get a reference to the current layout object, if any
    use args.grid to get a reference to the current child grid element, in case it's an hierarchical grid.

    Code Sample

            //Bind after initialization
            $(document).delegate(".selector", "iggridgroupbygroupedcolumnschanged", function (evt, ui) {
                //return browser event
                evt.originalEvent;

                //	Get a reference to the igGridGroupBy widget that fired the event
                ui.owner;

                //	Get a reference to the igGrid widget to which the igGridGroupBy is bound
                ui.owner.grid;

                //	Get a reference to the list of currently grouped columns
                ui.groupedColumns;

                //	Get a reference to the current grouped column"s key
                ui.key;

                //	Get a reference to the current layout object, if any
                ui.layout;

                //	Get a reference to the current child grid element, in case it"s a hierarchical grid
                ui.grid;
            });

            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    groupedColumnsChanged: function (evt, ui) { ... }
                }]
            });

  • groupedColumnsChanging

    Cancellable:
    true

    Event which is fired when the grouped columns collection is about to change. This event is not fired when group/ungroup from groupby modal dialog
    use args.owner in order to access the groupby widget object
    use args.owner.grid to access the grid widget option
    use args.groupedColumns to get a reference to the current groupedColumns
    use args.key to get a reference to the current column's key that's being grouped
    use args.layout to get a reference to the current layout object, if any
    use args.grid to get a reference to the current child grid element, in case it's an hierarchical grid.

    Code Sample


            //Bind after initialization
            $(document).delegate(".selector", "iggridgroupbygroupedcolumnschanging", function (evt, ui) {
                //return browser event
                evt.originalEvent;

                //	Get a reference to the igGridGroupBy widget that fired the event
                ui.owner;

                //	Get a reference to the igGrid widget to which the igGridGroupBy is bound
                ui.owner.grid;

                //	Get a reference to the list of currently grouped columns
                ui.groupedColumns;

                //	Get a reference to the current grouped column"s key
                ui.key;

                //	Get a reference to the current layout object, if any
                ui.layout;

                //	Get a reference to the current child grid element, in case it"s a hierarchical grid
                ui.grid;
            });

            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    groupedColumnsChanging: function (evt, ui) { ... }
                }]
            });

  • modalDialogButtonApplyClick

    Cancellable:
    true

    Event fired when the button is Apply is clicked.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridGroupby widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.modalDialogElement to get a reference to the modal dialog element. This is a jQuery object.
    Use ui.groupedColumns to get the array of grouped columns
    Use ui.groupedColumnLayouts to get array of column layouts
    Use ui.sortingExpr to get array of sorted columns.

    Code Sample


            //Bind after initialization
            $(document).delegate(".selector", "iggridgroupbymodaldialogbuttonapplyclick", function (evt, ui) {
                //return browser event
                evt.originalEvent;

                //	Get a reference to the igGridGroupBy widget that fired the event.
                ui.owner;

                //	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
                ui.owner.grid;

                //	Get a reference to the modal dialog element. This is a jQuery object.
                ui.modalDialogElement;

                //	Get a reference to the list of currently grouped columns.
                ui.groupedColumns;

                //	Get a reference to the list of currently grouped layouts.
                ui.groupedColumnLayouts;

                //	Get a reference to the array of currently sorted columns.
                ui.sortingExpr;
            });

            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    modalDialogButtonApplyClick: function (evt, ui) { ... }
                }]
            });

  • modalDialogButtonResetClick

    Cancellable:
    true

    Event fired when reset button is clicked.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridGroupby widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.modalDialogElement to get a reference to the modal dialog element. This is a jQuery object.

    Code Sample


            //Bind after initialization
            $(document).delegate(".selector", "iggridgroupbymodaldialogbuttonresetclick", function (evt, ui) {
                //return browser event
                evt.originalEvent;

                //	Get a reference to the igGridGroupBy widget that fired the event.
                ui.owner;

                //	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
                ui.owner.grid;

                //	Get a reference to the modal dialog element. This is a jQuery object.
                ui.modalDialogElement;
            });

            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    modalDialogButtonResetClick: function (evt, ui) { ... }
                }]
            });

  • modalDialogClosed

    Cancellable:
    false

    Event fired after the modal dialog has been closed.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridGroupBy widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.modalDialogElement to get a reference to the modal dialog element. This is a jQuery object.

    Code Sample


            //Bind after initialization
            $(document).delegate(".selector", "iggridgroupbymodaldialogclosed", function (evt, ui) {
                //return browser event
                evt.originalEvent;

                //	Get a reference to the igGridGroupBy widget that fired the event.
                ui.owner;

                //	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
                ui.owner.grid;

                //	Get a reference to the modal dialog element. This is a jQuery object.
                ui.modalDialogElement;
            });

            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    modalDialogClosed: function (evt, ui) { ... }
                }]
            });

  • modalDialogClosing

    Cancellable:
    true

    Event fired before the modal dialog is closed.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridGroupBy widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.modalDialogElement to get a reference to the modal dialog element. This is a jQuery object.

    Code Sample


            //Bind after initialization
            $(document).delegate(".selector", "iggridgroupbymodaldialogclosing", function (evt, ui) {
                //return browser event
                evt.originalEvent;

                //	Get a reference to the igGridGroupBy widget that fired the event.
                ui.owner;

                //	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
                ui.owner.grid;

                //	Get a reference to the modal dialog element. This is a jQuery object.
                ui.modalDialogElement;
            });

            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    modalDialogClosing: function (evt, ui) { ... }
                }]
            });

  • modalDialogContentsRendered

    Cancellable:
    false

    Event fired after the contents of the modal dialog are rendered.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridGroupBy widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.modalDialogElement to get a reference to the modal dialog element. This is a jQuery object.

    Code Sample


            //Bind after initialization
            $(document).delegate(".selector", "iggridgroupbymodaldialogcontentsrendered", function (evt, ui) {
                //return browser event
                evt.originalEvent;

                //	Get a reference to the igGridGroupBy widget that fired the event.
                ui.owner;

                //	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
                ui.owner.grid;

                //	Get a reference to the modal dialog element. This is a jQuery object.
                ui.modalDialogElement;
            });

            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    modalDialogContentsRendered: function (evt, ui) { ... }
                }]
            });

  • modalDialogContentsRendering

    Cancellable:
    true

    Event fired before the contents of the modal dialog are rendered.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridGroupby widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.modalDialogElement to get a reference to the modal dialog element. This is a jQuery object.

    Code Sample


            //Bind after initialization
            $(document).delegate(".selector", "iggridgroupbymodaldialogcontentsrendering", function (evt, ui) {
                //return browser event
                evt.originalEvent;

                //	Get a reference to the igGridGroupBy widget that fired the event.
                ui.owner;

                //	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
                ui.owner.grid;

                //	Get a reference to the modal dialog element. This is a jQuery object.
                ui.modalDialogElement;
            });

            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    modalDialogContentsRendering: function (evt, ui) { ... }
                }]
            });

  • modalDialogGroupColumn

    Cancellable:
    false

    Event fired when column in modal dialog is clicked to be grouped.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridGroupby widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.key to get the key of the column to be grouped.
    Use args.groupedColumns to get a reference to the current groupedColumns
    Use ui.layout to get the layout of the columns.

    Code Sample


            //Bind after initialization
            $(document).delegate(".selector", "iggridgroupbymodaldialoggroupcolumn", function (evt, ui) {
                //return browser event
                evt.originalEvent;

                //	Get a reference to the igGridGroupBy widget that fired the event.
                ui.owner;

                //	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
                ui.owner.grid;

                //	Get the key of the column to be grouped.
                ui.key;

                //	Get a reference to the list of currently grouped columns.
                ui.groupedColumns;

                //	Get a reference to the current layout object, if any.
                ui.layout;
            });

            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    modalDialogGroupColumn: function (evt, ui) { ... }
                }]
            });

  • modalDialogGroupingColumn

    Cancellable:
    true

    Event fired when column in modal dialog is clicked to be grouped.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridGroupby widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.key to get the key of the column to be grouped.
    Use ui.layout to get the layout of the columns.

    Code Sample


            //Bind after initialization
            $(document).delegate(".selector", "iggridgroupbymodaldialoggroupingcolumn", function (evt, ui) {
                //return browser event
                evt.originalEvent;

                //	Get a reference to the igGridGroupBy widget that fired the event.
                ui.owner;

                //	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
                ui.owner.grid;

                //	Get the key of the column to be grouped.
                ui.key;

                //	Get a reference to the current layout object, if any.
                ui.layout;
            });

            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    modalDialogGroupingColumn: function (evt, ui) { ... }
                }]
            });

  • modalDialogMoving

    Cancellable:
    false

    Event fired every time the groupby dialog changes its position.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridGroupBy widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.modalDialogElement to get a reference to the Column Chooser element. This is a jQuery object.
    Use ui.originalPosition to get the original position of the groupby dialog div as { top, left } object, relative to the page.
    Use ui.position to get the current position of the groupby dialog div as { top, left } object, relative to the page.

    Code Sample


            //Bind after initialization
            $(document).delegate(".selector", "iggridgroupbymodaldialogmoving", function (evt, ui) {
                //return browser event
                evt.originalEvent;

                //	Get a reference to the igGridGroupBy widget that fired the event.
                ui.owner;

                //	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
                ui.owner.grid;

                //	Get a reference to the modal dialog element. This is a jQuery object.
                ui.modalDialogElement;

                //	Get the original position of the groupby dialog div as { top, left } object, relative to the page.
                ui.originalPosition;

                //	Get the current position of the groupby dialog div as { top, left } object, relative to the page.
                ui.position;
            });

            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    modalDialogMoving: function (evt, ui) { ... }
                }]
            });

  • modalDialogOpened

    Cancellable:
    false

    Event fired after the modal dialog is already opened.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridGroupBy widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.modalDialogElement to get a reference to the modal dialog element. This is a jQuery object.

    Code Sample


            //Bind after initialization
            $(document).delegate(".selector", "iggridgroupbymodaldialogopened", function (evt, ui) {
                //return browser event
                evt.originalEvent;

                //	Get a reference to the igGridGroupBy widget that fired the event.
                ui.owner;

                //	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
                ui.owner.grid;

                //	Get a reference to the modal dialog element. This is a jQuery object.
                ui.modalDialogElement;
            });

            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    modalDialogOpened: function (evt, ui) { ... }
                }]
            });

  • modalDialogOpening

    Cancellable:
    true

    Event fired before the modal dialog is opened.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridGroupBy widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.modalDialogElement to get a reference to the modal dialog element. This is a jQuery object.

    Code Sample


            //Bind after initialization
            $(document).delegate(".selector", "iggridgroupbymodaldialogopening", function (evt, ui) {
                //return browser event
                evt.originalEvent;

                //	Get a reference to the igGridGroupBy widget that fired the event.
                ui.owner;

                //	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
                ui.owner.grid;

                //	Get a reference to the modal dialog element. This is a jQuery object.
                ui.modalDialogElement;
            });

            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    modalDialogOpening: function (evt, ui) { ... }
                }]
            });

  • modalDialogSortGroupedColumn

    Cancellable:
    true

    Event fired when column in modal dialog is clicked to be ungrouped.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridGroupby widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.key to get the key of the column to be grouped.
    Use ui.layout to get the layout of the columns
    Use ui.isAsc to get whether column should be sorted ascending or descending.

    Code Sample


            //Bind after initialization
            $(document).delegate(".selector", "iggridgroupbymodaldialogsortgroupecolumn", function (evt, ui) {
                //return browser event
                evt.originalEvent;

                //	Get a reference to the igGridGroupBy widget that fired the event.
                ui.owner;

                //	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
                ui.owner.grid;

                //	Get a reference to the modal dialog element. This is a jQuery object.
                ui.modalDialogElement;

                //	Get the key of the column to be grouped.
                ui.key;

                //	Get a reference to the current layout object, if any.
                ui.layout;

                // Get whether column should be sorted ascending or descending.
                ui.isAsc;
            });

            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    modalDialogSortGroupedColumn: function (evt, ui) { ... }
                }]
            });

  • modalDialogUngroupColumn

    Cancellable:
    false

    Event fired when column in modal dialog is clicked to be ungrouped.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridGroupby widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use args.groupedColumns to get a reference to the current groupedColumns
    Use ui.key to get the key of the column to be grouped.
    Use ui.layout to get the layout of the columns.

    Code Sample


            //Bind after initialization
            $(document).delegate(".selector", "iggridgroupbymodaldialogungroupcolumn", function (evt, ui) {
                //return browser event
                evt.originalEvent;

                //	Get a reference to the igGridGroupBy widget that fired the event.
                ui.owner;

                //	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
                ui.owner.grid;

                //	Get the key of the column to be grouped.
                ui.key;

                //	Get a reference to the list of currently grouped columns.
                ui.groupedColumns;

                //	Get a reference to the current layout object, if any.
                ui.layout;
            });

            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    modalDialogUngroupColumn: function (evt, ui) { ... }
                }]
            });

  • modalDialogUngroupingColumn

    Cancellable:
    true

    Event fired when column in modal dialog is clicked to be ungrouped.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridGroupby widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.key to get the key of the column to be grouped.
    Use ui.layout to get the layout of the columns.

    Code Sample


            //Bind after initialization
            $(document).delegate(".selector", "iggridgroupbymodaldialogungroupingcolumn", function (evt, ui) {
                //return browser event
                evt.originalEvent;

                //	Get a reference to the igGridGroupBy widget that fired the event.
                ui.owner;

                //	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
                ui.owner.grid;

                //	Get the key of the column to be grouped.
                ui.key;

                //	Get a reference to the current layout object, if any.
                ui.layout;
            });

            //Initialize
            $(".selector").igGrid({
                features: [{
                    name: "GroupBy",
                    modalDialogUngroupingColumn: function (evt, ui) { ... }
                }]
            });

  • checkColumnIsGrouped

    .igGridGroupBy( "checkColumnIsGrouped", key:string, layout:string );

    Check whether column with specified key and layout is grouped.

    • key
    • Type:string
    • key of the column.
    • layout
    • Type:string
    • layout name.

    Code Sample

     $(".selector").igGridGroupBy("checkColumnIsGrouped", "ProductID", "Product");
  • closeDropDown

    .igGridGroupBy( "closeDropDown" );

    Close layouts dropdown.

    Code Sample

     $(".selector").igGridGroupBy("closeDropDown");
  • closeGroupByDialog

    .igGridGroupBy( "closeGroupByDialog" );

    Close groupby modal dialog.

    Code Sample

     $(".selector").igGridGroupBy("closeGroupByDialog");
  • destroy

    .igGridGroupBy( "destroy" );

    Destroys the group by feature object.

    Code Sample


            $(".selector").igGridGroupBy("destroy");

  • groupByColumn

    .igGridGroupBy( "groupByColumn", key:string, [layout:string], [sortingDirection:object] );

    Groups by a column.

    • key
    • Type:string
    • Column Key - group by the column with the specified key.
    • layout
    • Type:string
    • Optional
    • layout is an optional parameter. if set it means the grouped column is not in the root level but is a child layout column.
    • sortingDirection
    • Type:object
    • Optional
    • if not set it is taken from option defaultSortingDirection.

    Code Sample


            $(".selector").igGridGroupBy("groupByColumn", "columnKey", "layout");

  • groupByColumns

    .igGridGroupBy( "groupByColumns" );
    Return Type:
    object
    Return Type Description:
    returns the currently grouped columns collection.

    Adds a column to the group by columns list, executes the group by operation and updates the view.

    Code Sample


            var groupedColumns = $(".selector").igGridGroupBy("groupByColumns");

  • openDropDown

    .igGridGroupBy( "openDropDown" );

    Open layouts dropdown.

    Code Sample

     $(".selector").igGridGroupBy("openDropDown");
  • openGroupByDialog

    .igGridGroupBy( "openGroupByDialog" );

    Open groupby modal dialog.

    Code Sample

     $(".selector").igGridGroupBy("openGroupByDialog");
  • renderGroupByModalDialog

    .igGridGroupBy( "renderGroupByModalDialog" );

    Render groupby modal dialog and its content.

    Code Sample

     $(".selector").igGridGroupBy("renderGroupByModalDialog");
  • ungroupAll

    .igGridGroupBy( "ungroupAll" );

    Clears the group by columns list and updates the view.

    Code Sample

    		    $(".selector").igGridGroupBy("ungroupAll");

  • ungroupByColumn

    .igGridGroupBy( "ungroupByColumn", key:string, [layout:string] );

    Removes the specified column from the group by columns list, executes the group by operation and updates the view.

    • key
    • Type:string
    • Column Key - ungroup by the column with the specified key.
    • layout
    • Type:string
    • Optional
    • Layout is an optional parameter. If set it means the grouped column is not in the root level but is a child layout column.

    Code Sample


            $(".selector").igGridGroupBy("ungroupByColumn", "columnKey", "layout");

  • ui-button ui-corner-all ui-button-icon-only ig-sorting-indicator

    Classes which are applied to indicator for ascending sorted columns in the groupby dialog.
  • ui-button-icon-primary ui-icon ui-icon-arrowthick-1-n

    Classes which are applied to icon indicator for ascending sorted columns in the groupby dialog.
  • ui-button ui-corner-all ui-button-icon-only ig-sorting-indicator

    Classes which are applied to indicator for descending sorted columns in the groupby dialog.
  • ui-button-icon-primary ui-icon ui-icon-arrowthick-1-s

    Classes which are applied to icon indicator for descending sorted columns in the groupby dialog.
  • ui-state-hover

    Classes which are applied to hover state of buttons.
  • ui-iggrid-dialog-groupedbuttons ui-button ui-widget ui-state-default ui-corner-all ui-button-icon-only ui-igbutton ui-widget-content ui-igbutton-remove

    Classes which are applied to button which ungroup columns in the groupby dialog.
  • ui-button-icon-primary ui-icon ui-icon-circle-close

    Classes which are applied to container which holds all columns(NOT grouped) in the groupby dialog.
  • ui-iggrid-groupby-dialog-groupedcolumns

    Classes which are applied to container of grouped columns the groupby dialog.
  • ui-iggrid-dialog-text

    Classes which are applied to column name container for each grouped column in the groupby dialog.
  • ui-widget-content

    Classes which are applied to each of grouped columns in the groupby dialog.
  • ui-iggrid-dialog-layouts-dd ui-widget-content ui-corner-all ig-combo-icon-container

    Classes which are applied to the container which holds layouts dropdown in the groupby dialog.
  • ui-icon ui-icon-triangle-1-s ui-iggrid-dialog-layouts-dd-button

    Classes which are applied to the layers dropdown button in the groupby dialog.
  • ui-iggrid-dialog-layouts-dd-field

    Classes which are applied to the layouts dropdown field in the groupby dialog.
  • ui-iggrid-dialog-list-groupedcolumns

    Classes which are applied to the list of grouped columns in the groupby dialog.
  • ui-iggrid-dialog-list-ungroupedcolumns

    Classes which are applied to the list of columns(NOT grouped) in the groupby dialog.
  • ui-iggrid-dialog-groupby-button

    Classes which are applied to groupby button of columns(NOT grouped) in the groupby dialog.
  • ui-iggrid-dialog-text

    Classes which are applied to each column name container of columns(NOT grouped) in the groupby dialog.
  • ui-widget-content

    Classes which are applied to each of columns(NOT grouped) in the groupby dialog.
  • ui-iggrid-groupby-dialog-ungroupedcolumns

    Classes which are applied to container of columns which are not grouped the groupby dialog.
  • ui-iggrid-dragmarkup

    Classes applied to the markup that's being dragged.
  • ui-iggrid-featurechooser-dropdown-dialog ui-widget ui-widget-content ui-corner-all

    Classes which are applied to the container which holds layouts tree in the groupby dialog.
  • ui-iggrid-expandheadercellgb ui-iggrid-header ui-widget-header

    Classes applied to the special group by cell rendered in the header (the small empty first cell).
  • ui-icon ui-iggrid-icon-groupby

    Classes which are applied to the feature chooser groupby item.
  • ui-widget-content ui-iggrid-footerextracell

    Classes which are applied to the extra rendered cell in the footer.
  • ui-iggrid-groupbyarea

    Classes applied to the group by area, where column headers can be dropped.
  • ui-iggrid-groupbyareahover

    Class applied when we are dragging a label and we are over a groupby area, before it's dropped.
  • ui-iggrid-groupbyareatext

    Classes applied to the text container in the group by area.
  • ui-icon ui-iggrid-expandbutton ui-icon-plus

    Classes applied to the group by expander span element, when the group row is collapsed.
  • ui-icon ui-iggrid-expandbutton ui-iggrid-expandbuttonexpanded ui-icon-minus

    Classes applied to the group by expander span element, when the group row is expanded.
  • ui-iggrid-expandcolumn

    Classes applied to the groupBy expander TD cell.
  • ui-iggrid-last-emptycell

    Classes which are added to the last empty cell before expander cell.
  • ui-icon ui-icon-circle-close ui-iggrid-groupbyremovebutton

    Classses applied to the remove button that appears for every column label that's dropped in the groupBy area. The button appears on hover.
  • ui-iggrid-groupedcolumnlabel ui-state-default

    Classes applied to the LI which is rendered in the groupBy area, when a column header is dropped there.
  • ui-iggrid-groupbylabelrightedge

    Classes applied to the right edge of a groupBy column label, when it's in the middle of the bread-crumb.
  • ui-iggrid-groupbylabelrightedgeend

    Classes applied to the right edge of the groupBy area bread-crumb labels, when there are no more labels to the right. so that it appears as triangle.
  • ui-iggrid-groupedcolumnlabeltext

    Classes applied to the text in the group by label.
  • ui-iggrid-groupbylayoutlabel

    Classes apppled to the text container, which specifies the columnLayout name in front of the groupBy column label, in case the grid is hierarchical.
  • ui-iggrid-groupedrow

    Classes applied to every group row TR.
  • ui-iggrid-groupby-dialog-layoutscontainer

    Classes which are applied to the layouts container in the groupby dialog.
  • ui-iggrid-groupby-dialog-tree

    Classes which are applied to the container of layout tree in groupby dialog.
  • ui-iggrid-nongrouprowemptycell

    Classes applied to every cell that's rendered in front of a data cell, which is not a grouped row. this is necessary so that data rows and grouped rows align well.

Copyright © 1996 - 2024 Infragistics, Inc. All rights reserved.

#
