ui.igHtmlEditor

Overview
Options
Events
Methods
Theming

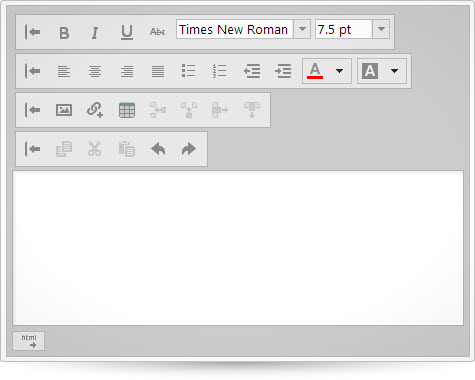

The igHtmlEditor control is a jQuery HTML editor control that features standard HTML editing capabilities. Formatting options include font face, font size, text and image alignment and link and table support. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

The following code snippet demonstrates how to initialize the igHtmlEditor control.

For details on how to reference the required scripts and themes for the igHtmlEditor control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample


        <!doctype html>
        <html>
        <head>
            <!-- Modernizr -->
            <script src="js/modernizr.js"></script>
            <!-- jQuery Core -->
            <script src="js/jquery.js"></script>
            <!-- jQuery UI -->
            <script src="js/jquery-ui.js"></script>
            <!-- Infragistics loader -->
            <script src="js/infragistics.loader.js"></script>
            <script>
                $.ig.loader({
                    scriptPath: "js",
                    cssPath: "css",
                    resources: "igHtmlEditor"
                });

                $.ig.loader(function () {
                    $("#htmlEditor").igHtmlEditor({
                        width: "100%"
                    });
                });
            </script>
        </head>
        <body>
            <div id="htmlEditor"></div>
        </body>
        </html>

Related Samples

customToolbars

Type:: array
Default:: []
Elements Type:: object

The html editor custom toolbars list.

Code Sample


                // Initialize
                $(".selector").igHtmlEditor({
                    customToolbars: [{
                        name: "customToolbar",
                        collapseButtonIcon: "ui-igbutton-collapse",
                        expandButtonIcon: "ui-igbutton-expand",
                        items: [{
                            //Definition for custom button
                            name: "customButton",
                            type: "button",
                            handler: function() {
                                alert("Custom button clicked!");
                            },
                            scope: this,
                            props: {
                                isImage: {
                                    value: false,
                                    action: '_isSelectedAction'
                                },
                                imageButtonTooltip: {
                                    value: "Custom button tooltip",
                                    action: '_tooltipAction'
                                },
                                imageButtonIcon: {
                                    value: "ui-igbutton-bold",
                                    action: '_buttonIconAction'
                                }
                            }
                        }, {
                            //Definition for custom combo
                            name: "customCombo",
                            type: "combo",
                            handler: function(el, obj) {
                                alert("Selected item is: " + obj.value);
                            },
                            scope: this,
                            props: {
                                customComboWidth: {
                                    value: 115,
                                    action: "_comboWidthAction"
                                },
                                customComboHeight: {
                                    value: "",
                                    action: "_comboHeightAction"
                                },
                                customComboItemsListWidth: {
                                    value: 115,
                                    action: "_comboDropDownListWidth"
                                },
                                customComboSource: {
                                    value: [{
                                        text: "Item 1",
                                        value: "Item 1"
                                    }, {
                                        text: "Item 2",
                                        value: "Item 2"
                                    }],
                                    action: "_comboDataSourceAction"
                                },
                                selectedCustomComboItem: {
                                    value: "Item 2",
                                    action: "_comboSelectedItem"
                                }
                            }
                        }]
                    }]
                });

                //Get
                var customToolbar = $(".selector").igHtmlEditor("option", "customToolbars");

height

Type:: enumeration
Default:: 350

The height of the html editor. It can be set as a number in pixels, string (px) or percentage (%).

Members

string
The widget height can be set in pixels (px) and percentage (%).
number
The widget height can be set as a number.

Code Sample


                // Initialize
                $(".selector").igHtmlEditor({
                    height: 100
                    // or
                    // height: "100%"
                });
                //Get
                var height = $(".selector").igHtmlEditor("option", "height");
                // Set
                $(".selector").igHtmlEditor("option", "height", 300);

inputName

Type:: string
Default:: "source"

The name attribute of the html editor source view.

Code Sample


                //Initialize
                $(".selector").igHtmlEditor({
                    inputName: "blogContent"
                });

                //Get
                var inputName = $(".selector").igHtmlEditor("option", "inputName");

language
Inherited

Type:: string
Default:: "en"

Set/Get the locale language setting for the widget.

Code Sample


					//Initialize
				$(".selector").igHtmlEditor({
					language: "ja"
				});

				// Get
				var language = $(".selector").igHtmlEditor("option", "language");

				// Set
				$(".selector").igHtmlEditor("option", "language", "ja");

locale
Inherited

Type:: object
Default:: null

Set/Get the locale setting for the widget.

Code Sample


					//Initialize
				$(".selector").igHtmlEditor({
					locale: {}
				});

				// Get
				var locale = $(".selector").igHtmlEditor("option", "locale");

				// Set
				$(".selector").igHtmlEditor("option", "locale", {});

regional
Inherited

Type:: enumeration
Default:: en-US

Set/Get the regional setting for the widget.

Code Sample


				//Initialize
				$(".selector").igHtmlEditor({
					regional: "ja"
				});
				// Get
				var regional = $(".selector").igHtmlEditor("option", "regional");
				// Set
				$(".selector").igHtmlEditor("option", "regional", "ja");

showCopyPasteToolbar

Type:: bool
Default:: true

Shows/hides the "Copy Paste" toolbar.

Code Sample


                //Initialize
                $(".selector").igHtmlEditor({
                    showCopyPasteToolbar: false
                });

                //Get
                var showCopyPasteToolbar = $(".selector").igHtmlEditor("option", "showCopyPasteToolbar");

                //Set
                $(".selector").igHtmlEditor("option", "showCopyPasteToolbar", true);

showFormattingToolbar

Type:: bool
Default:: true

Shows/hides the "Formatting" toolbar.

Code Sample


                //Initialize
                $(".selector").igHtmlEditor({
                    showFormattingToolbar: false
                });

                //Get
                var showFormattingToolbar = $(".selector").igHtmlEditor("option", "showFormattingToolbar");

                //Set
                $(".selector").igHtmlEditor("option", "showFormattingToolbar", true);

showInsertObjectToolbar

Type:: bool
Default:: true

Shows/hides the "Insert Object" toolbar.

Code Sample


                //Initialize
                $(".selector").igHtmlEditor({
                    showInsertObjectToolbar: false
                });

                //Get
                var showInsertObjectToolbar = $(".selector").igHtmlEditor("option", "showInsertObjectToolbar");

                //Set
                $(".selector").igHtmlEditor("option", "showInsertObjectToolbar", true);

showTextToolbar

Type:: bool
Default:: true

Shows/hides the "Text" toolbar.

Code Sample


                //Initialize
                $(".selector").igHtmlEditor({
                    showTextToolbar: false
                });

                //Get
                var showTextToolbar = $(".selector").igHtmlEditor("option", "showTextToolbar");

                //Set
                $(".selector").igHtmlEditor("option", "showTextToolbar", true);

toolbarSettings

Type:: array
Default:: []
Elements Type:: object

The html editor toolbars list.

Code Sample


                //Initialize
                $(".selector").igHtmlEditor({
                    toolbarSettings: [
                    {
                        name: "textToolbar",
                        isExpanded: false
                    }]
                });

                //Get
                var toolbarSettings = $(".selector").igHtmlEditor("option", "toolbarSettings");

value

Type:: string
Default:: ""

Used to render inside the html editor as initial content.

Code Sample


                //Initialize
                $(".selector").igHtmlEditor({
                    value: "Hello World!"
                });

                //Get
                var value = $(".selector").igHtmlEditor("option", "value");

                //Set
                $(".selector").igHtmlEditor("option", "value", "Hello World!");

width

Type:: enumeration
Default:: 725

The width of the html editor. It can be set as a number in pixels, string (px) or percentage (%).

Members

string
The widget width can be set in pixels (px) and percentage (%).
number
The widget width can be set as a number.

Code Sample


                //Initialize
                $(".selector").igHtmlEditor({
                    width: 700
                    //or
                    //width: "100%"
                });
                //Get
                var width = $(".selector").igHtmlEditor("option", "width");
                // Set
                $(".selector").igHtmlEditor("option", "width", 300);

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details

actionExecuted

Cancellable:: false

Event fired after a toolbar item is clicked.

Code Sample


                //Initialize
                $(".selector").igHtmlEditor({
                    actionExecuted: function (evt, ui) {...}
                });

                //Bind after initialization
                $(document).on("ightmleditoractionexecuted", ".selector", function (evt, ui) {
                    //return reference to igHtmlEditor object
                    ui.owner
                    //return toolbar name
                    ui.toolbar;
                    //return action name
                    ui.actionName;
                });

actionExecuting

Cancellable:: true

Event fired before a toolbar item is clicked.

Code Sample


                //Initialize
                $(".selector").igHtmlEditor({
                    actionExecuting: function (evt, ui) {...}
                });

                //Bind after initialization
                $(document).on("ightmleditoractionexecuting", ".selector", function (evt, ui) {
                    //return reference to igHtmlEditor object
                    ui.owner
                    //return toolbar name
                    ui.toolbar;
                    //return action name
                    ui.actionName;
                });

copy

Cancellable:: false

Event is fired on keyboard copy action.

Code Sample


                //Initialize
                $(".selector").igHtmlEditor({
                    copy: function (evt, ui) {...}
                });

                //Bind after initialization
                $(document).on("ightmleditorcopy", ".selector", function (evt, ui) {
                    //return reference to igHtmlEditor object
                    ui.owner
                });

cut

Cancellable:: false

Event is fired on keyboard cut action.

Code Sample


                //Initialize
                $(".selector").igHtmlEditor({
                    cut: function (evt, ui) {...}
                });

                //Bind after initialization
                $(document).on("ightmleditorcut", ".selector", function (evt, ui) {
                    //return reference to igHtmlEditor object
                    ui.owner
                });

paste

Cancellable:: false

Event is fired on keyboard paste action.

Code Sample


                //Initialize
                $(".selector").igHtmlEditor({
                    paste: function (evt, ui) {...}
                });

                //Bind after initialization
                $(document).on("ightmleditorpaste", ".selector", function (evt, ui) {
                    //return reference to igHtmlEditor object
                    ui.owner
                });

redo

Cancellable:: false

Event is fired on keyboard redo action.

Code Sample


                //Initialize
                $(".selector").igHtmlEditor({
                    redo: function (evt, ui) {...}
                });

                //Bind after initialization
                $(document).on("ightmleditorredo", ".selector", function (evt, ui) {
                    //return reference to igHtmlEditor object
                    ui.owner
                });

rendered

Cancellable:: false

Event fired after the html editor widget has been rendered.

Code Sample


                //Initialize
                $(".selector").igHtmlEditor({
                    rendered: function (evt, ui) {
                        //return reference to igHtmlEditor object
                        ui.owner
                    }
                });

                //Bind after initialization
                $(document).on("ightmleditorrendered", ".selector", function (evt, ui) {
                    //return reference to igHtmlEditor object
                    ui.owner
                });

rendering

Cancellable:: false

Event fired before the html editor widget is rendered.

Code Sample


                //Initialize
                $(".selector").igHtmlEditor({
                    rendering: function (evt, ui) {
                        //return reference to igHtmlEditor object
                        ui.owner
                    }
                });

                //Bind after initialization
                $(document).on("ightmleditorrendering", ".selector", function (evt, ui) {
                    //return reference to igHtmlEditor object
                    ui.owner
                });

toolbarCollapsed

Cancellable:: false

Event fired after a toolbar is collapsed.

Code Sample


                //Initialize
                $(".selector").igHtmlEditor({
                    toolbarCollapsed: function (evt, ui) {...}
                });

                //Bind after initialization
                $(document).on("ightmleditortoolbarcollapsed", ".selector", function (evt, ui) {
                    //return reference to igHtmlEditor object
                    ui.owner
                    //return reference to toolbar object
                    ui.toolbar
                    //return reference to toolbar element object
                    ui.toolbarElement
                });

toolbarCollapsing

Cancellable:: true

Event fired before a toolbar is collapsed.

Code Sample


                //Initialize
                $(".selector").igHtmlEditor({
                    toolbarCollapsing: function (evt, ui) {...}
                });

                //Bind after initialization
                $(document).on("ightmleditortoolbarcollapsing", ".selector", function (evt, ui) {
                    //return reference to igHtmlEditor object
                    ui.owner
                    //return reference to toolbar object
                    ui.toolbar
                    //return reference to toolbar element object
                    ui.toolbarElement
                });

toolbarExpanded

Cancellable:: false

Event fired after a toolbar is expanded.

Code Sample


                 //Initialize
                $(".selector").igHtmlEditor({
                    toolbarExpanding: function (evt, ui) {...}
                });

                //Bind after initialization
                $(document).on("ightmleditortoolbarexpanding", ".selector", function (evt, ui) {
                    //return reference to igHtmlEditor object
                    ui.owner
                    //return reference to toolbar object
                    ui.toolbar
                    //return reference to toolbar element object
                    ui.toolbarElement
                });

toolbarExpanding

Cancellable:: true

Event fired before a toolbar is expanded.

Code Sample


                //Initialize
                $(".selector").igHtmlEditor({
                    toolbarExpanded: function (evt, ui) {...}
                });

                //Bind after initialization
                $(document).on("ightmleditortoolbarexpanded", ".selector", function (evt, ui) {
                    //return reference to igHtmlEditor object
                    ui.owner
                    //return reference to toolbar object
                    ui.toolbar
                    //return reference to toolbar element object
                    ui.toolbarElement
                });

undo

Cancellable:: false

Event is fired on keyboard undo action.

Code Sample


                //Initialize
                $(".selector").igHtmlEditor({
                    undo: function (evt, ui) {...}
                });

                //Bind after initialization
                $(document).on("ightmleditorundo", ".selector", function (evt, ui) {
                    //return reference to igHtmlEditor object
                    ui.owner
                });

workspaceResized

Cancellable:: false

Event is fired after the workspace has been resized.

Code Sample


                //Initialize
                $(".selector").igHtmlEditor({
                    workspaceResized: function (evt, ui) {...}
                });

                //Bind after initialization
                $(document).on("ightmleditorworkspaceresized", ".selector", function (evt, ui) {
                    //return reference to igHtmlEditor object
                    ui.owner
                });

Show Details

changeGlobalLanguage
Inherited

.igHtmlEditor( "changeGlobalLanguage" );
Changes the widget language to global language. Global language is the value in $.ig.util.language.
Code Sample
```

				$(".selector").igHtmlEditor("changeGlobalLanguage");

```
changeGlobalRegional
Inherited

.igHtmlEditor( "changeGlobalRegional" );
Changes the widget regional settins to global regional settings. Global regional settings are container in $.ig.util.regional.
Code Sample
```

				$(".selector").igHtmlEditor("changeGlobalRegional");

```
changeLocale

.igHtmlEditor( "changeLocale" );
Changes the all locales into the widget element to the language specified in options.language
Note that this method is for rare scenarios, use language or locale option setter.
Code Sample
```

                $(".selector").igHtmlEditor("changeLocale");

```
contentDocument

.igHtmlEditor( "contentDocument" );

Return Type:

object

Return Type Description:

The document object associated with the Html Editor's content editable area.
Returns the document object associated with the Html Editor's content editable area.
Code Sample
```

                var htmlEditorDocument = $(".selector").igHtmlEditor("contentDocument");

```
contentEditable

.igHtmlEditor( "contentEditable" );

Return Type:

object

Return Type Description:

The content editable associated with this Html Editor.
Returns the content editable associated with this Html Editor.
Code Sample
```

                var htmlEditorContentEditable = $(".selector").igHtmlEditor("contentEditable");

```
contentWindow

.igHtmlEditor( "contentWindow" );

Return Type:

object

Return Type Description:

The window object associated with the Html Editor's content editable area.
Returns the window object associated with the Html Editor's content editable area.
Code Sample
```

                var htmlEditorContentWindow = $(".selector").igHtmlEditor("contentWindow");

```

destroy

.igHtmlEditor( "destroy" );

Destroys the widget.

Code Sample


                $(".selector").igHtmlEditor("destroy");

executeAction

.igHtmlEditor( "executeAction", actionName:string, [args:object] );

Executes htmleditor commands.

actionName
Type:string
The command name.
args
Type:object
Optional
Additional parameter for the command.

Code Sample


                $(".selector").igHtmlEditor("executeAction", "increasefontsize");
                $(".selector").igHtmlEditor("executeAction", "bold");
                $(".selector").igHtmlEditor("executeAction", "italic");
                $(".selector").igHtmlEditor("executeAction", "underline");
                $(".selector").igHtmlEditor("executeAction", "strikethrough");
                $(".selector").igHtmlEditor("executeAction", "decreasefontsize");
                $(".selector").igHtmlEditor("executeAction", "fontname", "Lucida Console");
                $(".selector").igHtmlEditor("executeAction", "fontname", "Verdana");
                $(".selector").igHtmlEditor("executeAction", "fontsize", "5");
                $(".selector").igHtmlEditor("executeAction", "formatBlock", "h6");
                $(".selector").igHtmlEditor("executeAction", "forecolor", "blue");
                $(".selector").igHtmlEditor("executeAction", "backcolor", "red");
                $(".selector").igHtmlEditor("executeAction", "justifyright");
                $(".selector").igHtmlEditor("executeAction", "justifycenter");
                $(".selector").igHtmlEditor("executeAction", "justifyleft");
                $(".selector").igHtmlEditor("executeAction", "justifyfull");
                $(".selector").igHtmlEditor("executeAction", "insertunorderedlist");
                $(".selector").igHtmlEditor("executeAction", "insertorderedlist");
                $(".selector").igHtmlEditor("executeAction", "outdent");
                $(".selector").igHtmlEditor("executeAction", "indent");

                //Works on Internet Explorer only
                $(".selector").igHtmlEditor("executeAction", "cut");
                //Works on Internet Explorer only
                $(".selector").igHtmlEditor("executeAction", "copy");
                //Works on Internet Explorer only
                $(".selector").igHtmlEditor("executeAction", "paste");

getContent

.igHtmlEditor( "getContent", format:string );

Return Type:

string

Return Type Description:

The editor content.
Gets the content of the html editor.
- format
- Type:string
- Returns the content as html or plain text. Values can be "text" or "html".
Code Sample
```

                var plainContent = $(".selector").igHtmlEditor("getContent", "text");
                var htmlContent = $(".selector").igHtmlEditor("getContent", "html");

```
insertAtCaret

.igHtmlEditor( "insertAtCaret", element:object );
Inserts the provided content at the position of the caret.
- element
- Type:object
- Accepts html string, DOM element or a jQuery object.
Code Sample
```

                $(".selector").igHtmlEditor("insertAtCaret", "<div />");

```

isDirty

.igHtmlEditor( "isDirty" );

Returns true/false if the editor contents were modified or not.

Code Sample


                var isDirty = $(".selector").igHtmlEditor("isDirty");

range

.igHtmlEditor( "range" );

Return Type:

object

Return Type Description:

Returns Range object that represent the current range in the content editable.
Returns Range object that represent the current range in the content editable.
Code Sample
```

                var range = $(".selector").igHtmlEditor("range");

```

resizeWorkspace

.igHtmlEditor( "resizeWorkspace" );

Resizes the height of the workspace.

Code Sample


                $(".selector").igHtmlEditor("resizeWorkspace");

selection

.igHtmlEditor( "selection" );

Return Type:

object

Return Type Description:

Returns Selection object that represent the current selection in the content editable.
Returns Selection object that represent the current selection in the content editable.
Code Sample
```

                var selection = $(".selector").igHtmlEditor("selection");

```

setContent

.igHtmlEditor( "setContent", content:string, format:string );

Sets the content of the html editor.

content
Type:string
The content which will be set.
format
Type:string
The content type: "text" or "html".

Code Sample


                $(".selector").igHtmlEditor("setContent", "Hello World!", "text");
                $(".selector").igHtmlEditor("setContent", "<h1>Hello World!</h1>", "html");

widget

.igHtmlEditor( "widget" );

Returns the element on which the widget was instantiated.

Code Sample


                var widget = $(".selector").igHtmlEditor("widget");

ui-widget ui-widget-content ui-corner-all ui-ightmleditor ui-helper-clearfix

The widget base class css.
ui-ightmleditor-content

The html editor content styles.
ui-igpathfinder

The html editor dom navigation toolbar css.
ui-igtoolbars-holder

The html editor toolbars style.
ui-widget-content

The workspace css.

Ignite UI | Samples

ui.igHtmlEditor

Code Sample

Related Samples

Related Topics

Dependencies

Inherits

customToolbars

Code Sample

height

Members

Code Sample

inputName

Code Sample

languageInherited

Code Sample

localeInherited

Code Sample

regionalInherited

Code Sample

showCopyPasteToolbar

Code Sample

showFormattingToolbar

Code Sample

showInsertObjectToolbar

Code Sample

showTextToolbar

Code Sample

toolbarSettings

Code Sample

value

Code Sample

width

Members

Code Sample

actionExecuted

Code Sample

actionExecuting

Code Sample

copy

Code Sample

cut

Code Sample

paste

Code Sample

redo

Code Sample

rendered

Code Sample

rendering

Code Sample

toolbarCollapsed

Code Sample

toolbarCollapsing

Code Sample

toolbarExpanded

Code Sample

toolbarExpanding

Code Sample

undo

Code Sample

workspaceResized

Code Sample

changeGlobalLanguageInherited

Code Sample

changeGlobalRegionalInherited

Code Sample

changeLocale

Code Sample

contentDocument

Code Sample

contentEditable

Code Sample

contentWindow

Code Sample

destroy

Code Sample

executeAction

Code Sample

getContent

language
Inherited

locale
Inherited

regional
Inherited

changeGlobalLanguage
Inherited

changeGlobalRegional
Inherited
