ui.igTreeGridUpdating

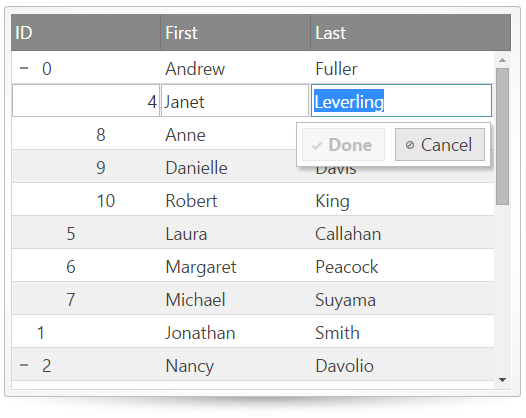

With the igTreeGrid's updating feature, you can change bound data directly from the grid. The updating features of the grid provide a wide array of adding and editing values of the underling set of data bound to the grid. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igTreeGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample

<!DOCTYPE    html>
<html>
<head>
    <!-- Infragistics    Combined    CSS -->
    <link    href="css/themes/infragistics/infragistics.theme.css"   rel="stylesheet"    type="text/css" />
    <link    href="css/structure/infragistics.css"   rel="stylesheet"    type="text/css" />

    <!-- jQuery  Core    -->
    <script  src="js/jquery.js"  type="text/javascript"></script>

    <!-- jQuery  UI  -->
    <script  src="js/jquery-ui.js"   type="text/javascript"></script>

    <!-- Infragistics    Combined    Scripts -->
    <script  src="js/infragistics.core.js"   type="text/javascript"></script>
    <script  src="js/infragistics.lob.js"    type="text/javascript"></script>

    <script  type="text/javascript">
        var employees   =   [
            {   "employeeId":   0,  "supervisorId": -1, "firstName":    "Andrew",   "lastName": "Fuller"    },
            {   "employeeId":   1,  "supervisorId": -1, "firstName":    "Jonathan", "lastName": "Smith" },
            {   "employeeId":   2,  "supervisorId": -1, "firstName":    "Nancy",    "lastName": "Davolio"   },
            {   "employeeId":   3,  "supervisorId": -1, "firstName":    "Steven",   "lastName": "Buchanan"  },

            //  Andrew  Fuller's    direct  reports
            {   "employeeId":   4,  "supervisorId": 0,  "firstName":    "Janet",    "lastName": "Leverling" },
            {   "employeeId":   5,  "supervisorId": 0,  "firstName":    "Laura",    "lastName": "Callahan"  },
            {   "employeeId":   6,  "supervisorId": 0,  "firstName":    "Margaret", "lastName": "Peacock"   },
            {   "employeeId":   7,  "supervisorId": 0,  "firstName":    "Michael",  "lastName": "Suyama"    },

            //  Janet   Leverling's direct  reports
            {   "employeeId":   8,  "supervisorId": 4,  "firstName":    "Anne", "lastName": "Dodsworth" },
            {   "employeeId":   9,  "supervisorId": 4,  "firstName":    "Danielle", "lastName": "Davis" },
            {   "employeeId":   10, "supervisorId": 4,  "firstName":    "Robert",   "lastName": "King"  },

            //  Nancy   Davolio's   direct  reports
            {   "employeeId":   11, "supervisorId": 2,  "firstName":    "Peter",    "lastName": "Lewis" },
            {   "employeeId":   12, "supervisorId": 2,  "firstName":    "Ryder",    "lastName": "Zenaida"   },
            {   "employeeId":   13, "supervisorId": 2,  "firstName":    "Wang", "lastName": "Mercedes"  },

            //  Steve   Buchanan's  direct  reports
            {   "employeeId":   14, "supervisorId": 3,  "firstName":    "Theodore", "lastName": "Zia"   },
            {   "employeeId":   15, "supervisorId": 3,  "firstName":    "Lacota",   "lastName": "Mufutau"   },

            //  Lacota  Mufutau's   direct  reports
            {   "employeeId":   16, "supervisorId": 15, "firstName":    "Jin",  "lastName": "Elliott"   },
            {   "employeeId":   17, "supervisorId": 15, "firstName":    "Armand",   "lastName": "Ross"  },
            {   "employeeId":   18, "supervisorId": 15, "firstName":    "Dane", "lastName": "Rodriquez" },

            //  Dane    Rodriquez's direct  reports
            {   "employeeId":   19, "supervisorId": 18, "firstName":    "Declan",   "lastName": "Lester"    },
            {   "employeeId":   20, "supervisorId": 18, "firstName":    "Bernard",  "lastName": "Jarvis"    },

            //  Bernard Jarvis' direct  report
            {   "employeeId":   21, "supervisorId": 20, "firstName":    "Jeremy",   "lastName": "Donaldson" }
        ];

    $(function  ()  {
        $("#treegrid").igTreeGrid({
            dataSource: employees,
            primaryKey: "employeeId",
            foreignKey: "supervisorId",
            autoGenerateColumns:    false,
            columns:    [
                {   headerText: "ID",   key:    "employeeId",   width:  "150px",    dataType:   "number"    },
                {   headerText: "First",    key:    "firstName",    width:  "150px",    dataType:   "string"    },
                {   headerText: "Last", key:    "lastName", width:  "150px",    dataType:   "string"    }
            ],
            features:   [
                {
                    name:   "Updating",
                    editMode:   "row",
                    enableDeleteRow:    true,
                    columnSettings: [
                        {
                            columnKey:  "employeeId",
                            editorOptions:
                            {
                                type:   "numeric",
                                disabled:   true
                            }
                        }
                    ]
                }
            ]
        });
    });
    </script>
</head>
<body>
    <table   id="treegrid"></table>
</body>
</html>

addChildButtonLabel
Removed

Type:: string
Default:: null

This option has been deprecated as of the 2017.2 Volume release.
Specifies the label of the add child button in touch environment. Use option locale.addChildButtonLabel.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features:   [
        {
            name:   "Updating",
            addChildButtonLabel: "add child"
        }
    ]
});

//Get
var childButtonLabel    =   $(".selector").igTreeGridUpdating("option", "addChildButtonLabel");

//Set
$(".selector").igTreeGridUpdating("option", "addChildButtonLabel",  "add child");

addChildTooltip
Removed

Type:: string
Default:: null

This option has been deprecated as of the 2017.2 Volume release.
Specifies the add child tooltip text. Use option locale.enableAddChild.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features:   [
        {
            name:   "Updating",
            addChildTooltip: "add child"
        }
    ]
});

//Get
var childTooltip    =   $(".selector").igTreeGridUpdating("option", "addChildTooltip");

//Set
$(".selector").igTreeGridUpdating("option", "addChildTooltip",  "Add    a   row here");

addRowLabel
Removed

Type:: string
Default:: null

This option has been removed as of 2017.2 Volume release.
Specifies the label for the button starting edit mode for row adding. If not set, $.ig.GridUpdating.locale.addRowLabel is used.
Use option locale.addRowLabel.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            addRowLabel: "Add a row here"
        }
    ]
});

//Get
var label = $("#grid").igTreeGridUpdating("option", "addRowLabel");

//Set
$("#grid").igTreeGridUpdating("option", "addRowLabel", "Add a row here");

addRowTooltip
Removed

Type:: string
Default:: null

This option has been removed as of 2017.2 Volume release.
Specifies the title for the button starting edit mode for row adding. If not set, $.ig.GridUpdating.locale.addRowTooltip is used.
Use option locale.addRowTooltip.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            addRowTooltip: "Add a row here"
        }
    ]
});

//Get
var label = $("#grid").igTreeGridUpdating("option", "addRowTooltip");

//Set
$("#grid").igTreeGridUpdating("option", "addRowTooltip", "Add a row here");

cancelLabel
Removed

Type:: string
Default:: null

This option has been removed as of 2017.2 Volume release.
Specifies the label for the Cancel editing button (only applicable when the showDoneCancelButtons option is enabled). If not set, $.ig.GridUpdating.locale.cancelLabel is used.
Use option locale.cancelLabel.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            cancelLabel: "Click to cancel"
        }
    ]
});

//Get
var label = $("#grid").igTreeGridUpdating("option", "cancelLabel");

//Set
$("#grid").igTreeGridUpdating("option", "cancelLabel", "Click to cancel");

cancelTooltip
Removed

Type:: string
Default:: null

This option has been removed as of 2017.2 Volume release.
Specifies the title for the Cancel editing button (only applicable when the showDoneCancelButtons option is enabled). If not set, $.ig.GridUpdating.locale.cancelTooltip is used.
Use option locale.cancelTooltip.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            cancelTooltip: "Click to cancel"
        }
    ]
});

//Get
var label = $("#grid").igTreeGridUpdating("option", "cancelTooltip");

//Set
$("#grid").igTreeGridUpdating("option", "cancelTooltip", "Click to cancel");

columnSettings
Inherited

Type:: array
Default:: []
Elements Type:: object

A list of custom column options that specify editing and validation settings for a specific column.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            columnSettings: [
                {
                    columnKey : "Name",
                    defaultValue: "Infragistics",
                    editorType: "text",
                    editorOptions: {
                        buttonType: "dropdown",
                        listItems: names,
                        readOnly: true
                    },
                    required: true,
                    validation: true
                }
            ]
        }
    ]
});

//Get
var columnSettings = $("#grid").igTreeGridUpdating("option", "columnSettings");

columnKey

Type:: string
Default:: null

Identifies the grid column by key.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            columnSettings: [
                {
                    columnKey : "Name",
                    defaultValue: "Infragistics"
                }
            ]
        }
    ]
});

//Get
var columnSettings = $("#grid").igTreeGridUpdating("option", "columnSettings")[0].columnKey;

//Set
$("#grid").igTreeGridUpdating("option", "columnSettings", columnSettings);

defaultValue

Type:: object
Default:: null

Specifies the default value for the column when adding new rows. When in edit mode for adding a row the value will be pre-filled in the column's editor (if the column is not read-only). The value should be of the type specified for the column in the grid's columns collection.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            columnSettings: [
                {
                    columnKey : "Name",
                    defaultValue: "Infragistics"
                }
            ]
        }
    ]
});

//Get
var columnSettings = $("#grid").igTreeGridUpdating("option", "columnSettings")[0].defaultValue;

//Set
$("#grid").igTreeGridUpdating("option", "columnSettings", columnSettings);

editorOptions

Type:: object
Default:: null

Specifies options to initialize the corresponding editor with.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            columnSettings: [
                {
                    columnKey : "Name",
                    editorType: "text",
                    editorOptions: {
                    buttonType: "dropdown",
                    listItems: names,
                    readOnly: true
                    }
                }
            ]
        }
    ]
});

//Get
var columnSettings = $("#grid").igTreeGridUpdating("option", "columnSettings")[0].editorOptions;

//Set
$("#grid").igTreeGridUpdating("option", "columnSettings", columnSettings);

editorProvider

Type:: object
Default:: null

Specifies а custom editor provider instance. More information about editor providers can be found here and here.
It should either extend $.ig.EditorProvider or have definitions for the following methods:
$.ig.EditorProvider = $.ig.EditorProvider|| $.ig.EditorProvider.extend({
createEditor: function (callbacks, key, editorOptions, tabIndex, format, element) {},
attachErrorEvents: function (errorShowing, errorShown, errorHidden) {},
getEditor: function () {},
refreshValue: function () {},
getValue: function () {},
setValue: function (val) {},
setSize: function (width, height) {},
setFocus: function () {},
removeFromParent: function () {},
destroy: function () {},
validator: function () {},
validate: function (noLabel) {},
isValid: function () {}
});.

Code Sample

// This editor provider demonstrates how to wrap HTML 5 number INPUT into editor provider for the igTreeGridUpdating
$.ig.EditorProviderNumber = $.ig.EditorProviderNumber || $.ig.EditorProvider.extend({
    // initialize the editor
    createEditor: function (callbacks, key, editorOptions, tabIndex, format, element) {
        element = element || $('<input  />');
        // call parent createEditor
        this._super(callbacks, key, editorOptions, tabIndex, format, element);

        element.on("keydown", $.proxy(this.keyDown, this));
        element.on("change", $.proxy(this.change, this));

        this.editor = {};
        this.editor.element = element;
            return element;
    },
    keyDown: function(evt) {
        var ui = {};
        ui.owner = this.editor.element;
        ui.owner.element = this.editor.element;
        this.callbacks.keyDown(evt, ui, this.columnKey);
        // enable "Done" button only for numeric character
        if ((evt.keyCode >= 48 && evt.keyCode <= 57) || (evt.keyCode >= 96 && evt.keyCode <= 105)) {
            this.callbacks.textChanged(evt, ui, this.columnKey);
        }
    },
    change: function (evt) {
        var ui = {};
        ui.owner = this.editor.element;
        ui.owner.element = this.editor.element;
        this.callbacks.textChanged(evt, ui, this.columnKey);
    },
    // get editor value
    getValue: function () {
        return parseFloat(this.editor.element.val());
    },
    // set editor value
    setValue: function (val) {
        return this.editor.element.val(val || 0);
    },
    // size the editor into the TD cell
    setSize: function (width, height) {
        this.editor.element.css({
        width: width - 2,
        height: height - 2,
        borderWidth: "1px",
        backgroundPositionY: "9px"
    });
    },
    // focus the editor
    setFocus: function () {
        this.editor.element.select();
    },
    // validate the editor
    validator: function () {
        // no validator
        return null;
    },
    // destroy the editor
    destroy: function () {
        this.editor.remove();
    }
});

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            columnSettings: [
                {
                    columnKey : "SafetyStockLevel",
                    editorProvider: new $.ig.EditorProviderNumber()
                }
            ]
        }
    ]
});

//Get
var columnSettings = $("#grid").igTreeGridUpdating("option", "columnSettings")[0].editorProvider;

editorType

Type:: enumeration
Default:: null

Specifies the type of editor to use for the column.

Members

text
Type:string
An igTextEditor will be created.
mask
Type:string
An igMaskEditor will be created.
date
Type:string
An igDateEditor will be created.
datepicker
Type:string
An igDatePicker will be created.
timepicker
Type:string
An igTimePikcer will be created.
numeric
Type:string
An igNumericEditor will be created.
checkbox
Type:string
An igCheckboxEditor will be created.
currency
Type:string
An igCurrencyEditor will be created.
percent
Type:string
An igPercentEditor will be created.
combo
Type:string
An igCombo editor is created. Both the JS and CSS files used by ui.igCombo should be available.
rating
Type:string
An igRating editor is created. Both the JS and CSS files used by ui.igRating should be available.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            columnSettings: [
                {
                    columnKey : "BirthDate",
                    editorType: "datepicker"
                }
            ]
        }
    ]
});
//Get
var columnSettings = $("#grid").igTreeGridUpdating("option", "columnSettings")[0].editorType;
//Set
$("#grid").igTreeGridUpdating("option", "columnSettings", columnSettings);

readOnly

Type:: bool
Default:: null

Specifies if the column is read-only. In 'cell' and 'row' editMode no editor will be created for read-only columns. In 'dialog' mode enabling showReadonlyEditors will display disabled editors for such columns.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            columnSettings: [
                {
                    columnKey : "Name",
                    readOnly: true
                }
            ]
        }
    ]
});

//Get
var columnSettings = $("#grid").igTreeGridUpdating("option", "columnSettings")[0].readOnly;

//Set
$("#grid").igTreeGridUpdating("option", "columnSettings", columnSettings);

required

Type:: bool
Default:: null

Specifies if the end-user will be allowed to leave the editor's value empty during edit mode or not.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            columnSettings: [
                {
                    columnKey : "Name",
                    required: true
                }
            ]
        }
    ]
});

//Get
var columnSettings = $("#grid").igTreeGridUpdating("option", "columnSettings")[0].required;

//Set
$("#grid").igTreeGridUpdating("option", "columnSettings", columnSettings);

validation

Type:: bool
Default:: null

Specifies if the column's value should be validated or not. The validation is done based on the rules of the corresponding editor.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            columnSettings: [
                {
                    columnKey : "Name",
                    validation: true
                }
            ]
        }
    ]
});

//Get
var columnSettings = $("#grid").igTreeGridUpdating("option", "columnSettings")[0].validation;

//Set
$("#grid").igTreeGridUpdating("option", "columnSettings", columnSettings);

deleteRowLabel
Removed

Type:: string
Default:: null

This option has been removed as of 2017.2 Volume release.
Specifies the label for the delete button. If not set, $.ig.GridUpdating.locale.deleteRowLabel is used.
Use option locale.deleteRowLabel.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            deleteRowLabel: "Delete this row"
        }
    ]
});

//Get
var label = $("#grid").igTreeGridUpdating("option", "deleteRowLabel");

//Set
$("#grid").igTreeGridUpdating("option", "deleteRowLabel", "Delete this row");

deleteRowTooltip
Removed

Type:: string
Default:: null

This option has been removed as of 2017.2 Volume release.
Specifies the title for the delete button. If not set, $.ig.GridUpdating.locale.deleteRowTooltip is used.
Use option locale.deleteRowTooltip.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            deleteRowTooltip: "Delete this row"
        }
    ]
});

//Get
var label = $("#grid").igTreeGridUpdating("option", "deleteRowTooltip");

//Set
$("#grid").igTreeGridUpdating("option", "deleteRowTooltip", "Delete this row");

dialogWidget
Inherited

Type:: string
Default:: "igGridModalDialog"

Name of the dialog widget to be used. It should inherit from $.ui.igGridModalDialog. For more information on how to utilize this property, please refer to the Extending igGrid Modal Dialog topic.

Code Sample

//create dialog widget that inherits from $.ui.igGridModalDialog
$.widget("ui.CustomDialog", $.ui.igGridModalDialog, {});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Updating",
            dialogWidget: "CustomDialog"
        }
    ]
});

//Get
var dialogWidget = $(".selector").igTreeGridUpdating("option", "dialogWidget");

doneLabel
Removed

Type:: string
Default:: null

This option has been removed as of 2017.2 Volume release.
Specifies the label for the Done editing button (only applicable when the showDoneCancelButtons option is enabled). If not set, $.ig.GridUpdating.locale.doneLabel is used.
Use option locale.doneLabel.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            doneLabel: "Fine"
        }
    ]
});

//Get
var label = $("#grid").igTreeGridUpdating("option", "doneLabel");

//Set
$("#grid").igTreeGridUpdating("option", "doneLabel", "Fine");

doneTooltip
Removed

Type:: string
Default:: null

This option has been removed as of 2017.2 Volume release.
Specifies the title for the Done editing button (only applicable when the showDoneCancelButtons option is enabled). If not set, $.ig.GridUpdating.locale.doneTooltip is used.
Use option locale.doneTooltip.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            doneTooltip: "Fine"
        }
    ]
});

//Get
var label = $("#grid").igTreeGridUpdating("option", "doneTooltip");

//Set
$("#grid").igTreeGridUpdating("option", "doneTooltip", "Fine");

editMode
Inherited

Type:: enumeration
Default:: row

Specifies the edit mode.

Members

row
Type:string
Editors are shown for all columns that are not read-only. The editor of the clicked cell receives initial focus. Done and Cancel buttons may be displayed based on the showDoneCancelButtons property.
cell
Type:string
An editor is shown for the cell entering edit mode. The Done and Cancel buttons are not supported for this mode.
dialog
Type:string
A popup dialog is used with seperate settings available through the rowEditDialogOptions property.
none
Type:string
Editing through the UI is disabled.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            editMode: "dialog"
        }
    ]
});
//Get
var mode = $("#grid").igTreeGridUpdating("option", "editMode");
//Set
$("#grid").igTreeGridUpdating("option", "editMode", "dialog");

enableAddChild

Type:: bool
Default:: true

Specifies whether to enable or disable adding children to rows.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features:   [
        {
            name:   "Updating",
            enableAddChild: true
        }
    ]
});

//Get
var addChild    =   $(".selector").igTreeGridUpdating("option", "enableAddChild");

//Set
$(".selector").igTreeGridUpdating("option", "enableAddChild",   false);

enableAddRow
Inherited

Type:: bool
Default:: true

Specifies if adding rows through the UI is enabled. When enabled an additional row is rendered at the bottom of the grid's header that works as a button. When the end-user clicks on it edit mode is initiated either through a dialog (when editMode is 'dialog') or mimicking the look and feel of 'row' editMode (when editMode is 'row' or 'cell').

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            enableAddRow: false
        }
    ]
});

//Get
var addEnabled = $("#grid").igTreeGridUpdating("option", "enableAddRow");

//Set
$("#grid").igTreeGridUpdating("option", "enableAddRow", false);

enableDataDirtyException
Inherited

Type:: bool
Default:: true

Specifies if an exception should be thrown when the grid's data view changes while there are pending transactions in the data source. The data view changes when the data source performs a sorting, filtering, groupby or paging operation and the exception thrown will prevent the operation from succeeding. All pending transactions must be committed before a data view operation is able to complete. Committing transactions can be done manually through the grid's commit function or automatically by setting autoCommit to 'true'.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            enableDataDirtyException: false
        }
    ]
});

//Get
var isEnabled = $("#grid").igTreeGridUpdating("option", "enableDataDirtyException");

//Set
$("#grid").igTreeGridUpdating("option", "enableDataDirtyException", false);

enableDeleteRow
Inherited

Type:: bool
Default:: true

Specifies if deleting rows through the UI is enabled.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            enableDeleteRow: false
        }
    ]
});

//Get
var isEnabled = $("#grid").igTreeGridUpdating("option", "enableDeleteRow");

//Set
$("#grid").igTreeGridUpdating("option", "enableDeleteRow", false);

excelNavigationMode
Inherited

Type:: bool
Default:: false

Enables excel navigation style. When turned on, the arrow keys can be used for changing the currently edited cell similar to how Tab and Enter behave. When disabled, the arrow keys control the cursor inside editors.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            excelNavigationMode: true
        }
    ]
});

//Get
var isExcelNavMode = $("#grid").igTreeGridUpdating("option", "excelNavigationMode");

//Set
$("#grid").igTreeGridUpdating("option", "excelNavigationMode", true);

horizontalMoveOnEnter
Inherited

Type:: bool
Default:: false

Determines if pressing Enter to navigate away from the currently edited cell should move the focus horizontally or vertically (default).

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            horizontalMoveOnEnter: true
        }
    ]
});

//Get
var moveOnEnter = $("#grid").igTreeGridUpdating("option", "horizontalMoveOnEnter");

//Set
$("#grid").igTreeGridUpdating("option", "horizontalMoveOnEnter", true);

locale

Type:: object
Default:: {}

addChildButtonLabel

Type:: string
Default:: ""

Specifies the label of the add child button in touch environment.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features:   [
        {
            name:   "Updating",
            locale: {
                addChildButtonLabel: "add child"
            }
        }
    ]
});

//Get
var childButtonLabel = $(".selector").igTreeGridUpdating("option", "locale").addChildButtonLabel;

//Set
$(".selector").igTreeGridUpdating("option", "locale", { "addChildButtonLabel": "add child" });

addChildTooltip

Type:: string
Default:: ""

Specifies the add child tooltip text.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features:   [
        {
            name:   "Updating",
            locale: {
                addChildTooltip: "add child"
            }
        }
    ]
});

//Get
var childTooltip = $(".selector").igTreeGridUpdating("option", "locale").addChildTooltip;

//Set
$(".selector").igTreeGridUpdating("option", "locale", { "addChildTooltip": "Add a row here" });

addRowLabel
Inherited

Type:: string
Default:: ""

Specifies the label for the button starting edit mode for row adding. If not set, $.ig.GridUpdating.locale.addRowLabel is used.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            locale: {
                addRowLabel: "Add a row here"
            }
        }
    ]
});

//Get
var label = $("#grid").igTreeGridUpdating("option", "locale").addRowLabel;

//Set
$("#grid").igTreeGridUpdating("option", "locale", { "addRowLabel": "Add a row here" });

addRowTooltip
Inherited

Type:: string
Default:: ""

Specifies the title for the button starting edit mode for row adding. If not set, $.ig.GridUpdating.locale.addRowTooltip is used.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            locale: {
                addRowTooltip: "Add a row here"
            }
        }
    ]
});

//Get
var label = $("#grid").igTreeGridUpdating("option", "locale").addRowTooltip;

//Set
$("#grid").igTreeGridUpdating("option", "locale", { "addRowTooltip": "Add a row here" });

cancelLabel
Inherited

Type:: string
Default:: ""

Specifies the label for the Cancel editing button (only applicable when the showDoneCancelButtons option is enabled). If not set, $.ig.GridUpdating.locale.cancelLabel is used.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            locale: {
                cancelLabel: "Click to cancel"
            }
        }
    ]
});

//Get
var label = $("#grid").igTreeGridUpdating("option", "locale").cancelLabel;

//Set
$("#grid").igTreeGridUpdating("option", "locale", { "cancelLabel": "Click to cancel" });

cancelTooltip
Inherited

Type:: string
Default:: ""

Specifies the title for the Cancel editing button (only applicable when the showDoneCancelButtons option is enabled). If not set, $.ig.GridUpdating.locale.cancelTooltip is used.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            locale: {
                cancelTooltip: "Click to cancel"
            }
        }
    ]
});

//Get
var label = $("#grid").igTreeGridUpdating("option", "locale").cancelTooltip;

//Set
$("#grid").igTreeGridUpdating("option", "locale", { "cancelTooltip": "Click to cancel" });

deleteRowLabel
Inherited

Type:: string
Default:: ""

Specifies the label for the delete button. If not set, $.ig.GridUpdating.locale.deleteRowLabel is used.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            locale: {
                deleteRowLabel: "Delete this row"
            }
        }
    ]
});

//Get
var label = $("#grid").igTreeGridUpdating("option", "locale").deleteRowLabel;

//Set
$("#grid").igTreeGridUpdating("option", "locale", { "deleteRowLabel": "Delete this row" });

deleteRowTooltip
Inherited

Type:: string
Default:: ""

Specifies the title for the delete button. If not set, $.ig.GridUpdating.locale.deleteRowTooltip is used.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            locale: {
                deleteRowTooltip: "Delete this row"
            }
        }
    ]
});

//Get
var label = $("#grid").igTreeGridUpdating("option", "locale").deleteRowTooltip;

//Set
$("#grid").igTreeGridUpdating("option", "locale", { "deleteRowTooltip": "Delete this row" });

doneLabel
Inherited

Type:: string
Default:: ""

Specifies the label for the Done editing button (only applicable when the showDoneCancelButtons option is enabled). If not set, $.ig.GridUpdating.locale.doneLabel is used.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            locale: {
                doneLabel: "Fine"
            }
        }
    ]
});

//Get
var label = $("#grid").igTreeGridUpdating("option", "locale").doneLabel;

//Set
$("#grid").igTreeGridUpdating("option", "locale", { "doneLabel": "Fine" });

doneTooltip
Inherited

Type:: string
Default:: ""

Specifies the title for the Done editing button (only applicable when the showDoneCancelButtons option is enabled). If not set, $.ig.GridUpdating.locale.doneTooltip is used.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            locale: {
                doneTooltip: "Fine"
            }
        }
    ]
});

//Get
var label = $("#grid").igTreeGridUpdating("option", "locale").doneTooltip;

//Set
$("#grid").igTreeGridUpdating("option", "locale" { "doneTooltip": "Fine" });

rowEditDialogOptions
Inherited

Type:: object
Default:: {}

A list of options controlling the rendering behavior of the row edit dialog. If editMode is not 'dialog' these have no effect.

Code Sample

    <script id="dialogTemplate" type="text/html">
        <table>
            <colgroup>
            <col></col>
            <col></col>
            </colgroup>
            <tbody data-render-tmpl>
            </tbody>
        </table>
    </script>
    <script id="editorsTemplate" type="text/html">
        <tr>
            <td><strong>${headerText}</strong></td>
            <td><input data-editor-for-${key}="true"/></td>
        </tr>
    </script>
    <script>

        //Initialize
        $("#grid").igTreeGrid({
            features: [
                {
                    name: "Updating",
rowEditDialogOptions: {
                        width: "530px",
                        height: "350px",
                        dialogTemplateSelector: "#dialogTemplate",
                        editorsTemplateSelector: "#editorsTemplate",
                        showReadonlyEditors: false,
                    }
                }
            ]
        });
    </script>
    //Get
    var roweditDialogOptions = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions");

    //Set
    $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions", rowEditorDialogOptions);

animationDuration

Type:: number
Default:: 200

Specifies the animation duration for the opening and closing operations.

Code Sample

<script id="dialogTemplate" type="text/html">
    <table>
        <colgroup>
            <col></col>
            <col></col>
        </colgroup>
        <tbody data-render-tmpl>
        </tbody>
    </table>
</script>
<script id="editorsTemplate" type="text/html">
    <tr>
        <td><strong>${headerText}</strong></td>
        <td><input data-editor-for-${key}="true"/></td>
    </tr>
</script>

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            rowEditDialogOptions: {
                    animationDuration: 400,
                    dialogTemplateSelector: "#dialogTemplate",
                    editorsTemplateSelector: "#editorsTemplate"
            }
        }
    ]
});

//Get
var animationDuration = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").animationDuration;

//Set
$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").animationDuration = 400;

containment

Type:: enumeration
Default:: owner

Controls the containment of the dialog's drag operation.

Members

owner
Type:string
The row edit dialog will be draggable only in the grid area.
window
Type:string
The row edit dialog will be draggable in the whole window area.

Code Sample

<script id="dialogTemplate" type="text/html">
    <table>
        <colgroup>
            <col></col>
            <col></col>
        </colgroup>
        <tbody data-render-tmpl>
        </tbody>
    </table>
</script>
<script id="editorsTemplate" type="text/html">
    <tr>
        <td><strong>${headerText}</strong></td>
        <td><input data-editor-for-${key}="true"/></td>
    </tr>
</script>
//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            rowEditDialogOptions: {
                containment: "window",
                dialogTemplateSelector: "#dialogTemplate",
                editorsTemplateSelector: "#editorsTemplate"
            }
        }
    ]
});
//Get
var captionLabel = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").containment;
//Set
$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").containment = "window";

dialogTemplate

Type:: enumeration
Default:: null

Specifies a template to be rendered against the currently edited record (or up-to-date key-value pairs in the case of not yet created records). It may contain an element decorated with the 'data-render-tmpl' attribute to specify where the control should render the editors template specified in the editorsTemplate option. For custom dialogs, the elements can be decorated with 'data-editor-for-<columnKey>' attributes where columnKey is the key of the column that editor or input will be used to edit. If both dialogTemplate and dialogTemplateSelector are specified, dialogTemplateSelector will be used. The default template is '<table><colgroup><col></col><col></col></colgroup><tbody data-render-tmpl></tbody></table>'.

Code Sample

<script id="editorsTemplate" type="text/html">
    <tr>
        <td><strong>${headerText}</strong></td>
        <td><input data-editor-for-${key}="true"/></td>
    </tr>
</script>
//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            rowEditDialogOptions: {
                    editorsColumnWidth: 100,
                    dialogTemplate: "<table><colgroup><col></col><col></col></colgroup><tbody data-render-tmpl></tbody></table>" ,
                    editorsTemplateSelector: "#editorsTemplate"
            }
        }
    ]
});
//Get
var dialogTemplate = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").dialogTemplate;
//Set
$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").dialogTemplate = "<table><colgroup><col></col><col></col></colgroup><tbody data-render-tmpl></tbody></table>";

dialogTemplateSelector

Type:: enumeration
Default:: null

Specifies a selector to a template rendered against the currently edited record (or up-to-date key-value pairs in the case of not yet created records). It may contain an element decorated with the 'data-render-tmpl' attribute to specify where the control should render the editors template specified in the editorsTemplate option. For custom dialogs, the elements can be decorated with 'data-editor-for-<columnKey>' attributes where columnKey is the key of the column that editor or input will be used to edit. If both dialogTemplate and dialogTemplateSelector are specified, dialogTemplateSelector will be used. The default template is '<table><colgroup><col></col><col></col></colgroup><tbody data-render-tmpl></tbody></table>'.

Code Sample

<script id="dialogTemplate" type="text/html">
    <table>
        <colgroup>
            <col></col>
            <col></col>
        </colgroup>
        <tbody data-render-tmpl>
        </tbody>
    </table>
</script>
<script id="editorsTemplate" type="text/html">
    <tr>
        <td><strong>${headerText}</strong></td>
        <td><input data-editor-for-${key}="true"/></td>
    </tr>
</script>
//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            rowEditDialogOptions: {
                    dialogTemplateSelector: "#dialogTemplate",
                    editorsTemplateSelector: "#editorsTemplate"
            }
        }
    ]
});
//Get
var dialogTemplateSelector = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").dialogTemplateSelector;
//Set
$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").dialogTemplateSelector = "#yourSelector";

editorsColumnWidth

Type:: enumeration
Default:: null

Controls the width of the column containing the editors in the default row edit dialog.

Members

string
Type:string
The width of the column in pixels (100px) or percents (20%).
number
Type:number
The width of the column as a number (100) in pixels.
null
Type:object
The width of the column will be left empty for the browser to size automatically.

Code Sample

<script id="dialogTemplate" type="text/html">
    <table>
        <colgroup>
            <col></col>
            <col></col>
        </colgroup>
        <tbody data-render-tmpl>
        </tbody>
    </table>
</script>
<script id="editorsTemplate" type="text/html">
    <tr>
        <td><strong>${headerText}</strong></td>
        <td><input data-editor-for-${key}="true"/></td>
    </tr>
</script>
//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            rowEditDialogOptions: {
                    editorsColumnWidth: 100,
                    dialogTemplateSelector: "#dialogTemplate",
                    editorsTemplateSelector: "#editorsTemplate",
            }
        }
    ]
});
//Get
var dialogTemplateSelector = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").editorsColumnWidth;
//Set
$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").editorsColumnWidth = 100;

editorsTemplate

Type:: string
Default:: null

Specifies a template to be executed for each column in the grid's column collection (or just the read-write columns if showReadonlyEditors is false). Decorate the element to be used as an editor with 'data-editor-for-${key}'. The ${key} template tag should be replaced with the chosen templating engine's syntax for rendering values. If any editors for columns are specified in the dialog markup they will be exluded from the data the template will be rendered for. This property is ignored if dialogTemplate does not include an element with the 'data-render-tmpl' attribute. If both editorsTemplate and editorsTemplateSelector are specified, editorsTemplateSelector will be used.
The default template is '<tr><td>${headerText}</td><td><input data-editor-for-${key} /></td></tr>'.

Code Sample

<script id="dialogTemplate" type="text/html">
    <table>
        <colgroup>
            <col></col>
            <col></col>
        </colgroup>
        <tbody data-render-tmpl>
        </tbody>
    </table>
</script>

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            rowEditDialogOptions: {
                    editorsColumnWidth: 100,
                    dialogTemplateSelector: "#dialogTemplate",
                    editorsTemplate: "<tr><td>${headerText}</td><td><input data-editor /></td></tr>"
            }
        }
    ]
});

//Get
var editorsTemplate = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").editorsTemplate;

//Set
$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").editorsTemplate = "<tr><td>${headerText}</td><td><input data-editor /></td></tr>";

editorsTemplateSelector

Type:: string
Default:: null

Specifies a selector to a template to be executed for each column in the grid's column collection (or just the read-write columns if showReadonlyEditors is false). Decorate the element to be used as an editor with 'data-editor-for-${key}'. The ${key} template tag should be replaced with the chosen templating engine's syntax for rendering values. If any editors for columns are specified in the dialog markup they will be exluded from the data the template will be rendered for. This property is ignored if dialogTemplate does not include an element with the 'data-render-tmpl' attribute. If both editorsTemplate and editorsTemplateSelector are specified, editorsTemplateSelector will be used.
The default template is '<tr><td>${headerText}</td><td><input data-editor-for-${key} /></td></tr>'.

Code Sample

<script id="dialogTemplate" type="text/html">
    <table>
        <colgroup>
            <col></col>
            <col></col>
        </colgroup>
        <tbody data-render-tmpl>
        </tbody>
    </table>
</script>
<script id="editorsTemplate" type="text/html">
    <tr>
        <td><strong>${headerText}</strong></td>
        <td><input data-editor-for-${key}="true"/></td>
    </tr>
</script>

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            rowEditDialogOptions: {
                    dialogTemplateSelector: "#dialogTemplate",
                    editorsTemplateSelector: "#editorsTemplate"
            }
        }
    ]
});

//Get
var editorsTemplateSelector = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").editorsTemplateSelector;

//Set
$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").editorsTemplateSelector = "#yourSelector";

height

Type:: enumeration
Default:: 350px

Controls the default row edit dialog height.

Members

string
Type:string
The dialog window height in pixels (350px).
number
Type:number
The dialog window height as a number (350).

Code Sample

<script id="dialogTemplate" type="text/html">
    <table>
        <colgroup>
            <col></col>
            <col></col>
        </colgroup>
        <tbody data-render-tmpl>
        </tbody>
    </table>
</script>
<script id="editorsTemplate" type="text/html">
    <tr>
        <td><strong>${headerText}</strong></td>
        <td><input data-editor-for-${key}="true"/></td>
    </tr>
</script>
//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            rowEditDialogOptions: {
                height: "350px",
                dialogTemplateSelector: "#dialogTemplate",
                editorsTemplateSelector: "#editorsTemplate"
            }
        }
    ]
});
//Get
var height = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").height;
//Set
$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").height = "350px";

namesColumnWidth

Type:: enumeration
Default:: 150px

Controls the width of the column containing the column names in the default row edit dialog.

Members

string
Type:string
The width of the column in pixels (100px) or percents (20%).
number
Type:number
The width of the column as a number (100) in pixels.
null
Type:object
The width of the column will be left empty for the browser to size automatically.

Code Sample

<script id="dialogTemplate" type="text/html">
    <table>
        <colgroup>
            <col></col>
            <col></col>
        </colgroup>
        <tbody data-render-tmpl>
        </tbody>
    </table>
</script>
<script id="editorsTemplate" type="text/html">
    <tr>
        <td><strong>${headerText}</strong></td>
        <td><input data-editor-for-${key}="true"/></td>
    </tr>
</script>
//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            rowEditDialogOptions: {
                namesColumnWidth: "100px",
                dialogTemplateSelector: "#dialogTemplate",
                editorsTemplateSelector: "#editorsTemplate"
            }
        }
    ]
});
//Get
var namesColumnWidth = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").namesColumnWidth;
//Set
$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").namesColumnWidth = "100px";

showDoneCancelButtons

Type:: bool
Default:: true

Controls the visibility of the done and cancel buttons for the dialog.
If disabled the end-user will be able to stop editing only with the Enter and Esc keys.

Code Sample

<script id="dialogTemplate" type="text/html">
    <table>
        <colgroup>
            <col></col>
            <col></col>
        </colgroup>
        <tbody data-render-tmpl>
        </tbody>
    </table>
</script>
<script id="editorsTemplate" type="text/html">
    <tr>
        <td><strong>${headerText}</strong></td>
        <td><input data-editor-for-${key}="true"/></td>
    </tr>
</script>

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            rowEditDialogOptions: {
                showDoneCancelButtons: false,
                dialogTemplateSelector: "#dialogTemplate",
                editorsTemplateSelector: "#editorsTemplate"
            }
        }
    ]
});

//Get
var showDoneCancelButtons = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").showDoneCancelButtons;

//Set
$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").showDoneCancelButtons = false;

showEditorsForHiddenColumns

Type:: bool
Default:: false

Controls if editors should be rendered for hidden columns.

Code Sample

<script id="dialogTemplate" type="text/html">
    <table>
        <colgroup>
            <col></col>
            <col></col>
        </colgroup>
        <tbody data-render-tmpl>
        </tbody>
    </table>
</script>
<script id="editorsTemplate" type="text/html">
    <tr>
        <td><strong>${headerText}</strong></td>
        <td><input data-editor-for-${key}="true"/></td>
    </tr>
</script>

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            rowEditDialogOptions: {
                dialogTemplateSelector: "#dialogTemplate",
                editorsTemplateSelector: "#editorsTemplate",
                showEditorsForHiddenColumns: false
            }
        }
    ]
});

//Get
var showEditorsForHiddenColumns = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").showEditorsForHiddenColumns;

//Set
$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").showEditorsForHiddenColumns = true;

showReadonlyEditors

Type:: bool
Default:: true

Controls if editors should be rendered for read-only columns. If rendered, these editors will be disabled.

Code Sample

<script id="dialogTemplate" type="text/html">
    <table>
        <colgroup>
            <col></col>
            <col></col>
        </colgroup>
        <tbody data-render-tmpl>
        </tbody>
    </table>
</script>
<script id="editorsTemplate" type="text/html">
    <tr>
        <td><strong>${headerText}</strong></td>
        <td><input data-editor-for-${key}="true"/></td>
    </tr>
</script>

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            rowEditDialogOptions: {
                    dialogTemplateSelector: "#dialogTemplate",
                    editorsTemplateSelector: "#editorsTemplate",
                    showReadonlyEditors: false
            }
        }
    ]
});

//Get
var showReadonlyEditors = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").showReadonlyEditors;

//Set
$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").showReadonlyEditors = false;

width

Type:: enumeration
Default:: 415px

Controls the default row edit dialog width.

Members

string
Type:string
The dialog window width in pixels (400px).
number
Type:number
The dialog window width as a number (400).

Code Sample

<script id="dialogTemplate" type="text/html">
    <table>
        <colgroup>
            <col></col>
            <col></col>
        </colgroup>
        <tbody data-render-tmpl>
        </tbody>
    </table>
</script>
<script id="editorsTemplate" type="text/html">
    <tr>
        <td><strong>${headerText}</strong></td>
        <td><input data-editor-for-${key}="true"/></td>
    </tr>
</script>
//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            rowEditDialogOptions: {
                width: 400,
                dialogTemplateSelector: "#dialogTemplate",
                editorsTemplateSelector: "#editorsTemplate"
            }
        }
    ]
});
//Get
var width = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").width;
//Set
$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").width = 500;

saveChangesErrorHandler
Inherited

Type:: enumeration
Default:: null

Sets a custom function to be called when the AJAX request to the URL specified by the updateUrl property fails. The function will be called with arguments representing the data returned by the server.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            saveChangesErrorHandler : function (jqXHR, textStatus, errorThrown) {
                $("#message").text("An error occurred while saving the changes. Error details: " + textStatus).fadeIn(3000).fadeOut(5000);
            }
        }
    ]
});
//Get
var errorHandler = $("#grid").igTreeGridUpdating("option", "saveChangesErrorHandler");
//Set
$("#grid").igTreeGridUpdating("option", "saveChangesErrorHandler", function(jqXHR, textStatus, errorThrown) {
    $("#message").text("An error occurred while saving the changes. Error details: " + textStatus).fadeIn(3000).fadeOut(5000);
});

saveChangesSuccessHandler
Inherited

Type:: enumeration
Default:: null

Sets a custom function to be called when the AJAX request to the URL specified by the updateUrl property succeeds. The function will be called with arguments representing the data returned by the server.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            saveChangesSuccessHandler : function (data) {
                $("#message").text("Changes were saved successfully").fadeIn(3000).fadeOut(5000);
            }
        }
    ]
});
//Get
var successHandler = $("#grid").igTreeGridUpdating("option", "saveChangesSuccessHandler");
//Set
$("#grid").igTreeGridUpdating("option", "saveChangesSuccessHandler", function(data) {
    $("#message").text("Changes were saved successfully").fadeIn(3000).fadeOut(5000);
});

showDoneCancelButtons
Inherited

Type:: bool
Default:: true

Determines if the Done and Cancel buttons will be available as means to end edit mode for editMode 'row' and when adding a new row.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            showDoneCancelButtons: false
        }
    ]
});

//Get
var showButton = $("#grid").igTreeGridUpdating("option", "showDoneCancelButtons");

//Set
$("#grid").igTreeGridUpdating("option", "showDoneCancelButtons", false);

startEditTriggers
Inherited

Type:: enumeration
Default:: click,F2,enter

Specifies how end-users are able to start edit mode. Possible values: "click", "dblclick", "F2", "enter" and their combinations separated by coma or in array. The keyboard triggers have effect only if the grid cells can receive focus (the grid's tabIndex property should not have a negative value) or Selection is enabled. If "dblclick" is included, then "click" has no effect.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            startEditTriggers: "dblclick,F2"
        }
    ]
});
//Get
var triggers = $("#grid").igTreeGridUpdating("option", "startEditTriggers");
//Set
$("#grid").igTreeGridUpdating("option", "startEditTriggers", "dblclick,F2");

swipeDistance
Inherited

Type:: enumeration
Default:: 100px

On touch-enabled devices specifies the swipe distance for the delete button to appear.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            swipeDistance: "200px"
        }
    ]
});
//Get
var triggers = $("#grid").igTreeGridUpdating("option", "swipeDistance");
//Set
$("#grid").igTreeGridUpdating("option", "swipeDistance", "200px");

validation
Inherited

Type:: bool
Default:: false

Specifies if the value of each editable column in the grid should be validated. The validation is done based on the rules of their corresponding editors.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            validation: true
        }
    ]
});

//Get
var isValidating = $("#grid").igTreeGridUpdating("option", "validation");

//Set
$("#grid").igTreeGridUpdating("option", "validation", true);

wrapAround
Inherited

Type:: bool
Default:: true

Controls if navigation will wrap around the grid. The feature will never wrap around virtual grids.

Code Sample

//Initialize
$("#grid").igTreeGrid({
    features: [
        {
            name: "Updating",
            wrapAround: false
        }
    ]
});

//Get
var wrapAround = $("#grid").igTreeGridUpdating("option", "wrapAround");

//Set
$("#grid").igTreeGridUpdating("option", "wrapAround", false);

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details

dataDirty
Inherited

Cancellable:: true

Event fired before the dataDirtyException is thrown. This can be controlled by the enableDataDirtyException property. Any pending changes may be committed in the handler of this event in order to prevent dataDirtyException from being thrown.
Return false in order to prevent the exception.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridupdatingdatadirty", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // get reference to igTreeGridUpdating widget
    ui.owner;

});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Updating",
            dataDirty: function(evt, ui){ ... }
        }
    ]
});

editCellEnded
Inherited

Cancellable:: false

Event fired after cell editing ends (including when row editing closes editing for a cell).

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridupdatingeditcellended", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // get reference to igTreeGridUpdating widget
    ui.owner;

    // to get key or index of row
    ui.rowID;

    // get index of column
    ui.columnIndex;

    // get key of column
    ui.columnKey;

    // get reference to igEditor
    ui.editor;

    // get value of cell
    ui.value;

    // get old value of cell
    ui.oldValue;

    // check if cell was modified and data source will be updated
    ui.update;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Updating",
            editCellEnded: function(evt, ui){ ... }
        }
    ]
});

editCellEnding
Inherited

Cancellable:: true

Event fired before cell editing ends (including when row editing closes editing for a cell).
Return false in order to prevent the grid from exiting edit mode (only functions if editMode is 'cell').

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridupdatingeditcellending", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // get reference to igTreeGridUpdating widget
    ui.owner;

    // to get key or index of row
    ui.rowID;

    // get index of column
    ui.columnIndex;

    // get key of column
    ui.columnKey;

    // get reference to igEditor
    ui.editor;

    // get value of cell
    ui.value;

    // get old value of cell
    ui.oldValue;

    // check if cell was modified and data source will be updated
    ui.update;

    // check if that event is raised while new-row-adding
    ui.rowAdding;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Updating",
            editCellEnding: function(evt, ui){ ... }
        }
    ]
});

editCellStarted
Inherited

Cancellable:: false

Event fired after cell editing begins (including when row editing opens editing for a cell).

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridupdatingeditcellstarted", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // get reference to igTreeGridUpdating widget
    ui.owner;

    // to get key or index of row
    ui.rowID;

    // get index of column
    ui.columnIndex;

    // get key of column
    ui.columnKey;

    // get reference to igEditor
    ui.editor;

    // get value of cell
    ui.value;

    // check if that event is raised while new-row-adding
    ui.rowAdding;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Updating",
            editCellStarted: function(evt, ui){ ... }
        }
    ]
});

editCellStarting
Inherited

Cancellable:: true

Event fired before cell editing begins (including when row editing opens editing for a cell).
Return false in order to cancel editing.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridupdatingeditcellstarting", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // get reference to igTreeGridUpdating widget
    ui.owner;

    // to get key or index of row
    ui.rowID;

    // get index of column
    ui.columnIndex;

    // get key of column
    ui.columnKey;

    // get reference to igEditor
    ui.editor;

    // get value of cell
    ui.value;

    // check if that event is raised while new-row-adding
    ui.rowAdding;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Updating",
            editCellStarting: function(evt, ui){ ... }
        }
    ]
});

editRowEnded
Inherited

Cancellable:: false

Event fired after row editing ends.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridupdatingeditrowended", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // get reference to igTreeGridUpdating widget
    ui.owner;

    // to get key or index of row
    ui.rowID;

    // check if cell was modified and data source will be updated
    ui.update;

    // get value of cell in column with the key
    ui.values;

    // to get old value of cell in column with the key
    ui.oldValues;

    // check if that event is raised while new-row-adding
    ui.rowAdding;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Updating",
            editRowEnded: function(evt, ui){ ... }
        }
    ]
});

editRowEnding
Inherited

Cancellable:: true

Event fired before row editing ends.
Return false in order to prevent the grid from exiting edit mode.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridupdatingeditrowending", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // get reference to igTreeGridUpdating widget
    ui.owner;

    // to get key or index of row
    ui.rowID;

    // check if cell was modified and data source will be updated
    ui.update;

    // get value of cell in column with the key
    ui.values;

    // to get old value of cell in column with the key
    ui.oldValues;

    // check if that event is raised while new-row-adding
    ui.rowAdding;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Updating",
            editRowEnding: function(evt, ui){ ... }
        }
    ]
});

editRowStarted
Inherited

Cancellable:: false

Event fired after row editing begins.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridupdatingeditrowstarted", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // get reference to igTreeGridUpdating widget
    ui.owner;

    // to get key or index of row
    ui.rowID;

    // check if that event is raised while new-row-adding
    ui.rowAdding;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Updating",
            editRowStarted: function(evt, ui){ ... }
        }
    ]
});

editRowStarting
Inherited

Cancellable:: true

Event fired before row editing begins.
Return false in order to cancel editing.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridupdatingeditrowstarting", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // get reference to igTreeGridUpdating widget
    ui.owner;

    // to get key or index of row
    ui.rowID;

    // check if that event is raised while new-row-adding
    ui.rowAdding;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Updating",
            editRowStarting: function(evt, ui){ ... }
        }
    ]
});

generatePrimaryKeyValue
Inherited

Cancellable:: false

Event fired before editing starts for adding a new row, when Updating generates an automatic primary key for it.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridupdatinggenerateprimarykeyvalue", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // get reference to igTreeGridUpdating widget
    ui.owner;

    // set unique record-key-identifier for new row
    ui.value;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Updating",
            generatePrimaryKeyValue: function(evt, ui){ ... }
        }
    ]
});

rowAdded
Inherited

Cancellable:: false

Event fired after adding a new row.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridupdatingrowadded", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // get reference to igTreeGridUpdating widget
    ui.owner;

    // get new value of cell in column with the key
    ui.values;

    // get default value (before editing) of cell in column with the key
    ui.oldValues;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Updating",
            rowAdded: function(evt, ui){ ... }
        }
    ]
});

rowAdding
Inherited

Cancellable:: true

Event fired before adding a new row.
Return false in order to cancel the adding of the new row to the data source.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridupdatingrowadding", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // get reference to igTreeGridUpdating widget
    ui.owner;

    // get new value of cell in column with the key
    ui.values;

    // get default value (before editing) of cell in column with the key
    ui.oldValues;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Updating",
            rowAdding: function(evt, ui){ ... }
        }
    ]
});

rowDeleted
Inherited

Cancellable:: false

Event fired after a row is deleted.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridupdatingrowdeleted", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // get reference to igTreeGridUpdating widget
    ui.owner;

    // get reference to jquery object which represents TR of row to delete
    ui.element;

    // get key or index of row to delete
    ui.rowID;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Updating",
            rowDeleted: function(evt, ui){ ... }
        }
    ]
});

rowDeleting
Inherited

Cancellable:: true

Event fired before deleting a row.
Return false in order to cancel the row's deletion.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridupdatingrowdeleting", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // get reference to igTreeGridUpdating widget
    ui.owner;

    // get reference to jquery object which represents TR of row to delete
    ui.element;

    // get key or index of row to delete
    ui.rowID;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Updating",
            rowDeleting: function(evt, ui){ ... }
        }
    ]
});

rowEditDialogAfterClose
Inherited

Cancellable:: false

Event fired after the row edit dialog is closed.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
    $(document).on("igtreegridupdatingroweditdialogafterclose", ".selector", function (evt, ui) {
    // get reference to igTreeGridUpdating widget
    ui.owner;

    // get reference to the row edit dialog DOM element
    ui.dialogElement;
    });

    //Initialize
    $(".selector").igTreeGrid({
        features : [
            {
                name : "Updating",
                editMode : "dialog",
                rowEditDialogAfterClose: function(evt, ui){ ... }
            }
        ]
    });

rowEditDialogAfterOpen
Inherited

Cancellable:: false

Event fired after the row edit dialog is opened.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridupdatingroweditdialogafteropen", ".selector", function (evt, ui) {
    // get reference to igTreeGridUpdating widget
    ui.owner;

    // get reference to the row edit dialog DOM element
    ui.dialogElement;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Updating",
            editMode : "dialog",
            rowEditDialogAfterOpen: function(evt, ui){ ... }
        }
    ]
});

rowEditDialogBeforeClose
Inherited

Cancellable:: false

Event fired before the row edit dialog is closed.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridupdatingroweditdialogbeforeclose", ".selector", function (evt, ui) {
    // get reference to igTreeGridUpdating widget
    ui.owner;

    // get reference to the row edit dialog DOM element
    ui.dialogElement;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Updating",
            editMode : "dialog",
            rowEditDialogBeforeClose: function(evt, ui){ ... }
        }
    ]
});

rowEditDialogBeforeOpen
Inherited

Cancellable:: false

Event fired before the row edit dialog is opened.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridupdatingroweditdialogbeforeopen", ".selector", function (evt, ui) {
    // get reference to igTreeGridUpdating widget
    ui.owner;

    // get reference to the row edit dialog DOM element
    ui.dialogElement;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Updating",
            editMode : "dialog",
            rowEditDialogBeforeOpen: function(evt, ui){ ... }
        }
    ]
});

rowEditDialogContentsRendered
Inherited

Cancellable:: false

Event fired after the row edit dialog is rendered.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridupdatingroweditdialogcontentsrendered", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // get reference to igTreeGridUpdating widget
    ui.owner;

    // get reference to the row edit dialog DOM element
    ui.dialogElement;

    // get reference to the current data row
    ui.dialogElement.data('tr');
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Updating",
            editMode : "rowedittemplate",
            rowEditDialogContentsRendered: function(evt, ui){ ... }
        }
    ]
});

Show Details

addChild

.igTreeGridUpdating( "addChild", values:object, parentId:object );
Adds a new child to a specific row. It also creates a transaction and updates the UI.
- values
- Type:object
- Pairs of values in the format { column1Key: value1, column2Key: value2, ... } .
- parentId
- Type:object
- The ID of the targeted row.
Code Sample

$(".selector").igTreeGridUpdating("addChild", {employeeId: 7, firstName: "John", lastName: "Miller"}, 0);
addRow
Inherited

.igTreeGridUpdating( "addRow", values:object );
Adds a new row to the grid. It also creates a transaction and updates the UI.
- values
- Type:object
- Pairs of values in the format { column1Key: value1, column2Key: value2, ... } .
Code Sample

$("#grid").igTreeGridUpdating("addRow", {ID: 1, Name: "John"});
changeLocale

.igTreeGridUpdating( "changeLocale" );
Changes the all locales into the widget element to the language specified in options.language
Note that this method is for rare scenarios, see language or locale option setter.
Code Sample

$(".selector").igTreeGridUpdating("changeLocale");
changeRegional
Inherited

.igTreeGridUpdating( "changeRegional" );
Changes the the regional settings of widget element to the language specified in options.regional
Note that this method is for rare scenarios, use regional option setter.
Code Sample

$(".selector").igTreeGridUpdating("changeRegional");
deleteRow
Inherited

.igTreeGridUpdating( "deleteRow", rowId:object );
Deletes a row from the grid. It also creates a transaction and updates the UI.
- rowId
- Type:object
- The primary key of the row to delete.
Code Sample

$("#grid").igTreeGridUpdating("deleteRow", 5);
destroy

.igTreeGridUpdating( "destroy" );
Code Sample

$(".selector").igTreeGridUpdating("destroy");
editorForCell
Inherited

.igTreeGridUpdating( "editorForCell", cell:jquery, [create:bool] );

Return Type:

object

Return Type Description:

Returns a reference to the element the editor is initialized on or null.
Gets the editor for a column by the cell it resides in. If allowed the function can create the editor if it has not been created yet.
- cell
- Type:jquery
- Reference to the jQuery-wrapped TD object of the grid that the editor belongs to.
- create
- Type:bool
- Optional
- Requests to create the editor if it has not been created yet.
Code Sample

var editor = $("#grid").igTreeGridUpdating("editorForCell", $(gridTDCell) );
editorForKey
Inherited

.igTreeGridUpdating( "editorForKey", key:string );

Return Type:

object

Return Type Description:

Returns a reference to the element the editor is initialized on or null.
Gets the editor for a column by the column key. That method can be used only after the editor has been created.
- key
- Type:string
- The key of the column.
Code Sample

var editor = $("#grid").igTreeGridUpdating("editorForKey", "ProductName");
endEdit
Inherited

.igTreeGridUpdating( "endEdit", [update:bool], [raiseEvents:bool] );

Return Type:

bool

Return Type Description:

Returns false if the request fails and editing resumes.
Ends the currently active edit mode.
- update
- Type:bool
- Optional
- Specifies if the edit process should accept the current changes. Default is 'false'.
- raiseEvents
- Type:bool
- Optional
- Specifies whether or not updating events should be raised for this operation.
Code Sample

$("#grid").igTreeGridUpdating("endEdit");
findInvalid
Inherited

.igTreeGridUpdating( "findInvalid" );

Return Type:

string

Return Type Description:

Returns the key of the first column the editor for which has invalid value when validation for the column is enabled. Returns null if the editors for all columns are valid or validation is disabled.
Finds and returns the key of the first column the editor for which has invalid value.
Code Sample

var colKey = $("#grid").igTreeGridUpdating("findInvalid");
hideAddChildButton

.igTreeGridUpdating( "hideAddChildButton" );
Hides the "Add Child" button.
Code Sample

$(".selector").igTreeGridUpdating("hideAddChildButton");
hideDeleteButton
Inherited

.igTreeGridUpdating( "hideDeleteButton" );
Hides the delete button.
Code Sample

$("#grid").igTreeGridUpdating("hideDeleteButton");
isEditing
Inherited

.igTreeGridUpdating( "isEditing" );

Return Type:

bool

Return Type Description:

Returns true if the grid is in edit mode and false otherwise.
Checks if the grid is in edit mode.
Code Sample

var isEditing = $("#grid").igTreeGridUpdating("isEditing");
setCellValue
Inherited

.igTreeGridUpdating( "setCellValue", rowId:object, colKey:string, value:object );
Sets a cell value for the specified cell. It also creates a transaction and updates the UI.
If the specified cell is currently in edit mode, the function will set the desired value in the cell's editor instead.
- rowId
- Type:object
- The primary key of the row the cell is a child of.
- colKey
- Type:string
- The column key of the cell.
- value
- Type:object
- The new value for the cell.
Code Sample

$("#grid").igTreeGridUpdating("setCellValue", 5, "ProductName", "bologna");
showAddChildButtonFor

.igTreeGridUpdating( "showAddChildButtonFor", row:object );
Shows the "Add Child" button for specific row.
- row
- Type:object
- A jQuery object of the targeted row.
Code Sample

var rowObj = $(".selector").igTreeGrid("rowById", 0);
$(".selector").igTreeGridUpdating("showAddChildButtonFor", rowObj);
showDeleteButtonFor
Inherited

.igTreeGridUpdating( "showDeleteButtonFor", row:object );
Shows the delete button for specific row.
- row
- Type:object
- A jQuery object of the targeted row.
Code Sample

var rowObj = $(".selector").igTreeGrid("rowById", 0);
$(".selector").igTreeGridUpdating("showDeleteButtonFor", rowObj)
startAddChildFor

.igTreeGridUpdating( "startAddChildFor", parentId:object, [raiseEvents:object] );
Starts editing for adding a new child for specific row.
- parentId
- Type:object
- The ID of the targeted row.
- raiseEvents
- Type:object
- Optional
- Specifies whether or not updating events should be raised for this operation.
Code Sample

$(".selector").igTreeGridUpdating("startAddChildFor", 4)
startAddRowEdit
Inherited

.igTreeGridUpdating( "startAddRowEdit", [raiseEvents:bool] );

Return Type:

bool

Return Type Description:

Returns true if the operation succeeds.
Starts editing for adding a new row.
- raiseEvents
- Type:bool
- Optional
- Specifies whether or not updating events should be raised for this operation.
Code Sample

$("#grid").igTreeGridUpdating("startAddRowEdit");
startEdit
Inherited

.igTreeGridUpdating( "startEdit", rowId:object, column:object, [raiseEvents:bool] );

Return Type:

bool

Return Type Description:

Returns true if the operation succeeds.
Starts editing for the row or cell specified (depending on the editMode).
- rowId
- Type:object
- The row id.
- column
- Type:object
- The column key or index.
- raiseEvents
- Type:bool
- Optional
- Specifies whether or not updating events should be raised for this operation.
Code Sample

$("#grid").igTreeGridUpdating("startEdit", 5, 5);
updateRow
Inherited

.igTreeGridUpdating( "updateRow", rowId:object, values:object );
Sets values for specified cells in a row. It also creates a transaction and updates the UI.
If the specified row is currently in edit mode, the function will set the desired values in the row's editors instead.
- rowId
- Type:object
- The primary key of the row to update.
- values
- Type:object
- Pairs of values in the format { column1Key: value1, column2Key: value2, ... } .
Code Sample

$("#grid").igTreeGridUpdating("updateRow", 5, {ProductName: "tuna"});

ui-iggrid-addrowicon ui-icon ui-icon-circle-plus

Classes applied to the container of Done and Cancel editing buttons. Default value is "ui-iggrid-addrowicon ui-icon ui-icon-circle-plus".
ui-iggrid-addrow ui-widget-header

Classes applied to the button that starts edit mode for adding a new row.
ui-iggrid-addrowactive ui-state-active

Classes applied to the button that starts edit mode for adding a new row in active/focus state.
ui-iggrid-addrowhover ui-state-hover

Classes applied to the button that starts edit mode for adding a new row in mouse-over state.
ui-iggrid-addrowicon ui-icon ui-icon-circle-plus

Classes applied to the icon of the button that starts edit mode for adding a new row.
ui-widget-overlay ui-iggrid-blockarea

Classes applied to the grid's overlay when the Row Edit Dialog is opened.
ui-iggrid-button ui-state-default ui-corner-all

Classes applied to the Done, Cancel and Delete buttons.
ui-iggrid-buttonactive ui-state-active

Classes applied to the Done, Cancel and Delete buttons in active/focus state.
ui-iggrid-buttoncontainer ui-widget-content ui-corner-all

Classes applied to the container of the Done and Cancel buttons.
ui-iggrid-buttondisabled ui-state-disabled

Classes applied to the Done, Cancel and Delete buttons in disabled state.
ui-iggrid-buttonhover ui-state-hover

Classes applied to the Done, Cancel and Delete buttons in mouse-over state.
ui-iggrid-button-icon-only

Class applied to the Done and Cancel buttons when they have no text.
ui-iggrid-cancelbutton ui-corner-all

Class applied to the Cancel button.
ui-iggrid-cancelicon ui-icon ui-icon-cancel

Classes applied to the icon on the Cancel button.
ui-iggrid-deletebutton ui-state-default ui-corner-all

Classes applied to the Delete button.
ui-iggrid-deleteicon ui-icon ui-icon-circle-close

Classes applied to the icon of the Delete button.
ui-iggrid-donebutton ui-priority-primary ui-corner-all

Classes applied to the Done button.
ui-iggrid-doneicon ui-icon ui-icon-check

Classes applied to the icon of the Done button.
ui-iggrid-editingcell

Classes applied to cells in edit mode.
ui-iggrid-editor

Class applied to the editors.
ui-dialog ui-draggable ui-resizable ui-iggrid-dialog ui-widget ui-widget-content ui-corner-all

Classes applied to the Row Edit Dialog element.
ui-dialog-buttonpane ui-widget-content ui-helper-clearfix

Classes applied to the Row Edit Dialog's Done and Cancel buttons.
ui-icon ui-icon-close

Classes applied to the close button of the Row Edit Dialog.
ui-dialog-title

Class applied to the Row Edit Dialog title.
ui-iggrid-filtertable ui-helper-reset

Classes applied to the default Row Edit Dialog table.

Ignite UI for jQuery | API Reference

ui.igTreeGridUpdating

Code Sample

Related Topics

Dependencies

Inherits
