ui.igGridSummaries

Overview
Options
Events
Methods
Theming

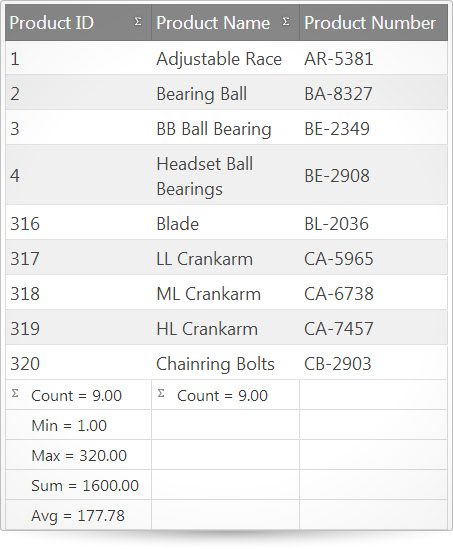

Both the igGrid and igHierarchicalGrid controls feature column summaries in the grid. Column summaries are available to expose a number of aggregations on a column including minimum, maximum, average and summation values. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

The following code snippet demonstrates how to initialize the igGrid control.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample


<!doctype html>
<html>
<head>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
    <!-- Infragistics Combined Scripts -->
    <script src="js/infragistics.core.js" type="text/javascript"></script>
	  <script src="js/infragistics.lob.js" type="text/javascript"></script>
    <script type="text/javascript">
        $(function () {
            var ds = [
    	        { "ProductID": 1, "Name": "Adjustable Race", "ProductNumber": "AR-5381" },
    	        { "ProductID": 2, "Name": "Bearing Ball", "ProductNumber": "BA-8327" },
    	        { "ProductID": 3, "Name": "BB Ball Bearing", "ProductNumber": "BE-2349" },
    	        { "ProductID": 4, "Name": "Headset Ball Bearings", "ProductNumber": "BE-2908" },
    	        { "ProductID": 316, "Name": "Blade", "ProductNumber": "BL-2036" },
    	        { "ProductID": 317, "Name": "LL Crankarm", "ProductNumber": "CA-5965" },
    	        { "ProductID": 318, "Name": "ML Crankarm", "ProductNumber": "CA-6738" },
    	        { "ProductID": 319, "Name": "HL Crankarm", "ProductNumber": "CA-7457" },
    	        { "ProductID": 320, "Name": "Chainring Bolts", "ProductNumber": "CB-2903" }
            ];

            $("#gridSummaries").igGrid({
                autoGenerateColumns: false,
                columns: [
			        { headerText: "Product ID", key: "ProductID", dataType: "number" },
			        { headerText: "Product Name", key: "Name", dataType: "string" },
			        { headerText: "Product Number", key: "ProductNumber", dataType: "string" }
		        ],
                dataSource: ds,
                features: [
		        {
		            name: "Summaries",
		            columnSettings: [
				        { columnKey: "ProductID", allowSummaries: true },
				        { columnKey: "Name", allowSummaries: true },
                        { columnKey: "ProductNumber", allowSummaries: false }
			        ]
		        }
	            ]
            });
        });
    </script>
</head>
<body>
	<table id="gridSummaries"></table>
</body>
</html>

Related Samples

calculateRenderMode

Type:: enumeration
Default:: okcancelbuttons

Specifies when calculations are made.

Members

onselect
Type:string
summaries are updated when checkbox is checked/unchecked.
okcancelbuttons
Type:string
summaries are updated only when OK button is clicked.

Code Sample

		//Initialize
        $(".selector").igGrid({
            features : [
                {
                    name : "Summaries",
                    calculateRenderMode: "onselect"
                }
            ]
        });
        //Get
        var calculateRenderMode = $(".selector").igGridSummaries("option", "calculateRenderMode");
		//Set
		$(".selector").igGridSummaries("option", "calculateRenderMode", "onselect");

callee

Type:: function
Default:: null

Function reference - it is called when data is retrieved from the data source.

Code Sample

        //Initialize
        $(".selector").igGrid({
            features : [
                {
                    name : "Summaries",
                    callee: function() {...}
                }
            ]
        });

columnSettings

Type:: array
Default:: []
Elements Type:: object

A list of column settings that specifies custom summaries options per column basis.

Code Sample

        //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name: "Summaries",
                    columnSettings: [
                        { columnKey: "ProductID", allowSummaries: true  },
                    ]
                }
            ]
        });

        //Get
        var accessibility = $(".selector").igGridSummaries("option", "columnSettings");

allowSummaries

Type:: bool
Default:: true

Enables disables summaries for the column.

Code Sample

		   //Initialize
			$(".selector").igGrid({
				features: [
					{
						name: "Summaries",
						columnSettings: [
							{ columnIndex: 0, allowSummaries: false },
						]
					}
				]
			});
			//Get
				var accessibility = $(".selector").igGridSummaries("option", "columnSettings");
				var allowSummaries = accessibility[0].allowSummaries;

			//Set
				//get the array of column settings
				var arrayOfColumnSettings = $(".selector").igGridSummaries("option", "columnSettings");
				//set new value to the column with index 0
				arrayOfColumnSettings[0].allowSummaries = false;
				$(".selector").igGridSummaries("option", "columnSettings", arrayOfColumnSettings);

columnIndex

Type:: number
Default:: -1

Column index. Can be used in place of column key. The preferred way of populating a column setting is to always use the column keys as identifiers.

Code Sample

		   //Initialize
			$(".selector").igGrid({
				features: [
					{
						name: "Summaries",
						columnSettings: [
							{ columnIndex: 0, allowSummaries: false },
						]
					}
				]
			});

columnKey

Type:: string
Default:: null

Column key. This is a required property in every column setting if columnIndex is not set.

Code Sample

		   //Initialize
			$(".selector").igGrid({
				features: [
					{
						name: "Summaries",
						columnSettings: [
							{ columnKey: "ProductID", allowSummaries: false },
						]
					}
				]
			});

summaryOperands

Type:: array
Default:: []
Elements Type:: object

Check defaultSummaryOperands.

Code Sample

		   //Initialize
			$(".selector").igGrid({
				features: [
					{
						name: "Summaries",
						columnSettings: [
							{ columnKey: "ProductID", allowSummaries: false, summaryOperands:
								[{ "rowDisplayLabel": "Count", "type": "count", "active": count, "order": 0, decimalDisplay: 3 }]
								}
						]
					}
				]
			});
			//Get
				var arrayOfColumnSettings = $(".selector").igGridSummaries("option", "columnSettings");
				var firstColumn = arrayOfColumnSettings[0].summaryOperands;
			//Set
				$(".selector").igGridSummaries("option", "columnSettings", [{ columnKey: "ReorderPoint", allowSummaries: true, summaryOperands:
				[{ "rowDisplayLabel": "Count", "type": "count", "active": count, "order": 0, decimalDisplay: 3 }]
				}]);

active

Type:: bool
Default:: true

If it is false the summary operand will be shown in dropdown but it will not be made calculation.

Code Sample

                  //Initialize
			          $(".selector").igGrid({
				          features: [
					          {
						          name: "Summaries",
						          columnSettings: [
							          { columnKey: "ProductID", allowSummaries: false, summaryOperands:
								          [{ "rowDisplayLabel": "Count", "type": "count", "active": count, "order": 0, decimalDisplay: 3 }]
								          }
						          ]
					          }
				          ]
			          });
			          //Get
				          var arrayOfColumnSettings = $(".selector").igGridSummaries("option", "columnSettings");
				          var firstColumn = arrayOfColumnSettings[0].summaryOperands;
				          var decimalDisplay = firstColumn[0].active;
			          //Set
				          var arrayOfColumnSettings = $(".selector").igGridSummaries("option", "columnSettings");
				          //Set new value
				          arrayOfColumnSettings[0].summaryOperands[0].active = true;
				          $(".selector").igGridSummaries("option", "columnSettings", arrayOfColumnSettings);

decimalDisplay

Type:: number
Default:: 2

Specifies the number of digits after the decimal point for result of the current summary operand. This property will be ignored when isGridFormatter is true.

Code Sample

		             //Initialize
			          $(".selector").igGrid({
				          features: [
					          {
						          name: "Summaries",
						          columnSettings: [
							          { columnKey: "ProductID", allowSummaries: false, summaryOperands:
								          [{ "rowDisplayLabel": "Count", "type": "count", "active": count, "order": 0, decimalDisplay: 3 }]
								          }
						          ]
					          }
				          ]
			          });
			          //Get
				          var arrayOfColumnSettings = $(".selector").igGridSummaries("option", "columnSettings");
				          var firstColumn = arrayOfColumnSettings[0].summaryOperands;
				          var decimalDisplay = firstColumn[0].decimalDisplay;
			          //Set
				          var arrayOfColumnSettings = $(".selector").igGridSummaries("option", "columnSettings");
				          //Set new value
				          arrayOfColumnSettings[0].summaryOperands[0].decimalDisplay = 4;
				          $(".selector").igGridSummaries("option", "columnSettings", arrayOfColumnSettings);

isGridFormatter

Type:: bool
Default:: ""

Specifies whether to be used grid formatter for result for the current summary operand.

Code Sample

			          //Initialize
			          $(".selector").igGrid({
				          features: [
					          {
						          name: "Summaries",
						          columnSettings: [
							          { columnKey: "ProductID", allowSummaries: false, summaryOperands:
								          [{ "rowDisplayLabel": "Count", "type": "count", "active": count, "order": 0, decimalDisplay: 2,
								          isGridFormatter: true }]
								          }
						          ]
					          }
				          ]
			          });
			          //Get
				          var arrayOfColumnSettings = $(".selector").igGridSummaries("option", "columnSettings");
				          var firstColumn = arrayOfColumnSettings[0].summaryOperands;
				          var isGridFormatter = firstColumn[0].isGridFormatter;
			          //Set
				          var arrayOfColumnSettings = $(".selector").igGridSummaries("option", "columnSettings");
				          //Set new value
				          arrayOfColumnSettings[0].summaryOperands[0].isGridFormatter = true;
				          $(".selector").igGridSummaries("option", "columnSettings", arrayOfColumnSettings);

order

Type:: number
Default:: 5

Specifies the order of elements in dropdown. It is recommended to set order of custom operands and to be greater or equal to 5.

Code Sample

				      //Initialize
					      $(".selector").igGrid({
						      features: [
							      {
								      name: "Summaries",
								      columnSettings: [
									      { columnKey: "ProductID", allowSummaries: false, summaryOperands:
										      [{ "rowDisplayLabel": "Count", "type": "count", "active": count, "order": 0, decimalDisplay: 2,
										      order: 6 }]
										      }
								      ]
							      }
						      ]
					      });
				      //Get
					      var arrayOfColumnSettings = $(".selector").igGridSummaries("option", "columnSettings");
					      var firstColumn = arrayOfColumnSettings[0].summaryOperands;
					      var order = firstColumn[0].order;
				      //Set
					      var arrayOfColumnSettings = $(".selector").igGridSummaries("option", "columnSettings");
					      //Set new value
					      arrayOfColumnSettings[0].summaryOperands[0].order = 6;
					      $(".selector").igGridSummaries("option", "columnSettings", arrayOfColumnSettings);

rowDisplayLabel

Type:: string
Default:: ""

Text of the summary method which is shown in summary cell.

Code Sample

				          //Initialize
					          $(".selector").igGrid({
						          features: [
							          {
								          name: "Summaries",
								          columnSettings: [
									          { columnKey: "ProductID", allowSummaries: false, summaryOperands:
										          [{ "rowDisplayLabel": "Count", "type": "count", "active": count, "order": 0, decimalDisplay: 2
										          }]
										          }
								          ]
							          }
						          ]
					          });
				          //Get
					          var arrayOfColumnSettings = $(".selector").igGridSummaries("option", "columnSettings");
					          var firstColumn = arrayOfColumnSettings[0].summaryOperands;
					          var rowDisplayLabel = firstColumn[0].rowDisplayLabel;
				          //Set
					          var arrayOfColumnSettings = $(".selector").igGridSummaries("option", "columnSettings");
					          //Set new value
					          arrayOfColumnSettings[0].summaryOperands[0].rowDisplayLabel = "New Label";
					          $(".selector").igGridSummaries("option", "columnSettings", arrayOfColumnSettings);
          .

summaryCalculator

Type:: string
Default:: null

Name of the custom summary function which should be executed when type is custom.

Code Sample


$("#grid1").igGrid({
    autoGenerateColumns: false,
    columns: [
		{ headerText: "Product ID", key: "ProductID", dataType: "number", width: 230 },
		{ headerText: "Product Name", key: "Name", dataType: "string", width: 120 },
		{ headerText: "Reorder Point", key: "ReorderPoint", dataType: "number", width: 230 },
		{ headerText: "Product Number", key: "ProductNumber", dataType: "string", width: 120 }
	],
    dataSource: ds,
    responseDataKey: "responseKey",
    features: [
	{
		name: "Summaries",
		showHeaderButton: false,
		showDropDownButton: true,
        compactRenderingMode: false,
		columnSettings: [
			{ columnKey: "ProductID", allowSummaries: true ,
                            summaryOperands:
                            [
                                { "rowDisplayLabel": "Avg", "type": "AVG", "active": true},
                                { "rowDisplayLabel": "Count", "type": "COUNT", "active": true},
                                { "rowDisplayLabel": "Min", "type": "MIN", "active": true},
                                { "rowDisplayLabel": "Sum of even numbers", "type": "custom1", "active": true, summaryCalculator: $.proxy(CalculateEvenSum, this), "order": 5},
                                { "rowDisplayLabel": "Sum of odd numbers", "type": "custom2", "active": true, summaryCalculator: $.proxy(CalculateOddSum, this), "order": 6}
                            ]
            },
            { columnKey: "ReorderPoint", allowSummaries: true ,
                            summaryOperands:
                            [
                                { "rowDisplayLabel": "Avg", "type": "AVG", "active": true },
                                { "rowDisplayLabel": "Count", "type": "COUNT", "active": true },
                                { "rowDisplayLabel": "Min", "type": "MIN", "active": true },
                                { "rowDisplayLabel": "Sum of even numbers", "type": "custom1", "active": true, summaryCalculator: $.proxy(CalculateEvenSum, this), "order": 5},
                                { "rowDisplayLabel": "Sum of odd numbers", "type": "custom2", "active": true, summaryCalculator: $.proxy(CalculateOddSum, this), "order": 6}
                            ]
                            },
			{ columnKey: "ProductNumber", allowSummaries: true }
		]
	}
    ]
});

function CalculateEvenSum (data) {
    var i, l = data.length, sum = 0;

    for (i = 0; i < l; i++) {
        elem = data[i];
        if (elem % 2 === 0) {
            sum += elem;
        }
    }
    return sum;
}

function CalculateOddSum (data) {
    var i, l = data.length, sum = 0;

    for (i = 0; i < l; i++) {
        elem = data[i];
        if (elem % 2 !== 0) {
            sum += elem;
        }
    }
    return sum;
}

type

Type:: enumeration
Default:: custom

Set type of summary operand.

Members

count
Type:string
calculate count of result rows for the specified column.
min
Type:string
calculate min of result rows for the specified column.
max
Type:string
calculate max of result rows for the specified column.
sum
Type:string
calculate sum of result rows for the specified column.
avg
Type:string
calculate average of result rows for the specified column.
custom
Type:string
calculate custom function (specified by summaryCalculator property) of result rows for the specified column.

Code Sample


$("#grid1").igGrid({
    autoGenerateColumns: false,
    columns: [
		{ headerText: "Product ID", key: "ProductID", dataType: "number", width: 230 },
		{ headerText: "Product Name", key: "Name", dataType: "string", width: 120 },
		{ headerText: "Reorder Point", key: "ReorderPoint", dataType: "number", width: 230 },
		{ headerText: "Product Number", key: "ProductNumber", dataType: "string", width: 120 }
	],
    dataSource: ds,
    responseDataKey: "responseKey",
    features: [
	{
		name: "Summaries",
		showHeaderButton: false,
		showDropDownButton: true,
        compactRenderingMode: false,
		columnSettings: [
			{ columnKey: "ProductID", allowSummaries: true ,
                            summaryOperands:
                            [
                                { "rowDisplayLabel": "Avg", "type": "AVG", "active": true},
                                { "rowDisplayLabel": "Count", "type": "COUNT", "active": true},
                                { "rowDisplayLabel": "Min", "type": "MIN", "active": true},
                                { "rowDisplayLabel": "Sum of even numbers", "type": "custom1", "active": true, summaryCalculator: $.proxy(CalculateEvenSum, this), "order": 5},
                                { "rowDisplayLabel": "Sum of odd numbers", "type": "custom2", "active": true, summaryCalculator: $.proxy(CalculateOddSum, this), "order": 6}
                            ]
            },
            { columnKey: "ReorderPoint", allowSummaries: true ,
                            summaryOperands:
                            [
                                { "rowDisplayLabel": "Avg", "type": "AVG", "active": true },
                                { "rowDisplayLabel": "Count", "type": "COUNT", "active": true },
                                { "rowDisplayLabel": "Min", "type": "MIN", "active": true },
                                { "rowDisplayLabel": "Sum of even numbers", "type": "custom1", "active": true, summaryCalculator: $.proxy(CalculateEvenSum, this), "order": 5},
                                { "rowDisplayLabel": "Sum of odd numbers", "type": "custom2", "active": true, summaryCalculator: $.proxy(CalculateOddSum, this), "order": 6}
                            ]
                            },
			{ columnKey: "ProductNumber", allowSummaries: true }
		]
	}
    ]
});

function CalculateEvenSum (data) {
    var i, l = data.length, sum = 0;

    for (i = 0; i < l; i++) {
        elem = data[i];
        if (elem % 2 === 0) {
            sum += elem;
        }
    }
    return sum;
}

function CalculateOddSum (data) {
    var i, l = data.length, sum = 0;

    for (i = 0; i < l; i++) {
        elem = data[i];
        if (elem % 2 !== 0) {
            sum += elem;
        }
    }
    return sum;
}

compactRenderingMode

Type:

enumeration

Default:

true
Specifies how compact the summaries are rendered. When true indicates that the summaries may be rendered compactly, even mixing different summaries on the same line. False ensures that each summary type is occupying a separate line. Auto will use True if the maximum number of visible summaries is one or less and False otherwise.
Code Sample
```
		 //Initialize
			$(".selector").igGrid({
				features: [
					{
						name: "Summaries",
						compactRenderingMode: false
					}
				]
			});
		//Get
        var compactRenderingMode = $(".selector").igGridSummaries("option", "compactRenderingMode");
		//Set
		$(".selector").igGridSummaries("option", "compactRenderingMode", "auto");

```

defaultDecimalDisplay

Type:: number
Default:: 2

The number of digits after the decimal point. If gridFormatter is True then this option is ignored.

Code Sample

	   //Initialize
		$(".selector").igGrid({
			features: [
				{
					name: "Summaries",
					defaultDecimalDisplay: 3
				}
			]
		});
		//Get
        var defaultDecimalDisplay = $(".selector").igGridSummaries("option", "defaultDecimalDisplay");
		//Set
		$(".selector").igGridSummaries("option", "defaultDecimalDisplay", 3);

dialogButtonCancelText

Type:: string
Default:: ""

Text of the button Cancel in the summaries dropdown.

Code Sample

	   //Initialize
		$(".selector").igGrid({
			features: [
				{
					name: "Summaries",
					dialogButtonCancelText: "New Value"
				}
			]
		});
		//Get
        var dialogButtonCancelText = $(".selector").igGridSummaries("option", "dialogButtonCancelText");
		//Set
		$(".selector").igGridSummaries("option", "dialogButtonCancelText", "New Value");

dialogButtonOKText

Type:: string
Default:: ""

Text of the button OK in the summaries dropdown.

Code Sample

	   //Initialize
		$(".selector").igGrid({
			features: [
				{
					name: "Summaries",
					dialogButtonOKText: "New Value"
				}
			]
		});
		//Get
        var dialogButtonOKText = $(".selector").igGridSummaries("option", "dialogButtonOKText");
		//Set
		$(".selector").igGridSummaries("option", "dialogButtonOKText", "New Value");

dropDownDialogAnimationDuration

Type:: number
Default:: 400

Dropdown animation duration.

Code Sample

	   //Initialize
		$(".selector").igGrid({
			features: [
				{
					name: "Summaries",
					dropDownDialogAnimationDuration: 1000
				}
			]
		});
		//Get
        var dropDownDialogAnimationDuration = $(".selector").igGridSummaries("option", "dropDownDialogAnimationDuration");
		//Set
		$(".selector").igGridSummaries("option", "dropDownDialogAnimationDuration", 1500);

dropDownHeight

Type:: number
Default:: ""

Height of the dropdown in pixels.

Code Sample

	   //Initialize
		$(".selector").igGrid({
			features: [
				{
					name: "Summaries",
					dropDownHeight: 250
				}
			]
		});
		//Get
        var dropDownHeight = $(".selector").igGridSummaries("option", "dropDownHeight");
		//Set
		$(".selector").igGridSummaries("option", "dropDownHeight", 350);

dropDownWidth

Type:: number
Default:: ""

Width of the dropdown in pixels.

Code Sample

	   //Initialize
		$(".selector").igGrid({
			features: [
				{
					name: "Summaries",
					dropDownWidth: 250
				}
			]
		});
		//Get
        var dropDownWidth = $(".selector").igGridSummaries("option", "dropDownWidth");
		//Set
		$(".selector").igGridSummaries("option", "dropDownWidth", 350);

emptyCellText

Type:: string
Default:: ""

Empty text template to be shown for empty cells.

Code Sample

	   //Initialize
		$(".selector").igGrid({
			features: [
				{
					name: "Summaries",
					emptyCellText: "empty cell"
				}
			]
		});
		//Get
        var emptyCellText = $(".selector").igGridSummaries("option", "emptyCellText");
		//Set
		$(".selector").igGridSummaries("option", "emptyCellText", "empty cell");

featureChooserText

Type:: string
Default:: ""

Get or set text that is shown in the feature chooser dropdown when summaries are hidden.

Code Sample

	   //Initialize
		$(".selector").igGrid({
			features: [
				{
					name: "Summaries",
					featureChooserText: "New Value"
				}
			]
		});
		//Get
        var featureChooserText = $(".selector").igGridSummaries("option", "featureChooserText");
		//Set
		$(".selector").igGridSummaries("option", "featureChooserText", "New Value");

featureChooserTextHide

Type:: string
Default:: ""

Get or set text that is shown in the feauture chooser dropdown when summaries are shown.

Code Sample


      	//Initialize
		$(".selector").igGrid({
			features: [
				{
					name: "Summaries",
					featureChooserTextHide: "Summaries"
				}
			]
		});
		//Get
        var text = $(".selector").igGridSummaries("option", "featureChooserTextHide");

		//Set
		$(".selector").igGridSummaries("option", "featureChooserTextHide", "Summaries");

inherit

Type:

bool

Default:

false

Enables/disables feature inheritance for the child layouts. NOTE: It only applies for igHierarchicalGrid.

isGridFormatter

Type:: bool
Default:: true

If this property is enabled and in summaryOperand isGridFormatter is undefined then use grid formatting for cells.

Code Sample

	   //Initialize
		$(".selector").igGrid({
			features: [
				{
					name: "Summaries",
					isGridFormatter: false
				}
			]
		});
		//Get
        var isGridFormatter = $(".selector").igGridSummaries("option", "isGridFormatter");
		//Set
		$(".selector").igGridSummaries("option", "isGridFormatter", false);

renderSummaryCellFunc

Type:: enumeration
Default:: null

a reference or name of a javascript function - renders summary cell in grid footer.(if not set it is used default render function) It takes 3 parameters - methodName(summary method), columnKey, data(summary data which should be rendered).

Code Sample

        <script type="text/javascript">
            function renderSummaryCell(methodName, columnKey, data) {
                var res = data.rowDisplayLabel + " - " + data.result,
                    sContainerId = "#" + this.grid.element[0].id + "_summaries_footer_row_text_container_";
                this.grid.container()
                    .find(sContainerId + methodName + "_" + columnKey)
                    .html(res);
            }
        </script>

        //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name: "Summaries",
                    renderSummaryCellFunc: renderSummaryCell
                    }
                }
            ]
        });
        //Get
        var showDropDownButton = $(".selector").igGridSummaries("option", "renderSummaryCellFunc");
        //Set
        $(".selector").igGridSummaries("option", "renderSummaryCellFunc", renderSummaryCell);

resultTemplate

Type:: string
Default:: "{0} = {1}"

Result template for summary result(shown in table cell).

Code Sample

	   //Initialize
		$(".selector").igGrid({
			features: [
				{
					name: "Summaries",
					resultTemplate: "{0} is {1}"
				}
			]
		});
		//Get
        var resultTemplate = $(".selector").igGridSummaries("option", "resultTemplate");
		//Set
		$(".selector").igGridSummaries("option", "resultTemplate", "{0} is {1}");

showDropDownButton

Type:: bool
Default:: true

Show/hide footer button(on click show/hide dropdown).

Code Sample

	   //Initialize
		$(".selector").igGrid({
			features: [
				{
					name: "Summaries",
					showDropDownButton: false
				}
			]
		});
		//Get
        var showDropDownButton = $(".selector").igGridSummaries("option", "showDropDownButton");
		//Set
		$(".selector").igGridSummaries("option", "showDropDownButton", false);

showSummariesButton

Type:: bool
Default:: true

Show header button icon in the header cell. On click - shows/hides summaries. If false then summary icon should not be shown in the feature chooser(if shown).

Code Sample

	   //Initialize
		$(".selector").igGrid({
			features: [
				{
					name: "Summaries",
					showSummariesButton: false
				}
			]
		});
		//Get
        var showSummariesButton = $(".selector").igGridSummaries("option", "showSummariesButton");
		//Set
		$(".selector").igGridSummaries("option", "showSummariesButton", false);

summariesHeaderButtonTooltip

Type:: string
Default:: ""

Tooltip text for header cell button.

Code Sample

	   //Initialize
		$(".selector").igGrid({
			features: [
				{
					name: "Summaries",
					summariesHeaderButtonTooltip: "New ToolTip Text"
				}
			]
		});
		//Get
        var summariesHeaderButtonTooltip = $(".selector").igGridSummaries("option", "summariesHeaderButtonTooltip");
		//Set
		$(".selector").igGridSummaries("option", "summariesHeaderButtonTooltip", "New ToolTip Text");

summariesResponseKey

Type:: string
Default:: "summaries"

Result key by which we get data from the result returned by remote data source.

Code Sample

	   //Initialize
		$(".selector").igGrid({
			features: [
				{
					name: "Summaries",
					summariesResponseKey: "summaries"
				}
			]
		});
		//Get
        var summariesResponseKey = $(".selector").igGridSummaries("option", "summariesResponseKey");
		//Set
		$(".selector").igGridSummaries("option", "summariesResponseKey", "summaries");

summaryExecution

Type:

enumeration

Default:

afterfilteringbeforepaging
Determines when the summary values are calculated when type is local.
Members
- priortofilteringandpaging
- Type:string
- summaries are calculated prior to filtering and paging.
- afterfilteringbeforepaging
- Type:string
- summaries are calculated after filtering and before paging.
- afterfilteringandpaging
- Type:string
- summaries are calculated after filtering and paging.
Code Sample
```
	   //Initialize
		$(".selector").igGrid({
			features: [
				{
					name: "Summaries",
					summaryExecution: "priortofilteringandpaging"
				}
			]
		});
		//Get
        var summaryExecution = $(".selector").igGridSummaries("option", "summaryExecution");
		//Set
		$(".selector").igGridSummaries("option", "summaryExecution", "priortofilteringandpaging");

```

summaryExprUrlKey

Type:: string
Default:: "summaries"

Set key in GET Request for summaries - used only when type is remote.

Code Sample

	   //Initialize
		$(".selector").igGrid({
			features: [
				{
					name: "Summaries",
					summaryExprUrlKey: "summaries"
				}
			]
		});
		//Get
        var summaryExprUrlKey = $(".selector").igGridSummaries("option", "summaryExprUrlKey");
		//Set
		$(".selector").igGridSummaries("option", "summaryExprUrlKey", "summaries");

type

Type:: enumeration
Default:: null

type of summaries calculating.

Members

remote
Type:string
when it is remote summaries calculations are made on the server.
local
Type:string
When it is local calculations are made on the client.

Code Sample

	   //Initialize
		$(".selector").igGrid({
			features: [
				{
					name: "Summaries",
					type: "remote"
				}
			]
		});
		//Get
        var type = $(".selector").igGridSummaries("option", "type");
		//Set
		$(".selector").igGridSummaries("option", "type", "remote");

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details

dropDownCancelClicked

Cancellable:: false

Event is fired when Cancel button is clicked in drop down.
Function takes arguments evt and ui.
Use ui.columnKey to get column key for which Cancel button is clicked.
Use ui.owner in order to access the igGridSummaries widget object.

Code Sample

        //Bind after initialization
		$(document).delegate(".selector", "iggridsummariesdropdowncancelclicked", function (evt, ui) {
            //return the triggered event
            evt;

            // get the column key, for which Cancel button is clicked
            ui.columnKey;

            // access the igGridSummaries widget object
            ui.owner;

        });

        //Initialize
        $(".selector").igGrid({
            features : [
                {
                    name : "Summaries",
					dropDownCancelClicked: function(evt, ui){ ... }
                }
            ]
        });

dropDownClosed

Cancellable:: false

Event fired after the dropdown for a summary column is closed
Function takes arguments evt and ui.
Use ui.columnKey to get column key of the column where drop down is closing.
Use ui.owner in order to access the igGridSummaries widget object.

Code Sample

        //Bind after initialization
		$(document).delegate(".selector", "iggridsummariesdropdownclosed", function (evt, ui) {
            //return the triggered event
            evt;

            // get the column key, for which Cancel button is clicked
            ui.columnKey;

            // access the igGridSummaries widget object
            ui.owner;

        });

        //Initialize
        $(".selector").igGrid({
            features : [
                {
                    name : "Summaries",
					dropDownClosed: function(evt, ui){ ... }
                }
            ]
        });

dropDownClosing

Cancellable:: true

Event fired before the dropdown for a summary column starts closing
Return false in order to cancel closing the drop down.
Function takes arguments evt and ui.
Use ui.columnKey to get column key of the column where drop down is closing.
Use ui.owner in order to access the igGridSummaries widget object.

Code Sample

        //Bind after initialization
		$(document).delegate(".selector", "iggridsummariesdropdownclosing", function (evt, ui) {
            //return the triggered event
            evt;

            // get the column key, for which Cancel button is clicked
            ui.columnKey;

            // access the igGridSummaries widget object
            ui.owner;

        });

        //Initialize
        $(".selector").igGrid({
            features : [
                {
                    name : "Summaries",
					dropDownClosing: function(evt, ui){ ... }
                }
            ]
        });

dropDownOKClicked

Cancellable:: false

Event is fired when OK button is clicked in drop down
Function takes arguments evt and ui.
Use ui.columnKey to get column key for which OK button is clicked.
Use ui.eventData to get data about which summary methods are(not) selected. Format of event data is {type: "min", active: false};
Use ui.owner in order to access the igGridSummaries widget object.

Code Sample

        //Bind after initialization
		$(document).delegate(".selector", "iggridsummariesdropdownokclicked", function (evt, ui) {
            //return the triggered event
            evt;

            // get the column key, for which Cancel button is clicked
            ui.columnKey;

            // get data about which summary methods are(not) selected. Format of event data is {type: "min", active: false};
            ui.eventData;

            // access the igGridSummaries widget object
            ui.owner;

        });

        //Initialize
        $(".selector").igGrid({
            features : [
                {
                    name : "Summaries",
					dropDownOKClicked: function(evt, ui){ ... }
                }
            ]
        });

dropDownOpened

Cancellable:: false

Event fired after the summaries dropdown is opened for a specific column
Function takes arguments evt and ui.
Use ui.columnKey to get column key of the column where drop down is shown.
Use ui.owner in order to access the igGridSummaries widget object.

Code Sample

        //Bind after initialization
		$(document).delegate(".selector", "iggridsummariesdropdownopened", function (evt, ui) {
            //return the triggered event
            evt;

            // get the column key, for which Cancel button is clicked
            ui.columnKey;

            // access the igGridSummaries widget object
            ui.owner;

        });

        //Initialize
        $(".selector").igGrid({
            features : [
                {
                    name : "Summaries",
					dropDownOpened: function(evt, ui){ ... }
                }
            ]
        });

dropDownOpening

Cancellable:: true

Event fired before drop down is opened for a specific column summary
Return false in order to cancel opening the drop down.
Function takes arguments evt and ui.
Use ui.columnKey to get column key of the column where drop down is opening.
Use ui.owner in order to access the igGridSummaries widget object.

Code Sample

        //Bind after initialization
		$(document).delegate(".selector", "iggridsummariesdropdownopening", function (evt, ui) {
            //return the triggered event
            evt;

            // get the column key, for which Cancel button is clicked
            ui.columnKey;

            // access the igGridSummaries widget object
            ui.owner;

        });

        //Initialize
        $(".selector").igGrid({
            features : [
                {
                    name : "Summaries",
					dropDownOpening: function(evt, ui){ ... }
                }
            ]
        });

summariesCalculated

Cancellable:: false

Event fired after summaries calculation are completely made
Function takes arguments evt and ui.
Use ui.data to get data for calculated summaries
Use ui.owner in order to access the igGridSummaries widget object.

Code Sample

        //Bind after initialization
		$(document).delegate(".selector", "iggridsummariessummariescalculated", function (evt, ui) {
            //return the triggered event
            evt;

            // get data for calculated summaries
            ui.data;

            // access the igGridSummaries widget object
            ui.owner;

        });

        //Initialize
        $(".selector").igGrid({
            features : [
                {
                    name : "Summaries",
					summariesCalculated: function(evt, ui){ ... }
                }
            ]
        });

summariesCalculating

Cancellable:: true

Event fired before summaries calculations are made
Return false in order to cancel calculation of summaries.
Function takes arguments evt and ui.
Use ui.owner in order to access the igGridSummaries widget object.

Code Sample

        //Bind after initialization
		$(document).delegate(".selector", "iggridsummariessummariescalculating", function (evt, ui) {
            //return the triggered event
            evt;

            // access the igGridSummaries widget object
            ui.owner;

        });

        //Initialize
        $(".selector").igGrid({
            features : [
                {
                    name : "Summaries",
					summariesCalculating: function(evt, ui){ ... }
                }
            ]
        });

summariesMethodSelectionChanged

Cancellable:: false

Event fired when user selects/deselects summary method from checkbox
Function takes arguments evt and ui.
Use ui.columnKey to get column key of the column where it is changed selection of summary method
Use ui.isSelected to get whether method is selected or not
Use ui.methodName to get summary method name
Use ui.owner in order to access the igGridSummaries widget object.

Code Sample

        //Bind after initialization
		$(document).delegate(".selector", "iggridsummariessummariesmethodselectionchanged", function (evt, ui) {
            //return the triggered event
            evt;

            // get the column key, for which Cancel button is clicked
            ui.columnKey;

            // get whether method is selected or not
            ui.isSelected;

            // get summary method name
            ui.methodName;

            // access the igGridSummaries widget object
            ui.owner;

        });

        //Initialize
        $(".selector").igGrid({
            features : [
                {
                    name : "Summaries",
					summariesMethodSelectionChanged: function(evt, ui){ ... }
                }
            ]
        });

summariesToggled

Cancellable:: false

Event is fired after summary rows are toggled
Function takes arguments evt and ui.
Use ui.isToShow to get whether summaries are shown or not.
Use ui.owner in order to access the igGridSummaries widget object.

Code Sample

        //Bind after initialization
		$(document).delegate(".selector", "iggridsummariessummariestoggled", function (evt, ui) {
            //return the triggered event
            evt;

            // get whether summaries are shown or not
            ui.isToShow;

            // access the igGridSummaries widget object
            ui.owner;

        });

        //Initialize
        $(".selector").igGrid({
            features : [
                {
                    name : "Summaries",
					summariesToggled: function(evt, ui){ ... }
                }
            ]
        });

summariesToggling

Cancellable:: true

Event is fired bofore summary rows start toggling
Return false in order to cancel showing/hiding of summaries.
Function takes arguments evt and ui.
Use ui.isToShow to get whether summaries are shown or not.
Use ui.owner in order to access the igGridSummaries widget object.

Code Sample

        //Bind after initialization
		$(document).delegate(".selector", "iggridsummariessummariestoggling", function (evt, ui) {
            //return the triggered event
            evt;

            // get whether summaries are shown or not
            ui.isToShow;

            // access the igGridSummaries widget object
            ui.owner;

        });

        //Initialize
        $(".selector").igGrid({
            features : [
                {
                    name : "Summaries",
					summariesToggling: function(evt, ui){ ... }
                }
            ]
        });

Show Details

calculateSummaries

.igGridSummaries( "calculateSummaries" );
Calculate summaries.
Code Sample
```

		$("#grid1").igGridSummaries("calculateSummaries");

```
calculateSummaryColumn

.igGridSummaries( "calculateSummaryColumn", ck:string, columnMethods:array, data:object, dataType:object );
Summary calculate the whole data for the specified column key, columnMethods and dataType (used when datasource is remote and dataType is date).
- ck
- Type:string
- ColumnKey.
- columnMethods
- Type:array
- Array of column methods objects.
- data
- Type:object
- Object which represents result
  represents dataType for the current column.
- dataType
- Type:object
Code Sample
```

		$("#grid1").igGridSummaries("calculateSummaryColumn", "ProductID", [{type: "min", active: true, rowDisplayLabel: "Min", decimalDisplay: 2, isGridFormatter: true}], [{"ProductID": 1}, {"ProductID": 2}], "number");

```
clearAllFooterIcons

.igGridSummaries( "clearAllFooterIcons" );
Remove all summaries dropdown buttons.
Code Sample
```
		$("#grid1").igGridSummaries("clearAllFooterIcons");

```

destroy

.igGridSummaries( "destroy" );

Code Sample

		$("#grid1").igGridSummaries("destroy");

isSummariesRowsHidden

.igGridSummaries( "isSummariesRowsHidden" );
Returns whether summaries rows are hidden.
Code Sample
```
		$("#grid1").igGridSummaries("isSummariesRowsHidden");

```
selectCheckBox

.igGridSummaries( "selectCheckBox", $checkbox:object, isToSelect:bool );
Select/Unselect specified checkbox.
- $checkbox
- Type:object
- Specifies the jQuery object for checkbox.
- isToSelect
- Type:bool
- Specify whether to select or not checkbox.
Code Sample
```
		$("#grid1").igGridSummaries("selectCheckBox", $("#checkboxSelector"), true);

```
showHideDialog

.igGridSummaries( "showHideDialog", $dialog:object );
Show/Hide dialog.
- $dialog
- Type:object
- jQuery object representation of dropdown div element.
Code Sample
```
		$("#grid1").igGridSummaries("showHideDialog", $("#dialogSelector"));

```
summariesFor

.igGridSummaries( "summariesFor", columnKey:object );
Return a JQUERY object which holds all summaries for column with the specified column key.
- columnKey
- Type:object
Code Sample
```
		var summariesResiltByKey = $("#grid1").igGridSummaries("summariesFor", "ProductID");

```
summaryCollection

.igGridSummaries( "summaryCollection" );
Return a JQUERY object which holds all summaries for all columns.
Code Sample
```
		var collection = $("#grid1").igGridSummaries("summaryCollection");

```
toggleCheckstate

.igGridSummaries( "toggleCheckstate", $checkbox:object );
Toggles the checkstate of a checkbox if checkboxMode is not set to off, otherwise does nothing.
- $checkbox
- Type:object
- Specifies the jQuery object of the checkbox.
Code Sample
```
		$("#grid1").igGridSummaries("toggleCheckstate", $("#checkboxSelector"));

```
toggleDropDown

.igGridSummaries( "toggleDropDown", columnKey:string, event:object );
Toggle drop down.
- columnKey
- Type:string
- toggle drop down for the column with the specified key.
- event
- Type:object
- event object. Its data should contain current columnKey, isAnimating, buttonId.
Code Sample
```
		$("#grid1").igGridSummaries("toggleDropDown", null);

```
toggleSummariesRows

.igGridSummaries( "toggleSummariesRows", isToShow:bool, isInternalCall:bool );
Toggle summaries rows.
- isToShow
- Type:bool
- Specifies whether to show or not summaries.
- isInternalCall
- Type:bool
- Optional parameter.Specifies whether this function is called internally by the widget.
Code Sample
```
		$("#grid1").igGridSummaries("toggleSummariesRows", true, null);

```

ui-ie7

Class for IE7.
ui-state-default ui-corner-all ui-igcheckbox-normal

Classes applied to the checkbox container.
ui-state-hover

Class defining the hover state style of the checkbox.
ui-icon ui-icon-check ui-igcheckbox-normal-off

Classes defining the unchecked state of the checkbox.
ui-icon ui-icon-check ui-igcheckbox-normal-on

Classes defining the checked state of the checkbox.
ui-iggrid-summaries-dialog

Classes applied to dropdown.
ui-iggrid-summaries-dropdown-listcontainer ui-widget

Classes applied to container which holds all checkboxes in dropdown.
ui-iggrid-summaries-dialog-listitem

Classes applied to list item in the dropdown.
ui-icon ui-iggrid-icon-summaries

Classes for icon to be showin in the feature chooser.
ui-icon ui-icon-calculator ui-iggrid-icon-summaries

Classes applied to footer button icon(which show/hide dropdown).
ui-iggrid-filterbuttonactive ui-state-active

Classes applied to footer button icon when selected(the dropdown is opened).
ui-iggrid-filterbuttonhover ui-state-hover

Classes applied to footer button icon when hovered (button show/hide dropdown).
ui-iggrid-summaries-footer-dialog-buttons-container

Classes applied to the container of OK/Cancel button in dropdown.
ui-widget-footer ui-state-default

Classes applied to footer row cell.
ui-state-hover

Classes applied to footer row cell when it is hovered.
ui-corner-all ui-iggrid-summaries-footer-icon-container

Classes applied to DOM element which contains text for icon in the summary cell.
ui-iggrid-summaries-footer-icon-container-empty

Classes applied to DOM element when showSummariesButton is false.
ui-iggrid-summaries-footer-text-container

Classes applied to DOM element in the summary cell which contains text for summaries result.
ui-iggrid-summaries-footer-text-container-empty

Classes applied to DOM element in the summary cell which contains text for summaries result when showSummariesButton is false.
ui-iggrid-summaries-headerbuttoncontainer ui-corner-all

Classes applied to the container div of header button(which shows/hides summaries).
ui-iggrid-summaries-header-icon ui-corner-all ui-icon ui-icon-calculator ui-icon-summaries

Classes applied to the header button(which shows/hides summaries).
ui-iggrid-summaries-header-icon-hover ui-state-hover

Classes applied to the header button when hovered(which shows/hides summaries).

Ignite UI Home

ui.igGridSummaries

Code Sample

Related Samples

Related Topics

Dependencies

Inherits

calculateRenderMode

Members

Code Sample

callee

Code Sample

columnSettings

Code Sample

allowSummaries

Code Sample

columnIndex

Code Sample

columnKey

Code Sample

summaryOperands

Code Sample

active

Code Sample

decimalDisplay

Code Sample

isGridFormatter

Code Sample

order

Code Sample

rowDisplayLabel

Code Sample

summaryCalculator

Code Sample

type

Members

Code Sample

compactRenderingMode

Code Sample

defaultDecimalDisplay

Code Sample

dialogButtonCancelText

Code Sample

dialogButtonOKText

Code Sample

dropDownDialogAnimationDuration

Code Sample

dropDownHeight

Code Sample

dropDownWidth

Code Sample

emptyCellText

Code Sample

featureChooserText

Code Sample

featureChooserTextHide

Code Sample

inherit

isGridFormatter

Code Sample

renderSummaryCellFunc

Code Sample

resultTemplate

Code Sample

showDropDownButton

Code Sample

showSummariesButton

Code Sample

summariesHeaderButtonTooltip

Code Sample

summariesResponseKey

Code Sample

summaryExecution

Members

Code Sample

summaryExprUrlKey

Code Sample

type

Members

Code Sample
