ui.igTreeGridColumnFixing

Overview
Options
Events
Methods
Theming

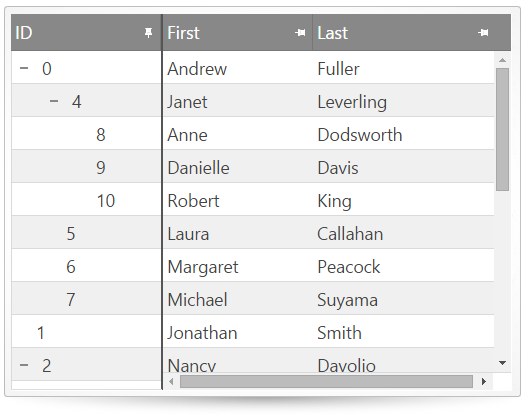

The igTreeGrid includes column fixing which allows you to pin the columns on the left or the right of the grid so that they are always visible. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample


        <!doctype html>
        <html>
        <head>
            <!-- Infragistics Combined CSS -->
            <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
            <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />

            <!-- jQuery Core -->
            <script src="js/jquery.js" type="text/javascript"></script>

            <!-- jQuery UI -->
            <script src="js/jquery-ui.js" type="text/javascript"></script>

            <!-- Infragistics Combined Scripts -->
            <script src="js/infragistics.core.js" type="text/javascript"></script>
            <script src="js/infragistics.lob.js" type="text/javascript"></script>

            <script type="text/javascript">
                var employees = [
                    { "employeeId": 0, "supervisorId": -1, "firstName": "Andrew", "lastName": "Fuller" },
                    { "employeeId": 1, "supervisorId": -1, "firstName": "Jonathan", "lastName": "Smith" },
                    { "employeeId": 2, "supervisorId": -1, "firstName": "Nancy", "lastName": "Davolio" },
                    { "employeeId": 3, "supervisorId": -1, "firstName": "Steven", "lastName": "Buchanan" },

                    // Andrew Fuller's direct reports
                    { "employeeId": 4, "supervisorId": 0, "firstName": "Janet", "lastName": "Leverling" },
                    { "employeeId": 5, "supervisorId": 0, "firstName": "Laura", "lastName": "Callahan" },
                    { "employeeId": 6, "supervisorId": 0, "firstName": "Margaret", "lastName": "Peacock" },
                    { "employeeId": 7, "supervisorId": 0, "firstName": "Michael", "lastName": "Suyama" },

                    // Janet Leverling's direct reports
                    { "employeeId": 8, "supervisorId": 4, "firstName": "Anne", "lastName": "Dodsworth" },
                    { "employeeId": 9, "supervisorId": 4, "firstName": "Danielle", "lastName": "Davis" },
                    { "employeeId": 10, "supervisorId": 4, "firstName": "Robert", "lastName": "King" },

                    // Nancy Davolio's direct reports
                    { "employeeId": 11, "supervisorId": 2, "firstName": "Peter", "lastName": "Lewis" },
                    { "employeeId": 12, "supervisorId": 2, "firstName": "Ryder", "lastName": "Zenaida" },
                    { "employeeId": 13, "supervisorId": 2, "firstName": "Wang", "lastName": "Mercedes" },

                    // Steve Buchanan's direct reports
                    { "employeeId": 14, "supervisorId": 3, "firstName": "Theodore", "lastName": "Zia" },
                    { "employeeId": 15, "supervisorId": 3, "firstName": "Lacota", "lastName": "Mufutau" },

                    // Lacota Mufutau's direct reports
                    { "employeeId": 16, "supervisorId": 15, "firstName": "Jin", "lastName": "Elliott" },
                    { "employeeId": 17, "supervisorId": 15, "firstName": "Armand", "lastName": "Ross" },
                    { "employeeId": 18, "supervisorId": 15, "firstName": "Dane", "lastName": "Rodriquez" },

                    // Dane Rodriquez's direct reports
                    { "employeeId": 19, "supervisorId": 18, "firstName": "Declan", "lastName": "Lester" },
                    { "employeeId": 20, "supervisorId": 18, "firstName": "Bernard", "lastName": "Jarvis" },

                    // Bernard Jarvis' direct report
                    { "employeeId": 21, "supervisorId": 20, "firstName": "Jeremy", "lastName": "Donaldson" }
                ];

               $(function () {
                   $("#treegrid").igTreeGrid({
                       dataSource: employees,
                       primaryKey: "employeeId",
                       foreignKey: "supervisorId",
                       autoGenerateColumns: false,
                       columns: [
                           { headerText: "ID", key: "employeeId", width: "150px", dataType: "number" },
                           { headerText: "First", key: "firstName", width: "150px", dataType: "string" },
                           { headerText: "Last", key: "lastName", width: "150px", dataType: "string" }
                       ],
                       features: [
                           {
                               name: "ColumnFixing"
                           }
                       ]
                   });
               });
            </script>
        </head>
        <body>
            <div id="treegrid"></div>
        </body>
        </html>

columnSettings
Inherited

Type:: array
Default:: []
Elements Type:: object

A list of column settings that specifies custom column fixing options on a per column basis.

Code Sample

 //Initialize
        $(".selector").igTreeGrid({
            features : [
                {
                    name : "ColumnFixing",
                    columnSettings: [
                        {
                            columnKey: "firstName",
                            allowFixing: false,
                            isFixed: true
                        }
                    ]
                }
            ]
        });

        //Get
        var columnSettings = $(".selector").igTreeGridColumnFixing("option", "columnSettings");

allowFixing

Type:: bool
Default:: true

Specifies whether the column allows to be fixed or not.

Code Sample

 //Initialize
        $(".selector").igTreeGrid({
            features : [
                {
                    name : "ColumnFixing",
                    columnSettings: [
                        {
                            columnKey: "firstName",
                            allowFixing: false,
                            isFixed: true
                        }
                    ]
                }
            ]
        });

        //Get
        var columnSettings = $(".selector").igTreeGridColumnFixing("option", "columnSettings");

columnIndex

Type:: number
Default:: null

Specifies column index. Either key or index must be set in every column setting.

Code Sample

 //Initialize
        $(".selector").igTreeGrid({
            features : [
                {
                    name : "ColumnFixing",
                    columnSettings: [
                        {
                            columnIndex: 2,
                            allowFixing: false,
                            isFixed: true
                        }
                    ]
                }
            ]
        });

        //Get
        var columnSettings = $(".selector").igTreeGridColumnFixing("option", "columnSettings");

columnKey

Type:: string
Default:: null

Specifies column key. Either key or index must be set in every column setting.

Code Sample

 //Initialize
        $(".selector").igTreeGrid({
            features : [
                {
                    name : "ColumnFixing",
                    columnSettings: [
                        {
                            columnKey: "firstName",
                            allowFixing: false,
                            isFixed: true
                        }
                    ]
                }
            ]
        });

        //Get
        var columnSettings = $(".selector").igTreeGridColumnFixing("option", "columnSettings");

isFixed

Type:: bool
Default:: false

Specifies whether the column to be fixed or not.

Code Sample

 //Initialize
        $(".selector").igTreeGrid({
            features : [
                {
                    name : "ColumnFixing",
                    columnSettings: [
                        {
                            columnKey: "firstName",
                            allowFixing: false,
                            isFixed: true
                        }
                    ]
                }
            ]
        });

        //Get
        var columnSettings = $(".selector").igTreeGridColumnFixing("option", "columnSettings");

featureChooserTextFixedColumn
Inherited

Type:: string
Default:: ""

Feature chooser text of the fixed column.

Code Sample

  //Initialize
        $(".selector").igTreeGrid({
            features : [
                {
                    name : "ColumnFixing",
                    featureChooserTextFixedColumn: "Fix column"
                }
            ]
        });

        //Get
        var featureChooserTextFixedColumn = $(".selector").igTreeGridColumnFixing("option", "featureChooserTextFixedColumn");

featureChooserTextUnfixedColumn
Inherited

Type:: string
Default:: ""

Feature chooser text of the unfixed column.

Code Sample

 //Initialize
        $(".selector").igTreeGrid({
            features : [
                {
                    name : "ColumnFixing",
                    featureChooserTextUnfixedColumn: "Unfix column"
                }
            ]
        });

        //Get
        var featureChooserTextUnfixedColumn = $(".selector").igTreeGridColumnFixing("option", "featureChooserTextUnfixedColumn");

fixingDirection
Inherited

Type:: enumeration
Default:: left

configure on which side to render fixed area.

Members

left
Type:string
fixed column are rendered on the left side of the main grid.
right
Type:string
fixed column are rendered on the right side of the main grid.

Code Sample

//Initialize
        $(".selector").igTreeGrid({
            features : [
                {
                    name : "ColumnFixing",
                    fixingDirection: "right"
                }
            ]
        });

        //Get
        var fixingDirection = $(".selector").igTreeGridColumnFixing("option", "fixingDirection");

fixNondataColumns
Inherited

Type:: bool
Default:: true

Specify initial fixing of non data columns(like specific rowSelectors columns on the left side of the grid) when fixingDirection is left.

Code Sample

 //Initialize
        $(".selector").igTreeGrid({
            features : [
                {
                    name : "ColumnFixing",
                    fixNondataColumns: true
                }
            ]
        });

        //Get
        var fixNondataColumns = $(".selector").igTreeGridColumnFixing("option", "fixNondataColumns");

headerFixButtonText
Inherited

Type:: string
Default:: ""

Specifies altering text on column fixing header icon when column is not fixed.

Code Sample

 //Initialize
        $(".selector").igTreeGrid({
            features : [
                {
                    name : "ColumnFixing",
                    headerFixButtonText: "Click to fix this column"
                }
            ]
        });

        //Get
        var headerFixButtonText = $(".selector").igTreeGridColumnFixing("option", "headerFixButtonText");

headerUnfixButtonText
Inherited

Type:: string
Default:: ""

Specifies altering text on column fixing header icon when column is fixed.

Code Sample

 //Initialize
        $(".selector").igTreeGrid({
            features : [
                {
                    name : "ColumnFixing",
                    headerUnfixButtonText: "Click to unfix this column"
                }
            ]
        });

        //Get
        var headerUnfixButtonText = $(".selector").igTreeGridColumnFixing("option", "headerUnfixButtonText");

minimalVisibleAreaWidth
Inherited

Type:

enumeration

Default:

30
minimal visible area for unfixed columns. For instance if you fix a column(or columns) and the width of the fixed columns is such that the width of visible are of unfixed columns is less than this option then fixing will be canceled.
Members
Code Sample
```
 //Initialize
        $(".selector").igTreeGrid({
            features : [
                {
                    name : "ColumnFixing",
                    minimalVisibleAreaWidth: 100
                }
            ]
        });

        //Get
        var minimalVisibleAreaWidth = $(".selector").igTreeGridColumnFixing("option", "minimalVisibleAreaWidth");
```

populateDataRowsAttributes
Deprecated

Type:: bool
Default:: true

When true all the TR DOM attributes of the unfixed row will be copied to the fixed row. Note that when enabled this option negatively affects performance when fixing a column.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features : [
                {
                    name : "ColumnFixing",
                    populateDataRowsAttributes: false
                }
            ]
        });

        //Get
        var populateDataRowsAttributes = $(".selector").igTreeGridColumnFixing("option", "populateDataRowsAttributes");

scrollDelta
Inherited

Type:: number
Default:: 40

Option to configure scroll delta when scrolling with mouse wheel or keyboard in fixed columns area.

Code Sample

 //Initialize
        $(".selector").igTreeGrid({
            features : [
                {
                    name : "ColumnFixing",
                    scrollDelta: 100
                }
            ]
        });

        //Get
        var scrollDelta = $(".selector").igTreeGridColumnFixing("option", "scrollDelta");

showFixButtons
Inherited

Type:: bool
Default:: true

Option to show column fixing buttons in header cells/feature chooser.

Code Sample

 //Initialize
        $(".selector").igTreeGrid({
            features : [
                {
                    name : "ColumnFixing",
                    showFixButtons: false
                }
            ]
        });

        //Get
        var showFixButtons = $(".selector").igTreeGridColumnFixing("option", "showFixButtons");

syncRowHeights
Inherited

Type:: bool
Default:: true

Option enable syncing heights of rows between fixed/unfixed rows.

Code Sample

 //Initialize
        $(".selector").igTreeGrid({
            features : [
                {
                    name : "ColumnFixing",
                    syncRowHeights: true
                }
            ]
        });

        //Get
        var syncRowHeights = $(".selector").igTreeGridColumnFixing("option", "syncRowHeights");

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details

columnFixed
Inherited

Cancellable:: false

Event which is fired when column fixing operation is finished
Function takes arguments evt and args.
use args.columnIdentifier to get columnKey or columnIndex
use args.isGroupHeader to get whether header cell has children(use this argument ONLY when multi-column-headers are enabled)
use args.owner to get a reference to the widget.

Code Sample

//Bind after initialization
        $(document).delegate(".selector", "igtreegridcolumnfixingcolumnfixed", function (evt, args) {
            //Get the column key of the fixed column
            args.columnKey
            //Get the column index of the fixed column
            args.columnIndex
            //Get a reference to the widget
            args.owner
        });

        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name: "ColumnFixing",
                    columnFixed: function (evt, args) { ... }
                }
            ]
        });

columnFixing
Inherited

Cancellable:: true

Event which is fired when column fixing operation is initiated
Function takes arguments evt and args.
use args.columnIdentifier to get columnKey or columnIndex
use args.isGroupHeader to get whether header cell has children(use this argument ONLY when multi-column-headers are enabled)
use args.owner to get a reference to the widget.

Code Sample

 //Bind after initialization
        $(document).delegate(".selector", "igtreegridcolumnfixingcolumnfixing", function (evt, args) {
            //Get the column key of the fixed column
            args.columnKey
            //Get the column index of the fixed column
            args.columnIndex
            //Get a reference to the widget
            args.owner
        });

        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name: "ColumnFixing",
                    columnFixing: function (evt, args) { ... }
                }
            ]
        });

columnFixingRefused
Inherited

Cancellable:: false

Event which is fired when column fixing operation has failed - e.g. sum of the width of the fixed columns container and width of the column to be fixed exceeds the grid width
Function takes arguments evt and args.
use args.columnIdentifier to get columnKey or columnIndex
use args.isGroupHeader to get whether header cell has children(use this argument ONLY when multi-column-headers are enabled)
use args.errorMessage to get error message describing the reason fixing has failed
use args.owner to get a reference to the grid widget.

Code Sample

 //Bind after initialization
        $(document).delegate(".selector", "igtreegridcolumnfixingcolumnfixingrefused", function (evt, args) {
            //Get the column key of the column to be fixed
            args.columnKey
            //Get whether header cell is of type multi-column (when multi-column headers are defined)
            args.isGroupHeader
            //Get a reference to the widget
            args.owner
        });

        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name: "ColumnFixing",
                    columnFixingRefused: function (evt, args) { ... }
                }
            ]
        });

columnUnfixed
Inherited

Cancellable:: false

Event which is fired when column unfixing operation is done
Function takes arguments evt and args.
use args.columnIdentifier to get columnKey or columnIndex
use args.isGroupHeader to get whether header cell has children(use this argument ONLY when multi-column-headers are enabled)
use args.owner to get a reference to the widget.

Code Sample

//Bind after initialization
        $(document).delegate(".selector", "igtreegridcolumnfixingcolumnunfixed", function (evt, args) {
            //Get the column key of the column to be fixed
            args.columnKey
            //Get the column index of the unfixed column
            args.columnIndex
            //Get a reference to the widget
            args.owner
        });

        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name: "ColumnFixing",
                    columnUnfixed: function (evt, args) { ... }
                }
            ]
        });

columnUnfixing
Inherited

Cancellable:: true

Event which is fired when column unfixing operation is initiated
Function takes arguments evt and args.
use args.columnIdentifier to get columnKey or columnIndex
use args.isGroupHeader to get whether header cell has children(use this argument ONLY when multi-column-headers are enabled)
use args.owner to get a reference to the widget.

Code Sample

 //Bind after initialization
        $(document).delegate(".selector", "igtreegridcolumnfixingcolumnunfixing", function (evt, args) {
            //Get the column key of the column to be fixed
            args.columnKey
            //Get the column index of the unfixed column
            args.columnIndex
            //Get a reference to the widget
            args.owner
        });

        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name: "ColumnFixing",
                    columnUnfixing: function (evt, args) { ... }
                }
            ]
        });

columnUnfixingRefused
Inherited

Cancellable:: false

Event which is fired when column unfixing operation has failed - e.g.: there is only one fixed visible column(and tries to unfix it) and at least one fixed hidden column
Function takes arguments evt and args.
use args.columnIdentifier to get columnKey or columnIndex
use args.isGroupHeader to get whether header cell has children(use this argument ONLY when multi-column-headers are enabled)
use args.errorMessage to get error message describing the reason unfixing has failed
use args.owner to get a reference to the grid widget.

Code Sample


      //Bind after initialization
        $(document).delegate(".selector", "igtreegridcolumnfixingcolumnunfixingrefused", function (evt, args) {
            //Get a reference to the tree grid widget
            args.owner
            //Get the columnKey or columnIndex
            args.columnIdentifier
            //Get whether header cell has children
            args.isGroupHeader
            //Get error message describing the reason unfixing has failed
            args.errorMessage
        });

        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name: "ColumnFixing",
                    columnUnfixingRefused: function (evt, args) { ... }
                }
            ]
        });

Show Details

checkAndSyncHeights
Inherited

.igTreeGridColumnFixing( "checkAndSyncHeights" );
Check whether heights of fixed and unfixed tables are equal - if not sync them. Similar check is made for heights of table rows.
Code Sample
```

      $(".selector").igTreeGridColumnFixing("checkAndSyncHeights");

```
checkFixingAllowed
Inherited

.igTreeGridColumnFixing( "checkFixingAllowed", columns:array );

Return Type:

bool

Return Type Description:

returns whether it is allowed fixing for the specified columns.
Check whether fixing is allowed for the passed argument - columns. It should not be allowed if there is only one visible column in unfixed area and there are hidden unfixed columns.
- columns
- Type:array
- array of columns - could be column indexes, column keys, column object or mixed.
Code Sample
```
 $(".selector").igTreeGridColumnFixing("checkFixingAllowed", [0]);
```
checkUnfixingAllowed
Inherited

.igTreeGridColumnFixing( "checkUnfixingAllowed", columns:array );

Return Type:

bool

Return Type Description:

returns whether it is allowed unfixing for the specified columns.
Check whether unfixing is allowed for the passed argument - columns. It should not be allowed if there is only one visible column in fixed area and there are hidden fixed columns.
- columns
- Type:array
- array of columns - could be column indexes, column keys, column object or mixed.
Code Sample
```
  $(".selector").igTreeGridColumnFixing("checkUnfixingAllowed", [0]);
```

destroy

.igTreeGridColumnFixing( "destroy" );

Code Sample

  $(".selector").igTreeGridColumnFixing("destroy");

fixColumn
Inherited

.igTreeGridColumnFixing( "fixColumn", colIdentifier:object, [target:string], [after:bool] );

Return Type:

object

Return Type Description:

Object description: { result: indicates whether fixing is successful, error: error message describing the reason fixing has failed, col: reference to the column object(if column identifier is not valid - then its value is null) }.
Fix column by specified column identifier - column index or column key.
- colIdentifier
- Type:object
- An identifier of the column to be fixed - column index or column key.
- target
- Type:string
- Optional
- Key of the column where the fixed column should move to.
- after
- Type:bool
- Optional
- Specifies where the fixed column should be moved after or before the target column. This parameter is disregarded if there is no target column specified.
Code Sample
```
$(".selector").igTreeGridColumnFixing("fixColumn", "firstName", false);
```
fixDataSkippedColumns
Inherited

.igTreeGridColumnFixing( "fixDataSkippedColumns" );
*** IMPORTANT DEPRECATED ***
This function is deprecated - use function fixNonDataColumns.
fixNonDataColumns
Inherited

.igTreeGridColumnFixing( "fixNonDataColumns" );
Fix non-data columns(like column of row selectors) if any - when fixing direction is left. If already fixed nothing is done.
Code Sample
```
 $(".selector").igTreeGridColumnFixing("fixNonDataColumns");
```
getWidthOfFixedColumns
Inherited

.igTreeGridColumnFixing( "getWidthOfFixedColumns", [fCols:array], [excludeNonDataColumns:bool], [includeHidden:bool] );

Return Type:

number

Return Type Description:

Returns total width of the fixed columns.
Calculates width of the fixed columns.
- fCols
- Type:array
- Optional
- Array of grid columns. If not set then it is taken fixed columns of the grid.
- excludeNonDataColumns
- Type:bool
- Optional
- If set to true do not calculate the width of non-data fixed columns(like row-selectors).
- includeHidden
- Type:bool
- Optional
- If set to true calculates width of the hidden fixed columns(as getting their initial width).
Code Sample
```

       $(".selector").igTreeGridColumnFixing("getWidthOfFixedColumns", [$(".selector").igTreeGrid("option", "columns")[1]], true, false);

```
isGroupHeader
Inherited

.igTreeGridColumnFixing( "isGroupHeader", colKey:object );
- colKey
- Type:object
Code Sample
```

      $(".selector").igTreeGridColumnFixing("isGroupHeader", "Name");

```
syncHeights
Inherited

.igTreeGridColumnFixing( "syncHeights", [check:bool], [clearRowsHeights:bool] );
If argument 'check' is set to true - check whether heights of fixed and unfixed tables are equal - if not sync them. Similar check is made for heights of table rows(if argument clearRowsHeights is set to true clear rows heights before syncing them).
- check
- Type:bool
- Optional
- if set to true - check whether heights of fixed/unfixed tables are equal and if not - then sync heights. If this argument is set to false - check is not done - sync rows and table heights.
- clearRowsHeights
- Type:bool
- Optional
- clear rows heigths for all visible rows.
syncRowsHeights
Inherited

.igTreeGridColumnFixing( "syncRowsHeights", $trs:array, $anotherRows:array );
Syncs rows heights between $rows and $anotherRows.
- $trs
- Type:array
- An array of rows object of the first(fixed/unfixed) container.
- $anotherRows
- Type:array
- An array of rows of the first(fixed/unfixed) container.
Code Sample
```

        var $fixedRows = $(".selector").igTreeGrid("fixedRows");
        var $unfixedRows = $(".selector").igTreeGrid("rows");
        $(".selector").igTreeGridColumnFixing("syncRowsHeights", $fixedRows, $unfixedRows);

```
unfixAllColumns
Inherited

.igTreeGridColumnFixing( "unfixAllColumns" );
Unfix all columns (if any).
Code Sample
```
 $(".selector").igTreeGridColumnFixing("unfixAllColumns");
```
unfixColumn
Inherited

.igTreeGridColumnFixing( "unfixColumn", colIdentifier:object, [target:string], [after:bool] );

Return Type:

object

Return Type Description:

Object description: { result: indicates whether unfixing is successful, error: error message describing the reason unfixing has failed, col: reference to the column object(if column identifier is not valid - then its value is null) }.
Unfix column by specified column identifier - column key or column index.
- colIdentifier
- Type:object
- An identifier of the column to be unfixed - column index or column key.
- target
- Type:string
- Optional
- Key of the column where the unfixed column should move to.
- after
- Type:bool
- Optional
- Specifies where the unfixed column should be moved after or before the target column. This parameter is disregarded if there is no target column specified.
Code Sample
```
 $(".selector").igTreeGridColumnFixing("unfixColumn", "firstName", false);
```
unfixDataSkippedColumns
Inherited

.igTreeGridColumnFixing( "unfixDataSkippedColumns" );
*** IMPORTANT DEPRECATED ***
This function is deprecated - use function unfixNonDataColumns.
unfixNonDataColumns
Inherited

.igTreeGridColumnFixing( "unfixNonDataColumns" );
Unfix data skipped columns(like non-data columns in row-selectors feature) if any - when fixingDirection is left.
Code Sample
```
 $(".selector").igTreeGridColumnFixing("unfixNonDataColumns");
```

ui-icon ui-iggrid-icon-unfix

Classes applied in feature chooser icon when column is not fixed.
ui-icon ui-iggrid-icon-fix

Classes applied in feature chooser icon when column is fixed.
ui-iggrid-fixedcontainer

Classes applied to the main fixed container.
ui-icon ui-corner-all ui-icon-pin-w

Classes applied to header cell button for fixing column.
ui-iggrid-fixcolumn-headerbuttoncontainer

Classes applied to the container div of header button(which holds button for fixing/unfixing).
ui-icon ui-corner-all ui-icon-pin-s

Classes applied to header cell button for unfixing column.
ui-iggrid-fixedcontainer-left

Classes applied to the left side container.
ui-iggrid-fixedcontainer-right

Classes applied right side fixed container.
ui-iggrid-unfixed-table-left

Classes applied in unfixed table when fixing direction is left.
ui-iggrid-unfixed-table-right

Classes applied in unfixed table when fixing direction is right.

Ignite UI Home

ui.igTreeGridColumnFixing

Code Sample

Related Topics

Dependencies

Inherits

columnSettingsInherited

Code Sample

allowFixing

Code Sample

columnIndex

Code Sample

columnKey

Code Sample

isFixed

Code Sample

featureChooserTextFixedColumnInherited

Code Sample

featureChooserTextUnfixedColumnInherited

Code Sample

fixingDirectionInherited

Members

Code Sample

fixNondataColumnsInherited

Code Sample

headerFixButtonTextInherited

Code Sample

headerUnfixButtonTextInherited

Code Sample

minimalVisibleAreaWidthInherited

Members

Code Sample

populateDataRowsAttributesDeprecated

Code Sample

scrollDeltaInherited

Code Sample

showFixButtonsInherited

Code Sample

syncRowHeightsInherited

Code Sample

columnFixedInherited

Code Sample

columnFixingInherited

Code Sample

columnFixingRefusedInherited

Code Sample

columnUnfixedInherited

Code Sample

columnUnfixingInherited

Code Sample

columnUnfixingRefusedInherited

Code Sample

checkAndSyncHeightsInherited

Code Sample

checkFixingAllowedInherited

Code Sample

checkUnfixingAllowedInherited

Code Sample

destroy

Code Sample

fixColumnInherited

Code Sample

fixDataSkippedColumnsInherited

fixNonDataColumnsInherited

Code Sample

getWidthOfFixedColumnsInherited

Code Sample

isGroupHeaderInherited

Code Sample

syncHeightsInherited

syncRowsHeightsInherited

Code Sample

unfixAllColumnsInherited

Code Sample

unfixColumnInherited

Code Sample

unfixDataSkippedColumnsInherited

unfixNonDataColumnsInherited

Code Sample

ui-icon ui-iggrid-icon-unfix

columnSettings
Inherited

featureChooserTextFixedColumn
Inherited

featureChooserTextUnfixedColumn
Inherited

fixingDirection
Inherited

fixNondataColumns
Inherited

headerFixButtonText
Inherited

headerUnfixButtonText
Inherited

minimalVisibleAreaWidth
Inherited

populateDataRowsAttributes
Deprecated

scrollDelta
Inherited

showFixButtons
Inherited

syncRowHeights
Inherited

columnFixed
Inherited

columnFixing
Inherited

columnFixingRefused
Inherited

columnUnfixed
Inherited

columnUnfixing
Inherited

columnUnfixingRefused
Inherited

checkAndSyncHeights
Inherited

checkFixingAllowed
Inherited

checkUnfixingAllowed
Inherited

fixColumn
Inherited

fixDataSkippedColumns
Inherited

fixNonDataColumns
Inherited

getWidthOfFixedColumns
Inherited

isGroupHeader
Inherited

syncHeights
Inherited

syncRowsHeights
Inherited

unfixAllColumns
Inherited

unfixColumn
Inherited

unfixDataSkippedColumns
Inherited

unfixNonDataColumns
Inherited
