ui.igTreeGridTooltips

Overview
Options
Events
Methods
Theming

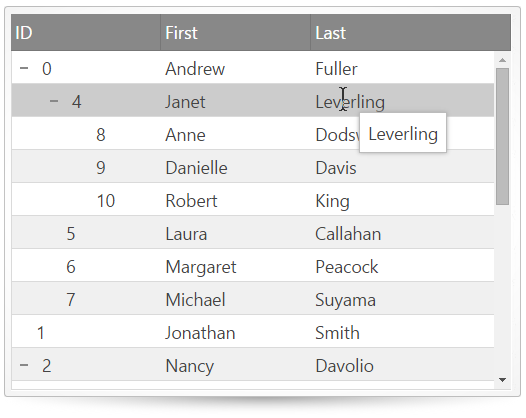

The igTreeGrid includes a Tooltips feature which allows tooltips to appear when the user hovers the mouse pointer over a grid cell. Tooltips are configurable to adjust duration and visibility options. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igTreeGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample


        <!DOCTYPE html>
        <html>
        <head>
            <!-- Infragistics Combined CSS -->
            <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
            <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />

            <!-- jQuery Core -->
            <script src="js/jquery.js" type="text/javascript"></script>

            <!-- jQuery UI -->
            <script src="js/jquery-ui.js" type="text/javascript"></script>

            <!-- Infragistics Combined Scripts -->
            <script src="js/infragistics.core.js" type="text/javascript"></script>
            <script src="js/infragistics.lob.js" type="text/javascript"></script>

            <script type="text/javascript">
                var employees = [
                    { "employeeId": 0, "supervisorId": -1, "firstName": "Andrew", "lastName": "Fuller" },
                    { "employeeId": 1, "supervisorId": -1, "firstName": "Jonathan", "lastName": "Smith" },
                    { "employeeId": 2, "supervisorId": -1, "firstName": "Nancy", "lastName": "Davolio" },
                    { "employeeId": 3, "supervisorId": -1, "firstName": "Steven", "lastName": "Buchanan" },

                    // Andrew Fuller's direct reports
                    { "employeeId": 4, "supervisorId": 0, "firstName": "Janet", "lastName": "Leverling" },
                    { "employeeId": 5, "supervisorId": 0, "firstName": "Laura", "lastName": "Callahan" },
                    { "employeeId": 6, "supervisorId": 0, "firstName": "Margaret", "lastName": "Peacock" },
                    { "employeeId": 7, "supervisorId": 0, "firstName": "Michael", "lastName": "Suyama" },

                    // Janet Leverling's direct reports
                    { "employeeId": 8, "supervisorId": 4, "firstName": "Anne", "lastName": "Dodsworth" },
                    { "employeeId": 9, "supervisorId": 4, "firstName": "Danielle", "lastName": "Davis" },
                    { "employeeId": 10, "supervisorId": 4, "firstName": "Robert", "lastName": "King" },

                    // Nancy Davolio's direct reports
                    { "employeeId": 11, "supervisorId": 2, "firstName": "Peter", "lastName": "Lewis" },
                    { "employeeId": 12, "supervisorId": 2, "firstName": "Ryder", "lastName": "Zenaida" },
                    { "employeeId": 13, "supervisorId": 2, "firstName": "Wang", "lastName": "Mercedes" },

                    // Steve Buchanan's direct reports
                    { "employeeId": 14, "supervisorId": 3, "firstName": "Theodore", "lastName": "Zia" },
                    { "employeeId": 15, "supervisorId": 3, "firstName": "Lacota", "lastName": "Mufutau" },

                    // Lacota Mufutau's direct reports
                    { "employeeId": 16, "supervisorId": 15, "firstName": "Jin", "lastName": "Elliott" },
                    { "employeeId": 17, "supervisorId": 15, "firstName": "Armand", "lastName": "Ross" },
                    { "employeeId": 18, "supervisorId": 15, "firstName": "Dane", "lastName": "Rodriquez" },

                    // Dane Rodriquez's direct reports
                    { "employeeId": 19, "supervisorId": 18, "firstName": "Declan", "lastName": "Lester" },
                    { "employeeId": 20, "supervisorId": 18, "firstName": "Bernard", "lastName": "Jarvis" },

                    // Bernard Jarvis' direct report
                    { "employeeId": 21, "supervisorId": 20, "firstName": "Jeremy", "lastName": "Donaldson" }
                ];

               $(function () {
                   $("#treegrid").igTreeGrid({
                       dataSource: employees,
                       primaryKey: "employeeId",
                       foreignKey: "supervisorId",
                       autoGenerateColumns: false,
                       columns: [
                           { headerText: "ID", key: "employeeId", width: "150px", dataType: "number" },
                           { headerText: "First", key: "firstName", width: "150px", dataType: "string" },
                           { headerText: "Last", key: "lastName", width: "150px", dataType: "string" }
                       ],
                       features: [
                           {
                               name: "Tooltips",
                               columnSettings: [
                                   { columnKey: "employeeId", allowTooltips: false },
                                   { columnKey: "firstName", allowTooltips: true },
                                   { columnKey: "lastName", allowTooltips: true }
                               ],
                               visibility: "always",
                               showDelay: 1000,
                               hideDelay: 500
                           }
                       ]
                   });
               });
            </script>
        </head>
        <body>
            <div id="treegrid"></div>
        </body>
        </html>

columnSettings
Inherited

Type:: object
Default:: []

A list of custom column settings that specify custom tooltip settings for a specific column (whether tooltips are enabled / disabled).

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name: "Tooltips",
                    columnSettings: [
                        { columnKey: "Name", allowTooltips: true },
						{ columnKey: "BoxArt", allowTooltips: false }
                    ]
                }
            ]
        });

        //Get
        var arrayOfColumnSettings = $(".selector").igTreeGridTooltips("option", "columnSettings");

        //Set
        $(".selector").igTreeGridTooltips("option", "columnSettings", arrayOfColumnSettings);

allowTooltips

Type:: bool
Default:: true

Enables / disables tooltips on the specified column. By default tooltips are displayed for each column. Note: This option is mandatory.

Code Sample


          	//Initialize
			      $(".selector").igTreeGrid({
				      features: [
					      {
						      name: "Tooltips",
						      columnSettings: [
							      { columnKey: "Name", allowTooltips: true },
						      ]
					      }
				      ]
			      });
			      //Get
				    var tooltipsSettings = $(".selector").igTreeGridTooltips("option", "columnSettings");
				    var allowTooltipFirstColumn = tooltipsSettings[0].allowResizing;

			      //Set
				    //get the array of column settings
				    var tooltipsSettings = $(".selector").igTreeGridTooltips("option", "columnSettings");
				    //set new value for the first column
				    tooltipsSettings[0].allowTooltips = false;
				    $(".selector").igTreeGridTooltips("option", "columnSettings", tooltipsSettings);

columnIndex

Type:: number
Default:: -1

Either key or index must be set in every column setting.

Code Sample


            //Initialize
			      $(".selector").igTreeGrid({
				      features: [
					      {
						      name: "Tooltips",
						      columnSettings: [
							      { columnIndex: 0, allowTooltips: true },
						      ]
					      }
				      ]
			      });

columnKey

Type:: string
Default:: null

Either key or index must be set in every column setting.

Code Sample


            //Initialize
			      $(".selector").igTreeGrid({
				      features: [
					      {
						      name: "Tooltips",
						      columnSettings: [
							      { columnKey: "Name", allowTooltips: true },
						      ]
					      }
				      ]
			      });

maxWidth

Type:: number
Default:: null

Specifies the maximum width (in pixels) of the tooltip when shown for the specified column. If unset the width of the column will be used instead.

Code Sample


            //Initialize
			      $(".selector").igTreeGrid({
				      features: [
					      {
						      name: "Tooltips",
						      columnSettings: [
							      { columnKey: "Name", maxWidth: 200 }
						      ]
					      }
				      ]
			      });

cursorLeftOffset
Inherited

Type:: number
Default:: 10

Sets the left position of the tooltip relative to the mouse cursor.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name: "Tooltips",
                    cursorLeftOffset: 30
                }
            ]
        });

        //Get
        var accessibility = $(".selector").igTreeGridTooltips("option", "cursorLeftOffset");

        //Set
        $(".selector").igTreeGridTooltips("option", "cursorLeftOffset", 30);

cursorTopOffset
Inherited

Type:: number
Default:: 15

Sets the top position of the tooltip relative to the mouse cursor.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name: "Tooltips",
                    cursorTopOffset: 50
                }
            ]
        });

        //Get
        var accessibility = $(".selector").igTreeGridTooltips("option", "cursorTopOffset");

        //Set
        $(".selector").igTreeGridTooltips("option", "cursorTopOffset", 50);

fadeTimespan
Inherited

Type:: number
Default:: 150

Sets the time tooltip fades in and out when showing/hiding.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features: [
                {
                    name: "Tooltips",
                    fadeTimespan: 300
                }
            ]
        });

        //Get
        var accessibility = $(".selector").igTreeGridTooltips("option", "fadeTimespan");

        //Set
        $(".selector").igTreeGridTooltips("option", "fadeTimespan", 300);

hideDelay
Inherited

Type:: number
Default:: 300

Type="integer" The time in milliseconds after which tooltip hides when mouse
cursor gets outside of the cell.

Code Sample

       //Initialize
            $(".selector").igTreeGrid({
                features: [
                    {
                        name: "Tooltips",
                        hideDelay: 1000
                    }
                ]
            });

            //Get
            var accessibility = $(".selector").igTreeGridTooltips("option", "hideDelay");

            //Set
            $(".selector").igTreeGridTooltips("option", "hideDelay", 1000);

inherit
Inherited

Type:

bool

Default:

false

Enables/disables feature inheritance for the child layouts. NOTE: It only applies for igHierarchicalGrid.

showDelay
Inherited

Type:: number
Default:: 500

The time in milliseconds after which tooltip will show when
mouse cursor is hovered over a cell.

Code Sample


          //Initialize
            $(".selector").igTreeGrid({
                features: [
                    {
                        name: "Tooltips",
                        showDelay: 2000
                    }
                ]
            });

            //Get
            var accessibility = $(".selector").igTreeGridTooltips("option", "showDelay");

            //Set
            $(".selector").igTreeGridTooltips("option", "showDelay", 2000);

style
Inherited

Type:: enumeration
Default:: tooltip

controls the tooltip's style.

Members

tooltip
Type:string
The tooltip will be positioned according to the mouse cursor. Will render the tooltip content as plain text.
popover
Type:string
The tooltip will be positioned according to the target element with an arrow pointing the element. This style is more suitable for touch-supported environments. Will render the tooltip content as HTML.

Code Sample


        //Initialize
            $(".selector").igTreeGrid({
                features: [
                    {
                        name: "Tooltips",
                        style: "popover"
                    }
                ]
            });

            //Get
            var style = $(".selector").igTreeGridTooltips("option", "style");

            //Set
            $(".selector").igTreeGridTooltips("option", "style", "popover");

visibility
Inherited

Type:: enumeration
Default:: overflow

determines the tooltip visibility option.

Members

always
Type:string
tooltips always show for hovered elements.
never
Type:string
tooltips do not show automatically.
overflow
Type:string
tooltips show only when the underlying data overflows its container.

Code Sample


       //Initialize
            $(".selector").igTreeGrid({
                features: [
                    {
                        name: "Tooltips",
                        visibility: "always"
                    }
                ]
            });

            //Get
            var accessibility = $(".selector").igTreeGridTooltips("option", "visibility");

            //Set
            $(".selector").igTreeGridTooltips("option", "visibility", "always");

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details

tooltipHidden
Inherited

Cancellable:: false

Event fired after a tooltip is hidden
use args.owner to get a reference to the widget
use args.tooltip to get the string displayed in the tooltip
use args.value to get the value of the cell the tooltip was displayed for
use args.element to get a reference to the cell the tooltip was displayed for
use args.index to get the row index of the cell the tooltip was displayed for
use args.columnKey to get the column key of the cell the tooltip was displayed for
use args.columnIndex to get the column index of the cell the tooltip was displayed for.

Code Sample

       //Initialize
        $(".selector").igTreeGrid({
            features : [
                {
                    name: "Tooltips",
                    tooltipHidden : function(evt, args) {...}
                }
            ]
		});

        //Bind after initialization
		 $(document).delegate(".selector", "igTreeGridtooltipstooltiphidden", function (evt, args) {
			//return the triggered event
            evt;

            // get a reference to the widget
            args.owner;

            // get the string displayed in the tooltip
            args.tooltip;

			// get the value of the cell the tooltip was displayed for
			args.value;

			// get a reference to the cell the tooltip was displayed for
			args.element;

			// get the row index of the cell the tooltip was displayed for
			args.index;

			// get the column key of the cell the tooltip was displayed for
			args.columnKey;

			// get the column index of the cell the tooltip was displayed for
			args.columnIndex;
		 } );

tooltipHiding
Inherited

Cancellable:: true

Event fired when the mouse has left an element and the tooltip is about to hide
use args.owner to get a reference to the widget
use args.tooltip to get the string displayed in the tooltip
use args.value to get the value of the cell the tooltip is displayed for
use args.element to get a reference to the cell the tooltip is displayed for
use args.index to get the row index of the cell the tooltip is displayed for
use args.columnKey to get the column key of the cell the tooltip is displayed for
use args.columnIndex to get the column index of the cell the tooltip is displayed for.

Code Sample


          //Initialize
        $(".selector").igTreeGrid({
            features : [
                {
                    name: "Tooltips",
                    tooltipHiding : function(evt, args) {...}
                }
            ]
		});

       //Bind after initialization
		 $(document).delegate(".selector", "igtreegridtooltipstooltiphidding", function (evt, args) {
			//return the triggered event
            evt;

            // get a reference to the widget
            args.owner;

            // get the string displayed in the tooltip
            args.tooltip;

			// get the value of the cell the tooltip was displayed for
			args.value;

			// get a reference to the cell the tooltip was displayed for
			args.element;

			// get the row index of the cell the tooltip was displayed for
			args.index;

			// get the column key of the cell the tooltip was displayed for
			args.columnKey;

			// get the column index of the cell the tooltip was displayed for
			args.columnIndex;
		 } );

tooltipShowing
Inherited

Cancellable:: true

Event fired when the mouse has hovered on an element long enough to display a tooltip
use args.owner to get a reference to the widget
use args.tooltip to get or set the string to be displayed
use args.value to get the value of the cell the tooltip is displayed for
use args.element to get a reference to the cell the tooltip is displayed for
use args.index to get the row index of the cell the tooltip is displayed for
use args.columnKey to get the column key of the cell the tooltip is displayed for
use args.columnIndex to get the column index of the cell the tooltip is displayed for.

Code Sample

        //Initialize
        $(".selector").igTreeGrid({
            features : [
                {
                    name: "Tooltips",
                    tooltipShowing : function(evt, args) {...}
                }
            ]
		});

       //Bind after initialization
		 $(document).delegate(".selector", "igtreegridtooltipstooltipshowing", function (evt, args) {
		 	//return the triggered event
            evt;

            // get a reference to the widget
            args.owner;

            // get the string displayed in the tooltip
            args.tooltip;

			// get the value of the cell the tooltip was displayed for
			args.value;

			// get a reference to the cell the tooltip was displayed for
			args.element;

			// get the row index of the cell the tooltip was displayed for
			args.index;

			// get the column key of the cell the tooltip was displayed for
			args.columnKey;

			// get the column index of the cell the tooltip was displayed for
			args.columnIndex;
		 } );

tooltipShown
Inherited

Cancellable:: false

Event fired after a tooltip is shown
use args.owner to get a reference to the widget
use args.tooltip to get the string displayed in the tooltip
use args.value to get the value of the cell the tooltip is displayed for
use args.element to get a reference to the cell the tooltip is displayed for
use args.index to get the row index of the cell the tooltip is displayed for
use args.columnKey to get the column key of the cell the tooltip is displayed for
use args.columnIndex to get the column index of the cell the tooltip is displayed for.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            features : [
                {
                    name: "Tooltips",
                    tooltipShown : function(evt, args) {...}
                }
            ]
		});

        //Bind after initialization
		 $(document).delegate(".selector", "igtreegridtooltipstooltipshown", function (evt, args) {
		 	//return the triggered event
            evt;

            // get a reference to the widget
            args.owner;

            // get the string displayed in the tooltip
            args.tooltip;

			// get the value of the cell the tooltip was displayed for
			args.value;

			// get a reference to the cell the tooltip was displayed for
			args.element;

			// get the row index of the cell the tooltip was displayed for
			args.index;

			// get the column key of the cell the tooltip was displayed for
			args.columnKey;

			// get the column index of the cell the tooltip was displayed for
			args.columnIndex;
		 } );

Show Details

destroy

.igTreeGridTooltips( "destroy" );

Code Sample


        $(".selector").igTreeGridTooltips("destroy");

id
Inherited

.igTreeGridTooltips( "id" );

Return Type:

string
Returns the ID of the parent div element bounding the ruler and the tooltip container.
Code Sample
```

       $(".selector").igTreeGridTooltips("id");

```

ui-iggrid-tooltip

Classes applied to the tooltip widget.
ui-iggrid-tooltip-content

Classes applied to the tooltip container.

Ignite UI Home

ui.igTreeGridTooltips

Code Sample

Related Topics

Dependencies

Inherits

columnSettingsInherited

Code Sample

allowTooltips

Code Sample

columnIndex

Code Sample

columnKey

Code Sample

maxWidth

Code Sample

cursorLeftOffsetInherited

Code Sample

cursorTopOffsetInherited

Code Sample

fadeTimespanInherited

Code Sample

hideDelayInherited

Code Sample

inheritInherited

showDelayInherited

Code Sample

styleInherited

Members

Code Sample

visibilityInherited

Members

Code Sample

tooltipHiddenInherited

Code Sample

tooltipHidingInherited

Code Sample

tooltipShowingInherited

Code Sample

tooltipShownInherited

Code Sample

destroy

Code Sample

idInherited

Code Sample

ui-iggrid-tooltip

ui-iggrid-tooltip-content

columnSettings
Inherited

cursorLeftOffset
Inherited

cursorTopOffset
Inherited

fadeTimespan
Inherited

hideDelay
Inherited

inherit
Inherited

showDelay
Inherited

style
Inherited

visibility
Inherited

tooltipHidden
Inherited

tooltipHiding
Inherited

tooltipShowing
Inherited

tooltipShown
Inherited

id
Inherited
