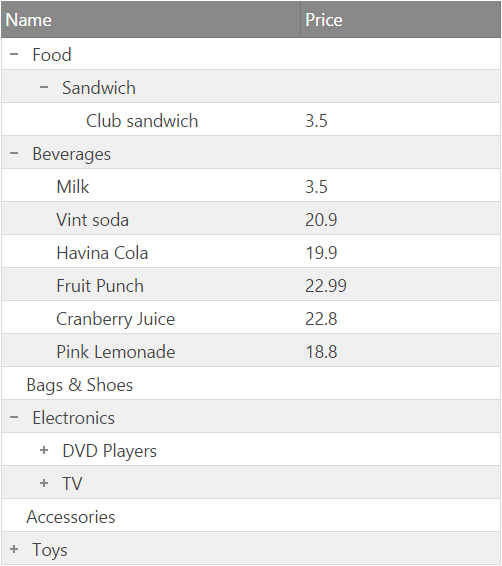

The igTreeGrid™ presents hierarchical data by combining the principles of a tree and tabular data into a single control. Inside the igTreeGrid hierarchical data is rendered using the same columns for each row while providing a way for users to expand and collapse child data.

As the igTreeGrid inherits the igGrid control, it is able to enjoy many of the same features and functionality as the igGrid. Some features differ in function and implementation to best suit the needs of hierarchical data (e.g. filtering, paging, etc.).

In order to maintain flexibility the tree grid features a configurable expansion indicator, which can be rendered inline in the first data column or in a standalone column. The expansion indicator can also be customized with a different look-and-feel to achieve custom visualizations (see the File Explorer sample).

Note: The igTreeGrid is a stand-alone control, which also uses all of the options, events and methods of the igGrid.

The following code snippet demonstrates how to initialize the igTreeGrid control.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample

          <!doctype html>
          <html>
          <head>
              <!-- Infragistics Combined CSS -->
              <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
              <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />

              <!-- jQuery Core -->
              <script src="js/jquery.js" type="text/javascript"></script>

              <!-- jQuery UI -->
              <script src="js/jquery-ui.js" type="text/javascript"></script>

              <!-- Infragistics Combined Scripts -->
              <script src="js/infragistics.core.js" type="text/javascript"></script>
              <script src="js/infragistics.lob.js" type="text/javascript"></script>

              <script type="text/javascript">
                  var employees = [
                      { "employeeId": 0, "supervisorId": -1, "firstName": "Andrew", "lastName": "Fuller", "Category": { "ID": 0, "Name": "Name0", "Active": true, "Date": "\/Date(1059660800000)\/" } },
                      { "employeeId": 1, "supervisorId": -1, "firstName": "Jonathan", "lastName": "Smith", "Category": { "ID": 1, "Name": "Name1", "Active": false, "Date": "\/Date(1159660800000)\/" } },
                      { "employeeId": 2, "supervisorId": -1, "firstName": "Nancy", "lastName": "Davolio", "Category": { "ID": 2, "Name": "Name2", "Active": false, "Date": "\/Date(1252660800000)\/" } },
                      { "employeeId": 3, "supervisorId": -1, "firstName": "Steven", "lastName": "Buchanan", "Category": { "ID": 0, "Name": "Name", "Active": true, "Date": "\/Date(1349660800000)\/" } },

                      // Andrew Fuller's direct reports
                      { "employeeId": 4, "supervisorId": 0, "firstName": "Janet", "lastName": "Leverling", "Category": { "ID": 1, "Name": "Name1", "Active": true, "Date": "\/Date(1619660800000)\/" } },
                      { "employeeId": 5, "supervisorId": 0, "firstName": "Laura", "lastName": "Callahan", "Category": { "ID": 3, "Name": "Name3", "Active": false, "Date": "\/Date(1009660800000)\/" } },
                      { "employeeId": 6, "supervisorId": 0, "firstName": "Margaret", "lastName": "Peacock", "Category": { "ID": 5, "Name": "Name5", "Active": false, "Date": "\/Date(1859660800000)\/" } },
                      { "employeeId": 7, "supervisorId": 0, "firstName": "Michael", "lastName": "Suyama", "Category": { "ID": 1, "Name": "Name1", "Active": false, "Date": "\/Date(1059660800000)\/" } },

                      // Janet Leverling's direct reports
                      { "employeeId": 8, "supervisorId": 4, "firstName": "Anne", "lastName": "Dodsworth", "Category": { "ID": 5, "Name": "Name5", "Active": false, "Date": "\/Date(1959660800000)\/" } },
                      { "employeeId": 9, "supervisorId": 4, "firstName": "Danielle", "lastName": "Davis", "Category": { "ID": 2, "Name": "Name2", "Active": false, "Date": "\/Date(1659660800000)\/" } },
                      { "employeeId": 10, "supervisorId": 4, "firstName": "Robert", "lastName": "King", "Category": { "ID": 8, "Name": "Name8", "Active": false, "Date": "\/Date(1159660800000)\/" } },

                      // Nancy Davolio's direct reports
                      { "employeeId": 11, "supervisorId": 2, "firstName": "Peter", "lastName": "Lewis", "Category": { "ID": 4, "Name": "Name4", "Active": false, "Date": "\/Date(1359660800000)\/" } },
                      { "employeeId": 12, "supervisorId": 2, "firstName": "Ryder", "lastName": "Zenaida", "Category": { "ID": 4, "Name": "Name4", "Active": false, "Date": "\/Date(1128124800000)\/" } },
                      { "employeeId": 13, "supervisorId": 2, "firstName": "Wang", "lastName": "Mercedes", "Category": { "ID": 0, "Name": "Name0", "Active": false, "Date": "\/Date(694224000000)\/" } },

                      // Steve Buchanan's direct reports
                      { "employeeId": 14, "supervisorId": 3, "firstName": "Theodore", "lastName": "Zia", "Category": { "ID": 9, "Name": "Name9", "Active": false, "Date": "\/Date(1859660800000)\/" } },
                      { "employeeId": 15, "supervisorId": 3, "firstName": "Lacota", "lastName": "Mufutau", "Category": { "ID": 7, "Name": "Name7", "Active": false, "Date": "\/Date(1659660800000)\/" } },

                      // Lacota Mufutau's direct reports
                      { "employeeId": 16, "supervisorId": 15, "firstName": "Jin", "lastName": "Elliott", "Category": { "ID": 1, "Name": "Name1", "Active": false, "Date": "\/Date(970358400000)\/" } },
                      { "employeeId": 17, "supervisorId": 15, "firstName": "Armand", "lastName": "Ross", "Category": { "ID": 7, "Name": "Name7", "Active": false, "Date": "\/Date(1009660800000)\/" } },
                      { "employeeId": 18, "supervisorId": 15, "firstName": "Dane", "lastName": "Rodriquez", "Category": { "ID": 3, "Name": "Name3", "Active": false, "Date": "\/Date(1059660800000)\/" } },

                      // Dane Rodriquez's direct reports
                      { "employeeId": 19, "supervisorId": 18, "firstName": "Declan", "lastName": "Lester", "Category": { "ID": 9, "Name": "Name9", "Active": false, "Date": "\/Date(1210204800000)\/" } },
                      { "employeeId": 20, "supervisorId": 18, "firstName": "Bernard", "lastName": "Jarvis", "Category": { "ID": 2, "Name": "Name2", "Active": false, "Date": "\/Date(1009660800000)\/" } },

                      // Bernard Jarvis' direct report
                      { "employeeId": 21, "supervisorId": 20, "firstName": "Jeremy", "lastName": "Donaldson", "Category": { "ID": 8, "Name": "Name8", "Active": false, "Date": "\/Date(1459660800000)\/" } }
                  ];

                 $(function () {
                     $("#treegrid").igTreeGrid({
                         dataSource: employees,
                         primaryKey: "employeeId",
                         foreignKey: "supervisorId",
                         autoGenerateColumns: false,
                         columns: [
                             { headerText: "ID", key: "employeeId", width: "150px", dataType: "number" },
                             { headerText: "First", key: "firstName", width: "150px", dataType: "string" },
                             { headerText: "Last", key: "lastName", width: "150px", dataType: "string" }
                         ]
                     });
                 });
              </script>
          </head>
          <body>
              <div id="treegrid"></div>
          </body>
          </html>

Related Samples

accessibilityRendering
Inherited

Type:: bool
Default:: false

*** IMPORTANT DEPRECATED ***
This option has been deprecated as of the June 2015 service release. Accessibility rendering is always performed by the igGrid as of version 14.2.

Code Sample


       //Initialize
        $(".selector").igTreeGrid({
            accessibilityRendering : true
        });

        //Get
        var accessibilityRendering = $(".selector").igTreeGrid("option", "accessibilityRendering");

adjustVirtualHeights
Inherited

Type:

bool

Default:

false
If this option is set to true, the height of the grid row will be calculated automatically based on the average row height and the visible virtual records. If no average row height is specified, one will be calculated automatically at runtime.
Code Sample
```

       //Initialize
        $(".selector").igTreeGrid({
            adjustVirtualHeights : true
        });

        //Get
        var virtualHeights = $(".selector").igTreeGrid("option", "adjustVirtualHeights");

```
aggregateTransactions
Inherited

Type:

bool

Default:

false
If set to true, the following behavior will take place:
if a new row is added, and then deleted, there will be no transaction added to the log
if a new row is added, edited, then deleted, there will be no transaction added to the log
if several edits are made to a row or an individual cell, this should result in a single transaction
Note: This option takes effect only when autoCommit is set to false.
Code Sample
```

       //Initialize
        $(".selector").igTreeGrid({
            aggregateTransactions : true
        });

        //Get
        var aggregateTransactions = $(".selector").igTreeGrid("option", "aggregateTransactions");

```
alternateRowStyles
Inherited

Type:

bool

Default:

true
Enables/disables rendering of alternating row styles (odd and even rows receive different styling). Note that if a custom jQuery template is set, this has no effect and CSS for the row should be adjusted manually in the template contents.
Code Sample
```

       //Initialize
        $(".selector").igTreeGrid({
            alternateRowStyles : true;
        });

        //Get
        var rowAltStyles = $(".selector").igTreeGrid("option", "alternateRowStyles");

```
autoAdjustHeight
Inherited

Type:

bool

Default:

true
If autoAdjustHeight is set to false, the options.height will be set only on the scrolling container, and all other UI elements such as paging footer / filter row/ headers will add on top of that, so the total height of the grid will be more than this value - the height of the scroll container (content area) will not be dynamically calculated. Setting this option to false will usually result in a lot better initial rendering performance for large data sets ( > 1000 rows rendered at once, no virtualization enabled), since no reflows will be made by browsers when accessing DOM properties such as offsetHeight.
Code Sample
```

       //Initialize
        $(".selector").igTreeGrid({
            autoAdjustHeight : true
        });

        //Get
        var adjustHeight = $(".selector").igTreeGrid("option", "autoAdjustHeight");

```

autoCommit
Inherited

Type:: bool
Default:: false

Automatically commits the transactions as rows/cells are being edited.

Code Sample

      //Initialize
        $(".selector").igTreeGrid({
            autoCommit : true
        });

        //Get
        var commit = $(".selector").igTreeGrid("option", "autoCommit");

autofitLastColumn
Inherited

Type:

bool

Default:

true
If autofitLastColumn is true and all columns' widths are specified and their combined width is less than the grid width then the last column width will be automatically adjusted to fill the entire grid.
Code Sample
```

      //Initialize
        $(".selector").igTreeGrid({
            autofitLastColumn : true
        });

        //Get
        var autoFit = $(".selector").igTreeGrid("option", "autofitLastColumn");

```
autoFormat
Inherited

Type:

enumeration

Default:

date
Sets gets ability to automatically format text in cells for numeric and date columns. The format patterns and rules for numbers and dates are defined in $.ig.regional.defaults object. date formats only Date columns.
Members
- dateandnumber
- Type:string
- true
- Type:bool
- formats Date and number columns.
- false
- Type:bool
- auto formatting is disabled.
- date
- formats only Date columns.
- number
- formats only number columns.
Code Sample
```
        //Initialize
        $(".selector").igTreeGrid({
            autoFormat : "number"
        });

        //Get
        var autoFormat = $(".selector").igTreeGrid("option", "autoFormat");

```
autoGenerateColumns
Inherited

Type:

bool

Default:

true
If no columns collection is defined, and autoGenerateColumns is set to true, columns will be inferred from the data source. If autoGenerateColumns is not explicitly set and columns has at least one column defined then autoGenerateColumns is automatically set to false.
Code Sample
```

        //Initialize
        $(".selector").igTreeGrid({
            autoGenerateColumns : false
        });

        //Get
        var autoCols = $(".selector").igTreeGrid("option", "autoGenerateColumns");

```
avgColumnWidth
Inherited

Type:

enumeration

Default:

null
used for virtualization, this is the average value in pixels for a column width.
Members
Code Sample
```

      //Initialize
        $(".selector").igTreeGrid({
            avgColumnWidth : 100
        });

        //Get
        var width = $(".selector").igTreeGrid("option", "avgColumnWidth");

```
avgRowHeight
Inherited

Type:

enumeration

Default:

25
used for virtualization, this is the average value in pixels (default) that will be used to calculate how many rows and which ones to render as the end user scrolls. Also all rows' height will be automatically equal to this value.
Members
Code Sample
```

       //Initialize
        $(".selector").igTreeGrid({
            avgRowHeight : 25
        });

        //Get
        var height = $(".selector").igTreeGrid("option", "avgRowHeight");

```

caption
Inherited

Type:: string
Default:: null

Caption text that will be shown above the grid header.

Code Sample


       //Initialize
        $(".selector").igTreeGrid({
            caption : "Sales Data"
        });

        //Get
        var caption = $(".selector").igTreeGrid("option", "caption");

        //Set
        $(".selector").igTreeGrid("option", "caption", "Sales Data");

childDataKey

Type:: string
Default:: "childData"

Property name of the array of child data in a hierarchical data source.

Code Sample


      //Initialize
        $(".selector").igTreeGrid({
        childDataKey: "products"
        });

        //Get
        var childDataKey = $(".selector").igTreeGrid("option", "childDataKey");

        //Set
        $(".selector").igTreeGrid("option", "childDataKey", "Sales Data");

collapseTooltipText

Type:: string
Default:: ""

Specifies the collapse indicator tooltip text.

Code Sample


      //Initialize
      $(".selector").igTreeGrid({
      collapseTooltip : "Click here to collapse the row"
      });

       //Get
       var collapseTooltip = $(".selector").igTreeGrid("option", "collapseTooltipText");

columns
Inherited

Type:: array
Default:: []
Elements Type:: object

An array of column objects.

Code Sample


       //Initialize
        $(".selector").igTreeGrid({
            autoGenerateColumns: false,
            columns: [
                { headerText: "Product ID", key: "ProductID", dataType: "number" },
                { headerText: "Product Name", key: "Name", dataType: "string" },
                { headerText: "ProductNumber", key: "ProductNumber", dataType: "string" },
                { headerText: "Color", key: "Color", dataType: "string" },
                { headerText: "StandardCost", key: "StandardCost", dataType: "number" },
            ]
        });

        //Get
        var cols = $(".selector").igTreeGrid("option", "columns");

colSpan

Type:: number
Default:: 1

Specifies the colSpan of the cell in a multi-row-layout configuration. colSpan 0 is not supported and will be changed to 1 by the grid.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            autoGenerateColumns: false,
            columns: [
                { headerText: "Product ID", key: "ProductID", dataType: "number" },
                { headerText: "Product Name", key: "Name", dataType: "string", colSpan: 2 },
                { headerText: "ProductNumber", key: "ProductNumber", dataType: "string" },
                { headerText: "Color", key: "Color", dataType: "string" },
                { headerText: "StandardCost", key: "StandardCost", dataType: "number", colSpan: 2 },
            ]
        });

        //Get
        var colSpan = $(".selector").igTreeGrid("option", "columns")[0].colSpan;

columnCssClass

Type:: string
Default:: null

Space-separated list of CSS classes to be applied on the data cells of this column.

Code Sample


            <style>
              .colStyle {
                 background-color:red;
              }
    </style>

           $(".selector").igTreeGrid({
            autoGenerateColumns: false,
            columns: [
                { headerText: "Product ID", key: "ProductID", dataType: "number", columnCssClass: "colStyle" },
                { headerText: "Product Name", key: "Name", dataType: "string" },
                { headerText: "ProductNumber", key: "ProductNumber", dataType: "string" },
                { headerText: "Color", key: "Color", dataType: "string" },
                { headerText: "StandardCost", key: "StandardCost", dataType: "number" },
            ]
        });
        //Get
        var colCssClass =  $(".selector").igTreeGrid("option", "columns")[0].columnCssClass;

columnIndex

Type:: number
Default:: null

Specifies the column index of the cell in a multi-row-layout configuration. All columns must have this property set for the multi-row-layout mode to be enabled.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            autoGenerateColumns: false,
            columns: [
                { headerText: "Product ID", key: "ProductID", dataType: "number", rowIndex: 0, columnIndex: 0 },
                { headerText: "Product Name", key: "Name", dataType: "string", rowIndex: 0, columnIndex: 1, colSpan: 3 },
                { headerText: "ProductNumber", key: "ProductNumber", dataType: "string", rowIndex: 1, columnIndex: 0 },
                { headerText: "Color", key: "Color", dataType: "string", rowIndex: 1, columnIndex: 1 },
                { headerText: "StandardCost", key: "StandardCost", dataType: "number", rowIndex: 1, columnIndex: 2, colSpan: 2 },
            ]
        });

        //Get
        var colIndex = $(".selector").igTreeGrid("option", "columns")[0].columnIndex;

dataType

Type:: enumeration
Default:: string

data type of the column cell values string number bool date object.

Members

string
number
bool
date
object

Code Sample




          //Initialize
           $(".selector").igTreeGrid({
           autoGenerateColumns: false,
           columns: [
               { headerText: "Product ID", key: "ProductID", dataType: "number" },
               { headerText: "Product Name", key: "Name", dataType: "string" },
               { headerText: "Production Date", key: "ProductionDate", dataType: "date" },
          ]
          });

        //Get
      var cols = $(".selector").igTreeGrid("option", "columns");
      var productIdDataType = cols[0].dataType;

format

Type:

string

Default:

null
Sets gets format for cells in column. Default value is null.
If dataType is "date", then supported formats are following: "date", "dateLong", "dateTime", "time", "timeLong", "MM/dd/yyyy", "MMM-d, yy, h:mm:ss tt", "dddd d MMM", etc.
If dataType is "number", then supported numeric formats are following: "number", "currency", "percent", "int", "double", "0.00", "#.0####", "0", "#.#######", etc.
The value of "double" will be similar to "number", but with unlimited maximum number of decimal places.
The format patterns and rules for numbers and dates are defined in $.ig.regional.defaults object.
If dataType is "string" or not set, then format is rendered as it is with replacement of possible "{0}" flag by value in cell. Example, if format is set to "Name: {0}" and value in cell is "Bob", then value will appear as "Name: Bob"
If value is set to "checkbox", then checkboxes are used regardless of renderCheckboxes option of igGrid. That has effect only when dataType option of column is set to "bool".
Code Sample
```

           //Initialize
        $(".selector").igTreeGrid({
            autoGenerateColumns: false,
            columns: [
                { headerText: "Product ID", key: "ProductID", dataType: "number", format: "number" },
                { headerText: "Production Date", key: "ProductionDate", dataType: "date", format: "ddd, MMM-d-yy HH:mm" },
            ]
        });
        //Get
        var cols = $(".selector").igTreeGrid("option", "columns");
        var productIdFormat = cols[0].format;

```

formatter

Type:: enumeration
Default:: null

Reference to a function (string or function) which will be used for formatting the cell values. The function should accept a value and return the new formatted value.

Members

string
Type:string
string which will be used for formatting.
function
Type:function
function which will be used for formatting the cell values. The function should accept a value.

Code Sample


           //Initialize
        $(".selector").igTreeGrid({
            autoGenerateColumns: false,
            columns: [
                { headerText: "In production", key: "InProduction", formatter: function(val) {return (val === 1)? "Yes" : "No";} }
            ]
        });

        //Get
        var cols = $(".selector").igTreeGrid("option", "columns");
        var inProductionFormatter = cols[0].formatter;

formula

Type:: enumeration
Default:: null

a reference or name of a javascript function which will calculate the value based on other cell values in the same row when column is unbound.

Members

string
Type:string
name of a javascript function.
function
Type:function
reference to javascript function.

Code Sample

            <script type="text/javascript">
          function CalculateTotal(data, grid) {
              return data["UnitPrice"] * data["UnitsInStock"];
          }
        </script>

           //Initialize
        $(".selector").igTreeGrid({
            autoGenerateColumns: false,
            columns: [
                { headerText: "Total", key: "TotalUC", unbound: true,  formula:"CalculateTotal"  }
            ]
        });

        //Get
        var totalUC = $('.selector').igTreeGrid('getUnboundColumnByKey', 'TotalUC');
        var totalFormula = totalUC.formula;

group

Type:: array
Default:: []
Elements Type:: object

Array of other column definitions. If the column has the property group than the grid has multi column headers.

Code Sample


           //Initialize
                $(".selector").igTreeGrid({
                    columns: [
                    { headerText: "Product Data", key: "ProductData", group: [
                        { headerText: "Product Name", key: "Name", dataType: "string" },
                        { headerText: "Product Number", key: "ProductNumber", dataType: "string" }
                    ]}
                ],
                features:[
                    {
                        name: "MultiColumnHeaders"
                    }
                ],
                width: "500px"
                });

                 //Get
                 //getMultiColumnHeaders method returns multicolumn headers array. if there aren't multicolumn headers returns undefined.
                 var columns = $(".selector").igTreeGridMultiColumnHeaders("getMultiColumnHeaders");
                 var group = columns[0].group;

headerCssClass

Type:: string
Default:: null

Space-separated list of CSS classes to be applied on the header cell of this column.

Code Sample


          <style>
              .colStyle {
                 background-color:red;
              }
    </style>

           $(".selector").igTreeGrid({
            autoGenerateColumns: false,
            columns: [
                { headerText: "Product ID", key: "ProductID", dataType: "number", columnCssClass: "colStyle" },
                { headerText: "Product Name", key: "Name", dataType: "string" },
                { headerText: "ProductNumber", key: "ProductNumber", dataType: "string" },
                { headerText: "Color", key: "Color", dataType: "string" },
                { headerText: "StandardCost", key: "StandardCost", dataType: "number" },
            ]
        });
        //Get
        var colCssClass =  $(".selector").igTreeGrid("option", "columns")[0].columnCssClass;

headerText

Type:: string
Default:: null

Column header text.

Code Sample


           //Initialize
        $(".selector").igTreeGrid({
            autoGenerateColumns: false,
            columns: [
                { headerText: "Product Name", key: "Name", dataType: "string" },
            ]
        });

        //Get
        var cols = $(".selector").igTreeGrid("option", "columns");
        var productNameHeaderText = cols[0].headerText;

hidden

Type:: bool
Default:: false

Initial visibility of the column. A column can be hidden without the Hiding feature being enabled but there will be no UI for unhiding it. Columns can be defined as hidden in the options of the Hiding feature as well and those definitions take precedence.

Code Sample


          //Initialize
        $('.selector').igTreeGrid({
            autoGenerateColumns: false,
            columns: [
                { headerText: "Product Name", key: "Name", dataType: "string", hidden: true },
            ]
        });

        //Get
        var cols = $('.selector').igTreeGrid('option', 'columns');
        var productNameHidden = cols[0].hidden;

key

Type:: string
Default:: null

Column key (property in the data source to which the column is bound).

Code Sample


          //Initialize
        $(".selector").igTreeGrid({
            autoGenerateColumns: false,
            columns: [
                { headerText: "Product Name", key: "Name", dataType: "string" },
            ]
        });

        //Get
        var cols = $(".selector").igTreeGrid("option", "columns");
        var productNameKey = cols[0].key;

mapper

Type:: enumeration
Default:: null

This option is applicable only for columns with dataType="object". Reference to a function (string or function) that can be used for complex data extraction from the data records, whose return value will be used for all data operations associated with this column.

Code Sample


            //Initialize
                $(".selector").igTreeGrid({
                    columns: [
                             { headerText: "ID", key: "employeeId", width: "150px", dataType: "number" },
                             { headerText: "First", key: "firstName", width: "150px", dataType: "string" },
                             { headerText: "Last", key: "lastName", width: "150px", dataType: "string" },
                             {
                              headerText: "Category", key: "Category", dataType: "object",
                                mapper: function (record) {
                                  return record.Category.Name;
                                }

                             }
                         ]
                });

                 //Get
                  var cols = $(".selector").igTreeGrid("option", "columns");
                  var categoryMapper = cols[3].mapper;

rowIndex

Type:: number
Default:: null

Specifies the row index of the cell in a multi-row-layout configuration. All columns must have this property set for the multi-row-layout mode to be enabled.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            autoGenerateColumns: false,
            columns: [
                { headerText: "Product ID", key: "ProductID", dataType: "number", rowIndex: 0, columnIndex: 0 },
                { headerText: "Product Name", key: "Name", dataType: "string", rowIndex: 0, columnIndex: 1, colSpan: 3 },
                { headerText: "ProductNumber", key: "ProductNumber", dataType: "string", rowIndex: 1, columnIndex: 0 },
                { headerText: "Color", key: "Color", dataType: "string", rowIndex: 1, columnIndex: 1 },
                { headerText: "StandardCost", key: "StandardCost", dataType: "number", rowIndex: 1, columnIndex: 2, colSpan: 2 },
            ]
        });

        //Get
        var rowIndex = $(".selector").igTreeGrid("option", "columns")[0].rowIndex;

rowspan

Type:

number

Default:

0

*** IMPORTANT DEPRECATED ***
This option has been deprecated as of the June 2016 service release.
Adjust span of multi column header cell. Use option rowSpan.

rowSpan

Type:: number
Default:: 1

Specifies the rowSpan of the cell in a multi-row-layout configuration. rowSpan 0 is not supported and will be changed to 1 by the grid. If multi-row-layout is not used but multi-column-header is set then this option is used to adjust span of header cell.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            autoGenerateColumns: false,
            columns: [
                { headerText: "Product ID", key: "ProductID", dataType: "number", rowIndex: 0, columnIndex: 0, rowSpan: 2 },
                { headerText: "Product Name", key: "Name", dataType: "string", rowIndex: 0, columnIndex: 1, colSpan: 3 },
                { headerText: "ProductNumber", key: "ProductNumber", dataType: "string", rowIndex: 1, columnIndex: 1 },
                { headerText: "Color", key: "Color", dataType: "string", rowIndex: 1, columnIndex: 2 },
                { headerText: "StandardCost", key: "StandardCost", dataType: "number", rowIndex: 1, columnIndex: 3 },
            ]
        });

        //Get
        var rowSpan = $(".selector").igTreeGrid("option", "columns")[0].rowSpan;

template

Type:: string
Default:: null

Sets a template for an individual column. the contents of the template should be the HTML markup that goes inside the table cell, without any <td> and </td> tags included in front and at the end. The syntax of the template, when referencing data keys and using conditional expressions is the same as the one for rowTemplate.

Code Sample


                //Initialize
      $(".selector").igTreeGrid({
          autoGenerateColumns: false,
          columns: [
              { headerText: "Product Name", key: "Name", dataType: "string", template: "Product: ${Name}" },
          ]
      });

      //Get
      var cols = $(".selector").igTreeGrid("option", "columns");
      var template = cols[0].template;

unbound

Type:: bool
Default:: false

Sets whether column is bound to the datasource.

Code Sample


          //Initialize
        $(".selector").igTreeGrid({
            autoGenerateColumns: false,
            columns: [
                { headerText: "Promotion Expired Date", key: "PromExpDate", dataType: "date", unbound: true},
            ]
        });
        // Get
        var unboundColumn = $(".selector").igTreeGrid('getUnboundColumnByKey', 'PromExpDate');
        var isUnbound = unboundColumn.unbound;

unboundValues

Type:: array
Default:: null
Elements Type:

Array of values which could be set for unbound columns at init time.

Code Sample


          //Initialize
            $(".selector").igTreeGrid({
                autoGenerateColumns: false,
                columns: [
                     { headerText: "Promotion Expired Date", key: "PromotionExpDate", dataType: "date", unbound: true,
                                    unboundValues:[new Date('4/24/2012'),new Date('8/24/2012'),new Date('6/24/2012'),new Date('10/24/2012'),new Date('11/24/2012')]},
                ]
            });

unboundValuesUpdateMode

Type:: enumeration
Default:: auto

update mode of the unbound column(this option is applied ONLY when option formula is set). Auto update unbound column value whenever the record/cell is updated.

Code Sample

            <script type="text/javascript">
                function CalculateTotal(data, treegrid) {
                    return data["UnitPrice"] * data["UnitsInStock"];
                }
            </script>
           //Initialize
            $(".selector").igTreeGrid({
                autoGenerateColumns: false,
                columns: [
                    { headerText: "Total", key: "TotalUC", unbound: true,  formula:"CalculateTotal", unboundValuesUpdateMode: "manual" }
                ]
            });

width

Type:

enumeration

Default:

null
Width of the column in pixels or percentage. Can have optional 'px' at the end. Can also be set as '*', in which case the width autofits based on the content of the column cells (including the header text). If width is not defined and defaultColumnWidth is set, it is assumed for all columns.
Members
Code Sample
```
           //Initialize
        $(".selector").igTreeGrid({
            autoGenerateColumns: false,
            columns: [
                { headerText: "Product Name", key: "Name", width: "100px", dataType: "string" },
            ]
        });

        //Get
        var cols = $(".selector").igTreeGrid("option", "columns");
        var productNameWidth = cols[0].width;

```

columnVirtualization
Inherited

Type:: bool
Default:: false

Option to enable virtualization for columns only (horizontal).

Code Sample


      //Initialize
        $(".selector").igTreeGrid({
            columnVirtualization : true
        });

        //Get
        var columnVirtualization = $(".selector").igTreeGrid("option", "columnVirtualization");

dataSource
Inherited

Type:: object
Default:: null

Can be any valid data source accepted by $.ig.DataSource, or an instance of an $.ig.DataSource itself.

Code Sample


      //Initialize
        $(".selector").igTreeGrid({
            dataSource : ds
        });

        //Get
        var ds = $(".selector").igTreeGrid("option", "dataSource");

        //Set
        $(".selector").igTreeGrid("option", "dataSource", ds);

dataSourceSettings

Type:: object
Default:: {}

Options object to configure data source-specific settings.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            dataSourceSettings : {
              propertyExpanded: "isExpanded",
              propertyDataLevel: "dataLevel"
            }
        });

        //Get
        var dataSourceSettings = $(".selector").igTreeGrid("option", "dataSourceSettings");

initialFlatDataView

Type:

bool

Default:

false
If set to TRUE it is expected that the source of data is normalized and transformed(has set dataLevel and expansion state). The source of data is used as flatDataView. Usually used when the paging is remote and paging mode is allLevels, or features are remote(and the processing of the returned result should be made on the server).
Code Sample
```
            //Initialize
            $(".selector").igTreeGrid({
                dataSourceSettings : {
                  initialFlatDataView: true
                }
            });

            //Get
            var dataSourceSettings = $(".selector").igTreeGrid("option", "dataSourceSettings");

```

propertyDataLevel

Type:: string
Default:: "__ig_options.dataLevel"

The name of the property that keeps track of the level in the hierarchy.Defaults to __ig_options.dataLevel.

Code Sample


          //Initialize
        $(".selector").igTreeGrid({
            propertyDataLevel : "PDL"
        });

        //Get
        var propertyDataLevel = $(".selector").igTreeGrid("option", "propertyDataLevel");

propertyExpanded

Type:: string
Default:: "__ig_options.expanded"

The name of the property that keeps track of the expansion state of a data item. Defaults to __ig_options.expanded.

Code Sample


           //Initialize
        $(".selector").igTreeGrid({
            propertyExpanded : "PE"
        });

        //Get
        var propertyExpanded = $(".selector").igTreeGrid("option", "propertyExpanded");

dataSourceType
Inherited

Type:: string
Default:: null

Explicitly set data source type (such as "json"). Please refer to the documentation of $.ig.DataSource and its type property.

Code Sample

        //Initialize
        $(".selector").igTreeGrid({
            dataSourceType : "xml"
        });

        //Get
        var dsType = $(".selector").igTreeGrid("option", "dataSourceType");

dataSourceUrl
Inherited

Type:: string
Default:: null

Specifies a remote URL as a data source, from which data will be retrieved using an AJAX call ($.ajax).

Code Sample


       //Initialize
        $(".selector").igTreeGrid({
            dataSourceUrl : urlString
        });

        //Get
        var urlString = $(".selector").igTreeGrid("option", "dataSourceUrl");

defaultColumnWidth
Inherited

Type:: enumeration
Default:: null

Default column width that will be set for all columns.

Members

string
The default column width can be set in pixels (px).
number
The default column width can be set as a number.

Code Sample

        //Initialize
        $(".selector").igTreeGrid({
            defaultColumnWidth : 100
        });

        //Get
        var width = $(".selector").igTreeGrid("option", "defaultColumnWidth");

        //Set
        $(".selector").igTreeGrid("option", "defaultColumnWidth", 100);

enableHoverStyles
Inherited

Type:

bool

Default:

true
Enables/disables rendering of ui-state-hover classes when the mouse is over a record. this can be useful in templating scenarios, for example, where we don't want to apply hover styling to templated content.
Code Sample
```

       //Initialize
        $(".selector").igTreeGrid({
            enableHoverStyles : false
        });

        //Get
        var enableHoverStyles = $(".selector").igTreeGrid("option", "enableHoverStyles");

```

enableRemoteLoadOnDemand

Type:: bool
Default:: false

Specifies to the tree grid if data is loaded on demand from a remote server. Default is false.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            enableRemoteLoadOnDemand : true
        });

        //Get
        var enableRemoteLoadOnDemand = $(".selector").igTreeGrid("option", "enableRemoteLoadOnDemand");

enableResizeContainerCheck
Inherited

Type:: bool
Default:: true

Enables/disables check for resizing grid container.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            enableResizeContainerCheck : false
        });

        //Get
        var enableResizeContainerCheck = $(".selector").igTreeGrid("option", "enableResizeContainerCheck");

        //Set
        $(".selector").igTreeGrid("option", "enableResizeContainerCheck", false);

enableUTCDates
Inherited

Type:

bool

Default:

false
Enables formatting of the dates as UTC. Note that this may be desirable when the dates are coming from a backend, encoded as UTC. Otherwise, if dates are created on the client (in the browser), most probably keeping enableUTCDates to false is the desired behavior.
Code Sample
```

       //Initialize
        $(".selector").igTreeGrid({
            enableUTCDates : true
        });

        //Get
        var enableHoverStyles = $(".selector").igTreeGrid("option", "enableUTCDates");

```

expandTooltipText

Type:: string
Default:: ""

Specifies the expansion indicator tooltip text.

Code Sample


      //Initialize
      $(".selector").igTreeGrid({
      expandTooltipText : "Click here to expand the row"
      });

       //Get
       var collapseTooltip = $(".selector").igTreeGrid("option", "expandTooltipText");

featureChooserIconDisplay
Inherited

Type:

enumeration

Default:

desktopOnly
Configures how the feature chooser icon should display on header cells - e.g. to display as gear icon or to not show gear icon but on click/tap the header cell to show the feature chooser.
Members
- none
- Type:string
- Always hide the feature chooser icon; The feature chooser is shown on tapping/clicking the column header.
- desktopOnly
- Type:string
- Always show the icon on desktop but hide when touch device detected.
- always
- Type:string
- Always show it in any environment. Chooser is shown when tapping the gear icon or column header.
Code Sample
```
       //Initialize
      $(".selector").igTreeGrid({
      featureChooserIconDisplay: "none"
      });

       //Get
       var featureChooserIconDisplay = $(".selector").igTreeGrid("option", "featureChooserIconDisplay");

```

features
Inherited

Type:: array
Default:: []
Elements Type:: object

A list of grid features definitions: sorting, paging, etc. Each feature goes with its separate options that are documented for the feature accordingly.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
                features: [
                    {
                        name: "Paging",
                        type: "local",
                        pageSize: 13
                    },
                    {
                        name: "Sorting",
                        type: "local"
                    },
                    {
                        name: "Selection"
                    },
                    {
                        name: "Filtering",
                        type: "local",
                        filterDropDownItemIcons: false,
                        filterDropDownWidth: 200
                    }
                ]
        });

        //Get
        var features = $(".selector").igTreeGrid("option", "features");

name

Type:

string

Default:

null

Name of the feature to be added.

fixedFooters
Inherited

Type:: bool
Default:: true

Footers will be fixed if this option is set to true, and only the grid data will be scrollable. If virtualization is enabled, fixedFooters will always act as if it's true, no matter which value is set.

Code Sample

        //Initialize
        $(".selector").igTreeGrid({
            fixedFooters : false
        });

        //Get
        var fixed = $(".selector").igTreeGrid("option", "fixedFooters");
        //Set
        $(".selector").igTreeGrid("option", "fixedFooters", false);

fixedHeaders
Inherited

Type:

bool

Default:

true
Headers will be fixed if this option is set to true, and only the grid data will be scrollable. If virtualization is enabled, fixedHeaders will always act as if it's true, no matter which value is set.
Code Sample
```

       //Initialize
        $(".selector").igTreeGrid({
            fixedHeaders : false
        });

        //Get
        var fixedHeaders = $(".selector").igTreeGrid("option", "fixedHeaders");

```

foreignKey

Type:: string
Default:: null

Unique identifier used in a self-referencing flat data source. Used with primaryKey to create a relationship among flat data sources.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            foreignKey: "PID"
        });

        //Get
        var foreignKey = $(".selector").igTreeGrid("option", "foreignKey");

foreignKeyRootValue

Type:: number
Default:: -1

Specifies the foreign key value in the data source to treat as the root level once the grid is data bound. Defaults to -1 (which includes the entire data source).

Code Sample


       //Initialize
        $(".selector").igTreeGrid({
            foreignKeyRootValue: "FKRV"
        });

        //Get
        var foreignKeyRootValue = $(".selector").igTreeGrid("option", "foreignKeyRootValue");

height
Inherited

Type:

enumeration

Default:

null
This is the total height of the grid, including all UI elements - scroll container with data rows, header, footer, filter row - (if any), etc.
Members
- null
- Type:object
- will stretch vertically to fit data, if no other heights are defined.
- string
- The widget height can be set in pixels (px) and percentage (%).
- number
- The widget height can be set as a number.
Code Sample
```

         //Initialize
        $(".selector").igTreeGrid({
            height : "850px"
        });

        //Get
        var height = $(".selector").igTreeGrid("option", "height");

        //Set
        $(".selector").igTreeGrid("option", "height", "850px");

```
indentation

Type:

string

Default:

"30"
Specifies the indentation (in pixels or percent) for a tree grid row. Nested indentation is achieved by calculating the level times the indentation value. Ex: '10px' or '5%'. Default is 30.
Code Sample
```

        //Initialize
        $(".selector").igTreeGrid({
            indentation: "50px"
        });

        //Get
        var indentation = $(".selector").igTreeGrid("option", "indentation");
```

initialExpandDepth

Type:: number
Default:: -1

Specifies the depth down to which the tree grid would be expanded upon initial render. To expand all rows set value to -1. Default is -1.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            initialExpandDepth: 3
        });

        //Get
        var initialExpandDepth = $(".selector").igTreeGrid("option", "initialExpandDepth");

initialIndentationLevel

Type:: number
Default:: -1

If initial indentation level is set then it is used to be calculated width of the data skip column(usually used when remote load on demand is enabled).

Code Sample

       //Initialize
        $(".selector").igTreeGrid({
            initialIndentationLevel : 10
        });

        //Get
        var initialIndentationLevel = $(".selector").igTreeGrid("option", "initialIndentationLevel");

jQueryTemplating
Inherited

Type:

bool

Default:

false
*** IMPORTANT DEPRECATED ***
This option has been deprecated as of the 12.1 release. The igGrid now uses the custom Infragistics templating engine by default.
custom high-performance rendering will be used for rendering by default. jQuery Templating plugin can be used and enabled by setting this option to true. This will allow usage of column / row templates in jQuery Templating style. If virtualization is enabled, it is advised to keep this option to "false", in order to have better scrolling/rendering performance.
Code Sample
```

        //Initialize
        $(".selector").igTreeGrid({
            jQueryTemplating : true
        });

        //Get
        var templating = $(".selector").igTreeGrid("option", "jQueryTemplating");

```

jsonpRequest
Inherited

Type:: bool
Default:: false

When dataSource is string defines whether to set data source of type JSONP.

Code Sample


       //Initialize
        $(".selector").igTreeGrid({
            jsonpRequest : true
        });

        //Get
        var jsonpRequest = $(".selector").igTreeGrid("option", "jsonpRequest");

localSchemaTransform
Inherited

Type:: bool
Default:: true

If this option is set to false, the data to which the grid is bound will be used "as is" with no additional transformations based on columns defined.

Code Sample


       //Initialize
        $(".selector").igTreeGrid({
            localSchemaTransform : false
        });

        //Get
        var schemaTransform = $(".selector").igTreeGrid("option", "localSchemaTransform");

mergeUnboundColumns
Inherited

Type:

bool

Default:

false
Merge unbound columns values inside datasource when data source is remote. If true then the unbound columns are merged to the datasource at runtime - indeed DataSource is expanded with the new data and this could cause performance issues when dataSource is huge, if false then the unbound data is sent to the client.
Code Sample
```

       //Initialize
        $(".selector").igTreeGrid({
            mergeUnboundColumns : true,
            dataSource : REMOTE_URL
        });

        //Get
        var mergeUC = $(".selector").igTreeGrid("option", "mergeUnboundColumns");

```

primaryKey
Inherited

Type:: string
Default:: null

Primary key name of the column containing unique identifiers.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            primaryKey : "CustomerID"
        });

        //Get
        var key = $(".selector").igTreeGrid("option", "primaryKey");

renderCheckboxes
Inherited

Type:: bool
Default:: false

Gets sets ability to render checkboxes and use checkbox editor when dataType of a column is "bool". That option is not available when jQueryTemplating is used.

Code Sample


         //Initialize
        $(".selector").igTreeGrid({
            renderCheckboxes : true
        });

        //Get
        var renderCheckboxes = $(".selector").igTreeGrid("option", "renderCheckboxes");

        //Set
        $(".selector").igTreeGrid("option", "renderCheckboxes", true);

renderExpansionCellFunction

Type:: enumeration
Default:: null

a reference or name of a javascript function which renders expand indicators(called ONLY IF option renderExpansionIndicatorColumn is true).

Code Sample



        //Initialize
			$(".selector").igTreeGrid({
				renderExpansionCellFunction :  function(rowData) {
						var html = '<td data-expand-cell="1" data-skip="true">', span = "";
						if(rowData.hasExpandCell){
							if(rowData.expand){
								span = '<span data-expandcell-indicator="1" class="ui-igtreegrid-expansion-column-container" style="padding-left:30px;"><span data-expand-button class="ui-icon ui-igtreegrid-expansion-indicator ui-icon-minus" title="Click here to collapse the row" tabIndex="0"></span></span>';
							} else {
								span = '<span data-expandcell-indicator="1" class="ui-igtreegrid-expansion-column-container" style="padding-left:30px;"><span data-expand-button class="ui-icon ui-igtreegrid-expansion-indicator ui-icon-plus" title="Click here to expand the row" tabIndex="0"></span></span>';
							}
							html += span;
						}
						html +=	'</td>';
						return html;
				}
        });

        //Get
        var renderExpansionCellFunction = $(".selector").igTreeGrid("option", "renderExpansionCellFunction");

renderExpansionIndicatorColumn

Type:: bool
Default:: false

Specify whether to render non-data column which contains expander indicators.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            renderExpansionIndicatorColumn : true
        });

        //Get
        var renderExpansionIndicatorColumn = $(".selector").igTreeGrid("option", "renderExpansionIndicatorColumn");

renderFirstDataCellFunction

Type:: enumeration
Default:: null

a reference or name of a javascript function which changes first data cell - renders indentation according to databound level.

Code Sample


       //Initialize
			$(".selector").igTreeGrid({
				renderFirstDataCellFunction : function(markup, rowData){
					var idxStart, TDSmarkup;
					idxStart = markup.indexOf("<td");
					TDSmarkup = markup.substring(idxStart);
					return TDSmarkup;
				}
			});

        //Get
        var renderFirstDataCellFunction = $(".selector").igTreeGrid("option", "renderFirstDataCellFunction");

requestType
Inherited

Type:: string
Default:: "GET"

Specifies the HTTP verb to be used to issue the request.

Code Sample


       //Initialize
        $(".selector").igTreeGrid({
            requestType : "post"
        });

        //Get
        var requestType = $(".selector").igTreeGrid("option", "requestType");

requiresDataBinding
Inherited

Type:

bool

Default:

true

This is an internal option and should not be used.

responseContentType
Inherited

Type:: string
Default:: "application/json; charset=utf-8"

Content type of the response. See http://api.jquery.com/jQuery.ajax/ => contentType.

Code Sample


       //Initialize
        $(".selector").igTreeGrid({
            responseContentType : "application/json; charset=utf-8"
        });

        //Get
        var responseContentType = $(".selector").igTreeGrid("option", "responseContentType");

responseDataKey
Inherited

Type:: string
Default:: null

See $.ig.DataSource. This is basically the property in the responses where data records are held, if the response is wrapped.

Code Sample


       //Initialize
        $(".selector").igTreeGrid({
            responseDataKey : "records"
        });

        //Get
        var responseKey = $(".selector").igTreeGrid("option", "responseDataKey");

responseTotalRecCountKey
Inherited

Type:: string
Default:: null

See $.ig.DataSource. Property in the response specifying the total number of records on the server.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            responseTotalRecCountKey : "totalRecords"
        });

        //Get
        var recordsCount = $(".selector").igTreeGrid("option", "responseTotalRecCountKey");

restSettings
Inherited

Type:: object
Default:: {}

Settings related to REST compliant update routine.

Code Sample


          //Initialize
        $(".selector").igTreeGrid({
            restSettings : {
                create: {
                    url: "/api/customers/",
                    batch: true
                },
                update: {
                    url: "/api/customers/",
                    batch: true
                }
                remove: {
                    url: "/api/customers/",
                    batch: true
                }
            }
        });

        //Get
        var restSettings = $(".selector").igTreeGrid("option", "restSettings");

contentSerializer

Type:: function
Default:: null

Specifies a custom function to serialize content sent to the server. It should accept a single object or an array of objects and return a string. If not specified, JSON.stringify() will be used.

Code Sample

            //Initialize
                        $(".selector").igTreeGrid({
                            restSettings : {
                                contentSerializer : "customSerializeFunction" ; // the name of the function, it can be also a reference to a function
                            }
                        });

                    //Get
                        var restSettings = $(".selector").igTreeGrid("option", "restSettings");
                        var contentSerializerSetting = restSettings.contentSerializer;

contentType

Type:: string
Default:: "application/json; charset=utf-8"

Specifies the content type of the request.

Code Sample


           //Initialize
                        $(".selector").igTreeGrid({
                            restSettings : {
                                contentType : "application/json; charset=utf-8";
                            }
                        });

                   //Get
                        var restSettings = $(".selector").igTreeGrid("option", "restSettings");
                        var contentTypeSetting = restSettings.contentType;

create

Type:: object
Default:: {}

Settings for create requests.

Code Sample


            //Initialize
        $(".selector").igTreeGrid({
            restSettings : {
                create: {
                    url: "/api/customers/",
                    batch: true
                }
            }
        });

        //Get
        var restSettings = $(".selector").igTreeGrid("option", "restSettings");
        var createRestSettings = restSettings.create;

batch

Type:: bool
Default:: false

Specifies whether create requests will be sent in batches.

Code Sample

                //Initialize
        $(".selector").igTreeGrid({
            restSettings : {
                create: {
                    url: "/api/customers/",
                    batch: true
                }
            }
        });

        //Get
        var restSettings = $(".selector").igTreeGrid("option", "restSettings");
        var batch = restSettings.create.batch;

template

Type:: string
Default:: null

Specifies a remote URL template. Use ${id} in place of the resource id.

Code Sample


               //Initialize
        $(".selector").igTreeGrid({
            restSettings : {
                create: {
                    template: "/api/customers/"
                }
            }
        });

        //Get
        var restSettings = $(".selector").igTreeGrid("option", "restSettings");
        var template = restSettings.create.template;

url

Type:: string
Default:: null

Specifies a remote URL to which create requests will be sent. This will be used for both batch and non-batch, however if template is also set, this URL will only be used for batch requests.

Code Sample


               //Initialize
        $(".selector").igTreeGrid({
            restSettings : {
                create: {
                    url: "/api/customers/",
                    batch: true
                }
            }
        });

        //Get
        var restSettings = $(".selector").igTreeGrid("option", "restSettings");
        var url = restSettings.create.url;

encodeRemoveInRequestUri

Type:: bool
Default:: true

Specifies whether the ids of the removed resources are send through the request URI.

Code Sample


           //Initialize
        $(".selector").igTreeGrid({
            restSettings : {
                encodeRemoveInRequestUri: true
            }
        });

        //Get
        var restSettings = $(".selector").igTreeGrid("option", "restSettings");
        var encodeRemoveInRequestUri = restSettings.encodeRemoveInRequestUri;

remove

Type:: object
Default:: {}

Settings for remove requests.

Code Sample

           //Initialize
        $(".selector").igTreeGrid({
            restSettings : {
                remove: {
                    url: "/api/customers/",
                    batch: true
                }
            }
        });

        //Get
        var restSettings = $(".selector").igTreeGrid("option", "restSettings");
        var removeRestSettings = restSettings.remove;

batch

Type:: bool
Default:: false

Specifies whether update requests will be sent in batches.

Code Sample


                //Initialize
        $(".selector").igTreeGrid({
            restSettings : {
                remove: {
                    url: "/api/customers/",
                    batch: true
                }
            }
        });

        //Get
        var restSettings = $(".selector").igTreeGrid("option", "restSettings");
        var batch = restSettings.remove.batch;

template

Type:: string
Default:: null

Specifies a remote URL template. Use ${id} in place of the resource id.

Code Sample


                //Initialize
        $(".selector").igTreeGrid({
            restSettings : {
                remove: {
                    template: "/api/customers/${id}"
                }
            }
        });

        //Get
        var restSettings = $(".selector").igTreeGrid("option", "restSettings");
        var template = restSettings.remove.template;

url

Type:: string
Default:: null

Specifies a remote URL to which remove requests will be sent. This will be used for both batch and non-batch, however if template is also set, this URL will only be used for batch requests.

Code Sample


                //Initialize
        $(".selector").igTreeGrid({
            restSettings : {
                remove: {
                    url: "/api/customers/",
                    batch: true
                }
            }
        });

        //Get
        var restSettings = $(".selector").igTreeGrid("option", "restSettings");
        var url = restSettings.remove.url;

update

Type:: object
Default:: {}

Settings for update requests.

Code Sample

            //Initialize
        $(".selector").igTreeGrid({
            restSettings : {
                update: {
                    url: "/api/customers/",
                    batch: true
                }
            }
        });

        //Get
        var restSettings = $(".selector").igTreeGrid("option", "restSettings");
        var updateRestSettings = restSettings.updat

batch

Type:: bool
Default:: false

Specifies whether update requests will be sent in batches.

Code Sample


                  //Initialize
        $(".selector").igTreeGrid({
            restSettings : {
                update: {
                    url: "/api/customers/",
                    batch: true
                }
            }
        });

        //Get
        var restSettings = $(".selector").igTreeGrid("option", "restSettings");
        var batch = restSettings.update.batch;

template

Type:: string
Default:: null

Specifies a remote URL template. Use ${id} in place of the resource id.

Code Sample


               //Initialize
        $(".selector").igTreeGrid({
            restSettings : {
                update: {
                    template: "/api/customers/${id}"
                }
            }
        });

        //Get
        var restSettings = $(".selector").igTreeGrid("option", "restSettings");
        var template = restSettings.update.template;

url

Type:: string
Default:: null

Specifies a remote URL to which update requests will be sent. This will be used for both batch and non-batch, however if template is also set, this URL will only be used for batch requests.

Code Sample

               //Initialize
        $(".selector").igTreeGrid({
            restSettings : {
                update: {
                    url: "/api/customers/",
                    batch: true
                }
            }
        });

        //Get
        var restSettings = $(".selector").igTreeGrid("option", "restSettings");
        var url = restSettings.update.url;

rowTemplate
Inherited

Type:

string

Default:

null

*** IMPORTANT DEPRECATED ***
This option has been deprecated as of the 14.1 release. The igGrid now uses column templates for individual column templating.
jQuery templating style template that will be used to render data records.

rowVirtualization
Inherited

Type:: bool
Default:: false

Option to enable virtualization for rows only (vertical).

Code Sample


       //Initialize
        $(".selector").igTreeGrid({
            rowVirtualization : true
        });

        //Get
        var virtualization = $(".selector").igTreeGrid("option", "rowVirtualization");

serializeTransactionLog
Inherited

Type:

bool

Default:

true
If true, the transaction log will always be sent in the request for remote data, by the data source. Also this means that if there are values in the log, a POST will be done instead of GET.
Code Sample
```

         //Initialize
        $(".selector").igTreeGrid({
            serializeTransactionLog : false
        });

        //Get
        var log = $(".selector").igTreeGrid("option", "serializeTransactionLog");

```

showExpansionIndicator

Type:: bool
Default:: true

Specifies if rows(that have child rows) will have an expander image that will allow end users to expand and collapse them. This option can be set only at initialization.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            showExpansionIndicator : false
        });

        //Get
        var log = $(".selector").igTreeGrid("option", "showExpansionIndicator");

showFooter
Inherited

Type:: bool
Default:: true

Option controlling the visibility of the grid footer.

Code Sample

        //Initialize
        $(".selector").igTreeGrid({
            showFooter : false
        });

        //Get
        var showFooter = $(".selector").igTreeGrid("option", "showFooter");

        //Set
        $(".selector").igTreeGrid("option", "showFooter", false);

showHeader
Inherited

Type:: bool
Default:: true

Option controlling the visibility of the grid header.

Code Sample

        //Initialize
        $(".selector").igTreeGrid({
            showHeader : false
        });

        //Get
        var showHeader = $(".selector").igTreeGrid("option", "showHeader");

        //Set
        $(".selector").igTreeGrid("option", "showHeader", false);

tabIndex
Inherited

Type:: number
Default:: 0

Initial tabIndex attribute that will be set on the container element.

Code Sample


      //Initialize
        $(".selector").igTreeGrid({
            tabIndex : 3
        });

        //Get
        var tabIndex = $(".selector").igTreeGrid("option", "tabIndex");

templatingEngine
Inherited

Type:

enumeration

Default:

infragistics
the templating engine that will be used to render the grid.
Members
- infragistics
- Type:string
- the grid will use the Infragistics Templating engine to render its content and specific parts of the UI.
- jsRender
- Type:string
- the grid will use jsRender to render its content and specific parts of the UI.
Code Sample
```

        //Initialize
        $(".selector").igTreeGrid({
            templatingEngine : "jsRender"
        });

        //Get
        var templatingEngine = $(".selector").igTreeGrid("option", "templatingEngine");

```

updateUrl
Inherited

Type:: string
Default:: null

URL to which updating requests will be made. If autoCommit is true, updates will be done immediately to the data source, without keeping interim transaction logs.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            updateUrl : "http://mydomain.com/UpdateCustomer"
        });

        //Get
        var updateUrl = $(".selector").igTreeGrid("option", "updateUrl");

virtualization
Inherited

Type:

bool

Default:

false
Enables/disables virtualization. Virtualization can greatly enhance rendering performance. If enabled, the number of actual rendered rows (DOM elements) will be constant and related to the visible viewport of the grid. As the end user scrolls, those DOM elements will be dynamically reused to render the new data.
Code Sample
```

      //Initialize
        $(".selector").igTreeGrid({
            virtualization : true
        });

        //Get
        var virtualization = $(".selector").igTreeGrid("option", "virtualization");

```
virtualizationMode
Inherited

Type:

enumeration

Default:

fixed
Determines virtualization mode.
Members
- fixed
- Type:string
- renders only the visible rows and/or columns in the grid. On scrolling the same rows and/or columns are updated with new data from the data source.
- continuous
- Type:string
- renders a pre-defined number of rows in the grid. On scrolling the continuous virtualization loads another portion of rows and disposes the current one.
Code Sample
```

       //Initialize
        $(".selector").igTreeGrid({
            virtualizationMode : "continuous"
        });

        //Get
        var virtualizationMode = $(".selector").igTreeGrid("option", "virtualizationMode");

        //Set
        $(".selector").igTreeGrid("option", "virtualizationMode", "continuous");

```

virtualizationMouseWheelStep
Inherited

Type:: number
Default:: null

Number of pixels to move the grid when virtualization is enabled, and mouse wheel scrolling is performed over the virtual grid area. The "null" value will assume this is set to avgRowHeight.

Code Sample

       //Initialize
        $(".selector").igTreeGrid({
            virtualizationMouseWheelStep : 50
        });

        //Get
        var virtualizationStep = $(".selector").igTreeGrid("option", "virtualizationMouseWheelStep");
        //Set
        $(".selector").igTreeGrid("option", "virtualizationMouseWheelStep", 50);

width
Inherited

Type:: enumeration
Default:: null

Members

null
Type:object
will stretch to fit data, if no other widths are defined.

string
The widget width can be set in pixels (px) and percentage (%).
number
The widget width can be set as a number.

Code Sample


       //Initialize
        $(".selector").igTreeGrid({
            width : "800px"
        });

        //Get
        var width = $(".selector").igTreeGrid("option", "width");

        //Set
        $(".selector").igTreeGrid("option", "width", "800px");

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details

cellClick
Inherited

Cancellable:: false

Event fired when a cell is clicked.
Function takes arguments evt and ui.
Use ui.cellElement to get reference to cell DOM element.
Use ui.rowIndex to get row index.
Use ui.rowKey to get the row key.
Use ui.colIndex to get column index of the DOM element.
Use ui.colKey to get the column key.
Use ui.owner to get reference to igGrid.

Code Sample


        //Delegate
        $(document).delegate(".selector", "igtreegridcellclick", function (evt, ui) {
            //return cell html element in the DOM
            ui.cellElement;
            //return row index
            ui.rowIndex;
            //return row key
            ui.rowKey;
            //return col index
            ui.colIndex;
            //return col key
            ui.colKey;
            //return reference to igTreeGrid
            ui.owner;
        });

        //Initialize
        $(".selector").igTreeGrid({
            cellClick: function(evt, ui) {...}
        });

cellRightClick
Inherited

Cancellable:: false

Event fired when a cell is right clicked.
Function takes arguments evt and ui.
Use ui.cellElement to get reference to cell DOM element.
Use ui.rowIndex to get row index.
Use ui.rowKey to get the row key.
Use ui.colIndex to get column index of the DOM element.
Use ui.colKey to get the column key.
Use ui.row to get reference to row DOM element.
Use ui.owner to get reference to igGrid.

Code Sample


      //Delegate
        $(document).delegate(".selector", "igtreegridcellrightclick", function (evt, ui) {
            //return cell html element in the DOM
            ui.cellElement;
            //return row index
            ui.rowIndex;
            //return row key
            ui.rowKey;
            //return col index of the DOM element
            ui.colIndex;
            //return col key
            ui.colKey;
            //return reference to igTreeGrid
            ui.owner;
        });

        //Initialize
        $(".selector").igTreeGrid({
            cellRightClick: function(evt, ui) {...}
        });

columnsCollectionModified
Inherited

Cancellable:: false

Event fired after the columns colection has been modified(e.g. a column is hidden)
Function takes arguments evt and ui.
Use ui.owner to get reference to igGrid.

Code Sample


       //Delegate
        $(document).delegate(".selector", "igtreegridcolumnscollectionmodified", function (evt, ui) {
            //return reference to igTreeGrid
            ui.owner;
        });

        //Initialize
        $(".selector").igTreeGrid({
            columnsCollectionModified: function(evt, ui) {...}
        });

created
Inherited

Cancellable:: false

Fired when the grid is created and the initial structure is rendered (this doesn't necessarily imply the data will be there if the data source is remote)
use ui.owner to get a reference to the grid.

Code Sample


       //Delegate before the igTreeGrid initialization code
        $(document).delegate(".selector", "igcontrolcreated", function (evt, ui) {
            //return reference to igTreeGrid
            ui.owner;
        });

dataBinding
Inherited

Cancellable:: true

Event fired before data binding takes place.
Return false in order to cancel data binding.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGrid.
Use ui.dataSource to get reference to the igDataSource object.

Code Sample


        //Delegate
        $(document).delegate(".selector", "igtreegriddatabinding", function (evt, ui) {
            //return reference to igTreeGrid
            ui.owner;
        });

        //Initialize
        $(".selector").igTreeGrid({
            dataBinding: function(evt, ui) {...}
        });

dataBound
Inherited

Cancellable:: false

Event fired after data binding is complete.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGrid.
Use ui.dataSource to get reference to the igDataSource object.

Code Sample


       //Delegate
        $(document).delegate(".selector", "igtreegriddatabound", function (evt, ui) {
            //return reference to igTreeGrid
            ui.owner;
        });

        //Initialize
        $(".selector").igTreeGrid({
            dataBound: function(evt, ui) {...}
        });

dataRendered
Inherited

Cancellable:: false

Event fired after all of the data records in the grid table body have been rendered.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGrid.

Code Sample


       //Delegate
        $(document).delegate(".selector", "igtreegriddatarendered", function (evt, ui) {
            //return reference to igTreeGrid
            ui.owner;
        });

        //Initialize
        $(".selector").igTreeGrid({
            dataRendered: function(evt, ui) {...}
        });

dataRendering
Inherited

Cancellable:: true

Event fired before the TBODY holding the data records starts its rendering.
Return false in order to cancel data records rendering.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGrid.

Code Sample


       //Delegate
        $(document).delegate(".selector", "igtreegriddatarendering", function (evt, ui) {
            //return reference to igTreeGrid
            ui.owner;
            //return grid's table body DOM element
            ui.tbody;
        });

        //Initialize
        $(".selector").igTreeGrid({
            dataRendering: function(evt, ui) {...}
        });

destroyed
Inherited

Cancellable:: false

Fired when the grid is destroyed
use ui.owner to get a reference to the grid.

Code Sample


       //Delegate
        $(document).delegate(".selector", "igcontroldestroyed", function (evt, ui) {
            //return reference to igTreeGrid
            ui.owner;
        });

footerRendered
Inherited

Cancellable:: false

Event fired after the footer has been rendered.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGrid.
Use ui.table to get reference to footers table DOM element.

Code Sample


       //Initialize
        $(".selector").igTreeGrid({
            footerRendered: function(evt, ui) {
                //return reference to igTreeGrid
                ui.owner;
                //return footer html element in the DOM
                ui.table;
            }
        });

footerRendering
Inherited

Cancellable:: true

Event fired before the footer starts its rendering.
Return false in order to cancel footer rendering.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGrid.

Code Sample


      //Initialize
        $(".selector").igTreeGrid({
            footerRendering: function(evt, ui) {
                //return reference to igTreeGrid
                ui.owner;
            }
        });

headerCellRendered
Inherited

Cancellable:: false

Event fired after every TH in the grid header has been rendered.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGrid.
Use ui.columnKey to get column key.
Use ui.th to get reference to header cell DOM element.

Code Sample


        //Initialize
        $(".selector").igTreeGrid({
            headerCellRendered: function(evt, ui) {
                //return reference to igTreeGrid
                ui.owner;
                //return column key
                ui.columnKey;
                //return header cell DOM element
                ui.th;
            }
        });

headerRendered
Inherited

Cancellable:: false

Event fired after the header has been rendered.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGrid.
Use ui.table to get reference to headers table DOM element.

Code Sample


       //Initialize
        $(".selector").igTreeGrid({
            headerRendered: function(evt, ui) {
                //return reference to igTreeGrid
                ui.owner;
                //return headers table DOM element
                ui.table;
            }
        });

headerRendering
Inherited

Cancellable:

true

Event fired before the header starts its rendering.
Return false in order to cancel header rendering.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGrid.
Code Sample
```
       //Initialize
        $(".selector").igTreeGrid({
            headerRendering: function(evt, ui) {
                //return reference to igTreeGrid
                ui.owner;
            }
        });

```
rendered
Inherited

Cancellable:

false

Event fired after the whole grid widget has been rendered (including headers, footers, etc.).
This event is fired only when the grid is being initialized.
It will not be fired if the grid is rebound to its data
(for example, when calling the dataBind() API method
or when changing the page size (when paging is enabled)).
Function takes arguments evt and ui.
Use ui.owner to get reference to igGrid.
Code Sample
```
      //Initialize
        $(".selector").igTreeGrid({
            rendered: function(evt, ui) {
                //return reference to igTreeGrid
                ui.owner;
            }
        });

```
rendering
Inherited

Cancellable:

true

Event fired before the grid starts rendering (all contents).
This event is fired only when the grid is being initialized.
It will not be fired if the grid is rebound to its data
(for example, when calling the dataBind() API method
or when changing the page size (when paging is enabled)).
Return false in order to cancel grid rendering.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGrid.
Code Sample
```

       //Delegate
        $(document).delegate(".selector", "igtreegridrendering", function (evt, ui) {
            //return reference to igTreeGrid
            ui.owner;
        });

        //Initialize
        $(".selector").igTreeGrid({
            rendering: function(evt, ui) {...}
        });

```

requestError
Inherited

Cancellable:: false

Event fired if there is an error in the request, when the grid is doing a remote operation,
such as data binding, paging, sorting, etc.
use ui.owner to get a reference to the grid
use ui.message to get the processed error message sent by the server
use ui.response to get reference to the whole response object.

Code Sample


        //Delegate
        $(document).delegate(".selector", 'igtreegridrequesterror', function (evt, ui) {
            //return reference to igTreeGrid
            ui.owner
            //return error message coming from the server
            ui.message
        });

        //Initialize
        $(".selector").igTreeGrid({
            requestError: function(evt, ui) {...}
        });

rowCollapsed

Cancellable:: false

Fired after a row is collapsed
use args.owner to access the instance of the igTreeGrid
use args.row to access the row element (as a wrapped jQuery object) that is about to be expanded
use args.fixedRow to access the row element (as a jQuery wrapped object) in a fixed column that is about to expanded. If there are no fixed columns then this property returns undefined.
use args.dataLevel to access the level in the hierarchy associated with the row
use args.dataRecord to access the source data record.

Code Sample


        //Delegate
        $(document).delegate(".selector", "igtreegridrowcollapsed", function (evt, ui) {
            //return reference to igTreeGrid
            ui.owner
            //return row element that is expanded
            ui.row
            //return row element in the fixed columns area when Column Fixing is enabled. If there are no fixed columns then this property returns undefined.
            ui.fixedRow
            // return the level in the hierarchy associated with the row
            ui.dataLevel
            // return the data record
            ui.dataRecord
        });

        //Initialize
        $(".selector").igTreeGrid({
            rowCollapsed: function (evt, ui) {...}
        });

rowCollapsing

Cancellable:: true

Fired when a row is about to be collapsed.
use args.owner to access the instance of the igTreeGrid
use args.row to access the row element (as a wrapped jQuery object) that is about to be expanded
use args.fixedRow to access the row element (as a jQuery wrapped object) in a fixed column that is about to expanded. If there are no fixed columns then this property returns undefined.
use args.dataLevel to access the level in the hierarchy associated with the row.

Code Sample


        //Delegate
        $(document).delegate(".selector", "igtreegridrowcollapsing", function (evt, ui) {
            //return reference to igTreeGrid
            ui.owner
            //return row element that is expanded
            ui.row
            //return row element in the fixed columns area when Column Fixing is enabled. If there are no fixed columns then this property returns undefined.
            ui.fixedRow
            // return the level in the hierarchy associated with the row
            ui.dataLevel
        });

        //Initialize
        $(".selector").igTreeGrid({
            rowCollapsing: function (evt, ui) {...}
        });

rowExpanded

Cancellable:: false

Fired when a row is expanded.
use args.owner to access the instance of the igTreeGrid
use args.row to access the row element (as a wrapped jQuery object) that is about to be expanded
use args.fixedRow to access the row element (as a jQuery wrapped object) in a fixed column that is about to expanded. If there are no fixed columns then this property returns undefined.
use args.dataLevel to access the level in the hierarchy associated with the row
use args.dataRecord to access the source data record.

Code Sample


        //Delegate
        $(document).delegate(".selector", "igtreegridrowexpanded", function (evt, ui) {
            //return reference to igTreeGrid
            ui.owner
            //return row element that is expanded
            ui.row
            //return row element in the fixed columns area when Column Fixing is enabled. If there are no fixed columns then this property returns undefined.
            ui.fixedRow
            // return the level in the hierarchy associated with the row
            ui.dataLevel
        });

        //Initialize
        $(".selector").igTreeGrid({
          rowExpanded: function (evt, ui) {...}
        });

rowExpanding

Cancellable:: true

Fired when a row is about to be expanded.
use args.owner to access the instance of the igTreeGrid
use args.row to access the row element (as a wrapped jQuery object) that is about to be expanded
use args.fixedRow to access the row element (as a jQuery wrapped object) in a fixed column that is about to expanded. If there are no fixed columns then this property returns undefined.
use args.dataLevel to access the level in the hierarchy associated with the row.

Code Sample


        //Delegate
        $(document).delegate(".selector", "igtreegridrowexpanding", function (evt, ui) {
            //return reference to igTreeGrid
            ui.owner
            //return row element that is expanded
            ui.row
            //return row element in the fixed columns area when Column Fixing is enabled. If there are no fixed columns then this property returns undefined.
            ui.fixedRow
            // return the level in the hierarchy associated with the row
            ui.dataLevel
        });

        //Initialize
        $(".selector").igTreeGrid({
          rowExpanding: function (evt, ui) {...}
        });

rowsRendered
Inherited

Cancellable:: false

Event fired after data rows are rendered.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGrid.
Use ui.tbody to get reference to grid's table body.

Code Sample


      //Delegate
        $(document).delegate(".selector", "igtreegridrowsrendered", function (evt, ui) {
            //return reference to igTreeGrid
            ui.owner;
            //return grid's table body DOM element
            ui.tbody;
        });

        //Initialize
        $(".selector").igTreeGrid({
            rowsRendered: function(evt, ui) {...}
        });

rowsRendering
Inherited

Cancellable:: true

Event fired before actual data rows (TRs) are rendered.
Return false in order to cancel rows rendering.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGrid.
Use ui.tbody to get reference to grid's table body.

Code Sample


       //Delegate
        $(document).delegate(".selector", "igtreegridrowsrendering", function (evt, ui) {
            //return reference to igTreeGrid
            ui.owner;
            //return grid's table body
            ui.tbody;
        });

        //Initialize
        $(".selector").igTreeGrid({
            rowsRendering: function(evt, ui) {...}
        });

schemaGenerated
Inherited

Cancellable:: false

Event fired after $.ig.DataSource schema has been generated, in case it needs to be modified.
Function takes arguments evt and ui.
Use ui.owner to get reference to igGrid.
Use ui.schema to get reference to data source schema.
Use ui.dataSource to get reference to data source.

Code Sample


       //Delegate
        $(document).delegate(".selector", "igtreegridschemagenerated", function (evt, ui) {
            //return reference to igTreeGrid
            ui.owner;
            //return data source schema
            ui.schema;
            //return reference to data source
            ui.dataSource;
        });

        //Initialize
        $(".selector").igTreeGrid({
            schemaGenerated: function(evt, ui) {...}
        });

Show Details

activeCell
Inherited

.igTreeGrid( "activeCell" );

Return Type:

object
Returns the currently active (focused) cell that has the format { element: , row: , index: , rowIndex: , columnKey: }, if any.
Code Sample
```
  var cell = $(".selector").igTreeGrid("activeCell");
```
activeRow
Inherited

.igTreeGrid( "activeRow" );

Return Type:

object
Returns the currently active (focused) row that has the format { element: , index: }, if any.
Code Sample
```

      var row = $(".selector").igTreeGrid("activeRow");

```
allFixedRows
Inherited

.igTreeGrid( "allFixedRows" );

Return Type:

array
Returns all data fixed rows recursively, not only the immediate ones(in ColumnFixing scenario - only when there is at least one fixed column).
Code Sample
```

      var fixedRows = $(".selector").igTreeGrid("allFixedRows");

```
allRows
Inherited

.igTreeGrid( "allRows" );

Return Type:

array
Returns all data rows recursively, not only the immediate ones(when there is at least one fixed column returns rows only in the UNFIXED table).
Code Sample
```
       var rows = $(".selector").igTreeGrid("allRows");

```
allTransactions
Inherited

.igTreeGrid( "allTransactions" );

Return Type:

array
Returns a list of all transaction objects that are either pending, or have been committed in the data source.
That is a wrapper for this.dataSource.allTransactions().
Code Sample
```

      var transactions = $(".selector").igTreeGrid("allTransactions");

```
autoSizeColumns
Inherited

.igTreeGrid( "autoSizeColumns" );
Auto resize columns that have property width set to "*" so content to be auto-fitted(not shrinked/cutted). Auto-resizing is applied ONLY for visible columns.
Code Sample
```

      $(".selector").igTreeGrid("autoSizeColumns");

```
calculateAutoFitColumnWidth
Inherited

.igTreeGrid( "calculateAutoFitColumnWidth", columnIndex:number );

Return Type:

number

Return Type Description:

Calculated auto-fitted width(-1 if there isn't visible column with the specified columnIndex).
Calculates the width of the column so its content to be auto-fitted to the width of the data in it(the content should NOT be shrinked/cutted).
- columnIndex
- Type:number
- Visible column index.
Code Sample
```

      var autoFitColumnWidth = $(".selector").igTreeGrid("calculateAutoFitColumnWidth", 3);

```
cellAt
Inherited

.igTreeGrid( "cellAt", x:number, y:number, isFixed:bool );

Return Type:

domelement

Return Type Description:

The cell at (x, y).
Returns the cell TD element at the specified location.
- x
- Type:number
- The column index.
- y
- Type:number
- The row index.
- isFixed
- Type:bool
- Optional parameter - if true get cell TD at the specified location from the fixed table.
Code Sample
```

       var cell = $(".selector").igTreeGrid("cellAt", 3, 4);

```
cellById
Inherited

.igTreeGrid( "cellById", rowId:object, columnKey:string );

Return Type:

domelement

Return Type Description:

The cell for (rowId, columnKey).
Returns the cell TD element by row id and column key.
- rowId
- Type:object
- The id of the row.
- columnKey
- Type:string
- The column key.
Code Sample
```

      var cell = $(".selector").igTreeGrid("cellById", 3, "ProductName");

```
children
Inherited

.igTreeGrid( "children" );

Return Type:

array
Gets all igGrid children's elements of the current grid, recursively.
Code Sample
```

      var allChildren = $(".selector").igTreeGrid("children");

```
childrenWidgets
Inherited

.igTreeGrid( "childrenWidgets" );

Return Type:

array
Gets all igGrid children of the current grid, recursively.
Code Sample
```
      var allChildrenWidgets = $(".selector").igTreeGrid("childrenWidgets");

```
collapseRow

.igTreeGrid( "collapseRow", row:object, [callback:function] );
Collapses a parent row by specified row or row identifier.
- row
- Type:object
- jQuery table row object, raw DOM row object or a row id.
- callback
- Type:function
- Optional
- Specifies a custom function to be called when row is expanded/collapsed. The callback has 4 arguments- a reference to the current context(this), object that holds 2 properties(unfixedRow - DOM representation of the unfixed row, fixedRow - DOM representation of the fixed row, if there is no fixed columns it is undefined), reference to the dataRecord, expand - specifies whether row is expanded.
Code Sample
```

      $(".selector").igTreeGrid("collapseRow",0);

```
columnByKey
Inherited

.igTreeGrid( "columnByKey", key:string );

Return Type:

object

Return Type Description:

a column definition.
Returns a column object by the specified column key.
- key
- Type:string
- The column key.
Code Sample
```

       var col = $(".selector").igTreeGrid("columnsByKey", "ProductName");

```
columnByText
Inherited

.igTreeGrid( "columnByText", text:string );

Return Type:

object

Return Type Description:

a column definition.
Returns a column object by the specified header text. If there are multiple matches, returns the first one.
- text
- Type:string
- The column header text.
Code Sample
```

      var col = $(".selector").igTreeGrid("columnByText", "Product Name");

```
commit
Inherited

.igTreeGrid( "commit", [rowId:object] );
Commits all pending transactions to the client data source. Note that there won't be anything to commit on the UI, since it is updated instantly. In order to rollback the actual UI, a call to dataBind() is required.
- rowId
- Type:object
- Optional
- If specified, will commit only that transaction corresponding to the specified record key.
Code Sample
```

       $(".selector").igTreeGrid("commit");

```
container
Inherited

.igTreeGrid( "container" );

Return Type:

domelement
Returns the DIV that is the topmost container of the grid widget.
Code Sample
```
 var containerDiv = $(".selector").igTreeGrid("container");
```
dataBind

.igTreeGrid( "dataBind" );
Causes the treegrid to data bind to the data source (local or remote) , and re-render all of the data.
Code Sample
```

      $(".selector").igTreeGrid("dataBind");

```
dataSourceObject
Inherited

.igTreeGrid( "dataSourceObject", dataSource:object );
If the data source points to a local JSON array of data, and it is necessary to reset it at runtime, it must be done through this API member instead of the options (options.dataSource).
- dataSource
- Type:object
- New data source object.
Code Sample
```
 $(".selector").igTreeGrid("dataSourceObject", jsonData);
```
destroy

.igTreeGrid( "destroy" );

Return Type:

object

Return Type Description:

Returns reference to this igTreeGrid.
Destroys igTreeGrid.
Code Sample
```

      $(".selector").igTreeGrid("destroy");

```
expandRow

.igTreeGrid( "expandRow", row:object, [callback:function] );
Expands a parent row by specified row or row identifier.
- row
- Type:object
- jQuery table row object or a row id.
- callback
- Type:function
- Optional
- Specifies a custom function to be called when row is expanded/collapsed. The callback has 4 arguments- a reference to the current context(this), object that holds 2 properties(unfixedRow - DOM representation of the unfixed row, fixedRow - DOM representation of the fixed row, if there is no fixed columns it is undefined), reference to the dataRecord, expand - specifies whether row is expanded.
Code Sample
```

      $("#treegrid2").igTreeGrid("expandRow",0);

```
findRecordByKey
Inherited

.igTreeGrid( "findRecordByKey", key:object );

Return Type:

object

Return Type Description:

a JavaScript object specifying the found record, or null if no record is found.
Returns a record by a specified key (requires that primaryKey is set in the settings).
That is a wrapper for this.dataSource.findRecordByKey(key).
- key
- Type:object
- Primary key of the record.
Code Sample
```

       var record = $(".selector").igTreeGrid("findRecordByKey", "AR-5381");

```
fixedBodyContainer
Inherited

.igTreeGrid( "fixedBodyContainer" );

Return Type:

domelement
Returns the DIV that is the topmost container of the fixed body grid - contains fixed columns(in ColumnFixing scenario).
Code Sample
```
  var fixedBodyContainer = $(".selector").igTreeGrid("fixedBodyContainer");
```
fixedContainer
Inherited

.igTreeGrid( "fixedContainer" );

Return Type:

domelement
Returns the DIV that is the topmost container of the fixed grid - contains fixed columns(in ColumnFixing scenario).
Code Sample
```

      var fixedContainer = $(".selector").igTreeGrid("fixedContainer");

```
fixedFooterContainer
Inherited

.igTreeGrid( "fixedFooterContainer" );

Return Type:

object

Return Type Description:

jQuery representation of fixed table.
Returns container(jQuery representation) containing fixed footer - contains fixed columns(in ColumnFixing scenario).
Code Sample
```

       var fixedFooterContainer = $(".selector").igTreeGrid("fixedFooterContainer");

```
fixedFootersTable
Inherited

.igTreeGrid( "fixedFootersTable" );

Return Type:

domelement
Returns the table that contains the footer cells - contains fixed columns(in ColumnFixing scenario).
Code Sample
```

      var fixedFootersTable = $(".selector").igTreeGrid("fixedFootersTable");

```
fixedHeaderContainer
Inherited

.igTreeGrid( "fixedHeaderContainer" );

Return Type:

object

Return Type Description:

jQuery representation of fixed table.
Returns container(jQuery representation) containing fixed header - contains fixed columns(in ColumnFixing scenario).
Code Sample
```

      var fixedHeaderContainer = $(".selector").igTreeGrid("fixedHeaderContainer");

```
fixedHeadersTable
Inherited

.igTreeGrid( "fixedHeadersTable" );

Return Type:

domelement
Returns the table that contains the FIXED header cells - contains fixed columns(in ColumnFixing scenario).
Code Sample
```

       var fixedHeadersTable = $(".selector").igTreeGrid("fixedHeadersTable");

```
fixedRowAt
Inherited

.igTreeGrid( "fixedRowAt", i:number );

Return Type:

domelement

Return Type Description:

the row at the specified index.
Returns the fixed row (TR element) at the specified index. jQuery selectors aren't used for performance reasons(in ColumnFixing scenario - only when there is at least one fixed column).
- i
- Type:number
- The row index.
Code Sample
```

       var fixedRow = $(".selector").igTreeGrid("fixedRowAt", 10);

```
fixedRows
Inherited

.igTreeGrid( "fixedRows" );

Return Type:

array
Returns a list of all fixed TR elements holding data in the grid(in ColumnFixing scenario - only when there is at least one fixed column).
Code Sample
```

        var fixedRows = $(".selector").igTreeGrid("fixedRows");

```
fixedTable
Inherited

.igTreeGrid( "fixedTable" );

Return Type:

object

Return Type Description:

jQuery representation of fixed table.
Returns the fixed table - contains fixed columns(in ColumnFixing scenario). If there aren't fixed columns returns the grid table.
Code Sample
```

       var fixedTable = $(".selector").igTreeGrid("fixedTable");

```
fixingDirection
Inherited

.igTreeGrid( "fixingDirection" );

Return Type:

enumeration

Return Type Description:

Can return 'left|right'.
Returns the current fixing direction. NOTE - use only if ColumnFixing feature is enabled.
Code Sample
```

      var fixingDirection = $('.selector').igTreeGrid("fixingDirection");

```
footersTable
Inherited

.igTreeGrid( "footersTable" );

Return Type:

domelement
Returns the table that contains the footer cells.
Code Sample
```

      var footer = $(".selector").igTreeGrid("footersTable");

```
getCellText
Inherited

.igTreeGrid( "getCellText", rowId:object, colKey:string );

Return Type:

string

Return Type Description:

the cell text for the respective cell.
Returns the cell text. If colKey is a number, the index of the column is used (instead of a column name)- does not apply when using a Multi-Row Layout grid.
This is the actual text (or HTML string) for the contents of the cell.
- rowId
- Type:object
- Row index or row data key (primary key).
- colKey
- Type:string
- Column key.
Code Sample
```

       var text = $(".selector").igTreeGrid("getCellText", 3, "ProductName");

```
getCellValue
Inherited

.igTreeGrid( "getCellValue", rowId:object, colKey:string );

Return Type:

object

Return Type Description:

The corresponding cell value.
Retrieves a cell value using the row index and the column key. If a primaryKey is defined, rowId is assumed to be the row Key (not index).
If primary key is not defined, then rowId is converted to a number and is used as a row index.
- rowId
- Type:object
- Row index or row key (primary key).
- colKey
- Type:string
- The column key.
Code Sample
```

        var date = $(".selector").igTreeGrid("getCellValue", 3, "ShipDate");

```
getColumnByTD
Inherited

.igTreeGrid( "getColumnByTD", $td:object );

Return Type:

object

Return Type Description:

object that contains the column object and the visible index to which the cell belongs to.
Returns column object and visible index for the table cell(TD) which is passed as argument.
- $td
- Type:object
- cell(TD) - either DOM TD element or jQuery object.
Code Sample
```

      var columnObject = $(".selector").igTreeGrid("getColumnByTD", $(".cellSelector"));

```
getDetachedRecord
Inherited

.igTreeGrid( "getDetachedRecord", t:object );

Return Type:

object

Return Type Description:

A copy of a record from the data source.
Returns a standalone object (copy) that represents the committed transactions, but detached from the data source.
That is a wrapper for this.dataSource.getDetachedRecord(t).
- t
- Type:object
- A transaction object.
Code Sample
```

        var ds = $(".selector").igTreeGrid("option", "dataSource");
        var transactionObject = ds.addRow(123, {
              Name: "CD Player",
              Price: "40",
              Rating: "4"
             }, true);
        var record = $(".selector").igTreeGrid("getDetachedRecord", transactionObject);

```
getElementInfo
Inherited

.igTreeGrid( "getElementInfo", elem:domelement );

Return Type:

object

Return Type Description:

Object that contains the following information on the passed DOM element:.
Returns an object that contains information on the passed Dom element
rowId - the id of the record associated with the element - if primaryKey is not set this will be null.
rowIndex - the index (in the DOM) of the row associated with the element.
recordIndex - index of the data record associated with this element in the current dataView.
columnObject - the column object associated with this element ( if the element is tr this will be null).
- elem
- Type:domelement
- The Dom element or jQuery object which can be a TD or TR element from the grid.
Code Sample
```

      var row = $(".selector").igTreeGrid("rowAt", 5);
      var elementInfo = $(".selector").igTreeGrid("getElementInfo", row);


```
getUnboundColumnByKey
Inherited

.igTreeGrid( "getUnboundColumnByKey", key:string );

Return Type:

object

Return Type Description:

a column definition.
Returns an unbound column with the specified key. If not found returns null.
- key
- Type:string
- a column key.
Code Sample
```

       // returns the unbound column with key "Total"
         var totalUC = $('.selector').igTreeGrid('getUnboundColumnByKey', 'Total');

```

getUnboundValues
Inherited

.igTreeGrid( "getUnboundValues", key:string );
Return Type:: object
Return Type Description:: unbound values.

Gets unbound values for the specified column key. If key is not specified returns all unboundvalues.

key
Type:string
column key.

Code Sample


       // returns the array of unbound values for the unbound column with key = "Total"
         var unboundValues = $('.selector').igTreeGrid('getUnboundValues', 'Total');

         // returns all unbound values in the igTreeGrid
          var allUnboundValues = $('.selector').igTreeGrid('getUnboundValues');

          // returns null if BoundColumnKey is a key of a bound column
          var boundColumnValues = $('.selector').igTreeGrid('getUnboundValues', 'BoundColumnKey');

getVisibleIndexByKey
Inherited

.igTreeGrid( "getVisibleIndexByKey", columnKey:string, includeDataSkip:bool );

Return Type:

number

Return Type Description:

returns visible index. If column is not found or column is hidden returns -1.
Get visible index by specified column key. If column is not found or is hidden then returns -1.
Note: Method does not count column groups (Multi-Column Headers).
- columnKey
- Type:string
- columnKey.
- includeDataSkip
- Type:bool
- Optional parameter - if set to true include non data columns(like expander column, row selectors column, etc.) in calculations.
Code Sample
```

     var visibleIndexByKey = $(".selector").igTreeGrid("getVisibleIndexByKey", "ProductName");

```
hasFixedColumns
Inherited

.igTreeGrid( "hasFixedColumns" );

Return Type:

bool
Returns true if grid has at least one fixed columns(even if a non-data column - like row-selectors column).
Code Sample
```

      var hasFixedColumns = $(".selector").igTreeGrid("hasFixedColumns");

```
hasFixedDataSkippedColumns
Inherited

.igTreeGrid( "hasFixedDataSkippedColumns" );

Return Type:

bool
Returns whether grid has non-data fixed columns(e.g. row selectors column).
Code Sample
```

       var hasFixedDataSkippedColumns = $(".selector").igTreeGrid("hasFixedDataSkippedColumns");

```
hasVerticalScrollbar
Inherited

.igTreeGrid( "hasVerticalScrollbar" );
Returns whether there is vertical scrollbar. Because of perfrormance issues in older Internet Explorer especially 8,9 - there is no need to check if height is not set - there is no scrollbar OR if row virtualization is enabled - it is supposed there is vertical scrollbar.
Code Sample
```

      var hasVerticalScrollbar = $(".selector").igTreeGrid("hasVerticalScrollbar");

```
headersTable
Inherited

.igTreeGrid( "headersTable" );

Return Type:

domelement
Returns the table that contains the header cells.
Code Sample
```

      var headers = $(".selector").igTreeGrid("headersTable");

```
hideColumn
Inherited

.igTreeGrid( "hideColumn", column:object, callback:function );
Hides a visible column. If the column is hidden the method does nothing.
Note: This method is asynchronous which means that it returns immediately and any subsequent code will execute in parallel. This may lead to runtime errors. To avoid them put the subsequent code in the callback parameter provided by the method.
- column
- Type:object
- An identifier for the column. If a number is provided it will be used as a column index else if a string is provided it will be used as a column key.
- callback
- Type:function
- Specifies a custom function to be called when the column is hidden(optional).
Code Sample
```
       $(".selector").igTreeGrid("hideColumn", 1);
        $(".selector").igTreeGrid("hideColumn", "ProductID");

```
id
Inherited

.igTreeGrid( "id" );

Return Type:

string
Returns the ID of the TABLE element where data records are rendered.
Code Sample
```

      var id = $(".selector").igTreeGrid("id");

```
immediateChildren
Inherited

.igTreeGrid( "immediateChildren" );

Return Type:

array
Gets all immediate igGrid children's elements of the current grid.
Code Sample
```

     var children = $(".selector").igTreeGrid("immediateChildren");

```
immediateChildrenWidgets
Inherited

.igTreeGrid( "immediateChildrenWidgets" );

Return Type:

array
Gets all immediate igGrid children of the current grid.
Code Sample
```

        var childrenWidgets = $(".selector").igTreeGrid("immediateChildrenWidgets");

```
isFixedColumn
Inherited

.igTreeGrid( "isFixedColumn", colKey:object );

Return Type:

bool
Returns whether the column with identifier colKey is fixed.
- colKey
- Type:object
- An identifier of the column which should be checked. It can be a key or visible index.
Code Sample
```

       var isFixedColumn = $(".selector").igTreeGrid("isFixedColumn", "Name");

```
isGroupHeader
Inherited

.igTreeGrid( "isGroupHeader", colKey:string );
Returns whether the header identified by colKey is multicolumn header(has children).
- colKey
- Type:string
- value of the column key.
moveColumn
Inherited

.igTreeGrid( "moveColumn", column:object, target:object, [after:bool], [inDom:bool], [callback:function] );
Moves a visible column at a specified place, in front or behind a target column or at a target index
Note: This method is asynchronous which means that it returns immediately and any subsequent code will execute in parallel. This may lead to runtime errors. To avoid them put the subsequent code in the callback parameter provided by the method.
- column
- Type:object
- An identifier of the column to be moved. It can be a key, a Multi-Column Header identificator, or an index in a number format. The latter is not supported when the grid contains multi-column headers.
- target
- Type:object
- An identifier of a column where the moved column should move to or an index at which the moved column should be moved to. In the case of a column identifier the column will be moved after it by default.
- after
- Type:bool
- Optional
- Specifies whether the column moved should be moved after or before the target column. This parameter is disregarded if there is no target column specified but a target index is used.
- inDom
- Type:bool
- Optional
- Specifies whether the column moving will be enacted through DOM manipulation or through rerendering of the grid.
- callback
- Type:function
- Optional
- Specifies a custom function to be called when the column is moved.
Code Sample
```

       $(".selector").igTreeGrid("moveColumn", "CustomerID", "Address", false, true);
      // OR
      $(".selector").igTreeGrid("moveColumn", "CustomerID", "Address", false, true, function () {
        // Custom code executed after the move operation finishes
      });

```
pendingTransactions
Inherited

.igTreeGrid( "pendingTransactions" );

Return Type:

array
Returns a list of all transaction objects that are pending to be committed or rolled back to the data source.
That is a wrapper for this.dataSource.pendingTransactions().
Code Sample
```

      var pendingTrans = $(".selector").igTreeGrid("pendingTransactions");

```

renderMultiColumnHeader
Inherited

.igTreeGrid( "renderMultiColumnHeader", cols:array );

When called the method re-renders the whole grid(also rebinds to the data source) and renders the cols object.

cols
Type:array
An array of column objects.

Code Sample


         var columns = [
            { headerText: "Customer ID", key: "CustomerID", dataType: "string", width: "100px" },
            { headerText: "Company Information",
                group: [
                    { headerText: "Company Name", key: "CompanyName", dataType: "string", width: "150px" },
                    { headerText: "Contact Name", key: "ContactName", dataType: "string", width: "150px" },
                    { headerText: "Contact Title", key: "ContactTitle", dataType: "string", width: "150px" }
                ]
            }
        ];

        $(".selector").igTreeGrid("renderMultiColumnHeader", columns);

renderNewChild

.igTreeGrid( "renderNewChild", rec:object, [parentId:string] );
Adds a new row (TR) to the grid as a child of a specific row, by taking a data row object. Assumes the record will have the primary key.
- rec
- Type:object
- The data row JavaScript object.
- parentId
- Type:string
- Optional
- Identifier/key of the targeted parent row. If missing, then the new row is rendered to the bottom of the grid.
Code Sample
```

        $(".selector").igTreeGrid("renderNewChild", {
                    employeeId: 6,
                    firstName: "John",
                    lastName: "Miller"
                    }, 4);

```

renderNewRow
Inherited

.igTreeGrid( "renderNewRow", [rec:string] );

Adds a new row (TR) to the grid, by taking a data row object. Assumes the record will have the primary key.

rec
Type:string
Optional
Identifier/key of row. If missing, then number of rows in grid is used.

Code Sample


          $(".selector").igTreeGrid("renderNewRow", {
                      ProductID: 2,
                      Name: "CD Player",
                      ProductNumber: "test",
                      Color: "test",
                      StandardCost: 40,
                     });

resizeContainer
Inherited

.igTreeGrid( "resizeContainer" );
Called to detect whether grid container is resized. When autoAdjustHeight is true and height of the grid is changed then the height of grid is re-set.
Code Sample
```

      $(".selector").igTreeGrid("resizeContainer");

```
rollback

.igTreeGrid( "rollback", [rowId:object], [updateUI:bool] );

Return Type:

array

Return Type Description:

The transactions that have been rolled back.
Clears the transaction log (delegates to igDataSource). Note that this does not update the UI. In case the UI must be updated, set the second parameter "updateUI" to true, which will trigger a call to dataBind() to re-render the contents.
- rowId
- Type:object
- Optional
- If specified, will only rollback the transactions with that row id.
- updateUI
- Type:bool
- Optional
- Whether to update the UI or not.
Code Sample
```

       $(".selector").igTreeGrid("rollback", 5, true);

```
rowAt
Inherited

.igTreeGrid( "rowAt", i:number );

Return Type:

domelement

Return Type Description:

the row at the specified index.
Returns the row (TR element) at the specified index. jQuery selectors aren't used for performance reasons.
- i
- Type:number
- The row index.
Code Sample
```

       var row = $(".selector").igTreeGrid("rowAt", 5);

```
rowById
Inherited

.igTreeGrid( "rowById", rowId:object, [isFixed:bool] );

Return Type:

domelement

Return Type Description:

The row for (rowId).
Returns the row TR element by row id.
- rowId
- Type:object
- The id of the row.
- isFixed
- Type:bool
- Optional
- Specify search in the fixed container.
Code Sample
```

      var row = $(".selector").igTreeGrid("rowById", 5, false);

```
rows
Inherited

.igTreeGrid( "rows" );

Return Type:

array
Returns a list of all TR elements holding data in the grid(when there is at least one fixed column returns rows only in the UNFIXED table).
Code Sample
```

       var rows = $(".selector").igTreeGrid("rows");

```

saveChanges
Inherited

.igTreeGrid( "saveChanges", success:function, error:function );

Invokes an AJAX request to the updateUrl option (if specified) and passes the serialized transaction log (a serialized JSON string) as part of the POST request.

success
Type:function
Specifies a custom function to be called when AJAX request to the updateUrl option succeeds(optional).
error
Type:function
Specifies a custom function to be called when AJAX request to the updateUrl option fails(optional).

Code Sample

        // Example 1: Save changes without callbacks
      $(".selector").igTreeGrid("saveChanges");

      // Example 2: Save changes with success and error callbacks
      $(".selector").igTreeGrid("saveChanges", function (data) {
          $("#message").text("Changes were saved successfully").fadeIn(3000).fadeOut(5000);
      },
      function(jqXHR, textStatus, errorThrown) {
          $("#message").text("An error occurred while saving the changes. Error details: " + textStatus).fadeIn(3000).fadeOut(5000);
      });

scrollContainer
Inherited

.igTreeGrid( "scrollContainer" );

Return Type:

domelement
Returns the DIV that is used as a scroll container for the grid contents.
Code Sample
```
        var container = $(".selector").igTreeGrid("scrollContainer");

```
selectedCell
Inherited

.igTreeGrid( "selectedCell" );

Return Type:

object
Returns the currently selected cell that has the format { element: , row: , index: , rowIndex: , columnKey: }, if any.
If multiple selection is enabled the function will return null.
Code Sample
```

       var cell = $(".selector").igTreeGrid("selectedCell");

```
selectedCells
Inherited

.igTreeGrid( "selectedCells" );

Return Type:

array
Returns an array of selected cells in arbitrary order where every objects has the format { element: , row: , index: , rowIndex: , columnKey: } .
If multiple selection is disabled the function will return null.
Code Sample
```

       var cells = $(".selector").igTreeGrid("selectedCells");

```
selectedRow
Inherited

.igTreeGrid( "selectedRow" );

Return Type:

object
Returns the currently selected row that has the format { element: , index: }, if any.
If multiple selection is enabled the function will return null.
Code Sample
```

         var row = $(".selector").igTreeGrid("selectedRow");

```
selectedRows
Inherited

.igTreeGrid( "selectedRows" );

Return Type:

array
Returns an array of selected rows in arbitrary order where every object has the format { element: , index: } .
If multiple selection is disabled the function will return null.
Code Sample
```

       var rows = $(".selector").igTreeGrid("selectedRows");

```
setColumnTemplate
Inherited

.igTreeGrid( "setColumnTemplate", col:object, tmpl:string, [render:bool] );
Sets a new template for a column after initialization and renders the grid if not explicitly disabled. This method will replace any existing explicitly set row template and will build one anew from the column ones.
- col
- Type:object
- An identifier of the column to set template for (index or key).
- tmpl
- Type:string
- The column template to set.
- render
- Type:bool
- Optional
- Should the grid rerender after template is set.
Code Sample
```
      $(".selector").igTreeGrid("setColumnTemplate", "Name", "<img src='${ImageUrl}'/>", true);

```
setUnboundValueByPK
Inherited

.igTreeGrid( "setUnboundValueByPK", col:string, rowId:string, val:object, notToRender:object );
Sets unbound value for the unbound cell by the specified column key and row primary key.
- col
- Type:string
- key of the unbound column.
- rowId
- Type:string
- primary key value of the row.
- val
- Type:object
- value to be set on unbound cell.
- notToRender
- Type:object
- if false will re-render the row.
Code Sample
```

      //IsPromotion is the key of an unbound column and 2 is the id of the row being affected based on the primaryКey column. The new value for the cell would be true and notToRender - false will re-render the row

      $(".selector").igTreeGrid("setUnboundValueByPK", "IsPromotion", 2, true, false);

```
setUnboundValues
Inherited

.igTreeGrid( "setUnboundValues", key:string, values:array, removeOldValues:object );
Sets unbound values for the unbound column with the specified key. If removeOldValues is true then values(if any) for the unbound columns are re-set with the new values.
- key
- Type:string
- key of the unbound column.
- values
- Type:array
- array of values to be set on unbound values.
- removeOldValues
- Type:object
- if true removes current unbound values(if any) for the specified column and apply the new ones specified in parameter values. Otherwise merge current values with the specified in parameter values.
Code Sample
```

       // PromotionExpDate is the key of an unbound column. The array of dates is used to set unbound values

        $(".selector").igTreeGrid("setUnboundValues", "PromotionExpDate", [new Date('4/24/2012'), new Date('8/24/2012'), new Date('6/24/2012'), new Date('7/24/2012')]);

```
showColumn
Inherited

.igTreeGrid( "showColumn", column:object, callback:function );
Shows a hidden column. If the column is not hidden the method does nothing.
Note: This method is asynchronous which means that it returns immediately and any subsequent code will execute in parallel. This may lead to runtime errors. To avoid them put the subsequent code in the callback parameter provided by the method.
- column
- Type:object
- An identifier for the column. If a number is provided it will be used as a column index. If a string is provided it will be used as a column key.
- callback
- Type:function
- Specifies a custom function to be called when the column is shown(optional).
Code Sample
```

           $(".selector").igTreeGrid("showColumn", 1);
        $(".selector").igTreeGrid("showColumn", "ProductID");

```
toggleRow

.igTreeGrid( "toggleRow", row:object, [callback:function] );
Toggle row by specified row or row identifier.
- row
- Type:object
- jQuery table row object or a row id.
- callback
- Type:function
- Optional
- Specifies a custom function to be called when row is expanded/collapsed. The callback has 4 arguments- a reference to the current context(this), object that holds 2 properties(unfixedRow - DOM representation of the unfixed row, fixedRow - DOM representation of the fixed row, if there is no fixed columns it is undefined), reference to the dataRecord, expand - specifies whether row is expanded.
Code Sample
```

      $(".selector").igTreeGrid("toggleRow", 1);

```
totalRecordsCount
Inherited

.igTreeGrid( "totalRecordsCount" );

Return Type:

number

Return Type Description:

total number of records in the backend.
Returns the total number of records in the underlying backend. If paging or filtering is enabled, this may differ from the number of records in the client-side data source.
In order for this to work, the response JSON/XML must include a property that specifies the total number of records, which name is specified by options.responseTotalRecCountKey.
This functionality is completely delegated to the data source control.
Code Sample
```

       var count = $(".selector").igTreeGrid("totalRecordsCount");

```
transactionsAsString
Inherited

.igTreeGrid( "transactionsAsString" );

Return Type:

string
Returns the accumulated transaction log as a string. The purpose of this is to be passed to URLs or used conveniently.
That is a wrapper for this.dataSource.transactionsAsString().
Code Sample
```
       var transactionsString = $(".selector").igTreeGrid("transactionsAsString");

```
virtualScrollTo
Inherited

.igTreeGrid( "virtualScrollTo", scrollerPosition:object );
Scroll to the specified row or specified position(in pixels).
- scrollerPosition
- Type:object
- An identifier of the vertical scroll position. When it is string then it is interpreted as pixels otherwise it is the row number.
Code Sample
```

      $(".selector").igTreeGrid("virtualScrollTo", scrollContainerTop);

```
widget
Inherited

.igTreeGrid( "widget" );
Returns the element holding the data records.
Code Sample
```

      var grid = $(".selector").igTreeGrid("widget");

```

ui-widget ui-helper-clearfix ui-corner-all

Classes applied to the top container element.
ui-widget-content

Widget content class applied to various content containers in the grid.
ui-widget-header

JQuery UI class applied to the grid header elements.
ui-igtreegrid

Class applied to root DOM element container for the grid.
ui-igtreegrid-expansion-indicator-container

Class applied to data cell of the expansion indicator container.
ui-igtreegrid-non-data-column

Class applied to the expansion indicator's TD element of the when renderExpansionIndicatorColumn is set to true.
ui-iggrid-deletedrecord

Classes applied to the deleted rows of grid before commit.
ui-icon ui-igtreegrid-expansion-indicator ui-icon-plus

Classes applied to the expansion indicator SPAN when the row is collapsed.
ui-icon ui-igtreegrid-expansion-indicator ui-icon-minus

Classes applied to the expander span element, when the row is expanded.
ui-igtreegrid-expansion-indicator-cell

Class applied to the TD element that contains the expansion indicator.
ui-igtreegrid-expansion-column-container

Class applied to the expansion indicator container if the expansion column is rendered in the grid.
ui-igtreegrid-expandcell

Class applied to the element (in the non-data-cell) holding expansion indicator column - applied only when renderExpansionIndicatorColumn is false.
ui-igtreegrid-expansion-indicator-header-cell ui-iggrid-header ui-widget-header

Class applied to the expansion indicator column's TH element if renderExpansionIndicatorColumn is set to true.
ui-iggrid-captiontable

When no headers are shown or fixed headers is false, the caption (if any) needs to be rendered in a separate table.
ui-iggrid

Class applied to the top container element.
ui-iggrid-footercaption

Classes applied to the grid footer caption contents.
ui-iggrid-footertable ui-widget-footer

When fixed footers is enabled, this class is applied to the table that holds the footer TD elements.
ui-iggrid-headercaption ui-widget-header ui-corner-top

Classes applied to the element that's on top of the header that has some description.
ui-iggrid-headertable

When fixed headers is enabled, this class is applied to the table that holds the header TH elements.
ui-iggrid-measurement-container

Class appplied to the hidden DIV container used for measurement of width of auto resizable columns.
ui-iggrid-scrolldiv ui-widget-content

Classes applied to the scrolling div container when width and height are defined and scrollbars is 'true'.
ui-iggrid-tablebody

Class applied to the TABLE's TBODY holding data records.
ui-iggrid-table ui-widget-content

Classes applied to the TABLE which holds the grid records.
ui-iggrid-virtualscrolldiv

Classes applied to the scrolling div container when virtualization is enabled.
ui-iggrid-headercell-featureenabled

Classes which will be applied to the grid header cell element when feature icon is rendered.
ui-iggrid-header ui-widget-header

Classes applied to the grid header elements.
ui-iggrid-headertext

Classes applied to the header text container.
ui-iggrid-modifiedrecord

Classes applied to the modified rows of grid before commit.
ui-iggrid-headertable-mrl
ui-iggrid-table-mrl ui-widget-content
ui-ig-altrecord ui-iggrid-altrecord

Classes applied on alternate records.
ui-ig-record ui-iggrid-record

Classes applied to the TBODY, and inherited through css for the records.
ui-igtreegrid-rowlevel

Classes applied to the data row. For instance if a row is part of the root level (at index 0) then the class of ui-igtreegrid-rowlevel0 is applied to the row. The numbered suffix in the class name changes to reflect the grid row's index.
ui-iggrid-rtl

Class appplied to the grid element when RTL is enabled.

Ignite UI Home

ui.igTreeGrid

Code Sample

Related Samples

Related Topics

Dependencies

Inherits

accessibilityRenderingInherited

Code Sample

adjustVirtualHeightsInherited

Code Sample

aggregateTransactionsInherited

Code Sample

alternateRowStylesInherited

Code Sample

autoAdjustHeightInherited

Code Sample

autoCommitInherited

Code Sample

autofitLastColumnInherited

Code Sample

autoFormatInherited

Members

Code Sample

autoGenerateColumnsInherited

Code Sample

avgColumnWidthInherited

Members

Code Sample

avgRowHeightInherited

Members

Code Sample

captionInherited

Code Sample

childDataKey

Code Sample

collapseTooltipText

Code Sample

columnsInherited

Code Sample

colSpan

Code Sample

columnCssClass

Code Sample

columnIndex

Code Sample

dataType

Members

Code Sample

format

Code Sample

formatter

Members

Code Sample

formula

Members

Code Sample

group

Code Sample

headerCssClass

Code Sample

headerText

Code Sample

hidden

Code Sample

key

Code Sample

mapper

Code Sample

rowIndex

Code Sample

rowspan

rowSpan

Code Sample

template

Code Sample

unbound

Code Sample

unboundValues

Code Sample

accessibilityRendering
Inherited

adjustVirtualHeights
Inherited

aggregateTransactions
Inherited

alternateRowStyles
Inherited

autoAdjustHeight
Inherited

autoCommit
Inherited

autofitLastColumn
Inherited

autoFormat
Inherited

autoGenerateColumns
Inherited

avgColumnWidth
Inherited

avgRowHeight
Inherited

caption
Inherited

columns
Inherited

columnVirtualization
Inherited

dataSource
Inherited

dataSourceType
Inherited

dataSourceUrl
Inherited

defaultColumnWidth
Inherited

enableHoverStyles
Inherited

enableResizeContainerCheck
Inherited

enableUTCDates
Inherited

featureChooserIconDisplay
Inherited

features
Inherited

fixedFooters
Inherited

fixedHeaders
Inherited

height
Inherited

jQueryTemplating
Inherited

jsonpRequest
Inherited

localSchemaTransform
Inherited

mergeUnboundColumns
Inherited

primaryKey
Inherited

renderCheckboxes
Inherited
