ig.TreeHierarchicalDataSource

The igTreeHierarchicalDataSource component is a client-side component which extends the igDataSource and adds support for hierarchical data with common schema. It features filtering, paging, sorting, updating and load-on-demand support. Support is also available for binding to flat and hierarchical data sources. This component is used by the igTreeGrid control. Further information regarding the classes, events, methods and themes of this API are available under the associated tabs above.

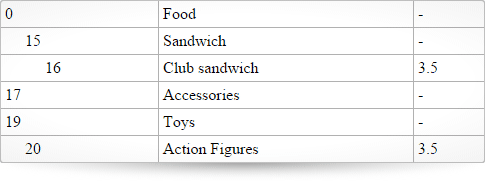

The following code snippet demonstrates how to initialize the TreeHierarchicalDataSource control.

For details on how to reference the required scripts and themes for the TreeHierarchicalDataSource control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample

<!doctype html>
<html>
<head>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
    <style>
        table { width:100%; border-top:1px solid #b1b1b1; border-right:1px solid #b1b1b1; border-spacing: 0;}
        table th, table td { text-align:left; border-bottom:1px solid #b1b1b1; border-left:1px solid #b1b1b1; padding:4px;}
        span[data-level="1"] {
            padding-left: 20px;
        }
        span[data-level="2"] {
            padding-left: 40px;
        }
    </style>
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
    <!-- Infragistics Combined Scripts -->
    <script src="js/infragistics.core.js" type="text/javascript"></script>

    <script type="text/javascript">
        var products  = [
            { "ID": 0, "Name": "Food", "Price": "-", "Category": { "ID": 0, "Name": "Name", "isActive": false }, "Products": [
                {"ID": 15, "Name": "Sandwich", "Price": "-", "Products": [
                    { "ID": 16, "Name": "Club sandwich", "Price": "3.5" }
                ] }
            ]},
            { "ID": 17, "Name": "Accessories", "Price": "-", "Category": { "ID": 1, "Name": "Name1", "isActive": false } },
            {
                "ID": 19, "Name": "Toys", "Price": "-", "Category": { "ID": 2, "Name": "Name2", "isActive": false }, "Products": [
                    { "ID": 20, "Name": "Action Figures", "Price": "3.5" }
                ]
            }
       ];
       $(function () {
            function render(success, error, ds) {
                if (success) {
                    var template = "<tr><td><span data-level='${dataLevel}'>${ID}</span></td><td>${Name}</td><td>${Price}</td></tr>",
                    resultHtml = $.ig.tmpl(template, ds.flatDataView());
                    $("#table").html(resultHtml);
                } else {
                    alert(error);
                }
            }
            var ds = new $.ig.TreeHierarchicalDataSource({
                dataSource: products,
                callback: render,
                treeDS: {
                    childDataKey: "Products",
                    initialExpandDepth: 10,
                    propertyDataLevel: "dataLevel"
                }
            });
                ds.dataBind();
       });
    </script>
</head>
<body>
    <table id="table"></table>
</body>
</html>

Dependencies

jquery.js

infragistics.util.js

infragistics.util.jquery.js

Show Details

settings

Type:: object
Default:: {}

Configure datasource settings.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products
});
ds.dataBind();

aggregateTransactions
Inherited

Type:

bool

Default:

false

If set to true, the following behavior will take place:
if a new row is added, and then deleted, there will be no transaction added to the log
if an edit is made to a row or cell, then the value is brought back to its original value, the transaction should be removed
Note: This option takes effect only when autoCommit is set to false.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
aggregateTransactions: true,
dataSource: arrayOfObjects
});
autoCommit
Inherited

Type:

bool

Default:

false

If auto commit is true, data will be automatically commited to the data source, once a value or a batch of values are updated via saveChanges().

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
autoCommit: true
});

callback
Inherited

Type:: function
Default:: null

Callback function to call when data binding is complete.

Code Sample

var render = function (success, error) {
    if (success) {
        alert("success");
    } else {
        alert(error);
    }
}

$(window).load(function () {
    var url = "http://odata.netflix.com/Catalog/Titles?$format=json&$callback=?";
    ds = new $.ig.TreeHierarchicalDataSource({
        type: "remoteUrl",
        callback: render,
        dataSource: url,
        schema: oDataSchema,
        responseDataKey : "d.results",
        responseDataType: "jsonp",
    });
    ds.dataBind();
});

callee
Inherited

Type:: object
Default:: null

Object on which to invoke the callback function.

Code Sample

var Bob = {
    name: "Bob",
    greet: function () {
        alert("Hi, I'm " + this.name);
    }
};

var products = [];
products[0] = {
    "ProductID": 1,
    "Name": "Adjustable Race",
    "ProductNumber": "AR-5381"
};
products[1] = {
    "ProductID": 2,
    "Name": "Bearing Ball",
    "ProductNumber": "BA-8327"
};

var ds;

$(document).ready(function () {
    ds = new $.ig.TreeHierarchicalDataSource({
        dataSource: products,
        callee: Bob,
        callback: Bob.greet
    });

    ds.dataBind();
});

data
Inherited

Type:

array

Default:

[]

Elements Type:

object

This is the normalized (transformed) resulting data, after it's fetched from the data source.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
data: normalizedArrayOfObjects
});

dataBinding
Inherited

Type:: object
Default:: null

Client-side dataBinding event. Can be a string pointing to a function name, or an object pointing to a function.

Code Sample

var myDataBinding = function () {
    alert("myDataBinding");
}

var products = [];
products[0] = {
    "ProductID": 1,
    "Name": "Adjustable Race",
    "ProductNumber": "AR-5381"
};
products[1] = {
    "ProductID": 2,
    "Name": "Bearing Ball",
    "ProductNumber": "BA-8327"
};

var ds;

$(window).ready(function () {
    ds = new $.ig.TreeHierarchicalDataSource({
        dataBinding: myDataBinding,
        dataSource: products
    });
});

dataBound
Inherited

Type:: object
Default:: null

Client-side dataBound event. Can be a string pointing to a function name, or an object pointing to a function.

Code Sample

var myDataBound = function () {
    alert("myDataBound");
}

var products = [];
products[0] = {
    "ProductID": 1,
    "Name": "Adjustable Race",
    "ProductNumber": "AR-5381"
};
products[1] = {
    "ProductID": 2,
    "Name": "Bearing Ball",
    "ProductNumber": "BA-8327"
};

var ds;

$(window).ready(function () {
    ds = new $.ig.TreeHierarchicalDataSource({
        dataBound: myDataBound
    });

    ds.dataBind();

});

dataSource
Inherited

Type:: object
Default:: null

This is the source of data - non normalized. Can be an array, can be reference to some JSON object, can be a DOM element for a HTML TABLE, or a function.

Code Sample

var jsonSchema = new $.ig.DataSchema("json", {fields:[
    {name: "ProductID", type: "number"},
    {name: "Name", type: "string"},
    {name: "ProductNumber", type: "string"},
    {name: "Color", type: "string"},
    {name: "StandardCost", type: "string"}],
    searchField:"Records" });

ds = new $.ig.TreeHierarchicalDataSource({type: "json", dataSource: jsonData, schema: jsonSchema});
ds.dataBind();

fields
Deprecated

Type:: array
Default:: []
Elements Type:: object

*** IMPORTANT DEPRECATED ***
A list of field definitions specifying the schema of the data source.
Field objects description: {name, [type], [xpath]}.

Code Sample

var products = [];
products[0] = {
    "ProductID": 1,
    "Name": "Adjustable Race",
    "ProductNumber": "AR-5381"
};
products[1] = {
    "ProductID": 2,
    "Name": "Bearing Ball",
    "ProductNumber": "BA-8327"
};

var ds;
$(window).ready(function () {

    ds = new $.ig.TreeHierarchicalDataSource({
        dataSource: products,
        fields: [{
            name: "ProductID",
            type: "number"
        }, {
            name: "Name",
            type: "string"
        }, {
            name: "ProductNumber",
            type: "string"
        }]
    });

    ds.dataBind();
});

filtering
Inherited

Type:: object
Default:: {}

Settings related to built-in filtering functionality.

Code Sample

jsonDs = new $.ig.TreeHierarchicalDataSource( {
    filtering: {
        type: "local",
        caseSensitive: true,
        applyToAllData: true
    },
    dataSource: jsonData
}).dataBind();

applyToAllData

Type:: bool
Default:: true

If the type of paging/sorting/filtering is local and applyToAllData is true, filtering will be performed on the whole data source that's present locally, otherwise only on the current dataView. if type is remote, this setting doesn't have any effect.

Code Sample

jsonDs = new $.ig.TreeHierarchicalDataSource( {
    filtering: {
        type: "local",
        caseSensitive: true,
        applyToAllData: true
    },
    dataSource: jsonData
}).dataBind();

caseSensitive

Type:: bool
Default:: false

Enables or disables case sensitive filtering on the data. Works only for local filtering.

Code Sample

jsonDs = new $.ig.TreeHierarchicalDataSource( {
    filtering: {
        type: "local",
        caseSensitive: true,
        applyToAllData: true
    },
    dataSource: jsonData
}).dataBind();

customConditions

Type:: object
Default:: null

An object containing custom defined filtering conditions as objects.

Code Sample

jsonDs = new $.ig.DataSource( {
    filtering: {
        type: "local",
        caseSensitive: true,
        applyToAllData: true,
        customConditions: [
            BE: {
            labelText: "BE",
            expressionText: "BE-####",
            requireExpr: false,
            filterFunc: filterProductNumber
            },
            CA: {
                labelText: "CA",
                expressionText: "CA-####",
                requireExpr: false,
                filterFunc: filterProductNumber1
            }
        ]
    },
    dataSource: jsonData
}).dataBind()
function filterProductNumber(value, expression, dataType, ignoreCase, preciseDateFormat) {
    return value.startsWith("BE");
}
function filterProductNumber1(value, expression, dataType, ignoreCase, preciseDateFormat) {
    return value.startsWith("CA");
}

customFunc

Type:: object
Default:: null

Can point to either a string or a function object. The parameters that are passed are 1) the data array to be filtered, 2) the filtering expression definitions. Should return an array of the filtered data.

Code Sample

var ds;

var render = function (success, error) {
    if (success) {
        var expr = "Cr";
        cond = "startsWith";

        ds.filter([{
            fieldName: "Name",
            expr: expr,
            cond: cond
        }], true);

        var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
        resultHtml = $.ig.tmpl(template, ds.dataView());
        $("#table").html(resultHtml);
    } else {
        alert(error);
    }
}


var myCustomFunc = function (fieldExpression, data) {
    var result = [];
    result[0] = data[0];
    return result;
}

$(window).load(function () {
    var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    ds = new $.ig.TreeHierarchicalDataSource({
        callback: render,
        dataSource: url,
        schema: {
            fields: [{
                name: "Name"
            }, {
                name: "Price"
            }, {
                name: "Rating"
            }],
            searchField: "d"
        },
        responseDataKey: "d",
        responseDataType: "jsonp",
        filtering: {
            type: "remote",
            customFunc: myCustomFunc
        }
    });
    ds.dataBind();

});

defaultFields

Type:: array
Default:: []
Elements Type:: object

Data will be initially filtered accordingly, directly after dataBind().

Code Sample

$(window).load(function () {
    var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    ds = new $.ig.TreeHierarchicalDataSource({
        callback: render,
        dataSource: url,
        schema: {
            fields: [{
                name: "Name"
            }, {
                name: "Price"
            }, {
                name: "Rating"
            }],
            searchField: "d"
        },
        responseDataKey: "d",
        responseDataType: "jsonp",
        filtering: {
            type: "remote",
            defaultFields: [{
                fieldName: "Price",
                cond:"GreaterThan",
                expr: 20
            }]
        }
    });
    ds.dataBind();
});

expressions

Type:: array
Default:: []
Elements Type:: object

A list of expression objects, containing the following key-value pairs: fieldName, expression (search string), condition , and logic (AND/OR).

Code Sample

var url = "/demos/server/proxy.php?url=http://services.odata.org/OData/OData.svc/Products?$format=json";
ds = new $.ig.TreeHierarchicalDataSource({
    callback:render,
    dataSource: url,
    localSchemaTransform: false,
    responseDataKey: "d",
    filtering: {
        expressions:[
            {
                fieldName: "Price",
                cond:"GreaterThan",
                expr: 20
            }
        ]
    },
    schema: {
        fields: [
            {name : "Price"},
            {name : "Name"},
            {name: "Rating"}
        ],
        searchField: "d"
    }
});

ds.dataBind();

exprString

Type:: string
Default:: ""

An "SQL-like' encoded expressions string. Takes precedence over "expressions". Example: col2 > 100; col2 LIKE %test%.

Code Sample

var render = function (success, error) {
    if (success) {
        var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
        resultHtml = $.ig.tmpl(template, ds.dataView());
        $("#table").html(resultHtml);
    } else {
        alert(error);
    }
}

var ds;

$(window).load(function () {
    var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    ds = new $.ig.TreeHierarchicalDataSource({
        callback: render,
        dataSource: url,
        schema: {
            fields: [{
                name: "Name"
            }, {
                name: "Price"
            }, {
                name: "Rating"
            }],
            searchField: "d"
        },
        responseDataKey: "d",
        responseDataType: "jsonp",
        filtering: {
            type: "remote",
            exprString: "Name LIKE Cr%"
        }
    });
    ds.dataBind();
});

filterExprUrlKey

Type:: string
Default:: null

Url key that will be encoded in the request if remote filtering is performed. Default value of null implies OData-style URL encoding. Please see http://www.odata.org/developers/protocols/uri-conventions for details.

Code Sample

var render = function (success, error) {
    if (success) {
        var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
        resultHtml = $.ig.tmpl(template, ds.dataView());
        $("#table").html(resultHtml);
    } else {
        alert(error);
    }
}

var ds;

$(window).load(function () {
    var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    ds = new $.ig.TreeHierarchicalDataSource({
        callback: render,
        dataSource: url,
        schema: {
            fields: [{
                name: "Name"
            }, {
                name: "Price"
            }, {
                name: "Rating"
            }],
            searchField: "d"
        },
        responseDataKey: "d",
        responseDataType: "jsonp",
        filtering: {
            type: "remote",
            filterExprUrlKey: "filter",
            expressions: [{
                fieldName: "Name",
                cond: "Contains",
                expr: "Cr"
            }]
        }
    });
    ds.dataBind();
});

filterLogicUrlKey

Type:: string
Default:: "filterLogic"

Url key that will be encoded in the request, specifying if the filtering logic will be AND or OR.

Code Sample

var render = function (success, error) {
    if (success) {
        var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
        resultHtml = $.ig.tmpl(template, ds.dataView());
        $("#table").html(resultHtml);
    } else {
        alert(error);
    }
}

var ds;

$(window).load(function () {
    var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    ds = new $.ig.TreeHierarchicalDataSource({
        callback: render,
        dataSource: url,
        schema: {
            fields: [{
                name: "Name"
            }, {
                name: "Price"
            }, {
                name: "Rating"
            }],
            searchField: "d"
        },
        responseDataKey: "d",
        responseDataType: "jsonp",
        filtering: {
            type: "remote",
            filterLogicUrlKey: "testFilterLogicUrlKey",
            expressions: [{
                fieldName: "Name",
                cond: "Contains",
                expr: "Cr",
                logic: "OR"
            }]
        }
    });
    ds.dataBind();
});

type

Type:: enumeration
Default:: remote

Filtering type.

Members

remote
Type:string
Parameters will be encoded and it's up to the backend to interpred them from the response.
local
Type:string
The data will be filtered automatically client-side.

Code Sample

jsonDs = new $.ig.TreeHierarchicalDataSource( {
    filtering: {
        type: "local",
        caseSensitive: true,
        applyToAllData: true
    },
    dataSource: jsonData
}).dataBind();

groupby
Inherited

Type:: object
Default:: {}

Settings related to built-in group by functionality.

Code Sample

ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    groupby: {
        defaultCollapseState: true
    }
});

ds.dataBind();

defaultCollapseState

Type:

bool

Default:

false

Default collapse state.

Code Sample

ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    groupby: {
        defaultCollapseState: true
    }
});
groupRecordKey

Type:

string

Default:

"__gbRecord"

The name of the property that determines whether a record from the group data view is a group record.

Code Sample

    ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    groupby: {
        groupRecordKey: "__gbRecord"
    }
});
groupSummaryRecordKey

Type:

string

Default:

"__gbSummaryRecord"

The name of the property that determines whether a record from the group data view is a summary group record.

Code Sample

    ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    groupby: {
        groupRecordKey: "__gbRecord"
    }
});
pagingMode

Type:

enumeration

Default:

allRecords
. Specifies how paging should be applied when there is at least one grouped column.
Members
- allRecords
- Type:string
- Paging is applied for all records - data and non-data records(like group-by records).
- dataRecordsOnly
- Type:string
- Paging is applied ONLY for data records. Non-data records are disregarded in paging calculations.
Code Sample

ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    groupby: {
        pagingMode: "allRecords"
    }
});

summaries

Type:: array
Default:: []
Elements Type:: object

Array of objects containing the summaries for each field.
Each summary object has the following format { field:"fieldName", summaryFunctions: [] }, where the summaryFunctions arrays can contain either a summary name (avg, sum, count etc.) or a custom function for caclulating a custom summary.

Code Sample

    ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: data,
    groupby: {
        summaries: [
        {
            field:"Age",
            summaryFunctions: ["avg","sum"]
        },
        {
            field: "Name",
            summaryFunctions: ["count", customFunc]
        }]
    }
});

summariesPosition

Type:: enumeration
Default:: bottom

Specifies the postion for the summaries for each field inside each group.

Members

top
Type:string
One summary row will be displayed at the top for each group.
bottom
Type:string
One summary row will be displayed at the bottom for each group.
both
Type:string
Two summary rows will be be display for each group. One on the top and one on the bottom.

Code Sample

    ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: data,
    groupby: {
        summariesPosition: "top",
        summaries: [
        {
            field:"Age",
            summaryFunctions: ["avg","sum"]
        },
        {
            field: "Name",
            summaryFunctions: ["count", customFunc]
        }]
    }
});

id
Inherited

Type:

string

Default:

"ds"

Setting this is only necessary when the data source is set to a table in string format. we need to create an invisible dummy data container in the body and append the table data to it.

Code Sample

var ds = $.ig.DataSource({
id: "myId"
});

localSchemaTransform
Inherited

Type:: bool
Default:: true

If set to false will disable transformations on schema, even if it is defined locally in the javascript code.

Code Sample

var url = "/demos/server/proxy.php?url=http://services.odata.org/OData/OData.svc/Products?$format=json";
ds = new $.ig.TreeHierarchicalDataSource({
    callback:render,
    dataSource: url,
    localSchemaTransform: false,
    responseDataKey: "d",
    schema: {fields: [
        {name : "Price"},
        {name : "Name"},
        {name: "Rating"}
    ]}
});

ds.dataBind();

outputResultsName
Inherited

Type:: string
Default:: null

This is the property in the dataView where actual resulting records will be put. (So the dataView will not be array but an object if this is defined), after the potential data source transformation.

Code Sample

var render = function (success, error) {
    if (success) {
        var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
        resultHtml = $.ig.tmpl(template, ds.dataView());
        $("#table").html(resultHtml);
    } else {
        alert(error);
    }
}
var ds;
$(window).load(function () {
    var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    ds = new $.ig.TreeHierarchicalDataSource({
        callback: render,
        dataSource: url,
        schema: {
            fields: [{
                name: "Name"
            }, {
                name: "Price"
            }, {
                name: "Rating"
            }],
            searchField: "d"
        },
        responseDataKey: "d",
        responseDataType: "jsonp",
        outputResultsName: "myOutputResultsName"
    });
    ds.dataBind();
});

paging
Inherited

Type:: object
Default:: {}

Settings related to built-in paging functionality.

Code Sample

$(window).load(function () {
    ds = new $.ig.TreeHierarchicalDataSource({
        type: "json",
        dataSource: adventureWorks,
        responseDataKey: "Records",
        paging: {
            enabled : true,
            pageSize:10,
            type: "local"
        }
    });

    ds.dataBind();
});

appendPage

Type:

bool

Default:

false

Whether when a new page of data is requested we should append the new data to the existing data.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    paging: {
        enabled: true,
        appendPage : true
    }
});

enabled

Type:: bool
Default:: false

Paging is not enabled by default.

Code Sample

ds = new $.ig.TreeHierarchicalDataSource({
    type: "json",
    dataSource: adventureWorks,
    responseDataKey: "Records",
    paging: {
        enabled : true,
        pageSize:10,
        type: "local"
    }
});

pageIndex

Type:: number
Default:: 0

Current page index.

Code Sample

ds = new $.ig.TreeHierarchicalDataSource({
    type: "json",
    dataSource: adventureWorks,
    responseDataKey: "Records",
    schema: jsonSchema,
    paging:
    {
        enabled : true,
        pageSize:10,
        type: "local",
        pageIndex: 2
    }
});
ds.dataBind();

pageIndexUrlKey

Type:: string
Default:: null

Denotes the name of the encoded URL parameter that will state what is the currently requested page index.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    type: "json",
    dataSource: adventureWorks,
    responseDataKey: "Records",
    paging: {
        enabled: true,
        pageSize: 10,
        pageIndex: 2,
        pageIndexUrlKey: "myPageIndexUrlKey",
        type: "local"
    }
});

pageSize

Type:: number
Default:: 5

Number of records on each page.

Code Sample

ds = new $.ig.TreeHierarchicalDataSource({
    type: "json",
    dataSource: adventureWorks,
    responseDataKey: "Records",
    paging: {
        enabled : true,
        pageSize:10,
        type: "local"
    }
});

pageSizeUrlKey

Type:: string
Default:: null

Denotes the name of the encoded URL parameter that will state what is the currently requested page size.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    type: "json",
    dataSource: adventureWorks,
    responseDataKey: "Records",
    paging: {
        enabled: true,
        pageSize: 10,
        pageSizeUrlKey: "myPageSizeUrlKey",
        type: "local"
    }
});

type

Type:: enumeration
Default:: remote

Type for the paging operation.

Members

local
Type:string
Data is paged client-side.
remote
Type:string
A remote request is done and URL params encoded.

Code Sample

jsonDs = new $.ig.TreeHierarchicalDataSource( {
    filtering: {
        type: "local",
        caseSensitive: true,
        applyToAllData: true
    },
    dataSource: jsonData
}).dataBind();

primaryKey
Inherited

Type:: string
Default:: null

The unique field identifier.

Code Sample

$(window).load(function () {
    ds = new $.ig.TreeHierarchicalDataSource({
        primaryKey: "CustomerID",
        type: "json",
        dataSource: adventureWorks,
        responseDataKey: "Records",
    });

    ds.dataBind();
});

requestType
Inherited

Type:: string
Default:: "GET"

Specifies the HTTP verb to be used to issue the request.

Code Sample

$(window).load(function () {
    ds = new $.ig.TreeHierarchicalDataSource({
        primaryKey: "CustomerID",
        requestType: "get",
        dataSource: "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?",
        responseDataKey: "Records",
    });

    ds.dataBind();
});

responseContentType
Inherited

Type:: string
Default:: null

Content type of the response. See http://api.jquery.com/jQuery.ajax/ => contentType.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    type: "json",
    dataSource: adventureWorks,
    responseDataKey: "Records",
    responseContentType: "application/x-www-form-urlencoded; charset=UTF8;"
});

responseDataKey
Inherited

Type:: string
Default:: null

Property in the response which specifies where the data records array will be held (if the response is wrapped).

Code Sample

var url = "http://odata.netflix.com/Catalog/Titles?$format=json&$callback=?";
var jsonp = new $.ig.TreeHierarchicalDataSource({
    type: "json",
    dataSource: url,
    responseDataKey: "d.results"
});

responseDataType
Inherited

Type:: enumeration
Default:: null

Response type when a URL is set as the data source. See http://api.jquery.com/jQuery.ajax/ => dataType.

Members

json
Type:string
xml
Type:string
html
Type:string
script
Type:string
jsonp
Type:string
text
Type:string

Code Sample

var render = function (success, error) {
    if (success) {
        alert("success");
    } else {
        alert(error);
    }
}
$(window).load(function () {
    var url = "http://odata.netflix.com/Catalog/Titles?$format=json&$callback=?";
    ds = new $.ig.TreeHierarchicalDataSource({
        type: "remoteUrl",
        callback: render,
        dataSource: url,
        schema: oDataSchema,
        responseDataKey: "d.results",
        responseDataType: "jsonp",
    });
    ds.dataBind();
});

responseTotalRecCountKey
Inherited

Type:

string

Default:

null

Property in the response which specifies the total number of records in the backend (this is needed for paging).

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    type: "json",
    dataSource: adventureWorks,
    responseDataKey: "Records",
    responseTotalRecCountKey: "1024"
});
rowAdded
Inherited

Type:

function

Default:

null

A function to call when row is added.
Function takes first argument item and second argument dataSource.
Use item.row to obtain reference to the added row.
Use item.rowId to get the row ID.
Use dataSource to obtain reference to $.ig.DataSource.

Code Sample

$.ig.DataSource({
rowAdded: function (item, dataSource) {…}
});
rowDeleted
Inherited

Type:

function

Default:

null

A function to call when row is deleted.
Use item.row to obtain reference to the deleted row.
Use item.rowId to get the row ID.
Use item.rowIndex to get the row index.
Use dataSource to obtain reference to $.ig.DataSource.

Code Sample

$.ig.DataSource({
rowDeleted: function (item, dataSource) {…}
});
rowInserted
Inherited

Type:

function

Default:

null

A function to call when row is inserted.
Function takes first argument item and second argument dataSource.
Use item.row to obtain reference to the inserted row.
Use item.rowId to get the row ID.
Use item.rowIndex to get the row index.
Use dataSource to obtain reference to $.ig.DataSource.

Code Sample

$.ig.DataSource({
rowInserted: function (item, dataSource) {…}
});
rowUpdated
Inherited

Type:

function

Default:

null

A function to call when row is updated (edited).
Function takes first argument item and second argument dataSource.
Use item.rowIndex to get the row index.
Use item.newRow to obtain reference to the updated row.
Use item.oldRow to obtain reference to the row that was updated.
Use dataSource to obtain reference to $.ig.DataSource.

Code Sample

$.ig.DataSource({
rowUpdated: function (item, dataSource) {…}
});

schema
Inherited

Type:: object
Default:: null

A schema object that defines which fields from the data to bind to.

Code Sample

var jsonSchema = new $.ig.DataSchema("json", {fields:[
    {name: "ProductID", type: "number"},
    {name: "Name", type: "string"},
    {name: "ProductNumber", type: "string"},
    {name: "Color", type: "string"},
    {name: "StandardCost", type: "string"}],
    searchField:"Records" });

ds = new $.ig.TreeHierarchicalDataSource({
    type: "json",
    dataSource: jsonData,
    schema: jsonSchema
});
ds.dataBind();

serializeTransactionLog
Inherited

Type:

bool

Default:

true

If true, will serialize the transaction log of updated values - if any - whenever commit is performed via a remote request.

Code Sample

$.ig.DataSource({
serializeTransactionLog: false
});

sorting
Inherited

Type:: object
Default:: {}

Settings related to built-in sorting functionality.

Code Sample

$(window).load(function () {
    ds = new $.ig.TreeHierarchicalDataSource({
        type: "json",
        dataSource: adventureWorks,
        sorting: {
            type: "local",
            caseSensitive: true
        }
    });

    ds.dataBind();
});

applyToAllData

Type:

bool

Default:

true

If the sorting type is local and applyToAllData is true, sorting will be performed on the whole data source that's present locally, otherwise only on the current dataView. If sorting type is remote, this setting doesn't have any effect.

Code Sample

jsonDs = new $.ig.TreeHierarchicalDataSource({
    sorting: {
        type: "local",
        applyToAllData: true
    },
    dataSource: jsonData
}).dataBind();

caseSensitive

Type:: bool
Default:: false

Specifies if sorting will be case sensitive or not. Works only for local sorting.

Code Sample

$(window).load(function () {
    ds = new $.ig.TreeHierarchicalDataSource({
        type: "json",
        dataSource: adventureWorks,
        sorting: {
            type: "local",
            caseSensitive: true
        }
    });

    ds.dataBind();
});

compareFunc

Type:: object
Default:: null

Custom comparison sorting function. Accepts the following arguments: fields, schema, booleand value whether sorting is ascending , convert function(please check option for customConvertFunc) and returns a value 0 indicating that values are equal, 1 indicating that val1 > val2 and -1 indicating that val1 < val2.

Code Sample

var render = function (success, error) {
    if (success) {
        var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
        resultHtml = $.ig.tmpl(template, ds.dataView());
        $("#table").html(resultHtml);
    } else {
        alert(error);
    }
}

var myCompareFunc = function (fields, schema, reverse, convertf) {
    return function (val1, val2) {
        if (val1.Price > val2.Price) {
            return 1;
        }

        if (val1.Price < val2.Price) {
            return -1;
        }

        return 0;
    }
}

var ds;
$(window).load(function () {
    var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    ds = new $.ig.TreeHierarchicalDataSource({
        callback: render,
        dataSource: url,
        schema: {
            fields: [{
                name: "Name"
            }, {
                name: "Price"
            }, {
                name: "Rating"
            }],
            searchField: "d"
        },
        responseDataKey: "d",
        responseDataType: "jsonp",
        sorting: {
            type: "local",
            compareFunc: myCompareFunc,
            defaultFields: [{
                fieldName: "Price"
            }]
        }
    });
    ds.dataBind();
});

customConvertFunc

Type:: object
Default:: null

Custom data value conversion function(called from sorting function). Accepts a value of the data cell and column key and should return the converted value.

Code Sample

    var render = function (success, error) {
        if (success) {
            var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
            resultHtml = $.ig.tmpl(template, ds.dataView());
            $("#table").html(resultHtml);
        } else {
            alert(error);
        }
    }

    var myCompareFunc = function (fields, schema, reverse, convertf) {
        return function (obj1, obj2) {
            a = convertf(obj1);
            b = convertf(obj2);

            if (a > b) {
                return 1;
            }

            if (a < b) {
                return -1;
            }

            return 0;
        }
    }

var myCustomConvertFunc = function (obj) {
        return obj.Price;
    }

    var ds;
    $(window).load(function () {
        var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
        ds = new $.ig.TreeHierarchicalDataSource({
            callback: render,
            dataSource: url,
            schema: {
                fields: [{
                    name: "Name"
                }, {
                    name: "Price"
                }, {
                    name: "Rating"
                }],
                searchField: "d"
            },
            responseDataKey: "d",
            responseDataType: "jsonp",
            sorting: {
                type: "local",
                compareFunc: myCompareFunc,
                customConvertFunc: myCustomConvertFunc,
                defaultFields: [{
                    fieldName: "Price"
                }]
            }
        });
        ds.dataBind();
    });

customFunc

Type:: object
Default:: null

Custom sorting function that can point to either a string or a function object. When the function is called, the following arguments are passed: data array, fields (array of field definitions) , direction ("asc" or "desc"). The function should return a sorted data array.

Code Sample

var render = function (success, error) {
    if (success) {
        var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
        resultHtml = $.ig.tmpl(template, ds.dataView());
        $("#table").html(resultHtml);
    } else {
        alert(error);
    }
}

var myCustomFunc = function (data, fields, direction) {
    function myCompareFunc(obj1, obj2) {
        if (direction == "desc") {
            return obj2[fields[0].fieldName] - obj1[fields[0].fieldName];
        }

        return obj1[fields[0].fieldName] - obj2[fields[0].fieldName];
    }
    var result = data.sort(myCompareFunc);
    return result;
}

var ds;
$(window).load(function () {
    var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    ds = new $.ig.TreeHierarchicalDataSource({
        callback: render,
        dataSource: url,
        schema: {
            fields: [{
                name: "Name"
            }, {
                name: "Price"
            }, {
                name: "Rating"
            }],
            searchField: "d"
        },
        responseDataKey: "d",
        responseDataType: "jsonp",
        sorting: {
            type: "local",
            customFunc: myCustomFunc,
            defaultFields: [{
                fieldName: "Price"
            }],
            defaultDirection: "desc"
        }
    });
    ds.dataBind();
});

defaultDirection

Type:

enumeration

Default:

none
Sorting direction.
Members
- none
- Type:string
- asc
- Type:string
- desc
- Type:string
Code Sample

jsonDs = new $.ig.TreeHierarchicalDataSource({
    sorting: {
        type: "local",
        defaultDirection: "asc"
    },
    dataSource: jsonData
}).dataBind();

defaultFields

Type:: array
Default:: []
Elements Type:: object

When defaultDirection is different than "none", and defaultFields is specified, data will be initially sorted accordingly, directly after dataBind().

Code Sample

var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
var ds = new $.ig.TreeHierarchicalDataSource({
    callback: render,
    dataSource: url,
    schema: {
        fields: [{
            name: "Name"
        }, {
            name: "Price"
        }, {
            name: "Rating"
        }],
        searchField: "d"
    },
    responseDataKey: "d",
    responseDataType: "jsonp",
    sorting: {
        type: "local",
        defaultFields: [{
        fieldName: "Price"
        }]
    }
});

expressions

Type:: array
Default:: []
Elements Type:: object

A list of sorting expressions , consisting of the following keys (and their respective values): fieldName, direction and compareFunc (optional).

Code Sample

ds = new $.ig.TreeHierarchicalDataSource({
    callback: render,
    dataSource: url,
    localSchemaTransform: false,
    responseDataKey: "d",
    sorting: {
        expressions:[
            {
                fieldName:"Rating",
                dir:"asc"
            },
            {
                fieldName:"Price", dir:"asc"
            }
        ]
    }
});

exprString

Type:

string

Default:

""

Takes precedence over experssions, an "SQL-like" encoded expressions string : see sort(). Example col2 > 100 ORDER BY asc.

Code Sample

function sortRemote() {
    ds.settings.sorting.type = "remote";

    // remote sort
    ds.settings.sorting.exprString = "GNP " + dir;
    ds.dataBind();
}

sortUrlAscValueKey

Type:: string
Default:: null

URL param value for ascending type of sorting. Default is null and uses OData conventions.

Code Sample

var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
var ds = new $.ig.TreeHierarchicalDataSource({
    callback: render,
    dataSource: url,
    schema: {
        fields: [{
            name: "Name"
        }, {
            name: "Price"
        }, {
            name: "Rating"
        }],
        searchField: "d"
    },
    responseDataKey: "d",
    responseDataType: "jsonp",
    sorting: {
        type: "local",
        sortUrlAscValueKey: "mySortUrlAscValueKey"
    }
});

sortUrlDescValueKey

Type:: string
Default:: null

URL param value for descending type of sorting. Default is null and uses OData conventions.

Code Sample

var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
var ds = new $.ig.TreeHierarchicalDataSource({
    callback: render,
    dataSource: url,
    schema: {
        fields: [
            {name: "Name"},
            {name: "Price"},
            {name: "Rating"}
        ],
        searchField: "d"
    },
    responseDataKey: "d",
    responseDataType: "jsonp",
    sorting: {
        type: "local",
        sortUrlDescValueKey: "mySortUrlDescValueKey"
    }
});

sortUrlKey

Type:: string
Default:: null

URL param name which specifies how sorting expressions will be encoded in the URL. Default is null and uses OData conventions.

Code Sample

var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
var ds = new $.ig.TreeHierarchicalDataSource({
    callback: render,
    dataSource: url,
    schema: {
        fields: [
            {name: "Name"},
            {name: "Price"},
            {name: "Rating"}
        ],
        searchField: "d"
    },
    responseDataKey: "d",
    responseDataType: "jsonp",
    sorting: {
        type: "local",
        sortUrlKey: "mySortUrlKey"
    }
});

type

Type:: enumeration
Default:: remote

Specifies whether sorting will be applied locally or remotely (via a remote request).

Members

remote
Type:string
local
Type:string

Code Sample

$(window).load(function () {
    ds = new $.ig.TreeHierarchicalDataSource({
        type: "json",
        dataSource: adventureWorks,
        sorting: {
            type: "local",
            caseSensitive: true
        }
    });
    ds.dataBind();
});

summaries
Inherited

Type:: object
Default:: {}

Settings related to built-in summaries functionality.

Code Sample

var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
var ds = new $.ig.TreeHierarchicalDataSource({
    callback: render,
    dataSource: url,
    schema: {
        fields: [{
            name: "Name"
        }, {
            name: "Price"
        }, {
            name: "Rating"
        }],
        searchField: "d"
    },
    responseDataKey: "d",
    responseDataType: "jsonp",
    summaries: {
        type: "remote",
        columnSettings: [{
            columnKey: "Price",
            allowSummaries: false,
            summaryOperands: [{
                type: "count",
                active: true,
                order: 0
            }]
        }],
        summariesResponseKey: "d"
    }
});

columnSettings

Type:: array
Default:: []
Elements Type:: object

A list of column settings that specifies custom summaries options per column basis.

Code Sample

var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
var ds = new $.ig.TreeHierarchicalDataSource({
    callback: render,
    dataSource: url,
    schema: {
        fields: [{
            name: "Name"
        }, {
            name: "Price"
        }, {
            name: "Rating"
        }],
        searchField: "d"
    },
    responseDataKey: "d",
    responseDataType: "jsonp",
    summaries: {
        columnSettings: [{
            columnKey: "Price",
            allowSummaries: false,
            summaryOperands: [{
                type: "count",
                active: true,
                order: 0
            }]
        }]
    }

});

summariesResponseKey

Type:: string
Default:: "summaries"

Key for retrieving data from the summaries response - used only when summaries are remote.

Code Sample

var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
var ds = new $.ig.TreeHierarchicalDataSource({
    callback: render,
    dataSource: url,
    schema: {
        fields: [{
            name: "Name"
        }, {
            name: "Price"
        }, {
            name: "Rating"
        }],
        searchField: "d"
    },
    responseDataKey: "d",
    responseDataType: "jsonp",
    summaries: {
        summariesResponseKey: "d"
    }
});

summaryExecution

Type:: enumeration
Default:: afterfilteringandpaging

Determines when the summary values are calculated.

Members

priortofilteringandpaging
Type:string
afterfilteringbeforepaging
Type:string
afterfilteringandpaging
Type:string

Code Sample

var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
var ds = new $.ig.TreeHierarchicalDataSource({
    callback: render,
    dataSource: url,
    schema: {
        fields: [{
            name: "Name"
        }, {
            name: "Price"
        }, {
            name: "Rating"
        }],
        searchField: "d"
    },
    responseDataKey: "d",
    responseDataType: "jsonp",
    summaries: {
        summaryExecution: "priortofilteringandpaging"
    }
});

summaryExprUrlKey

Type:: string
Default:: "summaries"

Url key for retrieving data from response - used only when summaries are remote.

Code Sample

var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
var ds = new $.ig.TreeHierarchicalDataSource({
    callback: render,
    dataSource: url,
    schema: {
        fields: [{
            name: "Name"
        }, {
            name: "Price"
        }, {
            name: "Rating"
        }],
        searchField: "d"
    },
    responseDataKey: "d",
    responseDataType: "jsonp",
    summaries: {
        summaryExprUrlKey: "mySummaries"
    }
});

type

Type:: enumeration
Default:: remote

Specifies whether summaries will be applied locally or remotely (via a remote request).

Members

remote
Type:string
A remote request is done and URL params encoded.
local
Type:string
Data is paged client-side.

Code Sample

var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
var ds = new $.ig.TreeHierarchicalDataSource({
    callback: render,
    dataSource: url,
    schema: {
        fields: [{
            name: "Name"
        }, {
            name: "Price"
        }, {
            name: "Rating"
        }],
        searchField: "d"
    },
    responseDataKey: "d",
    responseDataType: "jsonp",
    summaries: {
        type: "remote"
    }
});

treeDS

Type:: object
Default:: {}

Configure tree datasource specific settings.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    treeDS: {
        childDataKey: "Products",
        initialExpandDepth: 10,
        propertyDataLevel: "dataLevel"
    }
});

childDataKey

Type:

string

Default:

null

Property name of the array of child data in a hierarchical data source.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    treeDS: {
        childDataKey: "Products"
    }
});

customEncodeUrlFunc

Type:: function
Default:: null

Specifies a custom function to be called when requesting data to the server - usually when expanding/collapsing record. If set the function should return the encoded URL. It takes as parameters: data record(type: object), expand - (type: bool).

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
                dataSource: products,
                treeDS: {
                    customEncodeUrlFunc: function(record, expand){
                        var dsUrl = ds.settings.treeDS.dataSourceUrl;
                        var path = ds.getPathBy(record);
                        return dsUrl + "?" + "path=" + path + "&depth= " + record[ds.settings.treeDS.dataLevelKey];
                    }
                }
            });

dataLevelKey

Type:

string

Default:

"__ig_options.dataLevel"

The name of the property that keeps track of the level in the hierarchy.Defaults to __ig_options.dataLevel.
dataSourceUrl

Type:

string

Default:

null

Specifies a remote URL as a data source, from which data will be retrieved using an AJAX call ($.ajax).

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    treeDS: {
        dataSourceUrl: "/api/products"
    }
});
enableRemoteLoadOnDemand

Type:

bool

Default:

false

Specifies if data is loaded on demand from a remote server. Default is false.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    treeDS: {
        dataSourceUrl: "/api/products",
        enableRemoteLoadOnDemand: true
    }
});
expandedKey

Type:

string

Default:

"__ig_options.expanded"

The name of the property that keeps track of the expansion state of a data item. Defaults to __ig_options.expanded.

filtering

Type:: object
Default:: {}

Configure datasource filtering settings.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    filtering: {
      enabled: true,
      type: "local"
    },
    treeDS: {
        filtering: {
            displayMode: "showWithAncestorsAndDescendants"
        }
    }
});

displayMode

Type:: enumeration
Default:: showWithAncestors

If displayMode is showWithAncestorsAndDescendants, show all records that match filtering conditions and their child records, even if child records don't match filtering conditions. If displayMode is showWithAncestors show only those records that match filtering conditions and do not show child records(if any) that don't match filtering conditions.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    filtering: {
      enabled: true,
      type: "local"
    },
    treeDS: {
        filtering: {
            displayMode: "showWithAncestorsAndDescendants"
        }
    }
});

fromLevel

Type:: number
Default:: 0

Specifies from which data bound level to be applied filtering - 0 is the first level.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    filtering: {
      enabled: true,
      type: "local"
    },
    treeDS: {
        filtering: {
            fromLevel: 1
        }
    }
});

matchFiltering

Type:: string
Default:: "__matchFiltering"

Filtering data source specific property - name of property in dataRecord object - indicates whether dataRow matches filtering conditions. It is used ONLY when filtering is applied.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    filtering: {
      enabled: true,
      type: "local"
    },
    treeDS: {
        filtering: {
            matchFiltering: "isFiltered"
        }
    }
});

toLevel

Type:: number
Default:: -1

Specifies to which data bound level to be applied filtering - if -1 filtering should be applied to the last data bound level.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    filtering: {
      enabled: true,
      type: "local"
    },
    treeDS: {
        filtering: {
            toLevel: 5
        }
    }
});

foreignKey

Type:

string

Default:

null

Unique identifier used in a self-referencing flat data source. Used with primaryKey to create a relationship among flat data sources.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    treeDS: {
        foreignKey: "ParentID"
    }
});
initialExpandDepth

Type:

number

Default:

-1

Specifies the depth down to which the tree grid would be expanded upon initial render. To expand all rows set value to -1. Default is -1.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    treeDS: {
        initialExpandDepth: 5
    }
});

initialFlatDataView

Type:: bool
Default:: false

If set to TRUE it is expected that the source of data is normalized and transformed(has set dataLevel and expansion state). The source of data is used as flatDataView. Usually used when the paging is remote and paging mode is allLevels, or features are remote(and the processing of the returned result should be made on the server).

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
                dataSource: products,
                treeDS: {
                    initialFlatDataView: true
                }
            });

paging

Type:: object
Default:: {}

Configure datasource paging settings.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    paging: {
        enabled : true,
        pageSize:10,
        type: "local"
    },
    treeDS: {
        paging: {
          mode: "allLevels"
        }
    }
});

contextRowMode

Type:: enumeration
Default:: none

When data flows to the next page there are a couple of different modes that can help communicate the context of a leaf level row. When mode option is 'rootLevelOnly' then the context row always shows the value of the contextRowRootText option.

Members

none
Type:string
Does not render the contextual row.
parent
Type:string
Renders a read-only representation of the immediate parent row.
breadcrumb
Type:string
Renders a read-only breadcrumb trail representing the full path through all ancestors.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
            dataSource: products,
            paging: {
                enabled : true,
                pageSize:10,
                type: "local",
                contextRowMode: "breadcrumb"
            },
            treeDS: {
                paging: {
                  mode: "allLevels"
                }
            }
        });

mode

Type:: enumeration
Default:: rootLevelOnly

Sets gets paging mode.

Members

allLevels
Type:string
includes all visible records in paging.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    paging: {
        enabled : true,
        pageSize:10,
        type: "local"
    },
    treeDS: {
        paging: {
          mode: "allLevels"
        }
    }
});

persistExpansionStates

Type:: bool
Default:: false

If true save expansion states in internal list and send it to the server. Applying to one of the main constraint of the REST architecture Stateless Interactions - client specific data(like expansion states) should NOT be stored on the server.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
                dataSource: products,
                treeDS: {
                    persistExpansionStates: true
                }
            });

propertyDataLevel
Deprecated

Type:

string

Default:

null

*** IMPORTANT DEPRECATED *** Use the dataLevelKey option instead.
The name of the property that keeps track of the level in the hierarchy.Defaults to __ig_options.dataLevel.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    treeDS: {
      propertyDataLevel: "_dataLevel"
    }
});
propertyExpanded
Deprecated

Type:

string

Default:

null

*** IMPORTANT DEPRECATED *** Use the expandedKey option instead.
The name of the property that keeps track of the expansion state of a data item. Defaults to __ig_options.expanded.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    treeDS: {
      propertyExpanded: "_expanded"
    }
});
requestDataCallback

Type:

function

Default:

null

Specifies a custom function to be called when the remote request for data has finished.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    treeDS: {
      dataSourceUrl: "/api/products",
      requestDataCallback: function () {

      }
    }
});
requestDataErrorCallback

Type:

function

Default:

null

Specifies a custom function to be called when the remote request for data has finished with an error.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    treeDS: {
      dataSourceUrl: "/api/products",
      requestDataErrorCallback: function () {

      }
    }
});
requestDataSuccessCallback

Type:

function

Default:

null

Specifies a custom function to be called when the remote request for data has finished successfully.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
treeDS: {
dataSourceUrl: "/api/products",
requestDataSuccessCallback: function () {

}
}
});
sorting

Type:

object

Default:

{}
Configure datasource sorting settings.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    treeDS: {
        sorting: {
  fromLevel: 1,
  toLevel: 5
}
    }
});
- fromLevel

  Type:

  number

  Default:

  0

  Specifies from which data bound level to be applied sorting - 0 is the first level.

  Code Sample

  var ds = new $.ig.TreeHierarchicalDataSource({
      dataSource: products,
      treeDS: {
          sorting: {
    fromLevel: 1,
    toLevel: 5
  }
      }
  });
- toLevel

  Type:

  number

  Default:

  -1

  Specifies to which data bound level to be applied sorting - if -1 sorting should be applied to the last data bound level.

  Code Sample

  var ds = new $.ig.TreeHierarchicalDataSource({
      dataSource: products,
      treeDS: {
          sorting: {
    fromLevel: 1,
    toLevel: 5
  }
      }
  });

type
Inherited

Type:: enumeration
Default:: unknown

Type of the data source.

Members

json
Type:string
Specifies that the data source is an already evaluated JSON (JavaScript object/array) or a string that can be evaluated to JSON.
xml
Type:string
Specifies that the data source is a XML Document object or a string that can be evaluated to XML.
unknown
Type:string
Specifies that the data source is of unknown type. In that case it will be analyzed and automatically detected if possible.
array
Type:string
Specifies that the data source is a simple array of objects.
function
Type:string
Specifies that the data source points to a function. During data binding the function will be called and the result will be assumed to be an array of objects.
htmlTableString
Type:string
Specifies that the data source points to a string that represents a HTML table.
htmlTableId
Type:string
Specifies that the data source points to an ID of a HTML Table element that's loaded on the page.
htmlTableDom
Type:string
The data source points to a DOM object that is of TABLE type.
invalid
Type:string
Set whenever data source is analyzed (in case its type is unknown) and the type cannot be detected.
remoteUrl
Type:string
Specifies that the data source points to a remote URL, from which data will be retrieved using an AJAX call ($.ajax).
htmlListDom
Type:string
The data source points to a DOM object that is of UL/OL type.
htmlSelectDom
Type:string
The data source points to a DOM object that is of SELECT type.
empty
Type:string

Code Sample

$(window).load(function () {
    var url = "http://odata.netflix.com/Catalog/Titles?$format=json&$callback=?";
    ds = new $.ig.TreeHierarchicalDataSource({
        type: "remoteUrl",
        callback: render,
        dataSource: url,
        schema: oDataSchema,
        responseDataKey : "d.results",
        responseDataType: "jsonp",
    });
    ds.dataBind();
});

updateUrl
Inherited

Type:: string
Default:: null

Specifies an update remote URL, to which an AJAX request will be made as soon as saveChages() is called.

Code Sample

var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
var ds = new $.ig.TreeHierarchicalDataSource({
    callback: render,
    dataSource: url,
    schema: {
        fields: [{
            name: "Name"
        }, {
            name: "Price"
        }, {
            name: "Rating"
        }],
        searchField: "d"
    },
    responseDataKey: "d",
    responseDataType: "jsonp",
    updateUrl: "http://example.com/myUpdateUrl/"

});

urlParamsEncoded
Inherited

Type:: object
Default:: null

Event that is fired after URL parameters are encoded (When a remote request is done). Can point to a function name or the function object itself.

Code Sample

var render = function (success, error) {
    if (success) {
        var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
        resultHtml = $.ig.tmpl(template, ds.dataView());
        $("#table").html(resultHtml);
    } else {
        alert(error);
    }
}

var myUrlParamsEncoded = function (item, params) {
    alert("myUrlParamsEncoded");
}

var ds;
$(window).load(function () {
    var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    ds = new $.ig.TreeHierarchicalDataSource({
        callback: render,
        dataSource: url,
        schema: {
            fields: [{
                name: "Name"
            }, {
                name: "Price"
            }, {
                name: "Rating"
            }],
            searchField: "d"
        },
        responseDataKey: "d",
        responseDataType: "jsonp",
        urlParamsEncoded: myUrlParamsEncoded
    });
    ds.dataBind();
});

urlParamsEncoding
Inherited

Type:: object
Default:: null

Event that is fired before URL parameters are encoded. Can point to a function name or the function object itself.

Code Sample

var render = function (success, error) {
    if (success) {
        var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
        resultHtml = $.ig.tmpl(template, ds.dataView());
        $("#table").html(resultHtml);
    } else {
        alert(error);
    }
}

var myUrlParamsEncoding = function (item, params) {
    alert("myUrlParamsEncoding");
}

var ds;
$(window).load(function () {
    var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    ds = new $.ig.TreeHierarchicalDataSource({
        callback: render,
        dataSource: url,
        schema: {
            fields: [{
                name: "Name"
            }, {
                name: "Price"
            }, {
                name: "Rating"
            }],
            searchField: "d"
        },
        responseDataKey: "d",
        responseDataType: "jsonp",
        urlParamsEncoding: myUrlParamsEncoding
    });
    ds.dataBind();
});

Show Details

ig.TreeHierarchicalDataSource
Constructor

new $.ig.TreeHierarchicalDataSource( options:object );

options
Type:object

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    callback: render,
    treeDS: {
        childDataKey: "Products",
        initialExpandDepth: 10,
        propertyDataLevel: "dataLevel"
    }
});
    ds.dataBind();

addNode
Inherited

.addNode( data:object );
Adds a new node to the tree data source. Creates a transaction that can be committed / rolled back.
- data
- Type:object
- the transaction data.

addRow
Inherited

.addRow( rowId:object, rowObject:object, autoCommit:bool );
Return Type:: object
Return Type Description:: . The transaction object that was created.

Adds a new row to the data source. Creates a transaction that can be committed / rolled back.

rowId
Type:object
the record key - primaryKey (string) or index (number).
rowObject
Type:object
the new record data.
autoCommit
Type:bool
if autoCommit is true, the datasource will be updated automatically and the transaction is still stored in the accumulated transaction log.

Code Sample

var ds;

var render = function (success, error) {
    if (success) {
    ds.addRow(123, {Name : "CD Player", Price : "40", Rating : "4"}, true);
        var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
        resultHtml = $.ig.tmpl(template, ds.dataView());
        $("#table").html(resultHtml);
    } else {
        alert(error);
    }
}

$(window).load(function () {
    var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    ds = new $.ig.TreeHierarchicalDataSource({
        callback: render,
        dataSource: url,
        schema: {
            fields: [
                {name: "Name"},
                {name: "Price"},
                {name: "Rating"}
            ],
            searchField: "d"
        },
        responseDataKey: "d",
        responseDataType: "jsonp"
    });
    ds.dataBind();

});

allTransactions
Inherited

.allTransactions( );
Return Type:: array

Returns a list of all transaction objects that are either pending, or have been committed in the data source.

Code Sample

var ds;

var render = function (success, error) {
    if (success) {
        ds.addRow(123, {
            Name: "CD Player",
            Price: "40",
            Rating: "4"
        }, true);
        var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
        resultHtml = $.ig.tmpl(template, ds.dataView());
        console.log(ds.allTransactions());
        $("#table").html(resultHtml);
    } else {
        alert(error);
    }
}

$(window).load(function () {
    var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    ds = new $.ig.TreeHierarchicalDataSource({
        callback: render,
        dataSource: url,
        schema: {
            fields: [{
                name: "Name"
            }, {
                name: "Price"
            }, {
                name: "Rating"
            }],
            searchField: "d"
        },
        responseDataKey: "d",
        responseDataType: "jsonp"
    });
    ds.dataBind();

});

analyzeDataSource
Inherited

.analyzeDataSource( );
Return Type:: string

Analyzes the dataSource setting to automatically determine the type of the data source. Returns the data source type. See settings.type.

Code Sample

var ds;

var render = function (success, error) {
    if (success) {
    console.log(ds.analyzeDataSource());
        var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
        resultHtml = $.ig.tmpl(template, ds.dataView());
        $("#table").html(resultHtml);
    } else {
        alert(error);
    }
}

$(window).load(function () {
var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
ds = new $.ig.TreeHierarchicalDataSource({
    callback: render,
    dataSource: url,
    schema: {
        fields: [{
            name: "Name"
        }, {
            name: "Price"
        }, {
            name: "Rating"
        }],
        searchField: "d"
    },
    responseDataKey: "d",
    responseDataType: "jsonp"
    });
    ds.dataBind();
});

clearLocalFilter

.clearLocalFilter( );

This clears local filtering applied to the data view by resetting it to the original data and applying any paging.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    filtering: {
      enabled: true,
      type: "local"
    },
    treeDS: {
        childDataKey: "Products"
    }
});

ds.clearLocalFilter();

clearLocalSorting
Inherited

.clearLocalSorting( );
This clears local sorting applied to the data view by resetting it to the original data and applying any paging.
Code Sample

ds.clearLocalSorting();

clearMatchFiltering

.clearMatchFiltering( [data:object] );

Clears __matchFiltering property from the data record objects in the filtered data source. The __matchFiltering property determines whether a record matches the specified filtering condition.

data
Type:object
Optional
the array of data objects to be cleared. If not set the current filtered data array is used.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    filtering: {
      enabled: true,
      type: "local"
    },
    treeDS: {
        childDataKey: "Products"
    }
});

ds.clearMatchFiltering();

commit
Inherited

.commit( [id:number] );

Update the data source with every transaction from the log.

id
Type:number
Optional
Id of the transaction to commit. If no id is specified, will commit all transactions to the data source.

Code Sample

var ds;

var render = function (success, error) {
    if (success) {
        ds.addRow(123, {
            Name: "CD Player",
            Price: "40",
            Rating: "4"
        });
        ds.commit();

            var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
            resultHtml = $.ig.tmpl(template, ds.dataView());
            $("#table").html(resultHtml);

    } else {
        alert(error);
    }
}

$(window).load(function () {
    var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    ds = new $.ig.TreeHierarchicalDataSource({
        callback: render,
        dataSource: url,
        schema: {
            fields: [{
                name: "Name"
            }, {
                name: "Price"
            }, {
                name: "Rating"
            }],
            searchField: "d"
        },
        responseDataKey: "d",
        responseDataType: "jsonp"
    });

    ds.dataBind();
});

data
Inherited

.data( );
Return Type:: object

Returns all of the bound data, without taking into account local paging, sorting, filtering, etc.

Code Sample

var ds;
var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
ds = new $.ig.TreeHierarchicalDataSource({
    callback: render,
    dataSource: url,
    schema: {
        fields: [{
            name: "Name"
        }, {
            name: "Price"
        }, {
            name: "Rating"
        }],
        searchField: "d"
    },
    responseDataKey: "d",
    responseDataType: "jsonp"
});

var data = ds.data();

dataBind

.dataBind( [callback:string], [callee:object] );
Data binds to the current data source
databinding works using the following workflow:
1. fire the databinding event
2. based on the data source type (see analyzeDataSource()), do the following:
3. if type is HtmlTable, parse the table and set the data and dataView respectively.
if the type is Function, call it, apply Paging/Filtering/Sorting, and set this._dataView . If the developer wants to do his own paging, filtering or sorting
in that case, then he should handle the PageIndexChanging and/or DataFiltering, and/or ColumnSorting client-side events, and cancel them.
if no paging/sorting/filtering are enabled, use just this._data to save space
if the data source is of type RemoteUrl, use jQuery's $.ajax API to trigger a remote request to the service. Use the param() API to encode the URL
if the data source is invalid, throw an exception
if the analyzed runtime data source type , that is, the result of analyzeDataSource(), is Unknown, check if
the value of settings.type is set to XML or JSON. If string, eval for JSON, and parse for the XML to build the object ree
4. now normalize/transform the data, if a schema is supplied. This inplies any additional data type conversion
5. next, if OpType is Local, apply paging, sorting, and/or filtering to the data, and store the result in this._dataView
6. fire the databound event.
- callback
- Type:string
- Optional
- callback function.
- callee
- Type:object
- Optional
- callee object on which the callback will be executed. If none is specified, will assume global execution context.
Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    treeDS: {
        childDataKey: "Products"
    }
});
    ds.dataBind();

dataSource
Inherited

.dataSource( [ds:object] );
Return Type:: object

Gets/sets the dataSource setting. If no parameter is specified, returns settings.dataSource.

ds
Type:object
Optional
.

Code Sample

var ds;
var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
ds = new $.ig.TreeHierarchicalDataSource({
    callback: render,
    schema: {
        fields: [{
            name: "Name"
        }, {
            name: "Price"
        }, {
            name: "Rating"
        }],
        searchField: "d"
    },
    responseDataKey: "d",
    responseDataType: "jsonp"
});

// Set
ds.dataSource(url);

// Get
var dataSource = ds.dataSource();

dataSummaries
Inherited

.dataSummaries( );
Return Type:: object
Return Type Description:: *.

Returns summaries data.

Code Sample

var ds;
var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
ds = new $.ig.TreeHierarchicalDataSource({
    callback: render,
    dataSource: url,
    schema: {
        fields: [{
            name: "Name"
        }, {
            name: "Price"
        }, {
            name: "Rating"
        }],
        searchField: "d"
    },
    responseDataKey: "d",
    responseDataType: "jsonp"
});

var dataSummaries = ds.dataSummaries();

dataView
Inherited

.dataView( );

Return Type:

array

Return Type Description:

array of data records.
Returns the current normalized/transformed and paged/filtered/sorted data, i.e. the dataView.
Code Sample

function numberOfRows () {
return $("#grid1").data("igGrid").dataSource.dataView().length;
}
deleteRow

.deleteRow( rowId:object, autoCommit:bool );

Return Type:

object

Return Type Description:

. The transaction object that was created.
Deletes a row from the data source.
- rowId
- Type:object
- the record key - primaryKey (string) or index (number).
- autoCommit
- Type:bool
- if autoCommit is true, the datasource will be updated automatically and the transaction is still stored in the accumulated transaction log.
Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    treeDS: {
        childDataKey: "Products"
    }
});
ds.dataBind();
ds.deleteRow(15);

fields
Inherited

.fields( [fields:object] );
Return Type:: object
Return Type Description:: if no parameters are specified, returns the existing list of fields.

Sets a list of fields to the data source. If no parameter is specified, just returns the already existing list of fields.

fields
Type:object
Optional
a field has the following format: {key: 'fieldKey', dataType: 'string/number/date' }.

Code Sample

var ds;

var render = function (success, error) {
    if (success) {
        var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
        resultHtml = $.ig.tmpl(template, ds.dataView());
        $("#table").html(resultHtml);
    } else {
        alert(error);
    }
}

$(window).load(function () {
    var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    ds = new $.ig.TreeHierarchicalDataSource({
        callback: render,
        dataSource: url,
        schema: {
            fields: [{
                name: "Name"
            }, {
                name: "Price"
            }, {
                name: "Rating"
            }],
            searchField: "d"
        },
        responseDataKey: "d",
        responseDataType: "jsonp",
        fields: [{
            key: "Name",
            dataType: "string"
        }, {
            key: "Price",
            dataType: "number"
        }, {
            key: "Rating",
            dataType: "number"
        }]
    });
    ds.dataBind();
    var fields = ds.fields();
});

filter

.filter( fieldExpressions:object, boolLogic:object, keepFilterState:bool, fieldExpressionsOnStrings:object );

Filters the data source locally. Remote filtering can be performed by just calling dataBind() and setting the settings.filtering.expressions. The result (filtered data) can be obtained by calling dataView()
example: [{fieldName : "firstName", expr: "abc", cond: "StartsWith"}, {fieldName : "lastName"}]
example 2: [{fieldIndex : 1} , {fieldIndex : 2, expr: "a", cond : "contains"}]
expr is the filter expression text , such as "abc", or a regular expression such as *test*
cond is the filtering condition such as startsWith, endsWith, contains, equals, doesNotEqual, doesNotContain
if expr is detected to be a regular expression, the "cond" part is skipped.

fieldExpressions
Type:object
a list of field expression definitions.
boolLogic
Type:object
boolean logic. Accepted values are AND and OR.
keepFilterState
Type:bool
if keepFilterState is set to true, it will not discard previous filtering expressions.
fieldExpressionsOnStrings
Type:object

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    filtering: {
      enabled: true,
      type: "local"
    },
    dataSource: products,
    treeDS: {
        childDataKey: "Products"
    }
});
ds.dataBind();
ds.filter([{fieldName : "Name", expr: "Milk", cond: "Equals"}], "AND", true);

filterByText
Inherited

.filterByText( expression:string, [fields:array] );

Filters the data source locally by text. If "fields" parameter is set search is performed only in the listed fields otherwise all fields are searched.

expression
Type:string
a text to search for. Multiple search texts should be separated by space. When multiple search texts are provided all of them should be presented in the search fields (bool logic "and" is applied).
fields
Type:array
Optional
an array of fields that will be searched.

Code Sample

ds = new $.ig.TreeHierarchicalDataSource({
    type: "json",
    dataSource: adventureWorks,
    schema: {
        fields: [{
            name: "ID", type: "number"
        }, {
            name: "Name", type: "string"
        }, {
            name: "Description", type: "string"
        }, {
            name: "ReleaseDate", type: "date"
        }]
});
ds.dataBind();

// Search in all fields
ds.filterByText("Apples");
// Search only in "Name" field
ds.filterByText("Apples", [{name: "Name", type: "string"}]);

filteredData
Inherited

.filteredData( );
Return Type:: array
Return Type Description:: array of (filtered)data records.

Returns filtered data if local filtering is applied. If filtering is not applied OR type of filtering is remote returns undefined.

Code Sample

ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ProductID",
    filtering: {
        type: "local",
        caseSensitive: true,
        applyToAllData: true
    }
});

ds.dataBind();
//Get
var filteredData = ds.filteredData();

filterSettings
Inherited

.filterSettings( [f:object] );

Gets/sets a list of filtering settings.

f
Type:object
Optional
object holding all filtering settings. See settings.filtering.

Code Sample

var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
var ds = new $.ig.TreeHierarchicalDataSource({
    callback: render,
    dataSource: url,
    schema: {
        fields: [
            {name : "Name"},
            {name : "Price"},
            {name: "Rating"}
        ],
        searchField: "d"
    },
    responseDataKey: "d",
    responseDataType: "jsonp"
});

var myFilterSettings = {
    type: "remote",
    expressions: [
    {
        fieldName: "Name",
        cond:"Contains",
        expr: "Cr",
        logic: "OR"
    }
]
};

// Set
ds.filterSettings(myFilterSettings);

// Get
var filterSettings= ds.filterSettings();

findRecordByKey

.findRecordByKey( key:object, [ds:string], [objPath:object] );
Return Type:: object
Return Type Description:: a JavaScript object specifying the found record, or null if no record is found.

Returns a record by a specified key (requires that primaryKey is set in the settings).

key
Type:object
Primary key of the record.
ds
Type:string
Optional
the data source in which to search for the record. When not set it will use the current data source.
objPath
Type:object
Optional
path to the object. Example: {path: '5/1'}.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});

ds.dataBind();
var record = ds.findRecordByKey(14);

flatDataView

.flatDataView( );
Return Type:: object
Return Type Description:: the current flat data view.

Returns the current flat data view.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});

ds.dataBind();
var flatView = ds.flatDataView();

generateFlatData

.generateFlatData( data:object, [level:number] );
Return Type:: object
Return Type Description:: the generated flat data.

Generates flat data.
Returns an object that contains the generated flat data, the flat visible data, records count and visible records count.

data
Type:object
The data record whose data is transformed.
level
Type:number
Optional
The level from which to start recursively generating the flat data. If not set defaults to 0.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});

ds.dataBind();
var flatData = ds.generateFlatData(products);

generateFlatDataView

.generateFlatDataView( );

Generates a flat data view from the current (hierarchical)data.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});

ds.dataBind();
ds.generateFlatDataView();

getCellValue
Inherited

.getCellValue( fieldName:string, record:object );
Return Type:: object
Return Type Description:: . The cell's value.

Gets a cell value from the record by the specified fieldName. If there's a mapper defined for the field, the resolved by the mapper value will be returned.

fieldName
Type:string
the fieldName - name of the field.
record
Type:object
the record from which to get it.

Code Sample

ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ProductID"
});

ds.dataBind();
//Get
var value = ds.getCellValue("Name", {ProductID: 1, Name: "Adjustable Race", ProductNumber: "AR-5381"});

getChildrenByKey

.getChildrenByKey( key:object, ds:object );
Return Type:: object
Return Type Description:: array of child records.

Gets the chilren records by the parent record's key in the passed data source.

key
Type:object
primary key of the record.
ds
Type:object
the data source.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});

ds.dataBind();
var children = ds.getChildrenByKey(14);

getDataBoundDepth

.getDataBoundDepth( );

Gets the current data bound depth of the tree grid hierarchy.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});

ds.dataBind();
var depth = ds.getDataBoundDepth();

getDetachedRecord
Inherited

.getDetachedRecord( t:object );
Return Type:: object
Return Type Description:: a copy of a record from the data source.

Returns a standalone object (copy) that represents the commited transactions, but detached from the data source.

t
Type:object
a transaction object.

Code Sample

var ds;

$(window).load(function () {
    ds = new $.ig.TreeHierarchicalDataSource({
        schema: {
        fields: [{
            name: "Name"
        }, {
            name: "Price"
        }, {
            name: "Rating"
        }],
        }
    });

    var transactionObject = ds.addRow(123, {
        Name: "CD Player",
        Price: "40",
        Rating: "4"
    }, true);
    var detachedObject = ds.getDetachedRecord(transactionObject);
    });

getExpandStateById

.getExpandStateById( rowId:string );
Return Type:: bool
Return Type Description:: //Returns true if expanded and false if not.

Gets whether the row with the specified id is expanded.Returns true if the row is expanded or false if it's not.

rowId
Type:string
//The id of the row.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});

ds.dataBind();
var state = ds.getExpandStateById(454);

getFilteredRecordsCount

.getFilteredRecordsCount( );
Return Type:: number
Return Type Description:: count of filtered records.

Gets the count of the filtered records.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});

ds.dataBind();
ds.filter([{fieldName : "Name", expr: "Milk", cond: "Equals"}], "AND", true);
var state = ds.getFilteredRecordsCount();

getFilteredRecordsCountFromDataView

.getFilteredRecordsCountFromDataView( );
Return Type:: number
Return Type Description:: count of filtered records in the dataview.

Gets the count of the filtered records in the dataView.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});
ds.dataBind();
ds.filter([{fieldName : "Name", expr: "M", cond: "startsWith"}], "AND", true);
var filteredRecordsCount = ds.getFilteredRecordsCountFromDataView();

getFilteringMatchRecordsCount

.getFilteringMatchRecordsCount( );
Return Type:: number
Return Type Description:: the number of match filtering records(if filtering is not applied returns totalRecordsCount).

Returns the total number of match filtering records in the data source.
When the dataSource is remote and filtering is applied then it is taken value
of property "filtering.countRecords" in metatadata - if set. If it is not set returns totalRecordsCount.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});
ds.dataBind();
ds.filter([{fieldName : "Name", expr: "M", cond: "startsWith"}], "AND", true);
var matchRecordsCount = ds.getFilteringMatchRecordsCount();

getFlatData

.getFlatData( );
Return Type:: object
Return Type Description:: the current flat data.

Returns flat data(without taking into account visible/expansion state).

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
    });

ds.dataBind();
var flatData = ds.getFlatData();

getFlatDataCount

.getFlatDataCount( );
Return Type:: number
Return Type Description:: count of all data records(in flat representation).

Returns total records count(without taking into account visible/expansion state).

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});
ds.dataBind();
var flatDataCount = ds.getFlatDataCount();

getFlatDataForRecord

.getFlatDataForRecord( record:object, [level:number] );
Return Type:: object
Return Type Description:: the transformed data.

Returnschild data transformed to flat data.

record
Type:object
The data record whose data is transformed and returned as flat.
level
Type:number
Optional
The level. If not set defaults to 0.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});

ds.dataBind();
var record = ds.findRecordByKey(14);
var data = ds.getFlatDataForRecord(record);

getParentRowsForRow

.getParentRowsForRow( dataRow:object, [ds:object] );
Return Type:: object
Return Type Description:: the array of parent records of the specified child record.

Gets the passed record's parent records.

dataRow
Type:object
the child record.
ds
Type:object
Optional
the data source in which to search for the related parent records.

Code Sample

    var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});
ds.dataBind();

var parentRows = ds.getParentRowsForRow({ "ID": 16, "Name": "Club sandwich", "Price": "3.5" });

getPathBy

.getPathBy( record:object );
Return Type:: string
Return Type Description:: the record or the record's key as string or number.

Gets the path of a record by the record or the record's key.

record
Type:object

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});

ds.dataBind();
var path = ds.getPathBy(14);

getVisibleFlatData

.getVisibleFlatData( );
Return Type:: object
Return Type Description:: the current visible flat data.

Returns flat visible data.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});

ds.dataBind();
var visibleFlatData = ds.getVisibleFlatData();

groupByData
Inherited

.groupByData( );
Return Type:: array
Return Type Description:: array of records.

Returns collection of data and non-data(grouped) records. Flat representation of hierarchical data.

Code Sample

ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ProductID",
    groupby: {
        defaultCollapseState: true
    }
});

ds.dataBind();

var groupedData = ds.groupByData();

groupByDataView
Inherited

.groupByDataView( );
Return Type:: array
Return Type Description:: array of data and non-data(grouped) records.

Returns the current normalized/transformed and paged/filtered/sorted group-by data.

Code Sample

ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ProductID",
    groupby: {
        defaultCollapseState: true
    }
});

ds.dataBind();

var groupByDataView = ds.groupByDataView();

hasTotalRecordsCount
Inherited

.hasTotalRecordsCount( hasCount:bool );

Gets / sets if the response from the server contains a property which specifies the total number of records in the server-side backend.

hasCount
Type:bool
specifies if the data source contains a property that denotes the total number of records in the server-side backend.

Code Sample

var ds;
$(window).load(function () {
    var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    ds = new $.ig.TreeHierarchicalDataSource({
        callback: render,
        dataSource: url,
        schema: {
            fields: [{
                name: "Name"
            }, {
                name: "Price"
            }, {
                name: "Rating"
            }],
            searchField: "d"
        },
        responseDataKey: "d",
        responseDataType: "jsonp",
        primaryKey: "Name"
    });
    ds.dataBind();
    // Get
    var hasTotalRecords = ds.hasTotalRecordsCount();

    // Set
    ds.hasTotalRecordsCount(true);
});

insertRow

.insertRow( rowId:object, rowObject:object, rowIndex:number, autoCommit:bool, parentRowId:object );
Return Type:: object
Return Type Description:: . The transaction object that was created.

Adds a new row to the data source. Creates a transaction that can be committed / rolled back.

rowId
Type:object
the record key - primaryKey (string) or index (number).
rowObject
Type:object
the new record data.
rowIndex
Type:number
row index at which to be insert the new row.
autoCommit
Type:bool
if autoCommit is true, the datasource will be updated automatically and the transaction is still stored in the accumulated transaction log.
parentRowId
Type:object
the value of the primary key of the parent row(if any).

Code Sample

var ds;

var render = function (success, error) {
    if (success) {
        ds.insertRow(123, {
            Name: "CD Player",
            Price: "40",
            Rating: "4"
        }, 1, true);
        var template = "<tr><td><span data-level='${dataLevel}'>${ID}</span></td><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
        resultHtml = $.ig.tmpl(template, ds.flatDataView());
        $("#table").html(resultHtml);

    } else {
        alert(error);
    }
}

$(window).load(function () {
    ds = new $.ig.TreeHierarchicalDataSource({
        callback: render,
        dataSource: products,
        treeDS: {
            childDataKey: "Products",
            initialExpandDepth: 10,
            dataLevelKey: "dataLevel"
        }
    });
    ds.dataBind();

});

isGroupByApplied
Inherited

.isGroupByApplied( [exprs:array] );
Return Type:: bool
Return Type Description:: Returns true if grouping is applied.

Check whether grouping is applied for the specified sorting expressions.

exprs
Type:array
Optional
array of sorting expressions. If not set check expressions defined in sorting settings.

Code Sample

ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ProductID",
    groupby: {
        defaultCollapseState: true
    },
    sorting: {
        expressions:[
            {
                fieldName: "Name",
                dir: "desc"
            }
    ]}
});

ds.dataBind();

var sortingExprArray = ds.settings.sorting.expressions;
var isApplied = ds.isGroupByApplied(sortingExprArray);

isGroupByRecordCollapsed
Inherited

.isGroupByRecordCollapsed( gbRec:object );
Return Type:: bool
Return Type Description:: if true the grouped record is collapsed.

Check whether the specified gorupby record is collapsed.

gbRec
Type:object
id of the grouped record OR grouped record.

Code Sample

ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ProductID",
    groupby: {
        defaultCollapseState: true
    }
});

ds.dataBind();

var isCollapsed = ds.isGroupByRecordCollapsed({id:"ProductID:49"});

isTransformedToHierarchicalData

.isTransformedToHierarchicalData( [isTransformed:bool] );

Gets/Sets whether the data source has been transformed from flat to hierarchical.

isTransformed
Type:bool
Optional
Determines if the data source is marked as transformed or not.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});

ds.dataBind();
var transformed = ds.isTransformedToHierarchicalData();

metadata
Inherited

.metadata( key:string );
Return Type:: object
Return Type Description:: metadata object.

Returns metadata object for the specified key.

key
Type:string
Primary key of the record.

Code Sample

var ds;

var render = function (success, error) {
    if (success) {
        var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
        resultHtml = $.ig.tmpl(template, ds.dataView());
        $("#table").html(resultHtml);
    } else {
        alert(error);
    }
}

$(window).load(function () {
    var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    ds = new $.ig.TreeHierarchicalDataSource({
        callback: render,
        dataSource: url,
        schema: {
            fields: [{
                name: "Name"
            }, {
                name: "Price"
            }, {
                name: "Rating"
            }],
            searchField: "d"
        },
        responseDataKey: "d",
        responseDataType: "jsonp",
        primaryKey: "Name"
    });
    ds.dataBind();

    var metadata = ds.metadata();

});

nextPage
Inherited

.nextPage( );

Sets the page index to be equal to the next page index and rebinds the data source.

Code Sample

ds = new $.ig.TreeHierarchicalDataSource({
    type: "json",
    dataSource: adventureWorks,
    paging: {
        enabled : true,
        pageSize:10,
        type: "local"
    }
});

ds.nextPage();

pageCount

.pageCount( );
Return Type:: number
Return Type Description:: total number of pages.

Returns the total number of pages.

Code Sample

ds = new $.ig.TreeHierarchicalDataSource({
    type: "json",
    dataSource: adventureWorks,
    paging: {
        enabled : true,
        pageSize:10,
        type: "local"
    }
});

var count = ds.pageCount();

pageIndex
Inherited

.pageIndex( [index:number] );
Return Type:: number
Return Type Description:: the current page index.

Gets /sets the current page index. If an index is passed as a parameter, the data source is re-bound.

index
Type:number
Optional
the page index. If none is specified, returns the current page index.

Code Sample

ds = new $.ig.TreeHierarchicalDataSource({
    type: "json",
    dataSource: adventureWorks,
    paging: {
        enabled : true,
        pageSize:10,
        type: "local"
    }
});

//Get
var currentIndex = ds.pageIndex();

//Set
ds.pageIndex(5);

pageSize
Inherited

.pageSize( [s:number] );
Return Type:: number
Return Type Description:: Returns the current page size if getter is used and the current instance of the $.ig.DataSource when setter is used.

Gets /sets the page size and rebinds the data source if a parameter is specified. If no parameter is passed, returns the current page size.

s
Type:number
Optional
the page size.

Code Sample

ds = new $.ig.TreeHierarchicalDataSource({
    type: "json",
    dataSource: adventureWorks,
    paging: {
        enabled : true,
        pageSize:10,
        type: "local"
    }
});

//Get
var size = ds.pageSize();

//Set
ds.pageSize(25);

pageSizeDirty
Inherited

.pageSizeDirty( );

For internal use.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    type: "json",
    dataSource: adventureWorks,
    paging: {
        enabled: true,
        pageSize: 10,
        type: "local"
    }
});

ds.pageSizeDirty();

pagingSettings
Inherited

.pagingSettings( [p:object] );
Return Type:: object
Return Type Description:: Returns an object holding the current paging settings when you use the getter and the current instance of the $.ig.DataSource when you use the setter.

Gets/sets a list of paging settings.

p
Type:object
Optional
object holding all paging settings. See settings.paging.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    type: "json",
    dataSource: adventureWorks,
    paging: {
        enabled: true,
        pageSize: 10,
        type: "local"
    }
});

var myPagingSettings = {
    enabled: true,
    pageSize: 10,
    pageIndex: 2,
    pageIndexUrlKey: "myPageIndexUrlKey",
    type: "local"
};

// Set
ds.pagingSettings(myPagingSettings);

// Get
var pagingSettings = ds.pagingSettings();

pendingTransactions
Inherited

.pendingTransactions( );
Return Type:: array

Returns a list of all transaction objects that are pending to be committed or rolled back to the data source.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    schema: {
    fields: [{
            name: "Name"
        }, {
            name: "Price"
        }, {
            name: "Rating"
        }],
        searchField: "d"
    },
    responseDataKey: "d",
    responseDataType: "jsonp"
    });

    ds.addRow(123, {
        Name: "CD Player",
        Price: "40",
        Rating: "4"
});
var pendingTransactions = ds.pendingTransactions());

persistedPageIndex
Inherited

.persistedPageIndex( [value:number] );

Return Type:

number

Return Type Description:

the current page index(that should be persisted).
Gets /sets the page index that should be persisted. For now ONLY when filtering is applied and call explicitly DataBind.
- value
- Type:number
- Optional
- the page index that should be persisted. If none is specified, returns the current page index that should be persisted.
Code Sample

N/A

prevPage
Inherited

.prevPage( );

Sets the page index to be equal to the previous page index and rebinds the data source.

Code Sample

ds = new $.ig.TreeHierarchicalDataSource({
    type: "json",
    dataSource: adventureWorks,
    paging: {
        enabled : true,
        pageSize:10,
        type: "local"
    }
});

ds.prevPage();

processDataPerLevel

.processDataPerLevel( data:object, [level:number], [suppressTransformation:bool] );
Return Type:: object
Return Type Description:: the processed data source.

This processes the passed data for the specified level and applies the schema transformation to it.

data
Type:object
The data to be processed and transformed.
level
Type:number
Optional
The level to which the data belongs to. If this is not set it defaults to 0.
suppressTransformation
Type:bool
Optional
Determines whether the data should go through schema transformation. If true schema transofrmatin will not be applied.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});
ds.dataBind();
ds.processDataPerLevel(ds.getFlatData()[1], 1, false);

recordsForPage
Inherited

.recordsForPage( p:number );

Returns a list of records for the specified page. Implies that paging is enabled.

p
Type:number
the page index for which records will be returned.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    type: "json",
    dataSource: adventureWorks,
    paging: {
        enabled: true,
        pageSize: 10,
        type: "local"
    }
});

var recordsForPage = ds.recordsForPage(2);

removeNode
Inherited

.removeNode( data:object );
Removes a node from the tree data source. Creates a transaction that can be committed / rolled back.
- data
- Type:object
- the transaction data.

removeRecordByIndex
Inherited

.removeRecordByIndex( index:number, origDs:object );

Removes a record from the data source at specific index.

index
Type:number
index of record.
origDs
Type:object

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    schema: {
        fields: [{
            name: "Name"
        }, {
            name: "Price"
        }, {
            name: "Rating"
        }],
        searchField: "d"
    },
    responseDataKey: "d",
    responseDataType: "jsonp"
});
ds.addRow(0, {
    Name: "CD Player",
    Price: "40",
    Rating: "4"
}, true);
ds.addRow(1, {
    Name: "CD Player1",
    Price: "40",
    Rating: "4"
}, true);
ds.addRow(2, {
    Name: "CD Player2",
    Price: "40",
    Rating: "4"
}, true);

ds.removeRecordByIndex(0);

removeRecordByKey

.removeRecordByKey( key:object, origDs:object );
Removes a specific record denoted by the primaryKey of the passed key parameter from the data source.
- key
- Type:object
- primary key of the record.
- origDs
- Type:object
Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
  dataSource: products,
  primaryKey: "ID"
  treeDS: {
    childDataKey: "Products"
  }
});
ds.dataBind();
ds.removeRecordByKey(14);

rollback
Inherited

.rollback( [id:object] );

Clears the transaction log without updating anything in the data source.

id
Type:object
Optional
Record Id to find transactions for. If no id is specified, will rollback all transactions to the data source.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    schema: {
        fields: [{
            name: "Name"
        }, {
            name: "Price"
        }, {
            name: "Rating"
        }],
        searchField: "d"
    },
    responseDataKey: "d",
    responseDataType: "jsonp",
    primaryKey: "Name"
});

ds.addRow(0, {
    Name: "CD Player",
    Price: "40",
    Rating: "4"
});
ds.addRow(1, {
    Name: "CD Player1",
    Price: "40",
    Rating: "4"
});
ds.addRow(2, {
    Name: "CD Player2",
    Price: "40",
    Rating: "4"
});

ds.rollback();

saveChanges
Inherited

.saveChanges( success:function, error:function );

Posts to the settings.updateUrl using $.ajax, by serializing the changes as url params.

success
Type:function
Specifies a custom function to be called when AJAX request to the updateUrl option succeeds(optional).
error
Type:function
Specifies a custom function to be called when AJAX request to the updateUrl option fails(optional).

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    schema: {
        fields: [{
            name: "Name"
        }, {
            name: "Price"
        }, {
            name: "Rating"
        }]
    },
    updateUrl: "http://example.com/myUpdateUrl/"
});

ds.addRow(0, {
    Name: "CD Player",
    Price: "40",
    Rating: "4"
}, true);
ds.addRow(1, {
    Name: "CD Player1",
    Price: "40",
    Rating: "4"
}, true);
ds.addRow(2, {
    Name: "CD Player2",
    Price: "40",
    Rating: "4"
}, true);

// Option 1: Save changes without callbacks
ds.saveChanges();

// Option 2: Save changes with success and error callbacks
ds.saveChanges(function (data) {
    $("#message").text("Changes were saved successfully").fadeIn(3000).fadeOut(5000);
},
function(jqXHR, textStatus, errorThrown) {
    $("#message").text("An error occurred while saving the changes. Error details: " + textStatus).fadeIn(3000).fadeOut(5000);
});

schema
Inherited

.schema( [s:object], [t:string] );

Gets/sets the schema definition.

s
Type:object
Optional
a schema object.
t
Type:string
Optional
type of the data source. See settings.type.

Code Sample

var jsonSchema = new $.ig.DataSchema("json", {
    fields: [{
        name: "ProductID",
        type: "number"
    }, {
        name: "Name",
        type: "string"
    }, {
        name: "ProductNumber",
        type: "string"
    }, {
        name: "Color",
        type: "string"
    }, {
        name: "StandardCost",
        type: "string"
    }],
    searchField: "Records"
});

ds = new $.ig.TreeHierarchicalDataSource();

// Set
ds.schema(jsonSchema);

// Get
var myJsonSchema = ds.schema();

setCellValue
Inherited

.setCellValue( rowId:object, colId:object, val:object, autoCommit:bool );
Return Type:: object
Return Type Description:: . The transaction object that was created.

Sets a cell value for the cell denoted by rowId and colId. Creates a transaction for the update operation and returns it.

rowId
Type:object
the rowId - row key (string) or index (number).
colId
Type:object
the column id - column key (string) or index (number).
val
Type:object
The new value.
autoCommit
Type:bool
if autoCommit is true, it updates the datasource automatically and the transaction is still stored in the accumulated transaction log.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    schema: {
        fields: [{
            name: "Name"
        }, {
            name: "Price"
        }, {
            name: "Rating"
        }]
    },
    updateUrl: "http://example.com/myUpdateUrl/"
});

ds.addRow(0, {
    Name: "CD Player",
    Price: "40",
    Rating: "4"
}, true);
ds.addRow(1, {
    Name: "CD Player1",
    Price: "40",
    Rating: "4"
}, true);
ds.addRow(2, {
    Name: "CD Player2",
    Price: "40",
    Rating: "4"
}, true);

ds.setCellValue(1, "Name", "DVD Player", true);

setExpandedStateByPrimaryKey

.setExpandedStateByPrimaryKey( rowId:string, expanded:bool, callbackArgs:function );

Sets the expanded state of a row by its primary key.

rowId
Type:string
The id of the row.
expanded
Type:bool
If true the row will be expanded. Otherwise it will be collapsed.
callbackArgs
Type:function
Specifies a custom function to be called when the state of the row is changed.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});
ds.dataBind();
ds.setExpandedStateByPrimaryKey(0, true);

setExpandedStateByRowIndex

.setExpandedStateByRowIndex( index:number, expanded:bool, callbackArgs:function );

Sets the expanded/collapsed state of a row by its index.

index
Type:number
The index of the row.
expanded
Type:bool
If true then the row will be expanded. Otherwise it will be collapsed.
callbackArgs
Type:function
Specifies a custom function to be called when the state of the row is changed.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});
ds.dataBind();
ds.setExpandedStateByRowIndex(9, true);

shouldCallGenerateFlatDataView

.shouldCallGenerateFlatDataView( );

Gets whether the flat data view should be generated by calling the generateFlatDataView method.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});
ds.dataBind();
if (ds.shouldCallGenerateFlatDataView()) {
    ds.generateFlatDataView();
}

sort

.sort( fields:object, direction:string );

Sorts the data source locally. The result (sorted data) can be obtained by calling dataView().
Remote filtering can be performed by just calling dataBind() and setting the settings.sorting.expressions
multi-column sorting can be enabled by setting keepSortState to true.
fields => an array of fields object definitions:
example: [{fieldName : "firstName"}, {fieldName : "lastName"}]
example 2: [{fieldIndex : 1} , {fieldIndex : 2}].

fields
Type:object
an array of fields object definitions.
direction
Type:string
asc / desc direction.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    sorting: {
        enabled: true,
        type: "local"
    },
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});
ds.dataBind();
ds.sort([{fieldName : "Name"}], "desc", false);

sortData

.sortData( data:object, fields:object, direction:string );

Sorts the passed data and returns the sorted result.

data
Type:object
the data to be sorted

fields => an array of fields object definitions:
example: [{fieldName : "firstName"}, {fieldName : "lastName"}]
example 2: [{fieldIndex : 1} , {fieldIndex : 2}].
fields
Type:object
an array of fields object definitions.
direction
Type:string
asc / desc direction.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    sorting: {
        enabled: true,
        type: "local"
    },
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});
ds.dataBind();
var result = ds.sortData(products, [{fieldName : "Name"}], "asc");

sortDataRecursive

.sortDataRecursive( data:object, level:number, fields:object, direction:string );

Sorts the given data recursively
fields => an array of fields object definitions:
example: [{fieldName : "firstName"}, {fieldName : "lastName"}]
example 2: [{fieldIndex : 1} , {fieldIndex : 2}].

data
Type:object
the data array that will be sorted.
level
Type:number
the level to which the data belongs to.
fields
Type:object
an array of fields object definitions.
direction
Type:string
asc / desc direction.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    sorting: {
        enabled: true,
        type: "local"
    },
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});
ds.dataBind();
var result = ds.sortDataRecursive(products, 0, [{fieldName : "Name"}], "asc");

sortSettings
Inherited

.sortSettings( [s:object] );
Return Type:: object
Return Type Description:: Returns an object holding the current sorting settings when getter is used and the current instance of the $.ig.DataSource when setter is used.

Gets/sets a list of paging settings.

s
Type:object
Optional
object holding all sorting settings. See settings.sorting.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    schema: {
        fields: [{
            name: "col1"
        }, {
            name: "col2",
            type: "number"
        }]
    }
}).dataBind();

var sortSettings = {
    type: "local",
    defaultFields: [{
        fieldName: "col2"
    }],
    defaultDirection: "desc"
};

// Set
ds.sortSettings(sortSettings);

// Get
var mySortSettings = ds.sortSettings();

stringToJSONObject
Inherited

.stringToJSONObject( s:string );
Parses the string and returns an evaluated JSON object.
- s
- Type:string
- the JSON as string.
Code Sample

ds = new $.ig.TreeHierarchicalDataSource();
var jsonObj = ds.stringToJSONObject('[{"Name":"CD Player","Price":10.90,"Rating":3}]');
stringToXmlObject
Inherited

.stringToXmlObject( s:string );
Parses a string and returns a XML Document.
- s
- Type:string
- the XML represented as a string.
Code Sample

ds = new $.ig.TreeHierarchicalDataSource();
var xmlObj = ds.stringToXmlObject("<Element><Name>CD Player</Name><Price>10.90</Price><Rating>3</Rating></Element>");

summariesResponse
Inherited

.summariesResponse( [key:string], [dsObj:object] );
Return Type:: object
Return Type Description:: object of data summaries - e.g.: if datasource has 2 columns - ID and Name then expected format for data summaries is {ID : {max: 1, min: 0, count: 2}, Name: {count: 1}}.

Applicable only when the data source is bound to remote data.
Gets or sets summaries data.
If key or dsObj are not set then returns summaries data.
Takes summary data from passed argument dsObj(using argument key).

key
Type:string
Optional
response key to take summary data(for example "Metadata.Summaries").
dsObj
Type:object
Optional
data source object - usually contains information about data records and metadata(holds info about summaries).

Code Sample

var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
var ds = new $.ig.TreeHierarchicalDataSource({
    callback: render,
    dataSource: url,
    schema: {
        fields: [{
            name: "Name"
        }, {
            name: "Price"
        }, {
            name: "Rating"
        }],
        searchField: "d"
    },
    responseDataKey: "d",
    responseDataType: "jsonp"
});

var mySummariesSettings = {
    type: "remote",
    columnSettings: [{
        columnKey: "Price",
        allowSummaries: false,
        summaryOperands: [{
            type: "count",
            active: true,
            order: 0
        }]
    }],
    summariesResponseKey: "d"
};

// Set
ds.summariesSettings(mySummariesSettings);

// Get
var summariesSettings = ds.summariesSettings();

summariesSettings
Inherited

.summariesSettings( [s:object] );
Gets/sets a list of summaries settings.
- s
- Type:object
- Optional
- object holding all summaries settings. See settings.summaries.
Code Sample

N/A

tableToObject
Inherited

.tableToObject( tableDOM:domelement );
Return Type:: object

Converts a HTML TABLE dom element to a JavaScript array of objects that contain the records data.

tableDOM
Type:domelement
TABLE dom element to transform.

Code Sample

ds = new $.ig.TreeHierarchicalDataSource();
var tableObj = ds.tableToObject("<table><tr><td>CD Player</td><td>10.90</td><td>3</td></tr><tr><td>CD Player 1</td><td>10.90</td><td>3</td></tr><tr><td>CD Player 2</td><td>10.90</td><td>3</td></tr></table>");

toggleGroupByRecord
Inherited

.toggleGroupByRecord( id:string, collapsed:bool );

Toggle grouped record with the specified id and updates collections visible groupby data and data view.

id
Type:string
data-id attribute of the respective group row in the DOM.
collapsed
Type:bool
if true the record should be collapsed, otherwise expanded.

Code Sample

ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ProductID",
    groupby: {
        defaultCollapseState: true
    }
});

ds.dataBind();
//Set
ds.toggleGroupByRecord("ProductID:49", true);

toggleRow

.toggleRow( rowId:string, callbackArgs:function );
Toggles the row's state by the row's id.
- rowId
- Type:string
- The id of the row.
- callbackArgs
- Type:function
- Specifies a custom function to be called when the state of the row is changed.
Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});
ds.dataBind();
ds.toggleRow(3);

totalLocalRecordsCount

.totalLocalRecordsCount( );
Return Type:: number
Return Type Description:: the number of records that are bound / exist locally.

Returns the total number of records in the local data source.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});
ds.dataBind();

var count = ds.totalLocalRecordsCount();

totalRecordsCount
Inherited

.totalRecordsCount( [count:number], key:object, dsObj:object, context:object );
Return Type:: number
Return Type Description:: Returns total records count of the current dasource instance.

Applicable only when the data source is bound to remote data.
Gets / sets the total number of records in the data source.
If data binding is remote, and there's paging or filtering enabled,
the actual total number of records may not
match the number of records that exists on the client.

count
Type:number
Optional
the total number of records.
key
Type:object
dsObj
Type:object
context
Type:object

Code Sample

ds = new $.ig.TreeHierarchicalDataSource({
    callback:render,
    dataSource: "/demos/server/server.php",
    responseDataKey: "records",
}).dataBind();

//Get
var count = ds.totalRecordsCount();

//Set
ds.totalRecordsCount(42);

transactionsAsString
Inherited

.transactionsAsString( );
Return Type:: string

Returns the accumulated transaction log as a string. The purpose of this is to be passed to URLs or used conveniently.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    schema: {
        fields: [{
            name: "Name"
        }, {
            name: "Price"
        }, {
            name: "Rating"
        }],
        searchField: "d"
    },
    responseDataKey: "d",
    responseDataType: "jsonp"
});
ds.addRow(123, {
Name: "CD Player",
Price: "40",
Rating: "4"
});
var transactionsAsString = ds.transactionsAsString();

transformedData
Inherited

.transformedData( transformedExecution:object );
Return Type:: object

Returns transformed data according to transformed execution:
1. Before paging and filtering
2. After filtering before paging
3. After filtering and paging.

transformedExecution
Type:object

Code Sample

var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
var ds = new $.ig.TreeHierarchicalDataSource({
    callback: render,
    dataSource: url,
    schema: {
        fields: [{
            name: "Name"
        }, {
            name: "Price"
        }, {
            name: "Rating"
        }],
        searchField: "d"
    },
    responseDataKey: "d",
    responseDataType: "jsonp"
});

ds.transformedData("priortofilteringandpaging");

transformToHierarchicalData

.transformToHierarchicalData( data:object );
Return Type:: object
Return Type Description:: the transformed data source.

Transforms flat data to hierararchical data and returns the result.

data
Type:object
The flat data that will be transformed to hierarchical.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    primaryKey: "ID",
    treeDS: {
        childDataKey: "Products"
    }
});
ds.transformToHierarchicalData(flatData);

type
Inherited

.type( [t:object] );

Return Type:

enumeration

Return Type Description:

Can return 'json|xml|unknown|array|function|htmlTableString|htmlTableId|htmlTableDom|invalid|remoteUrl|empty'.
Gets/sets the type of the dataSource. If no parameter is specified, returns settings.type.
- t
- Type:object
- Optional
- .
Code Sample

ds = new $.ig.TreeHierarchicalDataSource();

// Set
ds.type("json");

// Get
var myType = ds.type();

updateRow
Inherited

.updateRow( rowId:object, rowObject:object, autoCommit:bool );
Return Type:: object
Return Type Description:: . The transaction object that was created.

Updates a record in the datasource. Creates a transaction that can be committed / rolled back.

rowId
Type:object
the record key - primaryKey (string) or index (number).
rowObject
Type:object
the record object containing the key/value pairs we want to update. It doesn't have to include key/value pairs for all fields defined in the schema or in the data source (if no schema is defined).
autoCommit
Type:bool
if autoCommit is true, the datasource will be updated automatically and the transaction is still stored in the accumulated transaction log.

Code Sample

var ds = new $.ig.TreeHierarchicalDataSource({
    schema: {
        fields: [{
            name: "Name"
        }, {
            name: "Price"
        }, {
            name: "Rating"
        }],
        searchField: "d"
    },
    responseDataKey: "d",
    responseDataType: "jsonp"
});
ds.addRow(0, {
    Name: "CD Player",
    Price: "40",
    Rating: "4"
}, true);
ds.addRow(1, {
    Name: "CD Player1",
    Price: "40",
    Rating: "4"
}, true);
ds.addRow(2, {
    Name: "CD Player2",
    Price: "40",
    Rating: "4"
}, true);


ds.updateRow(1, {
    Name: "DVD Player1",
    Price: "10",
    Rating: "5"
}, true);

visibleGroupByData
Inherited

.visibleGroupByData( );
Return Type:: array
Return Type Description:: array of records.

Returns collection of data and non-data(grouped) records. Returns only visible records(children of collapsed grouped records are not included in the collection).

Code Sample

ds = new $.ig.TreeHierarchicalDataSource({
    dataSource: products,
    callback: render,
    groupby: {
        defaultCollapseState: true
    }
});

ds.dataBind();
//Get
var visibleGroupByData = ds.visibleGroupByData();

Ignite UI for jQuery | API Reference

ig.TreeHierarchicalDataSource

Code Sample

Dependencies
