Ignite UI™ API Documentation

ui.igTreeGridRowSelectors

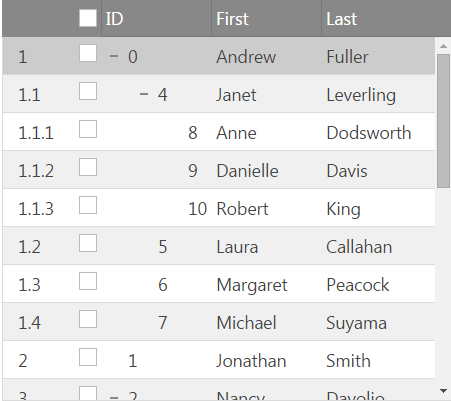

The rowSelectors feature widget provides the user with the functionality to select cell(s), or entire row(s) by clicking the row selector column placed on the left of the first column of the grid. In addition to that, the widget provides row numbering functionalities and checkboxes for row selection. Another advantage of Row Selectors is that they could be easily configured to decouple checkboxes from selection if you would like achieve a "tree-like" look and feel of the applications. The following code snippet demonstrates how to initialize the igTreeGrid control with Row Selectors feature.Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igTreeGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample

    <!DOCTYPE html>
<html>
<head>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />

    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>

    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>

    <!-- Infragistics Combined Scripts -->
    <script src="js/infragistics.core.js" type="text/javascript"></script>
    <script src="js/infragistics.lob.js" type="text/javascript"></script>

    <script type="text/javascript">
        var employees = [
            { "employeeId": 0, "supervisorId": -1, "firstName": "Andrew", "lastName": "Fuller" },
            { "employeeId": 1, "supervisorId": -1, "firstName": "Jonathan", "lastName": "Smith" },
            { "employeeId": 2, "supervisorId": -1, "firstName": "Nancy", "lastName": "Davolio" },
            { "employeeId": 3, "supervisorId": -1, "firstName": "Steven", "lastName": "Buchanan" },

            // Andrew Fuller's direct reports
            { "employeeId": 4, "supervisorId": 0, "firstName": "Janet", "lastName": "Leverling" },
            { "employeeId": 5, "supervisorId": 0, "firstName": "Laura", "lastName": "Callahan" },
            { "employeeId": 6, "supervisorId": 0, "firstName": "Margaret", "lastName": "Peacock" },
            { "employeeId": 7, "supervisorId": 0, "firstName": "Michael", "lastName": "Suyama" },

            // Janet Leverling's direct reports
            { "employeeId": 8, "supervisorId": 4, "firstName": "Anne", "lastName": "Dodsworth" },
            { "employeeId": 9, "supervisorId": 4, "firstName": "Danielle", "lastName": "Davis" },
            { "employeeId": 10, "supervisorId": 4, "firstName": "Robert", "lastName": "King" },

            // Nancy Davolio's direct reports
            { "employeeId": 11, "supervisorId": 2, "firstName": "Peter", "lastName": "Lewis" },
            { "employeeId": 12, "supervisorId": 2, "firstName": "Ryder", "lastName": "Zenaida" },
            { "employeeId": 13, "supervisorId": 2, "firstName": "Wang", "lastName": "Mercedes" },

            // Steve Buchanan's direct reports
            { "employeeId": 14, "supervisorId": 3, "firstName": "Theodore", "lastName": "Zia" },
            { "employeeId": 15, "supervisorId": 3, "firstName": "Lacota", "lastName": "Mufutau" },

            // Lacota Mufutau's direct reports
            { "employeeId": 16, "supervisorId": 15, "firstName": "Jin", "lastName": "Elliott" },
            { "employeeId": 17, "supervisorId": 15, "firstName": "Armand", "lastName": "Ross" },
            { "employeeId": 18, "supervisorId": 15, "firstName": "Dane", "lastName": "Rodriquez" },

            // Dane Rodriquez's direct reports
            { "employeeId": 19, "supervisorId": 18, "firstName": "Declan", "lastName": "Lester" },
            { "employeeId": 20, "supervisorId": 18, "firstName": "Bernard", "lastName": "Jarvis" },

            // Bernard Jarvis' direct report
            { "employeeId": 21, "supervisorId": 20, "firstName": "Jeremy", "lastName": "Donaldson" }
        ];

       $(function () {
           $("#treegrid").igTreeGrid({
               dataSource: employees,
               primaryKey: "employeeId",
               foreignKey: "supervisorId",
               autoGenerateColumns: false,
               columns: [
                   { headerText: "ID", key: "employeeId", width: "150px", dataType: "number" },
                   { headerText: "First", key: "firstName", width: "150px", dataType: "string" },
                   { headerText: "Last", key: "lastName", width: "150px", dataType: "string" }
               ],
               features: [
                   {
                      name: "Selection",
                      multipleSelection: true
                   },
                   {
                      name: "RowSelectors",
                      rowSelectorColumnWidth: 100,
                      rowSelectorNumberingMode: "hierarchical",
                      enableCheckBoxes: true,
                      checkBoxMode: "biState"
              }
               ]
           });
       });
    </script>
</head>
<body>
    <table id="treegrid"></table>
</body>
</html>

Related Samples

Row Selectors (igTreeGrid)

checkBoxMode

Type:: enumeration
Default:: biState

Gets the type of checkboxes rendered in the row selector. Can be set only at initialization.

Members

biState
Type:string
Checkboxes are rendered and support two states(checked and unchecked). Checkboxes do not cascade down or up in this mode.
triState
Type:string
Checkboxes are rendered and support three states(checked, partial and unchecked). Checkboxes cascade up and down in this mode.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "RowSelectors",
            enableCheckBoxes: true,
            checkBoxMode: "triState"
        },
        {
            name: "Selection"
        }
    ]
});
//Get
var checkBoxMode = $(".selector").igTreeGridRowSelectors("option", "checkBoxMode");

deselectAllForPagingTemplate
Inherited

Type:: string
Default:: null

Custom template for "deselect all" overlay with paging
Element with attribute data-rs-deselect-all is used for sellecting all the records
Element with attribute data-rs-close-all is used for closing the overlay
The default template is "<div class='ui-widget-header ui-priority-secondary' tabindex='0'><div>You have deselected ${unchecked} records. <a href='#' tabindex='0' data-rs-deselect-all>Deselect all ${totalRecordsCount} records</a><div style='float:right;'><span data-rs-close-all class='ui-icon-close ui-icon ui-button' tabindex='0'></div></span></div></div>"
There is also ${allCheckedRecords} parameter which is not used in the default template, but it represents the checked records from all pages.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "RowSelectors",
            enableCheckBoxes: true,
            enableSelectAllForPaging: true,
            deselectAllForPagingTemplate: "<div class='ui-widget-header ui-priority-secondary' tabindex='0'><div><a href='#' tabindex='0' data-rs-deselect-all>Deselect all ${totalRecordsCount} records</a><div style='float:right;'><span data-rs-close-all class='ui-icon-close ui-icon ui-button' tabindex='0'></div></span></div></div>"
        },
        {
            name: "Selection",
            multipleSelection: true
        },
        {
            name: 'Paging',
            type: "local",
            pageSize: 10
        }
    ]
});

//Get
var template = $(".selector").igTreeGridRowSelectors("option", "deselectAllForPagingTemplate");

enableCheckBoxes
Inherited

Type:: bool
Default:: false

Determines whether the row selectors column should contain checkboxes.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "RowSelectors",
            enableCheckBoxes: true
        },
        {
            name: "Selection"
        }
    ]
});

//Get
var checkboxes = $(".selector").igTreeGridRowSelectors("option", "enableCheckBoxes");

enableRowNumbering
Inherited

Type:: bool
Default:: true

Determines whether the row selectors column should contain row numbering.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "RowSelectors",
            enableRowNumbering: true
        },
        {
            name: "Selection"
        }
    ]
});

//Get
var rowNumbering = $(".selector").igTreeGridRowSelectors("option", "enableRowNumbering");

enableSelectAllForPaging
Inherited

Type:: bool
Default:: true

Enables/disables showing an overlay after clicking on the header checkbox, which allows selecting all records from all pages.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "RowSelectors",
            enableCheckBoxes: true,
            enableSelectAllForPaging: true
        },
        {
            name: "Selection",
            multipleSelection: true
        },
        {
            name: 'Paging',
            type: "local",
            pageSize: 10
        }
    ]
});

//Get
var enableSelectAll = $(".selector").igTreeGridRowSelectors("option", "enableSelectAllForPaging");

locale
Inherited

Type:: object
Default:: {}

deselectAllText

Type:: string
Default:: ""

Deselect all text for the select/deselect all overlay.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [{
        name: "RowSelectors",
        locale: {
            deselectAllText: "Deselect all ${totalRecordsCount} records"
        }
    }]
});

//  Get
var text = $(".selector").igTreeGridRowSelectors("option", "locale").deselectAllText;

//  Set
$(".selector").igTreeGridRowSelectors("option", "locale", { deselectAllText: "Deselect all ${totalRecordsCount} records"});

deselectedRecordsText

Type:: string
Default:: ""

Deselected records text for the select/deselect all overlay.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [{
        name: "RowSelectors",
        locale: {
            deselectedRecordsText: "You have deselected ${unchecked} records."
        }
    }]
});

//  Get
var text = $(".selector").igTreeGridRowSelectors("option", "locale").deselectedRecordsText;

//  Set
$(".selector").igTreeGridRowSelectors("option", "locale", { deselectedRecordsText: "You have deselected ${unchecked} records." });

selectAllText

Type:: string
Default:: ""

Select all text for the select/deselect all overlay.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [{
        name: "RowSelectors",
        locale: {
            selectAllText: "Select all ${totalRecordsCount} records"
        }
    }]
});

//  Get
var text = $(".selector").igTreeGridRowSelectors("option", "locale").selectAllText;

//  Set
$(".selector").igTreeGridRowSelectors("option", "locale", { selectAllText: "Select all ${totalRecordsCount} records."});

selectedRecordsText

Type:: string
Default:: ""

Selected records text for the select/deselect all overlay.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [{
        name: "RowSelectors",
        locale: {
            selectedRecordsText: "You have selected ${checked} records."
        }
    }]
});

//  Get
var text = $(".selector").igTreeGridRowSelectors("option", "locale").selectedRecordsText;

//  Set
$(".selector").igTreeGridRowSelectors("option", "locale", { selectedRecordsText: "You have selected ${checked} records." });

requireSelection
Inherited

Type:: bool
Default:: true

Determines whether the selection feature is required for the row selectors. If set to "false"
the widget will not check for Selection availability. If set to "true" an exception will be thrown if Selection is
not available.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "RowSelectors",
            requireSelection: true
        },
        {
            name: "Selection"
        }
    ]
});

//Get
var requireSelection = $(".selector").igTreeGridRowSelectors("option", "requireSelection");

rowNumberingSeed
Inherited

Type:: number
Default:: 0

The seed to be added to the default numbering.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "RowSelectors",
            rowNumberingSeed: 5
        },
        {
            name: "Selection"
        }
    ]
});

//Get
var rowNumberingSeed = $(".selector").igTreeGridRowSelectors("option", "rowNumberingSeed");

rowSelectorColumnWidth
Inherited

Type:: enumeration
Default:: null

defines width of the row selector`s column in pixels or percentage.

Members

string
Type:string
The row selector column width can be set in pixels (px) and percentage (%).
number
Type:number
The row selector width can be set as a number.
null
Type:object
will let the feature decide the best width depending on enabled contents.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "RowSelectors",
            rowSelectorColumnWidth: 40
        },
        {
            name: "Selection"
        }
    ]
});
//Get
var width = $(".selector").igTreeGridRowSelectors("option", "rowSelectorColumnWidth");

rowSelectorNumberingMode

Type:: enumeration
Default:: sequential

Determines row numbering format.

Members

sequential
Type:string
Defines numbering format to be the index of the visible records.
hierarchical
Type:string
Defines numbering format to be concatenation of the parent and children indexes.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "RowSelectors",
            rowSelectorNumberingMode: "hierarchical"
        },
        {
            name: "Selection"
        }
    ]
});
//Get
var rowSelectorNumberingMode = $(".selector").igTreeGridRowSelectors("option", "requireSelection");

selectAllForPagingTemplate
Inherited

Type:: string
Default:: null

Custom template for "select all" overlay with paging
Element with attribute data-rs-select-all is used for sellecting all the records
Element with attribute data-rs-close-all is used for closing the overlay
The default template is "<div class='ui-widget-header ui-priority-secondary' tabindex='0'><div>You have selected ${checked} records. <a href='#' tabindex='0' data-rs-select-all>Select all ${totalRecordsCount} records</a><div style='float:right;'><span data-rs-close-all class='ui-icon-close ui-icon ui-button' tabindex='0'></div></span></div></div>"
There is also ${allCheckedRecords} parameter which is not used in the default template, but it represents the checked records from all pages.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "RowSelectors",
            enableCheckBoxes: true,
            enableSelectAllForPaging: true,
            selectAllForPagingTemplate: "<a data-rs-select-all>Click here if you want to select all ${totalRecordsCount} records</a><span data-rs-close-all></span>"
        },
        {
            name: "Selection",
            multipleSelection: true
        },
        {
            name: 'Paging',
            type: "local",
            pageSize: 10
        }
    ]
});

//Get
var template = $(".selector").igTreeGridRowSelectors("option", "selectAllForPagingTemplate");

//Set
var templateStr = "<a data-rs-select-all>Click here if you want to select all ${totalRecordsCount} records</a><span data-rs-close-all></span>";
$(".selector").igTreeGridRowSelectors("option", "selectAllForPagingTemplate", templateStr);

showCheckBoxesOnFocus
Inherited

Type:: bool
Default:: false

Determines whether checkboxes will be shown only if row selectors are on focus/selected.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "RowSelectors",
            showCheckBoxesOnFocus: true
        },
        {
            name: "Selection"
        }
    ]
});

//Get
var showCheckboxes = $(".selector").igTreeGridRowSelectors("option", "showCheckBoxesOnFocus");

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details

checkBoxStateChanged
Inherited

Cancellable:: false

Event fired after a row selector checkbox had changed state.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridrowselectorscheckboxstatechanged", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // reference to the row the clicked row selector resides in
    ui.row;

    // get the index of the row the clicked row selector resides in
    ui.rowIndex;

    // get the key of the row the clicked row selector resides in
    ui.rowKey;

    // get reference to the row selector cell
    ui.rowSelector;

    // get reference to the grid the RowSelectors are initialized for
    ui.grid;

    // get the state of the checkbox ("on","off")
    ui.state;

    // check if the header row checkbox is clicked
    ui.isHeader;

});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "RowSelectors",
            checkBoxStateChanged: function(evt, ui){ ... }
        }
    ]
});

checkBoxStateChanging
Inherited

Cancellable:: true

Event fired when a row selector checkbox is changing.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridrowselectorscheckboxstatechanging", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // reference to the row the clicked row selector resides in
    ui.row;

    // get the index of the row the clicked row selector resides in
    ui.rowIndex;

    // get the key of the row the clicked row selector resides in
    ui.rowKey;

    // get reference to the row selector cell
    ui.rowSelector;

    // get reference to the grid the RowSelectors are initialized for
    ui.grid;

    // get the current state of the checkbox ("on","off")
    ui.currentState;

    // get the new state of the checkbox ("on","off")
    ui.newState;

    // check if the header row checkbox is clicked
    ui.isHeader;

});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "RowSelectors",
            checkBoxStateChanging: function(evt, ui){ ... }
        }
    ]
});

rowSelectorClicked
Inherited

Cancellable:: false

Event fired after a row selector is clicked.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridrowselectorsrowselectorclicked", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // reference to the row the clicked row selector resides in
    ui.row;

    // get the index of the row the clicked row selector resides in
    ui.rowIndex;

    // get the key of the row the clicked row selector resides in
    ui.rowKey;

    // get reference to the row selector cell
    ui.rowSelector;

    // get reference to the grid the RowSelectors are initialized for
    ui.grid;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "RowSelectors",
            rowSelectorClicked: function(evt, ui){ ... }
        }
    ]
});

Show Details

changeCheckState

.igTreeGridRowSelectors( "changeCheckState", index:number, toCheck:bool );
Changes the check state of a row by index to specified value.
- index
- Type:number
- Row index.
- toCheck
- Type:bool
- The new check state of the checkbox - true for checked or false for unchecked.
Code Sample

$(".selector").igTreeGridRowSelectors("changeCheckState", 2, true );
changeCheckStateById

.igTreeGridRowSelectors( "changeCheckStateById", rowId:object, toCheck:bool );
Change the check state of a row by row id.
- rowId
- Type:object
- Row Id.
- toCheck
- Type:bool
- The new check state of the checkbox - true for checked or false for unchecked.
Code Sample

$(".selector").igTreeGridRowSelectors("changeCheckStateById", 1, true );
changeLocale

.igTreeGridRowSelectors( "changeLocale" );
Changes the all locales into the widget element to the language specified in options.language
Note that this method is for rare scenarios, see language or locale option setter.
Code Sample

$(".selector").igTreeGridRowSelectors("changeLocale");
checkedRows

.igTreeGridRowSelectors( "checkedRows" );

Return Type:

array
Gets an array of all the checked rows. Every object from the array has the following format { element: , id: , index: }.
Code Sample

var chechkedRows = $(".selector").igTreeGridRowSelectors("checkedRows");
checkStateById

.igTreeGridRowSelectors( "checkStateById", rowId:object );

Return Type:

string
Returns the check state of the row by id.
- rowId
- Type:object
Code Sample

$(".selector").igTreeGridRowSelectors("checkStateById", 1);
destroy

.igTreeGridRowSelectors( "destroy" );
Code Sample

$(".selector").igTreeGridResizing("destroy");
partiallyCheckedRows

.igTreeGridRowSelectors( "partiallyCheckedRows" );

Return Type:

array
Gets an array of all the partially checked rows. Every object from the array has the following format { element: , id: , index: }.
Code Sample

var partiallyCheckedRows = $(".selector").igTreeGridRowSelectors("partiallyCheckedRows");
rsRenderColgroup
Inherited

.igTreeGridRowSelectors( "rsRenderColgroup" );
toggleCheckState

.igTreeGridRowSelectors( "toggleCheckState", index:number );
Toggles the check state of a row by index.
- index
- Type:number
- Row index.
Code Sample

$(".selector").igTreeGridRowSelectors("toggleCheckState", 2);
toggleCheckStateById

.igTreeGridRowSelectors( "toggleCheckStateById", rowId:object );
Toggles the check state of a row by row id.
- rowId
- Type:object
- Row Id.
Code Sample

$(".selector").igTreeGridRowSelectors("toggleCheckStateById",1);
uncheckedRows

.igTreeGridRowSelectors( "uncheckedRows" );

Return Type:

array
Gets an array of all the unchecked rows. Every object from the array has the following format { element: , id: , index: }.
Code Sample

var uncheckedRows = $(".selector").igTreeGridRowSelectors("uncheckedRows");

ui-state-default ui-corner-all ui-igcheckbox-normal

Classes applied to the checkbox container.
ui-icon ui-icon-check-f ui-igcheckbox-normal-on

Classes defining the fully checked state of the checkbox. Used for tri-state mode.
ui-icon ui-icon-check ui-igcheckbox-normal-off

Classes defining the unchecked state of the checkbox.
ui-icon ui-icon-check ui-igcheckbox-normal-on

Classes defining the checked state of the checkbox.
ui-icon ui-icon-check-p ui-igcheckbox-normal-on

Classes defining the partially checked state of the checkbox. Used for tri-state mode.
ui-iggrid-rowselector-footer

Classes applied to the row selectors footer cells.
ui-iggrid-rowselector-header

Classes applied to the row selectors header cells.
ui-state-hover

Class defining the hover state style of the node.
ui-iggrid-rowselector-class

Classes applied to the row selectors grid cells.
ui-iggrid-activecell ui-state-focus

Classes applied to the row selectors grid cells when they are activated.
ui-state-checked

Classes applied to the row selectors treegrid parent cells if they should be partially or fully selected. Only when checkBoxMode is triState.
ui-iggrid-selectedcell ui-state-active

Classes applied to the row selectors grid cells when they are selected.

Ignite UI for jQuery | API Reference

ui.igTreeGridRowSelectors

Code Sample

Related Samples

Related Topics

Dependencies

Inherits
