ui.igTreeGridColumnMoving

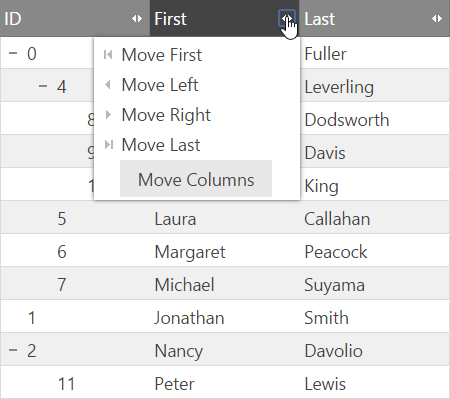

The igTreeGrid control includes also column moving feature. Column moving allows you to change the order of the columns as they appear in the grid. The column moving features has two modes:

The immediate mode moves the column header while you are dragging it and animates the swapping of other grid columns. The moving of the column contents is performed when you drop the column header.

Deferred mode uses arrows to show which position the column will be placed if you drop it.

Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

The following code snippet demonstrates how to initialize the igTreeGrid control with column moving feature.

Click here for more information on how to get started using this API . For details on how to reference the required scripts and themes for the igGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample

    <!doctype html>
      <html>
      <head>
          <!-- Infragistics Combined CSS -->
                  <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
                  <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />

                  <!-- jQuery Core -->
                  <script src="js/jquery.js" type="text/javascript"></script>

                  <!-- jQuery UI -->
                  <script src="js/jquery-ui.js" type="text/javascript"></script>

                  <!-- Infragistics Combined Scripts -->
                  <script src="js/infragistics.core.js" type="text/javascript"></script>
                  <script src="js/infragistics.lob.js" type="text/javascript"></script>

          <script type="text/javascript">
              var employees = [
                  { "employeeId": 0, "supervisorId": -1, "firstName": "Andrew", "lastName": "Fuller" },
                  { "employeeId": 1, "supervisorId": -1, "firstName": "Jonathan", "lastName": "Smith" },
                  { "employeeId": 2, "supervisorId": -1, "firstName": "Nancy", "lastName": "Davolio" },
                  { "employeeId": 3, "supervisorId": -1, "firstName": "Steven", "lastName": "Buchanan" },

                  // Andrew Fuller's direct reports
                  { "employeeId": 4, "supervisorId": 0, "firstName": "Janet", "lastName": "Leverling" },
                  { "employeeId": 5, "supervisorId": 0, "firstName": "Laura", "lastName": "Callahan" },
                  { "employeeId": 6, "supervisorId": 0, "firstName": "Margaret", "lastName": "Peacock" },
                  { "employeeId": 7, "supervisorId": 0, "firstName": "Michael", "lastName": "Suyama" },

                  // Janet Leverling's direct reports
                  { "employeeId": 8, "supervisorId": 4, "firstName": "Anne", "lastName": "Dodsworth" },
                  { "employeeId": 9, "supervisorId": 4, "firstName": "Danielle", "lastName": "Davis" },
                  { "employeeId": 10, "supervisorId": 4, "firstName": "Robert", "lastName": "King" },

                  // Nancy Davolio's direct reports
                  { "employeeId": 11, "supervisorId": 2, "firstName": "Peter", "lastName": "Lewis" },
                  { "employeeId": 12, "supervisorId": 2, "firstName": "Ryder", "lastName": "Zenaida" },
                  { "employeeId": 13, "supervisorId": 2, "firstName": "Wang", "lastName": "Mercedes" },

                  // Steve Buchanan's direct reports
                  { "employeeId": 14, "supervisorId": 3, "firstName": "Theodore", "lastName": "Zia" },
                  { "employeeId": 15, "supervisorId": 3, "firstName": "Lacota", "lastName": "Mufutau" },

                  // Lacota Mufutau's direct reports
                  { "employeeId": 16, "supervisorId": 15, "firstName": "Jin", "lastName": "Elliott" },
                  { "employeeId": 17, "supervisorId": 15, "firstName": "Armand", "lastName": "Ross" },
                  { "employeeId": 18, "supervisorId": 15, "firstName": "Dane", "lastName": "Rodriquez" },

                  // Dane Rodriquez's direct reports
                  { "employeeId": 19, "supervisorId": 18, "firstName": "Declan", "lastName": "Lester" },
                  { "employeeId": 20, "supervisorId": 18, "firstName": "Bernard", "lastName": "Jarvis" },

                  // Bernard Jarvis' direct report
                  { "employeeId": 21, "supervisorId": 20, "firstName": "Jeremy", "lastName": "Donaldson" }
              ];

            $(function () {
                 $("#treegrid").igTreeGrid({
                     dataSource: employees,
                     primaryKey: "employeeId",
                     foreignKey: "supervisorId",
                     width: "900px",
                     autoGenerateColumns: false,
                     columns: [
                         { headerText: "ID", key: "employeeId", width: "300px", dataType: "number" },
                         { headerText: "First", key: "firstName", width: "300px", dataType: "string" },
                         { headerText: "Last", key: "lastName", width: "300px", dataType: "string" }
                     ],
                     features: [
                      {
                           name: "ColumnMoving"
                      }]
                 });
             });
          </script>
      </head>
      <body>
          <table id="treegrid"></table>
      </body>
</html>

Related Samples

Balance Sheet

addMovingDropdown
Inherited

Type:: bool
Default:: true

Specifies if header cells should include an additional button that opens a moving helper dropdown.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            addMovingDropdown: false
        }
    ]
});

//Get
var addMovingDropdown = $(".selector").igTreeGridColumnMoving("option", "addMovingDropdown");

columnMovingDialogContainment
Inherited

Type:: string
Default:: "owner"

Controls containment behavior of column moving dialog.

owner The dialog will be draggable only in the grid area
window The dialog will be draggable in the whole window area.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [
        {
            name : "ColumnMoving",
            columnMovingDialogContainment : "window"
        }
    ]
});

//Get
var columnMovingDialogContainment = $(".selector").igTreeGridColumnMoving("option", "columnMovingDialogContainment");

columnSettings
Inherited

Type:: array
Default:: []
Elements Type:: object

A list of column settings that specifies moving options on a per column basis.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            columnSettings: [
                { columnKey: "ProductID", allowMoving: true }
            ]
        }
    ]
});

//Get
var columnSettings = $(".selector").igTreeGridColumnMoving("option", "columnSettings");

allowMoving

Type:: bool
Default:: true

Allows the column to be moved.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            columnSettings: [
                { columnIndex: 0, allowMoving: true }
            ]
        }
    ]
});

//Get
var columnSettings = $(".selector").igTreeGridColumnMoving("option", "columnSettings");
var allowMoving = columnSettings[0].allowMoving;

columnIndex

Type:: number
Default:: null

Column index. Can be used in place of column key. The preferred way of populating a column setting is to always use the column keys as identifiers.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            columnSettings: [
                { columnIndex: 0, allowMoving: true }
            ]
        }
    ]
});

//Get
var columnSettings = $(".selector").igTreeGridColumnMoving("option", "columnSettings");
var columnIndex = columnSettings[0].columnIndex;

columnKey

Type:: string
Default:: null

Column key. This is a required property in every column setting if columnIndex is not set.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            columnSettings: [
                { columnKey: "ProductID", allowMoving: true }
            ]
        }
    ]
});

//Get
var columnSettings = $(".selector").igTreeGridColumnMoving("option", "columnSettings");
var columnKey = columnSettings[0].columnKey;

dialogWidget
Inherited

Type:: string
Default:: "igGridModalDialog"

Name of the dialog widget to be used. It should inherit from $.ui.igGridModalDialog.

Code Sample

//create dialog widget that inherits from $.ui.igGridModalDialog
$.widget("ui.CustomDialog", $.ui.igGridModalDialog, {});
//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            dialogWidget: "CustomDialog"
        }
    ]
});

//Get
var dialogWidget = $(".selector").igTreeGridColumnMoving("option", "dialogWidget");

dragHelperOpacity
Inherited

Type:: number
Default:: 1.0

Specifies the opacity of the drag markup, while a column header is being dragged.
The value must be between 0 and 1. When GroupBy is enabled, the corresponding option in the GroupBy configuration
will be used with priority over this one.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            dragHelperOpacity: 0.5
        }
    ]
});

//Get
var dragHelperOpacity = $(".selector").igTreeGridColumnMoving("option", "dragHelperOpacity");

dropDownMoveFirstText
Removed

Type:: string
Default:: ""

This option has been removed as of 2017.2 Volume release.
Specifies caption for the move last dropdown button. Use option locale.dropDownMoveFirstText.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            dropDownMoveFirstText: "New Move First"
        }
    ]
});

//Get
var dropDownMoveFirstText = $(".selector").igTreeGridColumnMoving("option", "dropDownMoveFirstText");

dropDownMoveLastText
Removed

Type:: string
Default:: ""

This option has been removed as of 2017.2 Volume release.
Specifies caption for the move last dropdown button. Use option locale.dropDownMoveLastText.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            dropDownMoveLastText: "New Move Last"
        }
    ]
});

//Get
var dropDownMoveLastText = $(".selector").igTreeGridColumnMoving("option", "dropDownMoveLastText");

dropDownMoveLeftText
Removed

Type:: string
Default:: ""

This option has been removed as of 2017.2 Volume release.
Specifies caption for the move left dropdown button. Use option locale.dropDownMoveLeftText.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            dropDownMoveLeftText: "New Move Left"
        }
    ]
});

//Get
var dropDownMoveLeftText = $(".selector").igTreeGridColumnMoving("option", "dropDownMoveLeftText");

dropDownMoveRightText
Removed

Type:: string
Default:: ""

This option has been removed as of 2017.2 Volume release.
Specifies caption for the move right dropdown button. Use option locale.dropDownMoveRightText.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            dropDownMoveRightText: "New Move Right"
        }
    ]
});

//Get
var dropDownMoveRightText = $(".selector").igTreeGridColumnMoving("option", "dropDownMoveRightText");

featureChooserSubmenuText
Removed

Type:: string
Default:: ""

This option has been removed as of 2017.2 Volume release.
Specifies caption text for the feature chooser submenu button. Use option locale.featureChooserSubmenuText.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            featureChooserSubmenuText: "Move to"
        }
    ]
});

    //Get
var featureChooserSubmenuText = $(".selector").igTreeGridColumnMoving("option", "featureChooserSubmenuText");

hideHeaderContentsDuringDrag
Inherited

Type:: bool
Default:: true

Specifies whether the contents of the column being dragged will get hidden. The option is only
relevant in immediate moving mode.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            hideHeaderContentsDuringDrag: false
        }
    ]
});

    //Get
var hideHeaderContentsDuringDrag = $(".selector").igTreeGridColumnMoving("option", "hideHeaderContentsDuringDrag");

locale
Inherited

Type:: object
Default:: {}

dropDownMoveFirstText

Type:: string
Default:: ""

Specifies caption for the move first dropdown button.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [
        {
            name : "ColumnMoving",
            locale: { dropDownMoveFirstText : "New Move First"}
        }
    ]
});

//Get
var dropDownMoveFirstText = $(".selector").igTreeGridColumnMoving("option", "locale").dropDownMoveFirstText;

//Set
$(".selector").igTreeGridColumnMoving("option", "locale", { dropDownMoveFirstText : "New Move First" });

dropDownMoveLastText

Type:: string
Default:: ""

Specifies caption for the move last dropdown button.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [
        {
            name : "ColumnMoving",
            locale: { dropDownMoveLastText : "New Move Last"}
        }
    ]
});

//Get
var dropDownMoveFirstText = $(".selector").igTreeGridColumnMoving("option", "locale").dropDownMoveLastText;

//Set
$(".selector").igTreeGridColumnMoving("option", "locale", { dropDownMoveLastText : "New Move Last" });

dropDownMoveLeftText

Type:: string
Default:: ""

Specifies caption for the move left dropdown button.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [
        {
            name : "ColumnMoving",
            locale: { dropDownMoveLeftText : "New Move Left"}
        }
    ]
});

//Get
var dropDownMoveLeftText = $(".selector").igTreeGridColumnMoving("option", "locale").dropDownMoveLeftText;

//Set
$(".selector").igTreeGridColumnMoving("option", "locale", { dropDownMoveLeftText : "New Move Left" });

dropDownMoveRightText

Type:: string
Default:: ""

Specifies caption for the move right dropdown button.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [
        {
            name : "ColumnMoving",
            locale: { dropDownMoveRightText : "New Move Right"}
        }
    ]
});

//Get
var dropDownMoveRightText = $(".selector").igTreeGridColumnMoving("option", "locale").dropDownMoveRightText;

//Set
$(".selector").igTreeGridColumnMoving("option", "locale", { dropDownMoveRightText : "New Move Right" });

featureChooserSubmenuText

Type:: string
Default:: ""

Specifies caption text for the feature chooser submenu button.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [
        {
            name : "ColumnMoving",
            locale: { featureChooserSubmenuText : "Move to"}
        }
    ]
});

//Get
var featureChooserSubmenuText = $(".selector").igTreeGridColumnMoving("option", "locale").featureChooserSubmenuText;

//Set
$(".selector").igTreeGridColumnMoving("option", "locale", { featureChooserSubmenuText : "Move to" });

movingDialogButtonApplyText

Type:: string
Default:: ""

Specifies the apply button text.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [
        {
            name : "ColumnMoving",
            locale: { movingDialogButtonApplyText : "Apply"}
        }
    ]
});

//Get
var movingDialogButtonApplyText = $(".selector").igTreeGridColumnMoving("option", "locale").movingDialogButtonApplyText;

//Set
$(".selector").igTreeGridColumnMoving("option", "locale", {movingDialogButtonApplyText : "Apply"});

movingDialogButtonCancelText

Type:: string
Default:: ""

Specifies the cancel button text.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [
        {
            name : "ColumnMoving",
            locale: { movingDialogButtonCancelText : "Cancel"}
        }
    ]
});

//Get
var movingDialogButtonCancelText = $(".selector").igTreeGridColumnMoving("option", "locale").movingDialogButtonCancelText;

//Set
$(".selector").igTreeGridColumnMoving("option", "locale", {movingDialogButtonCancelText : "Cancel"});

movingDialogCaptionButtonAsc

Type:: string
Default:: ""

Specifies caption for each move up button in the column moving dialog.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [
        {
            name : "ColumnMoving",
            locale: { movingDialogCaptionButtonAsc : "Ascending"}
        }
    ]
});

//Get
var movingDialogCaptionButtonAsc = $(".selector").igTreeGridColumnMoving("option", "locale").movingDialogCaptionButtonAsc;

//Set
$(".selector").igTreeGridColumnMoving("option", "locale", {movingDialogCaptionButtonAsc : "Ascending"});

movingDialogCaptionButtonDesc

Type:: string
Default:: ""

Specifies caption for each move down button in the column moving dialog.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [
        {
            name : "ColumnMoving",
            locale: { movingDialogCaptionButtonDesc : "Descending"}
        }
    ]
});

//Get
var movingDialogCaptionButtonDesc = $(".selector").igTreeGridColumnMoving("option", "locale").movingDialogCaptionButtonDesc;

//Set
$(".selector").igTreeGridColumnMoving("option", "locale", {movingDialogCaptionButtonDesc : "Descending"});

movingDialogCaptionText

Type:: string
Default:: ""

Specifies caption text for the column moving dialog.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [
        {
            name : "ColumnMoving",
            locale: { movingDialogCaptionText : "My Moving Dialog"}
        }
    ]
});

//Get
var movingDialogCaptionText = $(".selector").igTreeGridColumnMoving("option", "locale").movingDialogCaptionText;

//Set
$(".selector").igTreeGridColumnMoving("option", "locale", {movingDialogCaptionText : "My Moving Dialog"});

movingDialogCloseButtonTitle

Type:: string
Default:: ""

Specifies title for close dialog button.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [
        {
            name : "ColumnMoving",
            locale: { movingDialogCloseButtonTitle : "Close"}
        }
    ]
});

//Get
var movingDialogDropTooltipText = $(".selector").igTreeGridColumnMoving("option", "locale").movingDialogCloseButtonTitle;

//Set
$(".selector").igTreeGridColumnMoving("option", "locale", {movingDialogCloseButtonTitle : "Close"});

movingDialogDisplayText

Type:: string
Default:: ""

Specifies caption text for the feature chooser entry.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [
        {
            name : "ColumnMoving",
            locale: { movingDialogDisplayText : "My Moving Dialog"}
        }
    ]
});

//Get
var movingDialogDisplayText = $(".selector").igTreeGridColumnMoving("option", "locale").movingDialogDisplayText;

//Set
$(".selector").igTreeGridColumnMoving("option", "locale", {movingDialogDisplayText : "My Moving Dialog"});

movingDialogDropTooltipText

Type:: string
Default:: ""

Specifies text for drop tooltip in column moving dialog.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [
        {
            name : "ColumnMoving",
            locale: { movingDialogDropTooltipText : "Set your tooltip text"}
        }
    ]
});

//Get
var movingDialogDropTooltipText = $(".selector").igTreeGridColumnMoving("option", "locale").movingDialogDropTooltipText;

//Set
$(".selector").igTreeGridColumnMoving("option", "locale", {movingDialogDropTooltipText : "Set your tooltip text"});

movingToolTipMove

Type:: string
Default:: ""

Specifies tooltip text for the move indicator.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [
        {
            name : "ColumnMoving",
            locale: { movingToolTipMove : "My tooltip"}
        }
    ]
});

//Get
var movingToolTipMove = $(".selector").igTreeGridColumnMoving("option", "locale").movingToolTipMove;

//Set
$(".selector").igTreeGridColumnMoving("option", "locale", { movingToolTipMove : "My tooltip" });

mode
Inherited

Type:: enumeration
Default:: immediate

Specify the drag-and-drop mode for the feature.

Members

immediate
Type:string
Column headers will rearange as you drag with a space opening under the cursor for the header to be dropped on.
deferred
Type:string
A clone of the header dragged will be created and indicators will be shown between columns to help navigate the drop.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            mode: "deferred"
        }
    ]
});
//Get
var mode = $(".selector").igTreeGridColumnMoving("option", "mode");

moveType
Inherited

Type:: enumeration
Default:: dom

Specify the way columns will be rearranged.

Members

dom
Type:string
Columns will be rearranged through dom manipulation.
render
Type:string
Columns will not be rearranged but the grid will be rendered again with the new column order. Please note this option is incompatible with immediate move mode.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            moveType: "render"
        }
    ]
});
//Get
var moveType = $(".selector").igTreeGridColumnMoving("option", "moveType");
//Set
$(".selector").igTreeGridColumnMoving("option", "moveType", "render");

movingAcceptanceTolerance
Inherited

Type:: number
Default:: 20

Specifies the length (in pixels) between the dragged column and the column edges below which the move operation is accepted.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            movingAcceptanceTolerance: 10
        }
    ]
});

//Get
var movingAcceptanceTolerance = $(".selector").igTreeGridColumnMoving("option", "movingAcceptanceTolerance");

movingDialogAnimationDuration
Inherited

Type:: number
Default:: 200

Specifies time in milliseconds for animation duration to show/hide modal dialog.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            movingDialogAnimationDuration: 100
        }
    ]
});

//Get
var movingDialogAnimationDuration = $(".selector").igTreeGridColumnMoving("option", "movingDialogAnimationDuration");

movingDialogCaptionButtonAsc
Removed

Type:: string
Default:: ""

This option has been removed as of 2017.2 Volume release.
Specifies caption for each move up button in the column moving dialog. Use option locale.movingDialogCaptionButtonAsc.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            movingDialogCaptionButtonAsc: "Ascending"
        }
    ]
});

//Get
var movingDialogCaptionButtonAsc = $(".selector").igTreeGridColumnMoving("option", "movingDialogCaptionButtonAsc");

movingDialogCaptionButtonDesc
Removed

Type:: string
Default:: ""

This option has been removed as of 2017.2 Volume release.
Specifies caption for each move down button in the column moving dialog. Use option locale.movingDialogCaptionButtonDesc.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            movingDialogCaptionButtonDesc: "Descending"
        }
    ]
});

//Get
var movingDialogCaptionButtonDesc = $(".selector").igTreeGridColumnMoving("option", "movingDialogCaptionButtonDesc");

movingDialogCaptionText
Removed

Type:: string
Default:: ""

This option has been removed as of 2017.2 Volume release.
Specifies caption text for the column moving dialog. Use option locale.movingDialogCaptionText.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            movingDialogCaptionText: "My Moving Dialog"
        }
    ]
});

//Get
var movingDialogCaptionText = $(".selector").igTreeGridColumnMoving("option", "movingDialogCaptionText");

movingDialogDisplayText
Removed

Type:: string
Default:: ""

This option has been removed as of 2017.2 Volume release.
Specifies caption text for the feature chooser entry. Use option locale.movingDialogDisplayText.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            movingDialogDisplayText: "My Dialog"
        }
    ]
});

//Get
var movingDialogDisplayText = $(".selector").igTreeGridColumnMoving("option", "movingDialogDisplayText");

movingDialogDropTooltipMarkup
Inherited

Type:: string
Default:: "<div><p><span></span><strong>{text}</strong></p></div>"

Specifies markup for drop tooltip in column moving dialog.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            movingDialogDropTooltipMarkup: "<div style='color:red'><p><span></span><strong>{text}</strong></p></div>"
        }
    ]
});

//Get
var movingDialogDropTooltipMarkup = $(".selector").igTreeGridColumnMoving("option", "movingDialogDropTooltipMarkup");

movingDialogDropTooltipText
Removed

Type:: string
Default:: ""

This option has been removed as of 2017.2 Volume release.
Specifies text for drop tooltip in column moving dialog. Use option locale.movingDialogDropTooltipText.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            movingDialogDropTooltipText: "Set your tooltip text"
        }
    ]
});

//Get
var movingDialogDropTooltipText = $(".selector").igTreeGridColumnMoving("option", "movingDialogDropTooltipText");

movingDialogHeight
Inherited

Type:: number
Default:: ""

Specifies height of column moving dialog.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            movingDialogHeight: "400px"
        }
    ]
});

//Get
var movingDialogHeight = $(".selector").igTreeGridColumnMoving("option", "movingDialogHeight");

movingDialogWidth
Inherited

Type:: number
Default:: 400

Specifies width of column moving dialog.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            movingDialogWidth: "300px"
        }
    ]
});

//Get
var movingDialogWidth = $(".selector").igTreeGridColumnMoving("option", "movingDialogWidth");

movingScrollTolerance
Inherited

Type:: number
Default:: 20

Specifies the length (in pixels) between the dragged column and the grid edges below which horizontal scrolling occurs.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            movingScrollTolerance: 10
        }
    ]
});

//Get
var movingScrollTolerance = $(".selector").igTreeGridColumnMoving("option", "movingScrollTolerance");

movingToolTipMove
Removed

Type:: string
Default:: ""

This option has been removed as of 2017.2 Volume release.
Specifies caption text for the feature chooser submenu button. Use option locale.movingToolTipMove.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            movingToolTipMove: "My tooltip"
        }
    ]
});

//Get
var movingToolTipMove = $(".selector").igTreeGridColumnMoving("option", "movingToolTipMove");

scrollDelta
Inherited

Type:: number
Default:: 2

Specifies the length (in pixels) of each individual scroll operation.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            scrollDelta: 4
        }
    ]
});

//Get
var scrollDelta = $(".selector").igTreeGridColumnMoving("option", "scrollDelta");

scrollSpeedMultiplier
Inherited

Type:: number
Default:: 2.0

Specifies a multiplier for the delay between subsequent scroll operations. The larger this number is, the slower scrolling will appear to be.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            scrollSpeedMultiplier: 4.0
        }
    ]
});

//Get
var scrollSpeedMultiplier = $(".selector").igTreeGridColumnMoving("option", "scrollSpeedMultiplier");

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details

columnDragCanceled
Inherited

Cancellable:: false

Event which is fired when a drag operation is canceled.

evt
Type: Event

JQuery event object.
args
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridcolumnmovingcolumndragcanceled", ".selector", function (evt, args) {
    //return the triggered event
    evt;

    // reference to the igTreeGridColumnMoving widget.
    args.owner;

    // reference to the grid widget.
    args.owner.grid;

    // the key of the column, which was being dragged
    args.columnKey;

    // the index of the column, which was being dragged
    args.columnIndex;

    // the orginal th that was being dragged
    args.header;

    // the cloned DOM element that was actually being dragged
    args.helper;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            columnDragCanceled: function(evt, args){ ... }
        }
    ]
});

columnDragEnd
Inherited

Cancellable:: false

Event which is fired when a drag operation ends on a column header.

evt
Type: Event

JQuery event object.
args
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridcolumnmovingcolumndragend", ".selector", function (evt, args) {
    //return the triggered event
    evt;

    // reference to the igTreeGridColumnMoving widget.
    args.owner;

    // reference to the grid widget.
    args.owner.grid;

    // the key of the column, which was being dragged
    args.columnKey;

    // the index of the column, which was being dragged
    args.columnIndex;

    // the orginal th that was being dragged
    args.header;

    // the cloned DOM element that was actually being dragged
    args.helper;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            columnDragEnd: function(evt, args){ ... }
        }
    ]
});

columnDragStart
Inherited

Cancellable:: true

Event which is fired when a drag operation begins on a column header.

evt
Type: Event

JQuery event object.
args
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridcolumnmovingcolumndragstart", ".selector", function (evt, args) {
    //return the triggered event
    evt;

    // reference to the igTreeGridColumnMoving widget.
    args.owner;

    // reference to the grid widget.
    args.owner.grid;

    // the key of the column, which was being dragged
    args.columnKey;

    // the index of the column, which was being dragged
    args.columnIndex;

    // the orginal th that was being dragged
    args.header;

    // the cloned DOM element that was actually being dragged
    args.helper;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            columnDragStart: function(evt, args){ ... }
        }
    ]
});

columnMoved
Inherited

Cancellable:: false

Event which is fired when a column moving operation completes.

evt
Type: Event

JQuery event object.
args
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridcolumnmovingcolumnmoved", ".selector", function (evt, args) {
    //return the triggered event
    evt;

    // reference to the igTreeGridColumnMoving widget.
    args.owner;

    // reference to the grid widget.
    args.owner.grid;

    // the key of the column, which was being moved
    args.columnKey;

    // the previous index of the column, which was being moved
    args.oldIndex;

    // the new index of the column, which was being moved
    args.newIndex;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            columnMoved: function(evt, args){ ... }
        }
    ]
});

columnMoving
Inherited

Cancellable:: true

Event which is fired when a column moving operation is initiated.

evt
Type: Event

JQuery event object.
args
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridcolumnmovingcolumnmoving", ".selector", function (evt, args) {
    //return the triggered event
    evt;

    // reference to the igTreeGridColumnMoving widget.
    args.owner;

    // reference to the grid widget.
    args.owner.grid;

    // the key of the column, which was being moved
    args.columnKey;

    // the index of the column, which was being moved
    args.columnIndex;

    // the new column index of the column that was being moved
    args.targetIndex;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            columnMoving: function(evt, args){ ... }
        }
    ]
});

movingDialogClosed
Inherited

Cancellable:: false

Event fired after the moving dialog has been closed.

evt
Type: Event

JQuery event object.
args
Type: Object
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridcolumnmovingmovingdialogclosed", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // reference to the igTreeGridColumnMoving widget.
    ui.owner;

    // reference to the grid widget.
    ui.owner.grid;

    // he moving dialog element. This is a jQuery object.
    ui.movingDialogElement;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            movingDialogClosed: function(evt, ui){ ... }
        }
    ]
});

movingDialogClosing
Inherited

Cancellable:: true

Event fired before the moving dialog is closed.

evt
Type: Event

JQuery event object.
args
Type: Object
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridcolumnmovingmovingdialogclosed", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // reference to the igTreeGridColumnMoving widget.
    ui.owner;

    // reference to the grid widget.
    ui.owner.grid;

    // the moving dialog element. This is a jQuery object.
    ui.movingDialogElement;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            movingDialogClosed: function(evt, ui){ ... }
        }
    ]
});

movingDialogContentsRendered
Inherited

Cancellable:: false

Event fired after the contents of the model dialog are rendered.

evt
Type: Event

JQuery event object.
args
Type: Object
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridcolumnmovingmovingdialogcontentsrendered", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // reference to the igTreeGridColumnMoving widget.
    ui.owner;

    // reference to the grid widget.
    ui.owner.grid;

    // the moving dialog element. This is a jQuery object.
    ui.movingDialog;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            movingDialogContentsRendered: function(evt, ui){ ... }
        }
    ]
});

movingDialogContentsRendering
Inherited

Cancellable:: true

Event fired before the contents of the model dialog are rendered.

evt
Type: Event

JQuery event object.
args
Type: Object
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridcolumnmovingmovingdialogcontentsrendering", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // reference to the igTreeGridColumnMoving widget.
    ui.owner;

    // reference to the grid widget.
    ui.owner.grid;

    // the moving dialog element. This is a jQuery object.
    ui.movingDialog;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            movingDialogContentsRendering: function(evt, ui){ ... }
        }
    ]
});

movingDialogDragColumnMoved
Inherited

Cancellable:: false

Event fired when column moving is completed through dragging it in the moving dialog.

evt
Type: Event

JQuery event object.
args
Type: Object
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridcolumnmovingmovingdialogdragcolumnmoved", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // reference to the igTreeGridColumnMoving widget.
    ui.owner;

    // reference to the grid widget.
    ui.owner.grid;

    // the moving dialog element. This is a jQuery object.
    ui.movingDialog;

    // the key of the column, which was being moved
    ui.columnKey;

    // the index of the column, which was being moved
    ui.columnIndex;

    // the new column index of the column that was being moved
    ui.targetIndex;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            movingDialogDragColumnMoved: function(evt, ui){ ... }
        }
    ]
});

movingDialogDragColumnMoving
Inherited

Cancellable:: true

Event fired when column moving is initiated through dragging it in the moving dialog.

evt
Type: Event

JQuery event object.
args
Type: Object
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridcolumnmovingmovingdialogdragcolumnmoving", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // reference to the igTreeGridColumnMoving widget.
    ui.owner;

    // reference to the grid widget.
    ui.owner.grid;

    // the moving dialog element. This is a jQuery object.
    ui.movingDialog;

    // the key of the column, which was being moved
    ui.columnKey;

    // the index of the column, which was being moved
    ui.columnIndex;

    // the new column index of the column that was being moved
    ui.targetIndex;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            movingDialogDragColumnMoving: function(evt, ui){ ... }
        }
    ]
});

movingDialogDragged
Inherited

Cancellable:: false

Event fired every time the moving dialog changes its position.

evt
Type: Event

JQuery event object.
args
Type: Object
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridcolumnmovingmovingmovingdialogdragged", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // reference to the igTreeGridColumnMoving widget.
    ui.owner;

    // reference to the grid widget.
    ui.owner.grid;

    // the moving dialog element. This is a jQuery object.
    ui.movingDialogElement;

    // the original position of the moving dialog div as { top, left } object, relative to the page
    ui.originalPosition;

    // the current position of the moving dialog div as { top, left } object, relative to the page
    ui.position;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            movingDialogDragged: function(evt, ui){ ... }
        }
    ]
});

movingDialogMoveDownButtonPressed
Inherited

Cancellable:: false

Event fired when move down button is pressed in the moving dialog.

evt
Type: Event

JQuery event object.
args
Type: Object
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridcolumnmovingmovingdialogmovedownbuttonpressed", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // reference to the igTreeGridColumnMoving widget.
    ui.owner;

    // reference to the grid widget.
    ui.owner.grid;

    // the moving dialog element. This is a jQuery object.
    ui.movingDialog;

    // the key of the column, which was being moved
    ui.columnKey;

    // the index of the column, which was being moved
    ui.columnIndex;

    // the new column index of the column that was being moved
    ui.targetIndex;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            movingDialogMoveDownButtonPressed: function(evt, ui){ ... }
        }
    ]
});

movingDialogMoveUpButtonPressed
Inherited

Cancellable:: false

Event fired when move up button is pressed in the moving dialog.

evt
Type: Event

JQuery event object.
args
Type: Object
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridcolumnmovingmovingdialogmoveupbuttonpressed", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // reference to the igTreeGridColumnMoving widget.
    ui.owner;

    // reference to the grid widget.
    ui.owner.grid;

    // the moving dialog element. This is a jQuery object.
    ui.movingDialog;

    // the key of the column, which was being moved
    ui.columnKey;

    // the index of the column, which was being moved
    ui.columnIndex;

    // the new column index of the column that was being moved
    ui.targetIndex;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            movingDialogMoveUpButtonPressed: function(evt, ui){ ... }
        }
    ]
});

movingDialogOpened
Inherited

Cancellable:: false

Event fired after the column chooser is already opened.

evt
Type: Event

JQuery event object.
args
Type: Object
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridcolumnmovingmovingdialogopened", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // reference to the igTreeGridColumnMoving widget.
    ui.owner;

    // reference to the grid widget.
    ui.owner.grid;

    // the moving dialog element. This is a jQuery object.
    ui.movingDialogElement;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            movingDialogOpened: function(evt, ui){ ... }
        }
    ]
});

movingDialogOpening
Inherited

Cancellable:: true

Event fired before the moving dialog is opened.

evt
Type: Event

JQuery event object.
args
Type: Object
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridcolumnmovingmovingdialogopening", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // reference to the igTreeGridColumnMoving widget.
    ui.owner;

    // reference to the grid widget.
    ui.owner.grid;

    // the moving dialog element. This is a jQuery object.
    ui.movingDialogElement;
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "ColumnMoving",
            movingDialogOpening: function(evt, ui){ ... }
        }
    ]
});

Show Details

changeLocale
Inherited

.igTreeGridColumnMoving( "changeLocale" );
Changes the all locales into the widget element to the language specified in options.language
Note that this method is for rare scenarios, see language or locale option setter.
Code Sample

$(".selector").igTreeGridColumnMoving("changeLocale");
destroy

.igTreeGridColumnMoving( "destroy" );
Code Sample

$(".selector").igTreeGridColumnMoving("destroy");

moveColumn
Inherited

.igTreeGridColumnMoving( "moveColumn", column:object, target:object, [after:bool], [inDom:bool], [callback:function] );

Moves a visible column at a specified place, in front or behind a target column or at a target index
Note: This method is asynchronous which means that it returns immediately and any subsequent code will execute in parallel. This may lead to runtime errors. To avoid them put the subsequent code in the callback parameter provided by the method.

column
Type:object
An identifier of the column to be moved. It can be a key, a Multi-Column Header identificator, or an index in a number format. The latter is not supported when the grid contains multi-column headers.
target
Type:object
An identifier of a column where the moved column should move to or an index at which the moved column should be moved to. In the case of a column identifier the column will be moved after it by default.
after
Type:bool
Optional
Specifies whether the column moved should be moved after or before the target column.
inDom
Type:bool
Optional
Specifies whether the column moving will be enacted through DOM manipulation or through rerendering of the grid.
callback
Type:function
Optional
Specifies a custom function to be called when the column is moved.

Code Sample

// calling method with column indexes
$(".selector").igTreeGridColumnMoving("moveColumn", 0, 1, true, false);

// calling method with column keys
$(".selector").igTreeGridColumnMoving("moveColumn", "ProductId", "ProductName", true, true);

// calling method with column keys and function callback
$(".selector").igTreeGridColumnMoving("moveColumn", "ProductId", "ProductName", true, true, function () {
    // Custom code executed after the move operation finishes
});

ui-iggrid-columnmoving-dropdown-dialog ui-widget ui-widget-content ui-corner-all

Classes applied to the column moving dropdown dialog.
ui-iggrid-columnmoving-dropdown-ddlistitemicons ui-state-default

Classes applied to each item in the column moving dropdown list.
ui-iggrid-columnmoving-dropdown-listitem-hover ui-state-active ui-state-hover

Classes applied to each item in the column moving dropdown list when mouse hovers over them.
ui-iggrid-columnmoving-dropdown-ddlistitemtext

Classes applied to the text of each item in the column moving dropdown list when mouse hovers over them.
ui-iggrid-columnmoving-dropdown-list ui-menu

Classes applied to the column moving dropdown list.
ui-iggrid-hiding-indicator-selected

Classes applied to the column indicators of the moving drop down.
ui-iggrid-columnmoving-dragbottom ui-icon ui-icon-triangle-1-n

Classes applied to the bottom column moving indicator in deferred mode.
ui-iggrid-columnmoving-dragleft

Classes applied to the column moving indicators in deferred mode when they are tilted to the left.
ui-iggrid-columnmoving-dragright

Classes applied to the column moving indicators in deferred mode when they are tilted to the right.
ui-iggrid-columnmoving-dragtop ui-icon ui-icon-triangle-1-s

Classes applied to the top column moving indicator in deferred mode.
ui-iggrid-moving-indicator

Classes applied to the table header button expanding the moving dropdown.
ui-iggrid-columnmovingiconcontainer

Classes applied to the feature chooser icon container.
ui-iggrid-indicatorcontainer

Classes applied to the container for the drop down header button.
ui-iggrid-featurechooser-li-iconcontainer ui-icon ui-iggrid-icon-first

Classes applied to the move first icon for the column moving dialog.
ui-iggrid-featurechooser-li-iconcontainer ui-icon ui-iggrid-icon-last

Classes applied to the move last icon for the column moving dialog.
ui-iggrid-featurechooser-li-iconcontainer ui-icon ui-iggrid-icon-left

Classes applied to the move left icon for the column moving dialog.
ui-icon ui-iggrid-icon-move

Classes applied to the feature chooser icon for column moving feature.
ui-iggrid-featurechooser-li-iconcontainer ui-icon ui-iggrid-icon-right

Classes applied to the move right icon for the column moving dialog.
ui-iggrid-featurechooser-list-submenu ui-menu ui-widget ui-widget-content ui-corner-all

Classes applied to the feature chooser submenu containing the moving items.
ui-iggrid-featurechooser-list-submenu-item ui-state-default

Classes applied to the feature chooser submenu moving items.
ui-state-hover

Classes applied to the feature chooser submenu moving items when hovering over them with the mouse.
ui-state-hover

Classes applied to the table header cells when the mouse hovers on them.
ui-icon ui-icon-close

Classes applied to the close button for the moving dialog.
ui-iggrid-moving-dialog-columns

Classes applied to the lists of items in the moving dialog.
ui-widget-content

Classes applied to the items in the item lists in the moving dialog.
ui-button ui-corner-all ui-button-icon-only ig-sorting-indicator

Classes applied to the inner button elements of the arrow indicators in the moving dialog.
ui-icon-arrowthick-1-s ui-button-icon-primary ui-icon

Classes applied to the move down arrow of each list item in the moving dialog.
ui-icon-arrowthick-1-n ui-button-icon-primary ui-icon

Classes applied to the move up arrow of each list item in the moving dialog.
ui-iggrid-dialog-text

Classes applied to the text of each list item in the moving dialog.

Ignite UI for jQuery | API Reference

ui.igTreeGridColumnMoving

Code Sample

Related Samples

Related Topics

Dependencies

Inherits
