Ignite UI™ API Documentation

ui.igTreeGridResizing

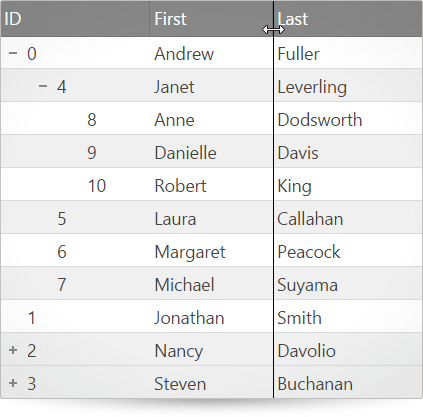

The igTreeGrid includes also the column resizing feature. Users can choose to arbitrarily adjust the width of a column or double-click the right border of the column to expand it to the width of the longest string in the column. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

The following code snippet demonstrates how to initialize the igTreeGrid control.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample

<!doctype html>
<html>
<head>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />

    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>

    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>

    <!-- Infragistics Combined Scripts -->
    <script src="js/infragistics.core.js" type="text/javascript"></script>
    <script src="js/infragistics.lob.js" type="text/javascript"></script>

    <script type="text/javascript">
        var employees = [
            { "employeeId": 0, "supervisorId": -1, "firstName": "Andrew", "lastName": "Fuller" },
            { "employeeId": 1, "supervisorId": -1, "firstName": "Jonathan", "lastName": "Smith" },
            { "employeeId": 2, "supervisorId": -1, "firstName": "Nancy", "lastName": "Davolio" },
            { "employeeId": 3, "supervisorId": -1, "firstName": "Steven", "lastName": "Buchanan" },

            // Andrew Fuller's direct reports
            { "employeeId": 4, "supervisorId": 0, "firstName": "Janet", "lastName": "Leverling" },
            { "employeeId": 5, "supervisorId": 0, "firstName": "Laura", "lastName": "Callahan" },
            { "employeeId": 6, "supervisorId": 0, "firstName": "Margaret", "lastName": "Peacock" },
            { "employeeId": 7, "supervisorId": 0, "firstName": "Michael", "lastName": "Suyama" },

            // Janet Leverling's direct reports
            { "employeeId": 8, "supervisorId": 4, "firstName": "Anne", "lastName": "Dodsworth" },
            { "employeeId": 9, "supervisorId": 4, "firstName": "Danielle", "lastName": "Davis" },
            { "employeeId": 10, "supervisorId": 4, "firstName": "Robert", "lastName": "King" },

            // Nancy Davolio's direct reports
            { "employeeId": 11, "supervisorId": 2, "firstName": "Peter", "lastName": "Lewis" },
            { "employeeId": 12, "supervisorId": 2, "firstName": "Ryder", "lastName": "Zenaida" },
            { "employeeId": 13, "supervisorId": 2, "firstName": "Wang", "lastName": "Mercedes" },

            // Steve Buchanan's direct reports
            { "employeeId": 14, "supervisorId": 3, "firstName": "Theodore", "lastName": "Zia" },
            { "employeeId": 15, "supervisorId": 3, "firstName": "Lacota", "lastName": "Mufutau" },

            // Lacota Mufutau's direct reports
            { "employeeId": 16, "supervisorId": 15, "firstName": "Jin", "lastName": "Elliott" },
            { "employeeId": 17, "supervisorId": 15, "firstName": "Armand", "lastName": "Ross" },
            { "employeeId": 18, "supervisorId": 15, "firstName": "Dane", "lastName": "Rodriquez" },

            // Dane Rodriquez's direct reports
            { "employeeId": 19, "supervisorId": 18, "firstName": "Declan", "lastName": "Lester" },
            { "employeeId": 20, "supervisorId": 18, "firstName": "Bernard", "lastName": "Jarvis" },

            // Bernard Jarvis' direct report
            { "employeeId": 21, "supervisorId": 20, "firstName": "Jeremy", "lastName": "Donaldson" }
        ];

    $(function () {
           $("#treegrid").igTreeGrid({
               dataSource: employees,
               primaryKey: "employeeId",
               foreignKey: "supervisorId",
               autoGenerateColumns: false,
               columns: [
                   { headerText: "ID", key: "employeeId", width: "150px", dataType: "number" },
                   { headerText: "First", key: "firstName", width: "150px", dataType: "string" },
                   { headerText: "Last", key: "lastName", width: "150px", dataType: "string" }
               ],
         features: [
      {
      name: "Resizing",
      deferredResizing: false,
      allowDoubleClickToResize: true,
      columnSettings: [
      { columnKey: "employeeId", allowResizing: false },
      { columnKey: "firstName", minimumWidth: 40 }
      ]
      }]
           });
       });
    </script>
</head>
<body>
    <table id="treegrid"></table>
</body>
</html>

Related Samples

Balance Sheet

allowDoubleClickToResize
Inherited

Type:: bool
Default:: true

Resize the column to the size of the longest currently visible cell value.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Resizing",
            allowDoubleClickToResize: true
        }
    ]
});

columnSettings
Inherited

Type:: array
Default:: []
Elements Type:: object

A list of column settings that specifies resizing options on a per column basis.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [
        {
            name: "Resizing",
            columnSettings: [
                { columnKey: "ProductID", allowResizing: true },
            ]
        }
    ]
});

allowResizing

Type:: bool
Default:: true

Enables disables resizing for the column.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [
        {
            name: "Resizing",
            columnSettings: [
                { columnIndex: 0, allowResizing: true },
            ]
        }
    ]
});

columnIndex

Type:: number
Default:: null

Column index. Can be used in place of column key. the preferred way of populating a column setting is to always use the column keys as identifiers.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [
        {
            name: "Resizing",
            columnSettings: [
                { columnIndex: 0, allowResizing: true },
            ]
        }
    ]
});

columnKey

Type:: string
Default:: null

Column key. this is a required property in every column setting if columnIndex is not set.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [
        {
            name: "Resizing",
            columnSettings: [
                { columnKey: "ProductID", allowResizing: true },
            ]
        }
    ]
});

maximumWidth

Type:: enumeration
Default:: null

Maximum column width in pixels or percents.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [
        {
            name: "Resizing",
            columnSettings: [
                { columnIndex: 0, maximumWidth: 100 },
            ]
        }
    ]
});

minimumWidth

Type:: enumeration
Default:: 20

Minimum column width in pixels or percents.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [
        {
            name: "Resizing",
            columnSettings: [
                { columnIndex: 0, minimumWidth: 30 },
            ]
        }
    ]
});

deferredResizing
Inherited

Type:

bool

Default:

false

Specifies whether the resizing should be deferred until the user finishes resizing or applied immediately.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Resizing",
            deferredResizing: true
        }
    ]
});
handleThreshold
Inherited

Type:

number

Default:

5

The width in pixels of the resizing handle which is position at the right side of each resizeable column header.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Resizing",
            handleThreshold: 10
        }
    ]
});

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details

columnResized
Inherited

Cancellable:: false

Event fired after the resizing has been executed and results are rendered.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridresizingcolumnresized", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // the index of the column that is resized
    ui.columnIndex;

    // the key of the column that is resized
    ui.columnKey;

    // the width of the column before resizing is done
    ui.originalWidth;

    // the width of the column after resizing is done
    ui.newWidth;

    // reference to the igTreeGridResizing widget
    ui.owner;

});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Resizing",
            columnResized: function(evt, ui){ ... }
        }
    ]
});

columnResizing
Inherited

Cancellable:: true

Event fired before a resizing operation is executed.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridresizingcolumnresizing", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // the index of the column that is resized
    ui.columnIndex;

    // the key of the column that is resized
    ui.columnKey;

    // the current column width, during resizing
    ui.desiredWidth;

    // reference to the igTreeGridResizing widget
    ui.owner;

});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Resizing",
            columnResizing: function(evt, ui){ ... }
        }
    ]
});

columnResizingRefused
Inherited

Cancellable:: false

Event fired(only when columnFixing is enabled) when trying to resize column in fixed area so total width of unfixed area to be less than minimalVisibleAreaWidth(option defined in columnFixing).

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridresizingcolumnresizingrefused", ".selector", function (evt, ui) {
    //return the triggered event
    evt;

    // the index of the column that is resized
    ui.columnIndex;

    // the key of the column that is resized
    ui.columnKey;

    // get the desired width(before min/max coercion) for the resized column
    ui.desiredWidth;

    // reference to the igTreeGridResizing widget
    ui.owner;

    // get the reference to the igTreeGrid widget
    ui.owner.grid
});

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Resizing",
            columnResizingRefused: function(evt, ui){ ... }
        }
    ]
});

Show Details

destroy

.igTreeGridResizing( "destroy" );
Code Sample

$(".selector").igTreeGridResizing("destroy");
resize
Inherited

.igTreeGridResizing( "resize", column:object, [width:object] );
Resizes a column to a specified width in pixels, percents or auto if no width is specified.
- column
- Type:object
- An identifier for the column. If a number is provided it will be used as a columnIndex else if a strings is provided it will be used as a columnKey.
- width
- Type:object
- Optional
- Width of the column in pixels or percents. If no width or "*" is specified the column will be auto-sized to the width of the data in it (including header and footer cells).
Code Sample

$(".selector").igTreeGridResizing("resize", 0, 50);

ui-iggrid-resize-line

Class applied to the resize line that is visible during resizing.
ui-iggrid-resizing-handle

Class applied to the resizing handle.
ui-iggrid-resizing-handle-cursor

Class applied to the resizing handle and the body to change the cursor.
