ui.igGridResponsive

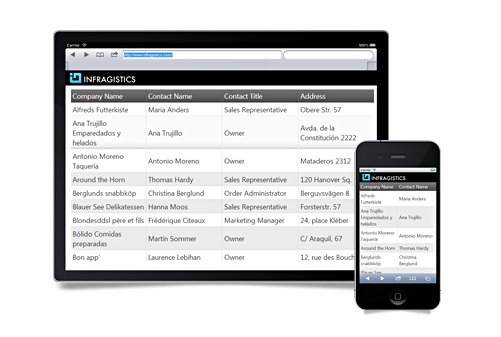

The Responsive Web Design (RWD) Mode feature of the igGrid control adopts the concepts of Responsive Web Design in order to improve user experience on different devices. Responsive Web Design mode allows you to support multiple screen sizes and form factors with single code base and design. In RWD mode, the grid’s adaptation to the devices’ screen can be configured to be either:

Auto-hiding of columns (This is configured through the RWD mode feature’s column hiding functionality.)
Any structural and formatting change that can be implemented through a grid template

To this end, the RWD Mode feature supports a set of pre-defined grid templates which replace the igGrid template once the RWD mode sets in. Using templates allows for a wide scope of adaptations, including row hiding, using different fonts and font sizes, merging several rows/columns in one row/column, and many others. The RWD mode supports having different grid adaptations for different device screen sizes. A set of pre-defined adaptations to which a unique name is assigned is called “RWD mode profile”. Each profile has a range of screen sizes for which it is activated. As different screen sizes are, in practice, associated with different types of devices, the RWD mode profiles are essentially associated with device types.

The igGrid control comes with three pre-defined RWD mode profiles based on the device’s screen width. Those profiles are activated using CSS3 media queries:

Phone – for screen widths up to 767 pixels. Default available CSS classes are: ui-visible-phone and ui-hidden-phone. The name of the profile is “phone”.
Tablet – for screen widths between 768 pixels and 979 pixels. Default available CSS classes are: ui-visible-tablet and ui-hidden-tablet. The name of the profile is “tablet”.
Desktop –for screen widths larger than 980 pixels. Default available CSS classes are: ui-visible-desktop and ui-hidden-desktop. The name of the profile is “desktop”.

Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

The following code snippet demonstrates how to initialize the igGrid control with Responsive Web Design Mode feature.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample

<!doctype html>
<html>
<head>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
    <!-- Infragistics Combined Scripts -->
    <script src="js/infragistics.core.js" type="text/javascript"></script>
    <script src="js/infragistics.lob.js" type="text/javascript"></script>
    <script type="text/javascript">
        var products = [
            { "ProductID": 1, "Name": "Adjustable Race", "ProductNumber": "AR-5381" },
            { "ProductID": 2, "Name": "Bearing Ball", "ProductNumber": "BA-8327" },
            { "ProductID": 3, "Name": "BB Ball Bearing", "ProductNumber": "BE-2349" },
            { "ProductID": 4, "Name": "Headset Ball Bearings", "ProductNumber": "BE-2908" },
            { "ProductID": 316, "Name": "Blade", "ProductNumber": "BL-2036" },
            { "ProductID": 317, "Name": "LL Crankarm", "ProductNumber": "CA-5965" },
            { "ProductID": 318, "Name": "ML Crankarm", "ProductNumber": "CA-6738" },
            { "ProductID": 319, "Name": "HL Crankarm", "ProductNumber": "CA-7457" },
            { "ProductID": 320, "Name": "Chainring Bolts", "ProductNumber": "CB-2903" }
        ];

        $(function () {
            $("#gridResponsive").igGrid({
                columns: [
                    { headerText: "Product ID", key: "ProductID", dataType: "number" },
                    { headerText: "Product Name", key: "Name", dataType: "string" },
                    { headerText: "Product Number", key: "ProductNumber", dataType: "string" }
                ],
                features:[
                    {
                        name: "Responsive",
                        columnSettings: [
                            {
                                columnKey: "ProductID",
                                classes: "ui-hidden-phone"
                            }
                        ]
                    }
                ],
                width: "100%",
                dataSource: products
            });
        });
    </script>
</head>
<body>
    <table id="gridColumnMoving"></table>
</body>
</html>

Related Samples

allowedColumnWidthPerType

Type:: object
Default:: {}

When windowWidthToRenderVertically is null, determine minimal widths columns can take before
forcing vertical rendering for the grid.

Code Sample

//Initialize
$(".selector").igGrid({
    features : [
        {
            name : "Responsive",
            allowedColumnWidthPerType : {
                string: 120,
                number: 50,
                bool: 50,
                date: 80,
                object: 150
            }
        }
    ]
});

//Get
var allowedColumnWidthPerType = $(".selector").igGridResponsive("option", "allowedColumnWidthPerType");

bool

Type:: number
Default:: 50

Minimal width in pixels bool columns can take before forcing vertical rendering.

Code Sample

//Initialize
$(".selector").igGrid({
    features : [
        {
            name : "Responsive",
            allowedColumnWidthPerType : {
                bool: 50
            }
        }
    ]
});

//Get
var allowedBoolColumnWidth = $(".selector").igGridResponsive("option", "allowedColumnWidthPerType").bool;

date

Type:: number
Default:: 80

Minimal width in pixels date columns can take before forcing vertical rendering.

Code Sample

//Initialize
$(".selector").igGrid({
    features : [
        {
            name : "Responsive",
            allowedColumnWidthPerType : {
                date: 50
            }
        }
    ]
});

//Get
var allowedDateColumnWidth = $(".selector").igGridResponsive("option", "allowedColumnWidthPerType").date;

number

Type:: number
Default:: 50

Minimal width in pixels number columns can take before forcing vertical rendering.

Code Sample

//Initialize
$(".selector").igGrid({
    features : [
        {
            name : "Responsive",
            allowedColumnWidthPerType : {
                number: 50
            }
        }
    ]
});

//Get
var allowedNumberColumnWidth = $(".selector").igGridResponsive("option", "allowedColumnWidthPerType").number;

object

Type:: number
Default:: 150

Minimal width in pixels object columns can take before forcing vertical rendering.

Code Sample

//Initialize
$(".selector").igGrid({
    features : [
        {
            name : "Responsive",
            allowedColumnWidthPerType : {
                object: 50
            }
        }
    ]
});

//Get
var allowedObjectColumnWidth = $(".selector").igGridResponsive("option", "allowedColumnWidthPerType").object;

string

Type:: number
Default:: 120

Minimal width in pixels string columns can take before forcing vertical rendering.

Code Sample

//Initialize
$(".selector").igGrid({
    features : [
        {
            name : "Responsive",
            allowedColumnWidthPerType : {
                string: 50
            }
        }
    ]
});

//Get
var allowedStringColumnWidth = $(".selector").igGridResponsive("option", "allowedColumnWidthPerType").string;

columnSettings

Type:: array
Default:: []
Elements Type:: object

A list of column settings that specifies how columns will react based on the environment the grid is run on.

Code Sample

//Initialize
$(".selector").igGrid({
    features : [
        {
            name : "Responsive",
            columnSettings : [
                {
                    columnIndex: 0,
                    classes: "ui-hidden-phone"
                }
            ]
        }
    ]
});

//Get
var colSettings = $(".selector").igGridResponsive("option", "columnSettings");

classes

Type:: string
Default:: ""

A list of predefined classes to decide element's visibility on.

Code Sample

//Initialize
$(".selector").igGrid({
    features : [
        {
            name : "Responsive",
            columnSettings : [
                {
                    columnIndex: 0,
                    classes: "ui-hidden-tablet"
                }
            ]
        }
    ]
});

columnIndex

Type:: number
Default:: null

Column index. Can be used in place of column key. The preferred way of populating a column setting is to always use the column keys as identifiers.

Code Sample

//Initialize
$(".selector").igGrid({
    features : [
        {
            name : "Responsive",
            columnSettings : [
                {
                    columnIndex: 0,
                    classes: "ui-hidden-tablet"
                }
            ]
        }
    ]
});

columnKey

Type:: string
Default:: null

Column key. This is a required property in every column setting if columnIndex is not set.

Code Sample

//Initialize
$(".selector").igGrid({
    features : [
        {
            name : "Responsive",
            columnSettings : [
                {
                    columnKey: "ProductId",
                    classes: "ui-hidden-tablet"
                }
            ]
        }
    ]
});

configuration

Type:: object
Default:: null

A configuration object to use for the responsive functionality. Uses the keys defined in the widget's responsiveModes object. The classes property is not used if this one is set.

Code Sample

//Initialize
$(".selector").igGrid({
    features : [
        {
            name : "Responsive",
            columnSettings : [
                {
                    columnKey: "ProductDescription",
                    configuration: {
                        phone: {
                            hidden: true
                        },
                        tablet: {
                            template: "<span style='color:green;'>${ProductDescription}</span>"
                        }
                    }
                }
            ]
        }
    ]
});

enableVerticalRendering

Type:: bool
Default:: true

Enable or disable the responsive vertical rendering for the grid.

Code Sample

//Initialize
$(".selector").igGrid({
    features : [
        {
            name : "Responsive",
            enableVerticalRendering : false
        }
    ]
});

//Get
var enableVerticalRendering = $(".selector").igGridResponsive("option", "enableVerticalRendering");

forceResponsiveGridWidth

Type:: bool
Default:: true

If this option is set to true the widget will ensure the grid's width is always set to 100%.

Code Sample

//Initialize
$(".selector").igGrid({
    features : [
        {
            name : "Responsive",
            forceResponsiveGridWidth : true
        }
    ]
});

//Get
var text = $(".selector").igGridResponsive("option", "forceResponsiveGridWidth");

inherit

Type:

bool

Default:

false

Enables/disables feature inheritance for the child layouts. NOTE: It only applies for igHierarchicalGrid.

propertiesColumnWidth

Type:: enumeration
Default:: 50%

The width of the properties column when vertical rendering is enabled.

Members

string
Type:string
The width in a (%) string.
number
Type:number
The width as a number in percents.

Code Sample

//Initialize
$(".selector").igGrid({
    features : [
        {
            name : "Responsive",
            propertiesColumnWidth : "30%"
        }
    ]
});
//Get
var propertiesColumnWidth = $(".selector").igGridResponsive("option", "propertiesColumnWidth");

reactOnContainerWidthChanges

Type:: bool
Default:: true

If this option is set to true an igResponsiveContainer widget will be attached to the igGrid control which will notify the feature when changes in the width of the container occur.

Code Sample

//Initialize
$(".selector").igGrid({
    features : [
        {
            name : "Responsive",
            reactOnContainerWidthChanges : true
        }
    ]
});

//Get
var text = $(".selector").igGridResponsive("option", "reactOnContainerWidthChanges");

//Set
$(".selector").igGridResponsive("option", "reactOnContainerWidthChanges", true);

responsiveModes

Type:: object
Default:: null

The recognized types of environments and their configuration.

Code Sample

//Initialize
$(".selector").igGrid({
    features : [
        {
            name : "Responsive",
            responsiveModes : {
                phone: "infragistics",
                tablet: "infragistics",
                desktop: "infragistics"
            }
        }
    ]
});

//Get
var text = $(".selector").igGridResponsive("option", "responsiveModes");

//Set
var responsiveModes = {
    phone: "infragistics",
    tablet: "infragistics",
    desktop: "infragistics"
};

$(".selector").igGridResponsive("option", "responsiveModes", responsiveModes);

responsiveSensitivity

Type:: number
Default:: 20

The amount of pixels the window needs to resize with for the grid to respond.

Code Sample

//Initialize
$(".selector").igGrid({
    features : [
        {
            name : "Responsive",
            responsiveSensitivity : 20
        }
    ]
});

//Get
var text = $(".selector").igGridResponsive("option", "responsiveSensitivity");

singleColumnTemplate

Type:: object
Default:: null

Specifies a template to render a record with in a list-view style layout per mode.

Code Sample

//Initialize
$(".selector").igGrid({
    features : [
        {
            name : "Responsive",
                singleColumnTemplate: {
            phone:
            "<div class='right' style='float: left; font-size: 1.1em;'>" +
            "<span>Name:&nbsp;</span><span>${Name}</span><br/>" +
            "<span>Phone:&nbsp;</span><span><a href='${PhoneUrl}'>${Phone}</a></span><br/>" +
            "<span>HireDate:&nbsp;</span><span>${HireDate}</span><br/>" +
            "</div>"
            ,

            tablet:
                "<div class='right' style='float: left; font-size: 1.1em;'>" +
                "<span>Name:&nbsp;</span><span>${Name}</span><br/>" +
                "<span>Phone:&nbsp;</span><span><a href='${PhoneUrl}'>${Phone}</a></span><br/>" +
                "<span>HireDate:&nbsp;</span><span>${HireDate}</span><br/>" +
                "</div>"
            }
        }
    ]
});

//Get
$(".selector").igGridResponsive("option", "singleColumnTemplate")

valuesColumnWidth

Type:: enumeration
Default:: 50%

The width of the values column when vertical rendering is enabled.

Members

string
Type:string
The width in a (%) string.
number
Type:number
The width as a number in percents.

Code Sample

//Initialize
$(".selector").igGrid({
    features : [
        {
            name : "Responsive",
            valuesColumnWidth: "60%"
        }
    ]
});
//Get
var valuesColumnWidth = $(".selector").igGridResponsive("option", "valuesColumnWidth");

windowWidthToRenderVertically

Type:: enumeration
Default:: null

The window's width under which the grid will render its contents vertically.

Members

string
Type:string
The width in a (px) string.
number
Type:number
The width as a number.
null
Type:object
The grid will determine when to render this mode automatically.

Code Sample

//Initialize
$(".selector").igGrid({
    features : [
        {
            name : "Responsive",
            windowWidthToRenderVertically: "60%"
        }
    ]
});
//Get
var windowWidthToRenderVertically = $(".selector").igGridResponsive("option", "windowWidthToRenderVertically");

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details

responsiveColumnHidden

Cancellable:: false

Event fired after a hiding operation is executed on the collection of columns.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("iggridresponsiveresponsivecolumnhidden", ".selector", function (evt, ui) {
    //return reference to igGridResponsive object
    ui.owner;
    //return reference igGrid object
    ui.owner.grid;
    //return column key
    ui.columnKey;
    //return column index
    ui.columnIndex;
});

//Initialize
$(".selector").igGrid({
    features: [{
        name: "Responsive",
        responsiveColumnHidden: function (evt, ui) {...}
    }]
});

responsiveColumnHiding

Cancellable:: true

Event fired before a hiding operation is executed on a collection of columns.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("iggridresponsiveresponsivecolumnhiding", ".selector", function (evt, ui) {
    //return reference to igGridResponsive object
    ui.owner;
    //return reference igGrid object
    ui.owner.grid;
    //return column key
    ui.columnKey;
    //return column index
    ui.columnIndex;
});

//Initialize
$(".selector").igGrid({
    features: [{
        name: "Responsive",
        responsiveColumnHiding: function (evt, ui) {...}
    }]
});

responsiveColumnShowing

Cancellable:: true

Event fired before a showing operation is executed on a collection of columns.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("iggridresponsiveresponsivecolumnshowing", ".selector", function (evt, ui) {
    //return reference to igGridResponsive object
    ui.owner;
    //return reference igGrid object
    ui.owner.grid;
    //return column key
    ui.columnKey;
    //return column index
    ui.columnIndex;
});

//Initialize
$(".selector").igGrid({
    features: [{
        name: "Responsive",
        responsiveColumnShowing: function (evt, ui) {...}
    }]
});

responsiveColumnShown

Cancellable:: false

Event fired after a showing operation is executed on the collection of columns.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("iggridresponsiveresponsivecolumnshown", ".selector", function (evt, ui) {
    //return reference to igGridResponsive object
    ui.owner;
    //return reference igGrid object
    ui.owner.grid;
    //return column key
    ui.columnKey;
    //return column index
    ui.columnIndex;
});

//Initialize
$(".selector").igGrid({
    features: [{
        name: "Responsive",
        responsiveColumnShown: function (evt, ui) {...}
    }]
});

responsiveModeChanged

Cancellable:: false

Event which is fired when the widget detects an environment change.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("iggridresponsiveresponsivemodechanged", ".selector", function (evt, ui) {
    //return reference to igGridResponsive object
    ui.owner;
    //return reference igGrid object
    ui.owner.grid;
    //return the previous responsive mode
    ui.previousMode;
    //return the current responsive mode
    ui.mode;
});

//Initialize
$(".selector").igGrid({
    features: [{
        name: "Responsive",
        responsiveModeChanged: function (evt, ui) {...}
    }]
});

Show Details

destroy

.igGridResponsive( "destroy" );
Destroys the responsive widget.
Code Sample

$(".selector").igGridResponsive("destroy");
getCurrentResponsiveMode

.igGridResponsive( "getCurrentResponsiveMode" );
Returns the currently active responsive mode.
Code Sample

var mode = $(".selector").igGridResponsive("getCurrentResponsiveMode");

Ignite UI for jQuery | API Reference

ui.igGridResponsive

Code Sample

Related Samples

Related Topics

Dependencies

Inherits
