ui.igTreeGridSorting

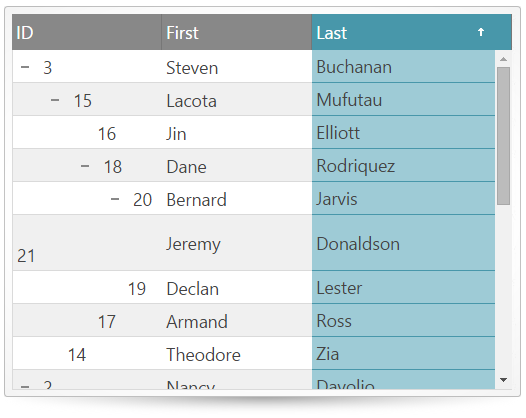

The igTreeGrid sorting feature allows users to order the rows in the grid according the sort order of a given column recursively according to the hierarchy. Both ascending and descending sort directions are available. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample

<!DOCTYPE html>
<html>
<head>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />

    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>

    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>

    <!-- Infragistics Combined Scripts -->
    <script src="js/infragistics.core.js" type="text/javascript"></script>
    <script src="js/infragistics.lob.js" type="text/javascript"></script>

    <script type="text/javascript">
        var employees = [
            { "employeeId": 0, "supervisorId": -1, "firstName": "Andrew", "lastName": "Fuller" },
            { "employeeId": 1, "supervisorId": -1, "firstName": "Jonathan", "lastName": "Smith" },
            { "employeeId": 2, "supervisorId": -1, "firstName": "Nancy", "lastName": "Davolio" },
            { "employeeId": 3, "supervisorId": -1, "firstName": "Steven", "lastName": "Buchanan" },

            // Andrew Fuller's direct reports
            { "employeeId": 4, "supervisorId": 0, "firstName": "Janet", "lastName": "Leverling" },
            { "employeeId": 5, "supervisorId": 0, "firstName": "Laura", "lastName": "Callahan" },
            { "employeeId": 6, "supervisorId": 0, "firstName": "Margaret", "lastName": "Peacock" },
            { "employeeId": 7, "supervisorId": 0, "firstName": "Michael", "lastName": "Suyama" },

            // Janet Leverling's direct reports
            { "employeeId": 8, "supervisorId": 4, "firstName": "Anne", "lastName": "Dodsworth" },
            { "employeeId": 9, "supervisorId": 4, "firstName": "Danielle", "lastName": "Davis" },
            { "employeeId": 10, "supervisorId": 4, "firstName": "Robert", "lastName": "King" },

            // Nancy Davolio's direct reports
            { "employeeId": 11, "supervisorId": 2, "firstName": "Peter", "lastName": "Lewis" },
            { "employeeId": 12, "supervisorId": 2, "firstName": "Ryder", "lastName": "Zenaida" },
            { "employeeId": 13, "supervisorId": 2, "firstName": "Wang", "lastName": "Mercedes" },

            // Steve Buchanan's direct reports
            { "employeeId": 14, "supervisorId": 3, "firstName": "Theodore", "lastName": "Zia" },
            { "employeeId": 15, "supervisorId": 3, "firstName": "Lacota", "lastName": "Mufutau" },

            // Lacota Mufutau's direct reports
            { "employeeId": 16, "supervisorId": 15, "firstName": "Jin", "lastName": "Elliott" },
            { "employeeId": 17, "supervisorId": 15, "firstName": "Armand", "lastName": "Ross" },
            { "employeeId": 18, "supervisorId": 15, "firstName": "Dane", "lastName": "Rodriquez" },

            // Dane Rodriquez's direct reports
            { "employeeId": 19, "supervisorId": 18, "firstName": "Declan", "lastName": "Lester" },
            { "employeeId": 20, "supervisorId": 18, "firstName": "Bernard", "lastName": "Jarvis" },

            // Bernard Jarvis' direct report
            { "employeeId": 21, "supervisorId": 20, "firstName": "Jeremy", "lastName": "Donaldson" }
        ];

       $(function () {
           $("#treegrid").igTreeGrid({
               dataSource: employees,
               primaryKey: "employeeId",
               foreignKey: "supervisorId",
               autoGenerateColumns: false,
               columns: [
                   { headerText: "ID", key: "employeeId", width: "150px", dataType: "number" },
                   { headerText: "First", key: "firstName", width: "150px", dataType: "string" },
                   { headerText: "Last", key: "lastName", width: "150px", dataType: "string" }
               ],
               features: [
                   {
                       name: "Sorting"
                   }
               ]
           });
       });
    </script>
</head>
<body>
    <table id="treegrid"></table>
</body>
</html>

Related Samples

applySortedColumnCss
Inherited

Type:: bool
Default:: true

Enables/disables special styling for sorted columns. If false, sorted column cells will not have any special sort-related styling.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            applySortedColumnCss : false
        }
    ]
});

// Get
var sortCss = $(".selector").igTreeGridSorting("option", "applySortedColumnCss");

// Set
$(".selector").igTreeGridSorting("option", "applySortedColumnCss", false);

caseSensitive
Inherited

Type:: bool
Default:: false

Enables or disables the case sensitivity of the sorting. Works only for local sorting.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            caseSensitive : true
        }
    ]
});

// Get
var caseSensitive = $(".selector").igTreeGridSorting("option", "caseSensitive");

// Set
$(".selector").igTreeGridSorting("option", "caseSensitive", true);

columnSettings
Inherited

Type:: array
Default:: []
Elements Type:: object

A list of custom column settings that specify custom sorting settings for a specific column (whether sorting is enabled / disabled, default sort direction, first sort direction, etc.).

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            columnSettings : [
                {
                    columnIndex: 0,
                    allowSorting: true,
                    firstSortDirection: "ascending",
                    currentSortDirection: "descending"
                }
            ]
        }
    ]
});

// Get
var colSettings = $(".selector").igTreeGridSorting("option", "columnSettings");

allowSorting

Type:: bool
Default:: true

Enables/disables sorting on the specified column. By default all columns are sortable.

Code Sample

    // Initialize
    $(".selector").igTreeGrid({
        features : [
            {
                name : "Sorting",
                columnSettings : [
                    {
                        columnIndex: 0,
allowSorting: true,
                        firstSortDirection: "ascending",
                        currentSortDirection: "descending"
                    }
                ]
            }
        ]
    });

columnIndex

Type:: number
Default:: null

Identifies the grid column by index. Either key or index must be set in every column setting.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            columnSettings : [
                {
                    columnIndex: 0,
                    allowSorting: true,
                    firstSortDirection: "ascending",
                    currentSortDirection: "descending"
                }
            ]
        }
    ]
});

// Get
var colSettings = $(".selector").igTreeGridSorting("option", "columnSettings");
var colIndex = colSettings[0].columnIndex;

columnKey

Type:: string
Default:: null

Identifies the grid column by key. Either key or index must be set in every column setting.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            columnSettings : [
                {
                    columnKey: "ProductID",
                    allowSorting: true,
                    firstSortDirection: "ascending",
                    currentSortDirection: "descending"
                }
            ]
        }
    ]
});

//Get
var colSettings = $(".selector").igTreeGridSorting("option", "columnSettings");
var colKey = colSettings[0].columnKey;

compareFunc

Type:: enumeration
Default:: null

Reference to a function (string or function) used for custom comparison. The function accepts the following arguments:
val1 - the first value to compare,
val2 - the second value to compare,
recordsData (optional) - an object having three properties: fieldName - the name of the sorted field; record1 - first record to compare; record2 - second record to compare.
The function returns the following numeric value:
0 - indicating that values are equal,
1 - indicating that val1 > val2,
-1 - indicating that val1 < val2.

Members

string
Type:string
The name of the function as a string located in the global window object.
function
Type:function
Function which will be used for custom comparison.

Code Sample

var myCompareFunc = function (fields, schema, reverse, convertf) {
    return function (val1, val2) {
        if (val1.Price > val2.Price) {
            return 1;
        }
        if (val1.Price < val2.Price) {
            return -1;
        }
        return 0;
    }
}
// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            columnSettings: [
                {
                    columnIndex: 0,
                    allowSorting: true,
                    firstSortDirection: "ascending",
                    compareFunc: "myCompareFunc"
                }
            ]
        }
    ]
});

currentSortDirection

Type:: enumeration
Default:: null

The current (or default) sort direction. If this setting is specified, the column will be rendered sorted according to this option.

Members

asc
Type:string
The initial sort of the column data will be in ascending order.
desc
Type:string
The initial sort of the column data will be in descending order.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            columnSettings : [
                {
                    columnIndex: 0,
                    allowSorting: true,
                    firstSortDirection: "ascending",
                    currentSortDirection: "descending"
                }
            ]
        }
    ]
});

firstSortDirection

Type:: enumeration
Default:: null

This will be the first sort direction when the column hasn't been sorted before.

Members

asc
Type:string
The first sort of the column data will be in ascending order.
desc
Type:string
The first sort of the column data will be in descending order.

Code Sample

// Initialize
    $(".selector").igTreeGrid({
        features : [
            {
                name : "Sorting",
                columnSettings : [
                    {
                        columnIndex: 0,
                        allowSorting: true,
                        firstSortDirection: "ascending",
                        currentSortDirection: "descending"
                    }
                ]
            }
        ]
    });

customSortFunction
Inherited

Type:: function
Default:: null

Custom sort function(or name of the function as a string) accepting three parameters - the data to be sorted, an array of data source field definitions, and the direction to sort with (optional). The function should return the sorted data array.

Code Sample

var myCustomFunc = function(data, fields, direction) {
    function myCompareFunc(obj1, obj2) {
        if (direction == "descending")
        {
            return obj2[fields[0].fieldName] - obj1[fields[0].fieldName];
        }
        return obj1[fields[0].fieldName] - obj2[fields[0].fieldName];
    }
    var result = data.sort(myCompareFunc);
    return result;
}

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            customSortFunction : myCustomFunc
        }
    ]
});

//Get
var sortFunc = $(".selector").igTreeGridSorting("option", "customSortFunction");

//Set
$(".selector").igTreeGridSorting("option", "customSortFunction", myCustomFunc);

dialogWidget
Inherited

Type:: string
Default:: "igGridModalDialog"

Name of the dialog widget to be used. It should inherit from $.ui.igGridModalDialog.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features: [
        {
            name : "Sorting",
            dialogWidget: "advancedModalDialog"
        }
    ]
});

// Get
var widgetName = $(".selector").igTreeGridSorting("option", "dialogWidget");

featureChooserSortAsc
Removed

Type:: string
Default:: ""

This option has been removed as of 2017.2 Volume release.
Specifies the text shown in the feature chooser item for sorting in ascending order (displayed only on touch environment).
Use option locale.featureChooserSortAsc.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            featureChooserSortAsc : "Sort A to Z"
        }
    ]
});

// Get
var featureChooserSortAsc = $(".selector").igTreeGridSorting("option", "featureChooserSortAsc");

featureChooserSortDesc
Removed

Type:: string
Default:: ""

This option has been removed as of 2017.2 Volume release.
Specifies the text shown in the feature chooser item for sorting in descending order (displayed only on touch environment).
Use option locale.featureChooserSortDesc.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            featureChooserSortDesc : "Sort Z to A"
        }
    ]
});

// Get
var featureChooserSortDesc = $(".selector").igTreeGridSorting("option", "featureChooserSortDesc");

featureChooserText
Removed

Type:: string
Default:: ""

This option has been removed as of 2017.2 Volume release.
Specifies the text of the feature chooser sorting button.
Use option locale.featureChooserText.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            featureChooserText : "Sorting"
        }
    ]
});

// Get
var text = $(".selector").igTreeGridSorting("option", "featureChooserText");

// Set
$(".selector").igTreeGridSorting("option", "featureChooserText", "Sorting");

firstSortDirection
Inherited

Type:: enumeration
Default:: ascending

Specifies which direction to use on the first click / keydown, if the column is sorted for the first time.

Members

ascending
Type:string
The first sort of the column data will be in ascending order.
descending
Type:string
The first sort of the column data will be in descending order.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            firstSortDirection : "descending"
        }
    ]
});
// Get
var direction = $(".selector").igTreeGridSorting("option", "firstSortDirection");
// Set
$(".selector").igTreeGridSorting("option", "firstSortDirection", "descending");

fromLevel

Type:: number
Default:: 0

Specifies from which data bound level to be applied sorting - 0 is the first level.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            fromLevel: 1
        }
    ]
});

//Get
var fromLevel = $(".selector").igTreeGridSorting("option", "fromLevel");

locale
Inherited

Type:: object
Default:: {}

ascending

Type:: string
Default:: ""

Ascending text used for header title.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [{
        name: "Sorting",
        locale: {
            ascending: "Ascending"
        }
    }]
});

//  Get
var text = $(".selector").igTreeGridSorting("option", "locale").ascending;

//  Set
$(".selector").igTreeGridSorting("option", "locale", { ascending: "Ascending" });

descending

Type:: string
Default:: ""

Descending text used for header title.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [{
        name: "Sorting",
        locale: {
            ascending: "Ascending"
        }
    }]
});

//  Get
var text = $(".selector").igTreeGridSorting("option", "locale").ascending;

//  Set
$(".selector").igTreeGridSorting("option", "locale", { ascending: "Ascending" });

featureChooserSortAsc

Type:: string
Default:: ""

Specifies the text shown in the feature chooser item for sorting in ascending order (displayed only on touch environment).

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [{
        name: "Sorting",
        locale: {
            featureChooserSortAsc: "Sort A to Z"
        }
    }]
});

//  Get
var text = $(".selector").igTreeGridSorting("option", "locale").featureChooserSortAsc;

//  Set
$(".selector").igTreeGridSorting("option", "locale", { featureChooserSortAsc: "Sort A to Z" });

featureChooserSortDesc

Type:: string
Default:: ""

Specifies the text shown in the feature chooser item for sorting in descending order (displayed only on touch environment).

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [{
        name: "Sorting",
        locale: {
            featureChooserSortDesc: "Sort Z to A"
        }
    }]
});

//  Get
var text = $(".selector").igTreeGridSorting("option", "locale").featureChooserSortDesc;

//  Set
$(".selector").igTreeGridSorting("option", "locale", { featureChooserSortDesc: "Sort Z to A" });

featureChooserText

Type:: string
Default:: ""

Specifies the text of the feature chooser sorting button.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [{
        name: "Sorting",
        locale: {
            featureChooserText: "Sorting"
        }
    }]
});

//  Get
var text = $(".selector").igTreeGridSorting("option", "locale").featureChooserText;

//  Set
$(".selector").igTreeGridSorting("option", "locale", { featureChooserText: "Sorting" });

modalDialogButtonApplyText

Type:: string
Default:: ""

Specifies text of button which applies changes in modal dialog.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [{
        name: "Sorting",
        locale: {
            modalDialogButtonApplyText: "Apply"
        }
    }]
});

//  Get
var text = $(".selector").igTreeGridSorting("option", "locale").modalDialogButtonApplyText;

//  Set
$(".selector").igTreeGridSorting("option", "locale", { modalDialogButtonApplyText: "Apply" });

modalDialogButtonCancelText

Type:: string
Default:: ""

Specifies text of button which cancels the changes in the advanced sorting modal dialog.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [{
        name: "Sorting",
        locale: {
            modalDialogButtonCancelText: "Cancel"
        }
    }]
});

//  Get
var text = $(".selector").igTreeGridSorting("option", "locale").modalDialogButtonCancelText;

//  Set
$(".selector").igTreeGridSorting("option", "locale", { modalDialogButtonCancelText: "Cancel" });

modalDialogCaptionButtonAsc

Type:: string
Default:: ""

Specifies caption for each ascending sorted column in multiple sorting dialog.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [{
        name: "Sorting",
        locale: {
            modalDialogCaptionButtonAsc: "Ascending"
        }
    }]
});

//  Get
var text = $(".selector").igTreeGridSorting("option", "locale").modalDialogCaptionButtonAsc;

//  Set
$(".selector").igTreeGridSorting("option", "locale", { modalDialogCaptionButtonAsc: "Ascending" });

modalDialogCaptionButtonDesc

Type:: string
Default:: ""

Specifies caption for each descending sorted column in multiple sorting dialog.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [{
        name: "Sorting",
        locale: {
            modalDialogCaptionButtonDesc: "Descending"
        }
    }]
});

//  Get
var text = $(".selector").igTreeGridSorting("option", "locale").modalDialogCaptionButtonDesc;

//  Set
$(".selector").igTreeGridSorting("option", "locale", { modalDialogCaptionButtonDesc: "Descending" });

modalDialogCaptionButtonUnsort

Type:: string
Default:: ""

Specifies caption for unsort button in multiple sorting dialog.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [{
        name: "Sorting",
        locale: {
            modalDialogCaptionButtonUnsort: "Unsort"
        }
    }]
});

//  Get
var text = $(".selector").igTreeGridSorting("option", "locale").modalDialogCaptionButtonUnsort;

//  Set
$(".selector").igTreeGridSorting("option", "locale", { modalDialogCaptionButtonUnsort: "Unsort" });

modalDialogCaptionText

Type:: string
Default:: ""

Specifies caption text for multiple sorting dialog.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [{
        name: "Sorting",
        locale: {
            modalDialogCaptionText: "Multiple Sorting"
        }
    }]
});

//  Get
var text = $(".selector").igTreeGridSorting("option", "locale").modalDialogCaptionText;

//  Set
$(".selector").igTreeGridSorting("option", "locale", { modalDialogCaptionText: "Multiple Sorting" });

modalDialogResetButton

Type:: string
Default:: ""

Specifies reset button text in the modal dialog.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [{
        name: "Sorting",
        locale: {
            modalDialogResetButton: "Reset"
        }
    }]
});

//  Get
var text = $(".selector").igTreeGridSorting("option", "locale").modalDialogResetButton;

//  Set
$(".selector").igTreeGridSorting("option", "locale", { modalDialogResetButton: "Reset" });

modalDialogSortByButtonText

Type:: string
Default:: ""

Specifies sortby button text for each unsorted column in multiple sorting dialog.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [{
        name: "Sorting",
        locale: {
            modalDialogSortByButtonText: "Sort By"
        }
    }]
});

//  Get
var text = $(".selector").igTreeGridSorting("option", "locale").modalDialogSortByButtonText;

//  Set
$(".selector").igTreeGridSorting("option", "locale", { modalDialogSortByButtonText: "Sort By" });

sortedColumnTooltip

Type:: string
Default:: ""

Custom sorted column tooltip in igTemplating format.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [{
        name: "Sorting",
        locale: {
            sortedColumnTooltip: "Sorted ${direction}"
        }
    }]
});

//  Get
var text = $(".selector").igTreeGridSorting("option", "locale").sortedColumnTooltip;

//  Set
$(".selector").igTreeGridSorting("option", "locale", { sortedColumnTooltip: "Sorted ${direction}" });

unsortedColumnTooltip

Type:: string
Default:: ""

Unsorted column tooltip.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features: [{
        name: "Sorting",
        locale: {
            unsortedColumnTooltip: "Sort column"
        }
    }]
});

//  Get
var text = $(".selector").igTreeGridSorting("option", "locale").unsortedColumnTooltip;

//  Set
$(".selector").igTreeGridSorting("option", "locale", { unsortedColumnTooltip: "Sort column" });

modalDialogAnimationDuration
Inherited

Type:: number
Default:: 200

Specifies time of milliseconds for animation duration to show/hide modal dialog.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            modalDialogAnimationDuration : 300
        }
    ]
});

// Get
var duration = $(".selector").igTreeGridSorting("option", "modalDialogAnimationDuration");

// Set
$(".selector").igTreeGridSorting("option", "modalDialogAnimationDuration", 300);

modalDialogButtonApplyText
Removed

Type:: string
Default:: ""

This option has been removed as of 2017.2 Volume release.
Specifies text of button which apply changes in modal dialog.
Use option locale.modalDialogButtonApplyText.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            modalDialogButtonApplyText : "Apply"
        }
    ]
});

// Get
var text = $(".selector").igTreeGridSorting("option", "modalDialogButtonApplyText");

// Set
$(".selector").igTreeGridSorting("option", "modalDialogButtonApplyText", "Apply");

modalDialogButtonCancelText
Removed

Type:: string
Default:: ""

This option has been removed as of 2017.2 Volume release.
Specifies text of button which cancels the changes in the advanced sorting modal dialog.
Use option locale.modalDialogButtonCancelText.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            modalDialogButtonCancelText : "Cancel"
        }
    ]
});

//Get
var text = $(".selector").igTreeGridSorting("option", "modalDialogButtonCancelText");

//Set
$(".selector").igTreeGridSorting("option", "modalDialogButtonCancelText", "Cancel");

modalDialogCaptionButtonAsc
Removed

Type:: string
Default:: ""

This option has been removed as of 2017.2 Volume release.
Specifies caption for each ascending sorted column in multiple sorting dialog.
Use option locale.modalDialogCaptionButtonAsc.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            modalDialogCaptionButtonAsc : "Ascending"
        }
    ]
});

// Get
var caption = $(".selector").igTreeGridSorting("option", "modalDialogCaptionButtonAsc");

// Set
$(".selector").igTreeGridSorting("option", "modalDialogCaptionButtonAsc", "Ascending");

modalDialogCaptionButtonDesc
Removed

Type:: string
Default:: ""

This option has been removed as of 2017.2 Volume release.
Specifies caption for each descending sorted column in multiple sorting dialog.
Use option locale.modalDialogCaptionButtonDesc.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            modalDialogCaptionButtonDesc : "Descending"
        }
    ]
});

// Get
var caption = $(".selector").igTreeGridSorting("option", "modalDialogCaptionButtonDesc");

// Set
$(".selector").igTreeGridSorting("option", "modalDialogCaptionButtonDesc", "Descending");

modalDialogCaptionButtonUnsort
Removed

Type:: string
Default:: ""

This option has been removed as of 2017.2 Volume release.
Specifies caption for unsort button in multiple sorting dialog.
Use option locale.modalDialogCaptionButtonUnsort.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            modalDialogCaptionButtonUnsort : "Unsort"
        }
    ]
});

// Get
var caption = $(".selector").igTreeGridSorting("option", "modalDialogCaptionButtonUnsort");

// Set
$(".selector").igTreeGridSorting("option", "modalDialogCaptionButtonUnsort", "Unsort");

modalDialogCaptionText
Removed

Type:: string
Default:: ""

This option has been removed as of 2017.2 Volume release.
Specifies caption text for multiple sorting dialog.
Use option locale.modalDialogCaptionText.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            modalDialogCaptionText : "Multiple Sorting"
        }
    ]
});

// Get
var caption = $(".selector").igTreeGridSorting("option", "modalDialogCaptionText");

// Set
$(".selector").igTreeGridSorting("option", "modalDialogCaptionText", "Multiple Sorting");

modalDialogHeight
Inherited

Type:: enumeration
Default:: ""

Specifies height of multiple sorting dialog.

Members

string
Type:string
The widget height can be set in pixels (px) and percentage (%).
number
Type:number
The widget height can be set in pixels as a number.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            modalDialogHeight : 300
        }
    ]
});
// Get
var height = $(".selector").igTreeGridSorting("option", "modalDialogHeight");
// Set
$(".selector").igTreeGridSorting("option", "modalDialogHeight", 300);

modalDialogResetButtonLabel
Removed

Type:: string
Default:: ""

This option has been removed as of 2017.2 Volume release.
Specifies reset button text in multiple sorting dialog.
Use option locale.modalDialogResetButton.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            modalDialogResetButtonLabel : "Reset"
        }
    ]
});

// Get
var label = $(".selector").igTreeGridSorting("option", "modalDialogResetButtonLabel");

// Set
$(".selector").igTreeGridSorting("option", "modalDialogResetButtonLabel", "Reset");

modalDialogSortByButtonText
Removed

Type:: string
Default:: ""

This option has been removed as of 2017.2 Volume release.
Specifies sortby button text for each unsorted column in multiple sorting dialog.
Use option locale.modalDialogSortByButtonText.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            modalDialogSortByButtonText : "Sort By"
        }
    ]
});

// Get
var text = $(".selector").igTreeGridSorting("option", "modalDialogSortByButtonText");

// Set
$(".selector").igTreeGridSorting("option", "modalDialogSortByButtonText", "Sort By");

modalDialogSortOnClick
Inherited

Type:: bool
Default:: false

Specifies whether sorting to be applied immediately when click sort/unsort columns when using the multiple sorting dialog. When it is false Apply button shows and sorting is applied when the button is clicked.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            modalDialogSortOnClick : true
        }
    ]
});

// Get
var text = $(".selector").igTreeGridSorting("option", "modalDialogSortOnClick");

// Set
$(".selector").igTreeGridSorting("option", "modalDialogSortOnClick", true);

modalDialogWidth
Inherited

Type:: enumeration
Default:: 350

Specifies width of multiple sorting dialog.

Members

string
Type:string
Specifies the width in pixels as a string ("300px").
number
Type:number
Specifies the width in pixels as a number (300).

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            modalDialogWidth : 400
        }
    ]
});
// Get
var width = $(".selector").igTreeGridSorting("option", "modalDialogWidth");
// Set
$(".selector").igTreeGridSorting("option", "modalDialogWidth", 300);

mode
Inherited

Type:: enumeration
Default:: single

Defines single column sorting or multiple column sorting.

Members

single
Type:string
Only a single column can be sorted. Previously sorted columns will not preserve their sorting upon sorting a new column.
multi
Type:string
If enabled, previous sorted state for columns won't be cleared.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            mode : "multi"
        }
    ]
});
// Get
var mode = $(".selector").igTreeGridSorting("option", "mode");
// Set
$(".selector").igTreeGridSorting("option", "mode", "multi");

persist
Inherited

Type:: bool
Default:: true

Enables/disables sorting persistence when the grid is rebound.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            persist : false
        }
    ]
});

// Get
var persist = $(".selector").igTreeGridSorting("option", "persist");

// Set
$(".selector").igTreeGridSorting("option", "persist", true);

sortingDialogContainment
Inherited

Type:: string
Default:: "owner"

Controls containment behavior of multiple sorting dialog.

owner The multi sorting dialog will be draggable only in the grid area
window The multi sorting dialog will be draggable in the whole window area.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            sortingDialogContainment : "window"
        }
    ]
});

// Get
var sortingDialogContainment = $(".selector").igTreeGridSorting("option", "sortingDialogContainment");

sortUrlKey
Inherited

Type:: string
Default:: null

URL param name which specifies how sorting expressions will be encoded in the URL. Uses OData conventions. ex: ?sort(col1)=asc.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            sortUrlKey: "myCustomSort"
        }
    ]
});

// Get
var sortKey = $(".selector").igTreeGridSorting("option", "sortUrlKey");

// Set
// Results in the following URL "?myCustomSort(col1)=asc"
$(".selector").igTreeGridSorting("option", "sortUrlKey", "myCustomSort");

sortUrlKeyAscValue
Inherited

Type:: string
Default:: null

URL param value for ascending type of sorting. Uses OData conventions. Example: ?sort(col1)=asc.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            sortUrlKey: "myCustomSort",
            sortUrlKeyAscValue: "myAsc"
        }
    ]
});

// Get
var sortKeyAsc = $(".selector").igTreeGridSorting("option", "sortUrlKeyAscValue");

// Set
// Results in the following URL "?sort(col1)=myAsc"
$(".selector").igTreeGridSorting("option", "sortUrlKeyAscValue", "myAsc");

sortUrlKeyDescValue
Inherited

Type:: string
Default:: null

URL param value for descending type of sorting. Uses OData conventions. Example: ?sort(col1)=desc.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            sortUrlKey: "myCustomSort",
            sortUrlKeyDescValue: "myDesc"
        }
    ]
});

// Get
var sortKeyDesc = $(".selector").igTreeGridSorting("option", "sortUrlKeyDescValue");

// Set
// Results in the following URL "?sort(col1)=myDesc"
$(".selector").igTreeGridSorting("option", "sortUrlKeyDescValue", "myDesc");

toLevel

Type:: number
Default:: -1

Specifies to which data bound level to be applied sorting - if -1 sorting should be applied to the last data bound level.

Code Sample

//Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            toLevel: -1
        }
    ]
});

//Get
var toLevel = $(".selector").igTreeGridSorting("option", "toLevel");

type
Inherited

Type:: enumeration
Default:: null

Defines local or remote sorting operations.

Members

remote
Type:string
Sorting is performed remotely as a server-side operation.
local
Type:string
Sorting is performed locally by the $.ig.DataSource component.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            type : "remote"
        }
    ]
});
// Get
var sortType = $(".selector").igTreeGridSorting("option", "type");
// Set
$(".selector").igTreeGridSorting("option", "type", "remote");

unsortedColumnTooltip
Removed

Type:: string
Default:: ""

This option has been removed as of 2017.2 Volume release.
Custom unsorted column tooltip in igTemplating format.
Use option locale.unsortedColumnTooltip.

Code Sample

// Initialize
$(".selector").igTreeGrid({
    features : [
        {
            name : "Sorting",
            unsortedColumnTooltip : "Unsorted"
        }
    ]
});

// Get
var tooltip = $(".selector").igTreeGridSorting("option", "unsortedColumnTooltip");

// Set
$(".selector").igTreeGridSorting("option", "unsortedColumnTooltip", "Unsorted");

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details

columnSorted
Inherited

Cancellable:: false

Event fired after the column has already been sorted and data - re-rendered.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridsortingcolumnsorted", ".selector", function (evt, ui) {
    //return reference to igTreeGridSorting object
    ui.owner;
    //return reference to igTreeGrid object
    ui.owner.grid;
    //return column key
    ui.columnKey;
    //return sort direction
    ui.direction;
    //return sorting expressions from the datasource
    ui.expressions;
});

//Initialize
$(".selector").igTreeGrid({
    features: [{
        name: "Sorting",
        type: "local",
        columnSorted: function (evt, ui) {...}
    }]
});

columnSorting
Inherited

Cancellable:: true

Event fired before sorting is invoked for a certain column.
Return false in order to cancel column sorting.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridsortingcolumnsorting", ".selector", function (evt, ui) {
    //return reference to igTreeGridSorting object
    ui.owner;
    //return reference to igTreeGrid object
    ui.owner.grid;
    //return column key
    ui.columnKey;
    //return sort direction
    ui.direction;
    //return sorting expressions from the datasource
    ui.newExpressions;
});

//Initialize
$(".selector").igTreeGrid({
    features: [{
        name: "Sorting",
        type: "local",
        columnSorting: function (evt, ui) {...}
    }]
});

modalDialogButtonApplyClick
Inherited

Cancellable:: true

Event fired when button Apply in modal dialog is clicked.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridsortingmodaldialogbuttonapplyclick", ".selector", function (evt, ui) {

    // Get reference to igTreeGridSorting object
    ui.owner;

    // Get the reference to the igTreeGrid widget.
    ui.owner.grid;

    // Get a reference to the modal dialog element. This is a jQuery object.
    ui.modalDialogElement;

    // Get array of columns which should be sorted - array of objects of sort order - Asc/Desc and column key
    ui.columnsToSort;
});

//Initialize
$(".selector").igTreeGrid({
    features: [{
        name: "Sorting",
        modalDialogButtonApplyClick: function (evt, ui) {...}
    }]
});

modalDialogButtonResetClick
Inherited

Cancellable:: true

Event fired when the button to reset sorting is clicked.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridsortingmodaldialogbuttonresetclick", ".selector", function (evt, ui) {

    // Get reference to igTreeGridSorting object
    ui.owner;

    // Get the reference to the igTreeGrid widget.
    ui.owner.grid;

    // Get a reference to the modal dialog element. This is a jQuery object.
    ui.modalDialogElement;
});

//Initialize
$(".selector").igTreeGrid({
    features:
    [{
        name: "Sorting",
        modalDialogButtonResetClick: function (evt, ui) {...}
    }]
});

modalDialogButtonUnsortClick
Inherited

Cancellable:: true

Event fired when button to unsort column is clicked in modal dialog.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridsortingmodaldialogbuttonunsortclick", ".selector", function (evt, ui) {

    // Get reference to igTreeGridSorting object
    ui.owner;

    // Get the reference to the igTreeGrid widget.
    ui.owner.grid;

    // Get a reference to the modal dialog element. This is a jQuery object.
    ui.modalDialogElement;

    // Get column key.
    ui.columnKey;
});

//Initialize
$(".selector").igTreeGrid({
    features:
    [{
        name: "Sorting",
        modalDialogButtonUnsortClick: function (evt, ui) {...}
    }]
});

modalDialogClosed
Inherited

Cancellable:: false

Event fired after the modal dialog has been closed.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridsortingmodaldialogclosed", ".selector", function (evt, ui) {

    // Get reference to igTreeGridSorting object
    ui.owner;

    // Get the reference to the igTreeGrid widget.
    ui.owner.grid;

    // Get a reference to the modal dialog element. This is a jQuery object.
    ui.modalDialogElement;
});

// Initialize
$(".selector").igTreeGrid({
    features:
    [{
        name: "Sorting",
        modalDialogClosed: function (evt, ui) {...}
    }]
});

modalDialogClosing
Inherited

Cancellable:: true

Event fired before the modal dialog is closed.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridsortingmodaldialogclosing", ".selector", function (evt, ui) {

    // Get reference to igTreeGridSorting object
    ui.owner;

    // Get the reference to the igTreeGrid widget.
    ui.owner.grid;

    // Get a reference to the modal dialog element. This is a jQuery object.
    ui.modalDialogElement;
});

// Initialize
$(".selector").igTreeGrid({
    features:
    [{
        name: "Sorting",
        modalDialogClosing: function (evt, ui) {...}
    }]
});

modalDialogContentsRendered
Inherited

Cancellable:: false

Event fired after the contents of the modal dialog are rendered.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridsortingmodaldialogcontentsrendered", ".selector", function (evt, ui) {

    // Get reference to igTreeGridSorting object
    ui.owner;

    // Get the reference to the igTreeGrid widget.
    ui.owner.grid;

    // Get a reference to the modal dialog element. This is a jQuery object.
    ui.modalDialogElement;
});

// Initialize
$(".selector").igTreeGrid({
    features:
    [{
        name: "Sorting",
        modalDialogContentsRendered: function (evt, ui) {...}
    }]
});

modalDialogContentsRendering
Inherited

Cancellable:: true

Event fired before the contents of the modal dialog are rendered.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridsortingmodaldialogcontentsrendering", ".selector", function (evt, ui) {

    // Get reference to igTreeGridSorting object
    ui.owner;

    // Get the reference to the igTreeGrid widget.
    ui.owner.grid;

    // Get a reference to the modal dialog element. This is a jQuery object.
    ui.modalDialogElement;
});

// Initialize
$(".selector").igTreeGrid({
    features:
    [{
        name: "Sorting",
        modalDialogContentsRendering: function (evt, ui) {...}
    }]
});

modalDialogMoving
Inherited

Cancellable:: true

Event fired every time the modal dialog changes its position.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridsortingmodaldialogmoving", ".selector", function (evt, ui) {

    // Get reference to igTreeGridSorting object
    ui.owner;

    // Get the reference to the igTreeGrid widget.
    ui.owner.grid;

    // Get a reference to the modal dialog element. This is a jQuery object.
    ui.modalDialogElement;

    // Get the original position of the modal dialog div as { top, left } object, relative to the page.
    ui.originalPosition;

    // Get the current position of the modal dialog div as { top, left } object, relative to the page.
    ui.position;
});

// Initialize
$(".selector").igTreeGrid({
    features:
    [{
        name: "Sorting",
        modalDialogMoving: function (evt, ui) {...}
    }]
});

modalDialogOpened
Inherited

Cancellable:: false

Event fired after the modal dialog is already opened.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridsortingmodaldialogopened", ".selector", function (evt, ui) {

    // Get reference to igTreeGridSorting object
    ui.owner;

    // Get the reference to the igTreeGrid widget.
    ui.owner.grid;

    // Get a reference to the modal dialog element. This is a jQuery object.
    ui.modalDialogElement;
});

// Initialize
$(".selector").igTreeGrid({
    features:
    [{
        name: "Sorting",
        modalDialogOpened: function (evt, ui) {...}
    }]
});

modalDialogOpening
Inherited

Cancellable:: true

Event fired before the modal dialog is opened.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridsortingmodaldialogopening", ".selector", function (evt, ui) {

    // Get reference to igTreeGridSorting object
    ui.owner;

    // Get the reference to the igTreeGrid widget.
    ui.owner.grid;

    // Get a reference to the modal dialog element. This is a jQuery object.
    ui.modalDialogElement;
});

// Initialize
$(".selector").igTreeGrid({
    features:
    [{
        name: "Sorting",
        modalDialogOpening: function (evt, ui) {...}
    }]
});

modalDialogSortClick
Inherited

Cancellable:: true

Event fired when column(which is not sorted) is clicked to be sorted in modal dialog.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridsortingmodaldialogsortclick", ".selector", function (evt, ui) {

    // Get reference to igTreeGridSorting object
    ui.owner;

    // Get the reference to the igTreeGrid widget.
    ui.owner.grid;

    // Get a reference to the modal dialog element. This is a jQuery object.
    ui.modalDialogElement;

    // Get the column key.
    ui.columnKey;
});

// Initialize
$(".selector").igTreeGrid({
    features:
    [{
        name: "Sorting",
        modalDialogSortClick: function (evt, ui) {...}
    }]
});

modalDialogSortingChanged
Inherited

Cancellable:: true

Event fired when sorting of column is changed in modal dialog. Column should be sorted.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igtreegridsortingmodaldialogsortingchanged", ".selector", function (evt, ui) {

    // Get reference to igTreeGridSorting object
    ui.owner;

    // Get the reference to the igTreeGrid widget.
    ui.owner.grid;

    // Get a reference to the modal dialog element. This is a jQuery object.
    ui.modalDialogElement;

    // Get the column key.
    ui.columnKey;

    // Get whether column should be ascending or not. If true it should be ascending
    ui.isAsc;
});

// Initialize
$(".selector").igTreeGrid({
    features:
    [{
        name: "Sorting",
        modalDialogSortingChanged: function (evt, ui) {...}
    }]
});

Show Details

changeLocale

.igTreeGridSorting( "changeLocale" );
Changes the all locales into the widget element to the language specified in options.language
Note that this method is for rare scenarios, see language or locale option setter.
Code Sample

$(".selector").igTreeGridSorting("changeLocale");
clearSorting
Inherited

.igTreeGridSorting( "clearSorting" );
Removes current sorting(for all sorted columns) and updates the UI.
Code Sample

$(".selector").igTreeGridSorting("clearSorting");
closeMultipleSortingDialog
Inherited

.igTreeGridSorting( "closeMultipleSortingDialog" );
Closes the multiple sorting dialog.
Code Sample

$(".selector").igTreeGridSorting("closeMultipleSortingDialog");
destroy

.igTreeGridSorting( "destroy" );
Code Sample

$(".selector").igTreeGridSorting("destroy");
isColumnSorted

.igTreeGridSorting( "isColumnSorted", columnKey:string );

Return Type:

bool
Returns whether a column with the specified columnKey is sorted(taken from the data source sorting expressions).
- columnKey
- Type:string
- Column key (string).
Code Sample

$(".selector").igTreeGridSorting("isColumnSorted", "employeeId");
openMultipleSortingDialog
Inherited

.igTreeGridSorting( "openMultipleSortingDialog" );
Opens the multiple sorting dialog.
Code Sample

$(".selector").igTreeGridSorting("openMultipleSortingDialog");
removeDialogClearButton
Inherited

.igTreeGridSorting( "removeDialogClearButton" );
Remove clear button for multiple sorting dialog.
Code Sample

$(".selector").igTreeGridSorting("removeDialogClearButton");
renderMultipleSortingDialogContent
Inherited

.igTreeGridSorting( "renderMultipleSortingDialogContent", isToCallEvents:object );
Renders content of multiple sorting dialog - sorted and unsorted columns.
- isToCallEvents
- Type:object
Code Sample

$(".selector").igTreeGridSorting("renderMultipleSortingDialogContent", true);
sortColumn
Inherited

.igTreeGridSorting( "sortColumn", index:object, direction:object );
Sorts the data in a grid column and updates the UI.
- index
- Type:object
- Column key (string) or index (number) - for multi-row grid only column key can be used. Specifies the column which we want to sort. If the mode is multiple, previous sorting states are not cleared.
- direction
- Type:object
- Specifies sorting direction (ascending or descending).
Code Sample

$(".selector").igTreeGridSorting("sortColumn", 1, "descending");
sortMultiple
Inherited

.igTreeGridSorting( "sortMultiple", [exprs:array] );
Sorts the data in grid columns and updates the UI. It accepts optional argument - array of sorting expressions. If passed then sorts the data and sets sorting expressions of the data source. If not passed uses current sorting expressions of the data source.
- exprs
- Type:array
- Optional
- array of sorting expressions. If not set then the method uses expressions defined in sorting settings of the data source.
Code Sample

$(".selector").igTreeGridSorting("sortMultiple");
unsortColumn
Inherited

.igTreeGridSorting( "unsortColumn", index:object );
Removes sorting for the grid column with the specified columnKey/columnIndex and updates the UI.
- index
- Type:object
- Column key (string) or index (number) - for multi-row grid only column key can be used. Specifies the column for which we want to remove sorting. If the mode is multiple, previous sorting states are not cleared.
Code Sample

$(".selector").igTreeGridSorting("unsortColumn", "ProductName");

ui-iggrid-colasc ui-state-highlight

Classes applied to a column's cells when it's sorted ascending.
ui-iggrid-colheaderasc

Classes applied to a column header when it's sorted ascending.
ui-iggrid-coldesc ui-state-highlight

Classes applied to a column's cells when it's sorted descending.
ui-iggrid-colheaderdesc

Classes applied to a column header when it's sorted descending.
ui-iggrid-sorting-dialog-ascdescbutton

Classes applied to ascending/descending button in multiple sorting dialog.
ui-button ui-corner-all ui-button-icon-only ig-sorting-indicator

Classes applied to ascending button for sorted column in multiple sorting dialog.
ui-button-icon-primary ui-icon ui-icon-arrowthick-1-n

Classes applied to ascending button icon for sorted column
in multiple sorting dialog.
ui-button ui-corner-all ui-button-icon-only ig-sorting-indicator

Classes applied to descending button icon for sorted column in multiple sorting dialog.
ui-button-icon-primary ui-icon ui-icon-arrowthick-1-s

Classes applied to descending button icon for sorted column in multiple sorting dialog.
ui-state-hover

Classes applied to hovered buttons - e.g. unsort button in multiple sorting dialog.
ui-iggrid-sorting-dialog-sortbybuttons ui-button ui-widget ui-state-default ui-corner-all ui-button-icon-only ui-igbutton ui-widget-content ui-igbutton-remove

Classes applied to remove sorting button for sorted column in multiple sorting dialog.
ui-button-icon-primary ui-icon ui-icon-circle-close

Classes applied to remove sorting button for sorted column in multiple sorting dialog.
ui-iggrid-dialog-text

Classes applied to container which holds unsorted column name in multiple sorting dialog.
ui-iggrid-sorting-dialog-sortedcolumns

Classes applied to container of sorted columns in multiple sorting dialog.
ui-widget-content

Classes applied to list item for each sorted column in multiple sorting dialog.
ui-iggrid-dialog-text

Classes applied to container which holds sorted column name in multiple sorting dialog.
ui-iggrid-sorting-dialog-unsortedcolumns

Classes applied to container of unsorted columns in multiple sorting dialog.
ui-widget-content

Classes applied to list item for each unsorted column in multiple sorting dialog.
ui-iggrid-sorting-dialog-unsortedcolumns-sortbybutton

Classes applied to sort button for each colum in multiple sorting dialog.
ui-iggrid-featurechooser-li-iconcontainer ui-icon ui-iggrid-icon-sort-a-z

Classes applied to the ascending sorting indicator in feature chooser.
ui-iggrid-featurechooser-li-iconcontainer ui-icon ui-iggrid-icon-sort-z-a

Classes applied to the descending sorting indicator in feature chooser.
ui-icon ui-iggrid-icon-multiple-sorting

Classes applied to the feature chooser icon to show multiple sorting dialog.
ui-iggrid-sorting-dialog-sortbybutton

Classes applied to sort by button in multiple sorting dialog.
ui-iggrid-sortableheader ui-state-default

Classes applied to a sortable column header.
ui-iggrid-sortableheaderactive ui-state-active

Classes appied to a sortable header when it's active (navigated with keyboard / clicked).
ui-iggrid-sortableheaderfocus ui-state-focus

Classes applied to the sortable column header when it has focus.
ui-iggrid-sortableheaderhover ui-state-hover

Classes applied to a sortable column header when it is hovered.
ui-iggrid-colindicator

Classes applied to the sorting indicator SPAN rendered inside the column header.
ui-iggrid-colindicator-asc ui-icon ui-icon-arrowthick-1-n

Classes applied to the sorting indicator span when it's in ascending state.
ui-iggrid-colindicator-desc ui-icon ui-icon-arrowthick-1-s

Classes applied to the sorting indicator span when it's in descending state.

Ignite UI for jQuery | API Reference

ui.igTreeGridSorting

Code Sample

Related Samples

Related Topics

Dependencies

Inherits
