Ignite UI™ API Documentation

ui.igDataChart

The igDataChart control is a HTML 5 jQuery chart. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

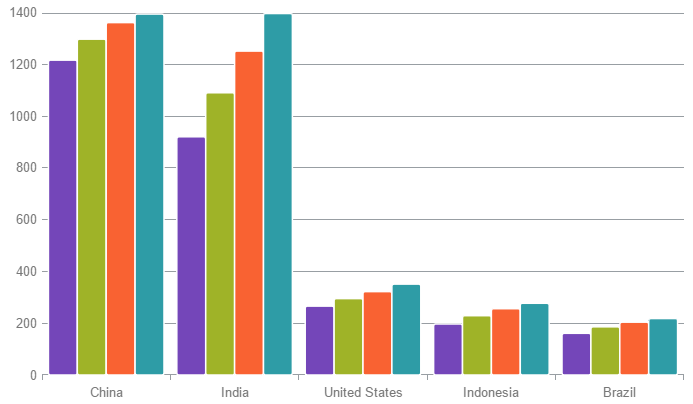

The following code snippet demonstrates how to initialize the igDataChart control.

For details on how to reference the required scripts and themes for the igDataChart control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample

<!doctype html>
<html>
<head>
    <title>Ignite UI igDataChart</title>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
    <!-- Infragistics Combined Scripts -->
    <script src="js/infragistics.core.js" type="text/javascript"></script>
      <script src="js/infragistics.dv.js" type="text/javascript"></script>

    <script type="text/javascript">
        $(function () {
            var data = [
                 { "CountryName": "China", "Pop1995": 1216, "Pop2005": 1297, "Pop2015": 1361, "Pop2025": 1394 },
                 { "CountryName": "India", "Pop1995": 920, "Pop2005": 1090, "Pop2015": 1251, "Pop2025": 1396 },
                 { "CountryName": "United States", "Pop1995": 266, "Pop2005": 295, "Pop2015": 322, "Pop2025": 351 },
                 { "CountryName": "Indonesia", "Pop1995": 197, "Pop2005": 229, "Pop2015": 256, "Pop2025": 277 },
                 { "CountryName": "Brazil", "Pop1995": 161, "Pop2005": 186, "Pop2015": 204, "Pop2025": 218 }
            ];

            $("#chart").igDataChart({
                width: "700px",
                height: "400px",

                axes: [{
                    name: "xAxis",
                    type: "categoryX",
                    dataSource: data,
                    label: "CountryName",
                }, {
                    name: "yAxis",
                    type: "numericY",
                }],
                series: [{
                    name: "pop1995",
                    dataSource: data,
                    valueMemberPath: "Pop1995",
                    type: "column",
                    xAxis: "xAxis",
                    yAxis: "yAxis"
                }, {
                    name: "pop2005",
                    dataSource: data,
                    valueMemberPath: "Pop2005",
                    type: "column",
                    xAxis: "xAxis",
                    yAxis: "yAxis",
                }, {
                    name: "pop2015",
                    dataSource: data,
                    valueMemberPath: "Pop2015",
                    type: "column",
                    xAxis: "xAxis",
                    yAxis: "yAxis",
                }, {
                    name: "pop2025",
                    dataSource: data,
                    valueMemberPath: "Pop2025",
                    type: "column",
                    xAxis: "xAxis",
                    yAxis: "yAxis",
                }]
            });
        });
    </script>
</head>
<body>
    <div id="chart"></div>
</body>
</html>

Related Samples

animateSeriesWhenAxisRangeChanges

Type:: bool
Default:: false

Set to true in order to override the default behavior in which series do not animate if an axis range changes.

Code Sample

//Initialize
$(".selector").igDataChart({
    animateSeriesWhenAxisRangeChanges: true
});

//Get
var animate= $(".selector").igDataChart("option", "animateSeriesWhenAxisRangeChanges");

//Set
$(".selector").igDataChart("option", "animateSeriesWhenAxisRangeChanges", true);

autoExpandMarginExtraPadding

Type:

number

Default:

NaN

Gets or sets the extra amount the series viewer should auto expand margins to accomodate the initial horizontal axis labels.
autoExpandMarginMaximumValue

Type:

number

Default:

NaN

Gets or sets the maximum amount the series viewer should auto expand margins to accomodate the initial horizontal axis labels.

autoMarginHeight

Type:: number
Default:: 0

Sets or gets the automatic height to add when automatically adding margins to the chart.

Code Sample

//Initialize
$(".selector").igDataChart({
    autoMarginHeight : 100
});

//Get
var height = $(".selector").igDataChart("option", "autoMarginHeight");

//Set
$(".selector").igDataChart("option", "autoMarginHeight", 100);

autoMarginWidth

Type:: number
Default:: 20

Sets or gets the automatic width to add when automatically adding margins to the chart.

Code Sample

//Initialize
$(".selector").igDataChart({
    autoMarginWidth : 200
});

//Get
var width = $(".selector").igDataChart("option", "autoMarginWidth");

//Set
$(".selector").igDataChart("option", "autoMarginWidth", 200);

axes

Type:: array
Default:: []
Elements Type:: object

An array of axis objects.

Code Sample

var data = [{ "Label": "2009", "Item1": "Value1", "Item2": 1000, "Item3": 1019.75},
            { "Label": "2010", "Item1": "Value2", "Item2": 1500, "Item3": 1180.25},
            { "Label": "2011", "Item1": "Value3", "Item2": 1200, "Item3": 1205.55},
            { "Label": "2012", "Item1": "Value4", "Item2": 1450, "Item3": 1144.65}];

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0];  // access 'xAxis' options
axes[1];  // access 'yAxis' options

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label",
            labelVisibility: "collapsed"
        },
        {
            name: "yAxis",
            type: "numericY",
            labelVisibility: "collapsed"
        }]
    );

coercionMethods

Type:: object
Default:: null

Gets or sets the coercion methods to use when loading data from data sources.
Should be specified before setting any member paths, if being used. Setting it later
will not cause data to be reimported into the chart.

Code Sample

var data = [
      { "Date": new Date(2011, 1, 1), "Value": 1000 },
      { "Date": new Date(2011, 1, 2), "Value": 995 },
      { "Date": new Date(2011, 1, 3), "Value": 925.5 },
      { "Date": new Date(2011, 1, 4), "Value": 940.25 },
      { "Date": new Date(2011, 1, 5), "Value": 1020.5 }
  ];

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryDateTimeX",
            dataSource: data,
            dateTimeMemberPath: "Date!parseDate",
            coercionMethods: {
                parseDate: function (val) {
                    var newVal = new Date(val);
                    newVal.setDate(newVal.getDate() + 4);
                    return newVal;
                }
            }
        }]
    });

crossingAxis

Type:: string
Default:: null

Gets or sets the CrossingAxis property.

Code Sample

var data = [{ "Label": "2009", "Item1": "Value1", "Item2": 1000, "Item3": 1019.75},
            { "Label": "2010", "Item1": "Value2", "Item2": 1500, "Item3": 1180.25},
            { "Label": "2011", "Item1": "Value3", "Item2": 1200, "Item3": 1205.55},
            { "Label": "2012", "Item1": "Value4", "Item2": 1450, "Item3": 1144.65}];
//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY",
            crossingAxis: "xAxis",
            crossingValue: 700
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[1].crossingAxis;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY",
            crossingAxis: "xAxis",
            crossingValue: 700
        }]
    );

crossingValue

Type:: object
Default:: null

Gets or sets the CrossingValue property.

Code Sample

var data = [{ "Label": "2009", "Item1": "Value1", "Item2": 1000, "Item3": 1019.75},
            { "Label": "2010", "Item1": "Value2", "Item2": 1500, "Item3": 1180.25},
            { "Label": "2011", "Item1": "Value3", "Item2": 1200, "Item3": 1205.55},
            { "Label": "2012", "Item1": "Value4", "Item2": 1450, "Item3": 1144.65}];
//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY",
            crossingAxis: "xAxis",
            crossingValue: 700
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[1].crossingValue;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY",
            crossingAxis: "xAxis",
            crossingValue: 700
        }]
    );

dataSource

Type:: object
Default:: null

Can be any valid data source accepted by $.ig.DataSource, or an instance of an $.ig.DataSource itself.

Code Sample

var data = [{ "Label": "2009", "Item1": "Value1", "Item2": 1000, "Item3": 1019.75},
            { "Label": "2010", "Item1": "Value2", "Item2": 1500, "Item3": 1180.25},
            { "Label": "2011", "Item1": "Value3", "Item2": 1200, "Item3": 1205.55},
            { "Label": "2012", "Item1": "Value4", "Item2": 1450, "Item3": 1144.65}];
//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].dataSource;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }]
    );

dataSourceType

Type:: string
Default:: null

Explicitly set data source type (such as "json"). Please refer to the documentation of $.ig.DataSource and its type property.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            dataSourceType: "json"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].dataSourceType;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            dataSourceType: "json"
        }]
    );

dataSourceUrl

Type:: string
Default:: null

Specifies a remote URL accepted by $.ig.DataSource in order to request data from it.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSourceUrl: "http://www.example.com/chart-data"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].dataSourceUrl;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "categoryX",
            dataSourceUrl: "http://www.example.com/chart-data"
        }]
    );

dateTimeMemberPath

Type:: string
Default:: null

Gets or sets the DateTime mapping property for the CategoryDateTimeXAxis.

Code Sample

var data = [
      { "Date": new Date(2011, 1, 1), "Value": 1000 },
      { "Date": new Date(2011, 1, 2), "Value": 995 },
      { "Date": new Date(2011, 1, 3), "Value": 925.5 },
      { "Date": new Date(2011, 1, 4), "Value": 940.25 },
      { "Date": new Date(2011, 1, 5), "Value": 1020.5 }
  ];

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryDateTimeX",
            dataSource: data,
            dateTimeMemberPath: "Date"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].dateTimeMemberPath;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "categoryDateTimeX",
            dataSource: data,
            dateTimeMemberPath: "Date"
        }]
    );

displayType

Type:: enumeration
Default:: null

Gets or sets the axis display type. Continuous display type divides the axis into even intervals, where labels will not necessarily be aligned with data points. Discrete display type will not use a constant interval, but will align each label with its data point.

Members

continuous
Type:string
Points occur at even intervals, even where data is not present at a given point.
discrete
Type:string
Points occur when data is present, possibly at uneven intervals.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            displayType: "continuous"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].displayType;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            displayType: "continuous"
        }]
    );

enhancedIntervalMinimumCharacters

Type:

number

Default:

5

Gets or sets the mininum desired characters to be displayed for horizontal axes when using advanced label heuristics. -1 will attempt to adjust the interval to precisely fit the horizontal labels.

formatLabel

Type:: object
Default:: null

Sets or gets a function which takes an object that produces a formatted label for displaying in the chart.

Code Sample

var data = [
      { "Date": new Date(2011, 1, 1), "Value": 1000 },
      { "Date": new Date(2011, 1, 2), "Value": 995 },
      { "Date": new Date(2011, 1, 3), "Value": 925.5 },
      { "Date": new Date(2011, 1, 4), "Value": 940.25 },
      { "Date": new Date(2011, 1, 5), "Value": 1020.5 }
  ];

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryDateTimeX",
            dataSource: data,
            label: "Date",
            formatLabel: function (item) {
                var ret = '';
                ret += item.getFullYear();
                ret += "/";
                ret += item.getMonth() + 1;
                ret += "/";
                ret += item.getDate();
                return ret;
            }
        }]
    });

gap

Type:: number
Default:: 0

Gets or sets the amount of space between adjacent categories for the current axis object.
The gap is silently clamped to the range [0, 1] when used.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            gap: 1
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].gap;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "numericX",
            gap: 1
        }]
    );

innerRadiusExtentScale

Type:: number
Default:: 0

Defines the percentage of the maximum radius extent to leave blank at the center of the chart. Should be
a value between 0.0 and 1.0.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            innerRadiusExtentScale: 0.15
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].innerRadiusExtentScale;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "numericX",
            innerRadiusExtentScale: 0.15
        }]
    );

interval

Type:: number
Default:: 0

Gets or sets the frequency of displayed labels.
The set value is a factor that determines which labels will be hidden. For example, an interval of 2 will display every other label.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            interval: 2
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].interval;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "numericX",
            interval: 2
        }]
    );

isDataPreSorted

Type:

bool

Default:

false

Gets or sets whether the data assigned to the date time axis should be considered pre-sorted by date/time.

isInverted

Type:: bool
Default:: false

Gets or sets the IsInverted property.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            isInverted: true
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].isInverted;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "numericX",
            isInverted: true
        }]
    );

isLogarithmic

Type:: bool
Default:: false

Gets or sets the IsLogarithmic property.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            isLogarithmic: true
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].isLogarithmic;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "numericX",
            isLogarithmic: true
        }]
    );

label

Type:: object
Default:: null

Gets or sets the label mapping property to use for axis labels.

Code Sample

var data = [{ "Label": "2009", "Item1": "Value1", "Item2": 1000, "Item3": 1019.75},
            { "Label": "2010", "Item1": "Value2", "Item2": 1500, "Item3": 1180.25},
            { "Label": "2011", "Item1": "Value3", "Item2": 1200, "Item3": 1205.55},
            { "Label": "2012", "Item1": "Value4", "Item2": 1450, "Item3": 1144.65}];
//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].label;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        }]
    );

labelAngle

Type:: number
Default:: 0

Specifies the angle that labels on the axis should be rotated.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            labelAngle: 30
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].labelAngle;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "numericX",
            labelAngle: 30
        }]
    );

labelBottomMargin

Type:: number
Default:: 0

The bottom margin to use for the labels.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            labelBottomMargin: 10
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].labelBottomMargin;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            labelBottomMargin: 10
        }]
    );

labelExtent

Type:: number
Default:: null

Specifies the extent of the area dedicated to the labels for this axis. If unspecified, this value is auto-calculated.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            labelExtent: 10
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].labelExtent;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "numericX",
            labelExtent: 10
        }]
    );

labelHorizontalAlignment

Type:: enumeration
Default:: right

the horizontal alignment to use for the labels. Only applicable to vertical axes.

Members

left
Type:string
left aligns the labels.
center
Type:string
center aligns the labels.
right
Type:string
right aligns the labels.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "yAxis",
            type: "numericY",
            labelHorizontalAlignment: "right"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].labelHorizontalAlignment;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            labelHorizontalAlignment: "right"
        }]
    );

labelLeftMargin

Type:: number
Default:: 0

The left margin to use for the labels.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            labelLeftMargin: 10
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].labelLeftMargin;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            labelLeftMargin: 10
        }]
    );

labelLocation

Type:: enumeration
Default:: null

Specifies the location to display the axis labels for this axis.

Members

outsideTop
Type:string
The labels should have an outside top position.
outsideBottom
Type:string
The labels should have an outside bottom position.
outsideLeft
Type:string
The labels should have an outside left position.
outsideRight
Type:string
The labels should have an outside right position.
insideTop
Type:string
The labels should have an inside top position.
insideBottom
Type:string
The labels should have an inside bottom position.
insideLeft
Type:string
The labels should have an inside left position.
insideRight
Type:string
The labels should have an inside right position.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            labelLocation: "outsideBottom"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].labelLocation;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "numericX",
            labelLocation: "outsideBottom"
        }]
    );

labelMargin

Type:: number
Default:: 0

The margin to use for the labels.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            labelMargin: 5
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].labelMargin;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            labelMargin: 5
        }]
    );

labelRightMargin

Type:: number
Default:: 0

The right margin to use for the labels.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            labelRightMargin: 10
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].labelRightMargin;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            labelRightMargin: 10
        }]
    );

labelTextColor

Type:: string
Default:: null

Overrides the color of the text used for the axis labels.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            labelTextColor: "blue"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].labelTextColor;

//    Set
$(".selector").igDataChart("option", "axes", blue
        [{
            name: "xAxis",
            type: "numericX",
            labelTextColor: "blue"
        }]
    );

labelTextStyle

Type:: string
Default:: null

Overrides the style of the text used for the axis labels.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            labelTextStyle: "8pt Helvetica, Arial, sans-serif"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].labelTextStyle;

//    Set
$(".selector").igDataChart("option", "axes", blue
        [{
            name: "xAxis",
            type: "numericX",
            labelTextStyle: "8pt Helvetica, Arial, sans-serif"
        }]
    );

labelTopMargin

Type:: number
Default:: 0

The top margin to use for the labels.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            labelTopMargin: 10
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].labelTopMargin;

//    Set
$(".selector").igDataChart("option", "axes", blue
        [{
            name: "xAxis",
            labelTopMargin: 10
        }]
    );

labelVerticalAlignment

Type:: enumeration
Default:: top

the vertical alignment to use for the labels. Only applicable to horizontal axes.

Members

top
Type:string
top aligns the labels.
center
Type:string
center aligns the labels.
bottom
Type:string
bottom aligns the labels.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            labelVerticalAlignment: "center"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].labelVerticalAlignment;

//    Set
$(".selector").igDataChart("option", "axes", blue
        [{
            name: "xAxis",
            labelVerticalAlignment: "center"
        }]
    );

labelVisibility

Type:: enumeration
Default:: visible

Specifies whether the labels are visible.

Members

visible
Type:string
The labels should be visisble for this axis.
collapsed
Type:string
The labels should not be visible for this axis.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            labelVisibility: "collapsed"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].labelVisibility;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "numericX",
            labelVisibility: "collapsed"
        }]
    );

logarithmBase

Type:: number
Default:: 10

Gets or sets the LogarithmBase property.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            logarithmBase: 2
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].logarithmBase;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "numericX",
            logarithmBase: 2
        }]
    );

majorStroke

Type:: string
Default:: null

Gets or sets the MajorStroke property.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            majorStroke: "blue"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].majorStroke;

//    Set
$(".selector").igDataChart("option", "axes", blue
        [{
            name: "xAxis",
            type: "numericX",
            majorStroke: "blue"
        }]
    );

majorStrokeThickness

Type:: number
Default:: 1

Gets or sets the MajorStrokeThickness property.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            majorStrokeThickness: 5
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].majorStrokeThickness;

//    Set
$(".selector").igDataChart("option", "axes", blue
        [{
            name: "xAxis",
            type: "numericX",
            majorStrokeThickness: 5
        }]
    );

maximumValue

Type:: enumeration
Default:: 0

Gets or sets the axis MaximumValue.

Members

number
Type:number
The maximum value can be set to be a number when the axis is of numeric type.
date
Type:date
The maximum value can be set to be a date object when type option is set to "categoryDateTimeX".

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            maximumValue: 1500
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].maximumValue;

//    Set
$(".selector").igDataChart("option", "axes", blue
        [{
            name: "xAxis",
            type: "numericX",
            maximumValue: 1500
        }]
    );

minimumValue

Type:: enumeration
Default:: 0

Gets or sets the axis MinimumValue.

Members

number
Type:number
The minimum value can be set to be a number when the axis is of numeric type.
date
Type:date
The minimum value can be set to be a date object when type option is set to "categoryDateTimeX".

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            minimumValue: 500
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].minimumValue;

//    Set
$(".selector").igDataChart("option", "axes", blue
        [{
            name: "xAxis",
            type: "numericX",
            minimumValue: 500
        }]
    );

minorStroke

Type:: string
Default:: null

Gets or sets the MinorStroke property.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            minorStroke: "grey"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].minorStroke;

//    Set
$(".selector").igDataChart("option", "axes", blue
        [{
            name: "xAxis",
            type: "numericX",
            minorStroke: "grey"
        }]
    );

minorStrokeThickness

Type:: number
Default:: 1

Gets or sets the MinorStrokeThickness property.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            minorStrokeThickness: 2
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].minorStrokeThickness;

//    Set
$(".selector").igDataChart("option", "axes", blue
        [{
            name: "xAxis",
            type: "numericX",
            minorStrokeThickness: 2
        }]
    );

name

Type:: string
Default:: null

The unique identifier of the axis.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].name;

//    Set
$(".selector").igDataChart("option", "axes", blue
        [{
            name: "xAxis",
            type: "numericX"
        }]
    );

overlap

Type:: number
Default:: 0

Gets or sets the amount of overlap between adjacent categories for the current axis object.
The overlap is silently clamped to the range [-1, 1] when used.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            overlap: 0.5
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].overlap;

//    Set
$(".selector").igDataChart("option", "axes", blue
        [{
            name: "xAxis",
            type: "numericX",
            overlap: 0.5
        }]
    );

radiusExtentScale

Type:: number
Default:: 0.75

Defines the percentage of the maximum radius extent to use as the maximum radius. Should be
a value between 0.0 and 1.0.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            radiusExtentScale: 0.5
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].radiusExtentScale;

//    Set
$(".selector").igDataChart("option", "axes", blue
        [{
            name: "xAxis",
            type: "numericX",
            radiusExtentScale: 0.5
        }]
    );

referenceValue

Type:: number
Default:: 0

Gets or sets the ReferenceValue property.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            referenceValue: 0.5
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].referenceValue;

//    Set
$(".selector").igDataChart("option", "axes", blue
        [{
            name: "xAxis",
            type: "numericX",
            referenceValue: 0.5
        }]
    );

remove

Type:

bool

Default:

false

Set to true in order to have an existing axis removed from the chart, by name.

Code Sample

//Set
$(".selector").igDataChart("option", "axes",
  [{
    name: "xAxis",
    remove: true
  }]
);

responseDataKey

Type:: string
Default:: null

See $.ig.DataSource. Specifies the name of the property in which data records are held if the response is wrapped.

Code Sample

var data = { "Records":
              [{ "Label": "2009", "Item1": "Value1", "Item2": 1000, "Item3": 1019.75},
              { "Label": "2010", "Item1": "Value2", "Item2": 1500, "Item3": 1180.25},
              { "Label": "2011", "Item1": "Value3", "Item2": 1200, "Item3": 1205.55},
              { "Label": "2012", "Item1": "Value4", "Item2": 1450, "Item3": 1144.65}]
          };

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            responseDataKey: "Records"
        },
        {
            name: "yAxis",
            type: "numericY"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].responseDataKey;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            responseDataKey: "Records"
        }]
    );

showFirstLabel

Type:: bool
Default:: true

Sets whether or not to show the first label on the axis.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            showFirstLabel: false
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].showFirstLabel;

//    Set
$(".selector").igDataChart("option", "axes", blue
        [{
            name: "xAxis",
            showFirstLabel: false
        }]
    );

startAngleOffset

Type:: number
Default:: 0

Indicates the angle in degress that the chart's 0th angle should be offset.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            startAngleOffset: 30
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].startAngleOffset;

//    Set
$(".selector").igDataChart("option", "axes", blue
        [{
            name: "xAxis",
            type: "numericX",
            startAngleOffset: 30
        }]
    );

strip

Type:: string
Default:: null

Gets or sets the Strip property.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            strip: "grey"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].strip;

//    Set
$(".selector").igDataChart("option", "axes", blue
        [{
            name: "xAxis",
            type: "numericX",
            strip: "grey"
        }]
    );

stroke

Type:: string
Default:: null

Gets or sets the Stroke property.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            stroke: "blue"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].stroke;

//    Set
$(".selector").igDataChart("option", "axes", blue
        [{
            name: "xAxis",
            type: "numericX",
            stroke: "blue"
        }]
    );

strokeThickness

Type:: number
Default:: 1

Gets or sets the StrokeThickness property.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            strokeThickness: 5
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].strokeThickness;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "numericX",
            strokeThickness: 5
        }]
    );

tickLength

Type:: number
Default:: 0

The length of the tickmarks to display for this axis.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            tickLength: 5
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].tickLength;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            tickLength: 5
        }]
    );

tickStroke

Type:: object
Default:: black

The color to use for the tickmarks.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            tickStroke: "blue"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].tickStroke;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            tickStroke: "blue"
        }]
    );

tickStrokeThickness

Type:: number
Default:: 0.5

The stroke thickness to use for the tickmarks.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            tickStrokeThickness: 2
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].tickStrokeThickness;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "numericX",
            tickStrokeThickness: 2
        }]
    );

title

Type:: string
Default:: null

The title to display for the component.

Code Sample

          //    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            title: "Years"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].title;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "numericX",
            title: "Years"
        }]
    );

titleAngle

Type:: number
Default:: 0

The angle to use for the axis title.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            title: "Years",
            titleAngle: 90
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].titleAngle;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "numericX",
            title: "Years",
            titleAngle: 90
        }]
    );

titleBottomMargin

Type:: number
Default:: 0

The bottom margin to use for the title.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            title: "Years",
            titleBottomMargin:20
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].titleBottomMargin;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "numericX",
            title: "Years",
            titleBottomMargin: 20
        }]
    );

titleHorizontalAlignment

Type:: enumeration
Default:: center

the horizontal alignment to use for the title.

Members

left
Type:string
left aligns the title.
center
Type:string
center aligns the title.
right
Type:string
right aligns the title.

Code Sample

          //    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            title: "Years",
            titleHorizontalAlignment: "left"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].titleHorizontalAlignment;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "numericX",
            title: "Years",
            titleHorizontalAlignment: "left"
        }]
    );

titleLeftMargin

Type:: number
Default:: 0

The left margin to use for the title.

Code Sample

          //    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            title: "Years",
            titleLeftMargin: 20
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].titleLeftMargin;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "numericX",
            title: "Years",
            titleLeftMargin: 20
        }]
    );

titleMargin

Type:: number
Default:: 0

The margin to display around the title of the axis.

Code Sample

           //    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            title: "Years",
            titleMargin: {top:20 , bottom:40, left:45, right:23}
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].titleMargin;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "numericX",
            title: "Years",
            titleMargin: {top:20 , bottom:40, left:45, right:23}
        }]
    );

titlePosition

Type:: enumeration
Default:: auto

the position to use for the title.

Members

auto
Type:string
the title is positioned automatically.
left
Type:string
the title is positioned on the left of the labels, if applicable.
right
Type:string
the title is positioned on the right of the labels, if applicable.
top
Type:string
the title is positioned on the top of the labels, if applicable.
bottom
Type:string
the title is positioned on the bottom of the labels, if applicable.

Code Sample

           //    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            title: "Years",
            titlePosition: "top"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].titlePosition;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "numericX",
            title: "Years",
            titlePosition: "top"
        }]
    );

titleRightMargin

Type:: number
Default:: 0

The right margin to use for the title.

Code Sample

            //    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            title: "Years",
            titleRightMargin: 20
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].titleRightMargin;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "numericX",
            title: "Years",
            titleRightMargin: 20
        }]
    );

titleTextStyle

Type:: string
Default:: null

The css font property to use for the title.

Code Sample

           //    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            title: "Years",
            titleTextStyle: "26pt Times New Roman|Georgia|Serif"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].titleTextStyle;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "numericX",
            title: "Years",
            titleTextStyle: "26pt Times New Roman|Georgia|Serif"
        }]
    );

titleTopMargin

Type:: number
Default:: 0

The top margin to use for the title.

Code Sample

           //    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            title: "Years",
            titleTopMargin: 20
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].titleTopMargin;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "numericX",
            title: "Years",
            titleTopMargin: 20
        }]
    );

titleVerticalAlignment

Type:: enumeration
Default:: center

the vertical alignment to use for the title.

Members

center
Type:string
center aligns the title.

Code Sample

           //    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX",
            title: "Years",
            titleVerticalAlignment: "center"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].titleVerticalAlignment;

//    Set
$(".selector").igDataChart("option", "axes",
        [{
            name: "xAxis",
            type: "numericX",
            title: "Years",
            titleVerticalAlignment: "center"
        }]
    );

type

Type:: enumeration
Default:: null

Type of the axis.

Members

numericX
Type:string
Specify the axis as numeric X axis. Useful for displaying scatter, category and financial price series.
numericY
Type:string
Specify the axis as numeric Y axis.Useful for displaying scatter, category and financial price series.
categoryX
Type:string
Specify the axis as category X axis. Useful for displaying scatter, category and financial price series.
categoryDateTimeX
Type:string
Specify the axis as category datetime X axis. Useful for displaying category and financial price series with date based data.
categoryY
Type:string
Specify the axis as category Y axis. Useful for displaying scatter, category and financial price series.
categoryAngle
Type:string
Specify the axis as category angle axis. Useful for displaying polar and radial categories.
numericAngle
Type:string
Specify the axis as numeric angle axis. Useful for displaying polar and radial series.
numericRadius
Type:string
Specify the axis as numeric radius axis. Useful for displaying polar and radial series.
time
Type:string
Specify the axis as time X axis. Useful for displaying date based data with time breaks.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }]
    });

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].type;

//    Set
$(".selector").igDataChart("option", "axes", blue
        [{
            name: "xAxis",
            type: "numericX"
        }]
    );

useClusteringMode

Type:: bool
Default:: false

Gets or sets whether the cateogory axis should use clustering display mode even if no series are present that would force clustering mode.

Code Sample

//    Initialization
$(".selector").igDataChart({
    axes: [{
        name: "xAxis",
        type: "categoryX",
        useClusteringMode: true
    }]
});

//    Get
var axes = $(".selector").igDataChart("option", "axes");
axes[0].useClusteringMode;

//    Set
$(".selector").igDataChart("option", "axes",
    [{
        name: "xAxis",
        type: "categoryX",
        useClusteringMode: true
    }]
);

useEnhancedIntervalManagement

Type:

bool

Default:

false

Gets or sets whether to use more advanced heuristics when determining the initial number of labels to render, before resolving collisions, etc.

bottomMargin

Type:: number
Default:: NaN

Sets or gets the bottom margin to use around the chart content in the canvas.

Code Sample

//Initialize
$(".selector").igDataChart({
    bottomMargin : 20
});

//Get
var margin = $(".selector").igDataChart("option", "bottomMargin");

//Set
$(".selector").igDataChart("option", "bottomMargin", 20);

brushes

Type:: object
Default:: null

Gets or sets the Brushes property.
The brushes property defines the palette from which automatically assigned series brushes are selected.
The value provided should be an array of css color strings. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

Code Sample

//  Initialization
$(".selector").igDataChart({
        brushes: [ "#ff0000", "#ffff00", "#00ffff" ]
    });

//  Get
var brushes = $(".selector").igDataChart("option", "brushes");

//  Set
$(".selector").igDataChart("option", "brushes", [ "#ff0000", "#ffff00", "#00ffff" ]);

circleMarkerTemplate

Type:: object
Default:: null

Gets or sets the template to use for circle markers on the chart.
Defines the marker template used for
series with a marker type of circle.
The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

Code Sample

//Initialize
$(".selector").igDataChart({
    circleMarkerTemplate: {
        measure: function(measureInfo) {
            measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
            measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
            measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
            measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
            measureInfo.data;       // if present, represents the contextual data for this template]
        },
        render: function (renderInfo) {
            renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
            renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
            renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
            renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
            renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
            renderInfo.data;               //    if present, specifies the data that is in context for this content
            renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
        }
    }
});

computedPlotAreaMarginMode

Type:

enumeration

Default:

auto
Describes how the chart should auto compute the plot area margin.
Members
- auto
- Type:string
- Computed plot area margin mode is determined by the component.
- series
- Type:string
- The series in the chart are queried for their requested margins to incorporate into the plot area margin.
- none
- Type:string
- There is no automatic determination of the plot area margin.

contentHitTestMode

Type:: enumeration
Default:: auto

Gets or sets which type of hit testing the series should use.

Members

auto
Type:string
automatically decide the appropriate hit test mode for the series.
computational
Type:string
use a computational based approach to determine which series has been hit. This uses loose bounding boxes, in some cases, and can range in time complexity between O(1) and O(log n) to find a hit. This decreases frame render time compared to color encoded.
colorEncoded
Type:string
use a color encoded off screen buffer for hit testing. This can have extremely rare false positives where the wrong series is hit (this is due to our inability to disable anti-aliasing in our color buffer), but should always be O(1) time for determining a hit series. This increases frame render time, however. Consider using this if hit testing time is degrading performance.
mixed
Type:string
let each series decide which hit testing mode to use individually based on their own hit test mode.
mixedFavoringComputational
Type:string
let each series decide which hit testing mode to use individually based on their own hit test mode, but evaluate all computational hits before evaluating any color encoding hits.

Code Sample

//  Initialization
$(".selector").igDataChart({
    contentHitTestMode: "auto"
});

//  Get
var mode= $(".selector").igDataChart("option", "contentHitTestMode");

//  Set
$(".selector").igDataChart("option", "contentHitTestMode", "auto");


crosshairPoint

Type:: object
Default:: {}

Gets or sets the cross hair point (in world coordinates)
Either or both of the crosshair point's X and Y may be set to double.NaN, in which
case the relevant crosshair line is hidden.

Code Sample

//  Initialization
$(".selector").igDataChart({
    crosshairPoint: { x: 0.5, y: 0.5 }
});

//  Get
var crosshairPoint = $(".selector").igDataChart("option", "crosshairPoint");

//  Set
$(".selector").igDataChart("option", "crosshairPoint", { x: 0.5, y: 0.5 });


x

Type:: number
Default:: NaN

The x coordinate.

Code Sample

//  Initialization
$(".selector").igDataChart({
    crosshairPoint: { x: 0.5, y: 0.5 }
});

//  Get
var crosshairPoint = $(".selector").igDataChart("option", "crosshairPoint");
var x =  crosshairPoint.x;

//  Set
$(".selector").igDataChart("option", "crosshairPoint", { x: 0.5, y: 0.5 });

y

Type:: number
Default:: NaN

The y coordinate.

Code Sample

//  Initialization
$(".selector").igDataChart({
    crosshairPoint: { x: 0.5, y: 0.5 }
});

//  Get
var crosshairPoint = $(".selector").igDataChart("option", "crosshairPoint");
var y =  crosshairPoint.y;

//  Set
$(".selector").igDataChart("option", "crosshairPoint", { x: 0.5, y: 0.5 });

crosshairVisibility

Type:: enumeration
Default:: collapsed

Gets or sets the current Chart's crosshair visibility override. Note: setting this property does not affect the mobile browser version of the chart.

Members

visible
Type:string
Crosshair should be visible.
collapsed
Type:string
Crosshair should not be visible.

Code Sample

//  Initialization
$(".selector").igDataChart({
        crosshairVisibility: "collapsed"
    });

//  Get
var opValue = $(".selector").igDataChart("option", "crosshairVisibility");

//  Set
$(".selector").igDataChart("option", "crosshairVisibility", "collapsed");

dataSource

Type:: object
Default:: null

Can be any valid data source accepted by $.ig.DataSource, or an instance of an $.ig.DataSource itself.

Code Sample

//  Initialization
var data1 = [{"ID": 1, "Cost": 12.5}, {"ID": 2, "Cost": 18.56}, {"ID": 3, "Cost": 22.18}];
$(".selector").igDataChart({
        dataSource: data1
    });

//  Get
var dataSource = $(".selector").igDataChart("option", "dataSource");

//  Set
var data1 = [{"ID": 1, "Cost": 12.5}, {"ID": 2, "Cost": 18.56}, {"ID": 3, "Cost": 22.18}];
$(".selector").igDataChart("option", "dataSource", data1);

dataSourceType

Type:: string
Default:: null

Explicitly set data source type (such as "json"). Please refer to the documentation of $.ig.DataSource and its type property.

Code Sample

//  Initialization
$(".selector").igDataChart({
        dataSourceType: "array"
    });

//  Get
var opValue = $(".selector").igDataChart("option", "dataSourceType");

//  Set
$(".selector").igDataChart("option", "dataSourceType", "array");

dataSourceUrl

Type:: string
Default:: null

Specifies a remote URL accepted by $.ig.DataSource in order to request data from it.

Code Sample

//  Initialization
$(".selector").igDataChart({
        dataSourceUrl: "http://www.example.com"
    });

//  Get
var opValue = $(".selector").igDataChart("option", "dataSourceUrl");

//  Set
$(".selector").igDataChart("option", "dataSourceUrl", "http://www.example.com");

defaultInteraction

Type:: enumeration
Default:: dragZoom

Gets or sets the DefaultInteraction property. The default interaction state defines the chart's response to mouse events.

Members

none
Type:string
User gesture will not change the state of the chart.
dragZoom
Type:string
User gesture will start a drag rectangle to zoom the chart.
dragPan
Type:string
User gesture will start a pan action to move the chart's window.

Code Sample

//  Initialization
$(".selector").igDataChart({
        defaultInteraction: "dragZoom"
    });

//  Get
var opValue = $(".selector").igDataChart("option", "defaultInteraction");

//  Set
$(".selector").igDataChart("option", "defaultInteraction", "dragZoom");

diamondMarkerTemplate

Type:: object
Default:: null

Gets or sets the template to use for diamond markers on the chart.
Defines the marker template used for
series with a marker type of diamond.
The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

Code Sample

//Initialize
$(".selector").igDataChart({
    diamondMarkerTemplate: {
        measure: function(measureInfo) {
            measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
            measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
            measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
            measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
            measureInfo.data;       // if present, represents the contextual data for this template]
        },
        render: function (renderInfo) {
            renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
            renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
            renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
            renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
            renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
            renderInfo.data;               //    if present, specifies the data that is in context for this content
            renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
        }
    }
});

dragModifier

Type:: enumeration
Default:: none

Gets or sets the current Chart's DragModifier property.

Members

none
Type:string
No modifier key is set.
alt
Type:string
The modifier is set to alt key.
control
Type:string
The modifier is set to control key.
shift
Type:string
The modifier is set to shift key.

Code Sample

//  Initialization
$(".selector").igDataChart({
        dragModifier: "control"
    });

//  Get
var opValue = $(".selector").igDataChart("option", "dragModifier");

//  Set
$(".selector").igDataChart("option", "dragModifier", "control");

gridMode

Type:: enumeration
Default:: behindSeries

Gets or sets the GridMode property.

Members

none
Type:string
No chart grid.
beforeSeries
Type:string
Chart grid should be rendered before or in front of the data series.
behindSeries
Type:string
Chart grid should be rendered behind or in back of the data series.

Code Sample

//  Initialization
$(".selector").igDataChart({
        gridMode: "beforeSeries"
    });

//  Get
var opValue = $(".selector").igDataChart("option", "gridMode");

//  Set
$(".selector").igDataChart("option", "gridMode", "beforeSeries");

height

Type:: enumeration
Default:: null

The height of the chart. It can be set as a number in pixels, string (px) or percentage (%).

Code Sample

//  Initialization
$(".selector").igDataChart({
    height: 250
});

//  Get
var opValue = $(".selector").igDataChart("option", "height");

//  Set
$(".selector").igDataChart("option", "height", 250);

hexagonMarkerTemplate

Type:: object
Default:: null

Gets or sets the template to use for hexagon markers on the chart.
Defines the marker template used for
series with a marker type of hexagon.
The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

Code Sample

//Initialize
$(".selector").igDataChart({
    hexagonMarkerTemplate: {
        measure: function(measureInfo) {
            measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
            measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
            measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
            measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
            measureInfo.data;       // if present, represents the contextual data for this template]
        },
        render: function (renderInfo) {
            renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
            renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
            renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
            renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
            renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
            renderInfo.data;               //    if present, specifies the data that is in context for this content
            renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
        }
    }
});

hexagramMarkerTemplate

Type:: object
Default:: null

Gets or sets the template to use for hexagram markers on the chart.
Defines the marker template used for
series with a marker type of hexagram.
The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

Code Sample

//Initialize
$(".selector").igDataChart({
    hexagramMarkerTemplate: {
        measure: function(measureInfo) {
            measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
            measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
            measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
            measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
            measureInfo.data;       // if present, represents the contextual data for this template]
        },
        render: function (renderInfo) {
            renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
            renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
            renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
            renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
            renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
            renderInfo.data;               //    if present, specifies the data that is in context for this content
            renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
        }
    }
});

highlightingBehavior

Type:

enumeration

Default:

auto
Gets or sets the highlighting Behavior to use for the series in the component, when supported. This takes precedence over the series level IsHightlightingEnabled.
Members
- auto
- Type:string
- Highlighting behavior is determined by the component.
- directlyOver
- Type:string
- Series are highlighted when the cursor is directly above them.
- nearestItems
- Type:string
- The nearest items to the cursor will be highlighted.
- nearestItemsRetainMainShapes
- Type:string
- The nearest items to the cursor will be highlighted, the main shapes of the series will not be de-emphasized.
- nearestItemsAndSeries
- Type:string
- The nearest items to the cursor will be highlighted, the main shapes of the series closest to the cursor will not be de-emphasized.
highlightingMode

Type:

enumeration

Default:

auto
Gets or sets the highlighting mode to use for the series in the component, when supported. This takes precedence over the series level IsHightlightingEnabled.
Members
- auto
- Type:string
- Highlighting mode is determined by the component.
- none
- Type:string
- No highlighting is defined at the chart level. Individual series may have local highlight settings.
- brightenSpecific
- Type:string
- Series will brighten when hovered, and, if applicable brighten indiviudal shapes or markers.
- brighten
- Type:string
- Series will brighten when hovered.
- fadeOthersSpecific
- Type:string
- Series will fade if they aren't the hovered series, and, if applicable other shapes in the hovered series will fade.
- fadeOthers
- Type:string
- Series will fade if they aren't the hovered series.

highlightingTransitionDuration

Type:: number
Default:: 300

The length, in milliseconds of the highlighting transition.

Code Sample

       //Initialization
<script type="text/javascript">
    $(function () {
        $("#chart").igDataChart({
                width: "100%",
                height: "400px",
                legend: { element: "lineLegend" },
                title: "Population per Country",
                subtitle: "A comparision of population in 1995 and 2005",
                dataSource: data,
                axes: [
                    {
                        name: "NameAxis",
                        type: "categoryX",
                        label: "CountryName"
                    },
                    {
                        name: "PopulationAxis",
                        type: "numericY"
                    }
                ],
                series: [
                    {
                        name: "2005Population",
                        type: "line",
                        title: "2005",
                        xAxis: "NameAxis",
                        yAxis: "PopulationAxis",
                        valueMemberPath: "Pop2005",
                        isHighlightingEnabled: true,
                        highlightingTransitionDuration: 500
                    }
                ]
            });
    });
</script>

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].highlightingTransitionDuration;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "2005Population",
            type: "line",
            title: "2005",
            xAxis: "NameAxis",
            yAxis: "PopulationAxis",
            valueMemberPath: "Pop2005",
            highlightingTransitionDuration: 500
        }]
    );

horizontalZoomable
Deprecated

Type:: bool
Default:: false

Gets or sets the current Chart's horizontal zoomability. This option is deprecated - please use `isHorizontalZoomEnabled` instead.

Code Sample

//  Initialization
$(".selector").igDataChart({
        horizontalZoomable: true
    });

//  Get
var opValue = $(".selector").igDataChart("option", "horizontalZoomable");

//  Set
$(".selector").igDataChart("option", "horizontalZoomable", true);

isHorizontalZoomEnabled

Type:

bool

Default:

false

Gets or sets the current Chart's horizontal zoomability.

isPagePanningAllowed

Type:: bool
Default:: true

Gets or sets whether the series viewer can allow the page to pan if a control pan is not possible in the requested direction.

Code Sample

//  Initialization
$(".selector").igDataChart({
        isPagePanningAllowed: true
    });

//  Get
var opValue = $(".selector").igDataChart("option", "isPagePanningAllowed");

//  Set
$(".selector").igDataChart("option", "isPagePanningAllowed", true);

isSquare

Type:: bool
Default:: false

Gets or sets whether to use a square aspect ratio for the chart. This is locked to true for polar and radial charts.

Code Sample

//  Initialization
$(".selector").igDataChart({
        isSquare: true
    });

//  Get
var opValue = $(".selector").igDataChart("option", "isSquare");

//  Set
$(".selector").igDataChart("option", "isSquare", true);

isSurfaceInteractionDisabled

Type:: bool
Default:: false

Set to true in order to disable any interactions with the plot surface.

Code Sample

//  Initialization
$(".selector").igDataChart({
    isSurfaceInteractionDisabled: true
});

//  Get
var opValue = $(".selector").igDataChart("option", "isSurfaceInteractionDisabled");

//  Set
$(".selector").igDataChart("option", "isSurfaceInteractionDisabled", true);

isVerticalZoomEnabled

Type:

bool

Default:

false

Gets or sets the current Chart's vertical zoomability.

language
Inherited

Type:: string
Default:: "en"

Set/Get the locale language setting for the widget.

Code Sample

    //Initialize
$(".selector").igDataChart({
    language: "ja"
});

// Get
var language = $(".selector").igDataChart("option", "language");

// Set
$(".selector").igDataChart("option", "language", "ja");

leftMargin

Type:

number

Default:

NaN

Sets or gets the left margin to use around the chart content in the canvas.

Code Sample

//Initialize
$(".selector").igDataChart({
leftMargin : 20
});

//Get
var margin = $(".selector").igDataChart("option", "leftMargin");

//Set
$(".selector").igDataChart("option", "leftMargin", 20);

legend

Type:: object
Default:: {}

Can be any valid options accepted by $.ig.ChartLegend, or an instance of an $.ig.ChartLegend itself.

Code Sample

// Initialize
$(".selector").igDataChart({
    legend: {
        element: 'legend',
        type: 'legend'
    }
});

// Get
var legend = $(".selector").igDataChart("option", "legend");

// Set
$(".selector").igDataChart("option", "legend", {
    element: 'legend',
    type: 'legend'
});

element

Type:: string
Default:: null

The name of the element to turn into a legend.

Code Sample

// Initialize
$(".selector").igDataChart({
      legend: {
        element: "legend",
        type: "legend"
    }
});

// Get
var legend = $(".selector").igDataChart("option", "legend");
legend.element;

height

Type:: enumeration
Default:: null

The height of the legend. null will stretch vertically to fit data, no other height are defined.

Members

null
Type:object

string
The widget height can be set in pixels (px) and percentage (%).
number
The widget height can be set as a number.

Code Sample

// Initialize
$(".selector").igDataChart({
      legend: {
        element: "legend",
        type: "legend",
        height: "100px"
    }
});

// Get
var legend = $(".selector").igDataChart("option", "legend");
legend.height;

type

Type:: enumeration
Default:: legend

Type of the legend.

Members

item
Type:string
Specify the legend as item legend. It displays a legend item for each pie in the igPieChart control.
legend
Type:string
Specify the legend as legend. It is supported by all types of series in the igDataChart control.

Code Sample

// Initialize
$(".selector").igDataChart({
      legend: {
        element: "legend",
        type: "legend"
    }
});

// Get
var legend = $(".selector").igDataChart("option", "legend");
legend.type;

width

Type:: enumeration
Default:: null

The width of the legend.

Members

null
Type:object
will stretch to fit data, if no other widths are defined.

string
The widget width can be set in pixels (px) and percentage (%).
number
The widget width can be set as a number.

Code Sample

// Initialize
$(".selector").igDataChart({
      legend: {
        element: "legend",
        type: "legend",
        width: "100px"
    }
});

//Get
var legend = $(".selector").igDataChart("option", "legend");
legend.width;

legendHighlightingMode

Type:

enumeration

Default:

auto
Describes the highlighting mode to use for the series in the chart when the legend is hovered.
Members
- auto
- Type:string
- Highlighting mode is determined by the component.
- none
- Type:string
- Legend will not attempt to highlight series when rolling over legend items.
- matchSeries
- Type:string
- On rollover of legend, series will highlight matching the highlight configuration of the series.
legendItemBadgeMode

Type:

string

Default:

"simplified"

Gets or sets the brush used as the background for the current Chart object's plot area.
legendItemBadgeShape

Type:

string

Default:

"automatic"

Gets or sets the mode of legend badge representing the current series object.
locale
Inherited

Type:

object

Default:

null

Set/Get the locale setting for the widget.

Code Sample

//Initialize
$(".selector").igDataChart({
locale: {}
});

// Get
var locale = $(".selector").igDataChart("option", "locale");

// Set
$(".selector").igDataChart("option", "locale", {});

markerBrushes

Type:: object
Default:: null

Gets or sets the MarkerBrushes property.
The marker brushes property defines the palette from which automatically assigned marker brushes are selected.
The value provided should be an array of css color strings. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

Code Sample

//  Initialization
$(".selector").igDataChart({
        markerBrushes: [ "#ff0000", "#ffff00", "#00ffff" ]
    });

//  Get
var opValue = $(".selector").igDataChart("option", "markerBrushes");

//  Set
$(".selector").igDataChart("option", "markerBrushes", [ "#ff0000", "#ffff00", "#00ffff" ]);

markerOutlines

Type:: object
Default:: null

Gets or sets the MarkerOutlines property.
The marker outlines property defines the palette from which automatically assigned marker outlines are selected.
The value provided should be an array of css color strings. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

Code Sample

//  Initialization
$(".selector").igDataChart({
        markerOutlines: [ "#ff0000", "#ffff00", "#00ffff" ]
    });

//  Get
var markerOutlines = $(".selector").igDataChart("option", "markerOutlines");

//  Set
$(".selector").igDataChart("option", "markerOutlines", [ "#ff0000", "#ffff00", "#00ffff" ]);

outlines

Type:: object
Default:: null

Gets or sets the Outlines property.
The outlines property defines the palette from which automatically assigned series outlines are selected.
The value provided should be an array of css color strings. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

Code Sample

//  Initialization
$(".selector").igDataChart({
        outlines: [ "#ff0000", "#ffff00", "#00ffff" ]
    });

//  Get
var opValue = $(".selector").igDataChart("option", "outlines");

//  Set
$(".selector").igDataChart("option", "outlines", [ "#ff0000", "#ffff00", "#00ffff" ]);

overviewPlusDetailPaneVisibility

Type:: enumeration
Default:: collapsed

The visibility of the OverviewPlusDetailPane.

Members

visible
Type:string
The overview pane should be visible.
collapsed
Type:string
The overview pane should not be visible.

Code Sample

//  Initialization
$(".selector").igDataChart({
        overviewPlusDetailPaneVisibility: "visible"
    });

//  Get
var opValue = $(".selector").igDataChart("option", "overviewPlusDetailPaneVisibility");

//  Set
$(".selector").igDataChart("option", "overviewPlusDetailPaneVisibility", "visible");

panModifier

Type:: enumeration
Default:: shift

Gets or sets the current Chart's PanModifier property.

Members

none
Type:string
No modifier key is set.
alt
Type:string
The modifier is set to alt key.
control
Type:string
The modifier is set to control key.
shift
Type:string
The modifier is set to shift key.

Code Sample

//  Initialization
$(".selector").igDataChart({
        panModifier: "control"
    });

//  Get
var opValue = $(".selector").igDataChart("option", "panModifier");

//  Set
$(".selector").igDataChart("option", "panModifier", "control");

pentagonMarkerTemplate

Type:: object
Default:: null

Gets or sets the template to use for pentagon markers on the chart.
Defines the marker template used for
series with a marker type of pentagon.
The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

Code Sample

//Initialize
$(".selector").igDataChart({
    pentagonMarkerTemplate: {
        measure: function(measureInfo) {
            measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
            measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
            measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
            measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
            measureInfo.data;       // if present, represents the contextual data for this template]
        },
        render: function (renderInfo) {
            renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
            renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
            renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
            renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
            renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
            renderInfo.data;               //    if present, specifies the data that is in context for this content
            renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
        }
    }
});

pentagramMarkerTemplate

Type:: object
Default:: null

Gets or sets the template to use for pentragram markers on the chart.
Defines the marker template used for
series with a marker type of pentagram.
The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

Code Sample

//Initialize
$(".selector").igDataChart({
    pentagramMarkerTemplate: {
        measure: function(measureInfo) {
            measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
            measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
            measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
            measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
            measureInfo.data;       // if present, represents the contextual data for this template]
        },
        render: function (renderInfo) {
            renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
            renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
            renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
            renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
            renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
            renderInfo.data;               //    if present, specifies the data that is in context for this content
            renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
        }
    }
});

pixelScalingRatio

Type:: number
Default:: 1

Gets or sets the scaling value used by the main canvas rendering context to apply a scale transform to it.

Code Sample

//Initialize
$(".selector").igDataChart({
    pixelScalingRatio: 2
});

//Get
var pixelScalingRatio = $(".selector").igDataChart("option", "pixelScalingRatio");
//Set
$(".selector").igDataChart("option", "pixelScalingRatio", 2);

plotAreaBackground

Type:: string
Default:: null

Gets or sets the shape of legend badge representing the current series object.

Code Sample

//Initialize
$(".selector").igDataChart({
    plotAreaBackground: "grey"
});

//Get
var plotAreaBackground = $(".selector").igDataChart("option", "plotAreaBackground");
//Set
var plotAreaBackground = $(".selector").igDataChart("option", "plotAreaBackground", "grey");

plotAreaMarginBottom

Type:

number

Default:

NaN

Margin applied to the bottom of the plot area.
plotAreaMarginLeft

Type:

number

Default:

NaN

Margin applied to the left of the plot area.
plotAreaMarginRight

Type:

number

Default:

NaN

Margin applied to the right of the plot area.
plotAreaMarginTop

Type:

number

Default:

NaN

Margin applied to the top of the plot area.

preferHigherResolutionTiles

Type:: bool
Default:: false

Sets whether the series viewer should prefer selecting higher resolution tiles over lower resolution tiles when performing tile zooming. Setting this to true will lower performance but increase quality.

Code Sample

//Initialize
$(".selector").igDataChart({
    preferHigherResolutionTiles: true
});

//Get
var preferHigherRes= $(".selector").igDataChart("option", "preferHigherResolutionTiles");

//Set
$(".selector").igDataChart("option", "preferHigherResolutionTiles", true);

previewRect

Type:: object
Default:: null

Gets or sets the preview rectangle.
The preview rectangle may be set to Rect.Empty, in which case the visible preview
strokePath is hidden.
The provided object should have numeric properties called left, top, width and height.

Code Sample

// Initialization
$(".selector").igDataChart({
    previewRect: {
        left: 0.3,
        top: 0.3,
        width: 0.5,
        height: 0.5
    }
});

// Get
var previewRect = $(".selector").igDataChart("option", "previewRect");

// Set
$(".selector").igDataChart("option", "previewRect", {
    left: 0.3,
    top: 0.3,
    width: 0.5,
    height: 0.5
});


pyramidMarkerTemplate

Type:: object
Default:: null

Gets or sets the template to use for pyramid markers on the chart.
Defines the marker template used for
series with a marker type of pyramid.
The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

Code Sample

//Initialize
$(".selector").igDataChart({
    pyramidMarkerTemplate: {
        measure: function(measureInfo) {
            measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
            measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
            measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
            measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
            measureInfo.data;       // if present, represents the contextual data for this template]
        },
        render: function (renderInfo) {
            renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
            renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
            renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
            renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
            renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
            renderInfo.data;               //    if present, specifies the data that is in context for this content
            renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
        }
    }
});

regional
Inherited

Type:

enumeration

Default:

defaults

Set/Get the regional setting for the widget.

Code Sample

//Initialize
$(".selector").igDataChart({
regional: "ja"
});
// Get
var regional = $(".selector").igDataChart("option", "regional");
// Set
$(".selector").igDataChart("option", "regional", "ja");

responseDataKey

Type:: string
Default:: null

See $.ig.DataSource. Specifies the name of the property in which data records are held if the response is wrapped.

Code Sample

// Initialize
$(".selector").igDataChart({
    responseDataKey: "Records"
});

// Get
var responseDataKey = $(".selector").igDataChart("option", "responseDataKey");
// Set
var responseDataKey = $(".selector").igDataChart("option", "responseDataKey", "Records");

rightMargin

Type:: number
Default:: NaN

Sets or gets the right margin to use around the chart content in the canvas.

Code Sample

//Initialize
$(".selector").igDataChart({
    rightMargin : 20
});

//Get
var margin = $(".selector").igDataChart("option", "rightMargin");

//Set
$(".selector").igDataChart("option", "rightMargin", 20);

series

Type:: array
Default:: []
Elements Type:: object

An array of series objects.

Code Sample

// Initialization
var data = [{ "Label": "1/1/2012", "Item1": 980, "Item2": 1000 }, { "Label": "1/2/2012", "Item1": 1200, "Item2": 1500 }];

$(".selector").igDataChart({
    axes: [{
        name: "xAxis",
        type: "categoryX",
        dataSource: data,
        label: "Label"
    }, {
        name: "yAxis",
        type: "numericY"
    }],
    series: [{
        name: "series1",
        dataSource: data,
        title: "Price Series 1",
        type: "column",
        xAxis: "xAxis",
        yAxis: "yAxis",
        valueMemberPath: "Item1"
    }]
});

// Get
var series = $(".selector").igDataChart("option", "series");
series[0];

// Set
$(".selector").igDataChart("series",
    [{
        name: "series2",
        dataSource: data,
        title: "Price Series 2",
        type: "column",
        xAxis: "xAxis",
        yAxis: "yAxis",
        valueMemberPath: "Item1"
    }]
);


angleAxis

Type:: string
Default:: null

Gets the effective angle axis for the current series object.

Code Sample

// Initialization
$(".selector").igDataChart({
    axes: [{
        name: "angleAxis",
        type: "categoryAngle",
        label: "Label"
    }, {
        name: "radiusAxis",
        type: "numericRadius"
    }],
    series: [{
        name: "series1",
        dataSource: data,
        title: "Budget",
        type: "radialLine",
        angleAxis: "angleAxis",
        valueAxis: "radiusAxis",
        valueMemberPath: "Budget",
    }]
});

// Get
var series = $(".selector").igDataChart("option", "series");
series[0].angleAxis;

// Set
var series = $(".selector").igDataChart("option",
    [{
        name: "series1",
        dataSource: data,
        title: "Budget",
        type: "radialLine",
        angleAxis: "angleAxis",
        valueAxis: "radiusAxis",
        valueMemberPath: "Budget",
    }]
);

angleMemberAsLegendLabel

Type:

string

Default:

null

Gets or sets the label displayed before series angle value in the Data Legend.
angleMemberAsLegendUnit

Type:

string

Default:

null

Gets or sets the unit displayed after series angle value in the Data Legend.

angleMemberPath

Type:: number
Default:: null

Gets or sets the x-radius of the ellipse that is used to round the corners of the column.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "angleAxis",
            type: "numericAngle"
        },
        {
            name: "radiusAxis",
            type: "numericRadius"
        }],
        series: [{
            name: "series1",
            title: "Sales",
            type: "polarScatter",
            angleAxis: "angleAxis",
            radiusAxis: "radiusAxis",
            angleMemberPath: "Index",
            radiusMemberPath: "Value1"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].angleMemberPath;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            title: "Sales",
            type: "polarScatter",
            angleAxis: "angleAxis",
            radiusAxis: "radiusAxis",
            angleMemberPath: "Index",
            radiusMemberPath: "Value1"
        }]
    );

areaFillOpacity

Type:: number
Default:: 1.0

Gets or sets the opacity modifier to apply to the area fill shape of the series, if applicable.

Code Sample

// Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            title: "Sales",
            type: "area",
            xAxis: "xAxis",
            yAxis: "yAxis",
            valueMemberPath: "Value1",
            areaFillOpacity: 0.8
        }]
    });

// Get
var series = $(".selector").igDataChart("option", "series");
series[0].areaFillOpacity;

// Set
$(".selector").igDataChart("series",
        [{
            name: "series1",
            areaFillOpacity: 0.8
        }]
    );

axisAnnoationFormatLabel

Type:

object

Default:

null

Sets or gets a function which takes an object that produces a formatted label for displaying in the axis annotation.
axisAnnotationBackground

Type:

string

Default:

null

Gets or sets the color to use for the axis annotation backing. Leave unset for an automatic value.
axisAnnotationInterpolatedValuePrecision

Type:

number

Default:

-1

Gets or sets the precision to use displaying values for interpolated crosshair positions.
axisAnnotationOutline

Type:

string

Default:

null

Gets or sets the color to use for the axis annotation outline. Leave unset for an automatic value.
axisAnnotationPaddingBottom

Type:

number

Default:

NaN

Gets or sets the bottom padding to use withing the axis annotation callout. Leaving this NaN will use an automatic value related to the axis label margins.
axisAnnotationPaddingLeft

Type:

number

Default:

NaN

Gets or sets the left padding to use withing the axis annotation callout. Leaving this NaN will use an automatic value related to the axis label margins.
axisAnnotationPaddingRight

Type:

number

Default:

NaN

Gets or sets the right padding to use withing the axis annotation callout. Leaving this NaN will use an automatic value related to the axis label margins.
axisAnnotationPaddingTop

Type:

number

Default:

NaN

Gets or sets the top padding to use withing the axis annotation callout. Leaving this NaN will use an automatic value related to the axis label margins.
axisAnnotationStrokeThickness

Type:

number

Default:

NaN

Gets or sets the stroke thickness for the axis annotation backing. Leave unset for an automatic value.
axisAnnotationTextColor

Type:

string

Default:

null

Gets or sets the color to use for the axis annotation text. Leave unset for an automatic value.
badgeShape

Type:

enumeration

Default:

automatic
Gets or sets the BadgeShape for the data legend.
Members
- automatic
- Type:string
- Specifies automatic badge with best match of series type, e.g. Square badge for Area Series, Line badge for Line Series etc.
- circle
- Type:string
- Specifies a circle badge in a legend.
- line
- Type:string
- Specifies a thin line badge in a legend.
- square
- Type:string
- Specifies a square badge in a legend.
- marker
- Type:string
- Specifies a marker badge in a legend (if series supports markers otherwise a circle badge).
- bar
- Type:string
- Specifies a thick horizontal bar in a legend.
- column
- Type:string
- Specifies a thick vertical column in a legend.
- hidden
- Type:string
- Specifies hidden badge in a legend, next to the series title.

bandHighlightWidth

Type:: number
Default:: 10.0

Gets or sets the width to use for the highlight region if highlighting items in a grid aligned series (line, spline, etc), with a banded shape.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            title: "Sales",
            type: "column",
            xAxis: "xAxis",
            yAxis: "yAxis",
            valueMemberPath: "Value1",
            bandHighlightWidth: 5.0
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].bandHighlightWidth;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            title: "Sales",
            type: "column",
            xAxis: "xAxis",
            yAxis: "yAxis",
            valueMemberPath: "Value1",
            bandHighlightWidth: 5.0
        }]
    );

brush

Type:: string
Default:: null

Gets or sets the brush to use for the series.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            title: "Sales",
            type: "column",
            xAxis: "xAxis",
            yAxis: "yAxis",
            valueMemberPath: "Value1",
            brush: "blue"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].brush;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            title: "Sales",
            type: "column",
            xAxis: "xAxis",
            yAxis: "yAxis",
            valueMemberPath: "Value1",
            brush: "blue"
        }]
    );

calloutBackground

Type:

string

Default:

null

Gets or sets the brush that specifies how the backgrounds for the callouts of the layer are painted.
calloutCollisionMode

Type:

enumeration

Default:

auto
Gets or sets the strategy to use for avoiding collisions between the callouts in this layer. Leave unset for an automatic value.
Members
- auto
- Type:string
- automatically decide the collision strategy.
- simulatedAnnealing
- Type:string
- use a simulated annealing based collision strategy. This is higher quality, but takes longer, and is performed time-sliced in the background until an acceptable quality is reached.
- greedy
- Type:string
- use a greedy algorithm to avoid collisions. This is cheap and predictable, but of comparatively low quality.
- greedyCenterOfMass
- Type:string
- use a greedy algorithm with localized center of mass hints to avoid collisions. This is relatively cheap to perform, compared to the simulated annealing approach, but is of comparatively lower quality.
calloutContentUpdating

Type:

object

Default:

null

Sets or gets a function which lets you modify or provide the content for an automatically created callout.
calloutLabelUpdating

Type:

object

Default:

null

Sets or gets a function which lets you modify or provide the label for an automatically created callout.
calloutLeaderBrush

Type:

string

Default:

null

Gets or sets the brush that specifies how the leader lines for the callouts of the layer are painted.
calloutOutline

Type:

string

Default:

null

Gets or sets the brush that specifies how the outlines for the callouts of the layer are painted.
calloutPaddingBottom

Type:

number

Default:

NaN

Gets or sets the bottom padding to use withing the callout. Leaving this NaN will use an automatic value related to the axis label margins.
calloutPaddingLeft

Type:

number

Default:

NaN

Gets or sets the left padding to use withing the callout. Leaving this NaN will use an automatic value related to the axis label margins.
calloutPaddingRight

Type:

number

Default:

NaN

Gets or sets the right padding to use withing the callout. Leaving this NaN will use an automatic value related to the axis label margins.
calloutPaddingTop

Type:

number

Default:

NaN

Gets or sets the top padding to use withing the callout. Leaving this NaN will use an automatic value related to the axis label margins.
calloutPositionPadding

Type:

number

Default:

NaN

Gets or sets the padding to add to the callout positioning. Leaving this NaN will use an automatic value related to the axis label margins.
calloutSeriesSelecting

Type:

object

Default:

null

Sets or gets a function which lets you modify or provide the associated series for a data source provided callout.
calloutStrokeThickness

Type:

number

Default:

NaN

Gets or sets the stroke thickness for the callout backing. Leave unset for an automatic value.
calloutTextColor

Type:

string

Default:

null

Gets or sets the color to use for the callout text. Leave unset for an automatic value.

clipSeriesToBounds

Type:: bool
Default:: null

Gets or sets whether to clip the series to the bounds.
Setting this to true can effect performance.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            clipSeriesToBounds: true
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].clipSeriesToBounds;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            clipSeriesToBounds: true
        }]
    );

closeMemberAsLegendLabel

Type:

string

Default:

null

Gets or sets the label displayed before series close value in the Data Legend.
closeMemberAsLegendUnit

Type:

string

Default:

null

Gets or sets the unit displayed after series close value in the Data Legend.

closeMemberPath

Type:: string
Default:: null

Gets or sets the close mapping property for the current series object.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "financial",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].closeMemberPath;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "financial",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close"
        }]
    );

coercionMethods

Type:: object
Default:: null

Gets or gets the coercion methods to use when loading data from data sources.
Should be specified before setting any member paths, if being used. Setting it later
will not cause data to be reimported into the chart.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryDateTimeX",
            dataSource: data,
            label: "Date"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            title: "Sales",
            type: "line",
            xAxis: "xAxis",
            yAxis: "yAxis",
            valueMemberPath: "Value!roundTo50",
            coercionMethods: {
                roundTo100: function (val) {
                    var newVal = Math.round(val / 100) <dependency>100;
                    return newVal;
                }
            }
        }]
    });

colorMemberAsLegendLabel

Type:

string

Default:

null

Gets or sets the label displayed before series color value in the Data Legend.
colorMemberAsLegendUnit

Type:

string

Default:

null

Gets or sets the unit displayed after series color value in the Data Legend.

consolidatedColumnVerticalPosition

Type:: enumeration
Default:: median

Gets or sets value that is used to determine positioning logic for data items which have been consolidated into a single visual element.

Members

maximum
Type:string
Consolidated items will be positioned using their maximum value.
minimum
Type:string
Consolidated items will be positioned using their minimum value.
median
Type:string
Consolidated items will be positioned at the midpoint of the range.
relativeMinimum
Type:string
Consolidated items will be positioned using the value nearest to the reference value of the corresponding axis.
relativeMaximum
Type:string
Consolidated items will be positioned using the value farthest from the reference value of the corresponding axis.

Code Sample

  $(".selector").igDataChart({
    axes: [{
        name: "xAxis",
        type: "categoryX",
    }, {
        name: "yAxis",
        type: "numericY"
    }],
    series: [{
        name: "series1",
        type: "column",
        xAxis: "xAxis",
        yAxis: "yAxis",
        consolidatedColumnVerticalPosition: "maximum"
    }]
});

contentMemberPath

Type:

string

Default:

null

Gets or sets the content mapping property for the callouts.

cursorPosition

Type:: object
Default:: null

Sets the position a cursor position to use instead of the current mouse cursor position for displaying the annotations in this layer.
Should be an object with an x and a y property in world coordinates (ranging from 0 to 1).

Code Sample

          //Initialization
<script type="text/javascript">
    $(function () {
        $("#chart").igDataChart({
            dataSource: data,
            axes: [{
                type: "categoryX",
                name: "NameAxis",
                label: "CountryName",
            }, {
                type: "numericY",
                name: "PopulationAxis",
            }],
            series: [            {
                name: "crosshairLayer",
                title: "crosshair",
                type: "crosshairLayer",
                cursorPosition: {x:0.5 , y:0.5}
            }
            ]
        });
    });
</script>

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].cursorPosition;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "crosshairLayer",
            title: "crosshair",
            type: "crosshairLayer",
            cursorPosition: {x:0.5 , y:0.5}
        }]
    );

dataSource

Type:: object
Default:: null

Can be any valid data source accepted by $.ig.DataSource, or an instance of an $.ig.DataSource itself.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "financial",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].dataSource;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "financial",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close"
        }]
    );

dataSourceType

Type:: string
Default:: null

Explicitly set data source type (such as "json"). Please refer to the documentation of $.ig.DataSource and its type property.

Code Sample

// Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            dataSource: data,
            dataSourceType: "json",
            title: "Price",
            type: "column",
            xAxis: "xAxis",
            yAxis: "yAxis",
            valueMemberPath: "Item1"
        }]
    });

// Get
var series = $(".selector").igDataChart("option", "series");
series[0].dataSourceType;

// Set
$(".selector").igDataChart("option", "series",
    [{
        name: "series1",
        dataSource: data,
        dataSourceType: "json",
        title: "Price",
        type: "column",
        xAxis: "xAxis",
        yAxis: "yAxis",
        valueMemberPath: "Item1"
    }]
);

dataSourceUrl

Type:: string
Default:: null

Specifies a remote URL accepted by $.ig.DataSource in order to request data from it.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            dataSourceUrl: "http://www.example.com/price-data",
            dataSourceType: "json",
            title: "Price",
            type: "financial",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].dataSource;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            dataSourceUrl: "http://www.example.com/price-data",
            dataSourceType: "json",
            title: "Price",
            type: "financial",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close"
        }]
    );

discreteLegendItemTemplate

Type:: enumeration
Default:: null

Gets or sets the legend badge shape for the current series object.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            discreteLegendItemTemplate: {
                measure: function(measureInfo) {
                    measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
                    measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
                    measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
                    measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
                    measureInfo.data;       // if present, represents the contextual data for this template]
                },
                render: function (renderInfo) {
                    renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
                    renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
                    renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
                    renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
                    renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
                    renderInfo.data;               //    if present, specifies the data that is in context for this content
                    renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
                }
            }
        }]
    });

displayType

Type:: enumeration
Default:: candlestick

Gets or sets the display for the current FinancialIndicator object.

Members

candlestick
Type:string
Displays prices as a Japanese Candlestick.
OHLC
Type:string
Displays prices as an OHLC bar.

Code Sample

// Initialization
$(".selector").igDataChart({
    axes: [{
        name: "xAxis",
        type: "categoryX",
        dataSource: data,
        label: "Label"
    }, {
        name: "yAxis",
        type: "numericY"
    }],
    series: [{
        name: "series1",
        dataSource: data,
        title: "Price",
        xAxis: "xAxis",
        yAxis: "yAxis",
        openMemberPath: "Open",
        highMemberPath: "High",
        lowMemberPath: "Low",
        closeMemberPath: "Close",
        type: "averageTrueRangeIndicator",
        displayType: "area"
    }]
});

// Get
var series = $(".selector").igDataChart("option", "series");
series[0].displayType;

// Set
$(".selector").igDataChart("option", "series",
    [{
        name: "series1",
        dataSource: data,
        title: "Price",
        xAxis: "xAxis",
        yAxis: "yAxis",
        openMemberPath: "Open",
        highMemberPath: "High",
        lowMemberPath: "Low",
        closeMemberPath: "Close",
        type: "averageTrueRangeIndicator",
        displayType: "area"
    }]
);

excludedColumns

Type:

object

Default:

null

Gets or sets names of data columns or their labels to exclude from displaying in the data legend, e.g. "High, Low" or "H, L"
The ExcludedColumns property takes precedences over values of IncludedColumns property.
excludedSeries

Type:

object

Default:

null

Gets or sets indexes or names of series to exclude from displaying in the data legend, e.g. "0, 1"
The ExcludedSeries property takes precedences over values of IncludedSeries property.

expectFunctions

Type:: bool
Default:: false

Gets or sets whether the series should expect that its data source members need to be called as functions to get their values.

Code Sample

// Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            title: "Sales",
            type: "area",
            xAxis: "xAxis",
            yAxis: "yAxis",
            valueMemberPath: "Value1",
            expectFunctions: false
        }]
    });

// Get
var series = $(".selector").igDataChart("option", "series");
series[0].expectFunctions;

// Set
$(".selector").igDataChart("series",
        [{
            name: "series1",
            expectFunctions: false
        }]
    );

fillMemberAsLegendLabel

Type:

string

Default:

null

Gets or sets the label displayed before series fill value in the Data Legend.
fillMemberAsLegendUnit

Type:

string

Default:

null

Gets or sets the unit displayed after series fill value in the Data Legend.

fillMemberPath

Type:: string
Default:: null

Gets or sets the fill mapping property for the current series object.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "bubble",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            radiusMemberPath: "Value2",
            fillMemberPath: "Value3",
            labelMemberPath: "Value2"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].fillMemberPath;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "bubble",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            radiusMemberPath: "Value2",
            fillMemberPath: "Value3",
            labelMemberPath: "Value2"
        }]
    );

fillScale

Type:: object
Default:: null

Gets or sets the brush scale for the marker brush.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "bubble",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            radiusMemberPath: "Value2",
            fillMemberPath: "Value3",
            labelMemberPath: "Value2",
            fillScale: {
                      type: "value",
                      brushes: ["red", "blue"],
                      minimumValue: 0,
                      maximumValue: 20
                  }
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].fillScale;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "bubble",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            radiusMemberPath: "Value2",
            fillMemberPath: "Value3",
            labelMemberPath: "Value2",
            fillScale: {
                      type: "value",
                      brushes: ["red", "blue"],
                      minimumValue: 0,
                      maximumValue: 20
                  }
        }]
    );

finalValueSelectionMode

Type:

enumeration

Default:

auto
Gets or sets the stroke thickness for the y axis annotation backing. Leave unset for an automatic value.
Members
- auto
- Type:string
- a mode is selected automatically.
- finalVisible
- Type:string
- displays the last value visible.
- finalVisibleInterpolated
- Type:string
- displays an interploated last value for when the series leaves view.
- final
- Type:string
- displays the last value in the series, whether visible or not.
groupingMode

Type:

enumeration

Default:

auto
Gets or sets the grouping mode of the data tooltip layer.
Members
- auto
- Type:string
- Specifies that the data tooltip layer should decide the grouping mode automatically.
- grouped
- Type:string
- Specifies that a grouped tooltip should be used.
headerFormatCulture

Type:

string

Default:

null

Gets or sets globalization culture applied to header only when it displays dates that are fetched from date/time axes
This property is ignored when setting HeaderFormatSpecifiers or HeaderFormatString properties.
headerFormatDate

Type:

enumeration

Default:

auto
Gets or sets date format for the header only when it displays dates that are fetched from date/time axes This property is ignored when setting HeaderFormatSpecifiers or HeaderFormatString properties.
Members
- auto
- Type:string
- Specifies automatic date format that defaults to short string.
- shortStyle
- Type:string
- Specifies date as short string in header row of data legend.
- longStyle
- Type:string
- Specifies date as long string in header row of data legend.
- mediumStyle
- Type:string
- Specifies date as medium string in header row of data legend.
- fullStyle
- Type:string
- Specifies date as full string in header row of data legend.
- none
- Type:string
- Specifies no date in header row of data legend.
headerFormatSpecifiers

Type:

object

Default:

null

Gets or sets the format specifiers to use with the HeaderFormatString string.
headerFormatString

Type:

string

Default:

null

Gets or sets the format string for header text displayed in the data legend.
headerFormatTime

Type:

enumeration

Default:

auto
Gets or sets time format for the header only when it displays dates that are fetched from date/time axes This property is ignored when setting HeaderFormatSpecifiers or HeaderFormatString properties.
Members
- auto
- Type:string
- Specifies automatic time format that defaults to no string.
- shortStyle
- Type:string
- Specifies time as short string in header row of data legend.
- longStyle
- Type:string
- Specifies time as long string in header row of data legend.
- mediumStyle
- Type:string
- Specifies time as medium string in header row of data legend.
- fullStyle
- Type:string
- Specifies time as full string in header row of data legend.
- none
- Type:string
- Specifies no time in header row of data legend.
headerRowVisible

Type:

bool

Default:

false

Gets or sets whether to show Header row.
headerText

Type:

string

Default:

null

Gets or sets the HeaderText for the data legend.
headerTextColor

Type:

string

Default:

null

Gets or sets the header text color.
headerTextStyle

Type:

object

Default:

null

Gets or Sets the style to use for the header text.

heatMaximum

Type:: number
Default:: 50

Gets or sets the value that maps to the maximum heat color.

Code Sample

//Initialization
$(".selector").igDataChart({
    series: [{
        name: "series1",
          type: "highDensityScatter",
          xAxis: "xAxis",
          yAxis: "yAxis",
          xMemberPath: "Index",
          yMemberPath: "Value1",
        heatMaximum: 100
    }]
});

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].heatMaximum;

//Set
$(".selector").igDataChart("option", "series", [{
    name: "series1",
      type: "highDensityScatter",
      xAxis: "xAxis",
      yAxis: "yAxis",
      xMemberPath: "Index",
      yMemberPath: "Value1"
    heatMaximum: 100
}]);

heatMaximumColor

Type:: object
Default:: red

Gets or sets the maximum heat color for the density scale.

Code Sample

          // Initialization
$(".selector").igDataChart({
    series: [{
        name: "series1",
          type: "highDensityScatter",
          xAxis: "xAxis",
          yAxis: "yAxis",
          xMemberPath: "Index",
          yMemberPath: "Value1",
        heatMaximumColor: "red"
    }]
});

// Get
var series = $(".selector").igDataChart("option", "series");
series[0].heatMaximumColor;

// Set
$(".selector").igDataChart("option", "series", [{
    name: "series1",
      type: "highDensityScatter",
      xAxis: "xAxis",
      yAxis: "yAxis",
      xMemberPath: "Index",
      yMemberPath: "Value1",
    heatMaximumColor: "red"
}]);

heatMinimum

Type:: number
Default:: 0

Gets or sets the density value that maps to the minimum heat color.

Code Sample

// Initialization
$(".selector").igDataChart({
    series: [{
        name: "series1",
          type: "highDensityScatter",
          xAxis: "xAxis",
          yAxis: "yAxis",
          xMemberPath: "Index",
          yMemberPath: "Value1",
        heatMinimum: 5
    }]
});

// Get
var series = $(".selector").igDataChart("option", "series");
series[0].heatMinimum;

// Set
$(".selector").igDataChart("option", "series", [{
    name: "series1",
      type: "highDensityScatter",
      xAxis: "xAxis",
      yAxis: "yAxis",
      xMemberPath: "Index",
      yMemberPath: "Value1",
    heatMinimum: 5
}]);

heatMinimumColor

Type:: object
Default:: black

Gets or sets the minimum heat color for the density scale.

Code Sample

          // Initialization
$(".selector").igDataChart({
    series: [{
        name: "series1",
          type: "highDensityScatter",
          xAxis: "xAxis",
          yAxis: "yAxis",
          xMemberPath: "Index",
          yMemberPath: "Value1",
        heatMinimumColor: "black"
    }]
});

// Get
var series = $(".selector").igDataChart("option", "series");
series[0].heatMinimumColor;

// Set
$(".selector").igDataChart("option", "series", [{
    name: "series1",
      type: "highDensityScatter",
      xAxis: "xAxis",
      yAxis: "yAxis",
      xMemberPath: "Index",
      yMemberPath: "Value1",
    heatMinimumColor: "black"
}]);

highlightType

Type:: enumeration
Default:: auto

Gets or sets which type of highlight shape to use when highlighting items.

Members

auto
Type:string
use an automatic highlight type for this series.
marker
Type:string
use a marker highlight type for this series.
shape
Type:string
use a shape highlight type for this series.

Code Sample

          //Initialization
<script type="text/javascript">
    $(function () {
        $("#chart").igDataChart({
                width: "100%",
                height: "400px",
                legend: { element: "lineLegend" },
                title: "Population per Country",
                subtitle: "A comparision of population in 1995 and 2005",
                dataSource: data,
                axes: [
                    {
                        name: "NameAxis",
                        type: "categoryX",
                        label: "CountryName"
                    },
                    {
                        name: "PopulationAxis",
                        type: "numericY"
                    }
                ],
                series: [
                    {
                        name: "2005Population",
                        type: "line",
                        title: "2005",
                        xAxis: "NameAxis",
                        yAxis: "PopulationAxis",
                        valueMemberPath: "Pop2005",
                        isHighlightingEnabled: true,
                        highlightType: "marker"
                    }
                ]
            });
    });
</script>

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].highlightType;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "2005Population",
            type: "line",
            title: "2005",
            xAxis: "NameAxis",
            yAxis: "PopulationAxis",
            valueMemberPath: "Pop2005",
            isHighlightingEnabled: true,
            highlightType: "marker"
        }]
    );

highMemberAsLegendLabel

Type:

string

Default:

null

Gets or sets the label displayed before series high value in the Data Legend.
highMemberAsLegendUnit

Type:

string

Default:

null

Gets or sets the unit displayed after series high value in the Data Legend.

highMemberPath

Type:: string
Default:: null

Gets or sets the value mapping property for the current series object.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "financial",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].highMemberPath;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "financial",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close"
        }]
    );

hitTestMode

Type:: enumeration
Default:: auto

Gets or sets which type of hit testing the series should use.

Members

auto
Type:string
automatically decide the appropriate hit test mode for the series.
computational
Type:string
use a computational based approach to determine whether the series has been hit. This uses loose bounding boxes, in some cases, and can range in time complexity between O(1) and O(log n) to find a hit. This decreases frame render time compared to color encoded.
colorEncoded
Type:string
use a color encoded off screen buffer for hit testing. This can have extremely rare false positives where the wrong series is hit (this is due to our inability to disable anti-aliasing in our color buffer), but should always be O(1) time for determining a hit series. This increases frame render time, however. Consider using this if hit testing time is degrading performance.

Code Sample

// Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            title: "Sales",
            type: "area",
            xAxis: "xAxis",
            yAxis: "yAxis",
            valueMemberPath: "Value1",
            hitTestMode: auto
        }]
    });

// Get
var series = $(".selector").igDataChart("option", "series");
series[0].hitTestMode;

// Set
$(".selector").igDataChart("series",
        [{
            name: "series1",
            hitTestMode: false
        }]
    );

horizontalLineStroke

Type:

string

Default:

null

Gets or sets the color to use for the horizontal line. Leave null for an automatic value.

horizontalLineVisibility

Type:: enumeration
Default:: visible

Gets or sets whether the horizontal crosshair portion of the layer should be visible.

Members

visible
Type:string
the horizontal crosshair portion of the layer should be visible.
collapsed
Type:string
the horizontal crosshair portion of the layer should not be visible.

Code Sample

          //Initialization
<script type="text/javascript">
    $(function () {
        $("#chart").igDataChart({
            dataSource: data,
            axes: [{
                type: "categoryX",
                name: "NameAxis",
                label: "CountryName",
            }, {
                type: "numericY",
                name: "PopulationAxis",
            }],
            series: [            {
                type: "column",
                name: "2005Population",
                xAxis: "NameAxis",
                yAxis: "PopulationAxis",
                valueMemberPath: "Pop2005"
            },            {
                type: "line",
                name: "1995Population",
                xAxis: "NameAxis",
                yAxis: "PopulationAxis",
                valueMemberPath: "Pop1995"
            },            {
                type: "crosshairLayer",
                name: "crosshairLayer",
                title: "crosshair",
                useInterpolation: false,
                transitionDuration: 500,
                targetSeries: "2005Population",
                horizontalLineVisibility: "visible"
            }
            ]
        });
    });
</script>

//Get
var series = $(".selector").igDataChart("option", "series");
series[2].horizontalLineVisibilty;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "crosshairLayer",
            title: "crosshair",
            type: "crosshairLayer",
            horizontalLineVisiblity: "visible"
        }]
    );

ignoreFirst

Type:: number
Default:: 0

Gets or sets the number of values to hide at the beginning of the indicator.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "financial",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close",
            ignoreFirst: 2
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].ignoreFirst;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "financial",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close",
            ignoreFirst: 2
        }]
    );

includedColumns

Type:

object

Default:

null

Gets or sets names of data columns or their labels to include in displaying in the data legend, e.g. "High, Low" or "H, L"
The ExcludedColumns property takes precedences over values of IncludedColumns property.
includedSeries

Type:

object

Default:

null

Gets or sets indexes or names of series to include in displaying in the data legend, e.g. "0, 1".
isAxisAnnotationEnabled

Type:

bool

Default:

false

Gets or sets whether to draw annotations over the axes where the crosshair meets with them.
isCalloutOffsettingEnabled

Type:

bool

Default:

true

Gets or sets whether to allow the callouts to be variable distances from the target points, for suppporting collision modes.

isCustomCategoryMarkerStyleAllowed

Type:: bool
Default:: false

Gets or sets whether a custom category marker style is allowed. Setting this to true will case the assigningCategoryMarkerStyle event to get fired, if provided.

Code Sample

//Initialization
<script type="text/javascript">
      $(function () {
            $("#chart").igDataChart({
              dataSource: data,
              axes: [{
                type: "categoryX",
                name: "NameAxis",
                label: "CountryName",
              }, {
              type: "numericY",
              name: "PopulationAxis",
            }],
            series: [{
                type: "categoryHighlightLayer",
                name: "categoryHighlightLayer",
                title: "categoryHighlight",
                useInterpolation: false,
                transitionDuration: 500,
                targetSeries: "2005Population",
                isCustomCategoryMarkerStyleAllowed: "true"
              }
            ]
        });
    });
</script>

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].isCustomCategoryMarkerStyleAllowed;

//Set
$(".selector").igDataChart("option", "series",
        [{
            type: "categoryHighlightLayer",
            name: "categoryHighlightLayer",
            title: "categoryHighlight",
            isCustomCategoryMarkerStyleAllowed: "true"
        }]
    );

isCustomCategoryStyleAllowed

Type:: bool
Default:: false

Gets or sets whether a custom category style is allowed. Setting this to true will case the assigningCategoryStyle event to get fired, if provided.

Code Sample

          //Initialization
<script type="text/javascript">
    $(function () {
        $("#chart").igDataChart({
            dataSource: data,
            axes: [{
                type: "categoryX",
                name: "NameAxis",
                label: "CountryName",
            }, {
                type: "numericY",
                name: "PopulationAxis",
            }],
            series: [            {
                type: "categoryHighlightLayer",
                name: "categoryHighlightLayer",
                title: "categoryHighlight",
                useInterpolation: false,
                transitionDuration: 500,
                targetSeries: "2005Population",
                isCustomCategoryStyleAllowed: "true"
            }
            ]
        });
    });
</script>

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].isCustomCategoryStyleAllowed;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "crosshairLayer",
            title: "crosshair",
            type: "crosshairLayer",
            isCustomCategoryStyleAllowed: "true"
        }]
    );

isDefaultCrosshairDisabled

Type:: bool
Default:: true

Sets if the presence of this layer should disable the default crosshair behavior of the chart, if present.

Code Sample

          //Initialization
<script type="text/javascript">
    $(function () {
        $("#chart").igDataChart({
            dataSource: data,
            axes: [{
                type: "categoryX",
                name: "NameAxis",
                label: "CountryName",
            }, {
                type: "numericY",
                name: "PopulationAxis",
            }],
            series: [            {
                type: "categoryHighlightLayer",
                name: "categoryHighlightLayer",
                title: "categoryHighlight",
                isDefaultCrosshairDisabled: "true"
            }
            ]
        });
    });
</script>

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].isDefaultCrosshairDisabled;

//Set
$(".selector").igDataChart("option", "series",
        [{
           type: "categoryHighlightLayer",
           name: "categoryHighlightLayer",
           title: "categoryHighlight",
           isDefaultCrosshairDisabled: "true"
        }]
    );

isDropShadowEnabled

Type:: bool
Default:: false

Gets or sets whether drop shadow should be enabled for this series.

Code Sample

// Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            title: "Sales",
            type: "column",
            xAxis: "xAxis",
            yAxis: "yAxis",
            valueMemberPath: "Value1",
            isDropShadowEnabled: true
        }]
    });

// Get
var series = $(".selector").igDataChart("option", "series");
series[0].isDropShadowEnabled;

// Set
$(".selector").igDataChart("series",
        [{
            name: "series1",
            isDropShadowEnabled: true
        }]
    );

isHighlightingEnabled

Type:: bool
Default:: false

Gets or sets whether highlighting should be enabled for the series, if supported.

Code Sample

        //Initialization
<script type="text/javascript">
    $(function () {
        $("#chart").igDataChart({
                dataSource: data,
                axes: [
                    {
                        name: "NameAxis",
                        type: "categoryX",
                        label: "CountryName"
                    },
                    {
                        name: "PopulationAxis",
                        type: "numericY",
                        minimumValue: 0
                    }
                ],
                series: [
                    {
                        name: "2005Population",
                        type: "line",
                        title: "2005",
                        xAxis: "NameAxis",
                        yAxis: "PopulationAxis",
                        valueMemberPath: "Pop2005",
                        isHighlightingEnabled: true
                    },
                    {
                        name: "1995Population",
                        type: "line",
                        title: "1995",
                        xAxis: "NameAxis",
                        yAxis: "PopulationAxis",
                        valueMemberPath: "Pop1995",
                        isHighlightingEnabled: true
                    }
                ]
            });
    });
</script>

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].isHighlightingEnabled;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "2005Population",
            type: "line",
            title: "2005",
            xAxis: "NameAxis",
            yAxis: "PopulationAxis",
            valueMemberPath: "Pop2005",
            isHighlightingEnabled: true
        }]
    );


isTransitionInEnabled

Type:: bool
Default:: false

Gets or sets if the series should play a transition in animation when the data source is assigned. Note: Transitions are not currently supported for stacked series.

Code Sample


        //Initialization
<script type="text/javascript">
    $(function () {
        $("#chart").igDataChart({
                dataSource: data,
                axes: [
                    {
                        name: "NameAxis",
                        type: "categoryX",
                        label: "CountryName"
                    },
                    {
                        name: "PopulationAxis",
                        type: "numericY",
                     }
                ],
                series: [
                    {
                        name: "2005Population",
                        type: "line",
                        title: "2005",
                        xAxis: "NameAxis",
                        yAxis: "PopulationAxis",
                        valueMemberPath: "Pop2005",
                        isTransitionInEnabled: true
                    },
                    {
                        name: "1995Population",
                        type: "line",
                        title: "1995",
                        xAxis: "NameAxis",
                        yAxis: "PopulationAxis",
                        valueMemberPath: "Pop1995",
                        isTransitionInEnabled: true
                    }
                ]
            });
    });
</script>

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].isTransitionInEnabled;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "2005Population",
            type: "line",
            title: "2005",
            xAxis: "NameAxis",
            yAxis: "PopulationAxis",
            valueMemberPath: "Pop2005",
            isTransitionInEnabled: true
        }]
    );

keyMemberPath

Type:

string

Default:

null

Gets or sets the key mapping property for the callouts.
labelDisplayMode

Type:

enumeration

Default:

auto
Gets or sets the mode for displaying labels before series values in the data legend, e.g. O: H: L: C: for financial series.
Members
- auto
- Type:string
- Specifies automatic labels based on series type, e.g. "O: H: L: C:" for Financial Series.
- visible
- Type:string
- Specifies always visible labels before series values.
- hidden
- Type:string
- Specifies hidden labels before series values.

labelMemberPath

Type:: string
Default:: null

Gets or sets the Label mapping property for the current series object.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "bubble",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            radiusMemberPath: "Value2",
            fillMemberPath: "Value3",
            labelMemberPath: "Value2"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].labelMemberPath;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "bubble",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            radiusMemberPath: "Value2",
            fillMemberPath: "Value3",
            labelMemberPath: "Value2"
        }]
    );

labelTextColor

Type:

string

Default:

null

Gets or sets the units text color.
labelTextMarginBottom

Type:

number

Default:

0

The bottom margin of label text column in the data legend. Gets or sets the labelTextMargin for the data legend.
labelTextMarginLeft

Type:

number

Default:

12

The left margin of label text column in the data legend. Gets or sets the labelTextMargin for the data legend.
labelTextMarginRight

Type:

number

Default:

0

The right margin of label text column in the data legend. Gets or sets the labelTextMargin for the data legend.
labelTextMarginTop

Type:

number

Default:

0

The top margin of label text column in the data legend. Gets or sets the labelTextMargin for the data legend.
labelTextStyle

Type:

object

Default:

null

Gets or Sets the style to use for the units text.

legend

Type:: object
Default:: {}

Can be any valid options accepted by $.ig.ChartLegend, or an instance of an $.ig.ChartLegend itself.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            legend: { element: "legend", type: "legend" }
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].legend;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            legend: { element: "legend", type: "legend" }
        }]
    );

element

Type:: string
Default:: null

The name of the element to turn into a legend.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            legend: { element: "legend", type: "legend" }
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].legend.element;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            legend: { element: "legend", type: "legend" }
        }]
    );

height

Type:: enumeration
Default:: null

The height of the legend. null will stretch vertically to fit data, no other height are defined.

Members

null
Type:object

string
The widget height can be set in pixels (px) and percentage (%).
number
The widget height can be set as a number.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            legend: { element: "legend", type: "legend", height: "90px" }
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].legend.height;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            legend: { element: "legend", type: "legend", height: "90px" }
        }]
    );

type

Type:: enumeration
Default:: legend

Type of the legend.

Members

item
Type:string
Specify the legend as item legend. It displays a legend item for each pie in the igPieChart control.
legend
Type:string
Specify the legend as legend. It is supported by all types of series in the igDataChart control.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            legend: { element: "legend", type: "legend" }
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].legend.type;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            legend: { element: "legend", type: "legend" }
        }]
    );

width

Type:: enumeration
Default:: null

The width of the legend.

Members

null
Type:object
will stretch to fit data, if no other widths are defined.

string
The widget width can be set in pixels (px) and percentage (%).
number
The widget width can be set as a number.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            legend: { element: "legend", type: "legend", width: "90px" }
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].legend.width;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            legend: { element: "legend", type: "legend", width: "90px" }
        }]
    );

legendItemBadgeMode

Type:

object

Default:

simplified

Gets or sets the DiscreteLegendItemTemplate property.
The legend item control content is created according to the DiscreteLegendItemTemplate on-demand by
the series object itself.
The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.
legendItemBadgeShape

Type:

enumeration

Default:

auto

Gets or sets the legend badge mode for the current series object.

legendItemBadgeTemplate

Type:: object
Default:: null

Gets or sets the LegendItemBadgeTemplate property.
The legend item badge is created according to the LegendItemBadgeTemplate on-demand by
the series object itself.
The provided object should have properties called render and optionally measure.
These are functions which will be called that will be called to handle the user specified custom rendering.
measure will be passed an object that looks like this:
{
context: [either a DOM element or a CanvasContext2D depending on the particular template scenario],
width: [if value is present, specifies the available width, user may set to desired width for content],
height: [if value is present, specifies the available height, user may set to desired height for content],
isConstant: [user should set to true if desired with and height will always be the same for this template],
data: [if present, represents the contextual data for this template]
}
render will be passed an object that looks like this:
{
context: [either a DOM element or a CanvasContext2D depending on the particular template scenario],
xPosition: [if present, specifies the x position at which to render the content],
yPosition: [if present, specifies the y position at which to render the content],
availableWidth: [if present, specifies the available width in which to render the content],
availableHeight: [if present, specifies the available height in which to render the content],
data: [if present, specifies the data that is in context for this content],
isHitTestRender: [if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used]
}.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            legend: { element: "legend", type: "legend" },
            legendItemBadgeTemplate: {
                    measure: function(measureInfo) {
                        measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
                        measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
                        measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
                        measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
                        measureInfo.data;       // if present, represents the contextual data for this template]
                    },
                    render: function (renderInfo) {
                        renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
                        renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
                        renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
                        renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
                        renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
                        renderInfo.data;               //    if present, specifies the data that is in context for this content
                        renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
                    }
                }
        }]
    });

legendItemTemplate

Type:: object
Default:: null

Gets or sets the LegendItemTemplate property.
The legend item control content is created according to the LegendItemTemplate on-demand by
the series object itself.
The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            legend: { element: "legend", type: "legend" },
            legendItemTemplate: {
                    measure: function(measureInfo) {
                        measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
                        measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
                        measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
                        measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
                        measureInfo.data;       // if present, represents the contextual data for this template]
                    },
                    render: function (renderInfo) {
                        renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
                        renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
                        renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
                        renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
                        renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
                        renderInfo.data;               //    if present, specifies the data that is in context for this content
                        renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
                    }
                }
        }]
    });

legendItemVisibility

Type:: enumeration
Default:: visible

Gets or sets the legend item visibility for the current series object.

Members

visible
Type:string
The legend item should be visible.
collapsed
Type:string
The legend item should not be visible.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            legend: { element: "legend", type: "legend" },
            legendItemVisibility: "collapsed"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].legendItemVisibility;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            legend: { element: "legend", type: "legend" },
            legendItemVisibility: "collapsed"
        }]
    );

longPeriod

Type:: number
Default:: 0

Gets or sets the short moving average period for the current AbsoluteVolumeOscillatorIndicator object.
The typical, and initial, value for long AVO periods is 30.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "absoluteVolumeOscillatorIndicator",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close",
            longPeriod: 15
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].longPeriod;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "absoluteVolumeOscillatorIndicator",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close",
            longPeriod: 15
        }]
    );

lowMemberAsLegendLabel

Type:

string

Default:

null

Gets or sets the label displayed before series low value in the Data Legend.
lowMemberAsLegendUnit

Type:

string

Default:

null

Gets or sets the unit displayed after series low value in the Data Legend.

lowMemberPath

Type:: string
Default:: null

Gets or sets the value mapping property for the current series object.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "financial",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].lowMemberPath;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "financial",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close"
        }]
    );

markerBrush

Type:: string
Default:: null

Gets or sets the brush that specifies how the current series object's marker interiors are painted.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            markerBrush: "blue",
            markerType: "automatic"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].markerBrush;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            markerBrush: "blue",
            markerType: "automatic"
        }]
    );

markerCollisionAvoidance

Type:: enumeration
Default:: none

Gets or sets the MarkerCollisionAvoidance.

Members

none
Type:string
No collision avoidance is attempted.
omit
Type:string
Markers that collide will be omitted.
fade
Type:string
Markers that collide will be faded in opacity.
omitAndShift
Type:string
Markers that collide may be shifted or omitted.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            markerCollisionAvoidance: "fade",
            markerType: "automatic"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].markerCollisionAvoidance;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            markerCollisionAvoidance: "fade",
            markerType: "automatic"
        }]
    );

markerFillMode

Type:

enumeration

Default:

auto
Gets or sets whether the marker fill is based on the marker outline of the series rather than the marker brushes collection.
Members
- auto
- Type:string
- Outline mode is managed by the series.
- normal
- Type:string
- This series base its marker brush on the marker brushes collection.
- matchMarkerOutline
- Type:string
- The series should match the marker fill to the marker outline.
markerFillOpacity

Type:

number

Default:

NaN

Gets or sets the opacity applied to the fill of the markers.

markerOutline

Type:: string
Default:: null

Gets or sets the brush that specifies how the current series object's marker outlines are painted.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            markerOutline: "black",
            markerType: "automatic"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].markerOutline;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            markerOutline: "black",
            markerType: "automatic"
        }]
    );

markerOutlineMode

Type:

enumeration

Default:

auto
Gets or sets whether the marker outline is based on the marker brush of the series rather than the marker outlines collection.
Members
- auto
- Type:string
- Outline mode is managed by the series.
- normal
- Type:string
- This series base its marker brush on the marker outlines collection.
- matchMarkerBrush
- Type:string
- The series should match the marker outline to the marker brush.

markerTemplate

Type:: object
Default:: null

Gets or sets the MarkerTemplate for the current series object.
The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            markerType: "automatic",
            markerTemplate: {
                    measure: function(measureInfo) {
                        measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
                        measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
                        measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
                        measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
                        measureInfo.data;       // if present, represents the contextual data for this template]
                    },
                    render: function (renderInfo) {
                        renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
                        renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
                        renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
                        renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
                        renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
                        renderInfo.data;               //    if present, specifies the data that is in context for this content
                        renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
                    }
                }
        }]
    });

markerThickness

Type:

number

Default:

2.0

Gets or sets the thickness to use for the outline of the markers.

markerType

Type:: enumeration
Default:: none

Gets or sets the marker type for the current series object. If the MarkerTemplate property is set, the setting of the MarkerType property will be ignored.

Members

unset
Type:string
Marker hasn't been set.
none
Type:string
No markerItems.
automatic
Type:string
Automatic marker shape.
circle
Type:string
Circle marker shape.
triangle
Type:string
Flat-top triangle marker shape.
pyramid
Type:string
Flat-base triangle marker shape.
square
Type:string
Square marker shape.
diamond
Type:string
Diamond marker shape.
pentagon
Type:string
Pentagon marker shape.
hexagon
Type:string
Hexagon marker shape.
tetragram
Type:string
Four-pointed star marker shape.
pentagram
Type:string
Five-pointed star marker shape.
hexagram
Type:string
Six-pointed star marker shape.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            markerType: "automatic"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].markerType;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            markerType: "automatic"
        }]
    );

maximumMarkers

Type:: number
Default:: 400

Gets or sets the maximum number of markerItems displayed by the current series.
If more than the specified number of markerItems are visible, the series will automatically
choose a representative set.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            markerType: "automatic",
            maximumMarkers: 100
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].maximumMarkers;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            markerType: "automatic",
            maximumMarkers: 100
        }]
    );

mouseOverEnabled

Type:: bool
Default:: false

Gets or sets whether the chart reacts to mouse move events.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            markerType: "automatic",
            mouseOverEnabled: true
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].mouseOverEnabled;

//Set
$(".selector").igDataChart("option", "series",
    [{
        name: "series1",
        type: "scatter",
        xAxis: "xAxis",
        yAxis: "yAxis",
        xMemberPath: "Index",
        yMemberPath: "Value1",
        markerType: "automatic",
        mouseOverEnabled: true
    }]
);

name

Type:: string
Default:: null

The unique identifier of the series.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].name;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1"
        }]
    );

negativeBrush

Type:: string
Default:: null

Gets or sets the brush to use for negative portions of the series.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "financial",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close",
            negativeBrush: "red"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].negativeBrush;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "financial",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close",
            negativeBrush: "red"
        }]
    );

openMemberAsLegendLabel

Type:

string

Default:

null

Gets or sets the label displayed before series open value in the Data Legend.
openMemberAsLegendUnit

Type:

string

Default:

null

Gets or sets the unit displayed after series open value in the Data Legend.

openMemberPath

Type:: string
Default:: null

Gets or sets the open mapping property for the current series object.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "financial",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].openMemberPath;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "financial",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close"
        }]
    );

outline

Type:: string
Default:: null

Gets or sets the brush to use for the outline of the series.
Some series types, such as LineSeries, do not display outlines. Therefore, this property does not affect some charts.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            outline: "black"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].outline;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            outline: "black"
        }]
    );

outlineMode

Type:

enumeration

Default:

auto
Gets or sets the outline mode to use for the series.
Members
- auto
- Type:string
- Outline mode is managed by the series.
- visible
- Type:string
- This series should show the outline portion of the visual.
- collapsed
- Type:string
- The series should hide the outline portion of the visual.

period

Type:: number
Default:: 0

Gets or sets the moving average period for the current AverageDirectionalIndexIndicator object.
The typical, and initial, value for AverageDirectionalIndexIndicator periods is 14.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "averageDirectionalIndexIndicator",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close",
            period: 7
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].period;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "averageDirectionalIndexIndicator",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close",
            period: 7
        }]
    );

progressiveLoad

Type:: bool
Default:: true

Gets or sets whether to progressively load the data into the chart.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            markerType: "automatic",
            progressiveLoad: false
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].progressiveLoad;

//Set
$(".selector").igDataChart("option", "series",
    [{
        name: "series1",
        type: "scatter",
        xAxis: "xAxis",
        yAxis: "yAxis",
        xMemberPath: "Index",
        yMemberPath: "Value1",
        markerType: "automatic",
        progressiveLoad: false
    }]
);

radius

Type:: number
Default:: 2

Gets or sets the corner radius to use for the series, if applicable.

Code Sample

          //Initialization
$(".selector").igDataChart({
        axes: [{
            name: "angleAxis",
            type: "numericAngle"
        },
        {
            name: "radius",
            type: "numericRadius"
        }],
        series: [{
            name: "series1",
            title: "Sales",
            type: "polarScatter",
            angleAxis: "angleAxis",
            radius: "radius",
            angleMemberPath: "Index",
            radiusMemberPath: "Value1"
        }],
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].radius;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            title: "Sales",
            type: "polarScatter",
            angleAxis: "angleAxis",
            radius: "radius",
            angleMemberPath: "Index",
            radiusMemberPath: "Value1"
        }]
    );

radiusAxis

Type:: string
Default:: null

Gets the effective radius axis for the current series object.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "angleAxis",
            type: "numericAngle"
        },
        {
            name: "radiusAxis",
            type: "numericRadius"
        }],
        series: [{
            name: "series1",
            title: "Sales",
            type: "polarScatter",
            angleAxis: "angleAxis",
            radiusAxis: "radiusAxis",
            angleMemberPath: "Index",
            radiusMemberPath: "Value1"
        }],
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].radiusAxis;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            title: "Sales",
            type: "polarScatter",
            angleAxis: "angleAxis",
            radiusAxis: "radiusAxis",
            angleMemberPath: "Index",
            radiusMemberPath: "Value1"
        }]
    );

radiusMemberAsLegendLabel

Type:

string

Default:

null

Gets or sets the label displayed before series radius value in the Data Legend.
radiusMemberAsLegendUnit

Type:

string

Default:

null

Gets or sets the unit displayed after series radius value in the Data Legend.

radiusMemberPath

Type:: string
Default:: null

Gets or sets the radius mapping property for the current series object.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "angleAxis",
            type: "numericAngle"
        },
        {
            name: "radiusAxis",
            type: "numericRadius"
        }],
        series: [{
            name: "series1",
            title: "Sales",
            type: "polarScatter",
            angleAxis: "angleAxis",
            radiusAxis: "radiusAxis",
            angleMemberPath: "Index",
            radiusMemberPath: "Value1"
        }],
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].radiusMemberPath;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            title: "Sales",
            type: "polarScatter",
            angleAxis: "angleAxis",
            radiusAxis: "radiusAxis",
            angleMemberPath: "Index",
            radiusMemberPath: "Value1"
        }]
    );

radiusScale

Type:: object
Default:: null

Gets or sets the radius size scale for the bubbles.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "bubble",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            radiusMemberPath: "Value2",
            fillMemberPath: "Value3",
            labelMemberPath: "Value2",
            radiusScale: {
                  minimumValue: 0,
                  maximumValue: 20,
                  isLogarithmic: "true",
                  logarithmicBase: 2
              }
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].radiusScale;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "bubble",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            radiusMemberPath: "Value2",
            fillMemberPath: "Value3",
            labelMemberPath: "Value2",
            radiusScale: {
                  type: "value",
                  brushes: ["red", "blue"],
                  minimumValue: 0,
                  maximumValue: 20
              }
        }]
    );

radiusX

Type:: number
Default:: 0.0

Gets or sets the x-radius of the ellipse that is used to round the corners of the column.

Code Sample

//Initialization
$(".selector").igDataChart({
        series: [{
            name: "series1",
            type: "column",
            radiusX: 5.5
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].radiusX;

//Set
$(".selector").igDataChart("option", "series",
    [{
            name: "series1",
            type: "column",
            radiusX: 5.5
    }]
);

radiusY

Type:: number
Default:: 0.0

Gets or sets the y-radius of the ellipse that is used to round the corners of the column.

Code Sample

//Initialization
$(".selector").igDataChart({
        series: [{
            name: "series1",
            type: "column",
            radiusY: 5.5
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].radiusY;

//Set
$(".selector").igDataChart("option", "series",
    [{
            name: "series1",
            type: "column",
            radiusY: 5.5
    }]
);

remove

Type:

bool

Default:

false

Set to true in order to have an existing series removed from the chart, by name.

Code Sample

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            remove: true
        }]
    );

resolution

Type:: number
Default:: NaN

Gets or sets the current series object's rendering resolution.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            resolution: 3
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].resolution;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            resolution: 3
        }]
    );

responseDataKey

Type:: string
Default:: null

See $.ig.DataSource. Specifies the name of the property in which data records are held if the response is wrapped.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            dataSource: data,
            responseDataKey: "Records",
            title: "Price",
            type: "financial",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].responseDataKey;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            dataSource: data,
            responseDataKey: "Records",
            title: "Price",
            type: "financial",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close"
        }]
    );

reverseLegendOrder

Type:: bool
Default:: false

Sets whether the order of the fragment series should be reversed in the legend. Note: Reversing the legend order is only supported on stacked series.

Code Sample

// Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            title: "Sales",
            type: "stackedColumn",
            xAxis: "xAxis",
            yAxis: "yAxis",
            reverseLegendOrder: true,
            series: [{
                name: "fragment1",
                title: "fragment1",
            }, {
                name: "fragment2",
                title: "fragment2",
            }]
        }]
    });

// Get
var series = $(".selector").igDataChart("option", "series");
series[0].reverseLegendOrder;

// Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            reverseLegendOrder: true
        }]
    );

series

Type:: array
Default:: null
Elements Type:

Gets or sets the series for stacked charts. It should contain array of series objects. Each item in array should represent a series with and it may have most options supported by top-level series object, such as xAxis, yAxis, valueMemberPath, etc.

Code Sample

// Initialization
$(".selector").igDataChart({
    axes: [{
        name: "xAxis",
        type: "categoryX",
        label: "Label",
    }, {
        name: "yAxis",
        type: "numericY",
    }],
    series: [{
        name: "series1",
        type: "stackedColumn",
        xAxis: "xAxis",
        yAxis: "yAxis",
        series: [{
            name: "China",
            type: "stackedFragment",
            valueMemberPath: "China"
        }, {
            name: "United States",
            type: "stackedFragment",
            valueMemberPath: "UnitedStates"
        }, {
            name: "Russia",
            type: "stackedFragment",
            valueMemberPath: "Russia"
        }, {
            name: "Saudi Arabia",
            type: "stackedFragment",
            valueMemberPath: "SaudiArabia"
        }, {
            name: "Canada",
            type: "stackedFragment",
            valueMemberPath: "Canada"
        }]
    }]
});

// Get
var series = $(".selector").igDataChart("option", "series");
series[0].series;

// Set
$(".selector").igDataChart("series", [{
    name: "series1",
    series: [{
        name: "United States",
        type: "stackedFragment",
        valueMemberPath: "UnitedStates"
    }]
}]);

shadowBlur

Type:: number
Default:: 10

Gets or sets the blur amount to use for the drop shadow.

Code Sample

// Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            title: "Sales",
            type: "column",
            xAxis: "xAxis",
            yAxis: "yAxis",
            valueMemberPath: "Value1",
            shadowBlur: 7
        }]
    });

// Get
var series = $(".selector").igDataChart("option", "series");
series[0].shadowBlur;

// Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            shadowBlur: 7
        }]
    );

shadowColor

Type:: object
Default:: rgba(95,95,95,0.5)

Gets or sets the color to use for the drop shadow.

Code Sample

// Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            title: "Sales",
            type: "column",
            xAxis: "xAxis",
            yAxis: "yAxis",
            valueMemberPath: "Value1",
            shadowColor: "blue"
        }]
    });

// Get
var series = $(".selector").igDataChart("option", "series");
series[0].shadowColor;

// Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            shadowColor: "blue"
        }]
    );

shadowOffsetX

Type:: number
Default:: 5

Gets or sets the x offset amount to use for the drop shadow.

Code Sample

// Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            title: "Sales",
            type: "column",
            xAxis: "xAxis",
            yAxis: "yAxis",
            valueMemberPath: "Value1",
            shadowOffsetX: 10
        }]
    });

// Get
var series = $(".selector").igDataChart("option", "series");
series[0].shadowOffsetX;

// Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            shadowOffsetX: 10
        }]
    );

shadowOffsetY

Type:: number
Default:: 5

Gets or sets the y offset amount to use for the drop shadow.

Code Sample

// Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            title: "Sales",
            type: "column",
            xAxis: "xAxis",
            yAxis: "yAxis",
            valueMemberPath: "Value1",
            shadowOffsetY: 10
        }]
    });

// Get
var series = $(".selector").igDataChart("option", "series");
series[0].shadowOffsetY;

// Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            shadowOffsetY: 10
        }]
    );

shortPeriod

Type:: number
Default:: 0

Gets or sets the short moving average period for the current AbsoluteVolumeOscillatorIndicator object.
The typical, and initial, value for short AVO periods is 10.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "absoluteVolumeOscillatorIndicator",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close",
            shortPeriod: 7
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].shortPeriod;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "absoluteVolumeOscillatorIndicator",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close",
            shortPeriod: 7
        }]
    );

shouldUpdateWhenSeriesDataChanges

Type:

bool

Default:

true

Gets or sets whether the data legend should update when the series data is mutated.

showTooltip

Type:: bool
Default:: false

Whether the chart should render a tooltip.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            showTooltip: true,
            tooltipTemplate: "template"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].showTooltip;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            showTooltip: true,
            tooltipTemplate: "template"
        }]
    );

skipUnknownValues

Type:: bool
Default:: false

Gets or sets whether the hover layer should skip unknown values when trying to find the closest values.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            label: "Label"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "toolTipLayer1",
            type: "itemToolTipLayer",
            skipUnknownValues: true
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].skipUnknownValues;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "toolTipLayer1",
            type: "itemToolTipLayer",
            skipUnknownValues: true
        }]
    );

splineType

Type:: enumeration
Default:: natural

Gets or sets the type of spline to be rendered.

Members

natural
Type:string
Calculates the spline using a natural spline calculation formula.
clamped
Type:string
Calculated the spline using a clamped spline calculation formula.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            dataSource: data,
            title: "Price Series 1",
            type: "spline",
            splineType: "clamped",
            xAxis: "xAxis",
            yAxis: "yAxis",
            valueMemberPath: "Item1"
        }]
    });

//    Get
var series = $(".selector").igDataChart("option", "series");
series[0].splineType;

//    Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            dataSource: data,
            title: "Price Series 1",
            type: "spline",
            splineType: "clamped",
            xAxis: "xAxis",
            yAxis: "yAxis",
            valueMemberPath: "Item1"
        }]
    );

summaryLabelText

Type:

string

Default:

null

Gets or sets the units text for the data legend.
summaryLabelTextColor

Type:

string

Default:

null

Gets or sets the units text color.
summaryLabelTextStyle

Type:

object

Default:

null

Gets or Sets the style to use for the units text.
summaryTitleText

Type:

string

Default:

null

Gets or sets the SummaryTitleText for the data legend.
summaryTitleTextColor

Type:

string

Default:

null

Gets or sets the summary text color.
summaryTitleTextStyle

Type:

object

Default:

null

Gets or Sets the style to use for the summary text.
summaryType

Type:

enumeration

Default:

auto
Gets or sets the SummaryType for the data legend.
Members
- auto
- Type:string
- Specifies automatic summarization.
- total
- Type:string
- Specifies total of values in summary row.
- average
- Type:string
- Specifies average of values in summary row.
- min
- Type:string
- Specifies minimum of values in summary row.
- max
- Type:string
- Specifies maximum of values in summary row.
- none
- Type:string
- Specifies no summarization.
summaryUnitsText

Type:

string

Default:

null

Gets or sets the units text for the data legend.
summaryUnitsTextColor

Type:

string

Default:

null

Gets or sets the units text color.
summaryUnitsTextStyle

Type:

object

Default:

null

Gets or Sets the style to use for the units text.
summaryValueTextColor

Type:

string

Default:

null

Gets or sets the units text color.
summaryValueTextStyle

Type:

object

Default:

null

Gets or Sets the style to use for the units text.

targetAxis

Type:: string
Default:: null

Gets or sets the name of the target axis for the layer, if desired. Setting the target axis will scope the layer to target just that axis.

Code Sample

        //Initialization
<script type="text/javascript">
    $(function () {
        $("#chart").igDataChart({
            dataSource: data,
            axes: [{
                type: "categoryX",
                name: "NameAxis",
                label: "CountryName",
            }, {
                type: "numericY",
                name: "PopulationAxis",
            }],
            series: [            {
                type: "column",
                name: "2005Population",
                xAxis: "NameAxis",
                yAxis: "PopulationAxis",
                valueMemberPath: "Pop2005"
            },            {
                type: "line",
                name: "1995Population",
                xAxis: "NameAxis",
                yAxis: "PopulationAxis",
                valueMemberPath: "Pop1995"
            },            {
                type: "categoryHighlightLayer",
                name: "catHighlightLayer",
                title: "categoryHighlight",
                useInterpolation: false,
                transitionDuration: 500,
                bandHighlightWidth: 50,
                targetAxis: "PopulationAxis"

            }
            ]
        });
    });
</script>

//Get
var series = $(".selector").igDataChart("option", "series");
series[2].targetAxis;

//Set
$(".selector").igDataChart("option", "series",
        [{
            type: "categoryHighlightLayer",
            name: "catHighlightLayer",
            title: "categoryHighlight",
            targetAxis: "PopulationAxis"
        }]
    );

targetCursorPositionX

Type:

number

Default:

NaN

Gets or sets horizontal position (between 0.0 and 1.0) in viewport of the target component.
targetCursorPositionY

Type:

number

Default:

NaN

Gets or sets vertical position (between 0.0 and 1.0) in viewport of the target component.

targetSeries

Type:: string
Default:: null

Gets or sets the name of the target series for the layer, if desired. Setting the target series will scope the layer to target just that series.

Code Sample

        //Initialization
<script type="text/javascript">
    $(function () {
        $("#chart").igDataChart({
            dataSource: data,
            axes: [{
                type: "categoryX",
                name: "NameAxis",
                label: "CountryName",
            }, {
                type: "numericY",
                name: "PopulationAxis",
            }],
            series: [            {
                type: "column",
                name: "2005Population",
                xAxis: "NameAxis",
                yAxis: "PopulationAxis",
                valueMemberPath: "Pop2005"
            },            {
                type: "line",
                name: "1995Population",
                xAxis: "NameAxis",
                yAxis: "PopulationAxis",
                valueMemberPath: "Pop1995"
            },            {
                type: "crosshairLayer",
                name: "crosshairLayer",
                title: "crosshair",
                useInterpolation: false,
                transitionDuration: 500,
                targetSeries: "2005Population"
            }
            ]
        });
    });
</script>

//Get
var series = $(".selector").igDataChart("option", "series");
series[2].targetSeries;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "crosshairLayer",
            title: "crosshair",
            type: "crosshairLayer",
            targetSeries: "2005Population"
        }]
    );

thickness

Type:: number
Default:: 0

Gets or sets the width of the current series object's line thickness.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            dataSource: data,
            title: "Price Series 1",
            type: "line",
            thickness: 5,
            xAxis: "xAxis",
            yAxis: "yAxis",
            valueMemberPath: "Item1"
        }]
    });

//    Get
var series = $(".selector").igDataChart("option", "series");
series[0].thickness;

//    Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            dataSource: data,
            title: "Price Series 1",
            type: "line",
            thickness: 5,
            xAxis: "xAxis",
            yAxis: "yAxis",
            valueMemberPath: "Item1"
        }]
    );

title

Type:: string
Default:: null

Gets or sets the Title property.
The legend item control is created according to the Title on-demand by
the series object itself.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            dataSource: data,
            title: "Price Series 1",
            type: "line",
            xAxis: "xAxis",
            yAxis: "yAxis",
            valueMemberPath: "Item1"
        }]
    });

//    Get
var series = $(".selector").igDataChart("option", "series");
series[0].title;

//    Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            dataSource: data,
            title: "Price Series 1",
            type: "line",
            xAxis: "xAxis",
            yAxis: "yAxis",
            valueMemberPath: "Item1"
        }]
    );

titleTextColor

Type:

string

Default:

null

Gets or sets the display text color.
titleTextMarginBottom

Type:

number

Default:

0

The bottom margin of title text column in the data legend. Gets or sets the titleTextMargin for the data legend.
titleTextMarginLeft

Type:

number

Default:

0

The left margin of title text column in the data legend. Gets or sets the titleTextMargin for the data legend.
titleTextMarginRight

Type:

number

Default:

4

The right margin of title text column in the data legend. Gets or sets the titleTextMargin for the data legend.
titleTextMarginTop

Type:

number

Default:

0

The top margin of title text column in the data legend. Gets or sets the titleTextMargin for the data legend.
titleTextStyle

Type:

object

Default:

null

Gets or Sets the style to use for the display text.

tooltipPosition

Type:: enumeration
Default:: auto

Gets or sets the Position to apply to the tooltip containers.

Members

auto
Type:string
use an automatic position for the category tooltips.
outsideStart
Type:string
position the category tooltip at the outside start of the value axis.
insideStart
Type:string
position the category tooltip at the inside start of the value axis.
insideEnd
Type:string
position the category tooltip at the inside end of the value axis.
outsideEnd
Type:string
position the category tooltip at the outside end of the value axis.

Code Sample

          //Initialization
<script type="text/javascript">
    $(function () {
        $("#chart").igDataChart({
            dataSource: data,
            axes: [{
                type: "categoryX",
                name: "NameAxis",
                label: "CountryName",
            }, {
                type: "numericY",
                name: "PopulationAxis",
            }],
            series: [            {
                type: "categoryToolTipLayer",
                name: "catToolTipLayer",
                title: "categoryToolTip",
                toolTipPosition: "insideStart"

            }
            ]
        });
    });
</script>

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].toolTipPosition;

//Set
$(".selector").igDataChart("option", "series",
        [{
            type: "categoryToolTipLayer",
            name: "catToolTipLayer",
            title: "categoryToolTip",
            toolTipPosition: "insideStart"
        }]
    );

tooltipTemplate

Type:: string
Default:: null

The name of template or the template itself that chart tooltip will use to render.

Code Sample

<!--
There are a number of properties available to the template related to the item or series it is used for.
  ${element}            -- The reference to tooltip DOM element.
  ${item}               -- The reference to current series item object.
  ${chart}              -- The reference to chart object.
  ${series}             -- The reference to current series object.
  ${actualItemBrush}    -- The item brush.
  ${actualSeriesBrush}  -- The series brush.
-->
<!-- Custom Tooltip Template -->
<script id="usEnergyProductionTemplate" type="text/x-jquery-tmpl">
    <div>
        <span style="color: ${actualSeriesBrush}">US </span>
        <span>${item.Year}</span><br />
        Total Energy: <span style="font-weight: bold">${item.UnitedStates}</span>
    </div>
</script>

//Initialization
$(".selector").igDataChart({
        series: [{
            name: "series1",
            type: "column",
            showTooltip: true,
            tooltipTemplate: "usEnergyProductionTemplate"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].tooltipTemplate;

//Set
$(".selector").igDataChart("option", "series",
    [{
            name: "series1",
            type: "column",
            showTooltip: true,
            tooltipTemplate: "usEnergyProductionTemplate"
    }]
);

transitionDuration

Type:: number
Default:: 0

Gets or sets the duration of the current series's morph.

Code Sample

//    Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            dataSource: data1,
            title: "Price Series 1",
            type: "column",
            xAxis: "xAxis",
            yAxis: "yAxis",
            valueMemberPath: "Item1",
            transitionDuration: 500
        }]
    });

//    Get
var series = $(".selector").igDataChart("option", "series");
series[0].transitionDuration;

//    Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            dataSource: data1,
            title: "Price Series 1",
            type: "column",
            xAxis: "xAxis",
            yAxis: "yAxis",
            valueMemberPath: "Item1",
            transitionDuration: 500
        }]
    );

transitionEasingFunction

Type:: object
Default:: null

Provides an easing function to use for the transitions. This should either be a well known name of an easing function (The only currently supported name is cubic), or it should be a function that takes a number and returns the output with the function applied.

Code Sample

           //Initialization
<script type="text/javascript">
    $(function () {
        $("#chart").igDataChart({
                dataSource: data,
                axes: [
                    {
                        name: "NameAxis",
                        type: "categoryX",
                        label: "CountryName"
                    },
                    {
                        name: "PopulationAxis",
                        type: "numericY",
                        minimumValue: 0,
                    }
                ],
                series: [
                    {
                        name: "2005Population",
                        type: "line",
                        title: "2005",
                        xAxis: "NameAxis",
                        yAxis: "PopulationAxis",
                        valueMemberPath: "Pop2005",
                        isTransitionInEnabled: true,
                        transitionEasingFunction: "cubic"
                    }
                ]
            });
    });
</script>

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].transitionEasingFunction;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "2005Population",
            type: "line",
            title: "2005",
            xAxis: "NameAxis",
            yAxis: "PopulationAxis",
            valueMemberPath: "Pop2005",
            isTransitionInEnabled: true,
            transitionEasingFunction: "cubic"
        }]
    );

transitionInDuration

Type:: number
Default:: 500

Gets or sets the duration of the current series's transition in morph in milliseconds.

Code Sample

          //Initialization
<script type="text/javascript">
    $(function () {
        $("#chart").igDataChart({
                dataSource: data,
                axes: [
                    {
                        name: "NameAxis",
                        type: "categoryX",
                        label: "CountryName"
                    },
                    {
                        name: "PopulationAxis",
                        type: "numericY",
                        minimumValue: 0,
                    }
                ],
                series: [
                    {
                        name: "2005Population",
                        type: "line",
                        title: "2005",
                        xAxis: "NameAxis",
                        yAxis: "PopulationAxis",
                        valueMemberPath: "Pop2005",
                        isTransitionInEnabled: true,
                        transitionInDuration: 500
                    }
                ]
            });
    });
</script>

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].transitionInDuration;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "2005Population",
            type: "line",
            title: "2005",
            xAxis: "NameAxis",
            yAxis: "PopulationAxis",
            valueMemberPath: "Pop2005",
            isTransitionInEnabled: true,
            transitionInDuration: 500
        }]
    );

transitionInMode

Type:: enumeration
Default:: auto

Gets or sets the method to transition in the series. Note: Transitions are not currently supported for stacked series.

Members

auto
Type:string
Series transitions in an automatically chosen way.
fromZero
Type:string
Series transitions in from the reference value of the value axis.
sweepFromLeft
Type:string
Series sweeps in from the left.
sweepFromRight
Type:string
Series sweeps in from the right.
sweepFromTop
Type:string
Series sweeps in from the top.
sweepFromBottom
Type:string
Series sweeps in from the bottom.
sweepFromCenter
Type:string
Series sweeps in from the center.
accordionFromLeft
Type:string
Series accordions in from the left.
accordionFromRight
Type:string
Series accordions in from the right.
accordionFromTop
Type:string
Series accordions in from the top.
accordionFromBottom
Type:string
Series accordions in from the bottom.
expand
Type:string
Series expands from the value midpoints.
sweepFromCategoryAxisMinimum
Type:string
Series sweeps in from the category axis minimum.
sweepFromCategoryAxisMaximum
Type:string
Series sweeps in from the category axis maximum.
sweepFromValueAxisMinimum
Type:string
Series sweeps in from the value axis minimum.
sweepFromValueAxisMaximum
Type:string
Series sweeps in from the value axis maximum.
accordionFromCategoryAxisMinimum
Type:string
Series accordions in from the category axis minimum.
accordionFromCategoryAxisMaximum
Type:string
Series accordions in from the category axis maximum.
accordionFromValueAxisMinimum
Type:string
Series accordions in from the value axis minimum.
accordionFromValueAxisMaximum
Type:string
Series accordions in from the value axis maximum.

Code Sample

        //Initialization
<script type="text/javascript">
    $(function () {
        $("#chart").igDataChart({
                dataSource: data,
                axes: [
                    {
                        name: "NameAxis",
                        type: "categoryX",
                        label: "CountryName"
                    },
                    {
                        name: "PopulationAxis",
                        type: "numericY",
                        minimumValue: 0,
                    }
                ],
                series: [
                    {
                        name: "2005Population",
                        type: "line",
                        title: "2005",
                        xAxis: "NameAxis",
                        yAxis: "PopulationAxis",
                        valueMemberPath: "Pop2005",
                        isTransitionInEnabled: true,
                        transitionInMode: "sweepFromRight"
                    }
                ]
            });
    });
</script>

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].isTransitionInMode;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "2005Population",
            type: "line",
            title: "2005",
            xAxis: "NameAxis",
            yAxis: "PopulationAxis",
            valueMemberPath: "Pop2005",
            isTransitionInEnabled: true,
            transitionInMode: "sweepFromRight"
        }]
    );

transitionInSpeedType

Type:: enumeration
Default:: auto

Gets or sets the speed to transition in the series data points.

Members

auto
Type:string
A speed type is automatically selected.
normal
Type:string
All speeds are normal, data points will arrive at the same time.
valueScaled
Type:string
Data points will arrive later if their value is further from the start point.
indexScaled
Type:string
Data points will arrive later if their index is further from the axis origin.
random
Type:string
Data points will arrive at random times.

Code Sample

          //Initialization
<script type="text/javascript">
    $(function () {
        $("#chart").igDataChart({
                dataSource: data,
                axes: [
                    {
                        name: "NameAxis",
                        type: "categoryX",
                        label: "CountryName"
                    },
                    {
                        name: "PopulationAxis",
                        type: "numericY"
                    }
                ],
                series: [
                    {
                        name: "2005Population",
                        type: "line",
                        title: "2005",
                        xAxis: "NameAxis",
                        yAxis: "PopulationAxis",
                        valueMemberPath: "Pop2005",
                        isTransitionInEnabled: true,
                        transitionInSpeedType: "indexScaled"
                    },
                    {
                        name: "1995Population",
                        type: "line",
                        title: "1995",
                        xAxis: "NameAxis",
                        yAxis: "PopulationAxis",
                        valueMemberPath: "Pop1995",
                        isTransitionInEnabled: true,
                        transitionInSpeedType: "indexScaled"
                    }
                ]
            });
    });
</script>

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].transitionInSpeedType;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "2005Population",
            type: "line",
            title: "2005",
            xAxis: "NameAxis",
            yAxis: "PopulationAxis",
            valueMemberPath: "Pop2005",
            isTransitionInEnabled: true,
            transitionInSpeedType: "indexScaled"
        }]
    );


trendLineBrush

Type:: string
Default:: null

Gets or sets the brush to use to draw the trend line.

Code Sample

// Initialization
$(".selector").igDataChart({
    axes: [{
        name: "xAxis",
        type: "categoryX",
        dataSource: data,
        label: "Label"
    }, {
        name: "yAxis",
        type: "numericY"
    }],
    series: [{
        name: "series1",
        dataSource: data,
        title: "Price",
        type: "financial",
        xAxis: "xAxis",
        yAxis: "yAxis",
        openMemberPath: "Open",
        highMemberPath: "High",
        lowMemberPath: "Low",
        closeMemberPath: "Close",
        trendLineType: "exponentialAverage",
        trendLineBrush: "grey"
    }]
});

// Get
var series = $(".selector").igDataChart("option", "series");
series[0].trendLineBrush;

// Set
$(".selector").igDataChart("option", "series",
    [{
        name: "series1",
        dataSource: data,
        title: "Price",
        type: "financial",
        xAxis: "xAxis",
        yAxis: "yAxis",
        openMemberPath: "Open",
        highMemberPath: "High",
        lowMemberPath: "Low",
        closeMemberPath: "Close",
        trendLineType: "exponentialAverage",
        trendLineBrush: "grey"
    }]
);

trendLinePeriod

Type:: number
Default:: 7

Gets or sets the moving average period for the current scatter series object.
The typical, and initial, value for trend line period is 7.

Code Sample

// Initialization
$(".selector").igDataChart({
    axes: [{
        name: "xAxis",
        type: "categoryX",
        dataSource: data,
        label: "Label"
    }, {
        name: "yAxis",
        type: "numericY"
    }],
    series: [{
        name: "series1",
        dataSource: data,
        title: "Price",
        type: "financial",
        xAxis: "xAxis",
        yAxis: "yAxis",
        openMemberPath: "Open",
        highMemberPath: "High",
        lowMemberPath: "Low",
        closeMemberPath: "Close",
        trendLineType: "simpleAverage",
        trendLinePeriod: 5
    }]
});

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].trendLinePeriod;

//Set
$(".selector").igDataChart("option", "series",
    [{
        name: "series1",
        dataSource: data,
        title: "Price",
        type: "financial",
        xAxis: "xAxis",
        yAxis: "yAxis",
        openMemberPath: "Open",
        highMemberPath: "High",
        lowMemberPath: "Low",
        closeMemberPath: "Close",
        trendLineType: "simpleAverage",
        trendLinePeriod: 5
    }]
);

trendLineThickness

Type:: number
Default:: 1.5

Gets or sets the thickness of the current scatter series object's trend line.

Code Sample

// Initialization
$(".selector").igDataChart({
    axes: [{
        name: "xAxis",
        type: "categoryX",
        dataSource: data,
        label: "Label"
    }, {
        name: "yAxis",
        type: "numericY"
    }],
    series: [{
        name: "series1",
        dataSource: data,
        title: "Price",
        type: "financial",
        xAxis: "xAxis",
        yAxis: "yAxis",
        openMemberPath: "Open",
        highMemberPath: "High",
        lowMemberPath: "Low",
        closeMemberPath: "Close",
        trendLineType: "simpleAverage",
        trendLineThickness: 3
    }]
});

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].trendLineThickness;

//Set
$(".selector").igDataChart("option", "series",
    [{
        name: "series1",
        dataSource: data,
        title: "Price",
        type: "financial",
        xAxis: "xAxis",
        yAxis: "yAxis",
        openMemberPath: "Open",
        highMemberPath: "High",
        lowMemberPath: "Low",
        closeMemberPath: "Close",
        trendLineType: "simpleAverage",
        trendLineThickness: 3
    }]
);

trendLineType

Type:: enumeration
Default:: none

Gets or sets the trend type for the current scatter series.

Members

none
Type:string
No trendline should display.
linearFit
Type:string
Linear fit.
quadraticFit
Type:string
Quadratic polynomial fit.
cubicFit
Type:string
Cubic polynomial fit.
quarticFit
Type:string
Quartic polynomial fit.
quinticFit
Type:string
Quintic polynomial fit.
logarithmicFit
Type:string
Logarithmic fit.
exponentialFit
Type:string
Exponential fit.
powerLawFit
Type:string
Powerlaw fit.
simpleAverage
Type:string
Simple moving average.
exponentialAverage
Type:string
Exponential moving average.
modifiedAverage
Type:string
Modified moving average.
cumulativeAverage
Type:string
Cumulative moving average.
weightedAverage
Type:string
Weighted moving average.

Code Sample

//Initialization
$(".selector").igDataChart({
    axes: [{
        name: "xAxis",
        type: "categoryX",
        dataSource: data,
        label: "Label"
    }, {
        name: "yAxis",
        type: "numericY"
    }],
    series: [{
        name: "series1",
        dataSource: data,
        title: "Price",
        type: "financial",
        xAxis: "xAxis",
        yAxis: "yAxis",
        openMemberPath: "Open",
        highMemberPath: "High",
        lowMemberPath: "Low",
        closeMemberPath: "Close",
        trendLineType: "simpleAverage"
    }]
});

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].trendLineType;

//Set
$(".selector").igDataChart("option", "series",
    [{
        name: "series1",
        dataSource: data,
        title: "Price",
        type: "financial",
        xAxis: "xAxis",
        yAxis: "yAxis",
        openMemberPath: "Open",
        highMemberPath: "High",
        lowMemberPath: "Low",
        closeMemberPath: "Close",
        trendLineType: "simpleAverage"
    }]
);

trendLineZIndex

Type:: number
Default:: 1001

Gets or sets the Z-Index of the trend line. Values greater than 1000 will result in the trend line being rendered in front of the series data.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "financial",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close",
            trendLineType: "simpleAverage",
            trendLineZIndex: 1200
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].trendLineZIndex;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "financial",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close",
            trendLineType: "simpleAverage",
            trendLineZIndex: 1200
        }]
    );

type

Type:: enumeration
Default:: null

Type of the series.

Members

area
Type:string
Specify the series as Area series.
bar
Type:string
Specify the series as Bar series.
column
Type:string
Specify the series as Column series.
line
Type:string
Specify the series as Line series.
rangeArea
Type:string
Specify the series as Range Area series.
rangeColumn
Type:string
Specify the series as Range Column series.
splineArea
Type:string
Specify the series as Spline Area series.
spline
Type:string
Specify the series as Spline series.
stepArea
Type:string
Specify the series as Step Area series.
stepLine
Type:string
Specify the series as Step Line series.
waterfall
Type:string
Specify the series as Waterfall series.
financial
Type:string
Specify the series as Financial series.
typicalPriceIndicator
Type:string
Specify the series as Typical Price Indicator series.
point
Type:string
Specify the series as Point series.
polarSplineArea
Type:string
Specify the series as Polar Spline Area series.
polarSpline
Type:string
Specify the series as Polar Spline series.
polarArea
Type:string
Specify the series as Polar Area series.
polarLine
Type:string
Specify the series as Polar Line series.
polarScatter
Type:string
Specify the series as Polar Scatter series.
radialColumn
Type:string
Specify the series as Radial Column series.
radialLine
Type:string
Specify the series as Radial Line series.
radialPie
Type:string
Specify the series as Radial Pie series.
radialArea
Type:string
Specify the series as Radial Area series.
scatter
Type:string
Specify the series as Scatter series.
scatterLine
Type:string
Specify the series as Scatter Line series.
scatterSpline
Type:string
Specify the series as Scatter Spline series.
scatterArea
Type:string
Specify the series as Scatter Area series.
scatterContour
Type:string
Specify the series as Scatter Contour series.
scatterPolygon
Type:string
Specify the series as Scatter Polygon series.
scatterPolyline
Type:string
Specify the series as Scatter Polyline series.
bubble
Type:string
Specify the series as Bubble series.
absoluteVolumeOscillatorIndicator
Type:string
Specify the series as Absolute Volume Oscillator Indicator series.
averageTrueRangeIndicator
Type:string
Specify the series as Average True Range Indicator series.
accumulationDistributionIndicator
Type:string
Specify the series as Accumulation Distribution Indicator series.
averageDirectionalIndexIndicator
Type:string
Specify the series as Average Directional Index Indicator series.
bollingerBandWidthIndicator
Type:string
Specify the series as Bollinger Band Width Indicator series.
chaikinOscillatorIndicator
Type:string
Specify the series as Chaikin Oscillator Indicator series.
chaikinVolatilityIndicator
Type:string
Specify the series as Chaikin Volitility Indicator series.
commodityChannelIndexIndicator
Type:string
Specify the series as Commodity Channel Index Indicator series.
detrendedPriceOscillatorIndicator
Type:string
Specify the series as Detrended Price Oscillator Indicator series.
easeOfMovementIndicator
Type:string
Specify the series as Ease Of Movement Indicator series.
fastStochasticOscillatorIndicator
Type:string
Specify the series as Fast Stochastic Oscillator Indicator series.
forceIndexIndicator
Type:string
Specify the series as Force Index Indicator series.
fullStochasticOscillatorIndicator
Type:string
Specify the series as Full Stochastic Oscillator Indicator series.
marketFacilitationIndexIndicator
Type:string
Specify the series as Market Facilitation Index Indicator series.
massIndexIndicator
Type:string
Specify the series as Mass Index Indicator series.
medianPriceIndicator
Type:string
Specify the series as Median Price Indicator series.
moneyFlowIndexIndicator
Type:string
Specify the series as Money Flow Index Indicator series.
movingAverageConvergenceDivergenceIndicator
Type:string
Specify the series as Moving Average Convergence Divergence Indicator series.
negativeVolumeIndexIndicator
Type:string
Specify the series as Negative Volume Index Indicator series.
onBalanceVolumeIndicator
Type:string
Specify the series as On Balance Volume Indicator series.
percentagePriceOscillatorIndicator
Type:string
Specify the series as Percentage Price Oscillator Indicator series.
percentageVolumeOscillatorIndicator
Type:string
Specify the series as Percentage Volume Oscillator Indicator series.
positiveVolumeIndexIndicator
Type:string
Specify the series as Positive Volume Index Indicator series.
priceVolumeTrendIndictor
Type:string
Specify the series as Price Volume Trend Indictor series.
rateOfChangeAndMomentumIndicator
Type:string
Specify the series as Rate Of Change And Momentum Indicator series.
relativeStrengthIndexIndicator
Type:string
Specify the series as Relative Strength Index Indicator series.
slowStochasticOscillatorIndicator
Type:string
Specify the series as Slow Stochastic Oscillator Indicator series.
standardDeviationIndicator
Type:string
Specify the series as Standard Deviation Indicator series.
stochRSIIndicator
Type:string
Specify the series as Stoch RSI Indicator series.
trixIndicator
Type:string
Specify the series as Trix Indicator series.
ultimateOscillatorIndicator
Type:string
Specify the series as Ultimate Oscillator Indicator series.
weightedCloseIndicator
Type:string
Specify the series as Weighted Close Indicator series.
williamsPercentRIndicator
Type:string
Specify the series as Williams Percent R Indicator series.
bollingerBandsOverlay
Type:string
Specify the series as Bollinger Bands Overlay series.
priceChannelOverlay
Type:string
Specify the series as Price Channel Overlay series.
customIndicator
Type:string
Specify the series as Custom Indicator series.
stackedBar
Type:string
Specify the series as Stacked Bar series.
stacked100Bar
Type:string
Specify the series as Stacked 100 Bar series.
stackedArea
Type:string
Specify the series as Stacked Area series.
stacked100Area
Type:string
Specify the series as Stacked 100 Area series.
stackedColumn
Type:string
Specify the series as Stacked Column series.
stacked100Column
Type:string
Specify the series as Stacked 100 Column series.
stackedLine
Type:string
Specify the series as Stacked Line series.
stacked100Line
Type:string
Specify the series as Stacked 100 Line series.
stackedSpline
Type:string
Specify the series as Stacked Spline series.
stacked100Spline
Type:string
Specify the series as Stacked 100 Spline series.
stackedSplineArea
Type:string
Specify the series as Stacked Spline Area series.
stacked100SplineArea
Type:string
Specify the series as Stacked 100 Spline Area series.
crosshairLayer
Type:string
Specify the series as a crosshair layer.
categoryHighlightLayer
Type:string
Specify the series as a category highlight layer.
categoryItemHighlightLayer
Type:string
Specify the series as a category item highlight layer.
itemToolTipLayer
Type:string
Specify the series as an item tooltip layer.
categoryToolTipLayer
Type:string
Specify the series as a category tooltip layer.
calloutLayer
Type:string
Specify the series as a callout layer.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].type;

unitsDisplayMode

Type:

enumeration

Default:

auto
Gets or sets the UnitsMode for the data legend.
Members
- auto
- Type:string
- Specifies automatic visibility of units based on series type.
- visible
- Type:string
- Specifies always visible units after series values.
- hidden
- Type:string
- Specifies hidden units after series values.
unitsText

Type:

string

Default:

null

Gets or sets the units text for the data legend.
unitsTextColor

Type:

string

Default:

null

Gets or sets the units text color.
unitsTextMarginBottom

Type:

number

Default:

0

The bottom margin of units text column in the data legend. Gets or sets the unitsTextMargin for the data legend.
unitsTextMarginLeft

Type:

number

Default:

0

The left margin of units text column in the data legend. Gets or sets the unitsTextMargin for the data legend.
unitsTextMarginRight

Type:

number

Default:

0

The right margin of units text column in the data legend. Gets or sets the unitsTextMargin for the data legend.
unitsTextMarginTop

Type:

number

Default:

0

The top margin of units text column in the data legend. Gets or sets the unitsTextMargin for the data legend.
unitsTextStyle

Type:

object

Default:

null

Gets or Sets the style to use for the units text.

unknownValuePlotting

Type:: enumeration
Default:: dontPlot

Determines how unknown values will be plotted on the chart. Null and Double.NaN are two examples of unknown values.

Members

linearInterpolate
Type:string
Plot the unknown value as the midpoint between surrounding known values using linear interpolation.
dontPlot
Type:string
Do not plot the unknown value on the chart.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            unknownValuePlotting: "linearInterpolate"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].unknownValuePlotting;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            unknownValuePlotting: "linearInterpolate"
        }]
    );

useBruteForce

Type:: bool
Default:: false

Gets or sets whether to use use brute force mode.

Code Sample

//Initialization
$(".selector").igDataChart({
        series: [{
            name: "series1",
            type: "column",
            useBruteForce: true
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].useBruteForce;

//Set
$(".selector").igDataChart("option", "series",
    [{
            name: "series1",
            type: "column",
            useBruteForce: true
    }]
);

useCartesianInterpolation

Type:: bool
Default:: true

Gets or sets whether Cartesian Interpolation should be used rather than Archimedian
spiral based interpolation.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            unknownValuePlotting: "linearInterpolate",
            useCartesianInterpolation: false
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].useCartesianInterpolation;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            unknownValuePlotting: "linearInterpolate",
            useCartesianInterpolation: false
        }]
    );

useHighMarkerFidelity

Type:: bool
Default:: false

Sets or Gets whether to increase marker fidelity for extreme data shapes that have lots of Y variation over short X intervals.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            useHighMarkerFidelity: true
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].useHighMarkerFidelity;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1",
            useHighMarkerFidelity: true
        }]
    );

useIndex

Type:: bool
Default:: false

Sets if the current layer should take up a brush/ordering index in the series collection to derive its color automatically.

Code Sample

          //Initialization
<script type="text/javascript">
    $(function () {
        $("#chart").igDataChart({
            dataSource: data,
            axes: [{
                type: "categoryX",
                name: "NameAxis",
                label: "CountryName",
            }, {
                type: "numericY",
                name: "PopulationAxis",
            }],
            series: [            {
                type: "categoryHighlightLayer",
                name: "categoryHighlightLayer",
                title: "categoryHighlight",
                useIndex: "true"
            }
            ]
        });
    });
</script>

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].useIndex;

//Set
$(".selector").igDataChart("option", "series",
        [{
            type: "categoryHighlightLayer",
            name: "categoryHighlightLayer",
            title: "categoryHighlight",
            useIndex: "true"
        }]
    );

useInterpolation

Type:: bool
Default:: false

Gets or sets whether the hover layer should use interpolation to position itself relative the closest values.

Code Sample

          //Initialization
<script type="text/javascript">
    $(function () {
        $("#chart").igDataChart({
            dataSource: data,
            axes: [{
                type: "categoryX",
                name: "NameAxis",
                label: "CountryName",
            }, {
                type: "numericY",
                name: "PopulationAxis",
            }],
            series: [            {
                type: "column",
                name: "2005Population",
                xAxis: "NameAxis",
                yAxis: "PopulationAxis",
                valueMemberPath: "Pop2005"
            },            {
                type: "line",
                name: "1995Population",
                xAxis: "NameAxis",
                yAxis: "PopulationAxis",
                valueMemberPath: "Pop1995"
            },            {
                type: "crosshairLayer",
                name: "crosshairLayer",
                title: "crosshair",
                useInterpolation: false,
                transitionDuration: 500,
                targetSeries: "2005Population",
                horizontalLineVisibility: "visible"
            }
            ]
        });
    });
</script>

//Get
var series = $(".selector").igDataChart("option", "series");
series[2].useInterpolation;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "crosshairLayer",
            title: "crosshair",
            type: "crosshairLayer",
            useInterpolation: false
        }]
    );

useLegend

Type:: bool
Default:: false

Sets if the current layer should have an entry in the legend of the chart. By default annotation layers are not present in the legend.

Code Sample

          //Initialization
<script type="text/javascript">
    $(function () {
        $("#chart").igDataChart({
            dataSource: data,
            axes: [{
                type: "categoryX",
                name: "NameAxis",
                label: "CountryName",
            }, {
                type: "numericY",
                name: "PopulationAxis",
            }],
            series: [            {
                name: "crosshairLayer",
                title: "crosshair",
                type: "crosshairLayer",
                useLegend: "true"
            }
            ]
        });
    });
</script>

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].useLegend;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "crosshairLayer",
            title: "crosshair",
            type: "crosshairLayer",
            useLegend: "true"
        }]
    );

useSingleShadow

Type:: bool
Default:: true

Gets or sets whether drop shadow is applied to the whole series visual or to each of the individual shapes forming the series.

Code Sample

// Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            title: "Sales",
            type: "column",
            xAxis: "xAxis",
            yAxis: "yAxis",
            valueMemberPath: "Value1",
            useSingleShadow: false
        }]
    });

// Get
var series = $(".selector").igDataChart("option", "series");
series[0].useSingleShadow;

// Set
$(".selector").igDataChart("series",
        [{
            name: "series1",
            useSingleShadow: false
        }]
    );

useSquareCutoffStyle

Type:: bool
Default:: false

Gets or sets whether to use squares when halting a render traversal rather than the shape of the coalesced area.

Code Sample

//Initialization
$(".selector").igDataChart({
        series: [{
            name: "series1",
            type: "column",
            useSquareCutoffStyle: true
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].useSquareCutoffStyle;

//Set
$(".selector").igDataChart("option", "series",
    [{
            name: "series1",
            type: "column",
            useSquareCutoffStyle: true
    }]
);

valueAxis

Type:: string
Default:: null

Gets the effective value axis for the current series object.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "angleAxis",
            type: "categoryAngle",
            label: "Label"
        }, {
            name: "radiusAxis",
            type: "numericRadius"
        }],
        series: [{
            name: "series1",
            title: 'Budget',
            type: "radialLine",
            angleAxis: "angleAxis",
            valueAxis: "radiusAxis",
            valueMemberPath: "Budget"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].valueAxis;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            title: 'Budget',
            type: "radialLine",
            angleAxis: "angleAxis",
            valueAxis: "radiusAxis",
            valueMemberPath: "Budget"
        }]
    );

valueFormatAbbreviation

Type:

enumeration

Default:

auto
Gets or sets mode for abbreviating large numbers displayed in the legend This property is ignored when setting ValueFormatSpecifiers or ValueFormatString properties.
Members
- auto
- Type:string
- Specifies abbreviation that is automatically resolves to shared abbreviation between multiple numbers, 2.5K for 2,500 and 2500K for 2,500,000.
- independent
- Type:string
- Specifies independent abbreviation for multiple numbers, 2.5K for 2,500 and 2.5M for 2,500,000.
- shared
- Type:string
- Specifies shared abbreviation between multiple numbers, 2.5K for 2,500 and 2500K for 2,500,000.
- kilo
- Type:string
- Specifies number abbreviation to thousands, 2.5K for 2,500.
- million
- Type:string
- Specifies number abbreviation to millions, 2.5M for 2,500,000.
- billion
- Type:string
- Specifies number abbreviation to billion, 2.5B for 2,500,000,000.
- trillion
- Type:string
- Specifies number abbreviation to trillion, 2.5T for 2,500,000,000,000.
- quadrillion
- Type:string
- Specifies number abbreviation to quadrillion, 2.5Q for 2,500,000,000,000,000.
- unset
- Type:string
- Specifies default abbreviation.
- none
- Type:string
- Specifies no abbreviation of numbers.
valueFormatCulture

Type:

string

Default:

null

Gets or sets globalization culture when displaying values as currencies, e.g. use "en-GB" to display British pound symbol when the ValueFormatMode property is set to 'Currency' mode
This property is ignored when setting ValueFormatSpecifiers or ValueFormatString properties.
valueFormatCurrencyCode

Type:

string

Default:

null

Gets or sets the currency code used for displaying currency symbol next to values, e.g. USD for $, EUR for €
This property is ignored when setting ValueFormatSpecifiers or ValueFormatString properties.
valueFormatMaxFractions

Type:

number

Default:

-1

Gets or sets maximum digits for formating numbers displayed in the legend
This property is ignored when setting ValueFormatSpecifiers or ValueFormatString properties.
valueFormatMinFractions

Type:

number

Default:

-1

Gets or sets minimum digits for formating numbers displayed in the legend
This property is ignored when setting ValueFormatSpecifiers or ValueFormatString properties.
valueFormatMode

Type:

enumeration

Default:

auto
Gets or sets the mode for displaying values in the data legend, e.g. Currency ($500.25), Decimal (500.25), Integer (500).
Members
- auto
- Type:string
- Specifies automatic mode that resolves to best value display mode.
- decimal
- Type:string
- Specifies values as decimal number, e.g. 170.25 for 170.25.
- currency
- Type:string
- Specifies values with currency symbol, e.g. $170.25 for 170.25.
valueFormatSpecifiers

Type:

object

Default:

null

Gets or sets the format specifiers to use with the ValueFormatString string.
valueFormatString

Type:

string

Default:

null

Gets or sets the format string for values displayed in the data legend.
valueFormatUseGrouping

Type:

bool

Default:

true

Gets or sets whether or not use groupping sperator, e.g, 15,000 for 15000
This property is ignored when setting ValueFormatSpecifiers or ValueFormatString properties.
valueMemberAsLegendLabel

Type:

string

Default:

null

Gets or sets the label displayed before series value in the Data Legend.
valueMemberAsLegendUnit

Type:

string

Default:

null

Gets or sets the unit displayed after series value in the Data Legend.

valueMemberPath

Type:: string
Default:: null

Gets or sets the item path that provides the values for the current series.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "angleAxis",
            type: "categoryAngle",
            label: "Label"
        }, {
            name: "radiusAxis",
            type: "numericRadius"
        }],
        series: [{
            name: "series1",
            title: 'Budget',
            type: "radialLine",
            angleAxis: "angleAxis",
            valueAxis: "radiusAxis",
            valueMemberPath: "Budget"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].valueMemberPath;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            title: 'Budget',
            type: "radialLine",
            angleAxis: "angleAxis",
            valueAxis: "radiusAxis",
            valueMemberPath: "Budget"
        }]
    );

valueRowVisible

Type:

bool

Default:

false

Gets or sets whether to show series rows.
valueTextColor

Type:

string

Default:

null

Gets or sets the units text color.
valueTextMarginBottom

Type:

number

Default:

0

The bottom margin of value text column in the data legend. Gets or sets the ValueTextMargin for the data legend.
valueTextMarginLeft

Type:

number

Default:

2

The left margin of value text column in the data legend. Gets or sets the ValueTextMargin for the data legend.
valueTextMarginRight

Type:

number

Default:

2

The right margin of value text column in the data legend. Gets or sets the ValueTextMargin for the data legend.
valueTextMarginTop

Type:

number

Default:

0

The top margin of value text column in the data legend. Gets or sets the ValueTextMargin for the data legend.
valueTextStyle

Type:

object

Default:

null

Gets or Sets the style to use for the units text.
valueTextUseSeriesColors

Type:

bool

Default:

false

Gets or sets whether to use series colors when displaying values in the legend.
valueTextWhenMissingData

Type:

string

Default:

"N/A"

Gets or sets text displayed when data column is missing a value, e.g. "no data".
verticalLineStroke

Type:

string

Default:

null

Gets or sets the color to use for the vertical line. Leave null for an automatic value.

verticalLineVisibility

Type:: enumeration
Default:: visible

Gets or sets whether the vertical crosshair portion of the layer should be visible.

Members

visible
Type:string
the vertical crosshair portion of the layer should be visible.
collapsed
Type:string
the vertical crosshair portion of the layer should not be visible.

Code Sample

        //Initialization
<script type="text/javascript">
    $(function () {
        $("#chart").igDataChart({
            dataSource: data,
            axes: [{
                type: "categoryX",
                name: "NameAxis",
                label: "CountryName",
            }, {
                type: "numericY",
                name: "PopulationAxis",
            }],
            series: [            {
                type: "column",
                name: "2005Population",
                xAxis: "NameAxis",
                yAxis: "PopulationAxis",
                valueMemberPath: "Pop2005"
            },            {
                type: "line",
                name: "1995Population",
                xAxis: "NameAxis",
                yAxis: "PopulationAxis",
                valueMemberPath: "Pop1995"
            },            {
                type: "crosshairLayer",
                name: "crosshairLayer",
                title: "crosshair",
                useInterpolation: false,
                transitionDuration: 500,
                targetSeries: "2005Population",
                verticalLineVisibility: "visible"
            }
            ]
        });
    });
</script>

//Get
var series = $(".selector").igDataChart("option", "series");
series[2].verticalLineVisibilty;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "crosshairLayer",
            title: "crosshair",
            type: "crosshairLayer",
            verticalLineVisiblity: "visible"
        }]
    );

volumeMemberPath

Type:: string
Default:: null

Gets or sets the volume mapping property for the current series object.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "categoryX",
            dataSource: data,
            label: "Label"
        },
        {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "financial",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close",
            volumeMemberPath: "Volume"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].volumeMemberPath;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            dataSource: data,
            title: "Price",
            type: "financial",
            xAxis: "xAxis",
            yAxis: "yAxis",
            openMemberPath: "Open",
            highMemberPath: "High",
            lowMemberPath: "Low",
            closeMemberPath: "Close",
            volumeMemberPath: "Volume"
        }]
    );

xAxis

Type:: string
Default:: null

Gets or sets the effective x-axis for the current object.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].xAxis;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1"
        }]
    );

xAxisAnnoationFormatLabel

Type:

object

Default:

null

Sets or gets a function which takes an object that produces a formatted label for displaying in the x axis annotation.
xAxisAnnotationBackground

Type:

string

Default:

null

Gets or sets the color to use for the x axis annotation backing. Leave unset for an automatic value.
xAxisAnnotationInterpolatedValuePrecision

Type:

number

Default:

-1

Gets or sets the precision to use displaying values for interpolated crosshair positions.
xAxisAnnotationOutline

Type:

string

Default:

null

Gets or sets the color to use for the x axis annotation outline. Leave unset for an automatic value.
xAxisAnnotationPaddingBottom

Type:

number

Default:

NaN

Gets or sets the bottom padding to use withing the x axis annotation callout. Leaving this NaN will use an automatic value related to the axis label margins.
xAxisAnnotationPaddingLeft

Type:

number

Default:

NaN

Gets or sets the left padding to use withing the x axis annotation callout. Leaving this NaN will use an automatic value related to the axis label margins.
xAxisAnnotationPaddingRight

Type:

number

Default:

NaN

Gets or sets the right padding to use withing the x axis annotation callout. Leaving this NaN will use an automatic value related to the axis label margins.
xAxisAnnotationPaddingTop

Type:

number

Default:

NaN

Gets or sets the top padding to use withing the x axis annotation callout. Leaving this NaN will use an automatic value related to the axis label margins.
xAxisAnnotationStrokeThickness

Type:

number

Default:

NaN

Gets or sets the stroke thickness for the x axis annotation backing. Leave unset for an automatic value.
xAxisAnnotationTextColor

Type:

string

Default:

null

Gets or sets the color to use for the x axis annotation text. Leave unset for an automatic value.
xMemberAsLegendLabel

Type:

string

Default:

null

Gets or sets the label displayed before series x value in the Data Legend.
xMemberAsLegendUnit

Type:

string

Default:

null

Gets or sets the unit displayed after series x value in the Data Legend.

xMemberPath

Type:: string
Default:: null

Gets or sets the value mapping property for the current series object.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].xMemberPath;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1"
        }]
    );

yAxis

Type:: string
Default:: null

Gets or sets the effective y-axis for the current object.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].yAxis;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1"
        }]
    );

yAxisAnnoationFormatLabel

Type:

object

Default:

null

Sets or gets a function which takes an object that produces a formatted label for displaying in the y axis annotation.
yAxisAnnotationBackground

Type:

string

Default:

null

Gets or sets the color to use for the y axis annotation backing. Leave unset for an automatic value.
yAxisAnnotationInterpolatedValuePrecision

Type:

number

Default:

-1

Gets or sets the precision to use displaying values for interpolated crosshair positions.
yAxisAnnotationOutline

Type:

string

Default:

null

Gets or sets the color to use for the y axis annotation outline. Leave unset for an automatic value.
yAxisAnnotationPaddingBottom

Type:

number

Default:

NaN

Gets or sets the bottom padding to use withing the y axis annotation callout. Leaving this NaN will use an automatic value related to the axis label margins.
yAxisAnnotationPaddingLeft

Type:

number

Default:

NaN

Gets or sets the left padding to use withing the y axis annotation callout. Leaving this NaN will use an automatic value related to the axis label margins.
yAxisAnnotationPaddingRight

Type:

number

Default:

NaN

Gets or sets the right padding to use withing the y axis annotation callout. Leaving this NaN will use an automatic value related to the axis label margins.
yAxisAnnotationPaddingTop

Type:

number

Default:

NaN

Gets or sets the top padding to use withing the y axis annotation callout. Leaving this NaN will use an automatic value related to the axis label margins.
yAxisAnnotationStrokeThickness

Type:

number

Default:

NaN

Gets or sets the stroke thickness for the y axis annotation backing. Leave unset for an automatic value.
yAxisAnnotationTextColor

Type:

string

Default:

null

Gets or sets the color to use for the y axis annotation text. Leave unset for an automatic value.
yMemberAsLegendLabel

Type:

string

Default:

null

Gets or sets the label displayed before series y value in the Data Legend.
yMemberAsLegendUnit

Type:

string

Default:

null

Gets or sets the unit displayed after series y value in the Data Legend.

yMemberPath

Type:: string
Default:: null

Gets or sets the value mapping property for the current series object.

Code Sample

//Initialization
$(".selector").igDataChart({
        axes: [{
            name: "xAxis",
            type: "numericX"
        }, {
            name: "yAxis",
            type: "numericY"
        }],
        series: [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1"
        }]
    });

//Get
var series = $(".selector").igDataChart("option", "series");
series[0].yMemberPath;

//Set
$(".selector").igDataChart("option", "series",
        [{
            name: "series1",
            type: "scatter",
            xAxis: "xAxis",
            yAxis: "yAxis",
            xMemberPath: "Index",
            yMemberPath: "Value1"
        }]
    );

shouldAutoExpandMarginForInitialLabels

Type:

bool

Default:

false

Gets or sets a whether the series viewer should auto expand margins to accomodate the initial horizontal axis labels.

size

Type:: object
Default:: null

To set both dimensions of the chart simultaneously an object with a width and height property can be provided.

Code Sample

//Initialize
$(".selector").igDataChart({
    size: { width: 450, height: 450 }
});

//Get
var size = $(".selector").igDataChart("option", "size");
//Set
var size = $(".selector").igDataChart("option", "size", { width: 450, height: 450 });

squareMarkerTemplate

Type:: object
Default:: null

Gets or sets the template to use for square markers on the chart.
Defines the marker template used for
series with a marker type of square.
The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

Code Sample

//Initialize
$(".selector").igDataChart({
    squareMarkerTemplate: {
        measure: function(measureInfo) {
            measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
            measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
            measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
            measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
            measureInfo.data;       // if present, represents the contextual data for this template]
        },
        render: function (renderInfo) {
            renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
            renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
            renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
            renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
            renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
            renderInfo.data;               //    if present, specifies the data that is in context for this content
            renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
        }
    }
});

subtitle

Type:: string
Default:: null

The subtitle to display for the component.

Code Sample

//  Initialization
    $(".selector").igDataChart({
    title: "Energy Use Per Country",
    titleTextColor: "red",
    titleTextStyle: "24pt Verdona",
    subtitle:"Results over a two year period",
    subtitleTextColor: "blue",
    subtitleTextStyle: "16pt Verdona"
});

    //Get
    var subtitleValue = $(".selector").igDataChart("option", "subtitle");

    //Set
    $(".selector").igDataChart("option", "subtitle", "Results over a two year period");

subtitleBottomMargin

Type:: number
Default:: 0

The bottom margin to use for the subtitle.

Code Sample

  //    Initialization
      $(".selector").igDataChart({
    title: "Energy Use Per Country",
    titleTextColor: "red",
    titleTextStyle: "24pt Verdona",
    subtitle:"Results over a two year period",
    subtitleTextColor: "blue",
    subtitleTextStyle: "16pt Verdona",
    subtitleBottomMargin: 10
});

    //Get
    var subtitleBottomMarginValue = $(".selector").igDataChart("option", "subtitleBottomMargin");

    //Set
    $(".selector").igDataChart("option", "subtitleBottomMargin", 10);

subtitleHorizontalAlignment

Type:: enumeration
Default:: center

the horizontal alignment to use for the subtitle.

Members

left
Type:string
left aligns the subtitle.
center
Type:string
center aligns the subtitle.
right
Type:string
right aligns the subtitle.

Code Sample

//   Initialization
    $(".selector").igDataChart({
  title: "Energy Use Per Country",
  titleTextColor: "red",
  titleTextStyle: "24pt Verdona",
  subtitle:"Results over a two year period",
  subtitleTextColor: "blue",
  subtitleTextStyle: "16pt Verdona",
  subtitleHorizontalAlignment: "center"
});

  //Get
  var subtitleHorizontalAlignmentValue = $(".selector").igDataChart("option", "subtitleHorizontalAlignment");

  //Set
  $(".selector").igDataChart("option", "subtitleHorizontalAlignment", "center");

subtitleLeftMargin

Type:: number
Default:: 0

The left margin to use for the subtitle.

Code Sample

// Initialization
      $(".selector").igDataChart({
    title: "Energy Use Per Country",
    titleTextColor: "red",
    titleTextStyle: "24pt Verdona",
    subtitle:"Results over a two year period",
    subtitleTextColor: "blue",
    subtitleTextStyle: "16pt Verdona",
    subtitleLeftMargin: 10
});

    //Get
    var subtitleLeftMarginValue = $(".selector").igDataChart("option", "subtitleLeftMargin");

    //Set
    $(".selector").igDataChart("option", "subtitleLeftMargin", 10);

subtitleRightMargin

Type:: number
Default:: 0

The right margin to use for the subtitle.

Code Sample

//  Initialization
      $(".selector").igDataChart({
    title: "Energy Use Per Country",
    titleTextColor: "red",
    titleTextStyle: "24pt Verdona",
    subtitle:"Results over a two year period",
    subtitleTextColor: "blue",
    subtitleTextStyle: "16pt Verdona",
    subtitleRightMargin: 10
});

    //Get
    var subtitleRightMarginValue = $(".selector").igDataChart("option", "subtitleRightMargin");

    //Set
    $(".selector").igDataChart("option", "subtitleRightMargin", 10);

subtitleTextColor

Type:: object
Default:: black

The color to use for the subtitle.

Code Sample

//  Initialization
      $(".selector").igDataChart({
    title: "Energy Use Per Country",
    titleTextColor: "red",
    titleTextStyle: "24pt Verdona",
    subtitle:"Results over a two year period",
    subtitleTextColor: "blue",
    subtitleTextStyle: "16pt Verdona",
    subtitleLeftMargin: 10
});

    //Get
    var subtitleTextColorValue = $(".selector").igDataChart("option", "subtitleTextColor");

    //Set
    $(".selector").igDataChart("option", "subtitleTextColor", "blue");

subtitleTextStyle

Type:: string
Default:: null

The css font property to use for the title.

Code Sample

  //    Initialization
      $(".selector").igDataChart({
    title: "Energy Use Per Country",
    titleTextColor: "red",
    titleTextStyle: "24pt Verdona",
    subtitle:"Results over a two year period",
    subtitleTextColor: "blue",
    subtitleTextStyle: "16pt Verdona",
    subtitleLeftMargin: 10
});

    //Get
    var subtitleTextStyleValue = $(".selector").igDataChart("option", "subtitleTextStyle");

    //Set
    $(".selector").igDataChart("option", "subtitleTextStyle", "16pt Verdona");

subtitleTopMargin

Type:: number
Default:: 0

The top margin to use for the subtitle.

Code Sample

  //    Initialization
      $(".selector").igDataChart({
    title: "Energy Use Per Country",
    titleTextColor: "red",
    titleTextStyle: "24pt Verdona",
    subtitle:"Results over a two year period",
    subtitleTextColor: "blue",
    subtitleTextStyle: "16pt Verdona",
    subtitleTopMargin: 10
});

    //Get
    var subtitleTopMarginValue = $(".selector").igDataChart("option", "subtitleTopMargin");

    //Set
    $(".selector").igDataChart("option", "subtitleTopMargin", 10);

syncChannel

Type:: string
Default:: null

The channel name to use to sync this chart with other charts.

Code Sample

//Initialize
$(".selector").igDataChart({
    syncChannel: "syncCharts"
});

//Get
var syncChannel = $(".selector").igDataChart("option", "syncChannel");
//Set
var syncChannel = $(".selector").igDataChart("option", "syncChannel", "syncCharts");

synchronizeHorizontally

Type:: bool
Default:: false

Whether the chart should be synchronized horizontally.

Code Sample

//  Initialization
$(".selector").igDataChart({
        synchronizeHorizontally: false
    });

//  Get
var opValue = $(".selector").igDataChart("option", "synchronizeHorizontally");

//  Set
$(".selector").igDataChart("option", "synchronizeHorizontally", false);

synchronizeVertically

Type:: bool
Default:: true

Whether the chart should be synchronized vertically.

Code Sample

//  Initialization
$(".selector").igDataChart({
        synchronizeVertically: false
    });

//  Get
var opValue = $(".selector").igDataChart("option", "synchronizeVertically");

//  Set
$(".selector").igDataChart("option", "synchronizeVertically", false);

tetragramMarkerTemplate

Type:: object
Default:: null

Gets or sets the template to use for tetragram markers on the chart.
Defines the marker template used for
series with a marker type of tetragram.
The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

Code Sample

//Initialize
$(".selector").igDataChart({
    tetragramMarkerTemplate: {
        measure: function(measureInfo) {
            measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
            measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
            measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
            measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
            measureInfo.data;       // if present, represents the contextual data for this template]
        },
        render: function (renderInfo) {
            renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
            renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
            renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
            renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
            renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
            renderInfo.data;               //    if present, specifies the data that is in context for this content
            renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
        }
    }
});

theme

Type:

string

Default:

"c"

The swatch used to style this widget.

Code Sample

//Initialize
$(".selector").igDataChart({
theme: "metro"
});

//Get
var theme = $(".selector").igDataChart("option", "theme");

title

Type:: string
Default:: null

The title to display for the component.

Code Sample

//   Initialization
    $(".selector").igDataChart({
  title: "Energy Use Per Country",
  titleTextColor: "red",
  titleTextStyle: "24pt Verdona"
});

    //Get
    var titleValue = $(".selector").igDataChart("option", "title");

    //Set
    $(".selector").igDataChart("option", "title", "Energy Use Per Country");

titleBottomMargin

Type:: number
Default:: 0

The bottom margin to use for the title.

Code Sample

//    Initialization
    $(".selector").igDataChart({
  title: "Energy Use Per Country",
  titleTextColor: "red",
  titleTextStyle: "24pt Verdona",
  titleBottomMargin: 10
});

    //Get
    var titleBottomMarginValue = $(".selector").igDataChart("option", "titleBottomMargin");

    //Set
    $(".selector").igDataChart("option", "titleBottomMargin", 10);

titleHorizontalAlignment

Type:: enumeration
Default:: center

the horizontal alignment to use for the title.

Members

left
Type:string
left aligns the title.
center
Type:string
center aligns the title.
right
Type:string
right aligns the title.

Code Sample

//   Initialization
    $(".selector").igDataChart({
  title: "Energy Use Per Country",
  titleTextColor: "red",
  titleTextStyle: "24pt Verdona",
  titleHorizontalAlignment: "center"
});

    //Get
    var titleHorizontalAlignmentValue = $(".selector").igDataChart("option", "titleHorizontalAlignment");

    //Set
    $(".selector").igDataChart("option", "titleHorizontalAlignment", "center");

titleLeftMargin

Type:: number
Default:: 0

The left margin to use for the title.

Code Sample

//    Initialization
    $(".selector").igDataChart({
  title: "Energy Use Per Country",
  titleTextColor: "red",
  titleTextStyle: "24pt Verdona",
  titleLeftMargin: 10
});

    //Get
    var titleLeftMarginValue = $(".selector").igDataChart("option", "titleLeftMargin");

    //Set
    $(".selector").igDataChart("option", "titleLeftMargin", 10);

titleRightMargin

Type:: number
Default:: 0

The right margin to use for the title.

Code Sample

//    Initialization
    $(".selector").igDataChart({
  title: "Energy Use Per Country",
  titleTextColor: "red",
  titleTextStyle: "24pt Verdona",
  titleRightMargin: 10
});

    //Get
    var titleRightMarginValue = $(".selector").igDataChart("option", "titleRightMargin");

    //Set
    $(".selector").igDataChart("option", "titleRightMargin", 10);

titleTextColor

Type:: object
Default:: black

The color to use for the title.

Code Sample

//    Initialization
    $(".selector").igDataChart({
  title: "Energy Use Per Country",
  titleTextColor: "red",
  titleTextStyle: "24pt Verdona",
  titleBottomMargin: 10
});

    //Get
    var titleTextColorValue = $(".selector").igDataChart("option", "titleTextColor");

    //Set
    $(".selector").igDataChart("option", "titleTextColor", "red");

titleTextStyle

Type:: string
Default:: null

The css font property to use for the title.

Code Sample

//    Initialization
    $(".selector").igDataChart({
  title: "Energy Use Per Country",
  titleTextColor: "red",
  titleTextStyle: "24pt Verdona",
  titleBottomMargin: 10
});

    //Get
    var titleTextStyleValue = $(".selector").igDataChart("option", "titleTextStyle");

    //Set
    $(".selector").igDataChart("option", "titleTextStyle", "24pt Verdona");

titleTopMargin

Type:: number
Default:: 0

The top margin to use for the title.

Code Sample

//    Initialization
    $(".selector").igDataChart({
  title: "Energy Use Per Country",
  titleTextColor: "red",
  titleTextStyle: "24pt Verdona",
  titleTopMargin: 10
});

    //Get
    var titleTopMarginValue = $(".selector").igDataChart("option", "titleTopMargin");

    //Set
    $(".selector").igDataChart("option", "titleTopMargin", 10);

topMargin

Type:

number

Default:

NaN

Sets or gets the top margin to use around the chart content in the canvas.

Code Sample

//Initialize
$(".selector").igDataChart({
topMargin : 20
});

//Get
var margin = $(".selector").igDataChart("option", "topMargin");

//Set
$(".selector").igDataChart("option", "topMargin", 20);

triangleMarkerTemplate

Type:: object
Default:: null

Gets or sets the template to use for triangle markers on the chart.
Defines the marker template used for
series with a marker type of triangle.
The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

Code Sample

//Initialize
$(".selector").igDataChart({
    triangleMarkerTemplate: {
        measure: function(measureInfo) {
            measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
            measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
            measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
            measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
            measureInfo.data;       // if present, represents the contextual data for this template]
        },
        render: function (renderInfo) {
            renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
            renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
            renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
            renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
            renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
            renderInfo.data;               //    if present, specifies the data that is in context for this content
            renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
        }
    }
});

useTiledZooming

Type:: bool
Default:: false

Sets whether the series viewer should use cached tiles during zooms rather than the default live content.

Code Sample

//  Initialization
$(".selector").igDataChart({
        useTiledZooming: true
    });

//  Get
var opValue = $(".selector").igDataChart("option", "useTiledZooming");

//  Set
$(".selector").igDataChart("option", "useTiledZooming", true);

verticalZoomable
Deprecated

Type:: bool
Default:: false

Gets or sets the current Chart's vertical zoomability. This option is deprecated - please use `isVerticalZoomEnabled` instead.

Code Sample

//  Initialization
$(".selector").igDataChart({
        verticalZoomable: true
    });

//  Get
var opValue = $(".selector").igDataChart("option", "verticalZoomable");

//  Set
$(".selector").igDataChart("option", "verticalZoomable", true);

width

Type:: enumeration
Default:: null

The width of the chart. It can be set as a number in pixels, string (px) or percentage (%).

Code Sample

// Initialization
$(".selector").igDataChart({
    width: "700px"
});

// Get
var width = $(".selector").igDataChart("option", "width");

// Set
$(".selector").igDataChart("option", "width", "700px");


windowPositionHorizontal

Type:: number
Default:: 0

A number between 0 and 1 determining the position of the horizontal scroll.
This property is effectively a shortcut to the X position of the WindowRect property.

Code Sample

//  Initialization
$(".selector").igDataChart({
        windowPositionHorizontal: 0.25
    });

//  Get
var opValue = $(".selector").igDataChart("option", "windowPositionHorizontal");

//  Set
$(".selector").igDataChart("option", "windowPositionHorizontal", 0.25);

windowPositionVertical

Type:: number
Default:: 0

A number between 0 and 1 determining the position of the vertical scroll.
This property is effectively a shortcut to the Y position of the WindowRect property.

Code Sample

//  Initialization
$(".selector").igDataChart({
        windowPositionVertical: 0.25
    });

//  Get
var opValue = $(".selector").igDataChart("option", "windowPositionVertical");

//  Set
$(".selector").igDataChart("option", "windowPositionVertical", 0.25);

windowRect

Type:: object
Default:: null

A rectangle representing the portion of the chart currently in view.
A rectangle at X=0, Y=0 with a Height and Width of 1 implies the entire plotting area is in view. A Height and Width of .5 would imply that the view is halfway zoomed in.
The provided object should have numeric properties called left, top, width and height.

Code Sample

//    Initialization
$(".selector").igDataChart({
  windowRect:
      {
          left: 0,
          top: 0,
          width: 0.5,
          height: 0.5
      }
});

//    Get
var opValue = $(".selector").igDataChart("option", "windowRect");

//    Set
$(".selector").igDataChart("option", "windowRect",
  {
    left: 0,
    top: 0,
    width: 0.5,
    height: 0.5
});

windowRectMinWidth

Type:: number
Default:: 0

Sets or gets the minimum width that the window rect is allowed to reach before being clamped.
Decrease this value if you want to allow for further zooming into the viewer.
If this value is lowered too much it can cause graphical corruption due to floating point arithmetic inaccuracy.

Code Sample

// Initialization
$(".selector").igDataChart({
    windowRectMinWidth: 0.5
});

// Get
var windowRectMinWidth = $(".selector").igDataChart("option", "windowRectMinWidth");

// Set
$(".selector").igDataChart("option", "windowRectMinWidth", 0.5);


windowResponse

Type:: enumeration
Default:: null

The response to user panning and zooming: whether to update the view immediately while the user action is happening, or to defer the update to after the user action is complete. The user action will be an action such as a mouse drag which causes panning and/or zooming to occur.

Members

deferred
Type:string
Defer the view update until after the user action is complete.
immediate
Type:string
Update the view immediately while the user action is happening.

Code Sample

//  Initialization
$(".selector").igDataChart({
        windowResponse: "immediate"
    });

//  Get
var opValue = $(".selector").igDataChart("option", "windowResponse");

//  Set
$(".selector").igDataChart("option", "windowResponse", "immediate");

windowScaleHorizontal

Type:: number
Default:: 1

A number between 0 and 1 determining the scale of the horizontal zoom.
This property is effectively a shortcut to the Width of the WindowRect property.

Code Sample

//  Initialization
$(".selector").igDataChart({
        windowScaleHorizontal: 0.5
    });

//  Get
var opValue = $(".selector").igDataChart("option", "windowScaleHorizontal");

//  Set
$(".selector").igDataChart("option", "windowScaleHorizontal", 0.5);

windowScaleVertical

Type:: number
Default:: 1

A number between 0 and 1 determining the scale of the vertical zoom.
This property is effectively a shortcut to the Height of the WindowRect property.

Code Sample

//  Initialization
$(".selector").igDataChart({
        windowScaleVertical: 0.5
    });

//  Get
var opValue = $(".selector").igDataChart("option", "windowScaleVertical");

//  Set
$(".selector").igDataChart("option", "windowScaleVertical", 0.5);

zoomTileCacheSize

Type:: number
Default:: 30

Sets the maximum number of zoom tiles that the series viewer should cache while in tiled zooming mode.

Code Sample

//  Initialization
$(".selector").igDataChart({
        zoomTileCacheSize: 30
    });

//  Get
var opValue = $(".selector").igDataChart("option", "zoomTileCacheSize");

//  Set
$(".selector").igDataChart("option", "zoomTileCacheSize", 30);

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details

assigningCategoryMarkerStyle

Cancellable:: false

Event fired to allow you to override the style of markers for the items in a category or financial series. Only fires if you set allowCustomCategoryMarkerStyle to true for a series.
Function takes arguments evt and ui.
Use ui.chart to get reference to chart object.
Use ui.series to get reference to current series object.
Use ui.startIndex to get the start index for the current items.
Use ui.endIndex to get the end index for the current items.
Use ui.hasDateRange to tell if you should use the startDate and endDate to know the current items instead of startIndex/endIndex.
Use ui.startDate if ui.hasDateRange is true.
Use ui.endDate if ui.hasDateRange is true.
Use ui.getItems to get all the items associated with the event (only if necessary).
Use ui.fill to get or set the fill to use for the current item.
Use ui.stroke to get or set the stroke to use for the current item.
Use ui.opacity to get or set the opacity to use for the current item.
Use ui.highlightingHandled to set if the default highlighting behavior should not run, given that you are handling it in this event.
Use ui.maxAllSeriesHighlightingProgress to get the maximum highlighted progress across all series.
Use ui.sumAllSeriesHighlightingProgress to get the sum of highlighting progtess across all series.
Use ui.highlightingInfo.progress to tell what the highlighting progress is for the current item, if highlightingInfo is not null.
Use ui.highlightingInfo.state to tell whether the current item is currently highlighting in or out, is static, if highlightingInfo is not null.

Code Sample

      // Delegate
     $(document).delegate(".selector", "igdatachartassigningcategorymarkerstyle", function (evt, ui) {

    // Overrides the default strokeThickness property of the marker.
    ui.strokeThickness;

    // Overrides the default strokeDashArray property of the marker.
    ui.strokeDashArray;

    // Overrides the default strokeDashCap property of the marker.
    ui.strokeDashCap;

    // Overrides the default radiusX property.
    ui.radiusX;

    // Overrides the default radiusY property.
    ui.radiusY;
});

// Initialize
$(".selector").igDataChart({
    assigningCategoryMarkerStyle: function (evt, ui) {
    }
});


assigningCategoryStyle

Cancellable:: false

Event fired to allow you to override the style of items in a category or financial series. Only fires if you set allowCustomCategoryStyle to true for a series.
Function takes arguments evt and ui.
Use ui.chart to get reference to chart object.
Use ui.series to get reference to current series object.
Use ui.startIndex to get the start index for the current items.
Use ui.endIndex to get the end index for the current items.
Use ui.hasDateRange to tell if you should use the startDate and endDate to know the current items instead of startIndex/endIndex.
Use ui.startDate if ui.hasDateRange is true.
Use ui.endDate if ui.hasDateRange is true.
Use ui.getItems to get all the items associated with the event (only if necessary).
Use ui.fill to get or set the fill to use for the current item.
Use ui.stroke to get or set the stroke to use for the current item.
Use ui.opacity to get or set the opacity to use for the current item.
Use ui.highlightingHandled to set if the default highlighting behavior should not run, given that you are handling it in this event.
Use ui.maxAllSeriesHighlightingProgress to get the maximum highlighted progress across all series.
Use ui.sumAllSeriesHighlightingProgress to get the sum of highlighting progtess across all series.
Use ui.highlightingInfo.progress to tell what the highlighting progress is for the current item, if highlightingInfo is not null.
Use ui.highlightingInfo.state to tell whether the current item is currently highlighting in or out, is static, if highlightingInfo is not null.

Code Sample

      // Delegate
$(document).delegate(".selector", "igdatachartassigningcategorystyle", function (evt, ui) {

    // Specifies the start index of the range of data that is currently being highlighted.
    ui.startIndex;

    // Specifies the end index of the range of the data that is currently being highlighted.
    ui.endIndex;

    // Specifies the start date of the range of data that is currently being highlighted.
    ui.startDate;

    // Specifies the end date of the range of data that is currently being highlighted.
    ui.endDate;

    // Specifies the actual items from the data source being highlighted. However if there was a lot of data and this was called every time the event was fired, it will negatively impact the performance
    ui.getItems;

    // Overrides the default Fill property of the series. However, this property only takes affect if the Fill property only affects that particular series.
    ui.fill;

    // Overrides the default Stroke property of the series.
    ui.stroke;

    // Overrides the default the Opacity property of the series.
    ui.opacity;

    // This is used to determine the styling of the highlighted series.
    ui.highlightingInfo;

    // Specifies the progress state of the highlighting of the series. Value from 0 to 1.
    ui.maxAllSeriesHighlightingProgress;

    // Specifies the progress state of the highlighting of the series. Value from 0 to 1.
    ui.sumAllSeriesHighlightingProgress;

    // When set to True the default highlighting doesn’t apply.
    ui.highlightingHandled;

    // Determines if you should use the startDate and endDate to know the current items instead of startIndex/endIndex.
    ui.hasDataRange;

});

// Initialize
$(".selector").igDataChart({
    assigningCategoryStyle: function (evt, ui) {
    }
});

axisRangeChanged

Cancellable:: false

Event fired when the range of and axis on the chart changes.
Function takes arguments evt and ui.
Use ui.axis to get reference to current chart axis object.
Use ui.chart to get reference to chart object.
Use ui.newMaximumValue to get new maximum value.
Use ui.newMinimumValue to get new minimum value.
Use ui.oldMaximumValue to get old maximum value.
Use ui.oldMinimumValue to get old minimum value.

Code Sample

// Delegate
$(document).delegate(".selector", "igdatachartaxisrangechanged", function (evt, ui) {

    // Get reference to current chart axis object.
    ui.axis;

    // Get reference to chart object.
    ui.chart;

    // Get the new maximum value.
    ui.newMaximumValue;

    // Get the new minimum value.
    ui.newMinimumValue;

    // Get the old maximum value.
    ui.oldMaximumValue;

    // Get the old minimum value.
    ui.oldMinimumValue;
});

// Initialize
$(".selector").igDataChart({
    axisRangeChanged: function (evt, ui) {

    }
});

browserNotSupported

Cancellable:: false

Event fired when the control is displayed on a non HTML5 compliant browser.

Code Sample

// Delegate
$(document).delegate(".selector", "igdatachartbrowsernotsupported", function (evt, ui) {

});

// Initialize
$(".selector").igDataChart({
    browserNotSupported: function (evt, ui) {

    }
});

gridAreaRectChanged

Cancellable:: false

Occurs just after the current Chart's grid area rectangle is changed.
The grid area may change as the result of the Chart being resized, or
of an axis being added or changing size, possibly in another Chart.
Function takes arguments evt and ui.
Use ui.chart to get reference to chart object.
Use ui.newHeight to get new height value.
Use ui.newLeft to get new left value.
Use ui.newTop to get new top value.
Use ui.newWidth to get new top value.
Use ui.oldHeight to get old height value.
Use ui.oldLeft to get old left value.
Use ui.oldTop to get old top value.
Use ui.oldWidth to get old top value.

Code Sample

// Delegate
$(document).delegate(".selector", "igdatachartgridarearectchanged", function (evt, ui) {

    // Get reference to chart object.
    ui.chart;

    // Get new height value.
    ui.newHeight;

    // Get new left value.
    ui.newLeft;

    // Get new top value.
    ui.newTop;

    // Get new top value.
    ui.newWidth;

    // Get old height value.
    ui.oldHeight;

    // Get old left value.
    ui.oldLeft;

    // Get old top value.
    ui.oldTop;

    // Get old top value.
    ui.oldWidth;
});

// Initialize
$(".selector").igDataChart({
    gridAreaRectChanged: function (evt, ui) {

    }
});

progressiveLoadStatusChanged

Cancellable:: false

Event fired when the progressive loading state of the series has changed.
Function takes arguments evt and ui.
Use ui.chart to get reference to chart object.
Use ui.series to get reference to current series object.
Use ui.currentStatus to get current status.

Code Sample

// Delegate
$(document).delegate(".selector", "igdatachartprogressiveloadstatuschanged", function (evt, ui) {
    // Get reference to chart object.
    ui.chart;

    // Get the series object.
    ui.series;

    // Get the current load status.
    ui.currentStatus;
});

// Initialize
$(".selector").igDataChart({
    progressiveLoadStatusChanged: function (evt, ui) {

    }
});

refreshCompleted

Cancellable:: false

Raised when the chart's processing for an update has completed.
Function takes arguments evt and ui.
Use ui.chart to get reference to chart object.

Code Sample

// Delegate
$(document).delegate(".selector", "igdatachartrefreshcompleted", function (evt, ui) {

    // Get reference to chart object.
    ui.chart;
});

// Initialize
$(".selector").igDataChart({
    refreshCompleted: function (evt, ui) {

    }
});

seriesCursorMouseMove

Cancellable:: false

Occurs when the cursors are moved over a series in this chart.
Function takes arguments evt and ui.
Use ui.item to get reference to current series item object.
Use ui.chart to get reference to chart object.
Use ui.series to get reference to current series object.
Use ui.actualItemBrush to get item brush.
Use ui.actualSeriesBrush to get series brush.
Use ui.positionX to get mouse X position.
Use ui.positionY to get mouse Y position.

Code Sample

// Delegate
$(document).delegate(".selector", "igdatachartseriescursormousemove", function (evt, ui) {

    // Get reference to current series item object.
    ui.item;

    // Get reference to chart object.
    ui.chart;

    // Get reference to current series object.
    ui.series;

    // Get item brush.
    ui.actualItemBrush;

    // Get series brush.
    ui.actualSeriesBrush;

    // Get mouse X position.
    ui.positionX;

    // Get mouse Y position.
    ui.positionY;
});

// Initialize
$(".selector").igDataChart({
    seriesCursorMouseMove: function (evt, ui) {

    }
});

seriesMouseEnter

Cancellable:: false

Occurs when the left mouse pointer enters an element of this chart.
Function takes arguments evt and ui.
Use ui.item to get reference to current series item object.
Use ui.chart to get reference to chart object.
Use ui.series to get reference to current series object.
Use ui.actualItemBrush to get item brush.
Use ui.actualSeriesBrush to get series brush.
Use ui.positionX to get mouse X position.
Use ui.positionY to get mouse Y position.

Code Sample

// Delegate
$(document).delegate(".selector", "igdatachartseriesmouseenter", function (evt, ui) {

    // Get reference to current series item object.
    ui.item;

    // Get reference to chart object.
    ui.chart;

    // Get reference to current series object.
    ui.series;

    // Get item brush.
    ui.actualItemBrush;

    // Get series brush.
    ui.actualSeriesBrush;

    // Get mouse X position.
    ui.positionX;

    // Get mouse Y position.
    ui.positionY;
});

// Initialize
$(".selector").igDataChart({
    seriesMouseEnter: function (evt, ui) {

    }
});

seriesMouseLeave

Cancellable:: false

Occurs when the left mouse pointer leaves an element of this chart.
Function takes arguments evt and ui.
Use ui.item to get reference to current series item object.
Use ui.chart to get reference to chart object.
Use ui.series to get reference to current series object.
Use ui.actualItemBrush to get item brush.
Use ui.actualSeriesBrush to get series brush.
Use ui.positionX to get mouse X position.
Use ui.positionY to get mouse Y position.

Code Sample

// Delegate
$(document).delegate(".selector", "igdatachartseriesmouseleave", function (evt, ui) {

    // Get reference to current series item object.
    ui.item;

    // Get reference to chart object.
    ui.chart;

    // Get reference to current series object.
    ui.series;

    // Get item brush.
    ui.actualItemBrush;

    // Get series brush.
    ui.actualSeriesBrush;

    // Get mouse X position.
    ui.positionX;

    // Get mouse Y position.
    ui.positionY;
});

// Initialize
$(".selector").igDataChart({
    seriesMouseLeave: function (evt, ui) {

    }
});

seriesMouseLeftButtonDown

Cancellable:: false

Occurs when the left mouse button is pressed while the mouse pointer is over an element of this chart.
Function takes arguments evt and ui.
Use ui.item to get reference to current series item object.
Use ui.chart to get reference to chart object.
Use ui.series to get reference to current series object.
Use ui.actualItemBrush to get item brush.
Use ui.actualSeriesBrush to get series brush.
Use ui.positionX to get mouse X position.
Use ui.positionY to get mouse Y position.

Code Sample

// Delegate
$(document).delegate(".selector", "igdatachartseriesmouseleftbuttondown", function (evt, ui) {

    // Get reference to current series item object.
    ui.item;

    // Get reference to chart object.
    ui.chart;

    // Get reference to current series object.
    ui.series;

    // Get item brush.
    ui.actualItemBrush;

    // Get series brush.
    ui.actualSeriesBrush;

    // Get mouse X position.
    ui.positionX;

    // Get mouse Y position.
    ui.positionY;
});

// Initialize
$(".selector").igDataChart({
    seriesMouseLeftButtonDown: function (evt, ui) {

    }
});

seriesMouseLeftButtonUp

Cancellable:: false

Occurs when the left mouse button is released while the mouse pointer is over an element of this chart.
Function takes arguments evt and ui.
Use ui.item to get reference to current series item object.
Use ui.chart to get reference to chart object.
Use ui.series to get reference to current series object.
Use ui.actualItemBrush to get item brush.
Use ui.actualSeriesBrush to get series brush.
Use ui.positionX to get mouse X position.
Use ui.positionY to get mouse Y position.

Code Sample

// Delegate
$(document).delegate(".selector", "igdatachartseriesmouseleftbuttonup", function (evt, ui) {

    // Get reference to current series item object.
    ui.item;

    // Get reference to chart object.
    ui.chart;

    // Get reference to current series object.
    ui.series;

    // Get item brush.
    ui.actualItemBrush;

    // Get series brush.
    ui.actualSeriesBrush;

    // Get mouse X position.
    ui.positionX;

    // Get mouse Y position.
    ui.positionY;
});

// Initialize
$(".selector").igDataChart({
    seriesMouseLeftButtonUp: function (evt, ui) {

    }
});

seriesMouseMove

Cancellable:: false

Occurs when the left mouse pointer moves while over an element of this chart.
Function takes arguments evt and ui.
Use ui.item to get reference to current series item object.
Use ui.chart to get reference to chart object.
Use ui.series to get reference to current series object.
Use ui.actualItemBrush to get item brush.
Use ui.actualSeriesBrush to get series brush.
Use ui.positionX to get mouse X position.
Use ui.positionY to get mouse Y position.

Code Sample

// Delegate
$(document).delegate(".selector", "igdatachartseriesmousemove", function (evt, ui) {

    // Get reference to current series item object.
    ui.item;

    // Get reference to chart object.
    ui.chart;

    // Get reference to current series object.
    ui.series;

    // Get item brush.
    ui.actualItemBrush;

    // Get series brush.
    ui.actualSeriesBrush;

    // Get mouse X position.
    ui.positionX;

    // Get mouse Y position.
    ui.positionY;
});

// Initialize
$(".selector").igDataChart({
    seriesMouseMove: function (evt, ui) {

    }
});

tooltipHidden

Cancellable:: false

Event fired after a tooltip is hidden
Function takes arguments evt and ui.
Use ui.element to get reference to tooltip DOM element.
Use ui.item to get reference to current series item object.
Use ui.chart to get reference to chart object.
Use ui.series to get reference to current series object.
Use ui.actualItemBrush to get item brush.
Use ui.actualSeriesBrush to get series brush.

Code Sample

// Delegate
$(document).delegate(".selector", "igdatacharttooltiphidden", function (evt, ui) {

    // Get reference to tooltip DOM element.
    ui.element;

    // Get reference to current series item object.
    ui.item;

    // Get reference to chart object.
    ui.chart;

    // Get reference to current series object.
    ui.series;

    // Get item brush.
    ui.actualItemBrush;

    // Get series brush.
    ui.actualSeriesBrush;
});

// Initialize
$(".selector").igDataChart({
    tooltipHidden: function (evt, ui) {

    }
});

tooltipHiding

Cancellable:: true

Event fired when the mouse has left a series and the tooltip is about to hide
Function takes arguments evt and ui.
Use ui.element to get reference to tooltip DOM element.
Use ui.item to get reference to current series item object.
Use ui.chart to get reference to chart object.
Use ui.series to get reference to current series object.
Use ui.actualItemBrush to get item brush.
Use ui.actualSeriesBrush to get series brush.

Code Sample

// Delegate
$(document).delegate(".selector", "igdatacharttooltiphiding", function (evt, ui) {

    // Get reference to tooltip DOM element.
    ui.element;

    // Get reference to current series item object.
    ui.item;

    // Get reference to chart object.
    ui.chart;

    // Get reference to current series object.
    ui.series;

    // Get item brush.
    ui.actualItemBrush;

    // Get series brush.
    ui.actualSeriesBrush;
});

// Initialize
$(".selector").igDataChart({
    tooltipHiding: function (evt, ui) {

    }
});

tooltipShowing

Cancellable:: true

Event fired when the mouse has hovered on a series and the tooltip is about to show
Function takes arguments evt and ui.
Use ui.element to get reference to tooltip DOM element.
Use ui.item to get reference to current series item object.
Use ui.chart to get reference to chart object.
Use ui.series to get reference to current series object.
Use ui.actualItemBrush to get item brush.
Use ui.actualSeriesBrush to get series brush.

Code Sample

// Delegate
$(document).delegate(".selector", "igdatacharttooltipshowing", function (evt, ui) {

    // Get reference to tooltip DOM element.
    ui.element;

    // Get reference to current series item object.
    ui.item;

    // Get reference to chart object.
    ui.chart;

    // Get reference to current series object.
    ui.series;

    // Get item brush.
    ui.actualItemBrush;

    // Get series brush.
    ui.actualSeriesBrush;
});

// Initialize
$(".selector").igDataChart({
    tooltipShowing: function (evt, ui) {

    }
});

tooltipShown

Cancellable:: false

Event fired after a tooltip is shown
Function takes arguments evt and ui.
Use ui.element to get reference to tooltip DOM element.
Use ui.item to get reference to current series item object.
Use ui.chart to get reference to chart object.
Use ui.series to get reference to current series object.
Use ui.actualItemBrush to get item brush.
Use ui.actualSeriesBrush to get series brush.

Code Sample

// Delegate
$(document).delegate(".selector", "igdatacharttooltipshown", function (evt, ui) {

    // Get reference to tooltip DOM element.
    ui.element;

    // Get reference to current series item object.
    ui.item;

    // Get reference to chart object.
    ui.chart;

    // Get reference to current series object.
    ui.series;

    // Get item brush.
    ui.actualItemBrush;

    // Get series brush.
    ui.actualSeriesBrush;
});

// Initialize
$(".selector").igDataChart({
    tooltipShown: function (evt, ui) {

    }
});

typicalBasedOn

Cancellable:: false

Handle this event in order to specify which columns the Typical price calculation is based on.
Function takes arguments evt and ui.
Use ui.chart to get reference to chart object.
Use ui.series to get reference to current series object.
Use ui.count to get the number of positions that should be calculated from the start.
Use ui.position to get the beginning position that should be calculated from.
Use ui.supportingCalculations to get the supporting calculations to use in the calculation.
Use ui.dataSource to get the data to use for the calculation.
Use ui.basedOn to specify which columns changing will invalidate the series and cause it to be recalculated.

Code Sample

// Delegate
$(document).delegate(".selector", "igdatacharttypicalbasedon", function (evt, ui) {
    // Get reference to chart object.
    ui.chart;

    // Get the series object.
    ui.series;

    // Get the the number of positions that should be calculated from the start.
    ui.count;

    // Get the beginning position that should be calculated from.
    ui.position;

    // Get the supporting calculations to use in the calculation.
    ui.supportingCalculations;

    // Get the data to use for the calculation.
    ui.dataSource;

    // Specify which columns changing will invalidate the series and cause it to be recalculated.
    ui.basedOn;
});

// Initialize
$(".selector").igDataChart({
    typicalBasedOn: function (evt, ui) {

    }
});

windowRectChanged

Cancellable:: false

Occurs just after the current Chart's window rectangle is changed.
Function takes arguments evt and ui.
Use ui.chart to get reference to chart object.
Use ui.newHeight to get new height value.
Use ui.newLeft to get new left value.
Use ui.newTop to get new top value.
Use ui.newWidth to get new top value.
Use ui.oldHeight to get old height value.
Use ui.oldLeft to get old left value.
Use ui.oldTop to get old top value.
Use ui.oldWidth to get old top value.

Code Sample

// Delegate
$(document).delegate(".selector", "igdatachartwindowrectchanged", function (evt, ui) {

    // Get reference to chart object.
    ui.chart;

    // Get new height value.
    ui.newHeight;

    // Get new left value.
    ui.newLeft;

    // Get new top value.
    ui.newTop;

    // Get new top value.
    ui.newWidth;

    // Get old height value.
    ui.oldHeight;

    // Get old left value.
    ui.oldLeft;

    // Get old top value.
    ui.oldTop;

    // Get old top value.
    ui.oldWidth;
});

// Initialize
$(".selector").igDataChart({
    windowRectChanged: function (evt, ui) {

    }
});

Show Details

addItem

.igDataChart( "addItem", item:object, targetName:string );
Adds a new item to the data source and notifies the chart.
- item
- Type:object
- The item that we want to add to the data source.
- targetName
- Type:string
- The name of the series or axis bound to the data source. This is required only when the data is bound to series or axis. If the data is bound to dataSource of igDataChart, the second parameter should not be set.
Code Sample

$(".selector").igDataChart("addItem", {"Item1": "Value1", "Item2": 1000, "Item3": 1019.75}, "series1" );
changeGlobalLanguage
Inherited

.igDataChart( "changeGlobalLanguage" );
Changes the widget language to global language. Global language is the value in $.ig.util.language.
Code Sample

$(".selector").igDataChart("changeGlobalLanguage");
changeGlobalRegional
Inherited

.igDataChart( "changeGlobalRegional" );
Changes the widget regional settins to global regional settings. Global regional settings are container in $.ig.util.regional.
Code Sample

$(".selector").igDataChart("changeGlobalRegional");
changeLocale
Inherited

.igDataChart( "changeLocale", $container:object );
Changes the all locales contained into a specified container to the language specified in options.language
Note that this method is for rare scenarios, use language or locale option setter.
- $container
- Type:object
- Optional parameter - if not set it would use the element of the widget as $container.
Code Sample

$(".selector").igDataChart("changeLocale");
clearTileZoomCache

.igDataChart( "clearTileZoomCache" );
Clears the tile zoom tile cache so that new tiles will be generated. Only applies if the viewer is using a tile based zoom.
Code Sample

$(".selector").igDataChart("clearTileZoomCache");
destroy

.igDataChart( "destroy" );
Destroys the widget.
Code Sample

$(".selector").igDataChart("destroy");
endTiledZoomingIfRunning

.igDataChart( "endTiledZoomingIfRunning" );
Manually ends a tiled zoom if one is running.
Code Sample

$(".selector").igDataChart("endTiledZoomingIfRunning");
exportImage

.igDataChart( "exportImage", [width:object], [height:object] );

Return Type:

object

Return Type Description:

Returns a IMG DOM element.
Exports the chart to a PNG image.
- width
- Type:object
- Optional
- The width of the image.
- height
- Type:object
- Optional
- The height of the image.
Code Sample

var pngImage = $(".selector").igDataChart("exportImage", 200, 100);
exportVisualData

.igDataChart( "exportVisualData" );
Exports visual data from the chart to aid in unit testing.
Code Sample

var data = $(".selector").igDataChart("exportVisualData");
flush

.igDataChart( "flush" );
Forces any pending deferred work to render on the chart before continuing.
Code Sample

$(".selector").igDataChart("flush");
getActualInterval

.igDataChart( "getActualInterval", targetName:string );
Gets the actual interval of the target numeric or date time axis.
- targetName
- Type:string
- The name of the axis from which to get the interval.
getActualMaximumValue

.igDataChart( "getActualMaximumValue", targetName:string );
Gets the actual maximum value of the target numeric or date time axis.
- targetName
- Type:string
- The name of the axis from which to get the maximum value.
Code Sample

var maxAxes = $(".selector").igDataChart("getActualMaximumValue", axe);
getActualMinimumValue

.igDataChart( "getActualMinimumValue", targetName:string );
Gets the actual minimum value of the target numeric or date time axis.
- targetName
- Type:string
- The name of the axis from which to get the minimum value.
Code Sample

var minAxes = $(".selector").igDataChart("getActualMinimumValue", axis);
getItem

.igDataChart( "getItem", targetName:string, worldPoint:object );

Return Type:

object

Return Type Description:

The item that is the best match.
Gets the item that is the best match for the specified world coordinates.
- targetName
- Type:string
- The name of the series to target.
- worldPoint
- Type:object
- The world position (in the form {x: [number from 0 to 1], y: [number from 0 to 1]} ) that represents a position in the space of the axes.
Code Sample

var item = $(".selector").igDataChart("getItem", series1, {x:0.5, y:0.5});
getItemFromSeriesPixel

.igDataChart( "getItemFromSeriesPixel", targetName:string, seriesPoint:object );

Return Type:

object

Return Type Description:

The item that is the best match.
Gets the item that is the best match for the specified world coordinates.
- targetName
- Type:string
- The name of the series to target.
- seriesPoint
- Type:object
- The series pixel position (in the form {x: [number], y: [number]} ) that represents a position in the pixel space of the series.
Code Sample

var item = $(".selector").igDataChart("getItemFromSeriesPixel", series1, {x:0.5, y:0.5});
getItemIndex

.igDataChart( "getItemIndex", targetName:string, worldPoint:object );

Return Type:

number

Return Type Description:

Item index or -1 if no item is associated with the specified world position.
Gets the item index associated with the specified world position.
- targetName
- Type:string
- The name of the series to target.
- worldPoint
- Type:object
- The world position (in the form {x: [number from 0 to 1], y: [number from 0 to 1]} ) that represents a position in the space of the axes.
Code Sample

var item = $(".selector").igDataChart("getItemIndex", series1, {x:0.5, y:0.5});
getItemIndexFromSeriesPixel

.igDataChart( "getItemIndexFromSeriesPixel", targetName:string, seriesPoint:object );

Return Type:

number

Return Type Description:

Item index or -1 if no item is associated with the specified world position.
Gets the item index associated with the specified series pixel coordinate.
- targetName
- Type:string
- The name of the series to target.
- seriesPoint
- Type:object
- The world position (in the form {x: [number from 0 to 1], y: [number from 0 to 1]} ) that represents a position in the space of the axes.
Code Sample

var item = $(".selector").igDataChart("getItemIndexFromSeriesPixel", series1, {x:0.5, y:0.5});
getItemSpan

.igDataChart( "getItemSpan", targetName:string );

Return Type:

number

Return Type Description:

The width of the items for this series within the categories.
For a category plotted series, gets the current width of the items within the categories. This only returns a value if the items have some form of width (e.g. columns, bars, etc.) otherwise 0 is returned.
- targetName
- Type:string
- The name of the series to target.
Code Sample

var span = $(".selector").igDataChart("getItemSpan", "series1");
getSeriesCategoryWidth

.igDataChart( "getSeriesCategoryWidth", targetName:string );

Return Type:

number

Return Type Description:

The pixel width of the categories.
Gets the category width for a series, if applicable.
- targetName
- Type:string
- The name of the series to target.
Code Sample

var item = $(".selector").igDataChart("getSeriesCategoryWidth", series1);
getSeriesHighValue

.igDataChart( "getSeriesHighValue", targetName:string, worldPoint:object, useInterpolation:bool, skipUnknowns:bool );

Return Type:

number

Return Type Description:

The value of the series at the specified world coordinate, or double.NaN if unavailable.
If possible, will return the best available high value of the series for a given world coordinate.
- targetName
- Type:string
- The name of the series to target.
- worldPoint
- Type:object
- The world position (in the form {x: [number from 0 to 1], y: [number from 0 to 1]} ) that represents a position in the space of the axes.
- useInterpolation
- Type:bool
- If true, interpolation should be used to get in-between values, rather than only the actual values in the data set.
- skipUnknowns
- Type:bool
- If true, unknown values should be skipped.
Code Sample

var item = $(".selector").igDataChart("getSeriesHighValue", series1, {x:0.5, y:0.5}, true, true);
getSeriesHighValueFromSeriesPixel

.igDataChart( "getSeriesHighValueFromSeriesPixel", targetName:string, seriesPoint:object, useInterpolation:bool, skipUnknowns:bool );

Return Type:

number

Return Type Description:

The value of the series at the specified world coordinate, or double.NaN if unavailable.
If possible, will return the best available high value of the series for a given world coordinate.
- targetName
- Type:string
- The name of the series to target.
- seriesPoint
- Type:object
- The series pixel position (in the form {x: [number], y: [number]} ) that represents a position in the pixel space of the series.
- useInterpolation
- Type:bool
- If true, interpolation should be used to get in-between values, rather than only the actual values in the data set.
- skipUnknowns
- Type:bool
- If true, unknown values should be skipped.
Code Sample

var item = $(".selector").igDataChart("getSeriesHighValueFromSeriesPixel", series1, {x:0.5, y:0.5}, true, true);
getSeriesHighValuePosition

.igDataChart( "getSeriesHighValuePosition", targetName:string, worldPoint:object, useInterpolation:bool, skipUnknowns:bool );

Return Type:

object

Return Type Description:

The position of the best available high value for the series in series pixel space.
If possible, will return the best available high value position of the series for a given world coordinate.
- targetName
- Type:string
- The name of the series to target.
- worldPoint
- Type:object
- The world position (in the form {x: [number from 0 to 1], y: [number from 0 to 1]} ) that represents a position in the space of the axes.
- useInterpolation
- Type:bool
- If true, interpolation should be used to get in-between values, rather than only the actual values in the data set.
- skipUnknowns
- Type:bool
- If true, unknown values should be skipped.
Code Sample

var item = $(".selector").igDataChart("getSeriesHighValuePosition", series1, {x:0.5, y:0.5}, true, true);
getSeriesHighValuePositionFromSeriesPixel

.igDataChart( "getSeriesHighValuePositionFromSeriesPixel", targetName:string, seriesPoint:object, useInterpolation:bool, skipUnknowns:bool );

Return Type:

object

Return Type Description:

The position (in the form {x: [number], y: [number]} ) of the best available high value for the series in series pixel space.
If possible, will return the best available high value position of the series for a given world coordinate.
- targetName
- Type:string
- The name of the series to target.
- seriesPoint
- Type:object
- The series pixel position (in the form {x: [number], y: [number]} that represents a position within the pixel space of the series.
- useInterpolation
- Type:bool
- If true, interpolation should be used to get in-between values, rather than only the actual values in the data set.
- skipUnknowns
- Type:bool
- If true, unknown values should be skipped.
Code Sample

var item = $(".selector").igDataChart("getSeriesHighValuePositionFromSeriesPixel", series1, {x:0.5, y:0.5}, true, true);
getSeriesLowValue

.igDataChart( "getSeriesLowValue", targetName:string, worldPoint:object, useInterpolation:bool, skipUnknowns:bool );

Return Type:

number

Return Type Description:

The value of the series at the specified world coordinate, or double.NaN if unavailable.
If possible, will return the best available low value of the series for a given world coordinate.
- targetName
- Type:string
- The name of the series to target.
- worldPoint
- Type:object
- The world position (in the form {x: [number from 0 to 1], y: [number from 0 to 1]} ) that represents a position in the space of the axes.
- useInterpolation
- Type:bool
- If true, interpolation should be used to get in-between values, rather than only the actual values in the data set.
- skipUnknowns
- Type:bool
- If true, unknown values should be skipped.
Code Sample

var item = $(".selector").igDataChart("getSeriesLowValue", series1, {x:0.5, y:0.5}, true, true);
getSeriesLowValueFromSeriesPixel

.igDataChart( "getSeriesLowValueFromSeriesPixel", targetName:string, seriesPoint:object, useInterpolation:bool, skipUnknowns:bool );

Return Type:

number

Return Type Description:

The value of the series at the specified world coordinate, or double.NaN if unavailable.
If possible, will return the best available low value of the series for a given world coordinate.
- targetName
- Type:string
- The name of the series to target.
- seriesPoint
- Type:object
- The series pixel position (in the form {x: [number], y: [number]} ) that represents a position in the pixel space of the series.
- useInterpolation
- Type:bool
- If true, interpolation should be used to get in-between values, rather than only the actual values in the data set.
- skipUnknowns
- Type:bool
- If true, unknown values should be skipped.
Code Sample

var item = $(".selector").igDataChart("getSeriesLowValueFromSeriesPixel", series1, {x:0.5, y:0.5}, true, true);
getSeriesLowValuePosition

.igDataChart( "getSeriesLowValuePosition", targetName:string, worldPoint:object, useInterpolation:bool, skipUnknowns:bool );

Return Type:

object

Return Type Description:

The position of the best available low value for the series in series pixel space.
If possible, will return the best available low value position of the series for a given world coordinate.
- targetName
- Type:string
- The name of the series to target.
- worldPoint
- Type:object
- The world position (in the form {x: [number from 0 to 1], y: [number from 0 to 1]} ) that represents a position in the space of the axes.
- useInterpolation
- Type:bool
- If true, interpolation should be used to get in-between values, rather than only the actual values in the data set.
- skipUnknowns
- Type:bool
- If true, unknown values should be skipped.
Code Sample

var item = $(".selector").igDataChart("getSeriesLowValuePosition", series1, {x:0.5, y:0.5}, true, true);
getSeriesLowValuePositionFromSeriesPixel

.igDataChart( "getSeriesLowValuePositionFromSeriesPixel", targetName:string, seriesPoint:object, useInterpolation:bool, skipUnknowns:bool );

Return Type:

object

Return Type Description:

The position (in the form {x: [number], y: [number]} ) of the best available low value for the series in series pixel space.
If possible, will return the best available low value position of the series for a given world coordinate.
- targetName
- Type:string
- The name of the series to target.
- seriesPoint
- Type:object
- The series pixel position (in the form {x: [number], y: [number]} that represents a position within the pixel space of the series.
- useInterpolation
- Type:bool
- If true, interpolation should be used to get in-between values, rather than only the actual values in the data set.
- skipUnknowns
- Type:bool
- If true, unknown values should be skipped.
Code Sample

var item = $(".selector").igDataChart("getSeriesLowValuePositionFromSeriesPixel", series1, {x:0.5, y:0.5}, true, true);
getSeriesOffsetValue

.igDataChart( "getSeriesOffsetValue", targetName:string );

Return Type:

number

Return Type Description:

The pixel category offset.
Gets the category offset for a series, if applicable.
- targetName
- Type:string
- The name of the series to target.
Code Sample

var item = $(".selector").igDataChart("getSeriesOffsetValue", series1);
getSeriesValue

.igDataChart( "getSeriesValue", targetName:string, worldPoint:object, useInterpolation:bool, skipUnknowns:bool );

Return Type:

number

Return Type Description:

The value of the series at the specified world coordinate, or double.NaN if unavailable.
If possible, will return the best available main value of the series for a given world coordinate.
- targetName
- Type:string
- The name of the series to target.
- worldPoint
- Type:object
- The world position (in the form {x: [number from 0 to 1], y: [number from 0 to 1]} ) that represents a position in the space of the axes.
- useInterpolation
- Type:bool
- If true, interpolation should be used to get in-between values, rather than only the actual values in the data set.
- skipUnknowns
- Type:bool
- If true, unknown values should be skipped.
Code Sample

var item = $(".selector").igDataChart("getSeriesValue", series1, {x:0.5, y:0.5}, true, true);
getSeriesValueBoundingBox

.igDataChart( "getSeriesValueBoundingBox", targetName:string, worldPoint:object );

Return Type:

object

Return Type Description:

The bounding box in question, or empty if no valid position is available. This will be an object literal with top, left, width, and height properties.
If possible, will return the best available value bounding box within the series that has the best value match for the world position provided.
- targetName
- Type:string
- The name of the series to target.
- worldPoint
- Type:object
- The world position (in the form {x: [number from 0 to 1], y: [number from 0 to 1]} ) that represents a position in the space of the axes.
Code Sample

var bbox = $(".selector").igDataChart("getSeriesValueBoundingBox", "series1", { x: 0.5, y: 0.5 });
getSeriesValueBoundingBoxFromSeriesPixel

.igDataChart( "getSeriesValueBoundingBoxFromSeriesPixel", targetName:string, seriesPoint:object );

Return Type:

object

Return Type Description:

The bounding box in question, or empty if no valid position is available. This will be an object literal with top, left, width, and height properties.
If possible, will return the best available value bounding box within the series that has the best value match for the given series pixel coordinate.
- targetName
- Type:string
- The name of the series to target.
- seriesPoint
- Type:object
- The series pixel position (in the form {x: [number], y: [number]} ) that represents a position in the pixel space of the series.
Code Sample

var bbox = $(".selector").igDataChart("getSeriesValueBoundingBoxFromSeriesPixel", "series1", { x: 0.5, y: 0.5 });
getSeriesValueFineGrainedBoundingBoxes

.igDataChart( "getSeriesValueFineGrainedBoundingBoxes", targetName:string, worldPoint:object );

Return Type:

object

Return Type Description:

The fine grained bounding boxes in question, or empty if no valid position is available. This will be an object literal with top, left, width, and height properties.
If possible, will return the best available value fine grained bounding boxes within the series that have the best value match for the world position provided.
- targetName
- Type:string
- The name of the series to target.
- worldPoint
- Type:object
- The world position (in the form {x: [number from 0 to 1], y: [number from 0 to 1]} ) that represents a position in the space of the axes.
Code Sample

var bbox = $(".selector").igDataChart("getSeriesValueFineGrainedBoundingBoxes", "series1", { x: 0.5, y: 0.5 });
getSeriesValueFineGrainedBoundingBoxesFromSeriesPixel

.igDataChart( "getSeriesValueFineGrainedBoundingBoxesFromSeriesPixel", targetName:string, worldPoint:object );

Return Type:

object

Return Type Description:

The fine grained bounding boxes in question, or empty if no valid position is available. This will be an object literal with top, left, width, and height properties.
If possible, will return the best available value fine grained bounding boxes within the series that have the best value match for series pixel position provided.
- targetName
- Type:string
- The name of the series to target.
- worldPoint
- Type:object
- The series pixel position (in the form {x: [number], y: [number]} ) that represents a position in the pixel space of the series.
Code Sample

var bbox = $(".selector").igDataChart("getSeriesValueFineGrainedBoundingBoxesFromSeriesPixel", "series1", { x: 0.5, y: 0.5 });
getSeriesValueFromSeriesPixel

.igDataChart( "getSeriesValueFromSeriesPixel", targetName:string, seriesPoint:object, useInterpolation:bool, skipUnknowns:bool );

Return Type:

number

Return Type Description:

The value of the series at the specified world coordinate, or double.NaN if unavailable.
If possible, will return the best available main value of the series for a given world coordinate.
- targetName
- Type:string
- The name of the series to target.
- seriesPoint
- Type:object
- The series pixel position (in the form {x: [number], y: [number]} ) that represents a position in the pixel space of the series.
- useInterpolation
- Type:bool
- If true, interpolation should be used to get in-between values, rather than only the actual values in the data set.
- skipUnknowns
- Type:bool
- If true, unknown values should be skipped.
Code Sample

var item = $(".selector").igDataChart("getSeriesValueFromSeriesPixel", series1, {x:0.5, y:0.5}, true, true);
getSeriesValuePosition

.igDataChart( "getSeriesValuePosition", targetName:string, worldPoint:object, useInterpolation:bool, skipUnknowns:bool );

Return Type:

object

Return Type Description:

The position of the best available main value for the series in series pixel space.
If possible, will return the best available main value position of the series for a given world coordinate.
- targetName
- Type:string
- The name of the series to target.
- worldPoint
- Type:object
- The world position (in the form {x: [number from 0 to 1], y: [number from 0 to 1]} ) that represents a position in the space of the axes.
- useInterpolation
- Type:bool
- If true, interpolation should be used to get in-between values, rather than only the actual values in the data set.
- skipUnknowns
- Type:bool
- If true, unknown values should be skipped.
Code Sample

var item = $(".selector").igDataChart("getSeriesValuePosition", series1, {x:0.5, y:0.5}, true, true);
getSeriesValuePositionFromSeriesPixel

.igDataChart( "getSeriesValuePositionFromSeriesPixel", targetName:string, seriesPoint:object, useInterpolation:bool, skipUnknowns:bool );

Return Type:

object

Return Type Description:

The position (in the form {x: [number], y: [number]} ) of the best available main value for the series in series pixel space.
If possible, will return the best available main value position of the series for a given world coordinate.
- targetName
- Type:string
- The name of the series to target.
- seriesPoint
- Type:object
- The series pixel position (in the form {x: [number], y: [number]} that represents a position within the pixel space of the series.
- useInterpolation
- Type:bool
- If true, interpolation should be used to get in-between values, rather than only the actual values in the data set.
- skipUnknowns
- Type:bool
- If true, unknown values should be skipped.
Code Sample

var item = $(".selector").igDataChart("getSeriesValuePositionFromSeriesPixel", series1, {x:0.5, y:0.5}, true, true);
id

.igDataChart( "id" );

Return Type:

string
Returns the ID of parent element holding the chart.
Code Sample

var dataContainerElement = $(".selector").igDataChart("id");
insertItem

.igDataChart( "insertItem", item:object, index:number, targetName:string );
Inserts a new item to the data source and notifies the chart.
- item
- Type:object
- The new item that we want to insert in the data source.
- index
- Type:number
- The index in the data source where the new item will be inserted.
- targetName
- Type:string
- The name of the series or axis bound to the data source.
Code Sample

$(".selector").igDataChart("insertItem", {"Item1": "Value1", "Item2": 1000, "Item3": 1019.75}, 1, "series1" );
moveCursorPoint

.igDataChart( "moveCursorPoint", targetName:string, worldPoint:object );

Return Type:

object

Return Type Description:

Returns a reference to this chart.
Moves the cursor point of the target annotation layer to the desired world coordinates.
- targetName
- Type:string
- The name of the series to target.
- worldPoint
- Type:object
- The point to which to move the cursor. Should have an x property with type number and a y property with type number.
Code Sample

$(".selector").igDataChart("moveCursorPoint", "series1", { x: 0, y: 0 });
notifyClearItems

.igDataChart( "notifyClearItems", dataSource:object );

Return Type:

object

Return Type Description:

Returns a reference to this chart.
Notifies the chart that the items have been cleared from an associated data source.
It's not necessary to notify more than one target of a change if they share the same items source.
- dataSource
- Type:object
- The data source in which the change happened.
Code Sample

var response = $(".selector").igDataChart("notifyClearItems", series1DataSource);
notifyInsertItem

.igDataChart( "notifyInsertItem", dataSource:object, index:number, newItem:object );

Return Type:

object

Return Type Description:

Returns a reference to this chart.
Notifies the target axis or series that an item has been inserted at the specified index in its data source.
It's not necessary to notify more than one target of a change if they share the same items source.
- dataSource
- Type:object
- The data source in which the change happened.
- index
- Type:number
- The index in the items source where the new item has been inserted.
- newItem
- Type:object
- The new item that has been set in the collection.
Code Sample

var response = $(".selector").igDataChart("notifyInsertItem", series1DataSource, 1, {"Item1": "Value1", "Item2": 1000, "Item3": 1019.75});
notifyRemoveItem

.igDataChart( "notifyRemoveItem", dataSource:object, index:number, oldItem:object );

Return Type:

object

Return Type Description:

Returns a reference to this chart.
Notifies the target axis or series that an item has been removed from the specified index in its data source.
It's not necessary to notify more than one target of a change if they share the same items source.
- dataSource
- Type:object
- The data source in which the change happened.
- index
- Type:number
- The index in the items source from where the old item has been removed.
- oldItem
- Type:object
- The old item that has been removed from the collection.
Code Sample

var response = $(".selector").igDataChart("notifyRemoveItem", series1DataSource, 1, {"Item1": "Value1", "Item2": 1000, "Item3": 1019.75});

notifySetItem

.igDataChart( "notifySetItem", dataSource:object, index:number, newItem:object, oldItem:object );
Return Type:: object
Return Type Description:: Returns a reference to this chart.

Notifies the chart that an item has been set in an associated data source.

dataSource
Type:object
The data source in which the change happened.
index
Type:number
The index in the items source that has been changed.
newItem
Type:object
The new item that has been set in the collection.
oldItem
Type:object
The old item that has been overwritten in the collection.

Code Sample

var response = $(".selector").igDataChart("notifySetItem", series1DataSource, 1,
        {"Item1": "Value1", "Item2": 1000, "Item3": 1019.75},
        {"Item1": "Value1", "Item2": 999, "Item3": 1019.75});

notifyVisualPropertiesChanged

.igDataChart( "notifyVisualPropertiesChanged", targetName:string );

Return Type:

object

Return Type Description:

Returns a reference to this chart.
Notifies the target series that something that affects its visual properties has changed and the visual output needs a repaint.
- targetName
- Type:string
- The name of the series to notify.
Code Sample

$(".selector").igDataChart("notifyVisualPropertiesChanged", "series1");
option

.igDataChart( "option" );
print

.igDataChart( "print" );
Creates a print preview page with the chart, hiding all other elements on the page.
Code Sample

$(".selector").igDataChart("print");
removeItem

.igDataChart( "removeItem", index:number, targetName:string );
Deletes an item from the data source and notifies the chart.
- index
- Type:number
- The index in the data source from where the item will be been removed.
- targetName
- Type:string
- The name of the series or axis bound to the data source. This is required only when the data is bound to series or axis. If the data is bound to dataSource of igDataChart, the second parameter should not be set.
Code Sample

$(".selector").igDataChart("removeItem", 1, "series1");
renderSeries

.igDataChart( "renderSeries", targetName:string, animate:bool );
Indicates that a series should render, even though no option has been modified that would normally cause it to refresh.
- targetName
- Type:string
- The name of the series to render.
- animate
- Type:bool
- Whether the change should be animated, if possible.
Code Sample

$(".selector").igDataChart("renderSeries", "xAxis", true);
replayTransitionIn

.igDataChart( "replayTransitionIn", targetName:string );

Return Type:

object

Return Type Description:

Returns a reference to this chart.
Replays the transition in animation for a series, if applicable.
- targetName
- Type:string
- The name of the series to target.
Code Sample

$(".selector").igDataChart("replayTransitionIn", "series1");
resetCachedEnhancedInterval

.igDataChart( "resetCachedEnhancedInterval", targetName:string );

Return Type:

object

Return Type Description:

Returns a reference to this chart.
For the target axis, if using enhanced interval management and precise interval fitting, this will reset the cached maximum label width, and recalculate using the current labels.
- targetName
- Type:string
- The name of the axis to notify.
resetZoom

.igDataChart( "resetZoom" );

Return Type:

object

Return Type Description:

Returns a reference to this igChart.
Resets the zoom level of the chart to default.
Code Sample

var response = $(".selector").igDataChart("resetZoom");
scaleValue

.igDataChart( "scaleValue", targetName:string, unscaledValue:number );

Return Type:

number

Return Type Description:

Returns the scaled value.
Notifies the target axis that it should scale the requested value into chart space from axis space.
For example you can use this method if you want to find where value 50 of the x axis stands scaled to chart's width.
- targetName
- Type:string
- The name of the axis to notify.
- unscaledValue
- Type:number
- The value in axis space to translate into chart space.
Code Sample

var scaled = $(".selector").igDataChart("scaleValue", "axis1", 250);
scrollIntoView

.igDataChart( "scrollIntoView", targetName:string, item:object );

Return Type:

object

Return Type Description:

Returns a reference to this chart.
Notifies the target axis or series that it should scroll the requested data item into view.
- targetName
- Type:string
- The name of the axis or series notify.
- item
- Type:object
- The data item to bring into view, if possible.
Code Sample

var response = $(".selector").igDataChart("scrollIntoView", 5);
setItem

.igDataChart( "setItem", index:number, item:object, targetName:string );
Updates an item in the data source and notifies the chart.
- index
- Type:number
- The index of the item in the data source that we want to change.
- item
- Type:object
- The new item object that will be set in the data source.
- targetName
- Type:string
- The name of the series or axis bound to the data source.
Code Sample

$(".selector").igDataChart("setItem", 5, {"Item1": "Value1", "Item2": 1000, "Item3": 1019.75}, "series1");
simulateHover

.igDataChart( "simulateHover", targetName:string, seriesPoint:object );

Return Type:

object

Return Type Description:

Returns a reference to this chart.
Simulates a hover interaction over a given point in the viewport of a series.
- targetName
- Type:string
- The name of the series to target.
- seriesPoint
- Type:object
- The point at which to hover. Should have an x property with type number and a y property with type number.
Code Sample

$(".selector").igDataChart("simulateHover", "series1", { x: 100, y: 100 });
startTiledZoomingIfNecessary

.igDataChart( "startTiledZoomingIfNecessary" );
Manually starts a tiled zoom if one isn't already running.
Code Sample

$(".selector").igDataChart("startTiledZoomingIfNecessary");
styleUpdated

.igDataChart( "styleUpdated" );

Return Type:

object

Return Type Description:

Returns a reference to this igChart.
Notify the chart that styles it draws colors from may have been updated.
Code Sample

var response = $(".selector").igDataChart("styleUpdated");
unscaleValue

.igDataChart( "unscaleValue", targetName:string, scaledValue:number );

Return Type:

number

Return Type Description:

Returns the unscaled value.
Notifies the target axis that it should unscale the requested value into axis space from chart space.
For example you can use this method if you want to find what is the value of x axis unscaled from 0 width of the chart.
- targetName
- Type:string
- The name of the axis to notify.
- scaledValue
- Type:number
- The value in chart space to translate into axis space.
Code Sample

var unscaled = $(".selector").igDataChart("unscaleValue", "axis1", 50);
widget

.igDataChart( "widget" );
Returns the element holding the chart.
Code Sample

var chartWidget = $(".selector").igDataChart("widget");

ui-chart-aligned-gridlines

When the visibility CSS property is set to visible for this class, all grid lines in the chart will be snapped to the nearest pixel.
ui-angular-axis-labels

Class applying font color to the labels of angular axes.
ui-chart-area-fill-opacity

Class applying opacity value to the fill shape of all area-like series.
ui-chart-axis

Class applying border-color to all of the chart axis lines.
ui-chart-axis-major-line

Class applying border-color to the chart axes major lines. Transparent is treated as auto meaning that the chart decides which lines to be displayed based on the series types used in it. For horizontal category series (Column, Line, Area), only horizontal lines are displayed. For vertical category series (Bar), only vertical lines are displayed. For scatter, polar and radial series all gridlines are displayed.
ui-chart-axis-stroke

Class applying border-color to the chart axes stroke lines. Transparent is treated as auto meaning that the chart decides which lines to be displayed based on the series types used in it. For horizontal category series (Column, Line, Area), only horizontal lines are displayed. For vertical category series (Bar), only vertical lines are displayed. For scatter, polar and radial series all gridlines are displayed.
ui-chart-category-axis-tick

Class used for specifying width/height for the tick marks of the category axes.
ui-corner-all ui-widget-content ui-chart-container

Classes applied on a div element.
ui-horizontal-axis-labels

Class applying font color, margin, and vertical alignment to the labels of horizontal axes.
ui-chart-horizontal-axis-title

Class applying font, color, and margin to the title of horizontal chart axes.
ui-chart-legend-item-badge

Class setting all styling options to legend item icons.
ui-chart-legend-items-list

Class setting all styling options to chart legends.
ui-chart-legend-item-text

Class setting all styling options to legend item text.
ui-radial-axis-labels

Class applying font color, margin, and vertical alignment to the labels of radial axes.
ui-chart-fill-palette-n

Class applying background-image to the fill of the n-th series in the chart. Only gradient colors are accepted. As many palettes can be defined as neccessary.
ui-chart-outline-palette-n

Class applying background-image to the outline of the n-th series in the chart. Only gradient colors are accepted. As many palettes can be defined as neccessary.
ui-chart-palette-n

Class applying background-color and border-color to the n-th series in the chart. As many palettes can be defined as neccessary.
ui-chart-subtitle

Class applying font, color, and margin to the chart subtitle.
ui-chart-title

Class applying font, color, and margin to the chart title.
ui-chart-tooltip ui-widget-content ui-corner-all

Classes applied to the tooltip div element.
ui-html5-non-html5-supported-message ui-helper-clearfix ui-html5-non-html5

Classes applied on a div element, shown when the chart is opened in a non HTML5 compatible browser.
ui-vertical-axis-labels

Class applying font color, margin, and horizontal (text) alignment to the labels of vertical axes.
ui-chart-vertical-axis-title

Class applying font, color, and margin to the title of vertical chart axes.

Ignite UI for jQuery | API Reference

ui.igDataChart

Code Sample

Related Samples

Related Topics

Dependencies

Inherits
