ui.igTreeGrid

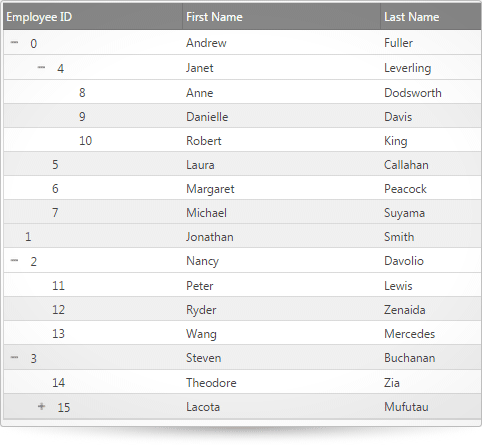

ui.igTreeGrid_image

The igTreeGrid™ presents hierarchical data by combining the principles of a tree and tabular data into a single control. Inside the igTreeGrid hierarchical data is rendered using the same columns for each row while providing a way for users to expand and collapse child data.

As the igTreeGrid inherits the igGrid control, it is able to enjoy many of the same features and functionality as the igGrid. Some features differ in function and implementation to best suit the needs of hierarchical data (e.g. filtering, paging, etc.).

In order to maintain flexibility the tree grid features a configurable expansion indicator, which can be rendered inline in the first data column or in a standalone column. The expansion indicator can also be customized with a different look-and-feel to achieve custom visualizations (see the File Explorer sample).

Note: The igTreeGrid is a stand-alone control, which also uses all of the options, events and methods of the igGrid.

The following code snippet demonstrates how to initialize the igTreeGrid control.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample

<!doctype html>
<html>
<head>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />

    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>

    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>

    <!-- Infragistics Combined Scripts -->
    <script src="js/infragistics.core.js" type="text/javascript"></script>
    <script src="js/infragistics.lob.js" type="text/javascript"></script>

    <script type="text/javascript">
        var employees = [
            { "employeeId": 0, "supervisorId": -1, "firstName": "Andrew", "lastName": "Fuller", "Category": { "ID": 0, "Name": "Name0", "Active": true, "Date": "\/Date(1059660800000)\/" } },
            { "employeeId": 1, "supervisorId": -1, "firstName": "Jonathan", "lastName": "Smith", "Category": { "ID": 1, "Name": "Name1", "Active": false, "Date": "\/Date(1159660800000)\/" } },
            { "employeeId": 2, "supervisorId": -1, "firstName": "Nancy", "lastName": "Davolio", "Category": { "ID": 2, "Name": "Name2", "Active": false, "Date": "\/Date(1252660800000)\/" } },
            { "employeeId": 3, "supervisorId": -1, "firstName": "Steven", "lastName": "Buchanan", "Category": { "ID": 0, "Name": "Name", "Active": true, "Date": "\/Date(1349660800000)\/" } },

            // Andrew Fuller's direct reports
            { "employeeId": 4, "supervisorId": 0, "firstName": "Janet", "lastName": "Leverling", "Category": { "ID": 1, "Name": "Name1", "Active": true, "Date": "\/Date(1619660800000)\/" } },
            { "employeeId": 5, "supervisorId": 0, "firstName": "Laura", "lastName": "Callahan", "Category": { "ID": 3, "Name": "Name3", "Active": false, "Date": "\/Date(1009660800000)\/" } },
            { "employeeId": 6, "supervisorId": 0, "firstName": "Margaret", "lastName": "Peacock", "Category": { "ID": 5, "Name": "Name5", "Active": false, "Date": "\/Date(1859660800000)\/" } },
            { "employeeId": 7, "supervisorId": 0, "firstName": "Michael", "lastName": "Suyama", "Category": { "ID": 1, "Name": "Name1", "Active": false, "Date": "\/Date(1059660800000)\/" } },

            // Janet Leverling's direct reports
            { "employeeId": 8, "supervisorId": 4, "firstName": "Anne", "lastName": "Dodsworth", "Category": { "ID": 5, "Name": "Name5", "Active": false, "Date": "\/Date(1959660800000)\/" } },
            { "employeeId": 9, "supervisorId": 4, "firstName": "Danielle", "lastName": "Davis", "Category": { "ID": 2, "Name": "Name2", "Active": false, "Date": "\/Date(1659660800000)\/" } },
            { "employeeId": 10, "supervisorId": 4, "firstName": "Robert", "lastName": "King", "Category": { "ID": 8, "Name": "Name8", "Active": false, "Date": "\/Date(1159660800000)\/" } },

            // Nancy Davolio's direct reports
            { "employeeId": 11, "supervisorId": 2, "firstName": "Peter", "lastName": "Lewis", "Category": { "ID": 4, "Name": "Name4", "Active": false, "Date": "\/Date(1359660800000)\/" } },
            { "employeeId": 12, "supervisorId": 2, "firstName": "Ryder", "lastName": "Zenaida", "Category": { "ID": 4, "Name": "Name4", "Active": false, "Date": "\/Date(1128124800000)\/" } },
            { "employeeId": 13, "supervisorId": 2, "firstName": "Wang", "lastName": "Mercedes", "Category": { "ID": 0, "Name": "Name0", "Active": false, "Date": "\/Date(694224000000)\/" } },

            // Steve Buchanan's direct reports
            { "employeeId": 14, "supervisorId": 3, "firstName": "Theodore", "lastName": "Zia", "Category": { "ID": 9, "Name": "Name9", "Active": false, "Date": "\/Date(1859660800000)\/" } },
            { "employeeId": 15, "supervisorId": 3, "firstName": "Lacota", "lastName": "Mufutau", "Category": { "ID": 7, "Name": "Name7", "Active": false, "Date": "\/Date(1659660800000)\/" } },

            // Lacota Mufutau's direct reports
            { "employeeId": 16, "supervisorId": 15, "firstName": "Jin", "lastName": "Elliott", "Category": { "ID": 1, "Name": "Name1", "Active": false, "Date": "\/Date(970358400000)\/" } },
            { "employeeId": 17, "supervisorId": 15, "firstName": "Armand", "lastName": "Ross", "Category": { "ID": 7, "Name": "Name7", "Active": false, "Date": "\/Date(1009660800000)\/" } },
            { "employeeId": 18, "supervisorId": 15, "firstName": "Dane", "lastName": "Rodriquez", "Category": { "ID": 3, "Name": "Name3", "Active": false, "Date": "\/Date(1059660800000)\/" } },

            // Dane Rodriquez's direct reports
            { "employeeId": 19, "supervisorId": 18, "firstName": "Declan", "lastName": "Lester", "Category": { "ID": 9, "Name": "Name9", "Active": false, "Date": "\/Date(1210204800000)\/" } },
            { "employeeId": 20, "supervisorId": 18, "firstName": "Bernard", "lastName": "Jarvis", "Category": { "ID": 2, "Name": "Name2", "Active": false, "Date": "\/Date(1009660800000)\/" } },

            // Bernard Jarvis' direct report
            { "employeeId": 21, "supervisorId": 20, "firstName": "Jeremy", "lastName": "Donaldson", "Category": { "ID": 8, "Name": "Name8", "Active": false, "Date": "\/Date(1459660800000)\/" } }
        ];

       $(function () {
           $("#treegrid").igTreeGrid({
               dataSource: employees,
               primaryKey: "employeeId",
               foreignKey: "supervisorId",
               autoGenerateColumns: false,
               columns: [
                   { headerText: "ID", key: "employeeId", width: "150px", dataType: "number" },
                   { headerText: "First", key: "firstName", width: "150px", dataType: "string" },
                   { headerText: "Last", key: "lastName", width: "150px", dataType: "string" }
               ]
           });
       });
    </script>
</head>
<body>
    <table id="treegrid"></table>
</body>
</html>

Related Samples

Related Topics

Dependencies

jquery-1.9.1.js
jquery.ui.core.js
jquery.ui.widget.js
infragistics.datasource.js
infragistics.ui.shared.js
infragistics.util.js
infragistics.ui.grid.framework.js
