ui.igScheduler

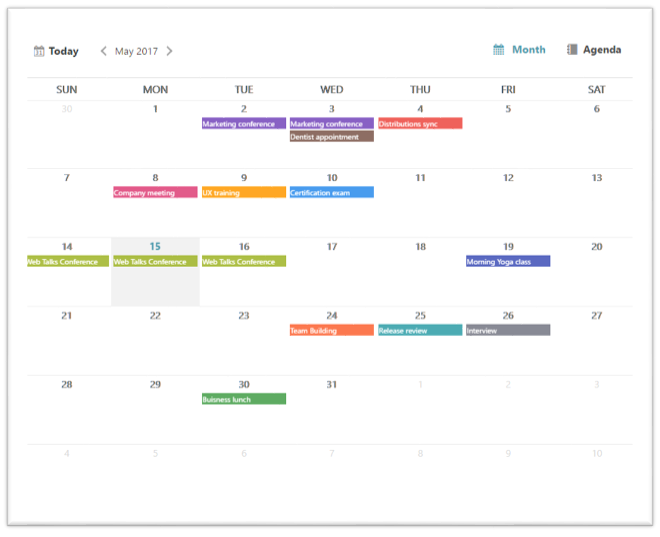

ui.igScheduler_image

The igScheduler control provides a common scheduling solution for presenting and managing time periods and the associated activities.

The following code snippet demonstrates how to initialize the igScheduler control.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igScheduler control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample

        <!doctype html>
          <html>
          <head>
          <!-- Infragistics Combined CSS -->
          <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
          <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
          <!-- jQuery Core -->
          <script src="js/modernizr.min.js"></script>
          <script src="js/jquery.min.js"></script>
          <!-- jQuery UI -->
          <script src="js/jquery-ui.min.js" type="text/javascript"></script>
          <!-- Infragistics Scripts -->
          <script src="igniteui/js/infragistics.loader.js" type="text/javascript"></script>
			    <script src="data-files/scheduler-data.js" type="text/javascript"></script>
          <script type="text/javascript">
     	          $.ig.loader({
                    scriptPath: "../../igniteui/js/",
                    cssPath: "../../igniteui/css/",
                    resources: "igScheduler"
                });

                $.ig.loader(function () {
                    var scheduleListDataSource = new $.ig.scheduler.ScheduleListDataSource(),
                          appointmentsDS = new $.ig.DataSource({
                              primaryKey: "id",
                              dataSource: appointments
                          });

                    appointmentsDS.dataBind();

                    scheduleListDataSource.resourceItemsSource(resources);
                    scheduleListDataSource.appointmentItemsSource(appointmentsDS);

                    $("#scheduler").igScheduler({
                        height: "550px",
                        width: "100%",
                        agendaViewSettings: {
                            dateRangeInterval: 10
                        },
                        views: ["agendaView"],
                        selectedDate: today,
                        dataSource: scheduleListDataSource
                    });
                });
          </script>
          </head>
          <body>
              <div id="scheduler"></div>
          </body>
          </html>


Related Samples

Related Topics

Dependencies

jquery-1.9.1.js
jquery.ui.core.js
jquery.ui.widget.js
infragistics.templating.js
infragistics.util.js
infragistics.util.jquery.js
infragistics.ui.scroll.js
infragistics.ext_core.js
infragistics.ext_text.js
infragistics.ext_collections.js
infragistics.ext_io.js
infragistics.ext_ui.js
infragistics.ext_collectionsextended.js
infragistics.ext_threading.js
infragistics.ext_web.js
infragistics.xml.js
infragistics.dv_core.js
infragistics.dv_jquerydom.js
infragistics.datasource.js
infragistics.scheduler.core.js
infragistics.ui.scheduler.core.js
infragistics.ui.shared.js
infragistics.ui.popover.js
infragistics.ui.validator.js
infragistics.ui.notifier.js
infragistics.ui.editors.js
infragistics.ui.combo.js

Inherits

  • agendaViewSettings

    Type:
    object
    Default:
    {}

    Gets/Sets AgendaView settings.

    Code Sample


                    //Initialize
                    $(".selector").igScheduler({
                        agendaViewSettings: {
                            dateRangeInterval: 3
                        }
                    });

                    //Get
                    var setting = $(".selector").igScheduler("option", "agendaViewSettings");

                    //Set
                    var setting = $(".selector").igScheduler("option", "agendaViewSettings");
                    setting.dateRangeInterval = 1;
                    $(".selector").igScheduler("option", "agendaViewSettings", settings);

    • dateRangeInterval

      Type:
      number
      Default:
      7

      Gets/Sets the number of days shown in AgendaView mode.

      Code Sample


                          //Initialize
                          $(".selector").igScheduler({
                              agendaViewSettings: {
                                  dateRangeInterval: 3
                              }
                          });

                          //Get
                          var setting = $(".selector").igScheduler("option", "agendaViewSettings");

                          //Set
                          var setting = $(".selector").igScheduler("option", "agendaViewSettings");
                          setting.dateRangeInterval = 1;
                          $(".selector").igScheduler("option", "agendaViewSettings", settings);

  • appointmentDialogSuppress

    Type:
    bool
    Default:
    false

    Gets/Sets whether the appointment dialog and the related day and appointment popups should be shown.

    Code Sample


                    // Initialize
                    $(".selector").igScheduler({
                        appointmentDialogSuppress : true
                    });

                    // Get
                    var appointmentDialogSuppress = $(".selector").igScheduler("option", "appointmentDialogSuppress");

                    // Set
                    $(".selector").igScheduler("option", "appointmentDialogSuppress", true);

  • height

    Type:
    enumeration
    Default:
    100%

    Gets/Sets the height of the control.

    Members

    • null
    • Type:object
    • will fit the editor inside its parent container, if no other heights are defined.
    • string
    • The height can be set in pixels (px) and percentage (%).
    • number
    • The height can be set as a number in pixels.

    Code Sample


                    //Initialize
                    $(".selector").igScheduler({
                        height : 250
                    });
                    //Get
                    var height = $(".selector").igScheduler("option", "height");

  • monthViewSettings

    Type:
    object
    Default:
    {}

    Gets/Sets MonthView settings.

    Code Sample


                    //Initialize
                    $(".selector").igScheduler({
                        monthViewSettings: {
                            isAgendaVisible: true,
                            agendaVisibilityType: "onlyAppointmentsForSelectedMonthViewDay",
                            viewSplitOrientation: "vertical",
                            isHorizontalSeparatorVisibile: true,
                            isVerticalSeparatorVisibile: true,
                            isWeekdayVisible: true,
                            isWeekNumberVisible: true,
                            isPreviousMonthShown: true,
                            isNextMonthShown: true
                        }
                    });

                    //Get
                    var setting = $(".selector").igScheduler("option", "monthViewSettings");

                    //Set
                    var setting = $(".selector").igScheduler("option", "monthViewSettings");
                    settings.isHorizontalSeparatorVisibile = false;
                    settings.isVerticalSeparatorVisibile = false;
                    settings.isWeekdayVisible = false;
                    settings.isWeekNumberVisible = false;
                    settings.isPreviousMonthShown = false;
                    settings.isNextMonthShown = false;
                    $(".selector").igScheduler("option", "monthViewSettings", settings);

    • agendaVisibilityType

      Type:
      string
      Default:
      "allAppointments"

      Gets/Sets the scope of appointments that are displayed in a MonthView's AgendaView.

      allAppointments Indicates that appointments for all days should be displayed in an AgendaView when it is a secondary view within a MonthView.
      onlyAppointmentsForSelectedMonthViewDay Indicates that only appointments for the day that is current selected in the associated MonthView should be displayed in an AgendaView that is associated with a MonthView as a secondary view.

      Code Sample


                          //Initialize
                          $(".selector").igScheduler({
                              monthViewSettings: {
                                  agendaVisibilityType: "onlyAppointmentsForSelectedMonthViewDay"
                              }
                          });

                          //Get
                          var type = $(".selector").igScheduler("option", "monthViewSettings").agendaVisibilityType;

    • appointmentMode

      Type:
      string
      Default:
      "auto"

      Gets/Sets the type of content displayed in a MonthView day.

      auto Depending on the screen size, indicates square indicator mode for the appointment in the Month View, if scheduler size is larger than 768px, otherwise identifies horizontal one.
      indicator Indicates that a square indicator should be displayed.
      detailed Indicates that the subject should be displayed.

      Code Sample


                          //Initialize
                          $(".selector").igScheduler({
                              monthViewSettings: {
                                  appointmentMode: "indicator"
                              }
                          });

                          //Get
                          var mode = $(".selector").igScheduler("option", "monthViewSettings").appointmentMode;

                          //Set
                          var setting = $(".selector").igScheduler("option", "monthViewSettings");
                          settings.viewSplitOrientation = "indicator";
                          $(".selector").igScheduler("option", "monthViewSettings", settings);

    • isAgendaVisible

      Type:
      bool
      Default:
      false

      Gets/Sets the visibility of an AgendaView in a MonthView. When true, the MonthView will display an AgendaView showing the Appointments for the currently selected day at the top of its list of Appointments.

      Code Sample


                          //Initialize
                          $(".selector").igScheduler({
                              monthViewSettings: {
                                  isAgendaVisible: true
                              }
                          });

                          //Get
                          var isVisible = $(".selector").igScheduler("option", "monthViewSettings").isAgendaVisible;

    • isHorizontalSeparatorVisibile

      Type:
      bool
      Default:
      true

      Gets/sets the visibility of the horizontal separators between weeks in the MonthView.

      Code Sample


                          //Initialize
                          $(".selector").igScheduler({
                              monthViewSettings: {
                                  isHorizontalSeparatorVisibile: true
                              }
                          });

                          //Get
                          var isVisible = $(".selector").igScheduler("option", "monthViewSettings").isHorizontalSeparatorVisibile;

                          //Set
                          var setting = $(".selector").igScheduler("option", "monthViewSettings");
                          settings.isHorizontalSeparatorVisibile = false;
                          $(".selector").igScheduler("option", "monthViewSettings", settings);

    • isNextMonthShown

      Type:
      bool
      Default:
      true

      Gets/sets the visibility of the days from the next month that occur in the last week of a given month.

      Code Sample


                          //Initialize
                          $(".selector").igScheduler({
                              monthViewSettings: {
                                  isNextMonthShown: true
                              }
                          });

                          //Get
                          var isVisible = $(".selector").igScheduler("option", "monthViewSettings").isNextMonthShown;

                          //Set
                          var setting = $(".selector").igScheduler("option", "monthViewSettings");
                          settings.isNextMonthShown = false;
                          $(".selector").igScheduler("option", "monthViewSettings", settings);

    • isPreviousMonthShown

      Type:
      bool
      Default:
      true

      Gets/sets the visibility of the days from the previous month that occur in the first week of a given month.

      Code Sample


                          //Initialize
                          $(".selector").igScheduler({
                              monthViewSettings: {
                                  isPreviousMonthShown: true
                              }
                          });

                          //Get
                          var isVisible = $(".selector").igScheduler("option", "monthViewSettings").isPreviousMonthShown;

                          //Set
                          var setting = $(".selector").igScheduler("option", "monthViewSettings");
                          settings.isPreviousMonthShown = false;
                          $(".selector").igScheduler("option", "monthViewSettings", settings);

    • isVerticalSeparatorVisibile

      Type:
      bool
      Default:
      false

      Gets/sets the visibility of the vertical separators between days of the week in a MonthView.

      Code Sample


                          //Initialize
                          $(".selector").igScheduler({
                              monthViewSettings: {
                                  isVerticalSeparatorVisibile: true
                              }
                          });

                          //Get
                          var isVisible = $(".selector").igScheduler("option", "monthViewSettings").isVerticalSeparatorVisibile;

                          //Set
                          var setting = $(".selector").igScheduler("option", "monthViewSettings");
                          settings.isVerticalSeparatorVisibile = false;
                          $(".selector").igScheduler("option", "monthViewSettings", settings);

    • isWeekdayVisible

      Type:
      bool
      Default:
      true

      Gets/sets the visibility of the weekday names in MonthView.

      Code Sample


                          //Initialize
                          $(".selector").igScheduler({
                              monthViewSettings: {
                                  isWeekdayVisible: true
                              }
                          });

                          //Get
                          var isVisible = $(".selector").igScheduler("option", "monthViewSettings").isWeekdayVisible;

                          //Set
                          var setting = $(".selector").igScheduler("option", "monthViewSettings");
                          settings.isWeekdayVisible = false;
                          $(".selector").igScheduler("option", "monthViewSettings", settings);

    • isWeekNumberVisible

      Type:
      bool
      Default:
      false

      Gets/sets the visibility of the week numbers in a MonthView.

      Code Sample


                          //Initialize
                          $(".selector").igScheduler({
                              monthViewSettings: {
                                  isWeekNumberVisible: true
                              }
                          });

                          //Get
                          var isVisible = $(".selector").igScheduler("option", "monthViewSettings").isWeekNumberVisible;

                          //Set
                          var setting = $(".selector").igScheduler("option", "monthViewSettings");
                          settings.isWeekNumberVisible = false;
                          $(".selector").igScheduler("option", "monthViewSettings", settings);

    • viewSplitOrientation

      Type:
      string
      Default:
      "auto"

      Gets/Sets the orientation, which determines whether the MonthView and AgendaView views are split vertically or horizontally. This option can be used when the AgendaView is displayed in the MonthView.

      auto Depending on the screen size, identifies vertical split if scheduler size is larger than 768px, otherwise identifies horizontal one.
      vertical Identifies a vertical split between the Scheduler's views.
      horizontal Identifies a horizontal split between the Scheduler's views.

      Code Sample


                          //Initialize
                          $(".selector").igScheduler({
                              monthViewSettings: {
                                  viewSplitOrientation: "horizontal"
                              }
                          });

                          //Get
                          var orientation = $(".selector").igScheduler("option", "monthViewSettings").viewSplitOrientation;

                          //Set
                          var setting = $(".selector").igScheduler("option", "monthViewSettings");
                          settings.viewSplitOrientation = "horizontal";
                          $(".selector").igScheduler("option", "monthViewSettings", settings);

  • selectedDate

    Type:
    bool
    Default:
    true

    Enables/Disables today button.

    Code Sample


                    //Initialize
                    $(".selector").igScheduler({
                        enableTodayButton: false
                    });

                    //Get
                    var isEnabled = $(".selector").igScheduler("option", "enableTodayButton");

  • viewMode

    Type:
    enumeration
    Default:
    null

    Gets/Sets current view mode in the Scheduler. If this options is not defined, then the first defined view in the views property is taken.

    Members

    • monthView
    • Type:string
    • Enables MonthView in the Scheduler.
    • agendaView
    • Type:string
    • Enables AgendaView in the Scheduler.

    Code Sample


                    //Initialize
                    $(".selector").igScheduler({
                        viewMode: "agendaView"
                    });
                    //Get
                    var mode = $(".selector").igScheduler("option", "viewMode");
                    //Set
                    $(".selector").igScheduler("option", "width", "agendaView");

  • views

    Type:
    array
    Default:
    []
    Elements Type:
    string

    Lists of all the views, rendered in the Scheduler.

    Code Sample


                    //Initialize
                    $(".selector").igScheduler({
                        views: ["monthView", "agendaView"]
                    });

                    //Get
                    var views = $(".selector").igScheduler("option", "views");

  • width

    Type:
    enumeration
    Default:
    100%

    Gets/Sets the width of the control.

    Members

    • null
    • Type:object
    • will stretch to fit data, if no other widths are defined.
    • string
    • The widget width can be set in pixels (px) and percentage (%).
    • number
    • The widget width can be set as a number in pixels.

    Code Sample


                    //Initialize
                    $(".selector").igScheduler({
                        width : 700
                    });
                    //Get
                    var width = $(".selector").igScheduler("option", "width");


For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • agendaRangeChanged

    Cancellable:
    false

    Fired after agenda view range is changed when using previous and next buttons (fired only in Agenda View).

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the scheduler.

        • dateRangeInterval
          Type: Number

          Gets a reference to the days to be shown in AgendaView mode.

        • newAgendaRangeStartDate
          Type: Object

          Gets a reference to the newly AgendaView start date.

    Code Sample


    				//Bind
    				$(document).delegate(".selector", "igscheduleragendarangechanged", function (evt, ui) {
    					//return reference to the scheduler.
    					ui.owner;
    					//return reference to the days to be shown in AgendaView mode.
    					ui.dateRangeInterval;
    					//return reference to the AgendaView start date.
    					ui.newAgendaRangeStartDate;
    				});

    				//Initialize
    				$(".selector").igScheduler({
    					agendaRangeChanged: function(evt, ui) {...}
    				});

  • agendaRangeChanging

    Cancellable:
    true

    Fired before agenda view range is changed when using previous and next buttons (fired only in Agenda View).

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the scheduler.

        • dateRangeInterval
          Type: Number

          Gets a reference to the days to be shown in AgendaView mode.

        • currentAgendaRangeStartDate
          Type: Object

          Gets a reference to the current AgendaView start date.

        • newAgendaRangeStartDate
          Type: Object

          Gets a reference to the newly AgendaView start date.

    Code Sample


    				//Bind
    				$(document).delegate(".selector", "igscheduleragendarangechanging", function (evt, ui) {
    					//return reference to the scheduler.
    					ui.owner;
    					//return reference to the days to be shown in AgendaView mode.
    					ui.dateRangeInterval;
    					//return reference to the current AgendaView start date.
    					ui.currentAgendaRangeStartDate;
    					//return reference to the new AgendaView start date.
    					ui.newAgendaRangeStartDate;
    				});

    				//Initialize
    				$(".selector").igScheduler({
    					agendaRangeChanging: function(evt, ui) {...}
    				});

  • appointmentCreated

    Cancellable:
    false

    Fired after an appointment is created.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the scheduler.

        • appointment
          Type: Object

          Gets a reference to the created appointment.

    Code Sample


    				// Bind
    				$(document).delegate(".selector", "igschedulerappointmentcreated", function (evt, ui) {
    					// returns a reference to the scheduler
    					ui.owner;
    					// returns a reference to the created appointment
    					ui.appointment;
    				});

    				// Initialize
    				$(".selector").igScheduler({
    					appointmentCreated: function(evt, ui) {...}
    				});

  • appointmentCreating

    Cancellable:
    true

    Fired before an appointment is created.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the scheduler.

        • appointment
          Type: Object

          Gets a reference to the appointment which is going to be created.

    Code Sample


    				// Bind
    				$(document).delegate(".selector", "igschedulerappointmentcreating", function (evt, ui) {
    					// returns a reference to the scheduler
    					ui.owner;
    					// returns a reference to the appointment which is going to be created
    					ui.appointment;
    				});

    				// Initialize
    				$(".selector").igScheduler({
    					appointmentCreating: function(evt, ui) {...}
    				});

  • appointmentDeleted

    Cancellable:
    false

    Fired after an appointment is deleted.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the scheduler.

        • appointmentId
          Type: Unknown

          Gets the id of the deleted appointment.

    Code Sample


    				// Bind
    				$(document).delegate(".selector", "igschedulerappointmentdeleted", function (evt, ui) {
    					// returns a reference to the scheduler
    					ui.owner;
    					// returns the id of the deleted appointment
    					ui.appointmentId;
    				});

    				// Initialize
    				$(".selector").igScheduler({
    					appointmentDeleted: function(evt, ui) {...}
    				});

  • appointmentDeleting

    Cancellable:
    true

    Fired before an appointment is deleted.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the scheduler.

        • appointment
          Type: Object

          Gets a reference to the appointment which is going to be deleted.

    Code Sample


    				// Bind
    				$(document).delegate(".selector", "igschedulerappointmentdeleting", function (evt, ui) {
    					// returns a reference to the scheduler
    					ui.owner;
    					// returns a reference to the appointment which is going to be deleted
    					ui.appointment;
    				});

    				// Initialize
    				$(".selector").igScheduler({
    					appointmentDeleting: function(evt, ui) {...}
    				});

  • appointmentDialogClosed

    Cancellable:
    false

    Fired after closing the dialog window for adding/editing appointment.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the scheduler.

        • element
          Type: Object

          Gets a reference to the appointment dialog.

        • isAppointmentNew
          Type: Bool

          Gets whether we are creating or updating an appointment.

    Code Sample


    				// Bind
    				$(document).delegate(".selector", "igschedulerappointmentdialogclosed", function (evt, ui) {
    					// returns a reference to the scheduler
    					ui.owner;
    					// returns a reference to the appointment dialog
    					ui.element;
    					// returns whether we are creating or updating an appointment
    					ui.isAppointmentNew;
    				});

    				// Initialize
    				$(".selector").igScheduler({
    					appointmentDialogClosed: function(evt, ui) {...}
    				});

  • appointmentDialogClosing

    Cancellable:
    true

    Fired before closing the dialog for adding/editing appointment.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the scheduler.

        • element
          Type: Object

          Gets a reference to the appointment dialog.

        • isAppointmentNew
          Type: Bool

          Gets whether we are creating or updating an appointment.

    Code Sample


    				// Bind
    				$(document).delegate(".selector", "igschedulerappointmentdialogclosing", function (evt, ui) {
    					// returns a reference to the scheduler
    					ui.owner;
    					// returns a reference to the appointment dialog
    					ui.element;
    					// returns whether we are creating or updating an appointment
    					ui.isAppointmentNew;
    				});

    				// Initialize
    				$(".selector").igScheduler({
    					appointmentDialogClosing: function(evt, ui) {...}
    				});

  • appointmentDialogOpened

    Cancellable:
    false

    Fired after opening the dialog for creating/editing appointment.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the scheduler.

        • element
          Type: Object

          Gets a reference to the appointment dialog.

        • isAppointmentNew
          Type: Bool

          Gets whether we are creating or updating an appointment.

    Code Sample


    				// Bind
    				$(document).delegate(".selector", "igschedulerappointmentdialogopened", function (evt, ui) {
    					// returns a reference to the scheduler
    					ui.owner;
    					// returns a reference to the appointment dialog
    					ui.element;
    					// returns whether we are creating or updating an appointment
    					ui.isAppointmentNew;
    				});

    				// Initialize
    				$(".selector").igScheduler({
    					appointmentDialogOpened: function(evt, ui) {...}
    				});

  • appointmentDialogOpening

    Cancellable:
    true

    Fired before opening the dialog for creating/editing appointment.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the scheduler.

        • element
          Type: Object

          Gets a reference to the appointment dialog.

        • isAppointmentNew
          Type: Bool

          Gets whether we are creating or updating an appointment.

    Code Sample


    				// Bind
    				$(document).delegate(".selector", "igschedulerappointmentdialogopening", function (evt, ui) {
    					// returns a reference to the scheduler
    					ui.owner;
    					// returns a reference to the appointment dialog
    					ui.element;
    					// returns whether we are creating or updating an appointment
    					ui.isAppointmentNew;
    				});

    				// Initialize
    				$(".selector").igScheduler({
    					appointmentDialogOpening: function(evt, ui) {...}
    				});

  • appointmentEdited

    Cancellable:
    false

    Fired after an appointment is edited.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the scheduler.

        • appointment
          Type: Object

          Gets a reference to the edited appointment.

    Code Sample


    				// Bind
    				$(document).delegate(".selector", "igschedulerappointmentedited", function (evt, ui) {
    					// returns a reference to the scheduler
    					ui.owner;
    					// returns a reference to the edited appointment
    					ui.appointment;
    				});

    				// Initialize
    				$(".selector").igScheduler({
    					appointmentEdited: function(evt, ui) {...}
    				});

  • appointmentEditing

    Cancellable:
    true

    Fired before an appointment is edited.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the scheduler.

        • appointment
          Type: Object

          Gets a reference to the original appointment.

        • newAppointment
          Type: Object

          Gets a reference to the appointment with the edited values.

    Code Sample


    				// Bind
    				$(document).delegate(".selector", "igschedulerappointmentediting", function (evt, ui) {
    					// returns a reference to the scheduler
    					ui.owner;
    					// returns a reference to the original appointment
    					ui.appointment;
    					// returns a reference to the appointment with the edited values
    					ui.newAppointment;
    				});

    				// Initialize
    				$(".selector").igScheduler({
    					appointmentEditing: function(evt, ui) {...}
    				});

  • daySelected

    Cancellable:
    false

    Fired when a day is selected from the datepicker calendar.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the scheduler.

        • date
          Type: Object

          Gets a reference to currently selected date.

    Code Sample


    				//Bind
    				$(document).delegate(".selector", "igschedulerdayselected", function (evt, ui) {
    					//return reference to the scheduler.
    					ui.owner;
    					//return reference to the selected date.
    					ui.date;
    				});

    				//Initialize
    				$(".selector").igScheduler({
    					daySelected: function(evt, ui) {...}
    				});

  • monthChanged

    Cancellable:
    false

    Fired after month is changed when using previous and next buttons (fired only in Month View).

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the scheduler.

        • newSelectedDate
          Type: Object

          Gets a reference to newly selected date.

    Code Sample


    				//Bind
    				$(document).delegate(".selector", "igschedulermonthchanged", function (evt, ui) {
    					//return reference to the scheduler.
    					ui.owner;
    					//return reference to the selected date.
    					ui.newSelectedDate;
    				});

    				//Initialize
    				$(".selector").igScheduler({
    					monthChanged: function(evt, ui) {...}
    				});

  • monthChanging

    Cancellable:
    true

    Fired before changing the month begins, when using previous and next buttons (fired only in Month View).

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the scheduler.

        • newSelectedDate
          Type: Object

          Gets a reference to newly selected date.

        • currentSelectedDate
          Type: Object

          Gets a reference to the currently selected date.

    Code Sample


    				//Bind
    				$(document).delegate(".selector", "igschedulermonthchanging", function (evt, ui) {
    					//return reference to the scheduler.
    					ui.owner;
    					//return reference to the new selected date.
    					ui.newSelectedDate;
    					//return reference to the currently selected date.
    					ui.currentSelectedDate;
    				});

    				//Initialize
    				$(".selector").igScheduler({
    					monthChanging: function(evt, ui) {...}
    				});

  • rendered

    Cancellable:
    false

    Fired after rendering of the scheduler has finished.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the scheduler that performed the rendering.

    Code Sample


    				//Bind
    				$(document).delegate(".selector", "igschedulerrendered", function (evt, ui) {
    					//return reference to the scheduler.
    					ui.owner;
    				});

    				//Initialize
    				$(".selector").igScheduler({
    					rendered: function(evt, ui) {...}
    				});

  • rendering

    Cancellable:
    false

    Fired before rendering of the scheduler begins.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the scheduler performing rendering.

    Code Sample


    				//Bind
    				$(document).delegate(".selector", "igschedulerrendering", function (evt, ui) {
    					//return reference to the scheduler.
    					ui.owner;
    				});

    				//Initialize
    				$(".selector").igScheduler({
    					rendering: function(evt, ui) {...}
    				});

  • viewChanged

    Cancellable:
    false

    Fired after the view is changed, when using the menu buttons.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the scheduler.

        • newSelectedView
          Type: String

          Gets a reference to the newly selected view.

    Code Sample


    				//Bind
    				$(document).delegate(".selector", "igschedulerviewchanged", function (evt, ui) {
    					//return reference to the scheduler.
    					ui.owner;
    					//return reference to the newly selected view.
    					ui.newSelectedView;
    				});

    				//Initialize
    				$(".selector").igScheduler({
    					viewChanged: function(evt, ui) {...}
    				});

  • viewChanging

    Cancellable:
    true

    Fired before the view is changed, when using the menu buttons.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the scheduler.

        • currentSelectedView
          Type: String

          Gets a reference to the currently selected view.

        • newSelectedView
          Type: String

          Gets a reference to the newly selected view.

    Code Sample


    				//Bind
    				$(document).delegate(".selector", "igschedulerviewchanging", function (evt, ui) {
    					//return reference to the scheduler.
    					ui.owner;
    					//return reference to the currently selected view.
    					ui.currentSelectedView
    					//return reference to the newly selected view.
    					ui.newSelectedView;
    				});

    				//Initialize
    				$(".selector").igScheduler({
    					viewChanging: function(evt, ui) {...}
    				});

  • createAppointment

    .igScheduler( "createAppointment", appointment:object );
    Return Type:
    object
    Return Type Description:
    The transaction appointment object that was created.

    Creates a new appointment and renders it to the scheduler.

    • appointment
    • Type:object

    Code Sample


    			$(".selector").igScheduler("createAppointment", {
    				// if not set a GUID is for the id is autogenerated
    				id: 1,
    				subject: "Some subject"
    				location: "Somewhere"
    				start: new Date(2017, 04, 05, 12, 30),
    				end: new Date(2017, 04, 05, 12, 30),
    				// if not set the stone is considered for default
    				resourceId: 4,
    				description: "Lorem ipsum dolor sit amet, consectetur adipisicing elit."
    			});

  • dateRangeButton

    .igScheduler( "dateRangeButton" );
    Return Type:
    jquery
    Return Type Description:
    The visual editor element.

    Gets reference to the date range UI button.

    Code Sample


    			$(".selector").igScheduler("dateRangeButton");

  • deleteAppointment

    .igScheduler( "deleteAppointment", appointment:object );

    Deletes appointment from the appointment collection.

    • appointment
    • Type:object
    • appointment.

    Code Sample


    			$(".selector").igScheduler("deleteAppointment", appointment);

  • destroy

    .igScheduler( "destroy" );

    Destroys the widget.

    Code Sample


    					$(".selector").igScheduler("destroy");

  • editAppointment

    .igScheduler( "editAppointment", appointment:object, updateAppoinment:object );

    Deletes appointment from the appointment collection.

    • appointment
    • Type:object
    • appointment.
    • updateAppoinment
    • Type:object
    • updateAppoinment.

    Code Sample


    			$(".selector").igScheduler("editAppointment", appointment, {
    				subject: "Some subject"
    				location: "Somewhere"
    				start: new Date(2017, 04, 05, 12, 30),
    				end: new Date(2017, 04, 05, 12, 30),
    				resourceId: 4g,
    				description: "Lorem ipsum dolor sit amet, consectetur adipisicing elit."
    			});

  • getAppointmentById

    .igScheduler( "getAppointmentById", id:object );

    Gets reference to appointment by id.

    • id
    • Type:object

    Code Sample


    			$(".selector").igScheduler("getAppointmentById", 1);

  • getCalendar

    .igScheduler( "getCalendar" );
    Return Type:
    jquery
    Return Type Description:
    The visual editor element.

    Gets reference to the jQuery calendar UI control.

    Code Sample


    			$(".selector").igScheduler("getCalendar");

  • nextButton

    .igScheduler( "nextButton" );
    Return Type:
    jquery
    Return Type Description:
    The visual editor element.

    Gets reference to the next UI button.

    Code Sample


    			$(".selector").igScheduler("nextButton");

  • previousButton

    .igScheduler( "previousButton" );
    Return Type:
    jquery
    Return Type Description:
    The visual editor element.

    Gets reference to the previous UI button.

    Code Sample


    			$(".selector").igScheduler("previousButton");

  • todayButton

    .igScheduler( "todayButton" );
    Return Type:
    jquery
    Return Type Description:
    The visual editor element.

    Gets reference to the today UI button.

    Code Sample


    			$(".selector").igScheduler("todayButton");

  • ui-icon ui-icon-note

    Class applied to the agenda view tab icon. Default value is 'ui-icon ui-icon-note'.
  • ui-igscheduler-appointment-dialog-cancel-button

    Class applied to the appointment dialog cancel button. Default value is 'ui-igscheduler-appointment-dialog-cancel-button'.
  • ui-igscheudler-appointment-dialog-create-button

    Class applied to the appointment dialog create button. Default value is 'ui-igscheudler-appointment-dialog-create-button'.
  • ui-igscheduler-appointment-dialog-description

    Class applied to the appointment dialog description editor. Default value is 'ui-igscheduler-appointment-dialog-description'.
  • ui-igscheduler-appointment-dialog-form

    Class applied to the appointment dialog form. Default value is 'ui-igscheduler-appointment-dialog-form'.
  • ui-igscheduler-appointment-form-group

    Class applied to an appointment dialog form group. Default value is 'ui-igscheduler-appointment-form-group'.
  • ui-igscheduler-appointment-dialog-from-date

    Class applied to the appointment dialog from datepicker. Default value is 'ui-igscheduler-appointment-dialog-from-date'.
  • ui-igscheduler-appointment-dialog-from-date-time-label

    Class applied to the appointment dialog from datetime label. Default value is 'ui-igscheduler-appointment-dialog-from-date-time-label'.
  • ui-igscheduler-appointment-dialog-from-time

    Class applied to the appointment dialog from timepicker. Default value is 'ui-igscheduler-appointment-dialog-from-time'.
  • ui-igscheduler-appointment-dialog-location

    Class applied to the appointment dialog location editor. Default value is 'ui-igscheduler-appointment-dialog-location'.
  • ui-igscheduler-appointment-dialog-save-button

    Class applied to the appointment dialog save button. Default value is 'ui-igscheduler-appointment-dialog-save-button'.
  • ui-igscheduler-appointment-dialog-subject

    Class applied to the appointment dialog subject editor. Default value is 'ui-igscheduler-appointment-dialog-subject'.
  • ui-igscheduler-appointment-dialog-to-date

    Class applied to the appointment dialog to datepicker. Default value is 'ui-igscheduler-appointment-dialog-to-date'.
  • ui-igscheduler-appointment-dialog-to-date-time-label

    Class applied to the appointment dialog to datetime label. Default value is 'ui-igscheduler-appointment-dialog-to-date-time-label'.
  • ui-igscheduler-appointment-dialog-to-time

    Class applied to the appointment dialog to timepicker. Default value is 'ui-igscheduler-appointment-dialog-to-time'.
  • ui-igscheduler-appointment-actions

    Class applied to the appointment popover actions - open and delete. Default value is 'ui-igscheduler-appointment-actions'.
  • ui-igscheduler-appointment-popover-content

    Class applied to the appointment popover content. Default value is 'ui-igscheduler-appointment-popover-content'.
  • ui-igscheduler-appointment-popover-delete-button

    Class applied to the appointment popover delete button. Default value is 'ui-igscheduler-appointment-popover-delete-button'.
  • ui-igscheduler-appointment-popover-from-to

    Class applied to the appointment popover start and end time. Default value is 'ui-igscheduler-appointment-popover-from-to'.
  • ui-igscheduler-appointment-popover-open-button

    Class applied to the appointment popover open button. Default value is 'ui-igscheduler-appointment-popover-open-button'.
  • ui-igscheduler-appointment-popover-subject

    Class applied to the appointment popover subject. Default value is 'ui-igscheduler-appointment-popover-subject'.
  • ui-igscheduler-body

    Class applied to the body element, which contains the schedule view(s). Default value is 'ui-igscheduler-body'.
  • ui-widget ui-corner-all ui-state-default

    Class applied to the top element when editor is rendered in container. Default value is 'ui-widget ui-corner-all ui-state-default'.
  • ui-igscheduler-navigator-date-range-button

    Class applied to the date display element, which serves as drop down button in AgendaView mode. Default value is 'ui-igscheduler-navigator-date-range-button'.
  • date-range-button-text

    Class applied to the date display span element. Default value is 'date-range-button-text'.
  • ui-igscheduler-day-popover-content

    Class applied to the day popover content. Default value is 'ui-igscheduler-day-popover-content'.
  • ui-igscheduler-day-popover-create-button

    Class applied to the day popover create button. Default value is 'ui-igscheduler-day-popover-create-button'.
  • ui-igscheduler-delete-appointment-dialog-actions

    Class applied to the delete appointment dialog actions. Default value is 'ui-igscheduler-delete-appointment-dialog-actions'.
  • ui-igscheduler-delete-appointment-dialog-cancel-button

    Class applied to the delete appointment dialog cancel button. Default value is 'ui-igscheduler-delete-appointment-dialog-cancel-button'.
  • ui-igscheduler-delete-appointment-dialog-confirmation

    Class applied to the delete appointment confirmation dialog. Default value is 'ui-igscheduler-delete-appointment-dialog-confirmation'.
  • ui-igscheduler-delete-appointment-dialog-delete-button

    Class applied to the delete appointment dialog delete button. Default value is 'ui-igscheduler-delete-appointment-dialog-delete-button'.
  • ui-igscheduler-navigator-disabled-date-range-button

    Class applied to the date display element in MonthView. Default value is 'ui-igscheduler-navigator-disabled-date-range-button'.
  • ui-igscheduler-header

    Class applied to the header element, which contains date and view navigations. Default value is 'ui-igscheduler-header'.
  • ui-icon ui-icon-calendar

    Class applied to the month view tab icon. Default value is 'ui-icon ui-icon-calendar'.
  • ui-igscheduler-navigator

    Class applied to the date navigation container element. Default value is 'ui-igscheduler-navigator'.
  • ui-igscheduler-navigator-next-button

    Class applied to the next button element. Default value is 'ui-igscheduler-navigator-next-button'.
  • ui-igscheduler-navigator-previous-button

    Class applied to the previous button element. Default value is 'ui-igscheduler-navigator-previous-button'.
  • ui-igscheduler-resources-combo

    Class applied to the combo resources element.
  • ui-igscheduler-resources-combo-item-color

    Class applied to the combo item resource color element.
  • ui-igscheduler-resources-combo-item-text

    Class applied to the combo item resource text element.
  • ui-igscheduler

    Class applied to the main/top element. Default value is 'ui-igscheduler'.
  • ui-igscheduler-tabs-selected

    Class applied to the selected view tab. Default value is 'ui-igscheduler-tabs-selected'.
  • ui-igscheduler-side-by-side-group

    Class applied to side by side group of input fields in the appointment dialog. Default value is 'ui-igscheduler-side-by-side-group'.
  • ui-igscheduler-tabs

    Class applied to the individual view mode tabs. Default value is 'ui-igscheduler-tabs'.
  • ui-igscheduler-tabs-container

    Class applied to the tabs container. Default value is 'ui-igscheduler-tabs-container'.
  • ui-igscheduler-today-button

    Class applied to the today button element. Default value is 'ui-igscheduler-today-button'.
  • ui-icon ui-icon-calendar-day

    Class applied to the today button icon. Default value is 'ui-icon ui-icon-calendar-day'.

Copyright © 1996 - 2024 Infragistics, Inc. All rights reserved.
