ui.igGridFiltering

Overview
Options
Events
Methods
Theming

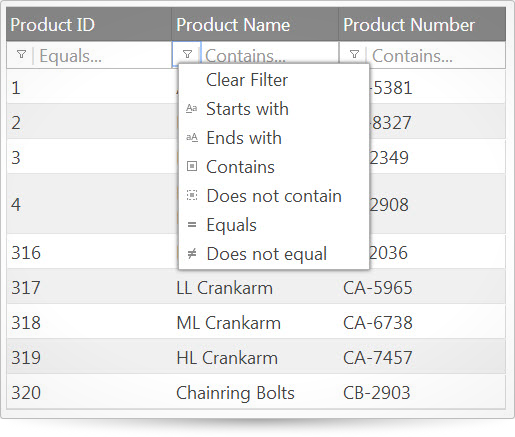

Both the igGrid and igHierarchicalGrid controls feature row filtering which allows users to restrict grid rows to only the data that meets a given criteria. Filtering options include numeric, string and date filters. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

The following code snippet demonstrates how to initialize the igGrid control.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample


        <!doctype html>
        <html>
        <head>
            <!-- Infragistics Combined CSS -->
            <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
            <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
            <!-- jQuery Core -->
            <script src="js/jquery.js" type="text/javascript"></script>
            <!-- jQuery UI -->
            <script src="js/jquery-ui.js" type="text/javascript"></script>
            <!-- Infragistics Combined Scripts -->
            <script src="js/infragistics.core.js" type="text/javascript"></script>
                  <script src="js/infragistics.lob.js" type="text/javascript"></script>
            <script type="text/javascript">
                var products = [
                    { "ProductID": 1, "Name": "Adjustable Race", "ProductNumber": "AR-5381" },
                    { "ProductID": 2, "Name": "Bearing Ball", "ProductNumber": "BA-8327" },
                    { "ProductID": 3, "Name": "BB Ball Bearing", "ProductNumber": "BE-2349" },
                    { "ProductID": 4, "Name": "Headset Ball Bearings", "ProductNumber": "BE-2908" },
                    { "ProductID": 316, "Name": "Blade", "ProductNumber": "BL-2036" },
                    { "ProductID": 317, "Name": "LL Crankarm", "ProductNumber": "CA-5965" },
                    { "ProductID": 318, "Name": "ML Crankarm", "ProductNumber": "CA-6738" },
                    { "ProductID": 319, "Name": "HL Crankarm", "ProductNumber": "CA-7457" },
                    { "ProductID": 320, "Name": "Chainring Bolts", "ProductNumber": "CB-2903" }
                ];

                $(function () {
                    $("#gridFiltering").igGrid({
                        columns: [
                            { headerText: "Product ID", key: "ProductID", dataType: "number" },
                            { headerText: "Product Name", key: "Name", dataType: "string" },
                            { headerText: "Product Number", key: "ProductNumber", dataType: "string" }
                        ],
                        features:[
                            {
                                name: "Filtering"
                            }
                        ],
                        width: "500px",
                        dataSource: products
                    });
                });
            </script>
        </head>
        <body>
            <table id="gridFiltering"></table>
        </body>
        </html>

Related Samples

advancedModeEditorsVisible

Type:: bool
Default:: false

Defines whether to render editors in advanced mode. If false, no editors will be rendered in the advanced mode.

Code Sample


			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						advancedModeEditorsVisible : true
					}
				]
			});

			// Get
			var editorsVisible = $(".selector").igGridFiltering("option", "advancedModeEditorsVisible");

			// Set
			$(".selector").igGridFiltering("option", "advancedModeEditorsVisible", true);

advancedModeHeaderButtonLocation

Type:: enumeration
Default:: left

Location of the advanced filtering button when advancedModeEditorsVisible is false (i.e. when the button is rendered in the header).

Members

left
Type:string
right
Type:string

Code Sample


				// Initialize
				$(".selector").igGrid({
					features: [
						{
							name : "Filtering",
							advancedModeHeaderButtonLocation : "right"
						}
					]
				});
				// Get
				var location = $(".selector").igGridFiltering("option", "advancedModeHeaderButtonLocation");
				// Set
				$(".selector").igGridFiltering("option", "advancedModeHeaderButtonLocation", "right");

caseSensitive

Type:: bool
Default:: false

Enables or disables the filtering case sensitivity. Works only for local filtering. If true, it case sensitive filtering is performed. If false, filtering is case insensitive.

Code Sample


			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						caseSensitive : true
					}
				]
			});

			// Get
			var caseSensitive = $(".selector").igGridFiltering("option", "caseSensitive");

			// Set
			$(".selector").igGridFiltering("option", "caseSensitive", true);

columnSettings

Type:: array
Default:: []
Elements Type:: object

A list of column settings that specifies custom filtering options on a per column basis.

Code Sample


			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						columnSettings : [
							{
								columnKey: "ProductDescription",
								condition: "endsWith"
							}
						]
					}
				]
			});

			// Get
			var colSettings = $(".selector").igGridFiltering("option", "columnSettings");

			// Set
			$(".selector").igGridFiltering("option", "columnSettings",
				[{columnKey: "ProductDescription",
					condition: "endsWith"
				}]
			);

allowFiltering

Type:: bool
Default:: true

Enables/disables filtering for the column.

Code Sample


					//Initialize
					$(".selector").igGrid({
						features: [
							{
								name : "Filtering",
								columnSettings : [
									{
										columnKey: "ProductDescription",
										allowFiltering: false
									}
								]
							}
						]
					});

					//Get
					var colSettings = $(".selector").igGridFiltering("option", "columnSettings");
					var filterAllowed = colSettings[0].allowFiltering;

					// Set
					$(".selector").igGridFiltering("option", "columnSettings", colSettings);

columnIndex

Type:: number
Default:: null

Identifies the grid column by index. Either key or index must be set in every column setting.

Code Sample


					// Initialize
					$(".selector").igGrid({
						features: [
							{
								name : "Filtering",
								columnSettings : [
									{
										columnIndex: 0,
										allowFiltering: false
									}
								]
							}
						]
					});

					// Get
					var colSettings = $(".selector").igGridFiltering("option", "columnSettings");
					var colIndex = colSettings[0].columnIndex;

columnKey

Type:: string
Default:: null

Identifies the grid column by key. Either key or index must be set in every column setting.

Code Sample


					//Initialize
					$(".selector").igGrid({
						features: [
							{
								name : "Filtering",
								columnSettings : [
									{
										columnKey: "ProductDescription",
										allowFiltering: false
									}
								]
							}
						]
					});

					//Get
					var colSettings = $(".selector").igGridFiltering("option", "columnSettings");
					var colKey = colSettings[0].columnKey;

condition

Type:

enumeration

Default:

null
Initial filtering condition for the column.
Members
- empty
- Type:string
- notEmpty
- Type:string
- null
- Type:string
- notNull
- Type:string
- equals
- Type:string
- doesNotEqual
- Type:string
- startsWith
- Type:string
- contains
- Type:string
- doesNotContain
- Type:string
- endsWith
- Type:string
- greaterThan
- Type:string
- lessThan
- Type:string
- greaterThanOrEqualTo
- Type:string
- lessThanOrEqualTo
- Type:string
- true
- Type:bool
- false
- Type:bool
- on
- Type:string
- notOn
- Type:string
- before
- Type:string
- after
- Type:string
- today
- Type:string
- yesterday
- Type:string
- thisMonth
- Type:string
- lastMonth
- Type:string
- nextMonth
- Type:string
- thisYear
- Type:string
- nextYear
- Type:string
- lastYear
- Type:string
Code Sample
```

					// Initialize
					$(".selector").igGrid({
						features: [
							{
								name : "Filtering",
								columnSettings : [
									{
										columnKey: "ProductDescription",
										condition: "startsWith"
									}
								]
							}
						]
					});
					// Get
					var colSettings = $(".selector").igGridFiltering("option", "columnSettings");
					var condition = colSettings[0].condition;
					// Set
					$(".selector").igGridFiltering("option", "columnSettings", colSettings);

```

conditionList

Type:: array
Default:: []
Elements Type:: object

An array of strings that determine which conditions to display for this column.

Code Sample


					//Initialize
					$(".selector").igGrid({
						features: [
							{
								name : "Filtering",
								columnSettings : [{
									columnKey: "ProductNumber",
									conditionList: ["startsWith", "contains"]
								}]
							}
						]
					});

					//Get
					var conditionList = $(".selector").igGridFiltering("option", "columnSettings")[2].conditionList;

customConditions

Type:: object
Default:: null

An object used to specify custom filtering conditions as objects for this column.

labelText The label as it will appear in the column's condition dropdown.
expressionText The text to display in the editor when requireExpr is false.
requireExpr If this condition requires the user to input a filtering expression.
filterImgIcon Class applied to the dropdown item when in simple mode.
filterFunc The custom comparing filter function. Signature: function (value, expression, dataType, ignoreCase, preciseDateFormat).

Code Sample


					// Initialize
					$(".selector").igGrid({
						features: [
							{
								name : "Filtering",
								columnSettings : [{
									columnKey: "ProductNumber",
									customConditions: {
										BE: {
											labelText: "BE",
											expressionText: "BE-####",
											requireExpr: false,
											filterFunc: filterProductNumber
										},
										CA: {
											labelText: "CA",
											expressionText: "CA-####",
											requireExpr: false,
											filterFunc: filterProductNumber1
										}
									}
								}]
							}
						]
					});

					function filterProductNumber(value, expression, dataType, ignoreCase, preciseDateFormat) {
						return value.startsWith("BE");
					}

					function filterProductNumber1(value, expression, dataType, ignoreCase, preciseDateFormat) {
						return value.startsWith("CA");
					}
					// Get
					var customConditions = $(".selector").igGridFiltering("option", "columnSettings")[2].customConditions;

defaultExpressions

Type:: object
Default:: []

Initial filtering expressions - if set they will be applied on initialization together with the preset condition.

Code Sample


					// Initialize
					$(".selector").igGrid({
						features: [
							{
								name : "Filtering",
								columnSettings : [
									{
										columnKey: "Name",
										defaultExpressions: [
											{ expr: "B", cond: "startsWith" }
										]
									}
								]
							}
						]
					});

					// Get
					var defaultExpressions = $(".selector").igGridFiltering("option", "columnSettings")[0].defaultExpressions;

dialogWidget

Type:: string
Default:: "igGridModalDialog"

Name of the dialog widget to be used. It should inherit from $.ui.igGridModalDialog.

Code Sample


			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						dialogWidget: "advancedModalDialog"
					}
				]
			});

			// Get
			var widgetName = $(".selector").igGridFiltering("option", "dialogWidget");

featureChooserText

Type:: string
Default:: ""

Feature chooser text when filter is shown and filter mode is simple.

Code Sample


			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						featureChooserText : "Hide Filter"
					}
				]
			});

			// Get
			var text = $(".selector").igGridFiltering("option", "featureChooserText");

			// Set
			$(".selector").igGridFiltering("option", "featureChooserText", "Hide Filter");

featureChooserTextAdvancedFilter

Type:: string
Default:: ""

Feature chooser text when filter mode is advanced.

Code Sample


			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						featureChooserTextAdvancedFilter : "Advanced Filter"
					}
				]
			});

			// Get
			var text = $(".selector").igGridFiltering("option", "featureChooserTextAdvancedFilter");

			// Set
			$(".selector").igGridFiltering("option", "featureChooserTextAdvancedFilter", "Advanced Filter");

featureChooserTextHide

Type:: string
Default:: ""

Feature chooser text when filter is hidden and filter mode is simple.

Code Sample


			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						featureChooserTextHide : "Show Filter"
					}
				]
			});

			// Get
			var text = $(".selector").igGridFiltering("option", "featureChooserTextHide");

			// Set
			$(".selector").igGridFiltering("option", "featureChooserTextHide", "Show Filter");

filterButtonLocation

Type:: enumeration
Default:: left

The filtering button for filter dropdowns can be rendered either on the left of the filter editor, or on the right.

Members

left
Type:string
The button is rendered on the left.
right
Type:string
The button is rendered on the right.

Code Sample


				// Initialize
				$(".selector").igGrid({
					features: [
						{
							name : "Filtering",
							filterButtonLocation : "right"
						}
					]
				});
				// Get
				var location = $(".selector").igGridFiltering("option", "filterButtonLocation");
				// Set
				$(".selector").igGridFiltering("option", "filterButtonLocation", "right");

filterDelay

Type:: number
Default:: 500

Time in milliseconds for which widget will wait between keystrokes before sending filtering requests.

Code Sample


			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						filterDelay : 1000
					}
				]
			});

			// Get
			var delay = $(".selector").igGridFiltering("option", "filterDelay");

			// Set
			$(".selector").igGridFiltering("option", "filterDelay", 1000);

filterDialogAddButtonWidth

Type:: enumeration
Default:: 100

Add button width - in the advanced filter dialog.

Members

string
Type:string
The dialog Add button width in pixels (100px).
number
Type:number
The dialog Add button width in pixels as a number (100).

Code Sample


				// Initialize
				$(".selector").igGrid({
					features: [
						{
							name : "Filtering",
							filterDialogAddButtonWidth : 75
						}
					]
				});
				// Get
				var width = $(".selector").igGridFiltering("option", "filterDialogAddButtonWidth");
				// Set
				$(".selector").igGridFiltering("option", "filterDialogAddButtonWidth", 75);

filterDialogAddConditionDropDownTemplate

Type:: string
Default:: null

Custom template for options in dropdown in add condition area in the filter dialog. The default template is "<option value='${value}'>${text}</option>".

Code Sample


			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						filterDialogAddConditionDropDownTemplate: "<option value='${text}'>${text}</option>"
					}
				]
			});

			// Get
			var dropDownTemplate = $(".selector").igGridFiltering("option", "filterDialogAddConditionDropDownTemplate");

			// Set
			$(".selector").igGridFiltering("option",
										   "filterDialogAddConditionDropDownTemplate",
										   "<option value='${text}'>${text}</option>");

filterDialogAddConditionTemplate

Type:: string
Default:: null

Custom template for add condition area in the filter dialog. The default template is "<div><span>${label1}</span><div><select></select></div><span>${label2}</span></div>".

Code Sample


			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						filterDialogAddConditionTemplate: "<div><div><select></select></div><span>${label1}</span><span>${label2}</span></div>"
					}
				]
			});

			// Get
			var addConditionTemplate = $(".selector").igGridFiltering("option", "filterDialogAddConditionTemplate");

			// Set
			$(".selector").igGridFiltering("option",
										   "filterDialogAddConditionTemplate",
										   "<div><div><select></select></div><span>${label1}</span><span>${label2}</span></div>");

filterDialogColumnDropDownDefaultWidth

Type:: enumeration
Default:: null

Width of the column chooser dropdowns in the advanced filter dialog.

Members

string
Type:string
The column chooser dropdowns width in pixels (80px).
number
Type:number
The column chooser dropdowns width in pixels as a number (80).

Code Sample


				// Initialize
				$(".selector").igGrid({
					features: [
						{
							name : "Filtering",
							filterDialogColumnDropDownDefaultWidth : 100
					    }
					]
				});
				// Get
				var width = $(".selector").igGridFiltering("option", "filterDialogColumnDropDownDefaultWidth");
				// Set
				$(".selector").igGridFiltering("option", "filterDialogColumnDropDownDefaultWidth", 100);

filterDialogContainment

Type:: string
Default:: "owner"

Controls containment behavior.

owner The filter dialog will be draggable only within the grid area.
window The filter dialog will be draggable within the whole window area.

Code Sample


				// Initialize
				$(".selector").igGrid({
					features: [
						{
							name : "Filtering",
							filterDialogContainment : "window"
					    }
					]
				});

				// Get
				var filterDialogContainment = $(".selector").igGridFiltering("option", "filterDialogContainment");

filterDialogExprInputDefaultWidth

Type:: enumeration
Default:: 130

Width of the filtering expression input boxes in the advanced filter dialog.

Members

string
Type:string
The filtering expression input boxes width in pixels (80px).
number
Type:number
The filtering expression input boxes width in pixels as a number (80).

Code Sample


				// Initialize
				$(".selector").igGrid({
					features: [
						{
							name : "Filtering",
							filterDialogExprInputDefaultWidth : 100
					    }
					]
				});
				// Get
				var width = $(".selector").igGridFiltering("option", "filterDialogExprInputDefaultWidth");
				// Set
				$(".selector").igGridFiltering("option", "filterDialogExprInputDefaultWidth", 100);

filterDialogFilterConditionTemplate

Type:: string
Default:: null

Custom template for options in condition list in filter dialog. The default template is "<option value='${condition}'>${text}</option>".

Code Sample


			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						filterDialogFilterConditionTemplate: "<option value='${conditionName}'>${conditionLabel}</option>"
					}
				]
			});

			// Get
			var filterConditionTemplate = $(".selector").igGridFiltering("option", "filterDialogFilterConditionTemplate");

			// Set
			$(".selector").igGridFiltering("option",
										   "filterDialogFilterConditionTemplate",
										   "<option value='${conditionName}'>${conditionLabel}</option>");

filterDialogFilterDropDownDefaultWidth

Type:: enumeration
Default:: 80

Width of the filtering condition dropdowns in the advanced filter dialog.

Members

string
Type:string
The filtering condition dropdowns width in pixels (80px).
number
Type:number
The filtering condition dropdowns width in pixels as a number (80).

Code Sample


				// Initialize
				$(".selector").igGrid({
					features: [
						{
							name : "Filtering",
							filterDialogFilterDropDownDefaultWidth : 100
						}
					]
				});
				// Get
				var width = $(".selector").igGridFiltering("option", "filterDialogFilterDropDownDefaultWidth");
				// Set
				$(".selector").igGridFiltering("option", "filterDialogFilterDropDownDefaultWidth", 100);

filterDialogFilterTemplate

Type:: string
Default:: null

Custom template for filter dialog.
Each DOM element which is used for selecting filter conditions/columns/filter expressions has "data-*" attribute.
E.g.: DOM element used for selecting column has attribute "data-af-col", for selecting filter condition - "data-af-cond", for filter expression- "data-af-expr".
NOTE: The template is supported only with <tr />.
The default template is "<tr data-af-row><td><input data-af-col/></td><td><select data-af-cond></select></td><td><input data-af-expr /> </td><td><span data-af-rmv></span></td></tr>".

Code Sample


				// Initialize
				$(".selector").igGrid({
					features: [
						{
							name : "Filtering",
							filterDialogFilterTemplate: "<tr><td>Choose column<input/></td><td>Condition<select></select></td><td>Search value<input /> </td><td><span></span></td></tr>"
						}
					]
				});

				// Get
				var dialogFilterTemplate = $(".selector").igGridFiltering("option", "filterDialogFilterTemplate");

				// Set
				$(".selector").igGridFiltering("option",
											   "filterDialogFilterTemplate",
											   "<tr><td>Choose column<input/></td><td>Condition<select></select></td><td>Search value<input /> </td><td><span></span></td></tr>");

filterDialogHeight

Type:: enumeration
Default:: ""

default filter dialog height (used for Advanced filtering mode).

Members

string
Type:string
The dialog window height in pixels (350px).
number
Type:number
The dialog window height in pixels as a number (350).

Code Sample


				// Initialize
				$(".selector").igGrid({
					features: [
						{
							name : "Filtering",
							filterDialogHeight : 30
						}
					]
				});
				// Get
				var height = $(".selector").igGridFiltering("option", "filterDialogHeight");
				// Set
				$(".selector").igGridFiltering("option", "filterDialogHeight", 30);

filterDialogMaxFilterCount

Type:: number
Default:: 5

Maximum number of filter rows in the advanced filtering dialog. If this number is exceeded, an error message will be rendered.

Code Sample


			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						filterDialogMaxFilterCount : 3
					}
				]
			});

			// Get
			var count = $(".selector").igGridFiltering("option", "filterDialogMaxFilterCount");

			// Set
			$(".selector").igGridFiltering("option", "filterDialogMaxFilterCount", 3);

filterDialogOkCancelButtonWidth

Type:: enumeration
Default:: 120

Width of the Ok and Cancel buttons in the advanced filtering dialogs.

Members

string
Type:string
The advanced filter dialog Ok and Cancel buttons width in pixels (120px).
number
Type:number
The advanced filter dialog Ok and Cancel buttons width in pixels as a number (120).

Code Sample


				// Initialize
				$(".selector").igGrid({
					features: [
						{
							name : "Filtering",
							filterDialogOkCancelButtonWidth : 120
						}
					]
				});
				// Get
				var width = $(".selector").igGridFiltering("option", "filterDialogOkCancelButtonWidth");
				// Set
				$(".selector").igGridFiltering("option", "filterDialogOkCancelButtonWidth", 120);

filterDialogWidth

Type:: enumeration
Default:: 430

Default filter dialog width (used for Advanced filtering mode).

Members

string
Type:string
The dialog window width in pixels (370px).
number
Type:number
The dialog window width in pixels as a number (370).

Code Sample


				// Initialize
				$(".selector").igGrid({
					features: [
						{
							name : "Filtering",
							filterDialogWidth : 500
						}
					]
				});
				// Get
				var width = $(".selector").igGridFiltering("option", "filterDialogWidth");
				// Set
				$(".selector").igGridFiltering("option", "filterDialogWidth", 500);

filterDropDownAnimationDuration

Type:: number
Default:: 500

Animation duration in milliseconds for the filterDropDownAnimations.

Code Sample


			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						filterDropDownAnimationDuration : 300
					}
				]
			});

			// Get
			var duration = $(".selector").igGridFiltering("option", "filterDropDownAnimationDuration");

			// Set
			$(".selector").igGridFiltering("option", "filterDropDownAnimationDuration", 300);

filterDropDownAnimations

Type:: enumeration
Default:: linear

Type of animations for the column filter dropdowns.

Members

linear
Type:string
The column filtering drop downs are shown with a linear animation.
none
Type:string
No animation is used when showing the filtering drop downs.

Code Sample


			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						filterDropDownAnimations : "none"
					}
				]
			});
			// Get
			var animation = $(".selector").igGridFiltering("option", "filterDropDownAnimations");
			// Set
			$(".selector").igGridFiltering("option", "filterDropDownAnimations", "none");

filterDropDownHeight

Type:: object
Default:: 0

Height of the column filter dropdowns.

string The height of the column filter dropdowns in pixels (0px).
number The height of the column filter dropdowns in pixels as a number (0).

Code Sample


				// Initialize
				$(".selector").igGrid({
					features: [
						{
							name : "Filtering",
							filterDropDownHeight : 30
						}
					]
				});

				// Get
				var height = $(".selector").igGridFiltering("option", "filterDropDownHeight");

				// Set
				$(".selector").igGridFiltering("option", "filterDropDownHeight", 30);

filterDropDownItemIcons

Type:: enumeration
Default:: true

Enable/disable filter icons visibility.

Members

true
Type:bool
All predefined filters in the filter dropdowns will have icons rendered in front of the text.
false
Type:bool
No icons will be rendered.

Code Sample


				// Initialize
				$(".selector").igGrid({
					features: [
						{
							name : "Filtering",
							filterDropDownItemIcons : false
						}
					]
				});
				// Get
				var showIcons = $(".selector").igGridFiltering("option", "filterDropDownItemIcons");
				// Set
				$(".selector").igGridFiltering("option", "filterDropDownItemIcons", false);

filterDropDownWidth

Type:: enumeration
Default:: 0

Width of the column filter dropdowns.

Members

string
Type:string
The width in pixels (0px).
number
Type:number
The width in pixels as a number (0).

Code Sample


				// Initialize
				$(".selector").igGrid({
					features: [
						{
							name : "Filtering",
							filterDropDownWidth : 100
						}
					]
				});
				// Get
				var width = $(".selector").igGridFiltering("option", "filterDropDownWidth");
				// Set
				$(".selector").igGridFiltering("option", "filterDropDownWidth", 100);

filterExprUrlKey

Type:: string
Default:: null

URL key name that specifies how the filtering expressions will be encoded for remote requests, e.g. &filter('col') = startsWith. Default is OData.

Code Sample


			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						filterExprUrlKey : "filter"
					}
				]
			});

			// Get
			var key = $(".selector").igGridFiltering("option", "filterExprUrlKey");

			// Set
			$(".selector").igGridFiltering("option", "filterExprUrlKey", "filter");

filterSummaryAlwaysVisible

Type:

bool

Default:

true
Enable/disable footer visibility with summary info about the filter.
When false, the filter summary row (in the footer) will only be visible when paging is enabled (or some other feature that renders a footer).
When true, the filter summary row will only be visible when a filter is applied i.e. it's not visible by default.
Code Sample
```

			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						filterSummaryAlwaysVisible : false
					}
				]
			});

			// Get
			var showSummary = $(".selector").igGridFiltering("option", "filterSummaryAlwaysVisible");

			// Set
			$(".selector").igGridFiltering("option", "filterSummaryAlwaysVisible", false);

```

filterSummaryTemplate

Type:: string
Default:: ""

Summary template that will appear in the bottom left corner of the footer. Has the format '${matches} matching records'.

Code Sample


			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						filterSummaryTemplate: "${matches} products found"
					}
				]
			});

			// Get
			var summaryTemplate = $(".selector").igGridFiltering("option", "filterSummaryTemplate");

			// Set
			$(".selector").igGridFiltering("option", "filterSummaryTemplate", "${matches} products");

inherit

Type:: bool
Default:: false

Enables/disables feature inheritance for the child layouts. NOTE: It only applies for igHierarchicalGrid.

Code Sample


			// Initialize
			$(".selector").igHierarchicalGrid({
				features: [
					{
						name: "Filtering",
						inherit: true
					}
				]
			});

			// Get
			var inherit = $(".selector").igGridFiltering("option", "inherit");

labels

Type:: object
Default:: {}

A list of configurable and localized labels that are used for the predefined filtering conditions in the filter dropdowns.

Code Sample


			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
			labels: {
							advancedButtonLabel: "Advanced",
							after: "After",
							before: "Before",
							clear: "Clear Filter",
							contains: "Contains"
							//...
						}
					}
				]
			});

			// Get
			var filteringLabels = $(".selector").igGridFiltering("option", "labels");

advancedButtonLabel

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        advancedButtonLabel: "Advanced"
                    }
                }
            ]
        });

after

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        after: "after"
                    }
                }
            ]
        });

before

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        before: "before"
                    }
                }
            ]
        });

clear

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        clear: "clear filter"
                    }
                }
            ]
        });

contains

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        contains: "contains"
                    }
                }
            ]
        });

doesNotContain

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        doesNotContain: "does Not contain"
                    }
                }
            ]
        });

doesNotEqual

Type:: string
Default:: ""

Code Sample


             //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        doesNotEqual: "does Not equal"
                    }
                }
            ]
        });

empty

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        empty: "empty"
                    }
                }
            ]
        });

endsWith

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        endsWith: "ends with"
                    }
                }
            ]
        });

equals

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        equals: "equals"
                    }
                }
            ]
        });

false

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        false: "false"
                    }
                }
            ]
        });

falseLabel

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        falseLabel: "false"
                    }
                }
            ]
        });

filterDialogAddLabel

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        filterDialogAddLabel: "add"
                    }
                }
            ]
        });

filterDialogAllLabel

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        filterDialogAllLabel: "all"
                    }
                }
            ]
        });

filterDialogAnyLabel

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        filterDialogAnyLabel: "any"
                    }
                }
            ]
        });

filterDialogCancelLabel

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        filterDialogCancelLabel: "cancel"
                    }
                }
            ]
        });

filterDialogCaptionLabel

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        filterDialogCaptionLabel: "Advanced Filtering"
                    }
                }
            ]
        });

filterDialogClearAllLabel

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        filterDialogClearAllLabel: "clear all"
                    }
                }
            ]
        });

filterDialogConditionLabel1

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        filterDialogConditionLabel1: "Show"
                    }
                }
            ]
        });

filterDialogConditionLabel2

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        filterDialogConditionLabel2: "records matching the following criteria"
                    }
                }
            ]
        });

filterDialogErrorLabel

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        filterDialogErrorLabel: "error"
                    }
                }
            ]
        });

filterDialogOkLabel

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        filterDialogOkLabel: "ok"
                    }
                }
            ]
        });

filterSummaryTitleLabel

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        filterSummaryTitleLabel: "filtering summary"
                    }
                }
            ]
        });

greaterThan

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        greaterThan: "greater than"
                    }
                }
            ]
        });

greaterThanOrEqualTo

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        greaterThanOrEqualTo: "greater than or equal to"
                    }
                }
            ]
        });

lastMonth

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        lastMonth: "last month"
                    }
                }
            ]
        });

lastYear

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        lastYear: "last year"
                    }
                }
            ]
        });

lessThan

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        lessThan: "less than"
                    }
                }
            ]
        });

lessThanOrEqualTo

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        lessThanOrEqualTo: "less than or equal to"
                    }
                }
            ]
        });

nextMonth

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        nextMonth: "next month"
                    }
                }
            ]
        });

nextYear

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        nextYear: "next year"
                    }
                }
            ]
        });

noFilter

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        noFilter: "no filter"
                    }
                }
            ]
        });

notEmpty

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        notEmpty: "not empty"
                    }
                }
            ]
        });

notNull

Type:: string
Default:: ""

Code Sample

 //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        notNull: "not null"
                    }
                }
            ]
        });

notOn

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        notOn: "not on"
                    }
                }
            ]
        });

nullLabel

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        nullLabel: "null label"
                    }
                }
            ]
        });

on

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        on: "on"
                    }
                }
            ]
        });

startsWith

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        startsWith: "starts with"
                    }
                }
            ]
        });

thisMonth

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        thisMonth: "this month"
                    }
                }
            ]
        });

thisYear

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        thisYear: "this year"
                    }
                }
            ]
        });

today

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        today: "today"
                    }
                }
            ]
        });

true

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        true: "True"
                    }
                }
            ]
        });

trueLabel

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        trueLabel: "true"
                    }
                }
            ]
        });

yesterday

Type:: string
Default:: ""

Code Sample


          //Initialize
        $(".selector").igGrid({
            features: [
                {
                    name : "Filtering",
                    labels: {
                        yesterday: "yesterday"
                    }
                }
            ]
        });

mode

Type:: enumeration
Default:: null

Default is 'simple' for non-virtualized grids, and 'advanced' when virtualization is enabled.

Members

simple
Type:string
Renders just a filter row.
advanced
Type:string
Allows to configure multiple filters from a dialog - Excel style.

Code Sample


			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						mode : "advanced"
					}
				]
			});
			// Get
			var filterMode = $(".selector").igGridFiltering("option", "mode");
			// Set
			$(".selector").igGridFiltering("option", "mode", "advanced");

nullTexts

Type:

object

Default:

{}
List of configurable and localized null texts that will be used for the filter editors.
Code Sample
```

			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
			nullTexts: {
							contains: "Contains...",
							doesNotContain: "Does not contain...",
							doesNotEqual: "Does not equal...",
							empty: "Empty",
							endsWith: "Ends with..."
							//...
						}
					}
				]
			});

			// Get
			var filteringNullTexts = $(".selector").igGridFiltering("option", "nullTexts");

			// Set
			$(".selector").igGridFiltering("option", "nullTexts", {
				contains: "Contains...",
				doesNotContain: "Does not contain...",
				doesNotEqual: "Does not equal...",
				empty: "Empty",
				endsWith: "Ends with..."
				//...
			});

```
- after

  Type:

  string

  Default:

  ""
- before

  Type:

  string

  Default:

  ""
- contains

  Type:

  string

  Default:

  ""
- doesNotContain

  Type:

  string

  Default:

  ""
- doesNotEqual

  Type:

  string

  Default:

  ""
- empty

  Type:

  string

  Default:

  ""
- endsWith

  Type:

  string

  Default:

  ""
- equals

  Type:

  string

  Default:

  ""
- greaterThan

  Type:

  string

  Default:

  ""
- greaterThanOrEqualTo

  Type:

  string

  Default:

  ""
- lastMonth

  Type:

  string

  Default:

  ""
- lastYear

  Type:

  string

  Default:

  ""
- lessThan

  Type:

  string

  Default:

  ""
- lessThanOrEqualTo

  Type:

  string

  Default:

  ""
- nextMonth

  Type:

  string

  Default:

  ""
- nextYear

  Type:

  string

  Default:

  ""
- notEmpty

  Type:

  string

  Default:

  ""
- notNull

  Type:

  string

  Default:

  ""
- notOn

  Type:

  string

  Default:

  ""
- null

  Type:

  string

  Default:

  ""
- on

  Type:

  string

  Default:

  ""
- startsWith

  Type:

  string

  Default:

  ""
- thisMonth

  Type:

  string

  Default:

  ""
- thisYear

  Type:

  string

  Default:

  ""

persist

Type:: bool
Default:: true

Enables/disables filtering persistence between states.

Code Sample


			// Initialize
			$(".selector").igGrid({
				features : [
					{
						name: "Filtering",
						persist: false
					}
				]
			});

			// Get
			var persist = $(".selector").igGridFiltering("option", "persist");

			// Set
			$(".selector").igGridFiltering("option", "persist", false);

renderFC

Type:: bool
Default:: true

Render in Feature Chooser.

Code Sample


			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						renderFC: false
					}
				]
			});

			// Get
			var filteringRenderFC = $(".selector").igGridFiltering("option", "renderFC");

			// Set
			$(".selector").igGridFiltering("option", "renderFC", false);

renderFilterButton

Type:: bool
Default:: true

Enable/disable filter button visibility. If false, no filter dropdown buttons will be rendered and a predefined list of filters will not be rendered for the columns.

Code Sample


			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						renderFilterButton : false
					}
				]
			});

			// Get
			var showButton = $(".selector").igGridFiltering("option", "renderFilterButton");

			// Set
			$(".selector").igGridFiltering("option", "renderFilterButton", false);

showEmptyConditions

Type:: bool
Default:: false

Enable/disable empty condition visibility in the filter. If true, shows empty and not empty filtering conditions in the dropdowns.

Code Sample


			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						showEmptyConditions : true
					}
				]
			});

			// Get
			var showConditions = $(".selector").igGridFiltering("option", "showEmptyConditions");

			// Set
			$(".selector").igGridFiltering("option", "showEmptyConditions", true);

showNullConditions

Type:: bool
Default:: false

Enable/disable visibility of null and not null filtering conditions in the dropdowns. If true, shows null and not null filtering conditions in the dropdowns.

Code Sample


			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						showNullConditions : true
					}
				]
			});

			// Get
			var showConditions = $(".selector").igGridFiltering("option", "showNullConditions");

			// Set
			$(".selector").igGridFiltering("option", "showNullConditions", true);

tooltipTemplate

Type:: string
Default:: ""

Custom tooltip template for the filter button, when a filter is applied.

Code Sample


			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						tooltipTemplate: "${condition} filter applied"
					}
				]
			});

			// Get
			var template = $(".selector").igGridFiltering("option", "tooltipTemplate");

			// Set
			$(".selector").igGridFiltering("option", "tooltipTemplate", "${condition} filter applied");

type

Type:

enumeration

Default:

null
Type of filtering. Delegates all filtering functionality to the $.ig.DataSource.
Members
- remote
- Type:string
- Filtering is performed by a remote end-point.
- local
- Type:string
- Filtering is performed locally by the $.ig.DataSource.
Code Sample
```

			// Initialize
			$(".selector").igGrid({
				features: [
					{
						name : "Filtering",
						type : "local"
					}
				]
			});
			// Get
			var filterType = $(".selector").igGridFiltering("option", "type");

```

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details

dataFiltered

Cancellable:: false

Event fired after the filtering has been executed and results are rendered.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


                //Delegate
                 $(document).delegate(".selector", "iggridfilteringdatafiltered", function (evt, ui) {
                     //return column key
                     ui.columnKey;
                     //return column index
                     ui.columnIndex;
                     //return reference to igGridFiltering
                     ui.owner;
                     //return reference to igGrid
                     ui.owner.grid;
                     //return filtering expressions from the data source
                     ui.expressions;
                 });

                 //Initialize
                 $(".selector").igGrid({
                     features: [
                         {
                             name : "Filtering",
                             dataFiltered: function (evt, ui) {...}
                         }
                     ]
                 });

dataFiltering

Cancellable:: true

Event fired before a filtering operation is executed (remote request or local).
Return false in order to cancel filtering operation.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


                //Delegate
                $(document).delegate(".selector", "iggridfilteringdatafiltering", function (evt, ui) {
                    //return column key
                    ui.columnKey;
                    //return column index
                    ui.columnIndex;
                    //return reference to igGridFiltering
                    ui.owner;
                    //return reference to igGrid
                    ui.owner.grid;
                    //return the new filtering expressions that are going to be applied to the data source
                    ui.newExpressions;
                });

                //Initialize
                $(".selector").igGrid({
                    features: [
                        {
                            name : "Filtering",
                            dataFiltering: function (evt, ui) {...}
                        }
                    ]
                });

dropDownClosed

Cancellable:: false

Event fired after a filter column dropdown is completely closed.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


                //Delegate
                $(document).delegate(".selector", "iggridfilteringdropdownclosed", function (evt, ui) {
                    //return reference to igGridFiltering
                    ui.owner;
                    //return reference to igGrid
                    ui.owner.grid;
                    //return dropdown html element in the DOM
                    ui.dropDown;
                });

                //Initialize
                $(".selector").igGrid({
                    features: [
                        {
                            name : "Filtering",
                            dropDownClosed: function (evt, ui) {...}
                        }
                    ]
                });

dropDownClosing

Cancellable:: true

Event fired before the filter dropdown starts closing.
Return false in order to cancel dropdown closing.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


                //Delegate
                $(document).delegate(".selector", "iggridfilteringdropdownclosing", function (evt, ui) {
                    //return reference to igGridFiltering
                    ui.owner;
                    //return reference to igGrid
                    ui.owner.grid;
                    //return dropdown html element in the DOM
                    ui.dropDown;
                });

                //Initialize
                $(".selector").igGrid({
                    features: [
                        {
                            name : "Filtering",
                            dropDownClosing: function (evt, ui) {...}
                        }
                    ]
                });

dropDownOpened

Cancellable:: false

Event fired after the filter dropdown is opened for a specific column.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


                //Delegate
                $(document).delegate(".selector", "iggridfilteringdropdownopened", function (evt, ui) {
                    //return reference to igGridFiltering
                    ui.owner;
                    //return reference to igGrid
                    ui.owner.grid;
                    //return dropdown html element in the DOM
                    ui.dropDown;
                });

                //Initialize
                $(".selector").igGrid({
                    features: [
                        {
                            name : "Filtering",
                            dropDownOpened: function (evt, ui) {...}
                        }
                    ]
                });

dropDownOpening

Cancellable:: true

Event fired before the filter dropdown is opened for a specific column.
Return false in order to cancel dropdown opening.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


                //Delegate
                $(document).delegate(".selector", "iggridfilteringdropdownopening", function (evt, ui) {
                    //return reference to igGridFiltering
                    ui.owner;
                    //return reference to igGrid
                    ui.owner.grid;
                    //return dropdown html element in the DOM
                    ui.dropDown;
                });

                //Initialize
                $(".selector").igGrid({
                    features: [
                        {
                            name : "Filtering",
                            dropDownOpening: function (evt, ui) {...}
                        }
                    ]
                });

filterDialogClosed

Cancellable:: false

Event fired after the advanced filter dialog has been closed.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


                //Delegate
                $(document).delegate(".selector", "iggridfilteringfilterdialogclosed", function (evt, ui) {
                    //return reference to igGridFiltering
                    ui.owner;
                    //return reference to igGrid
                    ui.owner.grid;
                });

                //Initialize
                $(".selector").igGrid({
                    features: [
                        {
                            name : "Filtering",
                            filterDialogClosed: function (evt, ui) {...}
                        }
                    ]
                });

filterDialogClosing

Cancellable:: true

Event fired before the advanced filter dialog is closed.
Return false in order to cancel filtering dialog closing.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


                //Delegate
                $(document).delegate(".selector", "iggridfilteringfilterdialogclosing", function (evt, ui) {
                    //return reference to igGridFiltering
                    ui.owner;
                    //return reference to igGrid
                    ui.owner.grid;
                });

                //Initialize
                $(".selector").igGrid({
                    features: [
                        {
                            name : "Filtering",
                            filterDialogClosing: function (evt, ui) {...}
                        }
                    ]
                });

filterDialogContentsRendered

Cancellable:: false

Event fired after the contents of the advanced filter dialog are rendered.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


                //Delegate
                $(document).delegate(".selector", "iggridfilteringfilterdialogcontentsrendered", function (evt, ui) {
                    //return reference to igGridFiltering
                    ui.owner;
                    //return reference to igGrid
                    ui.owner.grid;
                    //return dialog html element in the DOM
                    ui.dialogElement;
                });

                //Initialize
                $(".selector").igGrid({
                    features: [
                        {
                            name : "Filtering",
                            filterDialogContentsRendered: function (evt, ui) {...}
                        }
                    ]
                });

filterDialogContentsRendering

Cancellable:: true

Event fired before the contents of the advanced filter dialog are rendered.
Return false in order to cancel filtering dialog rendering.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


                //Delegate
                $(document).delegate(".selector", "iggridfilteringfilterdialogcontentsrendering", function (evt, ui) {
                    //return reference to igGridFiltering
                    ui.owner;
                    //return reference to igGrid
                    ui.owner.grid;
                    //return dialog html element in the DOM
                    ui.dialogElement;
                });

                //Initialize
                $(".selector").igGrid({
                    features: [
                        {
                            name : "Filtering",
                            filterDialogContentsRendering: function (evt, ui) {...}
                        }
                    ]
                });

filterDialogFilterAdded

Cancellable:: false

Event fired after a filter row is added to the advanced filter dialog.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


                //Delegate
                $(document).delegate(".selector", "iggridfilteringfilterdialogfilteradded", function (evt, ui) {
                    //return reference to igGridFiltering
                    ui.owner;
                    //return reference to igGrid
                    ui.owner.grid;
                    //return filters table row element in the DOM
                    ui.filter;
                });

                //Initialize
                $(".selector").igGrid({
                    features: [
                        {
                            name : "Filtering",
                            filterDialogFilterAdded: function (evt, ui) {...}
                        }
                    ]
                });

filterDialogFilterAdding

Cancellable:: true

Event fired before a filter row is added to the advanced filter dialog.
Return false in order to cancel filter adding to the advanced filtering dialog.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


                //Delegate
                $(document).delegate(".selector", "iggridfilteringfilterdialogfilteradding", function (evt, ui) {
                    //return reference to igGridFiltering
                    ui.owner;
                    //return reference to igGrid
                    ui.owner.grid;
                    //return filters table body element in the DOM
                    ui.filtersTableBody;
                });

                //Initialize
                $(".selector").igGrid({
                    features: [
                        {
                            name : "Filtering",
                            filterDialogFilterAdding: function (evt, ui) {...}
                        }
                    ]
                });

filterDialogFiltering

Cancellable:: true

Event fired when the OK button in the advanced filter dialog is pressed.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


                //Delegate
                $(document).delegate(".selector", "iggridfilteringfilterdialogfiltering", function (evt, ui) {
                    //return reference to igGridFiltering
                    ui.owner;
                    //return reference to igGrid
                    ui.owner.grid;
                    //return dialog html element in the DOM
                    ui.dialog;
                });

                //Initialize
                $(".selector").igGrid({
                    features: [
                        {
                            name : "Filtering",
                            filterDialogFiltering: function (evt, ui) {...}
                        }
                    ]
                });

filterDialogMoving

Cancellable:: true

Event fired every time the advanced filter dialog changes its position.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


                //Delegate
                $(document).delegate(".selector", "iggridfilteringfilterdialogmoving", function (evt, ui) {
                    //return reference to igGridFiltering
                    ui.owner;
                    //return reference to igGrid
                    ui.owner.grid;
                    //return dialog html element in the DOM
                    ui.dialog;
                });

                //Initialize
                $(".selector").igGrid({
                    features: [
                        {
                            name : "Filtering",
                            filterDialogMoving: function (evt, ui) {...}
                        }
                    ]
                });

filterDialogOpened

Cancellable:: false

Event fired after the advanced filter dialog is already opened.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


                //Delegate
                $(document).delegate(".selector", "iggridfilteringfilterdialogopened", function (evt, ui) {
                    //return reference to igGridFiltering
                    ui.owner;
                    //return reference to igGrid
                    ui.owner.grid;
                    //return dialog html element in the DOM
                    ui.dialog;
                });

                //Initialize
                $(".selector").igGrid({
                    features: [
                        {
                            name : "Filtering",
                            filterDialogOpened: function (evt, ui) {...}
                        }
                    ]
                });

filterDialogOpening

Cancellable:: true

Event fired before the advanced filtering dialog is opened.
Return false in order to cancel filter dialog opening.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


                //Delegate
                $(document).delegate(".selector", "iggridfilteringfilterdialogopening", function (evt, ui) {
                    //return reference to igGridFiltering
                    ui.owner;
                    //return reference to igGrid
                    ui.owner.grid;
                    //return dialog html element in the DOM
                    ui.dialog;
                });

                //Initialize
                $(".selector").igGrid({
                    features: [
                        {
                            name : "Filtering",
                            filterDialogOpening: function (evt, ui) {...}
                        }
                    ]
                });

Show Details

destroy

.igGridFiltering( "destroy" );
Destroys the filtering widget - remove fitler row, unbinds events, returns the grid to its previous state.
Code Sample
```

				$(".selector").igGridFiltering("destroy");

```

filter

.igGridFiltering( "filter", expressions:array, [updateUI:bool] );

Applies filtering programmatically and updates the UI by default.

expressions
Type:array
An array of filtering expressions, each one having the format {fieldName: , expr: , cond: , logic: } where fieldName is the key of the column, expr is the actual expression string with which we would like to filter, logic is 'AND' or 'OR', and cond is one of the following strings: "equals", "doesNotEqual", "contains", "doesNotContain", "greaterThan", "lessThan", "greaterThanOrEqualTo", "lessThanOrEqualTo", "true", "false", "null", "notNull", "empty", "notEmpty", "startsWith", "endsWith", "today", "yesterday", "on", "notOn", "thisMonth", "lastMonth", "nextMonth", "before", "after", "thisYear", "lastYear", "nextYear". The difference between the empty and null filtering conditions is that empty includes null, NaN, and undefined, as well as the empty string.
updateUI
Type:bool
Optional
specifies whether the filter row should be also updated once the grid is filtered.

Code Sample


                /*
                Expressions is an array of individual filtering expressions that the grid uses when filtering.
                If you only want to execute one filter criteria, then you add a single filtering expression to the array,
                otherwise you can add additional constraints to the filter by adding more expressions into the array.

                For example:
                      [{ fieldname: "title", expr: "introduction", cond: "contains", logic: "OR" },
                      { fieldname: "description", expr: "introduction", cond: "contains", logic: "OR" }]

                Using the expressions above the applied filter returns records in the grid where either
                the "title" or "description" fields have values that contain the string "introduction".
                Note: The following conditions (grouped by data type) are available to perform filtering on the grid:
                - String
                  -   startsWith
                  -   endsWith
                  -   contains
                  -   doesNotContain
                  -   equals
                  -   doesNotEqual
                  -   null
                  -   notNull
                  -   empty
                  -   notEmpty
                - Number
                  -   equals
                  -   doesNotEqual
                  -   greaterThan
                  -   lessThan
                  -   greaterThanOrEqualTo
                  -   lessThanOrEqualTo
                  -   null
                  -   notNull
                  -   empty
                  -   notEmpty
                - Boolean
                  -   true
                  -   false
                  -   null
                  -   notNull
                  -   empty
                  -   notEmpty
                - Date
                  -   on
                  -   notOn
                  -   after
                  -   before
                  -   today
                  -   yesterday
                  -   thisMonth
                  -   lastMonth
                  -   nextMonth
                  -   thisYear
                  -   lastYear
                  -   nextYear
                  -   null
                  -   notNull
                  -   empty
                  -   notEmpty
                - Object
                  -   null
                  -   notNull
                  -   empty
                  -   notEmpty

                The difference between the "empty" and "null" filtering conditions is that "empty" includes
                "null", "NaN", "undefined" and empty strings.

                Note: Available values for "logic" are "OR" and "AND". The default logic is "AND".
                */
                $(".selector").igGridFiltering("filter", ([{fieldName: "Name", expr: "Adjustable Race", cond: "equals", logic: "OR"}]));

getFilteringMatchesCount

.igGridFiltering( "getFilteringMatchesCount" );

Return Type:

number

Return Type Description:

Count of filtered records.
Returns the count of data records that match filtering conditions.
Code Sample
```

				var matchesCount = $(".selector").igGridFiltering("getFilteringMatchesCount");

```
requiresFilteringExpression

.igGridFiltering( "requiresFilteringExpression", filterCondition:string );

Return Type:

bool

Return Type Description:

if false then filterCondition does not require filtering expression.
Check whether filterCondition requires or not filtering expression - e.g. if filterCondition is "lastMonth", "thisMonth", "null", "notNull", "true", "false", etc. then filtering expression is NOT required.
- filterCondition
- Type:string
- filtering condition - e.g. "true", "false", "yesterday", "empty", "null", etc.
Code Sample
```

      $(".selector").igGridFiltering("requiresFilteringExpression", "yesterday");

```
toggleFilterRowByFeatureChooser

.igGridFiltering( "toggleFilterRowByFeatureChooser", event:string );
Toggle filter row when mode is simple or advancedModeEditorsVisible is true. Otherwise show/hide advanced dialog.
- event
- Type:string
- Column key.
Code Sample
```

				$(".buttonSelector").igButton({
					labelText: $(".buttonSelector").val(),
					click: function (event) {
						$(".gridSelector").igGridFiltering("toggleFilterRowByFeatureChooser", event);
					}
				});

```

ui-widget-overlay ui-iggrid-blockarea

Classes applied to the filtering block area, when the advanced filter dialog is opened and the area behind it is grayed out (that's the block area).
ui-icon ui-iggrid-icon-advanced-filter

Classes applied to the feature chooser icon when filter shows advanced dialog.
ui-iggrid-filterbutton ui-corner-all ui-icon ui-icon-triangle-1-s

Classes applied to every filtering dropdown button.
ui-iggrid-filterbuttonactive ui-state-active

Classes applied to the filter button when it is selected.
ui-iggrid-filterbutton ui-iggrid-filterbuttonadvanced ui-icon ui-icon-search

Classes applied to the button when mode = advanced. This also applies to the button when it's rendered in the header (which is the default behavior).
ui-iggrid-filterbuttonadvancedactive ui-state-active

Classes applied on the advanced button when it is selected.
ui-iggrid-filterbuttonadvanceddisabled ui-state-disabled

Classes applied on the advanced button when it is disabled.
ui-iggrid-filterbuttonadvancedfocus ui-state-focus

Classes applied on the advanced button when it has focus.
ui-iggrid-filterbuttonadvancedhover ui-state-hover

Classes applied on the advanced button when it is hovered.
ui-iggrid-filterbuttonright ui-iggrid-filterbuttonadvanced ui-icon ui-icon-search

Classes applied to the advanced filtering button when it is rendered on the right.
ui-iggrid-filterbuttonbool

Classes applied to the filter button when a boolean filter is applied for the column (default).
ui-iggrid-filterbuttondate

Classes applied to the filter button when a date filter is defined for the column.
ui-iggrid-filterbuttondisabled ui-state-disabled

Classes applied to the filtering button when it is disabled.
ui-iggrid-filterbuttonfocus ui-state-focus

Classes applied to the filter button when it has focus but is not selected.
ui-iggrid-filterbuttonhover ui-state-hover

Classes applied to the filter button when it is hovered.
ui-iggrid-filterbuttonnumber

Classes applied to the filter button when a number filter is applied for the column (default).
ui-iggrid-filterbuttonstring

Classes applied to the filter button when a string filter is applied for the column (default).
ui-iggrid-filtercell

Classes applied to every filter cell TH.
ui-iggrid-filtereditor

Classes applied to every filter editor element (igEditor).
ui-dialog ui-draggable ui-resizable ui-iggrid-dialog ui-widget ui-widget-content ui-corner-all

Classes applied to the filter dialog element.
ui-iggrid-filterdialogaddbuttoncontainer ui-helper-reset

Classes applied to the filter dialog add button.
ui-iggrid-filterdialogaddcondition

Classes applied to the filter dialog add condition area.
ui-iggrid-filterdialogaddconditionlist

Classes applied to the filter dialog add condition SELECT dropdown.
ui-iggrid-filterdialogclearall

Classes applied to the filter dialog "Clear All" button.
ui-icon ui-icon-closethick

Classes applied to the "X" button used to remove filters from the filters table.
ui-iggrid-filtertable ui-helper-reset

Classes applied to the filter dialog filters table.
ui-dialog-titlebar ui-iggrid-filterdialogcaption ui-widget-header ui-corner-all ui-helper-reset ui-helper-clearfix

Classes applied to the filter dialog header caption area.
ui-dialog-title

Class applied to the filter dialog header caption title.
ui-dialog-buttonpane ui-widget-content ui-helper-clearfix ui-iggrid-filterdialogokcancelbuttoncontainer

Classes applied to the filter dialog OK and Cancel buttons.
ui-iggrid-filterdd

Classes applied to the DIV which wraps the dropdown UL.
ui-menu ui-widget ui-widget-content ui-iggrid-filterddlist ui-corner-all

Classes applied to the UL filter dropdown list.
ui-iggrid-filterddlistitem

Classes applied to each filter dropdown list item (LI).
ui-iggrid-filterddlistitemactive ui-state-active

Classes applied to the list item when it is selected.
ui-iggrid-filterddlistitemadvanced

Class applied to the list item that holds the Advanced button, if options are configured such that editors are shown when mode = "advanced".
ui-iggrid-filterddlistitemclear

Classes applied to the "clear" filter list item.
ui-iggrid-filterddlistitemhover ui-state-hover

Classes applied to the list item when it is hovered.
ui-iggrid-filterddlistitemcontainer

Classes applied to the element that holds the text in every filter list item (LI).
ui-iggrid-filterddlistitemicons ui-state-default

Classes applied to the list item when filtering icons are visible for it.
ui-iggrid-filtericon

Classes applied to every filter dropdown list item's image icon area.
ui-iggrid-filtericonafter

Classes applied to the item icon's span when the item holds an after condition.
ui-iggrid-filtericonbefore

Classes applied to the item icon's span when the item holds a before condition.
ui-iggrid-filtericonclear

Classes applied to the item icon's span when the item holds a clear condition.
ui-iggrid-filtericoncontainer

Classes applied to the item icon's container element.
ui-iggrid-filtericoncontains

Classes applied to the item icon's span when the item holds a contains condition.
ui-iggrid-filtericondoesnotcontain

Classes applied to the item icon's span when the item holds a doesNotContain condition.
ui-iggrid-filtericondoesnotequal

Classes applied to the item icon's span when the item holds a doesNotEqual condition.
ui-iggrid-filtericonendswith

Classes applied to the item icon's span when the item holds an endsWith condition.
ui-iggrid-filtericonequals

Classes applied to the item icon's span when the item holds a contains condition.
ui-iggrid-filtericonfalse

Classes applied to the item icon's span when the item holds a false condition.
ui-iggrid-filtericongreaterthan

Classes applied to the item icon's span when the item holds a greaterThan condition.
ui-iggrid-filtericongreaterthanorequalto

Classes applied to the item icon's span when the item holds a greaterThanOrEqualTo condition.
ui-iggrid-filtericonlastmonth

Classes applied to the item icon's span when the item holds a lastMonth condition.
ui-iggrid-filtericonlastyear

Classes applied to the item icon's span when the item holds a lastYear condition.
ui-iggrid-filtericonlessthan

Classes applied to the item icon's span when the item holds a lessThan condition.
ui-iggrid-filtericonlessthanorequalto

Classes applied to the item icon's span when the item holds a lessThanOrEqualTo condition.
ui-iggrid-filtericonnextmonth

Classes applied to the item icon's span when the item holds a nextMonth condition.
ui-iggrid-filtericonnextyear

Classes applied to the item icon's span when the item holds a nextYear condition.
ui-iggrid-filtericonnoton

Classes applied to the item icon's span when the item holds a notOn condition.
ui-iggrid-filtericonon

Classes applied to the item icon's span when the item holds an on condition.
ui-iggrid-filtericonstartswith

Classes applied to the item icon's span when the item holds a startsWith condition.
ui-iggrid-filtericonthismonth

Classes applied to the item icon's span when the item holds a thisMonth condition.
ui-iggrid-filtericonthisyear

Classes applied to the item icon's span when the item holds a thisYear condition.
ui-iggrid-filtericontoday

Classes applied to the item icon's span when the item holds a today condition.
ui-iggrid-filtericontrue

Classes applied to the item icon's span when the item holds a true condition.
ui-iggrid-filtericonyesterday

Classes applied to the item icon's span when the item holds a yesterday condition.
ui-iggrid-filterrow ui-widget

Classes applied to the filter row TR in the headers table.

Ignite UI | Samples

ui.igGridFiltering

Code Sample

Related Samples

Related Topics

Dependencies

Inherits

advancedModeEditorsVisible

Code Sample

advancedModeHeaderButtonLocation

Members

Code Sample

caseSensitive

Code Sample

columnSettings

Code Sample

allowFiltering

Code Sample

columnIndex

Code Sample

columnKey

Code Sample

condition

Members

Code Sample

conditionList

Code Sample

customConditions

Code Sample

defaultExpressions

Code Sample

dialogWidget

Code Sample

featureChooserText

Code Sample

featureChooserTextAdvancedFilter

Code Sample

featureChooserTextHide

Code Sample

filterButtonLocation

Members

Code Sample

filterDelay

Code Sample

filterDialogAddButtonWidth

Members

Code Sample

filterDialogAddConditionDropDownTemplate

Code Sample

filterDialogAddConditionTemplate

Code Sample

filterDialogColumnDropDownDefaultWidth

Members

Code Sample

filterDialogContainment

Code Sample

filterDialogExprInputDefaultWidth

Members

Code Sample

filterDialogFilterConditionTemplate

Code Sample

filterDialogFilterDropDownDefaultWidth

Members

Code Sample

filterDialogFilterTemplate

Code Sample

filterDialogHeight

Members

Code Sample

filterDialogMaxFilterCount

Code Sample

filterDialogOkCancelButtonWidth

Members

Code Sample

filterDialogWidth

Members

Code Sample

filterDropDownAnimationDuration

Code Sample

filterDropDownAnimations
