ui.igTreeGridRowSelectors

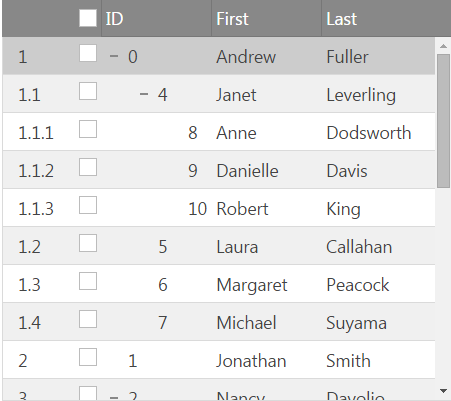

ui.igTreeGridRowSelectors_image
The rowSelectors feature widget provides the user with the functionality to select cell(s), or entire row(s) by clicking the row selector column placed on the left of the first column of the grid. In addition to that, the widget provides row numbering functionalities and checkboxes for row selection. Another advantage of Row Selectors is that they could be easily configured to decouple checkboxes from selection if you would like achieve a "tree-like" look and feel of the applications. The following code snippet demonstrates how to initialize the igTreeGrid control with Row Selectors feature.Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igTreeGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample


          <!DOCTYPE html>
      <html>
      <head>
          <!-- Infragistics Combined CSS -->
          <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
          <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />

          <!-- jQuery Core -->
          <script src="js/jquery.js" type="text/javascript"></script>

          <!-- jQuery UI -->
          <script src="js/jquery-ui.js" type="text/javascript"></script>

          <!-- Infragistics Combined Scripts -->
          <script src="js/infragistics.core.js" type="text/javascript"></script>
          <script src="js/infragistics.lob.js" type="text/javascript"></script>

          <script type="text/javascript">
              var employees = [
                  { "employeeId": 0, "supervisorId": -1, "firstName": "Andrew", "lastName": "Fuller" },
                  { "employeeId": 1, "supervisorId": -1, "firstName": "Jonathan", "lastName": "Smith" },
                  { "employeeId": 2, "supervisorId": -1, "firstName": "Nancy", "lastName": "Davolio" },
                  { "employeeId": 3, "supervisorId": -1, "firstName": "Steven", "lastName": "Buchanan" },

                  // Andrew Fuller's direct reports
                  { "employeeId": 4, "supervisorId": 0, "firstName": "Janet", "lastName": "Leverling" },
                  { "employeeId": 5, "supervisorId": 0, "firstName": "Laura", "lastName": "Callahan" },
                  { "employeeId": 6, "supervisorId": 0, "firstName": "Margaret", "lastName": "Peacock" },
                  { "employeeId": 7, "supervisorId": 0, "firstName": "Michael", "lastName": "Suyama" },

                  // Janet Leverling's direct reports
                  { "employeeId": 8, "supervisorId": 4, "firstName": "Anne", "lastName": "Dodsworth" },
                  { "employeeId": 9, "supervisorId": 4, "firstName": "Danielle", "lastName": "Davis" },
                  { "employeeId": 10, "supervisorId": 4, "firstName": "Robert", "lastName": "King" },

                  // Nancy Davolio's direct reports
                  { "employeeId": 11, "supervisorId": 2, "firstName": "Peter", "lastName": "Lewis" },
                  { "employeeId": 12, "supervisorId": 2, "firstName": "Ryder", "lastName": "Zenaida" },
                  { "employeeId": 13, "supervisorId": 2, "firstName": "Wang", "lastName": "Mercedes" },

                  // Steve Buchanan's direct reports
                  { "employeeId": 14, "supervisorId": 3, "firstName": "Theodore", "lastName": "Zia" },
                  { "employeeId": 15, "supervisorId": 3, "firstName": "Lacota", "lastName": "Mufutau" },

                  // Lacota Mufutau's direct reports
                  { "employeeId": 16, "supervisorId": 15, "firstName": "Jin", "lastName": "Elliott" },
                  { "employeeId": 17, "supervisorId": 15, "firstName": "Armand", "lastName": "Ross" },
                  { "employeeId": 18, "supervisorId": 15, "firstName": "Dane", "lastName": "Rodriquez" },

                  // Dane Rodriquez's direct reports
                  { "employeeId": 19, "supervisorId": 18, "firstName": "Declan", "lastName": "Lester" },
                  { "employeeId": 20, "supervisorId": 18, "firstName": "Bernard", "lastName": "Jarvis" },

                  // Bernard Jarvis' direct report
                  { "employeeId": 21, "supervisorId": 20, "firstName": "Jeremy", "lastName": "Donaldson" }
              ];

             $(function () {
                 $("#treegrid").igTreeGrid({
                     dataSource: employees,
                     primaryKey: "employeeId",
                     foreignKey: "supervisorId",
                     autoGenerateColumns: false,
                     columns: [
                         { headerText: "ID", key: "employeeId", width: "150px", dataType: "number" },
                         { headerText: "First", key: "firstName", width: "150px", dataType: "string" },
                         { headerText: "Last", key: "lastName", width: "150px", dataType: "string" }
                     ],
                     features: [
                         {
                            name: "Selection",
                            multipleSelection: true
                         },
                         {
                            name: "RowSelectors",
                            rowSelectorColumnWidth: 100,
                            rowSelectorNumberingMode: "hierarchical",
                            enableCheckBoxes: true,
                            checkBoxMode: "biState"
                    }
                     ]
                 });
             });
          </script>
      </head>
      <body>
          <table id="treegrid"></table>
      </body>
      </html>


Related Samples

Related Topics

Dependencies

jquery-1.9.1.js
jquery.ui.core.js
jquery.ui.widget.js
infragistics.ui.grid.framework.js
infragistics.ui.editors.js
infragistics.ui.shared.js
infragistics.datasource.js
infragistics.util.js
infragistics.ui.treegrid.js
infragistics.ui.grid.rowselectors.js

Inherits

  • checkBoxMode

    Type:
    enumeration
    Default:
    biState

    Gets the type of checkboxes rendered in the row selector. Can be set only at initialization.

    Members

    • biState
    • Type:string
    • Checkboxes are rendered and support two states(checked and unchecked). Checkboxes do not cascade down or up in this mode.
    • triState
    • Type:string
    • Checkboxes are rendered and support three states(checked, partial and unchecked). Checkboxes cascade up and down in this mode.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "RowSelectors",
    							enableCheckBoxes: true,
    							checkBoxMode: "triState"
    						},
    						{
    							name: "Selection"
    						}
    					]
    				});
    				//Get
    				var checkBoxMode = $(".selector").igTreeGridRowSelectors("option", "checkBoxMode");

  • deselectAllForPagingTemplate
    Inherited

    Type:
    string
    Default:
    null

    Custom template for "deselect all" overlay with paging
    Element with attribute data-rs-deselect-all is used for sellecting all the records
    Element with attribute data-rs-close-all is used for closing the overlay
    The default template is "<div class='ui-widget-header ui-priority-secondary' tabindex='0'><div>You have deselected ${unchecked} records. <a href='#' tabindex='0' data-rs-deselect-all>Deselect all ${totalRecordsCount} records</a><div style='float:right;'><span data-rs-close-all class='ui-icon-close ui-icon ui-button' tabindex='0'></div></span></div></div>"
    There is also ${allCheckedRecords} parameter which is not used in the default template, but it represents the checked records from all pages.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "RowSelectors",
    							enableCheckBoxes: true,
    							enableSelectAllForPaging: true,
    							deselectAllForPagingTemplate: "<div class='ui-widget-header ui-priority-secondary' tabindex='0'><div><a href='#' tabindex='0' data-rs-deselect-all>Deselect all ${totalRecordsCount} records</a><div style='float:right;'><span data-rs-close-all class='ui-icon-close ui-icon ui-button' tabindex='0'></div></span></div></div>"
    						},
    						{
    							name: "Selection",
    							multipleSelection: true
    						},
    						{
    							name: 'Paging',
    							type: "local",
    							pageSize: 10
    						}
    					]
    				});

    				//Get
    				var template = $(".selector").igTreeGridRowSelectors("option", "deselectAllForPagingTemplate");

  • enableCheckBoxes
    Inherited

    Type:
    bool
    Default:
    false

    Determines whether the row selectors column should contain checkboxes.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "RowSelectors",
    							enableCheckBoxes: true
    						},
    						{
    							name: "Selection"
    						}
    					]
    				});

    				//Get
    				var checkboxes = $(".selector").igTreeGridRowSelectors("option", "enableCheckBoxes");

  • enableRowNumbering
    Inherited

    Type:
    bool
    Default:
    true

    Determines whether the row selectors column should contain row numbering.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "RowSelectors",
    							enableRowNumbering: true
    						},
    						{
    							name: "Selection"
    						}
    					]
    				});

    				//Get
    				var rowNumbering = $(".selector").igTreeGridRowSelectors("option", "enableRowNumbering");

  • enableSelectAllForPaging
    Inherited

    Type:
    bool
    Default:
    true

    Enables/disables showing an overlay after clicking on the header checkbox, which allows selecting all records from all pages.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "RowSelectors",
    							enableCheckBoxes: true,
    							enableSelectAllForPaging: true
    						},
    						{
    							name: "Selection",
    							multipleSelection: true
    						},
    						{
    							name: 'Paging',
    							type: "local",
    							pageSize: 10
    						}
    					]
    				});

    				//Get
    				var enableSelectAll = $(".selector").igTreeGridRowSelectors("option", "enableSelectAllForPaging");

  • inherit
    Inherited

    Type:
    bool
    Default:
    false

    Enables/disables feature inheritance for the child layouts. NOTE: It only applies for igHierarchicalGrid.

  • requireSelection
    Inherited

    Type:
    bool
    Default:
    true

    Determines whether the selection feature is required for the row selectors. If set to "false"
    the widget will not check for Selection availability. If set to "true" an exception will be thrown if Selection is
    not available.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "RowSelectors",
    							requireSelection: true
    						},
    						{
    							name: "Selection"
    						}
    					]
    				});

    				//Get
    				var requireSelection = $(".selector").igTreeGridRowSelectors("option", "requireSelection");

  • rowNumberingSeed
    Inherited

    Type:
    number
    Default:
    0

    The seed to be added to the default numbering.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "RowSelectors",
    							rowNumberingSeed: 5
    						},
    						{
    							name: "Selection"
    						}
    					]
    				});

    				//Get
    				var rowNumberingSeed = $(".selector").igTreeGridRowSelectors("option", "rowNumberingSeed");

  • rowSelectorColumnWidth
    Inherited

    Type:
    enumeration
    Default:
    null

    defines width of the row selector`s column in pixels or percentage.

    Members

    • string
    • Type:string
    • The row selector column width can be set in pixels (px) and percentage (%).
    • number
    • Type:number
    • The row selector width can be set as a number.
    • null
    • Type:object
    • will let the feature decide the best width depending on enabled contents.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "RowSelectors",
    							rowSelectorColumnWidth: 40
    						},
    						{
    							name: "Selection"
    						}
    					]
    				});
    				//Get
    				var width = $(".selector").igTreeGridRowSelectors("option", "rowSelectorColumnWidth");

  • rowSelectorNumberingMode

    Type:
    enumeration
    Default:
    sequential

    Determines row numbering format.

    Members

    • sequential
    • Type:string
    • Defines numbering format to be the index of the visible records.
    • hierarchical
    • Type:string
    • Defines numbering format to be concatenation of the parent and children indexes.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "RowSelectors",
    							rowSelectorNumberingMode: "hierarchical"
    						},
    						{
    							name: "Selection"
    						}
    					]
    				});
    				//Get
    				var rowSelectorNumberingMode = $(".selector").igTreeGridRowSelectors("option", "requireSelection");

  • selectAllForPagingTemplate
    Inherited

    Type:
    string
    Default:
    null

    Custom template for "select all" overlay with paging
    Element with attribute data-rs-select-all is used for sellecting all the records
    Element with attribute data-rs-close-all is used for closing the overlay
    The default template is "<div class='ui-widget-header ui-priority-secondary' tabindex='0'><div>You have selected ${checked} records. <a href='#' tabindex='0' data-rs-select-all>Select all ${totalRecordsCount} records</a><div style='float:right;'><span data-rs-close-all class='ui-icon-close ui-icon ui-button' tabindex='0'></div></span></div></div>"
    There is also ${allCheckedRecords} parameter which is not used in the default template, but it represents the checked records from all pages.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "RowSelectors",
    							enableCheckBoxes: true,
    							enableSelectAllForPaging: true,
    							selectAllForPagingTemplate: "<a data-rs-select-all>Click here if you want to select all ${totalRecordsCount} records</a><span data-rs-close-all></span>"
    						},
    						{
    							name: "Selection",
    							multipleSelection: true
    						},
    						{
    							name: 'Paging',
    							type: "local",
    							pageSize: 10
    						}
    					]
    				});

    				//Get
    				var template = $(".selector").igTreeGridRowSelectors("option", "selectAllForPagingTemplate");

    				//Set
    				var templateStr = "<a data-rs-select-all>Click here if you want to select all ${totalRecordsCount} records</a><span data-rs-close-all></span>";
    				$(".selector").igTreeGridRowSelectors("option", "selectAllForPagingTemplate", templateStr);

  • showCheckBoxesOnFocus
    Inherited

    Type:
    bool
    Default:
    false

    Determines whether checkboxes will be shown only if row selectors are on focus/selected.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "RowSelectors",
    							showCheckBoxesOnFocus: true
    						},
    						{
    							name: "Selection"
    						}
    					]
    				});

    				//Get
    				var showCheckboxes = $(".selector").igTreeGridRowSelectors("option", "showCheckBoxesOnFocus");


For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • checkBoxStateChanged
    Inherited

    Cancellable:
    false

    Event fired after a row selector checkbox had changed state.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • row
          Type: jQuery

          Gets a reference to the row the clicked row selector resides in.

        • rowIndex
          Type: Number

          Gets the index of the row the clicked row selector resides in.

        • rowKey
          Type: String

          Gets the key of the row the clicked row selector resides in.

        • rowSelector
          Type: jQuery

          Gets reference to the row selector cell.

        • owner
          Type: Object

          Gets reference to the igGridRowSelectors.

        • grid
          Type: Object

          Gets reference to the grid the RowSelectors are initialized for.

        • state
          Type: String

          Gets the state of the checkbox ("on","off").

        • isHeader
          Type: Bool

          Checks if the header check box is the one being clicked. In this case no row related args are passed.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "igtreegridrowselectorscheckboxstatechanged", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// reference to the row the clicked row selector resides in
    					ui.row;

    					// get the index of the row the clicked row selector resides in
    					ui.rowIndex;

    					// get the key of the row the clicked row selector resides in
    					ui.rowKey;

    					// get reference to the row selector cell
    					ui.rowSelector;

    					// get reference to the grid the RowSelectors are initialized for
    					ui.grid;

    					// get the state of the checkbox ("on","off")
    					ui.state;

    					// check if the header row checkbox is clicked
    					ui.isHeader;

    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "RowSelectors",
    							checkBoxStateChanged: function(evt, ui){ ... }
    						}
    					]
    				});

  • checkBoxStateChanging
    Inherited

    Cancellable:
    true

    Event fired when a row selector checkbox is changing.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • row
          Type: jQuery

          Gets a reference to the row the clicked row selector resides in.

        • rowIndex
          Type: Number

          Gets the index of the row the clicked row selector resides in.

        • rowKey
          Type: Object

          Gets the key of the row the clicked row selector resides in.

        • rowSelector
          Type: jQuery

          Gets a reference to the row selector cell.

        • owner
          Type: Object

          Gets a reference to the igGridRowSelectors.

        • grid
          Type: Object

          Gets a reference to the grid the RowSelectors are initialized for.

        • currentState
          Type: String

          Gets the current state of the checkbox ("on","off").

        • newState
          Type: String

          Gets the new state of the checkbox ("on","off").

        • isHeader
          Type: Bool

          Checks if the header check box is the one being clicked. In this case no row related args are passed.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "igtreegridrowselectorscheckboxstatechanging", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// reference to the row the clicked row selector resides in
    					ui.row;

    					// get the index of the row the clicked row selector resides in
    					ui.rowIndex;

    					// get the key of the row the clicked row selector resides in
    					ui.rowKey;

    					// get reference to the row selector cell
    					ui.rowSelector;

    					// get reference to the grid the RowSelectors are initialized for
    					ui.grid;

    					// get the current state of the checkbox ("on","off")
    					ui.currentState;

    					// get the new state of the checkbox ("on","off")
    					ui.newState;

    					// check if the header row checkbox is clicked
    					ui.isHeader;

    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "RowSelectors",
    							checkBoxStateChanging: function(evt, ui){ ... }
    						}
    					]
    				});

  • rowSelectorClicked
    Inherited

    Cancellable:
    false

    Event fired after a row selector is clicked.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • row
          Type: jQuery

          Gets reference to the row the clicked row selector resides in.

        • fixedRow
          Type: jQuery

          Gets reference to the fixed row the clicked row selector resides in(if there are fixed columns).

        • rowIndex
          Type: Number

          Gets the index of the row the clicked row selector resides in.

        • rowKey
          Type: String

          Gets the key of the row the clicked row selector resides in.

        • rowSelector
          Type: jQuery

          Gets a reference to the row selector cell.

        • owner
          Type: Object

          Gets reference to RowSelectors.

        • grid
          Type: Object

          Gets a reference to the grid the RowSelectors are initialized for.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "igtreegridrowselectorsrowselectorclicked", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// reference to the row the clicked row selector resides in
    					ui.row;

    					// get the index of the row the clicked row selector resides in
    					ui.rowIndex;

    					// get the key of the row the clicked row selector resides in
    					ui.rowKey;

    					// get reference to the row selector cell
    					ui.rowSelector;

    					// get reference to the grid the RowSelectors are initialized for
    					ui.grid;
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "RowSelectors",
    							rowSelectorClicked: function(evt, ui){ ... }
    						}
    					]
    				});

  • changeCheckState

    .igTreeGridRowSelectors( "changeCheckState", index:number, toCheck:bool );

    Changes the check state of a row by index to specified value.

    • index
    • Type:number
    • Row index.
    • toCheck
    • Type:bool
    • The new check state of the checkbox - true for checked or false for unchecked.

    Code Sample


    				$(".selector").igTreeGridRowSelectors("changeCheckState", 2, true );

  • changeCheckStateById

    .igTreeGridRowSelectors( "changeCheckStateById", rowId:object, toCheck:bool );

    Change the check state of a row by row id.

    • rowId
    • Type:object
    • Row Id.
    • toCheck
    • Type:bool
    • The new check state of the checkbox - true for checked or false for unchecked.

    Code Sample


    				$(".selector").igTreeGridRowSelectors("changeCheckStateById", 1, true );

  • checkedRows

    .igTreeGridRowSelectors( "checkedRows" );
    Return Type:
    array

    Gets an array of all the checked rows. Every object from the array has the following format { element: , id: , index: }.

    Code Sample


    				var chechkedRows = $(".selector").igTreeGridRowSelectors("checkedRows");

  • checkStateById

    .igTreeGridRowSelectors( "checkStateById", rowId:object );
    Return Type:
    string

    Returns the check state of the row by id.

    • rowId
    • Type:object

    Code Sample


    				$(".selector").igTreeGridRowSelectors("checkStateById", 1);

  • destroy

    .igTreeGridRowSelectors( "destroy" );

    Code Sample


    			$(".selector").igTreeGridResizing("destroy");

  • partiallyCheckedRows

    .igTreeGridRowSelectors( "partiallyCheckedRows" );
    Return Type:
    array

    Gets an array of all the partially checked rows. Every object from the array has the following format { element: , id: , index: }.

    Code Sample


    				var partiallyCheckedRows = $(".selector").igTreeGridRowSelectors("partiallyCheckedRows");

  • toggleCheckState

    .igTreeGridRowSelectors( "toggleCheckState", index:number );

    Toggles the check state of a row by index.

    • index
    • Type:number
    • Row index.

    Code Sample


    				$(".selector").igTreeGridRowSelectors("toggleCheckState", 2);

  • toggleCheckStateById

    .igTreeGridRowSelectors( "toggleCheckStateById", rowId:object );

    Toggles the check state of a row by row id.

    • rowId
    • Type:object
    • Row Id.

    Code Sample


    				$(".selector").igTreeGridRowSelectors("toggleCheckStateById",1);

  • uncheckedRows

    .igTreeGridRowSelectors( "uncheckedRows" );
    Return Type:
    array

    Gets an array of all the unchecked rows. Every object from the array has the following format { element: , id: , index: }.

    Code Sample


    				var uncheckedRows = $(".selector").igTreeGridRowSelectors("uncheckedRows");

  • ui-state-default ui-corner-all ui-igcheckbox-normal

    Classes applied to the checkbox container.
  • ui-icon ui-icon-check-f ui-igcheckbox-normal-on

    Classes defining the fully checked state of the checkbox. Used for tri-state mode.
  • ui-icon ui-icon-check ui-igcheckbox-normal-off

    Classes defining the unchecked state of the checkbox.
  • ui-icon ui-icon-check ui-igcheckbox-normal-on

    Classes defining the checked state of the checkbox.
  • ui-icon ui-icon-check-p ui-igcheckbox-normal-on

    Classes defining the partially checked state of the checkbox. Used for tri-state mode.
  • ui-iggrid-rowselector-footer

    Classes applied to the row selectors footer cells.
  • ui-iggrid-rowselector-header

    Classes applied to the row selectors header cells.
  • ui-state-hover

    Class defining the hover state style of the node.
  • ui-iggrid-rowselector-class

    Classes applied to the row selectors grid cells.
  • ui-iggrid-activecell ui-state-focus

    Classes applied to the row selectors grid cells when they are activated.
  • ui-state-checked

    Classes applied to the row selectors treegrid parent cells if they should be partially or fully selected. Only when checkBoxMode is triState.
  • ui-iggrid-selectedcell ui-state-active

    Classes applied to the row selectors grid cells when they are selected.

Copyright © 1996 - 2024 Infragistics, Inc. All rights reserved.
