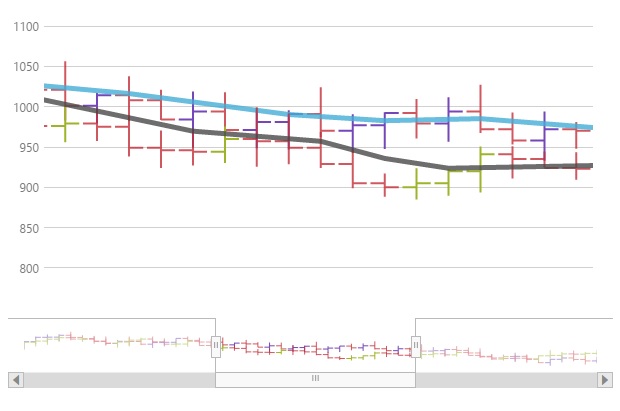

The igZoombar control provides zooming functionality to range-enabled controls. The igZoombar features a horizontal scroll bar, a configurable widget to show the whole range, and a resizable zoom-range window.

The igZoombar control is designed to be used as an enhancement to range-based controls like igDataChart™. The igZoombar cannot work as a standalone control.

Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

The following code snippet demonstrates how to initialize the igZoombar control and connects it to an igDataChart. Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igZoombar control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample


<!doctype html>
<html>
<head>
    <title>Ignite UI igDataChart</title>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
    <!-- Infragistics Combined Scripts -->
    <script src="js/infragistics.core.js" type="text/javascript"></script>
    <script src="js/infragistics.dv.js" type="text/javascript"></script>

    <script type="text/javascript">
        $(function () {
             var data = [
                {"Index":1,"Date":"6/20/2013","Open":45.28,"High":45.29,"Low":44.45,"Close":44.9,"Volume":5488904},
                {"Index":2,"Date":"6/21/2013","Open":44.92,"High":45,"Low":44.23,"Close":44.77,"Volume":6294691},
                {"Index":3,"Date":"6/24/2013","Open":44.34,"High":44.6,"Low":43.37,"Close":43.6,"Volume":4492827},
                {"Index":4,"Date":"6/25/2013","Open":44.04,"High":44.44,"Low":43.46,"Close":44.37,"Volume":3368384},
                {"Index":5,"Date":"6/26/2013","Open":44.95,"High":45.92,"Low":44.9,"Close":45.68,"Volume":5356322},
                {"Index":6,"Date":"6/27/2013","Open":45.9,"High":46.26,"Low":45.59,"Close":45.93,"Volume":2916446},
                {"Index":7,"Date":"6/28/2013","Open":45.99,"High":45.99,"Low":45.39,"Close":45.56,"Volume":4052512},
                {"Index":8,"Date":"7/1/2013","Open":45.23,"High":47.19,"Low":44.88,"Close":46.24,"Volume":6341593},
                {"Index":9,"Date":"7/2/2013","Open":46,"High":46.48,"Low":45.72,"Close":46.03,"Volume":3025049},
                {"Index":10,"Date":"7/3/2013","Open":45.71,"High":46.82,"Low":45.66,"Close":46.42,"Volume":1601483},
                {"Index":11,"Date":"7/5/2013","Open":46.69,"High":47.1,"Low":46.55,"Close":47,"Volume":1614563},
                {"Index":12,"Date":"7/8/2013","Open":47.03,"High":47.49,"Low":46.44,"Close":46.62,"Volume":2813076},
                {"Index":13,"Date":"7/9/2013","Open":46.76,"High":47.31,"Low":46.73,"Close":47.26,"Volume":2578815},
                {"Index":14,"Date":"7/10/2013","Open":47.09,"High":47.33,"Low":46.64,"Close":47.25,"Volume":2683537},
                {"Index":15,"Date":"7/11/2013","Open":47.62,"High":48,"Low":47.5,"Close":47.99,"Volume":3293492},
                {"Index":16,"Date":"7/12/2013","Open":48.35,"High":48.63,"Low":48.08,"Close":48.39,"Volume":4135697},
                {"Index":17,"Date":"7/15/2013","Open":48.25,"High":48.46,"Low":48.1,"Close":48.12,"Volume":2122706},
                {"Index":18,"Date":"7/16/2013","Open":48.05,"High":48.13,"Low":47.36,"Close":47.48,"Volume":2473018},
                {"Index":19,"Date":"7/17/2013","Open":48.17,"High":48.4,"Low":47.78,"Close":48.04,"Volume":3135777},
                {"Index":20,"Date":"7/18/2013","Open":48.04,"High":48.52,"Low":48,"Close":48.19,"Volume":2641582}
            ];
            $("#chart").igDataChart({
                width: "500px",
                height: "300px",
                axes: [{
                    name: "xAxis",
                    type: "categoryX",
                    dataSource: data,
                    label: "Date",
                    interval: 1,
                    title: "Date"
                }, {
                    name: "yAxis",
                    type: "numericY",
                    title: "Price"
                }],
                series: [{
                    name: "series",
                    dataSource: data,
                    title: "Price Series",
                    type: "financial",
                    isTransitionInEnabled: true,
                    displayType: "ohlc",
                    xAxis: "xAxis",
                    yAxis: "yAxis",
                    openMemberPath: "Open",
                    highMemberPath: "High",
                    lowMemberPath: "Low",
                    closeMemberPath: "Close",
                    showTooltip: true,
                    thickness: 2,
                    trendLineBrush: "rgba(68, 172, 214, .8)",
                    trendLineThickness: 5,
                    trendLineType: "exponentialAverage",
                    negativeBrush: "rgba(198, 45, 54, .8)"
                }],
                horizontalZoomable: true,
                verticalZoomable: true,
                windowResponse: "immediate"
            });
            $("#zoombar").igZoombar({
                target: "#chart"
            });
        });
    </script>
</head>
<body>
    <div id="chart"></div>
    <br/>
    <div id="zoombar"></div>
</body>
</html>

Related Samples

Zoombar Financial Chart

clone

Type:: enumeration
Default:: auto

Specifies how the target widget's clone is rendered inside the Zoombar. object A valid set of properties to initialize the clone with.

Members

auto
Type:string
Options for initializing the clone will be inferred from the target widget. Certain properties will be altered to make the clone more suitable for using inside the Zoombar.
none
Type:string
No clone of the target widget will be initialized inside the Zoombar.

object
A valid set of properties to initialize the clone with.

Code Sample


				//Initialize
				$(".selector").igZoombar({
					target: "#chart",
					clone: {
						axes: [{
							name: "xAxis",
							type: "categoryX",
							dataSource: data
						}, {
							name: "yAxis",
							type: "numericY"
						}],
						series: [{
							name: "series",
							dataSource: data,
							type: "financial",
							isTransitionInEnabled: true,
							displayType: "ohlc",
							xAxis: "xAxis",
							yAxis: "yAxis",
							openMemberPath: "Open",
							highMemberPath: "High",
							lowMemberPath: "Low",
							closeMemberPath: "Close",
							thickness: 1,
							negativeBrush: "rgba(198, 45, 54, .8)"
						}],
						windowResponse: "immediate",
						gridMode: "none"
					}
					});
				//Get
				var clone = $(".selector").igZoombar("option", "clone");

defaultZoomWindow

Type:: object
Default:: {}

Specifies the default zoom in percentages.

Code Sample


				//Initialize
				$(".selector").igZoombar({
					target: "#chart",
					defaultZoomWindow: {
						left: 50,
						width: 50
					}
				});

				//Get
				var defaultZoomWindow = $(".selector").igZoombar("option", "defaultZoomWindow");

left

Type:: number
Default:: 35

The left component of the zoom window in percentages.

Code Sample


					//Initialize
					$(".selector").igZoombar({
						target: "#chart",
						defaultZoomWindow: {
							left: 50,
							width: 50
						}
					});

					//Get
					var defaultZoomWindow = $(".selector").igZoombar("option", "defaultZoomWindow");

width

Type:: string
Default:: "30"

The width of the zoom window in percentages.

Code Sample


					//Initialize
					$(".selector").igZoombar({
						target: "#chart",
						defaultZoomWindow: {
							left: 50,
							width: 50
						}
					});

					//Get
					var defaultZoomWindow = $(".selector").igZoombar("option", "defaultZoomWindow");

height

Type:

enumeration

Default:

70px
Specifies the height of the Zoombar.
Members
- null
- Type:object
- The Zoombar will stretch vertically to fit its container if it has height set, otherwise assumes 70px.
- number
- The widget height in pixels (px).
- string
- The widget height can be set in pixels (px) and percentage (%).
Code Sample
```

				//Initialize
				$(".selector").igZoombar({
					target: "#chart",
					height: "100px"
				});
				//Get
				var height = $(".selector").igZoombar("option", "height");

```

hoverStyleAnimationDuration

Type:: number
Default:: 500

Specifies the animation duration (in milliseconds) when hover style is applied or removed from elements.

Code Sample


				//Initialize
				$(".selector").igZoombar({
					target: "#chart",
					hoverStyleAnimationDuration: 1000
				});

				//Get
				var hoverStyleAnimationDuration = $(".selector").igZoombar("option", "hoverStyleAnimationDuration");

provider

Type:: object
Default:: ""

Specifies a provider class which interfaces the widget that is being zoomed.
object Provider class to use. The provider should implement all methods in the $.ig.ZoombarProviderDefault class and is suggested to be extended from it.

Code Sample


var customZoombarProvider = $.ig.ZoombarProviderDefault.extend({
	// This function is called when the zoombar wants options from the target element.
	getBaseOpts: function (options) {
		return { width: 0, height: 0 }; // width and height are required
	},
	// This function is called when the zoombar wants to clone the target element.  This
	// is where you will clone the target and append it to the container.  The zoombar
	// renders this cloned element directly underneath the thumb.
	createClone: function (container, options) {
		return container;
	},
	// This function is called when the zoombar wants to resize the cloned container.
	setSize: function (width, height) {

	},
	// This function is called when the zoombar thumb is updated.  'left' and 'right' are
	// the left and right edges of the thumb as 0 - 1 values.
	update: function (left, right) {

	}
});

$(".selector").igZoombar({
	target: ".selector",
	provider: customZoombarProvider,
});

tabIndex

Type:: number
Default:: 0

Initial tabIndex for the Zoombar container elements.

Code Sample


				//Initialize
				$(".selector").igZoombar({
					target: "#chart",
					tabIndex: 5
				});

				//Get
				var tabIndex = $(".selector").igZoombar("option", "tabIndex");

target

Type:

enumeration

Default:

null
Specifies the element on which the widget the Zoombar is attached to is initialized. object A valid jQuery object, the first element of which is that element.
Members
Code Sample
```

				//Initialize
					$(".selector").igZoombar({
					target: "#chart"
				});
				//Get
				var target = $(".selector").igZoombar("option", "target");

```
width

Type:

enumeration

Default:

auto
Specifies the width of the Zoombar.
Members
- auto
- Type:string
- The width of the Zoombar will be the same as the widget it is attached to.
- null
- Type:object
- The Zoombar will stretch horizontally to fit its container if it has width set, otherwise assumes auto.
- number
- The widget width in pixels (px).
- string
- The widget width can be set in pixels (px) and percentage (%).
Code Sample
```

				//Initialize
				$(".selector").igZoombar({
					target: "#chart",
					width: "500px"
				});
				//Get
				var width = $(".selector").igZoombar("option", "width");

```

windowPanDuration

Type:: number
Default:: 500

Specifies the pan duration (in milliseconds) when the window changes position. Set to 0 for snap.

Code Sample


				//Initialize
				$(".selector").igZoombar({
					target: "#chart",
					windowPanDuration: 1000
				});

				//Get
				var windowPanDuration = $(".selector").igZoombar("option", "windowPanDuration");

zoomAction

Type:

enumeration

Default:

immediate
Specifies when the zoom effect is applied.
Members
- immediate
- Type:string
- The zoom action is applied as the end-user interacts with the zoom window.
- deferred
- Type:string
- The zoom action is applied after the interaction with the zoom window completes.
Code Sample
```

				//Initialize
				$(".selector").igZoombar({
					target: "#chart",
					zoomAction: "deferred"
				});
				//Get
				var zoomAction = $(".selector").igZoombar("option", "zoomAction");

```

zoomWindowMinWidth

Type:: number
Default:: 5

The minimal width the zoom window can have in percentages.

Code Sample


				//Initialize
				$(".selector").igZoombar({
					target: "#chart",
					zoomWindowMinWidth: 10
				});

				//Get
				var zoomWindowMinWidth = $(".selector").igZoombar("option", "zoomWindowMinWidth");

zoomWindowMoveDistance

Type:: number
Default:: 10

Specifies the distance (in percents) the zoom window moves when the left or right scroll bar buttons are clicked.

Code Sample


				//Initialize
				$(".selector").igZoombar({
					target: "#chart",
					zoomWindowMoveDistance: 20
				});

				//Get
				var zoomWindowMoveDistance = $(".selector").igZoombar("option", "zoomWindowMoveDistance");

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details

providerCreated

Cancellable:

false

Event fired after a provider is created based on the options.provider value. If an instance is passed as a value for the option the event won't fire.
Use the event when utilizing a custom provider to assign options such as the zoomed widget's instance so that the provider's API is usable when igZoombar initializes its rendering.
- evt
  Type: Event

  JQuery event object.
- ui
  Type: Object
Code Sample
```

        //Bind after initialization
        $(document).delegate(".selector", "igzoombarprovidercreated", function (evt, ui) {
            //Get the created provider
            ui.provider
            //Get reference to igZoombar
            ui.owner
        });

        //Initialize
        $(".selector").igZoombar({
            providerCreated: function (evt, ui) { ... }
        });

```

windowDragEnded

Cancellable:: false

Event fired when the user stops dragging the zoom window.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


				//Bind after initialization
				$(document).delegate(".selector", "igzoombarwindowdragended", function (evt, ui) {
					//Get the current zoom window left position as a fraction of the absolute width of the target
					ui.zoomWindow.left
					//Get the current zoom window width as a fraction of the absolute width of the target
					ui.zoomWindow.width
					//Get reference to igZoombar
					ui.owner
				});

				//Initialize
				$(".selector").igZoombar({
					windowDragEnded: function (evt, ui) { ... }
				});

windowDragEnding

Cancellable:: true

Event fired when the user attemtps to stop dragging the zoom window.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


				//Bind after initialization
				$(document).delegate(".selector", "igzoombarwindowdragending", function (evt, ui) {
					//Get the current zoom window left position as a fraction of the absolute width of the target
					ui.zoomWindow.left
					//Get the current zoom window width as a fraction of the absolute width of the target
					ui.zoomWindow.width
					//Get reference to igZoombar
					ui.owner
				});

				//Initialize
				$(".selector").igZoombar({
					windowDragEnding: function (evt, ui) { ... }
				});

windowDragging

Cancellable:: true

Event fired when the user drags the zoom window.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


				//Bind after initialization
				$(document).delegate(".selector", "igzoombarwindowdragging", function (evt, ui) {
					//Get the current zoom window left position as a fraction of the absolute width of the target
					ui.zoomWindow.left
					//Get the current zoom window width as a fraction of the absolute width of the target
					ui.zoomWindow.width
					//Get reference to igZoombar
					ui.owner
				});

				//Initialize
				$(".selector").igZoombar({
					windowDragging: function (evt, ui) { ... }
				});

windowDragStarted

Cancellable:: false

Event fired when the user starts dragging the zoom window.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


				//Bind after initialization
				$(document).delegate(".selector", "igzoombarwindowdragstarted", function (evt, ui) {
					//Get the current zoom window left position as a fraction of the absolute width of the target
					ui.zoomWindow.left
					//Get the current zoom window width as a fraction of the absolute width of the target
					ui.zoomWindow.width
					//Get reference to igZoombar
					ui.owner
				});

				//Initialize
				$(".selector").igZoombar({
					windowDragStarted: function (evt, ui) { ... }
				});

windowDragStarting

Cancellable:: true

Event fired when the user attempts to drag the zoom window.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


				//Bind after initialization
				$(document).delegate(".selector", "igzoombarwindowdragstarting", function (evt, ui) {
					//Get the current zoom window left position as a fraction of the absolute width of the target
					ui.zoomWindow.left
					//Get the current zoom window width as a fraction of the absolute width of the target
					ui.zoomWindow.width
					//Get reference to igZoombar
					ui.owner
				});

				//Initialize
				$(".selector").igZoombar({
					windowDragStarting: function (evt, ui) { ... }
				});

windowResized

Cancellable:: false

Event fired after the user resizes the zoom window with the window"s handles.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


				//Bind after initialization
				$(document).delegate(".selector", "igzoombarwindowresized", function (evt, ui) {
					//Get the current zoom window left position as a fraction of the absolute width of the target
					ui.zoomWindow.left
					//Get the current zoom window width as a fraction of the absolute width of the target
					ui.zoomWindow.width
					//Get reference to igZoombar
					ui.owner
				});

				//Initialize
				$(".selector").igZoombar({
					windowResized: function (evt, ui) { ... }
				});

windowResizing

Cancellable:: true

Event fired when the user resizes the zoom window with the window"s handles.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


				//Bind after initialization
				$(document).delegate(".selector", "igzoombarwindowresizing", function (evt, ui) {
					//Get the current zoom window left position as a fraction of the absolute width of the target
					ui.zoomWindow.left
					//Get the current zoom window width as a fraction of the absolute width of the target
					ui.zoomWindow.width
					//Get reference to igZoombar
					ui.owner
				});

				//Initialize
				$(".selector").igZoombar({
					windowResizing: function (evt, ui) { ... }
				});

zoomChanged

Cancellable:: false

Event fired after a zoom action is applied.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


				//Bind after initialization
				$(document).delegate(".selector", "igzoombarzoomchanged", function (evt, ui) {
					//Get the previous zoom window left position as a fraction of the absolute width of the target
					ui.previousZoom.left
					//Get the previous zoom window width as a fraction of the absolute width of the target
					ui.previousZoom.width
					//Get the new zoom window left position as a fraction of the absolute width of the target
					ui.newZoom.left
					//Get the new zoom window width as a fraction of the absolute width of the target
					ui.newZoom.width
					//Get reference to igZoombar
					ui.owner
				});

				//Initialize
				$(".selector").igZoombar({
					zoomChanged: function (evt, ui) { ... }
				});

zoomChanging

Cancellable:: true

Event fired before a zoom action is applied.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample


				//Bind after initialization
				$(document).delegate(".selector", "igzoombarzoomchanging", function (evt, ui) {
					//Get the previous zoom window left position as a fraction of the absolute width of the target
					ui.previousZoom.left
					//Get the previous zoom window width as a fraction of the absolute width of the target
					ui.previousZoom.width
					//Get the new zoom window left position as a fraction of the absolute width of the target
					ui.newZoom.left
					//Get the new zoom window width as a fraction of the absolute width of the target
					ui.newZoom.width
					//Get reference to igZoombar
					ui.owner
				});

				//Initialize
				$(".selector").igZoombar({
					zoomChanging: function (evt, ui) { ... }
				});

Show Details

clone

.igZoombar( "clone" );

Return Type:

domelement
Returns the element the clone widget is initialized on.
Code Sample
```

				var clone = $(".selector").igZoombar("clone");

```
container

.igZoombar( "container" );

Return Type:

domelement
Returns the DIV that is the topmost container of the zoombar widget.
Code Sample
```

				var container = $(".selector").igZoombar("container");

```
destroy

.igZoombar( "destroy" );
Destroys the Zoombar widget.
Code Sample
```

				$(".selector").igZoombar("destroy");

```
id

.igZoombar( "id" );

Return Type:

string
Returns the ID of the element the zoombar is initialized on.
Code Sample
```

				var id = $(".selector").igZoombar("id");

```
widget

.igZoombar( "widget" );
Returns the main zoombar element.
Code Sample
```

				var widget = $(".selector").igZoombar("widget");

```
zoom

.igZoombar( "zoom", [left:number], [width:number] );

Return Type:

object
Gets or sets the current zoom window.
- left
- Type:number
- Optional
- The left parameter of the new zoom window in percentages.
- width
- Type:number
- Optional
- The width parameter of the new zoom window in percentages.
Code Sample
```

				$("#zoombar").igZoombar("zoom", 0, 10);

```

ui-widget ui-helper-clearfix ui-corner-all ui-igzoombar-container

Classes applied to the main container element.
ui-state-hover

Classes applied to interactable elements on mouseover.
ui-igzoombar-mask

Classes applied to the zoombar mask element.
ui-igzoombar-fade ui-igzoombar-fade-left-appendix

Classes applied to the zoombar mask element left appendix.
ui-igzoombar-fade ui-igzoombar-fade-left

Classes applied to the zoombar left mask element.
ui-igzoombar-fade ui-igzoombar-fade-right-appendix

Classes applied to the zoombar mask element right appendix.
ui-igzoombar-fade ui-igzoombar-fade-right

Classes applied to the zoombar right mask element.
ui-igzoombar-scrollbar-button

Classes applied to the scrollbar buttons.
ui-igzoombar-scrollbar

Classes applied to the scrollbar element.
ui-icon-triangle-1-w

Classes applied to the scrollbar left button.
ui-icon-triangle-1-e

Classes applied to the scrollbar right button.
ui-state-default ui-igzoombar-scrollbar-thumb

Classes applied to the scrollbar thumb element.
ui-igzoombar-window-grabbing

Classes applied to the zoom window when it's being grabbed.
ui-state-default ui-igzoombar-window-handle ui-igzoombar-window-handle-left

Classes applied to the zoombar left window handle.
ui-state-default ui-igzoombar-window-handle ui-igzoombar-window-handle-right

Classes applied to the zoombar right window handle.

Ignite UI | Samples

ui.igZoombar

Code Sample

Related Samples

Related Topics

Dependencies

Inherits

clone

Members

Code Sample

defaultZoomWindow

Code Sample

left

Code Sample

width

Code Sample

height

Members

Code Sample

hoverStyleAnimationDuration

Code Sample

provider

Code Sample

tabIndex

Code Sample

target

Members

Code Sample

width

Members

Code Sample

windowPanDuration

Code Sample

zoomAction

Members

Code Sample

zoomWindowMinWidth

Code Sample

zoomWindowMoveDistance

Code Sample

providerCreated

Code Sample

windowDragEnded

Code Sample

windowDragEnding

Code Sample

windowDragging

Code Sample

windowDragStarted

Code Sample

windowDragStarting

Code Sample

windowResized

Code Sample

windowResizing

Code Sample

zoomChanged

Code Sample

zoomChanging

Code Sample

clone

Code Sample

container

Code Sample

destroy

Code Sample

id

Code Sample

widget

Code Sample

zoom

Code Sample

ui-widget ui-helper-clearfix ui-corner-all ui-igzoombar-container

ui-state-hover

ui-igzoombar-mask

ui-igzoombar-fade ui-igzoombar-fade-left-appendix

ui-igzoombar-fade ui-igzoombar-fade-left

ui-igzoombar-fade ui-igzoombar-fade-right-appendix

ui-igzoombar-fade ui-igzoombar-fade-right

ui-igzoombar-scrollbar-button
