ui.igGridCellMerging

ui.igGridCellMerging_image

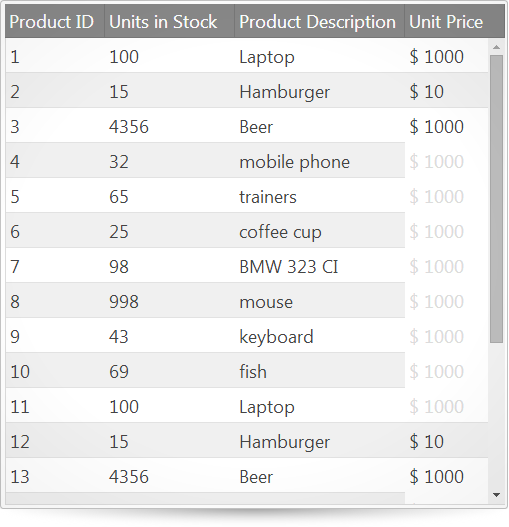

Merged cell feature of the igGrid allows you to combine cells in a column that are next to each other and have the same values. This is very useful after a column is sorted, because the cells that have the same values are merged.

The following code snippet demonstrates how to initialize the igGrid control.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample


<!doctype html>
<html>
<head>
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
	<!-- jQuery Mobile -->
    <script src="js/jquery.mobile.js" type="text/javascript"></script>
	<!-- Moderznizr -->
    <script src="js/modernizr.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
    <!-- Infragistics Loader Script -->
    <script src="js/infragistics.loader.js" type="text/javascript"></script>
	<!-- Infragistics Loader Initialization -->
    <script type="text/javascript">
		$.ig.loader({
			scriptPath: 'js/',
			cssPath: 'css/',
			resources: 'igGrid.CellMerging.Sorting.Updating'
		})

		var productData = [
			{ "ProductID": "1", "UnitsInStock": "100", "ProductDescription": "Laptop", "UnitPrice": "$ 1000" , "DateAdded": new Date() },
			{ "ProductID": "2", "UnitsInStock": "15", "ProductDescription": "Hamburger", "UnitPrice": "$ 10", "DateAdded": new Date() },
			{ "ProductID": "3", "UnitsInStock": "4356", "ProductDescription": "Beer", "UnitPrice": "$ 1000", "DateAdded": new Date() },
			{ "ProductID": "4", "UnitsInStock": "32", "ProductDescription": "mobile phone", "UnitPrice": "$ 1000", "DateAdded": new Date() },
			{ "ProductID": "5", "UnitsInStock": "65", "ProductDescription": "trainers", "UnitPrice": "$ 1000", "DateAdded": new Date() },
			{ "ProductID": "6", "UnitsInStock": "25", "ProductDescription": "coffee cup", "UnitPrice": "$ 1000", "DateAdded": new Date() },
			{ "ProductID": "7", "UnitsInStock": "98", "ProductDescription": "BMW 323 CI", "UnitPrice": "$ 1000", "DateAdded": new Date() },
			{ "ProductID": "8", "UnitsInStock": "998", "ProductDescription": "mouse", "UnitPrice": "$ 1000", "DateAdded": new Date() },
			{ "ProductID": "9", "UnitsInStock": "43", "ProductDescription": "keyboard", "UnitPrice": "$ 1000", "DateAdded": new Date() },
			{ "ProductID": "10", "UnitsInStock": "69", "ProductDescription": "fish", "UnitPrice": "$ 1000", "DateAdded": new Date() },
			{ "ProductID": "11", "UnitsInStock": "100", "ProductDescription": "Laptop", "UnitPrice": "$ 1000" , "DateAdded": new Date() },
			{ "ProductID": "12", "UnitsInStock": "15", "ProductDescription": "Hamburger", "UnitPrice": "$ 10", "DateAdded": new Date() },
			{ "ProductID": "13", "UnitsInStock": "4356", "ProductDescription": "Beer", "UnitPrice": "$ 1000", "DateAdded": new Date() },
			{ "ProductID": "14", "UnitsInStock": "32", "ProductDescription": "mobile phone", "UnitPrice": "$ 1000", "DateAdded": new Date() },
			{ "ProductID": "15", "UnitsInStock": "65", "ProductDescription": "trainers", "UnitPrice": "$ 1000", "DateAdded": new Date() },
			{ "ProductID": "16", "UnitsInStock": "25", "ProductDescription": "coffee cup", "UnitPrice": "$ 1000", "DateAdded": new Date() },
			{ "ProductID": "17", "UnitsInStock": "98", "ProductDescription": "BMW 323 CI", "UnitPrice": "$ 1000", "DateAdded": new Date() },
			{ "ProductID": "18", "UnitsInStock": "998", "ProductDescription": "BMW 323 CI", "UnitPrice": "$ 1000", "DateAdded": new Date() },
			{ "ProductID": "19", "UnitsInStock": "43", "ProductDescription": "keyboard", "UnitPrice": "$ 1000", "DateAdded": new Date() },
			{ "ProductID": "20", "UnitsInStock": "69", "ProductDescription": "fish", "UnitPrice": "$ 1000", "DateAdded": new Date() },
		];

		$.ig.loader(function () {
			$("#grid1").igGrid({
				dataSource: productData,
				responseDataKey: "ProductID",
				fixedFooters: false,
				fixedHeaders: true,
				virtualization: false,
				autoGenerateColumns: false,
				width: 600,
				defaultColumnWidth: 140,
				columns: [
					{ headerText: "Product ID", key: "ProductID", dataType: "number", width: 100},
					{ headerText: "Units in Stock", key: "UnitsInStock", dataType: "number", width: 150},
					{ headerText: "Product Description", key: "ProductDescription", dataType: "string", width: 150},
					{ headerText: "Unit Price", key: "UnitPrice", dataType: "string", width: 150 }
				],
				features: [
					{
						name: "CellMerging",
						initialState: "merged"
					},
					{
						name: "Sorting",
						type: "local",
						mode: "multiple"
					}
				]
			});
		});
	</script>
</head>
<body>
	<table id="grid1"></table>
</body>


Related Samples

Related Topics

Dependencies

jquery-1.9.1.js
jquery.ui.core.js
jquery.ui.widget.js
infragistics.ui.grid.framework.js
infragistics.ui.shared.js
infragistics.datasource.js
infragistics.util.js

Inherits

  • inherit

    Type:
    bool
    Default:
    false

    Enables/disables feature inheritance for the child layouts. NOTE: It only applies for igHierarchicalGrid.

  • initialState

    Type:
    enumeration
    Default:
    regular

    controls the initial state.

    Members

    • regular
    • Type:string
    • the grid won't be initialized with cells merged.
    • merged
    • Type:string
    • the grid will be initialized with cells merged.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "CellMerging",
    							initialState: "merged"
    						}
    					]
    				});
    				//Get
    				var state = $(".selector").igGridCellMerging("option", "initialState");


For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • cellsMerged

    Cancellable:
    false

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • row
          Type: jQuery

          Gets a reference to the row the merged group starts in.

        • rowIndex
          Type: Number

          Gets the index of the row the merged group starts in.

        • rowKey
          Type: Object

          Gets the key of the row the merged group starts in.

        • owner
          Type: Object

          Gets reference to igGridCellMerging.

        • grid
          Type: Object

          Gets a reference to the igGrid the igGridCellMerging are initialized for.

        • value
          Type: Object

          Gets the cells value which is repeated and caused the merged group to be created.

        • count
          Type: Number

          Gets the total count of cells that were merged.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridcellmergingcellsmerged", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// Get reference to the row the merged group starts in.
    					ui.row;

    					// Get the index of the row the merged group starts in.
    					ui.rowIndex;

    					// Get the key of the row the merged group starts in.
    					ui.rowKey;

    					// Get reference to igGridCellMerging widget.
    					ui.owner;

    					// Get reference to the igGrid the igGridCellMerging are initialized for.
    					ui.grid;

    					// Get the cells value which is repeated and caused the merged group to be created.
    					ui.value;

    					// Get the total count of cells that were merged.
    					ui.count;

    				});

    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "CellMerging",
    							cellsMerged: function(evt, ui){ ... }
    						}
    					]
    				});

  • cellsMerging

    Cancellable:
    true

    Event fired before a new merged cells group is created.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • row
          Type: jQuery

          Gets a reference to the row the merged group starts in.

        • rowIndex
          Type: Number

          Gets the index of the row the merged group starts in.

        • rowKey
          Type: Object

          Gets the key of the row the merged group starts in.

        • owner
          Type: Object

          Gets reference to igGridCellMerging.

        • grid
          Type: Object

          Gets a reference to the igGrid the igGridCellMerging are initialized for.

        • value
          Type: Object

          Gets the cells value which is repeated and caused the merged group to be created.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridcellmergingcellsmerging", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// Get reference to the row the merged group starts in.
    					ui.row;

    					// Get the index of the row the merged group starts in.
    					ui.rowIndex;

    					// Get the key of the row the merged group starts in.
    					ui.rowKey;

    					// Get reference to igGridCellMerging widget.
    					ui.owner;

    					// Get reference to the igGrid the igGridCellMerging are initialized for.
    					ui.grid;

    					// Get the cells value which is repeated and caused the merged group to be created.
    					ui.value;

    					// Get the total count of cells that were merged.
    					ui.count;

    				});

    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "CellMerging",
    							cellsMerging: function(evt, ui){ ... }
    						}
    					]
    				});

  • destroy

    .igGridCellMerging( "destroy" );

    Code Sample


    				$(".selector").igGridCellMerging("destroy");

  • ui-iggrid-mergedcell

    Classes applied to every cell of a merged group.
  • ui-iggrid-mergedcellsbottom

    Classes applied to the bottom cell of a merged group.
  • ui-iggrid-mergedcellstop

    Classes applied to the top cell of a merged group.
