ui.igTreeGridUpdating

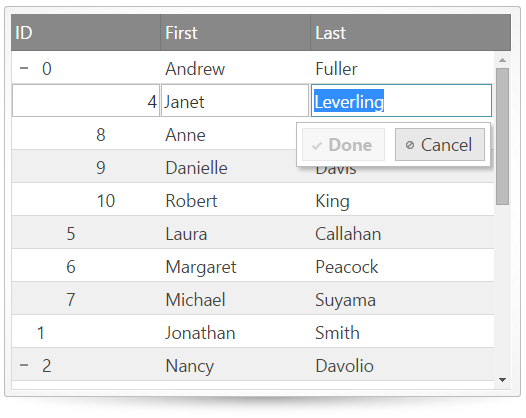

ui.igTreeGridUpdating_image

With the igTreeGrid's updating feature, you can change bound data directly from the grid. The updating features of the grid provide a wide array of adding and editing values of the underling set of data bound to the grid. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igTreeGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample


						<!DOCTYPE	html>
						<html>
						<head>
							<!--	Infragistics	Combined	CSS	-->
							<link	href="css/themes/infragistics/infragistics.theme.css"	rel="stylesheet"	type="text/css"	/>
							<link	href="css/structure/infragistics.css"	rel="stylesheet"	type="text/css"	/>

							<!--	jQuery	Core	-->
							<script	src="js/jquery.js"	type="text/javascript"></script>

							<!--	jQuery	UI	-->
							<script	src="js/jquery-ui.js"	type="text/javascript"></script>

							<!--	Infragistics	Combined	Scripts	-->
							<script	src="js/infragistics.core.js"	type="text/javascript"></script>
							<script	src="js/infragistics.lob.js"	type="text/javascript"></script>

							<script	type="text/javascript">
								var	employees	=	[
									{	"employeeId":	0,	"supervisorId":	-1,	"firstName":	"Andrew",	"lastName":	"Fuller"	},
									{	"employeeId":	1,	"supervisorId":	-1,	"firstName":	"Jonathan",	"lastName":	"Smith"	},
									{	"employeeId":	2,	"supervisorId":	-1,	"firstName":	"Nancy",	"lastName":	"Davolio"	},
									{	"employeeId":	3,	"supervisorId":	-1,	"firstName":	"Steven",	"lastName":	"Buchanan"	},

									//	Andrew	Fuller's	direct	reports
									{	"employeeId":	4,	"supervisorId":	0,	"firstName":	"Janet",	"lastName":	"Leverling"	},
									{	"employeeId":	5,	"supervisorId":	0,	"firstName":	"Laura",	"lastName":	"Callahan"	},
									{	"employeeId":	6,	"supervisorId":	0,	"firstName":	"Margaret",	"lastName":	"Peacock"	},
									{	"employeeId":	7,	"supervisorId":	0,	"firstName":	"Michael",	"lastName":	"Suyama"	},

									//	Janet	Leverling's	direct	reports
									{	"employeeId":	8,	"supervisorId":	4,	"firstName":	"Anne",	"lastName":	"Dodsworth"	},
									{	"employeeId":	9,	"supervisorId":	4,	"firstName":	"Danielle",	"lastName":	"Davis"	},
									{	"employeeId":	10,	"supervisorId":	4,	"firstName":	"Robert",	"lastName":	"King"	},

									//	Nancy	Davolio's	direct	reports
									{	"employeeId":	11,	"supervisorId":	2,	"firstName":	"Peter",	"lastName":	"Lewis"	},
									{	"employeeId":	12,	"supervisorId":	2,	"firstName":	"Ryder",	"lastName":	"Zenaida"	},
									{	"employeeId":	13,	"supervisorId":	2,	"firstName":	"Wang",	"lastName":	"Mercedes"	},

									//	Steve	Buchanan's	direct	reports
									{	"employeeId":	14,	"supervisorId":	3,	"firstName":	"Theodore",	"lastName":	"Zia"	},
									{	"employeeId":	15,	"supervisorId":	3,	"firstName":	"Lacota",	"lastName":	"Mufutau"	},

									//	Lacota	Mufutau's	direct	reports
									{	"employeeId":	16,	"supervisorId":	15,	"firstName":	"Jin",	"lastName":	"Elliott"	},
									{	"employeeId":	17,	"supervisorId":	15,	"firstName":	"Armand",	"lastName":	"Ross"	},
									{	"employeeId":	18,	"supervisorId":	15,	"firstName":	"Dane",	"lastName":	"Rodriquez"	},

									//	Dane	Rodriquez's	direct	reports
									{	"employeeId":	19,	"supervisorId":	18,	"firstName":	"Declan",	"lastName":	"Lester"	},
									{	"employeeId":	20,	"supervisorId":	18,	"firstName":	"Bernard",	"lastName":	"Jarvis"	},

									//	Bernard	Jarvis'	direct	report
									{	"employeeId":	21,	"supervisorId":	20,	"firstName":	"Jeremy",	"lastName":	"Donaldson"	}
								];

							$(function	()	{
								$("#treegrid").igTreeGrid({
									dataSource:	employees,
									primaryKey:	"employeeId",
									foreignKey:	"supervisorId",
									autoGenerateColumns:	false,
									columns:	[
										{	headerText:	"ID",	key:	"employeeId",	width:	"150px",	dataType:	"number"	},
										{	headerText:	"First",	key:	"firstName",	width:	"150px",	dataType:	"string"	},
										{	headerText:	"Last",	key:	"lastName",	width:	"150px",	dataType:	"string"	}
									],
									features:	[
										{
											name:	"Updating",
											editMode:	"row",
											enableDeleteRow:	true,
											columnSettings:	[
												{
													columnKey:	"employeeId",
													editorOptions:
													{
														type:	"numeric",
														disabled:	true
													}
												}
											]
										}
									]
								});
							});
							</script>
						</head>
						<body>
							<table	id="treegrid"></table>
						</body>
						</html>


Related Topics

Dependencies

jquery-1.9.1.js
jquery.ui.core.js
jquery.ui.widget.js
infragistics.datasource.js
infragistics.ui.shared.js
infragistics.ui.treegrid.js
infragistics.util.js
infragistics.ui.grid.framework.js
infragistics.ui.grid.updating.js

Inherits

  • addChildButtonLabel

    Type:
    string
    Default:
    null

    Specifies the label of the add child button in touch environment.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features:	[
    						{
    							name:	"Updating",
    							addChildButtonLabel: "add child"
    						}
    					]
    				});

    				//Get
    				var	childButtonLabel	=	$(".selector").igTreeGridUpdating("option",	"addChildButtonLabel");

    				//Set
    				$(".selector").igTreeGridUpdating("option",	"addChildButtonLabel",	"add child");

  • addChildTooltip

    Type:
    string
    Default:
    null

    Specifies the add child tooltip text.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features:	[
    						{
    							name:	"Updating",
    							addChildTooltip: "add child"
    						}
    					]
    				});

    				//Get
    				var	childTooltip	=	$(".selector").igTreeGridUpdating("option",	"addChildTooltip");

    				//Set
    				$(".selector").igTreeGridUpdating("option",	"addChildTooltip",	"Add	a	row	here");

  • addRowLabel
    Inherited

    Type:
    string
    Default:
    null

    Specifies the label for the button starting edit mode for row adding. If not set, $.ig.GridUpdating.locale.addRowLabel is used.

    Code Sample


    				//Initialize
    				$("#grid").igTreeGrid({
    					features: [
    						{
    							name: "Updating",
    							addRowLabel: "Add a row here"
    						}
    					]
    				});

    				//Get
    				var label = $("#grid").igTreeGridUpdating("option", "addRowLabel");

    				//Set
    				$("#grid").igTreeGridUpdating("option", "addRowLabel", "Add a row here");

  • addRowTooltip
    Inherited

    Type:
    string
    Default:
    null

    Specifies the title for the button starting edit mode for row adding. If not set, $.ig.GridUpdating.locale.addRowTooltip is used.

    Code Sample


    				//Initialize
    				$("#grid").igTreeGrid({
    					features: [
    						{
    							name: "Updating",
    							addRowTooltip: "Add a row here"
    						}
    					]
    				});

    				//Get
    				var label = $("#grid").igTreeGridUpdating("option", "addRowTooltip");

    				//Set
    				$("#grid").igTreeGridUpdating("option", "addRowTooltip", "Add a row here");

  • cancelLabel
    Inherited

    Type:
    string
    Default:
    null

    Specifies the label for the Cancel editing button (only applicable when the showDoneCancelButtons option is enabled). If not set, $.ig.GridUpdating.locale.cancelLabel is used.

    Code Sample


    				//Initialize
    				$("#grid").igTreeGrid({
    					features: [
    						{
    							name: "Updating",
    							cancelLabel: "Click to cancel"
    						}
    					]
    				});

    				//Get
    				var label = $("#grid").igTreeGridUpdating("option", "cancelLabel");

    				//Set
    				$("#grid").igTreeGridUpdating("option", "cancelLabel", "Click to cancel");

  • cancelTooltip
    Inherited

    Type:
    string
    Default:
    null

    Specifies the title for the Cancel editing button (only applicable when the showDoneCancelButtons option is enabled). If not set, $.ig.GridUpdating.locale.cancelTooltip is used.

    Code Sample


    				//Initialize
    				$("#grid").igTreeGrid({
    					features: [
    						{
    							name: "Updating",
    							cancelTooltip: "Click to cancel"
    						}
    					]
    				});

    				//Get
    				var label = $("#grid").igTreeGridUpdating("option", "cancelTooltip");

    				//Set
    				$("#grid").igTreeGridUpdating("option", "cancelTooltip", "Click to cancel");

  • columnSettings
    Inherited

    Type:
    array
    Default:
    []
    Elements Type:
    object

    A list of custom column options that specify editing and validation settings for a specific column.

    Code Sample


    				//Initialize
    				$("#grid").igTreeGrid({
    					features: [
    						{
    							name: "Updating",
    							columnSettings: [
    								{
    									columnKey : "Name",
    									defaultValue: "Infragistics",
    									editorType: "text",
    									editorOptions: {
    										buttonType: "dropdown",
    										listItems: names,
    										readOnly: true
    									},
    									required: true,
    									validation: true
    								}
    							]
    						}
    					]
    				});

    				//Get
    				var columnSettings = $("#grid").igTreeGridUpdating("option", "columnSettings");

    • columnKey

      Type:
      string
      Default:
      null

      Identifies the grid column by key.

      Code Sample


      					//Initialize
      					$("#grid").igTreeGrid({
      						features: [
      							{
      								name: "Updating",
      								columnSettings: [
      									{
      										columnKey : "Name",
      										defaultValue: "Infragistics"
      									}
      								]
      							}
      						]
      					});

      					//Get
      					var columnSettings = $("#grid").igTreeGridUpdating("option", "columnSettings")[0].columnKey;

      					//Set
      					$("#grid").igTreeGridUpdating("option", "columnSettings", columnSettings);

    • defaultValue

      Type:
      object
      Default:
      null

      Specifies the default value for the column when adding new rows. When in edit mode for adding a row the value will be pre-filled in the column's editor (if the column is not read-only). The value should be of the type specified for the column in the grid's columns collection.

      Code Sample


      					//Initialize
      					$("#grid").igTreeGrid({
      						features: [
      							{
      								name: "Updating",
      								columnSettings: [
      									{
      										columnKey : "Name",
      										defaultValue: "Infragistics"
      									}
      								]
      							}
      						]
      					});

      					//Get
      					var columnSettings = $("#grid").igTreeGridUpdating("option", "columnSettings")[0].defaultValue;

      					//Set
      					$("#grid").igTreeGridUpdating("option", "columnSettings", columnSettings);

    • editorOptions

      Type:
      object
      Default:
      null

      Specifies options to initialize the corresponding editor with.

      Code Sample


      					//Initialize
      					$("#grid").igTreeGrid({
      						features: [
      							{
      								name: "Updating",
      								columnSettings: [
      									{
      										columnKey : "Name",
      										editorType: "text",
      										editorOptions: {
      										buttonType: "dropdown",
      										listItems: names,
      										readOnly: true
      										}
      									}
      								]
      							}
      						]
      					});

      					//Get
      					var columnSettings = $("#grid").igTreeGridUpdating("option", "columnSettings")[0].editorOptions;

      					//Set
      					$("#grid").igTreeGridUpdating("option", "columnSettings", columnSettings);

    • editorProvider

      Type:
      object
      Default:
      null

      Specifies а custom editor provider instance. More information about editor providers can be found here and here.
      It should either extend $.ig.EditorProvider or have definitions for the following methods:
      $.ig.EditorProvider = $.ig.EditorProvider|| $.ig.EditorProvider.extend({
      createEditor: function (callbacks, key, editorOptions, tabIndex, format, element) {},
      attachErrorEvents: function (errorShowing, errorShown, errorHidden) {},
      getEditor: function () {},
      refreshValue: function () {},
      getValue: function () {},
      setValue: function (val) {},
      setSize: function (width, height) {},
      setFocus: function () {},
      removeFromParent: function () {},
      destroy: function () {},
      validator: function () {},
      validate: function (noLabel) {},
      isValid: function () {}
      });.

      Code Sample


      						// This editor provider demonstrates how to wrap HTML 5 number INPUT into editor provider for the igTreeGridUpdating
      						$.ig.EditorProviderNumber = $.ig.EditorProviderNumber || $.ig.EditorProvider.extend({
      							// initialize the editor
      							createEditor: function (callbacks, key, editorOptions, tabIndex, format, element) {
      								element = element || $('<input  />');
      								// call parent createEditor
      								this._super(callbacks, key, editorOptions, tabIndex, format, element);

      								element.on("keydown", $.proxy(this.keyDown, this));
      								element.on("change", $.proxy(this.change, this));

      								this.editor = {};
      								this.editor.element = element;
      									return element;
      							},
      							keyDown: function(evt) {
      								var ui = {};
      								ui.owner = this.editor.element;
      								ui.owner.element = this.editor.element;
      								this.callbacks.keyDown(evt, ui, this.columnKey);
      								// enable "Done" button only for numeric character
      								if ((evt.keyCode >= 48 && evt.keyCode <= 57) || (evt.keyCode >= 96 && evt.keyCode <= 105)) {
      									this.callbacks.textChanged(evt, ui, this.columnKey);
      								}
      							},
      							change: function (evt) {
      								var ui = {};
      								ui.owner = this.editor.element;
      								ui.owner.element = this.editor.element;
      								this.callbacks.textChanged(evt, ui, this.columnKey);
      							},
      							// get editor value
      							getValue: function () {
      								return parseFloat(this.editor.element.val());
      							},
      							// set editor value
      							setValue: function (val) {
      								return this.editor.element.val(val || 0);
      							},
      							// size the editor into the TD cell
      							setSize: function (width, height) {
      								this.editor.element.css({
      								width: width - 2,
      								height: height - 2,
      								borderWidth: "1px",
      								backgroundPositionY: "9px"
      							});
      							},
      							// focus the editor
      							setFocus: function () {
      								this.editor.element.select();
      							},
      							// validate the editor
      							validator: function () {
      								// no validator
      								return null;
      							},
      							// destroy the editor
      							destroy: function () {
      								this.editor.remove();
      							}
      						});

      						//Initialize
      						$("#grid").igTreeGrid({
      							features: [
      								{
      									name: "Updating",
      									columnSettings: [
      										{
      											columnKey : "SafetyStockLevel",
      											editorProvider: new $.ig.EditorProviderNumber()
      										}
      									]
      								}
      							]
      						});

      						//Get
      						var columnSettings = $("#grid").igTreeGridUpdating("option", "columnSettings")[0].editorProvider;

    • editorType

      Type:
      enumeration
      Default:
      null

      Specifies the type of editor to use for the column.

      Members

      • text
      • Type:string
      • An igTextEditor will be created.
      • mask
      • Type:string
      • An igMaskEditor will be created.
      • date
      • Type:string
      • An igDateEditor will be created.
      • datepicker
      • Type:string
      • An igDatePicker will be created.
      • numeric
      • Type:string
      • An igNumericEditor will be created.
      • checkbox
      • Type:string
      • An igCheckboxEditor will be created.
      • currency
      • Type:string
      • An igCurrencyEditor will be created.
      • percent
      • Type:string
      • An igPercentEditor will be created.
      • combo
      • Type:string
      • An igCombo editor is created. Both the JS and CSS files used by ui.igCombo should be available.
      • rating
      • Type:string
      • An igRating editor is created. Both the JS and CSS files used by ui.igRating should be available.

      Code Sample


      					//Initialize
      					$("#grid").igTreeGrid({
      						features: [
      							{
      								name: "Updating",
      								columnSettings: [
      									{
      										columnKey : "BirthDate",
      										editorType: "datepicker"
      									}
      								]
      							}
      						]
      					});
      					//Get
      					var columnSettings = $("#grid").igTreeGridUpdating("option", "columnSettings")[0].editorType;
      					//Set
      					$("#grid").igTreeGridUpdating("option", "columnSettings", columnSettings);

    • readOnly

      Type:
      bool
      Default:
      null

      Specifies if the column is read-only. In 'cell' and 'row' editMode no editor will be created for read-only columns. In 'dialog' mode enabling showReadonlyEditors will display disabled editors for such columns.

      Code Sample


      					//Initialize
      					$("#grid").igTreeGrid({
      						features: [
      							{
      								name: "Updating",
      								columnSettings: [
      									{
      										columnKey : "Name",
      										readOnly: true
      									}
      								]
      							}
      						]
      					});

      					//Get
      					var columnSettings = $("#grid").igTreeGridUpdating("option", "columnSettings")[0].readOnly;

      					//Set
      					$("#grid").igTreeGridUpdating("option", "columnSettings", columnSettings);

    • required

      Type:
      bool
      Default:
      null

      Specifies if the end-user will be allowed to leave the editor's value empty during edit mode or not.

      Code Sample


      					//Initialize
      					$("#grid").igTreeGrid({
      						features: [
      							{
      								name: "Updating",
      								columnSettings: [
      									{
      										columnKey : "Name",
      										required: true
      									}
      								]
      							}
      						]
      					});

      					//Get
      					var columnSettings = $("#grid").igTreeGridUpdating("option", "columnSettings")[0].required;

      					//Set
      					$("#grid").igTreeGridUpdating("option", "columnSettings", columnSettings);

    • validation

      Type:
      bool
      Default:
      null

      Specifies if the column's value should be validated or not. The validation is done based on the rules of the corresponding editor.

      Code Sample


      					//Initialize
      					$("#grid").igTreeGrid({
      						features: [
      							{
      								name: "Updating",
      								columnSettings: [
      									{
      										columnKey : "Name",
      										validation: true
      									}
      								]
      							}
      						]
      					});

      					//Get
      					var columnSettings = $("#grid").igTreeGridUpdating("option", "columnSettings")[0].validation;

      					//Set
      					$("#grid").igTreeGridUpdating("option", "columnSettings", columnSettings);

  • deleteRowLabel
    Inherited

    Type:
    string
    Default:
    null

    Specifies the label for the delete button. If not set, $.ig.GridUpdating.locale.deleteRowLabel is used.

    Code Sample


    				//Initialize
    				$("#grid").igTreeGrid({
    					features: [
    						{
    							name: "Updating",
    							deleteRowLabel: "Delete this row"
    						}
    					]
    				});

    				//Get
    				var label = $("#grid").igTreeGridUpdating("option", "deleteRowLabel");

    				//Set
    				$("#grid").igTreeGridUpdating("option", "deleteRowLabel", "Delete this row");

  • deleteRowTooltip
    Inherited

    Type:
    string
    Default:
    null

    Specifies the title for the delete button. If not set, $.ig.GridUpdating.locale.deleteRowTooltip is used.

    Code Sample


    				//Initialize
    				$("#grid").igTreeGrid({
    					features: [
    						{
    							name: "Updating",
    							deleteRowTooltip: "Delete this row"
    						}
    					]
    				});

    				//Get
    				var label = $("#grid").igTreeGridUpdating("option", "deleteRowTooltip");

    				//Set
    				$("#grid").igTreeGridUpdating("option", "deleteRowTooltip", "Delete this row");

  • dialogWidget
    Inherited

    Type:
    string
    Default:
    "igGridModalDialog"

    Name of the dialog widget to be used. It should inherit from $.ui.igGridModalDialog. For more information on how to utilize this property, please refer to the Extending igGrid Modal Dialog topic.

    Code Sample


    				//create dialog widget that inherits from $.ui.igGridModalDialog
    				$.widget("ui.CustomDialog", $.ui.igGridModalDialog, {});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Updating",
    							dialogWidget: "CustomDialog"
    						}
    					]
    				});

    				//Get
    				var dialogWidget = $(".selector").igTreeGridUpdating("option", "dialogWidget");

  • doneLabel
    Inherited

    Type:
    string
    Default:
    null

    Specifies the label for the Done editing button (only applicable when the showDoneCancelButtons option is enabled). If not set, $.ig.GridUpdating.locale.doneLabel is used.

    Code Sample


    				//Initialize
    				$("#grid").igTreeGrid({
    					features: [
    						{
    							name: "Updating",
    							doneLabel: "Fine"
    						}
    					]
    				});

    				//Get
    				var label = $("#grid").igTreeGridUpdating("option", "doneLabel");

    				//Set
    				$("#grid").igTreeGridUpdating("option", "doneLabel", "Fine");

  • doneTooltip
    Inherited

    Type:
    string
    Default:
    null

    Specifies the title for the Done editing button (only applicable when the showDoneCancelButtons option is enabled). If not set, $.ig.GridUpdating.locale.doneTooltip is used.

    Code Sample


    				//Initialize
    				$("#grid").igTreeGrid({
    					features: [
    						{
    							name: "Updating",
    							doneTooltip: "Fine"
    						}
    					]
    				});

    				//Get
    				var label = $("#grid").igTreeGridUpdating("option", "doneTooltip");

    				//Set
    				$("#grid").igTreeGridUpdating("option", "doneTooltip", "Fine");

  • editMode
    Inherited

    Type:
    enumeration
    Default:
    row

    Specifies the edit mode.

    Members

    • row
    • Type:string
    • Editors are shown for all columns that are not read-only. The editor of the clicked cell receives initial focus. Done and Cancel buttons may be displayed based on the showDoneCancelButtons property.
    • cell
    • Type:string
    • An editor is shown for the cell entering edit mode. The Done and Cancel buttons are not supported for this mode.
    • dialog
    • Type:string
    • A popup dialog is used with seperate settings available through the rowEditDialogOptions property.
    • none
    • Type:string
    • Editing through the UI is disabled.

    Code Sample


    				//Initialize
    				$("#grid").igTreeGrid({
    					features: [
    						{
    							name: "Updating",
    							editMode: "dialog"
    						}
    					]
    				});
    				//Get
    				var mode = $("#grid").igTreeGridUpdating("option", "editMode");
    				//Set
    				$("#grid").igTreeGridUpdating("option", "editMode", "dialog");

  • enableAddChild

    Type:
    bool
    Default:
    true

    Specifies whether to enable or disable adding children to rows.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features:	[
    						{
    							name:	"Updating",
    							enableAddChild:	true
    						}
    					]
    				});

    				//Get
    				var	addChild	=	$(".selector").igTreeGridUpdating("option",	"enableAddChild");

    				//Set
    				$(".selector").igTreeGridUpdating("option",	"enableAddChild",	false);

  • enableAddRow
    Inherited

    Type:
    bool
    Default:
    true

    Specifies if adding rows through the UI is enabled. When enabled an additional row is rendered at the bottom of the grid's header that works as a button. When the end-user clicks on it edit mode is initiated either through a dialog (when editMode is 'dialog') or mimicking the look and feel of 'row' editMode (when editMode is 'row' or 'cell').

    Code Sample


    				//Initialize
    				$("#grid").igTreeGrid({
    					features: [
    						{
    							name: "Updating",
    							enableAddRow: false
    						}
    					]
    				});

    				//Get
    				var addEnabled = $("#grid").igTreeGridUpdating("option", "enableAddRow");

    				//Set
    				$("#grid").igTreeGridUpdating("option", "enableAddRow", false);

  • enableDataDirtyException
    Inherited

    Type:
    bool
    Default:
    true

    Specifies if an exception should be thrown when the grid's data view changes while there are pending transactions in the data source. The data view changes when the data source performs a sorting, filtering, groupby or paging operation and the exception thrown will prevent the operation from succeeding. All pending transactions must be committed before a data view operation is able to complete. Committing transactions can be done manually through the grid's commit function or automatically by setting autoCommit to 'true'.

    Code Sample


    				//Initialize
    				$("#grid").igTreeGrid({
    					features: [
    						{
    							name: "Updating",
    							enableDataDirtyException: false
    						}
    					]
    				});

    				//Get
    				var isEnabled = $("#grid").igTreeGridUpdating("option", "enableDataDirtyException");

    				//Set
    				$("#grid").igTreeGridUpdating("option", "enableDataDirtyException", false);

  • enableDeleteRow
    Inherited

    Type:
    bool
    Default:
    true

    Specifies if deleting rows through the UI is enabled.

    Code Sample


    				//Initialize
    				$("#grid").igTreeGrid({
    					features: [
    						{
    							name: "Updating",
    							enableDeleteRow: false
    						}
    					]
    				});

    				//Get
    				var isEnabled = $("#grid").igTreeGridUpdating("option", "enableDeleteRow");

    				//Set
    				$("#grid").igTreeGridUpdating("option", "enableDeleteRow", false);

  • excelNavigationMode
    Inherited

    Type:
    bool
    Default:
    false

    Enables excel navigation style. When turned on, the arrow keys can be used for changing the currently edited cell similar to how Tab and Enter behave. When disabled, the arrow keys control the cursor inside editors.

    Code Sample


    				//Initialize
    				$("#grid").igTreeGrid({
    					features: [
    						{
    							name: "Updating",
    							excelNavigationMode: true
    						}
    					]
    				});

    				//Get
    				var isExcelNavMode = $("#grid").igTreeGridUpdating("option", "excelNavigationMode");

    				//Set
    				$("#grid").igTreeGridUpdating("option", "excelNavigationMode", true);

  • horizontalMoveOnEnter
    Inherited

    Type:
    bool
    Default:
    false

    Determines if pressing Enter to navigate away from the currently edited cell should move the focus horizontally or vertically (default).

    Code Sample


    				//Initialize
    				$("#grid").igTreeGrid({
    					features: [
    						{
    							name: "Updating",
    							horizontalMoveOnEnter: true
    						}
    					]
    				});

    				//Get
    				var moveOnEnter = $("#grid").igTreeGridUpdating("option", "horizontalMoveOnEnter");

    				//Set
    				$("#grid").igTreeGridUpdating("option", "horizontalMoveOnEnter", true);

  • inherit
    Inherited

    Type:
    bool
    Default:
    false

    Enables/disables feature inheritance for the child layouts in igHierarchicalGrid.

  • rowEditDialogOptions
    Inherited

    Type:
    object
    Default:
    {}

    A list of options controlling the rendering behavior of the row edit dialog. If editMode is not 'dialog' these have no effect.

    Code Sample


    				<script id="dialogTemplate" type="text/html">
    					<table>
    						<colgroup>
    						<col></col>
    						<col></col>
    						</colgroup>
    						<tbody data-render-tmpl>
    						</tbody>
    					</table>
    				</script>
    				<script id="editorsTemplate" type="text/html">
    					<tr>
    						<td><strong>${headerText}</strong></td>
    						<td><input data-editor-for-${key}="true"/></td>
    					</tr>
    				</script>
    				<script>

    					//Initialize
    					$("#grid").igTreeGrid({
    						features: [
    							{
    								name: "Updating",
    			rowEditDialogOptions: {
    									width: "530px",
    									height: "350px",
    									dialogTemplateSelector: "#dialogTemplate",
    									editorsTemplateSelector: "#editorsTemplate",
    									showReadonlyEditors: false,
    								}
    							}
    						]
    					});
    				</script>
    				//Get
    				var roweditDialogOptions = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions");

    				//Set
    				$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions", rowEditorDialogOptions);

    • animationDuration

      Type:
      number
      Default:
      200

      Specifies the animation duration for the opening and closing operations.

      Code Sample


      					<script id="dialogTemplate" type="text/html">
      						<table>
      							<colgroup>
      								<col></col>
      								<col></col>
      							</colgroup>
      							<tbody data-render-tmpl>
      							</tbody>
      						</table>
      					</script>
      					<script id="editorsTemplate" type="text/html">
      						<tr>
      							<td><strong>${headerText}</strong></td>
      							<td><input data-editor-for-${key}="true"/></td>
      						</tr>
      					</script>

      					//Initialize
      					$("#grid").igTreeGrid({
      						features: [
      							{
      								name: "Updating",
      								rowEditDialogOptions: {
      										animationDuration: 400,
      										dialogTemplateSelector: "#dialogTemplate",
      										editorsTemplateSelector: "#editorsTemplate"
      								}
      							}
      						]
      					});

      					//Get
      					var animationDuration = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").animationDuration;

      					//Set
      					$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").animationDuration = 400;

    • captionLabel

      Type:
      string
      Default:
      null

      Specifies the caption of the dialog. If not set, $.ig.GridUpdating.locale.rowEditDialogCaptionLabel is used.

      Code Sample


      					<script id="dialogTemplate" type="text/html">
      						<table>
      							<colgroup>
      								<col></col>
      								<col></col>
      							</colgroup>
      							<tbody data-render-tmpl>
      							</tbody>
      						</table>
      					</script>
      					<script id="editorsTemplate" type="text/html">
      						<tr>
      							<td><strong>${headerText}</strong></td>
      							<td><input data-editor-for-${key}="true"/></td>
      						</tr>
      					</script>
      					//Initialize

      					$("#grid").igTreeGrid({
      						features: [
      							{
      								name: "Updating",
      								rowEditDialogOptions: {
      										captionLabel: "CaptionLabel",
      										dialogTemplateSelector: "#dialogTemplate",
      										editorsTemplateSelector: "#editorsTemplate"
      								}
      							}
      						]
      					});

      					//Get
      					var captionLabel = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").captionLabel;

      					//Set
      					$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").captionLabel = "New Caption Label";

    • containment

      Type:
      enumeration
      Default:
      owner

      Controls the containment of the dialog's drag operation.

      Members

      • owner
      • Type:string
      • The row edit dialog will be draggable only in the grid area.
      • window
      • Type:string
      • The row edit dialog will be draggable in the whole window area.

      Code Sample


      					<script id="dialogTemplate" type="text/html">
      						<table>
      							<colgroup>
      								<col></col>
      								<col></col>
      							</colgroup>
      							<tbody data-render-tmpl>
      							</tbody>
      						</table>
      					</script>
      					<script id="editorsTemplate" type="text/html">
      						<tr>
      							<td><strong>${headerText}</strong></td>
      							<td><input data-editor-for-${key}="true"/></td>
      						</tr>
      					</script>
      					//Initialize
      					$("#grid").igTreeGrid({
      						features: [
      							{
      								name: "Updating",
      								rowEditDialogOptions: {
      									containment: "window",
      									dialogTemplateSelector: "#dialogTemplate",
      									editorsTemplateSelector: "#editorsTemplate"
      								}
      							}
      						]
      					});
      					//Get
      					var captionLabel = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").containment;
      					//Set
      					$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").containment = "window";

    • dialogTemplate

      Type:
      enumeration
      Default:
      null

      Specifies a template to be rendered against the currently edited record (or up-to-date key-value pairs in the case of not yet created records). It may contain an element decorated with the 'data-render-tmpl' attribute to specify where the control should render the editors template specified in the editorsTemplate option. For custom dialogs, the elements can be decorated with 'data-editor-for-<columnKey>' attributes where columnKey is the key of the column that editor or input will be used to edit. If both dialogTemplate and dialogTemplateSelector are specified, dialogTemplateSelector will be used. The default template is '<table><colgroup><col></col><col></col></colgroup><tbody data-render-tmpl></tbody></table>'.

      Code Sample


      					<script id="editorsTemplate" type="text/html">
      						<tr>
      							<td><strong>${headerText}</strong></td>
      							<td><input data-editor-for-${key}="true"/></td>
      						</tr>
      					</script>
      					//Initialize
      					$("#grid").igTreeGrid({
      						features: [
      							{
      								name: "Updating",
      								rowEditDialogOptions: {
      										editorsColumnWidth: 100,
      										dialogTemplate: "<table><colgroup><col></col><col></col></colgroup><tbody data-render-tmpl></tbody></table>" ,
      										editorsTemplateSelector: "#editorsTemplate"
      								}
      							}
      						]
      					});
      					//Get
      					var dialogTemplate = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").dialogTemplate;
      					//Set
      					$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").dialogTemplate = "<table><colgroup><col></col><col></col></colgroup><tbody data-render-tmpl></tbody></table>";

    • dialogTemplateSelector

      Type:
      enumeration
      Default:
      null

      Specifies a selector to a template rendered against the currently edited record (or up-to-date key-value pairs in the case of not yet created records). It may contain an element decorated with the 'data-render-tmpl' attribute to specify where the control should render the editors template specified in the editorsTemplate option. For custom dialogs, the elements can be decorated with 'data-editor-for-<columnKey>' attributes where columnKey is the key of the column that editor or input will be used to edit. If both dialogTemplate and dialogTemplateSelector are specified, dialogTemplateSelector will be used. The default template is '<table><colgroup><col></col><col></col></colgroup><tbody data-render-tmpl></tbody></table>'.

      Code Sample


      						<script id="dialogTemplate" type="text/html">
      							<table>
      								<colgroup>
      									<col></col>
      									<col></col>
      								</colgroup>
      								<tbody data-render-tmpl>
      								</tbody>
      							</table>
      						</script>
      						<script id="editorsTemplate" type="text/html">
      							<tr>
      								<td><strong>${headerText}</strong></td>
      								<td><input data-editor-for-${key}="true"/></td>
      							</tr>
      						</script>
      						//Initialize
      						$("#grid").igTreeGrid({
      							features: [
      								{
      									name: "Updating",
      									rowEditDialogOptions: {
      											dialogTemplateSelector: "#dialogTemplate",
      											editorsTemplateSelector: "#editorsTemplate"
      									}
      								}
      							]
      						});
      						//Get
      						var dialogTemplateSelector = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").dialogTemplateSelector;
      						//Set
      						$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").dialogTemplateSelector = "#yourSelector";

    • editorsColumnWidth

      Type:
      enumeration
      Default:
      null

      Controls the width of the column containing the editors in the default row edit dialog.

      Members

      • string
      • Type:string
      • The width of the column in pixels (100px) or percents (20%).
      • number
      • Type:number
      • The width of the column as a number (100) in pixels.
      • null
      • Type:object
      • The width of the column will be left empty for the browser to size automatically.

      Code Sample


      					<script id="dialogTemplate" type="text/html">
      						<table>
      							<colgroup>
      								<col></col>
      								<col></col>
      							</colgroup>
      							<tbody data-render-tmpl>
      							</tbody>
      						</table>
      					</script>
      					<script id="editorsTemplate" type="text/html">
      						<tr>
      							<td><strong>${headerText}</strong></td>
      							<td><input data-editor-for-${key}="true"/></td>
      						</tr>
      					</script>
      					//Initialize
      					$("#grid").igTreeGrid({
      						features: [
      							{
      								name: "Updating",
      								rowEditDialogOptions: {
      										editorsColumnWidth: 100,
      										dialogTemplateSelector: "#dialogTemplate",
      										editorsTemplateSelector: "#editorsTemplate",
      								}
      							}
      						]
      					});
      					//Get
      					var dialogTemplateSelector = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").editorsColumnWidth;
      					//Set
      					$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").editorsColumnWidth = 100;

    • editorsTemplate

      Type:
      string
      Default:
      null

      Specifies a template to be executed for each column in the grid's column collection (or just the read-write columns if showReadonlyEditors is false). Decorate the element to be used as an editor with 'data-editor-for-${key}'. The ${key} template tag should be replaced with the chosen templating engine's syntax for rendering values. If any editors for columns are specified in the dialog markup they will be exluded from the data the template will be rendered for. This property is ignored if dialogTemplate does not include an element with the 'data-render-tmpl' attribute. If both editorsTemplate and editorsTemplateSelector are specified, editorsTemplateSelector will be used.
      The default template is '<tr><td>${headerText}</td><td><input data-editor-for-${key} /></td></tr>'.

      Code Sample


      					<script id="dialogTemplate" type="text/html">
      						<table>
      							<colgroup>
      								<col></col>
      								<col></col>
      							</colgroup>
      							<tbody data-render-tmpl>
      							</tbody>
      						</table>
      					</script>

      					//Initialize
      					$("#grid").igTreeGrid({
      						features: [
      							{
      								name: "Updating",
      								rowEditDialogOptions: {
      										editorsColumnWidth: 100,
      										dialogTemplateSelector: "#dialogTemplate",
      										editorsTemplate: "<tr><td>${headerText}</td><td><input data-editor /></td></tr>"
      								}
      							}
      						]
      					});

      					//Get
      					var editorsTemplate = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").editorsTemplate;

      					//Set
      					$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").editorsTemplate = "<tr><td>${headerText}</td><td><input data-editor /></td></tr>";

    • editorsTemplateSelector

      Type:
      string
      Default:
      null

      Specifies a selector to a template to be executed for each column in the grid's column collection (or just the read-write columns if showReadonlyEditors is false). Decorate the element to be used as an editor with 'data-editor-for-${key}'. The ${key} template tag should be replaced with the chosen templating engine's syntax for rendering values. If any editors for columns are specified in the dialog markup they will be exluded from the data the template will be rendered for. This property is ignored if dialogTemplate does not include an element with the 'data-render-tmpl' attribute. If both editorsTemplate and editorsTemplateSelector are specified, editorsTemplateSelector will be used.
      The default template is '<tr><td>${headerText}</td><td><input data-editor-for-${key} /></td></tr>'.

      Code Sample


      					<script id="dialogTemplate" type="text/html">
      						<table>
      							<colgroup>
      								<col></col>
      								<col></col>
      							</colgroup>
      							<tbody data-render-tmpl>
      							</tbody>
      						</table>
      					</script>
      					<script id="editorsTemplate" type="text/html">
      						<tr>
      							<td><strong>${headerText}</strong></td>
      							<td><input data-editor-for-${key}="true"/></td>
      						</tr>
      					</script>

      					//Initialize
      					$("#grid").igTreeGrid({
      						features: [
      							{
      								name: "Updating",
      								rowEditDialogOptions: {
      										dialogTemplateSelector: "#dialogTemplate",
      										editorsTemplateSelector: "#editorsTemplate"
      								}
      							}
      						]
      					});

      					//Get
      					var editorsTemplateSelector = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").editorsTemplateSelector;

      					//Set
      					$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").editorsTemplateSelector = "#yourSelector";

    • height

      Type:
      enumeration
      Default:
      350px

      Controls the default row edit dialog height.

      Members

      • string
      • Type:string
      • The dialog window height in pixels (350px).
      • number
      • Type:number
      • The dialog window height as a number (350).

      Code Sample


      					<script id="dialogTemplate" type="text/html">
      						<table>
      							<colgroup>
      								<col></col>
      								<col></col>
      							</colgroup>
      							<tbody data-render-tmpl>
      							</tbody>
      						</table>
      					</script>
      					<script id="editorsTemplate" type="text/html">
      						<tr>
      							<td><strong>${headerText}</strong></td>
      							<td><input data-editor-for-${key}="true"/></td>
      						</tr>
      					</script>
      					//Initialize
      					$("#grid").igTreeGrid({
      						features: [
      							{
      								name: "Updating",
      								rowEditDialogOptions: {
      									height: "350px",
      									dialogTemplateSelector: "#dialogTemplate",
      									editorsTemplateSelector: "#editorsTemplate"
      								}
      							}
      						]
      					});
      					//Get
      					var height = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").height;
      					//Set
      					$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").height = "350px";

    • namesColumnWidth

      Type:
      enumeration
      Default:
      150px

      Controls the width of the column containing the column names in the default row edit dialog.

      Members

      • string
      • Type:string
      • The width of the column in pixels (100px) or percents (20%).
      • number
      • Type:number
      • The width of the column as a number (100) in pixels.
      • null
      • Type:object
      • The width of the column will be left empty for the browser to size automatically.

      Code Sample


      					<script id="dialogTemplate" type="text/html">
      						<table>
      							<colgroup>
      								<col></col>
      								<col></col>
      							</colgroup>
      							<tbody data-render-tmpl>
      							</tbody>
      						</table>
      					</script>
      					<script id="editorsTemplate" type="text/html">
      						<tr>
      							<td><strong>${headerText}</strong></td>
      							<td><input data-editor-for-${key}="true"/></td>
      						</tr>
      					</script>
      					//Initialize
      					$("#grid").igTreeGrid({
      						features: [
      							{
      								name: "Updating",
      								rowEditDialogOptions: {
      									namesColumnWidth: "100px",
      									dialogTemplateSelector: "#dialogTemplate",
      									editorsTemplateSelector: "#editorsTemplate"
      								}
      							}
      						]
      					});
      					//Get
      					var namesColumnWidth = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").namesColumnWidth;
      					//Set
      					$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").namesColumnWidth = "100px";

    • showDoneCancelButtons

      Type:
      bool
      Default:
      true

      Controls the visibility of the done and cancel buttons for the dialog.
      If disabled the end-user will be able to stop editing only with the Enter and Esc keys.

      Code Sample


      					<script id="dialogTemplate" type="text/html">
      						<table>
      							<colgroup>
      								<col></col>
      								<col></col>
      							</colgroup>
      							<tbody data-render-tmpl>
      							</tbody>
      						</table>
      					</script>
      					<script id="editorsTemplate" type="text/html">
      						<tr>
      							<td><strong>${headerText}</strong></td>
      							<td><input data-editor-for-${key}="true"/></td>
      						</tr>
      					</script>

      					//Initialize
      					$("#grid").igTreeGrid({
      						features: [
      							{
      								name: "Updating",
      								rowEditDialogOptions: {
      									showDoneCancelButtons: false,
      									dialogTemplateSelector: "#dialogTemplate",
      									editorsTemplateSelector: "#editorsTemplate"
      								}
      							}
      						]
      					});

      					//Get
      					var showDoneCancelButtons = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").showDoneCancelButtons;

      					//Set
      					$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").showDoneCancelButtons = false;

    • showEditorsForHiddenColumns

      Type:
      bool
      Default:
      false

      Controls if editors should be rendered for hidden columns.

      Code Sample


      					<script id="dialogTemplate" type="text/html">
      						<table>
      							<colgroup>
      								<col></col>
      								<col></col>
      							</colgroup>
      							<tbody data-render-tmpl>
      							</tbody>
      						</table>
      					</script>
      					<script id="editorsTemplate" type="text/html">
      						<tr>
      							<td><strong>${headerText}</strong></td>
      							<td><input data-editor-for-${key}="true"/></td>
      						</tr>
      					</script>

      					//Initialize
      					$("#grid").igTreeGrid({
      						features: [
      							{
      								name: "Updating",
      								rowEditDialogOptions: {
      									dialogTemplateSelector: "#dialogTemplate",
      									editorsTemplateSelector: "#editorsTemplate",
      									showEditorsForHiddenColumns: false
      								}
      							}
      						]
      					});

      					//Get
      					var showEditorsForHiddenColumns = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").showEditorsForHiddenColumns;

      					//Set
      					$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").showEditorsForHiddenColumns = true;

    • showReadonlyEditors

      Type:
      bool
      Default:
      true

      Controls if editors should be rendered for read-only columns. If rendered, these editors will be disabled.

      Code Sample


      					<script id="dialogTemplate" type="text/html">
      						<table>
      							<colgroup>
      								<col></col>
      								<col></col>
      							</colgroup>
      							<tbody data-render-tmpl>
      							</tbody>
      						</table>
      					</script>
      					<script id="editorsTemplate" type="text/html">
      						<tr>
      							<td><strong>${headerText}</strong></td>
      							<td><input data-editor-for-${key}="true"/></td>
      						</tr>
      					</script>

      					//Initialize
      					$("#grid").igTreeGrid({
      						features: [
      							{
      								name: "Updating",
      								rowEditDialogOptions: {
      										dialogTemplateSelector: "#dialogTemplate",
      										editorsTemplateSelector: "#editorsTemplate",
      										showReadonlyEditors: false
      								}
      							}
      						]
      					});

      					//Get
      					var showReadonlyEditors = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").showReadonlyEditors;

      					//Set
      					$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").showReadonlyEditors = false;

    • width

      Type:
      enumeration
      Default:
      415px

      Controls the default row edit dialog width.

      Members

      • string
      • Type:string
      • The dialog window width in pixels (400px).
      • number
      • Type:number
      • The dialog window width as a number (400).

      Code Sample


      					<script id="dialogTemplate" type="text/html">
      						<table>
      							<colgroup>
      								<col></col>
      								<col></col>
      							</colgroup>
      							<tbody data-render-tmpl>
      							</tbody>
      						</table>
      					</script>
      					<script id="editorsTemplate" type="text/html">
      						<tr>
      							<td><strong>${headerText}</strong></td>
      							<td><input data-editor-for-${key}="true"/></td>
      						</tr>
      					</script>
      					//Initialize
      					$("#grid").igTreeGrid({
      						features: [
      							{
      								name: "Updating",
      								rowEditDialogOptions: {
      									width: 400,
      									dialogTemplateSelector: "#dialogTemplate",
      									editorsTemplateSelector: "#editorsTemplate"
      								}
      							}
      						]
      					});
      					//Get
      					var width = $("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").width;
      					//Set
      					$("#grid").igTreeGridUpdating("option", "rowEditDialogOptions").width = 500;

  • saveChangesErrorHandler
    Inherited

    Type:
    enumeration
    Default:
    null

    Sets a custom function to be called when the AJAX request to the URL specified by the updateUrl property fails. The function will be called with arguments representing the data returned by the server.

    Code Sample


    				//Initialize
    				$("#grid").igTreeGrid({
    					features: [
    						{
    							name: "Updating",
    							saveChangesErrorHandler : function (jqXHR, textStatus, errorThrown) {
    								$("#message").text("An error occurred while saving the changes. Error details: " + textStatus).fadeIn(3000).fadeOut(5000);
    							}
    						}
    					]
    				});
    				//Get
    				var errorHandler = $("#grid").igTreeGridUpdating("option", "saveChangesErrorHandler");
    				//Set
    				$("#grid").igTreeGridUpdating("option", "saveChangesErrorHandler", function(jqXHR, textStatus, errorThrown) {
    					$("#message").text("An error occurred while saving the changes. Error details: " + textStatus).fadeIn(3000).fadeOut(5000);
    				});

  • saveChangesSuccessHandler
    Inherited

    Type:
    enumeration
    Default:
    null

    Sets a custom function to be called when the AJAX request to the URL specified by the updateUrl property succeeds. The function will be called with arguments representing the data returned by the server.

    Code Sample


    				//Initialize
    				$("#grid").igTreeGrid({
    					features: [
    						{
    							name: "Updating",
    							saveChangesSuccessHandler : function (data) {
    								$("#message").text("Changes were saved successfully").fadeIn(3000).fadeOut(5000);
    							}
    						}
    					]
    				});
    				//Get
    				var successHandler = $("#grid").igTreeGridUpdating("option", "saveChangesSuccessHandler");
    				//Set
    				$("#grid").igTreeGridUpdating("option", "saveChangesSuccessHandler", function(data) {
    					$("#message").text("Changes were saved successfully").fadeIn(3000).fadeOut(5000);
    				});

  • showDoneCancelButtons
    Inherited

    Type:
    bool
    Default:
    true

    Determines if the Done and Cancel buttons will be available as means to end edit mode for editMode 'row' and when adding a new row.

    Code Sample


    				//Initialize
    				$("#grid").igTreeGrid({
    					features: [
    						{
    							name: "Updating",
    							showDoneCancelButtons: false
    						}
    					]
    				});

    				//Get
    				var showButton = $("#grid").igTreeGridUpdating("option", "showDoneCancelButtons");

    				//Set
    				$("#grid").igTreeGridUpdating("option", "showDoneCancelButtons", false);

  • startEditTriggers
    Inherited

    Type:
    enumeration
    Default:
    click,F2,enter

    Specifies how end-users are able to start edit mode. Possible values: "click", "dblclick", "F2", "enter" and their combinations separated by coma or in array. The keyboard triggers have effect only if the grid cells can receive focus (the grid's tabIndex property should not have a negative value) or Selection is enabled. If "dblclick" is included, then "click" has no effect.

    Code Sample


    				//Initialize
    				$("#grid").igTreeGrid({
    					features: [
    						{
    							name: "Updating",
    							startEditTriggers: "dblclick,F2"
    						}
    					]
    				});
    				//Get
    				var triggers = $("#grid").igTreeGridUpdating("option", "startEditTriggers");
    				//Set
    				$("#grid").igTreeGridUpdating("option", "startEditTriggers", "dblclick,F2");

  • swipeDistance
    Inherited

    Type:
    enumeration
    Default:
    100px

    On touch-enabled devices specifies the swipe distance for the delete button to appear.

    Code Sample


    				//Initialize
    				$("#grid").igTreeGrid({
    					features: [
    						{
    							name: "Updating",
    							swipeDistance: "200px"
    						}
    					]
    				});
    				//Get
    				var triggers = $("#grid").igTreeGridUpdating("option", "swipeDistance");
    				//Set
    				$("#grid").igTreeGridUpdating("option", "swipeDistance", "200px");

  • validation
    Inherited

    Type:
    bool
    Default:
    false

    Specifies if the value of each editable column in the grid should be validated. The validation is done based on the rules of their corresponding editors.

    Code Sample


    				//Initialize
    				$("#grid").igTreeGrid({
    					features: [
    						{
    							name: "Updating",
    							validation: true
    						}
    					]
    				});

    				//Get
    				var isValidating = $("#grid").igTreeGridUpdating("option", "validation");

    				//Set
    				$("#grid").igTreeGridUpdating("option", "validation", true);

  • wrapAround
    Inherited

    Type:
    bool
    Default:
    true

    Controls if navigation will wrap around the grid. The feature will never wrap around virtual grids.

    Code Sample


    				//Initialize
    				$("#grid").igTreeGrid({
    					features: [
    						{
    							name: "Updating",
    							wrapAround: false
    						}
    					]
    				});

    				//Get
    				var wrapAround = $("#grid").igTreeGridUpdating("option", "wrapAround");

    				//Set
    				$("#grid").igTreeGridUpdating("option", "wrapAround", false);


For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • dataDirty
    Inherited

    Cancellable:
    true

    Event fired before the dataDirtyException is thrown. This can be controlled by the enableDataDirtyException property. Any pending changes may be committed in the handler of this event in order to prevent dataDirtyException from being thrown.
    Return false in order to prevent the exception.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Event

          Gets a reference to GridUpdating.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "igtreegridupdatingdatadirty", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// get reference to igTreeGridUpdating widget
    					ui.owner;

    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Updating",
    							dataDirty: function(evt, ui){ ... }
    						}
    					]
    				});

  • editCellEnded
    Inherited

    Cancellable:
    false

    Event fired after cell editing ends (including when row editing closes editing for a cell).

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Event

          Gets a reference to GridUpdating.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • rowID
          Type: Object

          Gets the row's PK value.

        • columnIndex
          Type: Number

          Gets the index of the column.

        • columnKey
          Type: String

          Gets the key of the column.

        • editor
          Type: jQuery

          Gets a reference to the editor used for editing the column.

        • value
          Type: Object

          Gets the new value.

        • oldValue
          Type: Object

          Gets the old value.

        • update
          Type: Bool

          Check if the value is changed which will cause update in the data source. Can be manually set to false to prevent this update.

        • rowAdding
          Type: Bool

          Check if the edit mode is for adding a new row.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "igtreegridupdatingeditcellended", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// get reference to igTreeGridUpdating widget
    					ui.owner;

    					// to get key or index of row
    					ui.rowID;

    					// get index of column
    					ui.columnIndex;

    					// get key of column
    					ui.columnKey;

    					// get reference to igEditor
    					ui.editor;

    					// get value of cell
    					ui.value;

    					// get old value of cell
    					ui.oldValue;

    					// check if cell was modified and data source will be updated
    					ui.update;
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Updating",
    							editCellEnded: function(evt, ui){ ... }
    						}
    					]
    				});

  • editCellEnding
    Inherited

    Cancellable:
    true

    Event fired before cell editing ends (including when row editing closes editing for a cell).
    Return false in order to prevent the grid from exiting edit mode (only functions if editMode is 'cell').

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Event

          Gets a reference to GridUpdating.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • rowID
          Type: Object

          Gets the row's PK value.

        • columnIndex
          Type: Number

          Gets the index of the column.

        • columnKey
          Type: String

          Gets the key of the column.

        • editor
          Type: jQuery

          Gets a reference to the editor used for editing the column.

        • value
          Type: Object

          Gets or set the value of the editor.

        • oldValue
          Type: Object

          Gets the old value.

        • update
          Type: Bool

          Check if the value is changed which will cause update in the data source. Can be manually set to false to prevent this update.

        • rowAdding
          Type: Bool

          Check if the edit mode is for adding a new row.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "igtreegridupdatingeditcellending", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// get reference to igTreeGridUpdating widget
    					ui.owner;

    					// to get key or index of row
    					ui.rowID;

    					// get index of column
    					ui.columnIndex;

    					// get key of column
    					ui.columnKey;

    					// get reference to igEditor
    					ui.editor;

    					// get value of cell
    					ui.value;

    					// get old value of cell
    					ui.oldValue;

    					// check if cell was modified and data source will be updated
    					ui.update;

    					// check if that event is raised while new-row-adding
    					ui.rowAdding;
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Updating",
    							editCellEnding: function(evt, ui){ ... }
    						}
    					]
    				});

  • editCellStarted
    Inherited

    Cancellable:
    false

    Event fired after cell editing begins (including when row editing opens editing for a cell).

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Event

          Gets a reference to GridUpdating.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • rowID
          Type: Object

          Gets the row's PK value.

        • columnIndex
          Type: Number

          Gets the index of the column.

        • columnKey
          Type: String

          Gets the key of the column.

        • editor
          Type: jQuery

          Gets a reference to the editor used for editing the column.

        • value
          Type: Object

          Gets or set the value of the editor.

        • rowAdding
          Type: Bool

          Checks if the edit mode is for adding a new row.

    Code Sample


    				$(document).delegate(".selector", "igtreegridupdatingeditcellstarted", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// get reference to igTreeGridUpdating widget
    					ui.owner;

    					// to get key or index of row
    					ui.rowID;

    					// get index of column
    					ui.columnIndex;

    					// get key of column
    					ui.columnKey;

    					// get reference to igEditor
    					ui.editor;

    					// get value of cell
    					ui.value;

    					// check if that event is raised while new-row-adding
    					ui.rowAdding;
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Updating",
    							editCellStarted: function(evt, ui){ ... }
    						}
    					]
    				});

  • editCellStarting
    Inherited

    Cancellable:
    true

    Event fired before cell editing begins (including when row editing opens editing for a cell).
    Return false in order to cancel editing.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Event

          Gets a reference to GridUpdating.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • rowID
          Type: Object

          Gets the row's PK value.

        • columnIndex
          Type: Number

          Gets the index of the column.

        • columnKey
          Type: String

          Gets the key of the column.

        • editor
          Type: jQuery

          Gets a reference to the editor used for editing the column.

        • value
          Type: Object

          Gets or set the value of the editor.

        • rowAdding
          Type: Bool

          Checks if the edit mode is for adding a new row.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "igtreegridupdatingeditcellstarting", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// get reference to igTreeGridUpdating widget
    					ui.owner;

    					// to get key or index of row
    					ui.rowID;

    					// get index of column
    					ui.columnIndex;

    					// get key of column
    					ui.columnKey;

    					// get reference to igEditor
    					ui.editor;

    					// get value of cell
    					ui.value;

    					// check if that event is raised while new-row-adding
    					ui.rowAdding;
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Updating",
    							editCellStarting: function(evt, ui){ ... }
    						}
    					]
    				});

  • editRowEnded
    Inherited

    Cancellable:
    false

    Event fired after row editing ends.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Event

          Gets a reference to GridUpdating.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • rowID
          Type: Object

          Gets the row's PK value.

        • update
          Type: Bool

          Check if any of the values is changed which will cause update in the data source.

        • rowAdding
          Type: Bool

          Check if the edit mode is for adding a new row.

        • values
          Type: Object

          Gets the new value for the column with the specified key.

        • oldValues
          Type: Object

          Gets the old value for the column with the specified key.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "igtreegridupdatingeditrowended", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// get reference to igTreeGridUpdating widget
    					ui.owner;

    					// to get key or index of row
    					ui.rowID;

    					// check if cell was modified and data source will be updated
    					ui.update;

    					// get value of cell in column with the key
    					ui.values;

    					// to get old value of cell in column with the key
    					ui.oldValues;

    					// check if that event is raised while new-row-adding
    					ui.rowAdding;
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Updating",
    							editRowEnded: function(evt, ui){ ... }
    						}
    					]
    				});

  • editRowEnding
    Inherited

    Cancellable:
    true

    Event fired before row editing ends.
    Return false in order to prevent the grid from exiting edit mode.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Event

          Gets a reference to GridUpdating.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • owner.rowID
          Type: Object

          Gets the row's PK value.

        • update
          Type: Bool

          Check if any of the values is changed which will cause update in the data source. Can be manually set to false to prevent this update.

        • rowAdding
          Type: Bool

          Checks if the edit mode is for adding a new row.

        • values
          Type: Object

          Gets or set the new value for the column with the specified key.

        • oldValues
          Type: Object

          Gets the old value for the column with the specified key.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "igtreegridupdatingeditrowending", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// get reference to igTreeGridUpdating widget
    					ui.owner;

    					// to get key or index of row
    					ui.rowID;

    					// check if cell was modified and data source will be updated
    					ui.update;

    					// get value of cell in column with the key
    					ui.values;

    					// to get old value of cell in column with the key
    					ui.oldValues;

    					// check if that event is raised while new-row-adding
    					ui.rowAdding;
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Updating",
    							editRowEnding: function(evt, ui){ ... }
    						}
    					]
    				});

  • editRowStarted
    Inherited

    Cancellable:
    false

    Event fired after row editing begins.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Event

          Gets a reference to GridUpdating.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • rowID
          Type: Object

          Gets the row's PK value.

        • rowAdding
          Type: Bool

          Checks if the edit mode is for adding a new row.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "igtreegridupdatingeditrowstarted", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// get reference to igTreeGridUpdating widget
    					ui.owner;

    					// to get key or index of row
    					ui.rowID;

    					// check if that event is raised while new-row-adding
    					ui.rowAdding;
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Updating",
    							editRowStarted: function(evt, ui){ ... }
    						}
    					]
    				});

  • editRowStarting
    Inherited

    Cancellable:
    true

    Event fired before row editing begins.
    Return false in order to cancel editing.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Event

          Gets a reference to GridUpdating.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • rowID
          Type: Object

          Gets the row's PK value.

        • rowAdding
          Type: Bool

          Checks if the edit mode is for adding a new row.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "igtreegridupdatingeditrowstarting", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// get reference to igTreeGridUpdating widget
    					ui.owner;

    					// to get key or index of row
    					ui.rowID;

    					// check if that event is raised while new-row-adding
    					ui.rowAdding;
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Updating",
    							editRowStarting: function(evt, ui){ ... }
    						}
    					]
    				});

  • generatePrimaryKeyValue
    Inherited

    Cancellable:
    false

    Event fired before editing starts for adding a new row, when Updating generates an automatic primary key for it.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Event

          Gets a reference to GridUpdating.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • value
          Type: Object

          Gets the auto-generated primary key (the number of records in the data source + 1) or set a custom unique primary key for the new row.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "igtreegridupdatinggenerateprimarykeyvalue", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// get reference to igTreeGridUpdating widget
    					ui.owner;

    					// set unique record-key-identifier for new row
    					ui.value;
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Updating",
    							generatePrimaryKeyValue: function(evt, ui){ ... }
    						}
    					]
    				});

  • rowAdded
    Inherited

    Cancellable:
    false

    Event fired after adding a new row.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Event

          Gets a reference to GridUpdating.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • values
          Type: Object

          Gets the value for the column with the specified key.

        • oldValues
          Type: Object

          Gets the default value (before editing) for the column with the specified key.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "igtreegridupdatingrowadded", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// get reference to igTreeGridUpdating widget
    					ui.owner;

    					// get new value of cell in column with the key
    					ui.values;

    					// get default value (before editing) of cell in column with the key
    					ui.oldValues;
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Updating",
    							rowAdded: function(evt, ui){ ... }
    						}
    					]
    				});

  • rowAdding
    Inherited

    Cancellable:
    true

    Event fired before adding a new row.
    Return false in order to cancel the adding of the new row to the data source.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Event

          Gets a reference to GridUpdating.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • values
          Type: Object

          Gets the value for the column with the specified key.

        • oldValues
          Type: Object

          Gets the default value (before editing) for the column with the specified key.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "igtreegridupdatingrowadding", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// get reference to igTreeGridUpdating widget
    					ui.owner;

    					// get new value of cell in column with the key
    					ui.values;

    					// get default value (before editing) of cell in column with the key
    					ui.oldValues;
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Updating",
    							rowAdding: function(evt, ui){ ... }
    						}
    					]
    				});

  • rowDeleted
    Inherited

    Cancellable:
    false

    Event fired after a row is deleted.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Event

          Gets a reference to GridUpdating.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • element
          Type: jQuery

          Gets a jQuery object containing the TR element of the deleted row.

        • rowID
          Type: Object

          Gets the row's PK value.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "igtreegridupdatingrowdeleted", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// get reference to igTreeGridUpdating widget
    					ui.owner;

    					// get reference to jquery object which represents TR of row to delete
    					ui.element;

    					// get key or index of row to delete
    					ui.rowID;
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Updating",
    							rowDeleted: function(evt, ui){ ... }
    						}
    					]
    				});

  • rowDeleting
    Inherited

    Cancellable:
    true

    Event fired before deleting a row.
    Return false in order to cancel the row's deletion.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Event

          Gets a reference to GridUpdating.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • element
          Type: jQuery

          Gets a jQuery object containing the TR element of the row to delete.

        • rowID
          Type: Object

          Gets the row's PK value.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "igtreegridupdatingrowdeleting", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// get reference to igTreeGridUpdating widget
    					ui.owner;

    					// get reference to jquery object which represents TR of row to delete
    					ui.element;

    					// get key or index of row to delete
    					ui.rowID;
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Updating",
    							rowDeleting: function(evt, ui){ ... }
    						}
    					]
    				});

  • rowEditDialogAfterClose
    Inherited

    Cancellable:
    false

    Event fired after the row edit dialog is closed.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Event

          Gets a reference to GridUpdating.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • dialogElement
          Type: jQuery

          Gets a reference to row edit dialog DOM element.

    Code Sample


    				//Bind after initialization
    					$(document).delegate(".selector", "igtreegridupdatingroweditdialogafterclose", function (evt, ui) {
    					// get reference to igTreeGridUpdating widget
    					ui.owner;

    					// get reference to the row edit dialog DOM element
    					ui.dialogElement;
    					});

    					//Initialize
    					$(".selector").igTreeGrid({
    						features : [
    							{
    								name : "Updating",
    								editMode : "dialog",
    								rowEditDialogAfterClose: function(evt, ui){ ... }
    							}
    						]
    					});

  • rowEditDialogAfterOpen
    Inherited

    Cancellable:
    false

    Event fired after the row edit dialog is opened.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Event

          Gets a reference to GridUpdating.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • dialogElement
          Type: jQuery

          Gets a reference to row edit dialog DOM element.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "igtreegridupdatingroweditdialogafteropen", function (evt, ui) {
    					// get reference to igTreeGridUpdating widget
    					ui.owner;

    					// get reference to the row edit dialog DOM element
    					ui.dialogElement;
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Updating",
    							editMode : "dialog",
    							rowEditDialogAfterOpen: function(evt, ui){ ... }
    						}
    					]
    				});

  • rowEditDialogBeforeClose
    Inherited

    Cancellable:
    false

    Event fired before the row edit dialog is closed.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Event

          Gets a reference to GridUpdating.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • dialogElement
          Type: jQuery

          Gets a reference to row edit dialog DOM element.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "igtreegridupdatingroweditdialogbeforeclose", function (evt, ui) {
    					// get reference to igTreeGridUpdating widget
    					ui.owner;

    					// get reference to the row edit dialog DOM element
    					ui.dialogElement;
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Updating",
    							editMode : "dialog",
    							rowEditDialogBeforeClose: function(evt, ui){ ... }
    						}
    					]
    				});

  • rowEditDialogBeforeOpen
    Inherited

    Cancellable:
    false

    Event fired before the row edit dialog is opened.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Event

          Gets a reference to GridUpdating.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • dialogElement
          Type: jQuery

          Gets a reference to row edit dialog DOM element.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "igtreegridupdatingroweditdialogbeforeopen", function (evt, ui) {
    					// get reference to igTreeGridUpdating widget
    					ui.owner;

    					// get reference to the row edit dialog DOM element
    					ui.dialogElement;
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Updating",
    							editMode : "dialog",
    							rowEditDialogBeforeOpen: function(evt, ui){ ... }
    						}
    					]
    				});

  • rowEditDialogContentsRendered
    Inherited

    Cancellable:
    false

    Event fired after the row edit dialog is rendered.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Event

          Gets a reference to GridUpdating.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • dialogElement
          Type: jQuery

          Gets a reference to row edit dialog DOM element.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "igtreegridupdatingroweditdialogcontentsrendered", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// get reference to igTreeGridUpdating widget
    					ui.owner;

    					// get reference to the row edit dialog DOM element
    					ui.dialogElement;

    					// get reference to the current data row
    					ui.dialogElement.data('tr');
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Updating",
    							editMode : "rowedittemplate",
    							rowEditDialogContentsRendered: function(evt, ui){ ... }
    						}
    					]
    				});

  • addChild

    .igTreeGridUpdating( "addChild", values:object, parentId:object );

    Adds a new child to a specific row. It also creates a transaction and updates the UI.

    • values
    • Type:object
    • Pairs of values in the format { column1Key: value1, column2Key: value2, ... } .
    • parentId
    • Type:object
    • The ID of the targeted row.

    Code Sample


    				$(".selector").igTreeGridUpdating("addChild",	{employeeId:	7,	firstName:	"John",	lastName:	"Miller"},	0);

  • addRow
    Inherited

    .igTreeGridUpdating( "addRow", values:object );

    Adds a new row to the grid. It also creates a transaction and updates the UI.

    • values
    • Type:object
    • Pairs of values in the format { column1Key: value1, column2Key: value2, ... } .

    Code Sample


    				$("#grid").igTreeGridUpdating("addRow", {ID: 1, Name: "John"});

  • deleteRow
    Inherited

    .igTreeGridUpdating( "deleteRow", rowId:object );

    Deletes a row from the grid. It also creates a transaction and updates the UI.

    • rowId
    • Type:object
    • The primary key of the row to delete.

    Code Sample


    				$("#grid").igTreeGridUpdating("deleteRow", 5);

  • destroy

    .igTreeGridUpdating( "destroy" );

    Code Sample


    			$(".selector").igTreeGridUpdating("destroy");

  • editorForCell
    Inherited

    .igTreeGridUpdating( "editorForCell", cell:jquery, [create:bool] );
    Return Type:
    object
    Return Type Description:
    Returns a reference to the element the editor is initialized on or null.

    Gets the editor for a column by the cell it resides in. If allowed the function can create the editor if it has not been created yet.

    • cell
    • Type:jquery
    • Reference to the jQuery-wrapped TD object of the grid that the editor belongs to.
    • create
    • Type:bool
    • Optional
    • Requests to create the editor if it has not been created yet.

    Code Sample


    				var editor = $("#grid").igTreeGridUpdating("editorForCell", $(gridTDCell) );

  • editorForKey
    Inherited

    .igTreeGridUpdating( "editorForKey", key:string );
    Return Type:
    object
    Return Type Description:
    Returns a reference to the element the editor is initialized on or null.

    Gets the editor for a column by the column key. That method can be used only after the editor has been created.

    • key
    • Type:string
    • The key of the column.

    Code Sample


    				var editor = $("#grid").igTreeGridUpdating("editorForKey", "ProductName");

  • endEdit
    Inherited

    .igTreeGridUpdating( "endEdit", [update:bool], [raiseEvents:bool] );
    Return Type:
    bool
    Return Type Description:
    Returns false if the request fails and editing resumes.

    Ends the currently active edit mode.

    • update
    • Type:bool
    • Optional
    • Specifies if the edit process should accept the current changes. Default is 'false'.
    • raiseEvents
    • Type:bool
    • Optional
    • Specifies whether or not updating events should be raised for this operation.

    Code Sample


    				$("#grid").igTreeGridUpdating("endEdit");

  • findInvalid
    Inherited

    .igTreeGridUpdating( "findInvalid" );
    Return Type:
    string
    Return Type Description:
    Returns the key of the first column the editor for which has invalid value when validation for the column is enabled. Returns null if the editors for all columns are valid or validation is disabled.

    Finds and returns the key of the first column the editor for which has invalid value.

    Code Sample


    				var colKey = $("#grid").igTreeGridUpdating("findInvalid");

  • hideAddChildButton

    .igTreeGridUpdating( "hideAddChildButton" );

    Hides the "Add Child" button.

    Code Sample


    				$(".selector").igTreeGridUpdating("hideAddChildButton");

  • hideDeleteButton
    Inherited

    .igTreeGridUpdating( "hideDeleteButton" );

    Hides the delete button.

    Code Sample


    				$("#grid").igTreeGridUpdating("hideDeleteButton");

  • isEditing
    Inherited

    .igTreeGridUpdating( "isEditing" );
    Return Type:
    bool
    Return Type Description:
    Returns true if the grid is in edit mode and false otherwise.

    Checks if the grid is in edit mode.

    Code Sample


    				var isEditing = $("#grid").igTreeGridUpdating("isEditing");

  • setCellValue
    Inherited

    .igTreeGridUpdating( "setCellValue", rowId:object, colKey:string, value:object );

    Sets a cell value for the specified cell. It also creates a transaction and updates the UI.
    If the specified cell is currently in edit mode, the function will set the desired value in the cell's editor instead.

    • rowId
    • Type:object
    • The primary key of the row the cell is a child of.
    • colKey
    • Type:string
    • The column key of the cell.
    • value
    • Type:object
    • The new value for the cell.

    Code Sample


    				$("#grid").igTreeGridUpdating("setCellValue", 5, "ProductName", "bologna");

  • showAddChildButtonFor

    .igTreeGridUpdating( "showAddChildButtonFor", row:object );

    Shows the "Add Child" button for specific row.

    • row
    • Type:object
    • A jQuery object of the targeted row.

    Code Sample


    				var rowObj = $(".selector").igTreeGrid("rowById", 0);
    				$(".selector").igTreeGridUpdating("showAddChildButtonFor", rowObj);

  • showDeleteButtonFor
    Inherited

    .igTreeGridUpdating( "showDeleteButtonFor", row:object );

    Shows the delete button for specific row.

    • row
    • Type:object
    • A jQuery object of the targeted row.

    Code Sample


    				var rowObj = $(".selector").igTreeGrid("rowById", 0);
    				$(".selector").igTreeGridUpdating("showDeleteButtonFor", rowObj)

  • startAddChildFor

    .igTreeGridUpdating( "startAddChildFor", parentId:object, [raiseEvents:object] );

    Starts editing for adding a new child for specific row.

    • parentId
    • Type:object
    • The ID of the targeted row.
    • raiseEvents
    • Type:object
    • Optional
    • Specifies whether or not updating events should be raised for this operation.

    Code Sample


    				$(".selector").igTreeGridUpdating("startAddChildFor",	4)

  • startAddRowEdit
    Inherited

    .igTreeGridUpdating( "startAddRowEdit", [raiseEvents:bool] );
    Return Type:
    bool
    Return Type Description:
    Returns true if the operation succeeds.

    Starts editing for adding a new row.

    • raiseEvents
    • Type:bool
    • Optional
    • Specifies whether or not updating events should be raised for this operation.

    Code Sample


    				$("#grid").igTreeGridUpdating("startAddRowEdit");

  • startEdit
    Inherited

    .igTreeGridUpdating( "startEdit", rowId:object, column:object, [raiseEvents:bool] );
    Return Type:
    bool
    Return Type Description:
    Returns true if the operation succeeds.

    Starts editing for the row or cell specified (depending on the editMode).

    • rowId
    • Type:object
    • The row id.
    • column
    • Type:object
    • The column key or index.
    • raiseEvents
    • Type:bool
    • Optional
    • Specifies whether or not updating events should be raised for this operation.

    Code Sample


    				$("#grid").igTreeGridUpdating("startEdit", 5, 5);

  • updateRow
    Inherited

    .igTreeGridUpdating( "updateRow", rowId:object, values:object );

    Sets values for specified cells in a row. It also creates a transaction and updates the UI.
    If the specified row is currently in edit mode, the function will set the desired values in the row's editors instead.

    • rowId
    • Type:object
    • The primary key of the row to update.
    • values
    • Type:object
    • Pairs of values in the format { column1Key: value1, column2Key: value2, ... } .

    Code Sample


    				$("#grid").igTreeGridUpdating("updateRow", 5, {ProductName: "tuna"});

  • ui-iggrid-addrowicon ui-icon ui-icon-circle-plus

    Classes applied to the container of Done and Cancel editing buttons. Default value is "ui-iggrid-addrowicon ui-icon ui-icon-circle-plus".
  • ui-iggrid-addrow ui-widget-header

    Classes applied to the button that starts edit mode for adding a new row.
  • ui-iggrid-addrowactive ui-state-active

    Classes applied to the button that starts edit mode for adding a new row in active/focus state.
  • ui-iggrid-addrowhover ui-state-hover

    Classes applied to the button that starts edit mode for adding a new row in mouse-over state.
  • ui-iggrid-addrowicon ui-icon ui-icon-circle-plus

    Classes applied to the icon of the button that starts edit mode for adding a new row.
  • ui-widget-overlay ui-iggrid-blockarea

    Classes applied to the grid's overlay when the Row Edit Dialog is opened.
  • ui-iggrid-button ui-state-default ui-corner-all

    Classes applied to the Done, Cancel and Delete buttons.
  • ui-iggrid-buttonactive ui-state-active

    Classes applied to the Done, Cancel and Delete buttons in active/focus state.
  • ui-iggrid-buttoncontainer ui-widget-content ui-corner-all

    Classes applied to the container of the Done and Cancel buttons.
  • ui-iggrid-buttondisabled ui-state-disabled

    Classes applied to the Done, Cancel and Delete buttons in disabled state.
  • ui-iggrid-buttonhover ui-state-hover

    Classes applied to the Done, Cancel and Delete buttons in mouse-over state.
  • ui-iggrid-button-icon-only

    Class applied to the Done and Cancel buttons when they have no text.
  • ui-iggrid-cancelbutton ui-corner-all

    Class applied to the Cancel button.
  • ui-iggrid-cancelicon ui-icon ui-icon-cancel

    Classes applied to the icon on the Cancel button.
  • ui-iggrid-deletebutton ui-state-default ui-corner-all

    Classes applied to the Delete button.
  • ui-iggrid-deleteicon ui-icon ui-icon-circle-close

    Classes applied to the icon of the Delete button.
  • ui-iggrid-donebutton ui-priority-primary ui-corner-all

    Classes applied to the Done button.
  • ui-iggrid-doneicon ui-icon ui-icon-check

    Classes applied to the icon of the Done button.
  • ui-iggrid-editingcell

    Classes applied to cells in edit mode.
  • ui-iggrid-editor

    Class applied to the editors.
  • ui-dialog ui-draggable ui-resizable ui-iggrid-dialog ui-widget ui-widget-content ui-corner-all

    Classes applied to the Row Edit Dialog element.
  • ui-dialog-buttonpane ui-widget-content ui-helper-clearfix

    Classes applied to the Row Edit Dialog's Done and Cancel buttons.
  • ui-icon ui-icon-close

    Classes applied to the close button of the Row Edit Dialog.
  • ui-dialog-title

    Class applied to the Row Edit Dialog title.
  • ui-iggrid-filtertable ui-helper-reset

    Classes applied to the default Row Edit Dialog table.

Copyright © 1996 - 2024 Infragistics, Inc. All rights reserved.
