ui.igRadialMenu

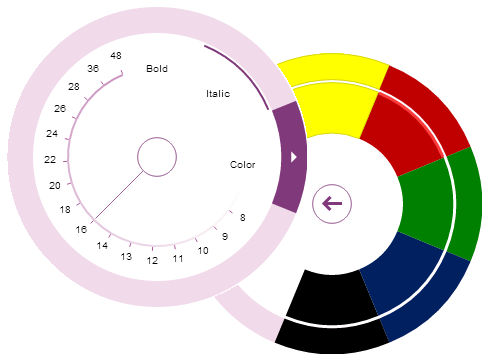

ui.igRadialMenu_image
Inspired by the Microsoft OneNote radial menu, the igRadialMenu provides a circular menu that orients the commands around the user, rather than requiring the user to negotiate a nested hierarchy of drop downs. Most commonly used as a context menu, the igRadialMenu allows you to drill down into related sub-menu items with the ability to navigate back to the main level menu item.

Code Sample

<!doctype html>
<html>
<head>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
    <!-- Infragistics Combined Scripts -->
	  <script src="js/infragistics.core.js" type="text/javascript"></script>
	  <script src="js/infragistics.dv.js" type="text/javascript"></script>
	  <script type="text/javascript">
		    $("#radialMenu").igRadialMenu({
            width: "300px",
            height: "300px",
            items:
            [
                {
                    name: "button1",
                    header: "Bold",
                    click: function () { alert("Bold pressed"); }
                },

                {
                    name: "button2",
                    header: "Italic",
                    click: function () { alert("Italic pressed"); }
                },

                {
                    type: "coloritem",
                    header: "Color",
                    items:
                    [
                        {
                            type: "colorwell",
                            color: "#FFFF00"
                        },
                        {
                            type: "colorwell",
                            color: "#C00000"
                        },
                        {
                            type: "colorwell",
                            color: "#008000"
                        },
                        {
                            type: "colorwell",
                            color: "#002060"
                        },
                        {
                            type: "colorwell",
                            color: "#000000"
                        }
                    ]
                },
                {
                    type: "numericgauge",
                    wedgeSpan: "5",
                    ticks: "8,9,10,11,12,13,14,16,18,20,22,24,26,28,36,48",
                    value: "16"
                }
            ]
        });
    </script>
</head>
<body>
	<div id="radialMenu"></div>
</body>
</html>


Dependencies

jquery.js
jquery-ui.js
infragistics.util.core.js
infragistics.util.jquery.js
infragistics.dv.simple.core.js
infragistics.dv_jquerydom.js
infragistics.radialmenu_core.js

Inherits

  • centerButtonClosedFill

    Type:
    string
    Default:
    null

    Returns or sets the background of the center button of the menu when the IsOpen property is false.

    Code Sample

    //Initialize
    $(".selector").igRadialMenu({
        centerButtonClosedFill : "#FF0000"
    });

    //Get
    var color = $(".selector").igRadialMenu("option", "centerButtonClosedFill");

    //Set
    $(".selector").igRadialMenu("option", "centerButtonClosedFill", "#FF0000");

  • centerButtonClosedStroke

    Type:
    string
    Default:
    null

    Returns or sets the brush used for the outline of the ring of the center button when the IsOpen property is false.

    Code Sample

    //Initialize
    $(".selector").igRadialMenu({
        centerButtonClosedStroke : "#FF0000"
    });

    //Get
    var color = $(".selector").igRadialMenu("option", "centerButtonClosedStroke");

    //Set
    $(".selector").igRadialMenu("option", "centerButtonClosedStroke", "#FF0000");

  • centerButtonContentHeight

    Type:
    number
    Default:
    28

    Returns or sets the height of the center button content.

    Code Sample

    //Initialize
    $(".selector").igRadialMenu({
        centerButtonContentHeight : 30
    });

    //Get
    var height = $(".selector").igRadialMenu("option", "centerButtonContentHeight");

    //Set
    $(".selector").igRadialMenu("option", "centerButtonContentHeight", 30);

  • centerButtonContentWidth

    Type:
    number
    Default:
    28

    Returns or sets the width of the center button content.

    Code Sample

    //Initialize
    $(".selector").igRadialMenu({
        centerButtonContentWidth : 30
    });

    //Get
    var width = $(".selector").igRadialMenu("option", "centerButtonContentWidth");

    //Set
    $(".selector").igRadialMenu("option", "centerButtonContentWidth", 30);

  • centerButtonFill

    Type:
    string
    Default:
    null

    Returns or sets the background of the center button of the menu when the IsOpen property is true.

    Code Sample

    //Initialize
    $(".selector").igRadialMenu({
        centerButtonFill : "#FF0000"
    });

    //Get
    var color = $(".selector").igRadialMenu("option", "centerButtonFill");

    //Set
    $(".selector").igRadialMenu("option", "centerButtonFill", "#FF0000");

  • centerButtonHotTrackFill

    Type:
    string
    Default:
    null

    Returns or sets the background of the center button of the menu when under the pointer.

    Code Sample

    //Initialize
    $(".selector").igRadialMenu({
        centerButtonHotTrackFill : "#FF0000"
    });

    //Get
    var color = $(".selector").igRadialMenu("option", "centerButtonHotTrackFill");

    //Set
    $(".selector").igRadialMenu("option", "centerButtonHotTrackFill", "#FF0000");

  • centerButtonHotTrackStroke

    Type:
    string
    Default:
    null

    Returns or sets the brush used for the outline of the ring of the center button when under the pointer.

    Code Sample

    //Initialize
    $(".selector").igRadialMenu({
        centerButtonHotTrackStroke : "#FF0000"
    });

    //Get
    var color = $(".selector").igRadialMenu("option", "centerButtonHotTrackStroke");

    //Set
    $(".selector").igRadialMenu("option", "centerButtonHotTrackStroke", "#FF0000");

  • centerButtonStroke

    Type:
    string
    Default:
    null

    Returns or sets the brush used for the outline of the ring of the center button when the IsOpen is true.

    Code Sample

    //Initialize
    $(".selector").igRadialMenu({
        centerButtonStroke : "#FF0000"
    });

    //Get
    var color = $(".selector").igRadialMenu("option", "centerButtonStroke");

    //Set
    $(".selector").igRadialMenu("option", "centerButtonStroke", "#FF0000");

  • centerButtonStrokeThickness

    Type:
    number
    Default:
    0

    Returns or sets the width of the outline of the inner rings of the menu.

    Code Sample

    //Initialize
    $(".selector").igRadialMenu({
        centerButtonStrokeThickness : 3
    });

    //Get
    var thickness = $(".selector").igRadialMenu("option", "centerButtonStrokeThickness");

    //Set
    $(".selector").igRadialMenu("option", "centerButtonStrokeThickness", 3);

  • currentOpenMenuItemName

    Type:
    string
    Default:
    null

    Gets or sets the name of the item within the menu whose children are currently displayed.

    Code Sample


    //Initialize
    $(".selector").igRadialMenu({
        currentOpenMenuItemName : "button1"
    });

    //Get
    var currentItem = $(".selector").igRadialMenu("option", "currentOpenMenuItemName");

    //Set
    $(".selector").igRadialMenu("option", "currentOpenMenuItemName", "button1");

  • font

    Type:
    string
    Default:
    null

    The font for the control.

    Code Sample


    //Initialize
    $(".selector").igRadialMenu({
        font : "Arial"
    });

    //Get
    var f = $(".selector").igRadialMenu("option", "font");

    //Set
    $(".selector").igRadialMenu("option", "font", "Arial");

  • isOpen

    Type:
    bool
    Default:
    false

    Returns or sets a boolean indicating whether the items of the menu are currently displayed. When closed, only the center button is rendered.

    Code Sample

    //Initialize
    $(".selector").igRadialMenu({
        isOpen : true
    });

    //Get
    var is_open = $(".selector").igRadialMenu("option", "isOpen");

    //Set
    $(".selector").igRadialMenu("option", "isOpen", true);

  • items

    Type:
    array
    Default:
    []
    Elements Type:
    object

    Gets or sets the items in the menu.

    Code Sample


    //Initialize
    $(".selector").igRadialMenu({
        items:
        [
          {
            name: "button1",
            header: "Button 1"
          },
          {
            name: "button2",
            header: "Button 2"
          }
        ]
    });

    //Get
    var items = $(".selector").igRadialMenu("option", "items");

    //Set
    $(".selector").igRadialMenu("option", "items", [
      {
        name: "button1", header: "Button 1"
      },
      {
        name: "button2", header: "Button 2"
      }
    ]);

    • autoRotateChildren

      Type:
      bool
      Default:
      true

      Returns or sets a boolean indicating if the children should be rotated to align with the location of this element.

      Code Sample

      //Initialize
      $(".selector").igRadialMenu({
          autoRotateChildren : true
      });

      //Get
      var auto_rotate = $(".selector").igRadialMenu("option", "autoRotateChildren");

      //Set
      $(".selector").igRadialMenu("option", "autoRotateChildren", true);

    • autoUpdateRecentItem

      Type:
      bool
      Default:
      null

      Returns or sets a boolean indicating if the RecentItem property is updated when a child item is clicked.

      Code Sample

      //Initialize
      $(".selector").igRadialMenu({
          autoUpdateRecentItem : true
      });

      //Get
      var auto_update = $(".selector").igRadialMenu("option", "autoUpdateRecentItem");

      //Set
      $(".selector").igRadialMenu("option", "autoUpdateRecentItem", true);

    • checkBehavior

      Type:
      enumeration
      Default:
      none

      Returns or sets a value indicating how the IsChecked property may be changed.

      Members

      • none
      • Type:string
      • The item is not checkable.
      • checkBox
      • Type:string
      • The item is checkable and may be independantly checked or unchecked without affecting other items.
      • radioButton
      • Type:string
      • The item is checkable. Only 1 item from the items with the same GroupName may be checked at a time and the checked item may not be unchecked.
      • radioButtonAllowAllUp
      • Type:string
      • The item is checkable. Only 1 item from the items with the same GroupName may be checked at a time and the checked item may not be checked allowing all items to be unchecked.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
            {
              name: "item1",
              checkBehavior: "checkBox"
            }
          ]
      });

      //Get
      var value = $(".selector").igRadialMenu("itemOption", "item1", "checkBehavior");

      //Set
      $(".selector").igRadialMenu("itemOption", "item1", "checkBehavior", "checkBox");

    • checked

      Type:
      object
      Default:
      null

      Cancel="false" Occurs when the IsChecked is changed to true.
      Function takes a first argument ui.
      Use ui.owner to obtain reference to menu widget.
      Use ui.item to obtain reference to the item.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
              {
                  name: "button1",
                  checked: function (evt) {
                      // Get reference to the menu item object
                      evt.item;
                  }
              }
          ]
      });

    • checkedHighlightBrush

      Type:
      string
      Default:
      null

      Returns or sets the brush used for the arc displayed within the tool when checked.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          checkedHighlightBrush : "#FF0000"
      });

      //Get
      var color = $(".selector").igRadialMenu("option", "checkedHighlightBrush");

      //Set
      $(".selector").igRadialMenu("option", "checkedHighlightBrush", "#FF0000");

    • childItemPlacement

      Type:
      enumeration
      Default:
      asChildren

      Returns or sets an enumeration indicating where the child items are displayed.

      Members

      • asChildren
      • Type:string
      • The Items are displayed within a separate level that is accessed by clicking on the button in the outer ring of the xamRadialMenu for the parent.
      • asSiblingsWhenChecked
      • Type:string
      • The items are displayed as siblings of the parent as long as the IsChecked is set to true.
      • none
      • Type:string
      • The child items are not displayed.

      Code Sample

      //Initialize
      $(".selector").igRadialMenu({
          childItemPlacement : "asChildren"
      });

      //Get
      var placement = $(".selector").igRadialMenu("option", "childItemPlacement");

      //Set
      $(".selector").igRadialMenu("option", "childItemPlacement", "asChildren");

    • click

      Type:
      object
      Default:
      null

      Cancel="false" Occurs when the item area is clicked.
      Function takes a first argument ui.
      Use ui.owner to obtain reference to menu widget.
      Use ui.item to obtain reference to the item.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
              {
                  name: "button1",
                  click: function (evt) {
                      // Get reference to the menu item object
                      evt.item;
                  }
              }
          ]
      });

    • closed

      Type:
      object
      Default:
      null

      Cancel="false" Invoked when one navigates back to the item after viewing the child items.
      Function takes a first argument ui.
      Use ui.owner to obtain reference to menu widget.
      Use ui.item to obtain reference to the item.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
              {
                  name: "button1",
                  closed: function (evt) {
                      // Get reference to the menu item object
                      evt.item;
                  }
              }
          ]
      });

    • color

      Type:
      object
      Default:
      null

      Returns or sets the color that the item represents.
      Note: When the Color property is set, several of the brush properties are changed.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
            {
              name: "item1",
              color: "#FF0000"
            }
          ]
      });

      //Get
      var color = $(".selector").igRadialMenu("itemOption", "item1", "color");

      //Set
      $(".selector").igRadialMenu("itemOption", "item1", "color", "#FF0000");

    • colorChanged

      Type:
      object
      Default:
      null

      Cancel="false" Event invoked when the Color property is changed.
      Function takes a first argument ui.
      Use ui.owner to obtain reference to menu widget.
      Use ui.oldValue to obtain the previous value.
      Use ui.newValue to obtain the new value.
      Use ui.item to obtain reference to the item.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
              {
                  name: "button1",
                  colorChanged: function (evt) {
                      // Get reference to the menu item object
                      evt.item;
                  }
              }
          ]
      });

    • colorWellClick

      Type:
      object
      Default:
      null

      Cancel="false" Occurs when the item area of a descendant color well is clicked.
      Function takes a first argument ui.
      Use ui.owner to obtain reference to menu widget.
      Use ui.item to obtain reference to the item.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
              {
                  name: "button1",
                  colorWellClick: function (evt) {
                      // Get reference to the menu item object
                      evt.item;
                  }
              }
          ]
      });

    • foreground

      Type:
      string
      Default:
      null

      Returns or sets the foreground for the inner area of the item.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
            {
              name: "item1",
              foreground: "#FF0000"
            }
          ]
      });

      //Get
      var color = $(".selector").igRadialMenu("itemOption", "item1", "foreground");

      //Set
      $(".selector").igRadialMenu("itemOption", "item1", "foreground", "#FF0000");

    • groupName

      Type:
      string
      Default:
      null

      Returns or sets the name used to identify which RadioButton type items will be grouped together when determining the item to uncheck when the item is checked.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
            {
              name: "item1",
              groupName: "group1"
            }
          ]
      });

      //Get
      var color = $(".selector").igRadialMenu("itemOption", "item1", "groupName");

      //Set
      $(".selector").igRadialMenu("itemOption", "item1", "groupName", "group1");

    • header

      Type:
      object
      Default:
      null

      Returns or sets the header of the menu item.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
            {
              name: "item1",
              header: "Click Me"
            }
          ]
      });

      //Get
      var value = $(".selector").igRadialMenu("itemOption", "item1", "header");

      //Set
      $(".selector").igRadialMenu("itemOption", "item1", "header", "Click Me");

    • highlightBrush

      Type:
      string
      Default:
      null

      Returns or sets the brush used for the arc displayed within the tool when hot tracked.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          highlightBrush : "#FF0000"
      });

      //Get
      var color = $(".selector").igRadialMenu("option", "highlightBrush");

      //Set
      $(".selector").igRadialMenu("option", "highlightBrush", "#FF0000");

    • iconUri

      Type:
      string
      Default:
      null

      Returns or sets the uri of the image for the item.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
            {
              name: "item1",
              iconUri: "../folder/image.png"
            }
          ]
      });

      //Get
      var imgPath = $(".selector").igRadialMenu("itemOption", "item1", "iconUri");

      //Set
      $(".selector").igRadialMenu("itemOption", "item1", "iconUri", "../folder/image.png");

    • innerAreaFill

      Type:
      string
      Default:
      null

      Returns or sets the background of the inner area of the menu item.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          innerAreaFill : "#FF0000"
      });

      //Get
      var color = $(".selector").igRadialMenu("option", "innerAreaFill");

      //Set
      $(".selector").igRadialMenu("option", "innerAreaFill", "#FF0000");

    • innerAreaHotTrackFill

      Type:
      string
      Default:
      null

      Returns or sets the brush for the background of the inner area of the menu item that is under the pointer.

      Code Sample

      //Initialize
      $(".selector").igRadialMenu({
          innerAreaHotTrackFill : "#FF0000"
      });

      //Get
      var color = $(".selector").igRadialMenu("option", "innerAreaHotTrackFill");

      //Set
      $(".selector").igRadialMenu("option", "innerAreaHotTrackFill", "#FF0000");

    • innerAreaHotTrackStroke

      Type:
      string
      Default:
      null

      Returns or sets the brush for the default border of the inner area for the menu item that is under the pointer.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          innerAreaHotTrackStroke : "#FF0000"
      });

      //Get
      var color = $(".selector").igRadialMenu("option", "innerAreaHotTrackStroke");

      //Set
      $(".selector").igRadialMenu("option", "innerAreaHotTrackStroke", "#FF0000");

    • innerAreaStroke

      Type:
      string
      Default:
      null

      Returns or sets the brush for the default border of the inner area for the menu item.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          innerAreaStroke : "#FF0000"
      });

      //Get
      var color = $(".selector").igRadialMenu("option", "innerAreaStroke");

      //Set
      $(".selector").igRadialMenu("option", "innerAreaStroke", "#FF0000");

    • innerAreaStrokeThickness

      Type:
      number
      Default:
      1

      Returns or sets the thickness of the border for the inner area for the menu item.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          innerAreaStrokeThickness : 3
      });

      //Get
      var thickness = $(".selector").igRadialMenu("option", "innerAreaStrokeThickness");

      //Set
      $(".selector").igRadialMenu("option", "innerAreaStrokeThickness", 3);

    • isChecked

      Type:
      bool
      Default:
      false

      Returns or sets a boolean indicating if the item is displayed as checked.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
            {
              name: "item1",
              isChecked: true
            }
          ]
      });

      //Get
      var ch = $(".selector").igRadialMenu("itemOption", "item1", "isChecked");

      //Set
      $(".selector").igRadialMenu("itemOption", "item1", "isChecked", true);

    • isEnabled

      Type:
      bool
      Default:
      true

      Returns or sets a boolean indicating whether the item is enabled.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
            {
              name: "item1",
              isEnabled: true
            }
          ]
      });

      //Get
      var en = $(".selector").igRadialMenu("itemOption", "item1", "isEnabled");

      //Set
      $(".selector").igRadialMenu("itemOption", "item1", "isEnabled", true);

    • isToolTipEnabled

      Type:
      bool
      Default:
      true

      Returns or sets a boolean indicating if a tooltip may be displayed for the item.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
            {
              name: "item1",
              isToolTipEnabled: true
            }
          ]
      });

      //Get
      var value = $(".selector").igRadialMenu("itemOption", "item1", "isToolTipEnabled");

      //Set
      $(".selector").igRadialMenu("itemOption", "item1", "isToolTipEnabled", true);

    • name

      Type:
      string
      Default:
      null

      Gets or sets the unique name of the item within the menu.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
            {
              name: "item1",
            }
          ]
      });

      //Set
      $(".selector").igRadialMenu("itemOption", "item1", "name", "item2");

    • opened

      Type:
      object
      Default:
      null

      Cancel="false" Invoked when one navigates to the view the child items.
      Function takes a first argument ui.
      Use ui.owner to obtain reference to menu widget.
      Use ui.item to obtain reference to the item.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
              {
                  name: "button1",
                  opened: function (evt) {
                      // Get reference to the menu item object
                      evt.item;
                  }
              }
          ]
      });

    • outerRingButtonFill

      Type:
      string
      Default:
      null

      Returns or sets the default background of the button within the outer ring for a menu item.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          outerRingButtonFill : "#FF0000"
      });

      //Get
      var color = $(".selector").igRadialMenu("option", "outerRingButtonFill");

      //Set
      $(".selector").igRadialMenu("option", "outerRingButtonFill", "#FF0000");

    • outerRingButtonForeground

      Type:
      string
      Default:
      null

      Returns or sets the brush for the foreground of the buttons in the outer ring of the menu.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          outerRingButtonForeground : "#FF0000"
      });

      //Get
      var color = $(".selector").igRadialMenu("option", "outerRingButtonForeground");

      //Set
      $(".selector").igRadialMenu("option", "outerRingButtonForeground", "#FF0000");

    • outerRingButtonHotTrackFill

      Type:
      string
      Default:
      null

      Returns or sets the brush for the background of the button within the outer ring for a menu item that is under the pointer.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          outerRingButtonHotTrackFill : "#FF0000"
      });

      //Get
      var color = $(".selector").igRadialMenu("option", "outerRingButtonHotTrackFill");

      //Set
      $(".selector").igRadialMenu("option", "outerRingButtonHotTrackFill", "#FF0000");

    • outerRingButtonHotTrackForeground

      Type:
      string
      Default:
      null

      Returns or sets the foreground of the buttons in the outer ring of the menu that is under the pointer.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          outerRingButtonHotTrackForeground : "#FF0000"
      });

      //Get
      var color = $(".selector").igRadialMenu("option", "outerRingButtonHotTrackForeground");

      //Set
      $(".selector").igRadialMenu("option", "outerRingButtonHotTrackForeground", "#FF0000");

    • outerRingButtonHotTrackStroke

      Type:
      string
      Default:
      null

      Returns or sets the brush for the default border of the button within the outer ring for a menu item that is under the pointer.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          outerRingButtonHotTrackStroke : "#FF0000"
      });

      //Get
      var color = $(".selector").igRadialMenu("option", "outerRingButtonHotTrackStroke");

      //Set
      $(".selector").igRadialMenu("option", "outerRingButtonHotTrackStroke", "#FF0000");

    • outerRingButtonStroke

      Type:
      string
      Default:
      null

      Returns or sets the brush for the default border of the button within the outer ring for a menu item.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          outerRingButtonStroke : "#FF0000"
      });

      //Get
      var color = $(".selector").igRadialMenu("option", "outerRingButtonStroke");

      //Set
      $(".selector").igRadialMenu("option", "outerRingButtonStroke", "#FF0000");

    • outerRingButtonStrokeThickness

      Type:
      number
      Default:
      1

      Returns or sets the width of the outline of a button in the outer ring of the menu.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          outerRingButtonStrokeThickness : 3
      });

      //Get
      var thickness = $(".selector").igRadialMenu("option", "outerRingButtonStrokeThickness");

      //Set
      $(".selector").igRadialMenu("option", "outerRingButtonStrokeThickness", 3);

    • pendingValue

      Type:
      object
      Default:
      ""

      Returns or sets the value while the user is interacting with the element.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
            {
              name: "item1",
              pendingValue: 5
            }
          ]
      });

      //Get
      var pv = $(".selector").igRadialMenu("itemOption", "item1", "pendingValue");

      //Set
      $(".selector").igRadialMenu("itemOption", "item1", "pendingValue", 5);

    • pendingValueChanged

      Type:
      object
      Default:
      null

      Cancel="false" Event invoked when the PendingValue property is changed.
      Function takes a first argument ui.
      Use ui.owner to obtain reference to menu widget.
      Use ui.oldValue to obtain the previous value.
      Use ui.newValue to obtain the new value.
      Use ui.item to obtain reference to the item.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
              {
                  name: "button1",
                  pendingValueChanged: function (evt) {
                      // Get reference to the menu item object
                      evt.item;

                      // Get the old value
                      evt.oldItem

                      // Get the new value
                      evt.newItem
                  }
              }
          ]
      });

    • pendingValueNeedleBrush

      Type:
      string
      Default:
      null

      Returns or sets the brush used to render the line that represents the PendingValue.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          pendingValueNeedleBrush : "#FF0000"
      });

      //Get
      var color = $(".selector").igRadialMenu("option", "pendingValueNeedleBrush");

      //Set
      $(".selector").igRadialMenu("option", "pendingValueNeedleBrush", "#FF0000");

    • recentItemName

      Type:
      string
      Default:
      null

      Gets or sets the name of the child item that represents the most recently interacted with item. Note other item properties may be set to "{RecentItem}" to have them automatically set to values of the associated recent child item.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          recentItemName : "botton1"
      });

      //Get
      var ri = $(".selector").igRadialMenu("option", "recentItemName");

      //Set
      $(".selector").igRadialMenu("option", "recentItemName", "botton1");

    • reserveFirstSlice

      Type:
      bool
      Default:
      false

      Returns or sets a boolean indicating whether space should be left before the first tickmark.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          reserveFirstSlice : true
      });

      //Get
      var is_open = $(".selector").igRadialMenu("option", "reserveFirstSlice");

      //Set
      $(".selector").igRadialMenu("option", "reserveFirstSlice", true);

    • smallIncrement

      Type:
      number
      Default:
      1

      Returns or sets the amount that the PendingValue should be adjusted when incrementing or decrementing the value.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          smallIncrement : 2
      });

      //Get
      var value = $(".selector").igRadialMenu("option", "smallIncrement");

      //Set
      $(".selector").igRadialMenu("option", "smallIncrement", 2);

    • tickBrush

      Type:
      string
      Default:
      null

      Returns or sets the brush used to render the tick marks.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          tickBrush : "#FF0000"
      });

      //Get
      var color = $(".selector").igRadialMenu("option", "tickBrush");

      //Set
      $(".selector").igRadialMenu("option", "tickBrush", "#FF0000");

    • ticks

      Type:
      object
      Default:
      null

      Returns or sets the values of the ticks.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
            {
              name: "item1",
              ticks: "5px,6px,8px,10px,12px"
            }
          ]
      });

      //Get
      var t = $(".selector").igRadialMenu("itemOption", "item1", "ticks");

      //Set
      $(".selector").igRadialMenu("itemOption", "item1", "ticks", 5);

    • toolTip

      Type:
      object
      Default:
      null

      Returns or sets the tooltip to be displayed for the radial menu item.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
            {
              name: "item1",
              toolTip: "This is item 1"
            }
          ]
      });

      //Get
      var tt = $(".selector").igRadialMenu("itemOption", "item1", "toolTip");

      //Set
      $(".selector").igRadialMenu("itemOption", "item1", "toolTip", "This is item 1");

    • trackEndColor

      Type:
      object
      Default:
      null

      Returns or sets the ending color for the track.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
            {
              name: "item1",
              trackEndColor: "#FF0000"
            }
          ]
      });

      //Get
      var color = $(".selector").igRadialMenu("itemOption", "item1", "trackEndColor");

      //Set
      $(".selector").igRadialMenu("itemOption", "item1", "trackEndColor", "#FF0000");

    • trackStartColor

      Type:
      object
      Default:
      null

      Returns or sets the starting color for the track.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
            {
              name: "item1",
              trackStartColor: "#FF0000"
            }
          ]
      });

      //Get
      var color = $(".selector").igRadialMenu("itemOption", "item1", "trackStartColor");

      //Set
      $(".selector").igRadialMenu("itemOption", "item1", "trackStartColor", "#FF0000");

    • type

      Type:
      enumeration
      Default:
      button

      Gets or sets a value indicating what type of item is being provided.

      Members

      • button
      • Type:string
      • .
      • coloritem
      • Type:string
      • .
      • colorwell
      • Type:string
      • .
      • list
      • Type:string
      • .
      • numericitem
      • Type:string
      • .
      • numericgauge
      • Type:string

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
            {
              name: "item1",
              type: "colorwell"
            }
          ]
      });

      //Get
      var t = $(".selector").igRadialMenu("itemOption", "item1", "type");

      //Set
      $(".selector").igRadialMenu("itemOption", "item1", "type", "colorwell");

    • unchecked

      Type:
      object
      Default:
      null

      Cancel="false" Occurs when the IsChecked is changed to false.
      Function takes a first argument ui.
      Use ui.owner to obtain reference to menu widget.
      Use ui.item to obtain reference to the item.

      Code Sample

      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
              {
                  name: "button1",
                  unchecked: function (evt) {
                      // Get reference to the menu item object
                      evt.item;
                  }
              }
          ]
      });

    • value

      Type:
      number
      Default:
      ""

      Returns or sets the value of the numeric item.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
            {
              name: "item1",
              value: 5
            }
          ]
      });

      //Get
      var t = $(".selector").igRadialMenu("itemOption", "item1", "value");

      //Set
      $(".selector").igRadialMenu("itemOption", "item1", "value", 5);

    • valueChanged

      Type:
      object
      Default:
      null

      Cancel="false" Event invoked when the Value property is changed.
      Function takes a first argument ui.
      Use ui.owner to obtain reference to menu widget.
      Use ui.oldValue to obtain the previous value.
      Use ui.newValue to obtain the new value.
      Use ui.item to obtain reference to the item.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
              {
                  name: "button1",
                  valueChanged: function (evt) {
                      // Get reference to the menu item object
                      evt.item;
                  }
              }
          ]
      });

    • valueNeedleBrush

      Type:
      string
      Default:
      null

      Returns or sets the brush used to represent the Value.

      Code Sample

      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
            {
              name: "item1",
              valueNeedleBrush: "#FF0000"
            }
          ]
      });

      //Get
      var color = $(".selector").igRadialMenu("itemOption", "item1", "valueNeedleBrush");

      //Set
      $(".selector").igRadialMenu("itemOption", "item1", "valueNeedleBrush", "#FF0000");

    • wedgeIndex

      Type:
      number
      Default:
      -1

      Returns or sets the wedge at which the item should be positioned.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
            {
              name: "item1",
              wedgeIndex: 3
            }
          ]
      });

      //Get
      var wIndex = $(".selector").igRadialMenu("itemOption", "item1", "wedgeIndex");

      //Set
      $(".selector").igRadialMenu("itemOption", "item1", "wedgeIndex", 3);

    • wedgeSpan

      Type:
      number
      Default:
      1

      Returns or sets the number of wedges that the item should occupy.

      Code Sample


      //Initialize
      $(".selector").igRadialMenu({
          items:
          [
            {
              name: "item1",
              wedgeSpan: 4
            }
          ]
      });

      //Get
      var wSpan = $(".selector").igRadialMenu("itemOption", "item1", "wedgeSpan");

      //Set
      $(".selector").igRadialMenu("itemOption", "item1", "wedgeSpan", 4);

  • menuBackground

    Type:
    string
    Default:
    null

    Returns or sets the brush for the backing of the radial menu.

    Code Sample


    //Initialize
    $(".selector").igRadialMenu({
        menuBackground : "#FF0000"
    });

    //Get
    var color = $(".selector").igRadialMenu("option", "menuBackground");

    //Set
    $(".selector").igRadialMenu("option", "menuBackground", "#FF0000");

  • menuItemOpenCloseAnimationDuration

    Type:
    number
    Default:
    250

    Returns or sets the duration of the animation performed when the IsOpen property is changed.

    Code Sample


    //Initialize
    $(".selector").igRadialMenu({
        menuItemOpenCloseAnimationDuration : 350
    });

    //Get
    var duration_ms = $(".selector").igRadialMenu("option", "menuItemOpenCloseAnimationDuration");

    //Set
    $(".selector").igRadialMenu("option", "menuItemOpenCloseAnimationDuration", 350);

  • menuItemOpenCloseAnimationEasingFunction

    Type:
    object
    Default:
    null

    Returns or sets the easing function applied to the animation that occurs when the IsOpen property is changed.

    Code Sample


    //Initialize
    $(".selector").igRadialMenu({
        items:
        [
            {
                name: "button1",
                menuItemOpenCloseAnimationEasingFunction: function (evt) {
                    // Get reference to the menu item object
                    evt.item;
                }
            }
        ]
    });

  • menuOpenCloseAnimationDuration

    Type:
    number
    Default:
    250

    Returns or sets the duration of the animation performed when the IsOpen property is changed.

    Code Sample


    //Initialize
    $(".selector").igRadialMenu({
        menuOpenCloseAnimationDuration : 350
    });

    //Get
    var duration_ms = $(".selector").igRadialMenu("option", "menuOpenCloseAnimationDuration");

    //Set
    $(".selector").igRadialMenu("option", "menuOpenCloseAnimationDuration", 350);

  • menuOpenCloseAnimationEasingFunction

    Type:
    object
    Default:
    null

    Returns or sets the easing function applied to the animation that occurs when the IsOpen property is changed.

    Code Sample


    //Initialize
    $(".selector").igRadialMenu({
        items:
        [
            {
                name: "button1",
                menuOpenCloseAnimationEasingFunction: function (evt) {
                    // Get reference to the menu item object
                    evt.item;
                }
            }
        ]
    });

  • minWedgeCount

    Type:
    number
    Default:
    8

    Returns or sets the minimum number of wedges displayed by the menu.

    Code Sample


    //Initialize
    $(".selector").igRadialMenu({
        minWedgeCount : 5
    });

    //Get
    var min_wedges = $(".selector").igRadialMenu("option", "minWedgeCount");

    //Set
    $(".selector").igRadialMenu("option", "minWedgeCount", 5);

  • outerRingFill

    Type:
    string
    Default:
    null

    Returns or sets the background of the outer ring of the menu.

    Code Sample


    //Initialize
    $(".selector").igRadialMenu({
        outerRingFill : "#FF0000"
    });

    //Get
    var color = $(".selector").igRadialMenu("option", "outerRingFill");

    //Set
    $(".selector").igRadialMenu("option", "outerRingFill", "#FF0000");

  • outerRingStroke

    Type:
    string
    Default:
    null

    Returns or sets the brush used for the outline of the outer ring.

    Code Sample


    //Initialize
    $(".selector").igRadialMenu({
        outerRingStroke : "#FF0000"
    });

    //Get
    var color = $(".selector").igRadialMenu("option", "outerRingStroke");

    //Set
    $(".selector").igRadialMenu("option", "outerRingStroke", "#FF0000");

  • outerRingStrokeThickness

    Type:
    number
    Default:
    0

    Returns or sets the width of the outline of the outer ring of the menu.

    Code Sample


    //Initialize
    $(".selector").igRadialMenu({
        outerRingStrokeThickness : 3
    });

    //Get
    var thickness = $(".selector").igRadialMenu("option", "outerRingStrokeThickness");

    //Set
    $(".selector").igRadialMenu("option", "outerRingStrokeThickness", 3);

  • outerRingThickness

    Type:
    number
    Default:
    26

    Returns or sets the thickness of the outer ring of the menu.

    Code Sample


    //Initialize
    $(".selector").igRadialMenu({
        outerRingThickness : 35
    });

    //Get
    var thickness = $(".selector").igRadialMenu("option", "outerRingThickness");

    //Set
    $(".selector").igRadialMenu("option", "outerRingThickness", 35);

  • pixelScalingRatio

    Type:
    number
    Default:
    0

  • rotationAsPercentageOfWedge

    Type:
    number
    Default:
    -0.5

    Returns or sets the starting angle of the items expressed as the percentage of the width of a single wedge/slice.

    Code Sample


    //Initialize
    $(".selector").igRadialMenu({
        rotationAsPercentageOfWedge : 0.5
    });

    //Get
    var degree = $(".selector").igRadialMenu("option", "rotationAsPercentageOfWedge");

    //Set
    $(".selector").igRadialMenu("option", "rotationAsPercentageOfWedge", 0.5);

  • rotationInDegrees

    Type:
    number
    Default:
    -90

    Returns or sets the starting angle of the items in degrees.

    Code Sample


    //Initialize
    $(".selector").igRadialMenu({
        rotationInDegrees : -180
    });

    //Get
    var degree = $(".selector").igRadialMenu("option", "rotationInDegrees");

    //Set
    $(".selector").igRadialMenu("option", "rotationInDegrees", -180);

  • wedgePaddingInDegrees

    Type:
    number
    Default:
    0

    Returns or sets the amount of padding around each wedge in degrees.

    Code Sample


    //Initialize
    $(".selector").igRadialMenu({
        wedgePaddingInDegrees : 15
    });

    //Get
    var degree = $(".selector").igRadialMenu("option", "wedgePaddingInDegrees");

    //Set
    $(".selector").igRadialMenu("option", "wedgePaddingInDegrees", 15);


For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • closed

    Cancellable:
    false

    Invoked when the IsOpen property is changed to false.
    Function takes a first argument ui.
    Use ui.owner to obtain reference to menu widget.

    Code Sample

    //Initialize
    $(".selector").igRadialMenu({
        items:
        [
            {
                name: "button1",
                closed: function (evt) {
                    // Get reference to the menu item object
                    evt.item;
                }
            }
        ]
    });

  • opened

    Cancellable:
    false

    Invoked when the IsOpen property is changed to true.
    Function takes a first argument ui.
    Use ui.owner to obtain reference to menu widget.

    Code Sample

    //Initialize
    $(".selector").igRadialMenu({
        items:
        [
            {
                name: "button1",
                opened: function (evt) {
                    // Get reference to the menu item object
                    evt.item;
                }
            }
        ]
    });

  • destroy

    .igRadialMenu( "destroy" );

    Destroys the widget.

    Code Sample

    $(".selector").igRadialMenu("destroy");

  • exportVisualData

    .igRadialMenu( "exportVisualData" );

    Exports visual data from the radial menu to aid in unit testing.

    Code Sample


    var data = $(".selector").igRadialMenu("exportVisualData");

  • flush

    .igRadialMenu( "flush" );

    Forces any pending deferred work to render on the radial menu before continuing.

    Code Sample

    $(".selector").igRadialMenu("flush");

  • itemOption

    .igRadialMenu( "itemOption", itemKey:string, key:string, value:object );
    Return Type:
    object
    Return Type Description:
    The value of the property if the value parameter is undefined otherwise a boolean indicating if the property was changed.

    Gets or sets the value of a property for the item created with the specified key.

    • itemKey
    • Type:string
    • The name of the item.
    • key
    • Type:string
    • The name of the property/option.
    • value
    • Type:object
    • The new value for the property or undefined to obtain the current value.

    Code Sample

    //Get
    var value = $(".selector").igRadialMenu("itemOption", "optionName");

    //Set
    $(".selector").igRadialMenu("itemOption", "optionName", "optionValue");

  • styleUpdated

    .igRadialMenu( "styleUpdated" );

    Notify the radial menu that style information used for rendering the menu may have been updated.

    Code Sample

    var response = $(".selector").igRadialMenu("styleUpdated");

  • ui-radialmenu

    Get the class applied to main element: ui-radialMenu.
  • ui-radialmenu-tooltip ui-corner-all

    Class applied to the tooltip element: ui-radialmenu-tooltip ui-corner-all.
  • ui-html5-non-html5-supported-message ui-helper-clearfix ui-html5-non-html5

    Get the class applied to main element, shown when the radialMenu is opened in a non HTML5 compatible browser.

Copyright © 1996 - 2024 Infragistics, Inc. All rights reserved.
