Ignite UI™ API Documentation

ui.igPivotDataSelector

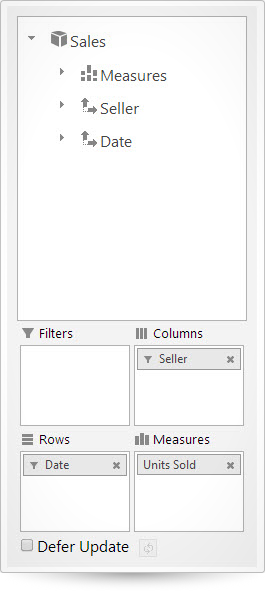

igPivotDataSelector is an interactive UI control (jQuery UI widget) that enables users to select data slices, typically, when data is being visualized in an igPivotGrid™. It is a supplementary control working together with the data source components.

Code Sample

<!doctype html>
<html>
<head>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
    <!-- Infragistics Combined Scripts -->
    <script src="js/infragistics.core.js" type="text/javascript"></script>
    <script src="js/infragistics.lob.js" type="text/javascript"></script>
    <script type="text/javascript">
        var data =
                [{ "ProductCategory": "Clothing", "UnitPrice": 12.81, "SellerName": "Stanley Brooker", "Country": "Bulgaria", "City": "Plovdiv", "Date": "01/01/2012", "UnitsSold": 282 },
                { "ProductCategory": "Clothing", "UnitPrice": 49.57, "SellerName": "Elisa Longbottom", "Country": "US", "City": "New York", "Date": "01/05/2013", "UnitsSold": 296 },
                { "ProductCategory": "Bikes", "UnitPrice": 3.56, "SellerName": "Lydia Burson", "Country": "Uruguay", "City": "Ciudad de la Costa", "Date": "01/06/2011", "UnitsSold": 68 },
                { "ProductCategory": "Accessories", "UnitPrice": 85.58, "SellerName": "David Haley", "Country": "UK", "City": "London", "Date": "04/07/2012", "UnitsSold": 293 },
                { "ProductCategory": "Components", "UnitPrice": 18.13, "SellerName": "John Smith", "Country": "Japan", "City": "Yokohama", "Date": "12/08/2012", "UnitsSold": 240 },
                { "ProductCategory": "Clothing", "UnitPrice": 68.33, "SellerName": "Larry Lieb", "Country": "Uruguay", "City": "Ciudad de la Costa", "Date": "05/12/2011", "UnitsSold": 456 },
                { "ProductCategory": "Components", "UnitPrice": 16.05, "SellerName": "Walter Pang", "Country": "Bulgaria", "City": "Sofia", "Date": "02/19/2013", "UnitsSold": 492 }];

        $(function () {
            $('#dataSelector').igPivotDataSelector({
                dataSourceOptions: {
                    flatDataOptions:
                        {
                            dataSource: data,
                            metadata: {
                                cube: {
                                    name: "Sales",
                                    caption: "Sales",
                                    measuresDimension: {
                                        caption: "Measures",
                                        measures: [ //for each measure, name and aggregator are required
                                            {
                                                caption: "Units Sold", name: "UnitsSold",
                                                // returns a function that will be used as sum aggregatro on the 'UnitsSold property' of the data objects
                                                aggregator: $.ig.OlapUtilities.prototype.sumAggregator('UnitsSold')
                                            }]
                                    },
                                    dimensions: [ // for each dimension name and hierarchies are required
                                        {
                                            caption: "Seller", name: "Seller", hierarchies: [{
                                                caption: "Seller", name: "Seller", levels: [
                                                    {
                                                        name: "AllSellers", caption: "All Sellers",
                                                        memberProvider: function (item) { return "All Sellers"; }
                                                    },
                                                    {
                                                        name: "SellerName", caption: "Seller",
                                                        memberProvider: function (item) { return item.SellerName; }
                                                    }]
                                            }]
                                        },
                                        {
                                            caption: "Date", name: "Date", /*displayFolder: "Folder1\\Folder2",*/ hierarchies: [
                                                $.ig.OlapUtilities.prototype.getDateHierarchy(
                                                    "Date", // the source property name
                                                    ["year", "quarter", "month", "date"], // the date parts for which levels will be generated (optional)
                                                    "Dates", // The name for the hierarchy (optional)
                                                    "Date", // The caption for the hierarchy (optional)
                                                    ["Year", "Quarter", "Month", "Day"], // the captions for the levels (optional)
                                                    "All Periods") // the root level caption (optional)
                                            ]
                                        }
                                    ]
                                }
                            }
                        },
                    // Preload hiearhies for the rows, columns, filters and measures
                    rows: "[Date].[Dates]",
                    columns: "[Seller].[Seller]",
                    measures: "[Measures].[UnitsSold]"
                }
            });
        });
    </script>
</head>
<body>
    <div id="dataSelector"></div>
</body>
</html>

Related Samples

customMoveValidation

Type:: function
Default:: null

A function that will be called to determine if an item can be moved in or dropped on an area of the data selector.

paramType="string" The location where the item will be moved - igPivotGrid, igPivotDataSelector, filters, rows, columns or measures.
paramType="string" The type of the item - Hierarchy, Measure or MeasureList.
paramType="string" The unique name of the item.
returnType="bool" The function must return true if the item should be accepted.

Code Sample

//Initialize
$(".selector").igPivotDataSelector({
    customMoveValidation : function(location, itemType, uniqueName) {
        // disable moving of any element to the columns
        if (location == 'columns') {
            return false;
        }
        // if the current item is a hierarchy containing the word "Seller" in its uniqueName, disable the move
        if (itemType == 'Hierarchy'
            && uniqueName.indexOf("Seller") !== -1) {
            return false;
        }

        // in all other cases allow the move
        return true;
    }
});

//Get
var customValidation = $(".selector").igPivotDataSelector("option", "customMoveValidation");

//Set
$(".selector").igPivotDataSelector("option", "customMoveValidation", validationFunc);

dataSource

Type:: object
Default:: null

An instance of $.ig.OlapXmlaDataSource or $.ig.OlapFlatDataSource.

Code Sample

//Initialize
$(".selector").igPivotDataSelector({
    dataSource : ds
});

//Get
var dataSource = $(".selector").igPivotDataSelector("option", "dataSource");

//Set
$(".selector").igPivotDataSelector("option", "dataSource", ds);

dataSourceOptions

Type:: object
Default:: {}

An object that will be used to create an instance of $.ig.OlapXmlaDataSource or $.ig.OlapFlatDataSource.
The provided value must contain an object with settings for one of the data source types - xmlaOptions or flatDataOptions.

Code Sample

    //Initialize
$(".selector").igPivotDataSelector({
    dataSourceOptions: {
        flatDataOptions:
            {
                [{ "ProductCategory": "Clothing", "UnitPrice": 12.81, "SellerName": "Stanley Brooker", "Country": "Bulgaria", "City": "Plovdiv", "Date": "01/01/2012", "UnitsSold": 282 },
                { "ProductCategory": "Clothing", "UnitPrice": 49.57, "SellerName": "Elisa Longbottom", "Country": "US", "City": "New York", "Date": "01/05/2013", "UnitsSold": 296 },
                { "ProductCategory": "Bikes", "UnitPrice": 3.56, "SellerName": "Lydia Burson", "Country": "Uruguay", "City": "Ciudad de la Costa", "Date": "01/06/2011", "UnitsSold": 68 },
                { "ProductCategory": "Accessories", "UnitPrice": 85.58, "SellerName": "David Haley", "Country": "UK", "City": "London", "Date": "04/07/2012", "UnitsSold": 293 },
                { "ProductCategory": "Components", "UnitPrice": 18.13, "SellerName": "John Smith", "Country": "Japan", "City": "Yokohama", "Date": "12/08/2012", "UnitsSold": 240 },
                { "ProductCategory": "Clothing", "UnitPrice": 68.33, "SellerName": "Larry Lieb", "Country": "Uruguay", "City": "Ciudad de la Costa", "Date": "05/12/2011", "UnitsSold": 456 },
                { "ProductCategory": "Components", "UnitPrice": 16.05, "SellerName": "Walter Pang", "Country": "Bulgaria", "City": "Sofia", "Date": "02/19/2013", "UnitsSold": 492 }],
                metadata: {
                    cube: {
                        name: "Sales",
                        caption: "Sales",
                        measuresDimension: {
                            caption: "Measures",
                            measures: [ //for each measure, name and aggregator are required
                                { caption: "UnitsSold", name: "UnitsSold", aggregator: $.ig.OlapUtilities.prototype.sumAggregator('UnitsSold') }]
                        },
                        dimensions: [ // for each dimension name and hierarchies are required
                            {
                                caption: "Seller", name: "Seller", hierarchies: [{
                                    caption: "Seller", name: "Seller", levels: [
                                        {
                                            name: "AllSellers", caption: "All Sellers",
                                            memberProvider: function (item) { return "All Sellers"; }
                                        },
                                        {
                                            name: "SellerName", caption: "Seller",
                                            memberProvider: function (item) { return item.SellerName; }
                                        }]
                                }]
                            },
                            {
                                caption: "Date", name: "Date", hierarchies: [
                                    $.ig.OlapUtilities.prototype.getDateHierarchy(
                                        "Date", // the source property name
                                        ["year", "quarter", "month", "date"], // the date parts for which levels will be generated (optional)
                                        "Dates", // The name for the hierarchy (optional)
                                        "Date", // The caption for the hierarchy (optional)
                                        ["Year", "Quarter", "Month", "Day"], // the captions for the levels (optional)
                                        "AllPeriods") // the root level caption (optional)
                                ]
                            }
                        ]
                    }
                }
            },
        // Preload hiearhies for the rows, columns, filters and measures
        rows: "[Date].[Dates]",
        columns: "[Seller].[Seller]",
        measures: "[Measures].[UnitsSold]"
    }
});

//Get
$(".selector").igPivotDataSelector("option", "dataSourceOptions");

//Set
$(".selector").igPivotDataSelector("option", "dataSourceOptions", dataOptions);


columns

Type:

string

Default:

null

A list of hierarchy names separated by comma (,). These will be the hierarchies in the columns of the data source.
filters

Type:

string

Default:

null

A list of hierarchy names separated by comma (,). These will be hierarchies in the filters of the data source.
flatDataOptions

Type:

object

Default:

{}
Settings for creating an instance of $.ig.OlapFlatDataSource.
- dataSource

  Type:

  object

  Default:

  null

  Specifies any valid data source accepted by $.ig.DataSource, or an instance of an $.ig.DataSource itself.
- dataSourceType

  Type:

  string

  Default:

  null

  Explicitly set data source type (such as "json"). Please refer to the documentation of $.ig.DataSource and its type property.
- dataSourceUrl

  Type:

  string

  Default:

  null

  Specifies a remote URL accepted by $.ig.DataSource in order to request data from it.
- metadata

  Type:

  object

  Default:

  {}
  Optional="false" An object containing processing instructions for the $.ig.DataSource data.
  - cube

    Type:

    object

    Default:

    {}

    Optional="false" Metadata used for the creation of the cube.

    caption

    Type:

    string

    Default:

    null

    A caption for the cube.

    dimensions

    Type:

    array

    Default:

    []

    Elements Type:

    object

    An array of dimension metadata objects.

    caption

    Type:

    string

    Default:

    null

    A caption for the dimension.

    hierarchies

    Type:

    array

    Default:

    []

    Elements Type:

    object

    An array of hierarchy metadata objects.

    caption

    Type:

    string

    Default:

    null

    A caption for the hierarchy.

    displayFolder

    Type:

    string

    Default:

    null

    The path to be used when displaying the hierarchy in the user interface.
    Nested folders are indicated by a backslash (\).
    The folder hierarchy will appear under parent dimension node.

    levels

    Type:

    array

    Default:

    []

    Elements Type:

    object

    An array of level metadata objects.

    caption

    Type:

    string

    Default:

    null

    A caption for the level.

    memberProvider

    Type:

    function

    Default:

    null

    A function called for each item of the data source array when level members are created.
    Based on the item parameter the function should return a value that will form the $.ig.Member’s name and caption.

    name

    Type:

    string

    Default:

    null

    Optional="false" A name for the level.
    The unique name of the level is formed using the following pattern:
    {<hierarchy.uniqueName>}.[<levelMetadata.name>].

    name

    Type:

    string

    Default:

    null

    Optional="false" A name for the hierarchy.
    The unique name of the hierarchy is formed using the following pattern:
    [<parentDimension.name>].[<hierarchyMetadata.name>].

    name

    Type:

    string

    Default:

    null

    Optional="false" A unique name for the dimension.

    measuresDimension

    Type:

    object

    Default:

    {}

    An object providing information about the measures' root node.

    caption

    Type:

    string

    Default:

    null

    A caption for the measures dimension.
    The default value is "Measures".

    measures

    Type:

    array

    Default:

    []

    Elements Type:

    object

    An array of measure metadata objects.

    aggregator

    Type:

    function

    Default:

    null

    Optional="false" An aggregator function called when each cell is evaluated.
    Returns a value for the cell. If the returned value is null, no cell will be created in for the data source result.

    caption

    Type:

    string

    Default:

    null

    A caption for the measure.

    displayFolder

    Type:

    string

    Default:

    null

    The path used when displaying the measure in the user interface. Nested folders are indicated by a backslash (\).

    name

    Type:

    string

    Default:

    null

    Optional="false" A unique name for the measure.

    name

    Type:

    string

    Default:

    null

    A unique name for the measures dimension.
    The default value is "Measures". This name is used to create the names of dimensions using the following pattern:
    [<measuresDimensionMetadata.name>].[<measureMetadata.name>].

    name

    Type:

    string

    Default:

    null

    Optional="false" A unique name for the cube.
- responseDataKey

  Type:

  string

  Default:

  null

  See $.ig.DataSource.
  string Specifies the name of the property in which data records are held if the response is wrapped.
  null Option is ignored.
- responseDataType

  Type:

  string

  Default:

  null

  String Explicitly set data source type (such as "json"). Please refer to the documentation of $.ig.DataSource and its type property.
  null Option is ignored.
measures

Type:

string

Default:

null

A list of measure names separated by comma (,). These will be the measures of the data source.
rows

Type:

string

Default:

null

A list of hierarchy names separated by comma (,). These will be the hierarchies in the rows of the data source.
xmlaOptions

Type:

object

Default:

{}
Settings for creating an instance of $.ig.OlapXmlaDataSource.
- catalog

  Type:

  string

  Default:

  null

  The catalog name.
- cube

  Type:

  string

  Default:

  null

  The name of the cube in the data source.
- discoverProperties

  Type:

  object

  Default:

  null

  Additional properties sent with every discover request.
  The object is treated as a key/value store where each property name is used as the key and the property value as the value.
- enableResultCache

  Type:

  bool

  Default:

  true

  Enables/disables caching of the XMLA result object.
- executeProperties

  Type:

  object

  Default:

  null

  Additional properties sent with every execute request.
  The object is treated as a key/value store where each property name is used as the key and the property value as the value.
- mdxSettings

  Type:

  object

  Default:

  {}
  Optional="true" a javascript object containing information about how the request to the xmla server should be processed.
  - addCalculatedMembersOnColumns

    Type:

    bool

    Default:

    true

    Optional="true" a value indicating whether a members' set expressions on COLUMNS axis should be wrapped with AddCalculatedMembers MDX method. Default value is true.
  - addCalculatedMembersOnRows

    Type:

    bool

    Default:

    true

    Optional="true" a value indicating whether a members' set expressions on ROWS axis should be wrapped with AddCalculatedMembers MDX method. Default value is true.
  - dimensionPropertiesOnColumns

    Type:

    array

    Default:

    []

    Elements Type:

    object

    Optional="true" a string array with the names of intrinsic non-context sensitive member properties applied on COLUMNS axis. By defult CHILDREN_CARDINALITY and PARENT_UNIQUE_NAME properties are always added to DIMENSION PROPERTIES.
  - dimensionPropertiesOnRows

    Type:

    array

    Default:

    []

    Elements Type:

    object

    Optional="true" a string array with the names of intrinsic non-context sensitive member properties applied on ROWS axis. By defult CHILDREN_CARDINALITY and PARENT_UNIQUE_NAME properties are always added to DIMENSION PROPERTIES.
  - nonEmptyOnColumns

    Type:

    bool

    Default:

    true

    Optional="true" a value indicating whether a NON EMPTY clause is present on COLUMNS axis. Default value is true.
  - nonEmptyOnRows

    Type:

    bool

    Default:

    true

    Optional="true" a value indicating whether a NON EMPTY clause is present on ROWS axis. Default value is true.
- measureGroup

  Type:

  string

  Default:

  null

  The name of the measure group in the data source.
- requestOptions

  Type:

  object

  Default:

  {}
  An object containing information about how the request to the XMLA server should be processed.
  - beforeSend

    Type:

    function

    Default:

    null

    A callback to be invoked right before the request is send to the server. Extends beforeSend callback of jQuery.ajax’s options object.
  - withCredentials

    Type:

    bool

    Default:

    false

    The value is applied to XmlHttpRequest.withCredentials if supported by the user agent.
    Setting this property to true will allow IE8/IE9 to make authenticated cross-origin requests to tusted domains through XmlHttpRequest instead of XDomainRequest
    and will prompt the user for credentials.
- serverUrl

  Type:

  string

  Default:

  null

  Optional="false" The URL of the XMLA server.

deferUpdate

Type:: bool
Default:: false

Setting deferUpdate to true will not apply changes to the data source until the update method is called or the update layout button is clicked.

Code Sample

//Initialize
$(".selector").igPivotDataSelector({
    deferUpdate : true
});

//Get
var deferUpdate = $(".selector").igPivotDataSelector("option", "deferUpdate");

//Set
$(".selector").igPivotDataSelector("option", "deferUpdate", true);

disableColumnsDropArea

Type:: bool
Default:: false

Disable the drag and drop for the columns drop area and the ability to use filtering and remove items from it.

Code Sample

//Initialize
$('.selector').igPivotDataSelector({
    disableColumnsDropArea : true
});

//Get
var disableColumnsDropArea = $(".selector").igPivotDataSelector("option", "disableColumnsDropArea");

//Set
$(".selector").igPivotDataSelector("option", "disableColumnsDropArea", true);

disableFiltersDropArea

Type:: bool
Default:: false

Disable the drag and drop for the filters drop area and the ability to use filtering and remove items from it.

Code Sample

//Initialize
$('.selector').igPivotDataSelector({
    disableFiltersDropArea : true
});

//Get
var disableFiltersDropArea = $(".selector").igPivotDataSelector("option", "disableFiltersDropArea");

//Set
$(".selector").igPivotDataSelector("option", "disableFiltersDropArea", true);

disableMeasuresDropArea

Type:: bool
Default:: false

Disable the drag and drop for the measures drop area and the ability to use filtering and remove items from it.

Code Sample

//Initialize
$('.selector').igPivotDataSelector({
    disableMeasuresDropArea : true
});

//Get
var disableMeasuresDropArea = $(".selector").igPivotDataSelector("option", "disableMeasuresDropArea");

//Set
$(".selector").igPivotDataSelector("option", "disableMeasuresDropArea", true);

disableRowsDropArea

Type:: bool
Default:: false

Disable the drag and drop for the rows drop area and the ability to use filtering and remove items from it.

Code Sample

//Initialize
$('.selector').igPivotDataSelector({
    disableRowsDropArea : true
});

//Get
var disableRowsDropArea = $(".selector").igPivotDataSelector("option", "disableRowsDropArea");

//Set
$(".selector").igPivotDataSelector("option", "disableRowsDropArea", true);

dragAndDropSettings

Type:: object
Default:: {}

Settings for the drag and drop functionality of the igPivotDataSelector.

Code Sample

//Initialize
$(".selector").igPivotDataSelector({
    dragAndDropSettings : {
        appendTo : $("element"),
        containment : true,
        zIndex : 10
    }
});

//Get
var dragAndDropSettings = $(".selector").igPivotDataSelector("option", "dragAndDropSettings");

//Set
$(".selector").igPivotDataSelector("option", "dragAndDropSettings", settings );

appendTo

Type:

enumeration

Default:

body

Which element the draggable helper should be appended to while dragging.
containment

Type:

enumeration

Default:

false

Specifies the containment for the drag helper. The area inside of which the helper is contained would be scrollable while dragging.
zIndex

Type:

number

Default:

10

Specifies z-index that would be set for the drag helper.

dropDownParent

Type:

enumeration

Default:

body

Specifies the parent for the drop downs.

height

Type:: enumeration
Default:: null

This is the total height of the grid, including all UI elements - scroll container with data rows, header, footer, filter row - (if any), etc.

Members

string
Type:string
The widget height can be set in pixels (px) and percentage (%).
number
Type:number
The widget height can be set as a number.
null
Type:object
will stretch vertically to fit data, if no other heights are defined.

Code Sample

//Initialize
$('.selector').igPivotDataSelector({
    height : "600px"
});
//Get
$(".selector").igPivotDataSelector("option", "height");
//Set
$(".selector").igPivotDataSelector("option", "height", "600px");

language
Inherited

Type:: string
Default:: "en"

Set/Get the locale language setting for the widget.

Code Sample

    //Initialize
$(".selector").igPivotDataSelector({
    language: "ja"
});

// Get
var language = $(".selector").igPivotDataSelector("option", "language");

// Set
$(".selector").igPivotDataSelector("option", "language", "ja");

locale
Inherited

Type:: object
Default:: null

Set/Get the locale setting for the widget.

Code Sample

    //Initialize
$(".selector").igPivotDataSelector({
    locale: {}
});

// Get
var locale = $(".selector").igPivotDataSelector("option", "locale");

// Set
$(".selector").igPivotDataSelector("option", "locale", {});

regional
Inherited

Type:: enumeration
Default:: defaults

Set/Get the regional setting for the widget.

Code Sample

//Initialize
$(".selector").igPivotDataSelector({
    regional: "ja"
});
// Get
var regional = $(".selector").igPivotDataSelector("option", "regional");
// Set
$(".selector").igPivotDataSelector("option", "regional", "ja");

width

Type:: enumeration
Default:: 250

Members

string
Type:string
The widget width can be set in pixels (px) and percentage (%). The recommended width is 250px.
number
Type:number
The widget width can be set as a number.
null
Type:object
will stretch to fit data, if no other widths are defined.

Code Sample

//Initialize
$('.selector').igPivotDataSelector({
    width : "300px"
});
//Get
$(".selector").igPivotDataSelector("option", "width");
//Set
$(".selector").igPivotDataSelector("option", "width", "300px");

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details

dataSelectorRendered

Cancellable:: false

Fired after the data selector is rendered. Changing the data source instance will re-render the data selector.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igpivotdataselectordataselectorrendered", ".selector", function (evt, ui) {
//return reference to igPivotDataSelector
ui.owner;
});

//Initialize
$(".selector").igPivotDataSelector({
dataSelectorRendered: function(evt, ui) {...}
});

dataSourceInitialized

Cancellable:: false

Fired after the data source has initialized.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igpivotdataselectordatasourceinitialized", ".selector", function (evt, ui) {
//return reference to the data source
ui.dataSource;
//return a bool idicating whether an error has occured during initialization
ui.error;
//return a reference to the root of the data source metatadata root item
ui.metadataTreeRoot;
//return reference to igPivotDataSelector
ui.owner;
});

//Initialize
$(".selector").igPivotDataSelector({
dataSourceInitialized: function(evt, ui) {...}
});

dataSourceUpdated

Cancellable:: false

Fired after the data source has updated.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igpivotdataselectordatasourceupdated", ".selector", function (evt, ui) {
//return reference to the data source
ui.dataSource;
//return a bool idicating whether an error has occured during initialization
ui.error;
//return a reference to result of the update operation
ui.result;
//return reference to igPivotDataSelector
ui.owner;
});

//Initialize
$(".selector").igPivotDataSelector({
dataSourceUpdated: function(evt, ui) {...}
});

deferUpdateChanged

Cancellable:: false

Fired when the defer update checkbox changes.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igpivotdataselectordeferupdatechanged", ".selector", function (evt, ui) {
//return the value of the deferUpdate option
ui.deferUpdate;
//return reference to igPivotDataSelector
ui.owner;
});

//Initialize
$(".selector").igPivotDataSelector({
deferUpdateChanged: function(evt, ui) {...}
});

drag

Cancellable:: true

Fired on drag. Return false to cancel the dragging.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igpivotdataselectordrag", ".selector", function (evt, ui) {
//return a reference to the helper
ui.helper;
//return a reference to the offset
ui.offset;
//return a reference to the original position of the draggable element
ui.originalPosition;
//return a reference to the current position of the draggable element
ui.position;
});

//Initialize
$(".selector").igPivotDataSelector({
drag: function(evt, ui) {...}
});

dragStart

Cancellable:: true

Fired on drag start. Return false to cancel the drag.

ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igpivotdataselectordragstart", ".selector", function (evt, ui) {
//return a reference to the data
ui.metadata;
//return a reference to the helper
ui.helper;
//return a reference to the offset
ui.offset;
//return a reference to the original position of the draggable element
ui.originalPosition;
//return a reference to the current position of the draggable element
ui.position;
});

//Initialize
$(".selector").igPivotDataSelector({
dragStart: function(evt, ui) {...}
});

dragStop

Cancellable:: false

Fired on drag stop.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igpivotdataselectordragstop", ".selector", function (evt, ui) {
//return a reference to the helper
ui.helper;
//return a reference to the offset
ui.offset;
//return a reference to the original position of the draggable element
ui.originalPosition;
//return a reference to the current position of the draggable element
ui.position;
});

//Initialize
$(".selector").igPivotDataSelector({
dragStop: function(evt, ui) {...}
});

filterDropDownClosed

Cancellable:: false

Fired after the filter members drop down closes.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igpivotdataselectorfilterdropdownclosed", ".selector", function (evt, ui) {
//return a reference to the hierarchy
ui.hierarchy;
});

//Initialize
$(".selector").igPivotDataSelector({
filterDropDownClosed: function(evt, ui) {...}
});

filterDropDownClosing

Cancellable:: true

Fired before the filter members drop down closes. Return false to cancel the closing.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igpivotdataselectorfilterdropdownclosing", ".selector", function (evt, ui) {
//return a reference to the drop down
ui.dropDownElement;
//return a reference to the hierarchy
ui.hierarchy;
});

//Initialize
$(".selector").igPivotDataSelector({
filterDropDownClosing: function(evt, ui) {...}
});

filterDropDownOk

Cancellable:: true

Fired after the OK button in the filter members drop down is clicked. Return false to cancel the applying of the filters.

ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igpivotdataselectorfilterdropdownok", ".selector", function (evt, ui) {
//return a reference to the drop down
ui.dropDownElement;
//return the collection with the selected filter members. If all filter members are selected, the collection will be empty.
ui.filterMembers;
//return a reference to the hierarchy
ui.hierarchy;
});

//Initialize
$(".selector").igPivotDataSelector({
filterDropDownOk: function(evt, ui) {...}
});

filterDropDownOpened

Cancellable:: false

Fired after the filter members drop down opens.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igpivotdataselectorfilterdropdownopened", ".selector", function (evt, ui) {
//return a reference to the drop down
ui.dropDownElement;
//return a reference to the hierarchy
ui.hierarchy;
});

//Initialize
$(".selector").igPivotDataSelector({
filterDropDownOpened: function(evt, ui) {...}
});

filterDropDownOpening

Cancellable:: true

Fired before the filter members drop down opens. Return false to cancel the opening.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igpivotdataselectorfilterdropdownopening", ".selector", function (evt, ui) {
//return a reference to the hierarchy
ui.hierarchy;
});

//Initialize
$(".selector").igPivotDataSelector({
filterDropDownOpening: function(evt, ui) {...}
});

filterMembersLoaded
Deprecated

Cancellable:: false

Fired after the filter members are loaded.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igpivotdataselectorfiltermembersloaded", ".selector", function (evt, ui) {
//return the collection with the root filter members
ui.parent;
//return the collection with the newly loaded filter members
ui.rootFilterMembers;
});

//Initialize
$(".selector").igPivotDataSelector({
filterMembersLoaded: function(evt, ui) {...}
});

metadataDropped

Cancellable:: false

Fired after a metadata item drop.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igpivotdataselectormetadatadropped", ".selector", function (evt, ui) {
//return a reference to the dragged element
ui.draggedElement;
//return a reference to the drop target
ui.targetElement;
//return a reference to the data
ui.metadata;
//return the index at which the metadata is inserted
ui.metadataIndex;
//return a reference to the helper
ui.helper;
//return a reference to the offset
ui.offset;
//return a reference to the current position of the draggable element
ui.position;
});

//Initialize
$(".selector").igPivotDataSelector({
metadataDropped: function(evt, ui) {...}
});

metadataDropping

Cancellable:: true

Fired before a metadata item drop. Return false to cancel the drop.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igpivotdataselectormetadatadropping", ".selector", function (evt, ui) {
//return a reference to the dragged element
ui.draggedElement;
//return a reference to the drop target
ui.targetElement;
//return a reference to the data
ui.metadata;
//return the index at which the metadata is inserted
ui.metadataIndex;
//return a reference to the helper
ui.helper;
//return a reference to the offset
ui.offset;
//return a reference to the current position of the draggable element
ui.position;
});

//Initialize
$(".selector").igPivotDataSelector({
metadataDropping: function(evt, ui) {...}
});

metadataRemoved

Cancellable:: false

Fired after a metadata item is removed when the user clicks the close icon.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igpivotdataselectormetadataremoved", ".selector", function (evt, ui) {
//return a reference to the data
ui.metadata;
});

//Initialize
$(".selector").igPivotDataSelector({
metadataRemoved: function(evt, ui) {...}
});

metadataRemoving

Cancellable:: true

Fired before a metadata item is removed when the user clicks the close icon. Return false to cancel the removing.

evt
Type: Event

JQuery event object.
ui
Type: Object

Code Sample

//Bind after initialization
$(document).on("igpivotdataselectormetadataremoving", ".selector", function (evt, ui) {
//return a reference to the drop target
ui.targetElement;
//return a reference to the data
ui.metadata;
});

//Initialize
$(".selector").igPivotDataSelector({
metadataRemoving: function(evt, ui) {...}
})

Show Details

changeGlobalLanguage
Inherited

.igPivotDataSelector( "changeGlobalLanguage" );
Changes the widget language to global language. Global language is the value in $.ig.util.language.
Code Sample

$(".selector").igPivotDataSelector("changeGlobalLanguage");
changeGlobalRegional
Inherited

.igPivotDataSelector( "changeGlobalRegional" );
Changes the widget regional settins to global regional settings. Global regional settings are container in $.ig.util.regional.
Code Sample

$(".selector").igPivotDataSelector("changeGlobalRegional");
changeLocale

.igPivotDataSelector( "changeLocale" );
Changes the all locales into the widget element to the language specified in options.language
Note that this method is for rare scenarios, see language or locale option setter.
Code Sample

$(".selector").igPivotDataSelector("changeLocale");
destroy

.igPivotDataSelector( "destroy" );
Destroy is part of the jQuery UI widget API and does the following:
1. Remove custom CSS classes that were added.
2. Unwrap any wrapping elements such as scrolling divs and other containers.
3. Unbind all events that were bound.
Code Sample

$(".selector").igPivotDataSelector("destroy");
update

.igPivotDataSelector( "update" );
Updates the data source.
Code Sample

$(".selector").igPivotDataSelector("update");

active

Class applied to the drop areas, which can accept a drop.
ui-igpivotdataselector-catalog

Class applied to the catalog combo.
ui-icon ui-icon-pivot-columns

Classes applied to the columns drop area icon.
ui-igpivotdataselector-cube

Class applied to the cube combo.
ui-igpivotdataselector

Class applied to the the data selector element.
ui-igpivotdataselector-root

Class applied to the root container for the data selector.
ui-igpivot-droparea ui-widget-content

Classes applied to the drop areas.
ui-igpivotdataselector-dropareas

Class applied to the table with the drop areas.
ui-state-highlight

Class applied to the valid drop element.
ui-igpivot-filterdropdown ui-widget ui-widget-content

Classes applied to the filters drop down element.
ui-icon ui-icon-pivot-smallfilter ui-icon-carat-1-s

Classes applied to the filter icon in the metadata items.
ui-igpivot-filtermembers

Class applied to the tree containing the filter members.
ui-icon ui-icon-pivot-filters

Classes applied to the filters drop area icon.
ui-igpivot-insertitem ui-state-highlight ui-corner-all

Classes applied to the insert item indicator in the drop areas.
ui-state-error

Class applied to the invalid drop element.
ui-igpivotdataselector-measuregroup

Class applied to the measure group combo.
ui-icon ui-icon-pivot-measures

Classes applied to the measures drop area icon.
ui-igpivotdataselector-metadata ui-widget-content

Classes applied to the metadata tree.
ui-igpivot-metadataitem ui-widget ui-corner-all ui-state-default

Classes applied to the elements representing metadata items - in the metadata tree and the drop areas.
ui-igpivot-metadatadropdown ui-widget ui-widget-content

Classes applied to the metadata item drop down element.
ui-icon ui-icon-pivot-rows

Classes applied to the rows drop area icon.
ui-igpivotdataselector-updatelayout

Class applied to the update layout button.

Ignite UI for jQuery | API Reference

ui.igPivotDataSelector

Code Sample

Related Samples

Related Topics

Dependencies

Inherits

cube

caption

dimensions

caption

hierarchies

caption

displayFolder

levels

caption

memberProvider

name

name

name

measuresDimension

caption

measures

aggregator

caption

displayFolder

name

name

name

addCalculatedMembersOnColumns

addCalculatedMembersOnRows

dimensionPropertiesOnColumns

dimensionPropertiesOnRows

nonEmptyOnColumns

nonEmptyOnRows

beforeSend

withCredentials
